Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 3-1: Software requirements - Reuse of pre-existing software elements to implement all or part of a safety function

IEC TS 61508-3-1:2016(E) presents requirements by the application of which pre-existing software elements may be claimed to be proven-in-use for all or a part of safety function(s) of SIL1 or SIL2.

General Information

Status
Published
Publication Date
12-Jul-2016
Technical Committee
Current Stage
PPUB - Publication issued
Start Date
30-Sep-2016
Completion Date
13-Jul-2016
Ref Project

Buy Standard

Technical specification
IEC TS 61508-3-1:2016 - Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 3-1: Software requirements - Reuse of pre-existing software elements to implement all or part of a safety function
English language
10 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC TS 61508-3-1 ®
Edition 1.0 2016-07
TECHNICAL
SPECIFICATION
Functional safety of electrical/electronic/programmable electronic safety-related
systems –
Part 3-1: Software requirements – Reuse of pre-existing software elements to
implement all or part of a safety function
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC TS 61508-3-1 ®
Edition 1.0 2016-07
TECHNICAL
SPECIFICATION
Functional safety of electrical/electronic/programmable electronic safety-related

systems –
Part 3-1: Software requirements – Reuse of pre-existing software elements to

implement all or part of a safety function

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.040.40; 35.240.50 ISBN 978-2-8322-3516-4

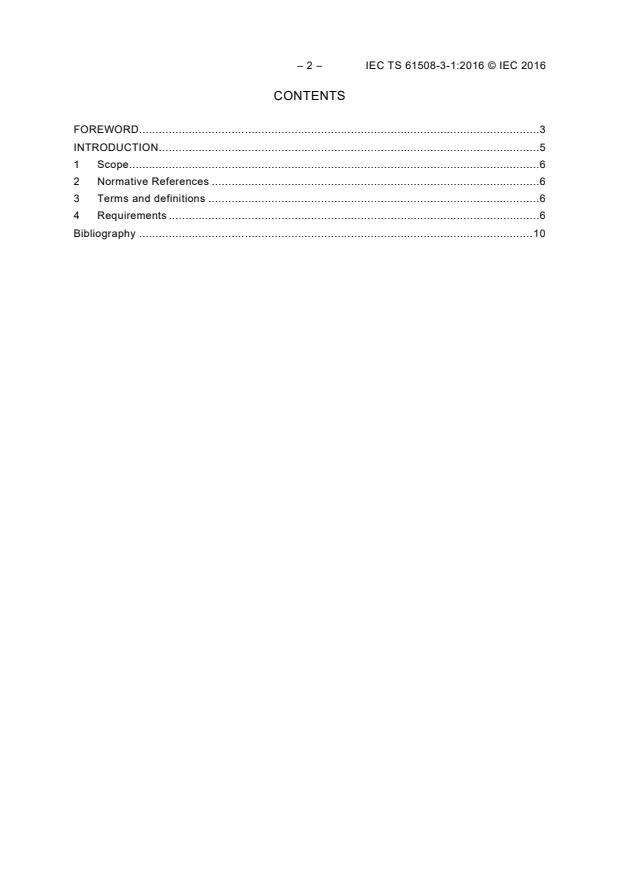

– 2 – IEC TS 61508-3-1:2016 © IEC 2016
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative References . 6
3 Terms and definitions . 6
4 Requirements . 6
Bibliography . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FUNCTIONAL SAFETY OF ELECTRICAL/ELECTRONIC/PROGRAMMABLE
ELECTRONIC SAFETY-RELATED SYSTEMS –

Part 3-1: Software requirements –
Reuse of pre-existing software elements
to implement all or part of a safety function

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. In
exceptional circumstances, a technical committee may propose the publication of a technical
specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• the subject is still under technical development or where, for any other reason, there is the
future but no immediate possibility of an agreement on an International Standard.
Technical specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.

– 4 – IEC TS 61508-3-1:2016 © IEC 2016
IEC TS 61508-3-1, which is a technical specification, has been prepared by subcommittee
65A: System aspects, of IEC technical committee 65: Industrial-process measurement, control
and automation.
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
65A/780/DTS 65A/802/RVC
Full information on the voting for the approval of this technical specification can be found in
the report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61508 series, published under the general title Functional safety
of electrical/electronic/programmable electronic safety-related systems, can be found on the
IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

INTRODUCTION
The requirements set out in this technical specification deal with the reuse of software
elements when they are intended to form part of a safety function.
In many fields of automation, software elements are used today in support of safety functions.
Such applications will certainly be further developed and extended. Software engineers,
however, do not always wish to write the software for these applications from scratch, but will
in many cases use already existing software and integrate it with the new application which
might be slightly different from the one for which the software was originally specified.
In IEC 61508-3:2010, a requirement is given in 7.4.2.12. It offers three routes to the
achievement of the necessary integrity for the pre-existing software element. The
requirements to comply with the second route, Route 2 , are defined in IEC 61508-2:2010,
s
7.4.10.
This entails that IEC 61508-3:2010 –dealing solely with software –refers to requirements in
IEC 61508-2:2010 which concerns complete systems including hardware but excluding
software (see IEC 61508-2:2010, 1.1 enumeration “e“).
This technical specification defines the requirements for software elements explicitly, because
IEC 61508-2:2010 excludes software, and is intended to replace the text of the second bullet
(“route 2 ”) of a), 7.4.2.12 in IEC 61508-3:2010 in a future revision of IEC 61508-3.
s
– 6 – IEC TS 61508-3-1:2016 © IEC 2016
FUNCTIONAL SAFETY OF ELECTRICAL/ELECTRONIC/PROGRAMMABLE
ELECTRONIC SAFETY-RELATED SYSTEMS –

Part 3-1: Software requirements –
Reuse of pre-existing software elements
to implement all or part of a safety function

1 Scope
This Technical Specification presents requirements by the application of which pre-existing
software elements may be claimed to be proven-in-use for all or a part of safety function(s) of
SIL1 or SIL 2.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 61508-3:2010, Functional safety of electrical/electronic/programmable electronic safety-
related systems – Part 3: Software requirements
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Requirements
4.1 Notes 1 to 4 below apply to the entire Clause 4 (4.2 to 4.9).
NOTE 1 Any documentation required by a clause in this document could either be available with the pre-existing
software or could be included as part of the documentation of the safety related function.
NOTE 2 A reused software function in this document means a function specified on the level of the requirements
specification (see IEC 61508-3:2010, 7.2). A reused software function does not refer to a programming language
construct.
NOTE 3 Conditions are set for the data on the history of the pre-existing software in 4.2 b) and c). The fulfilment
of these conditions does not entail that the software is deterministic: hidden internal states of the software can
affect its execution even when the required combination as specified in 4.2 b) and c) is exactly the same. The use
of pre-existing software is thus restricted by 4.7.
NOTE 4 In some cases (e.g. input data are analogue data or a clock signal) the demonstration of proven-in-use
for software could be difficult.

4.2 An element shall only be regarded as proven-in-use when:
a) its description:
1) exists and is available;
2) fulfils the requirements of IEC 61508-3:2010, 7.2;
3) describes the previous use,

and
b) the execution of the software with all combinations of all claimed
– combinations of input data,
– sequences of execution of the reused software function(s),
– timing relations within sequences of execution of the reused software function(s)
which will occur in the intended use are documented;
and
c) comb
...
