IEC 62031:2018
(Main)LED modules for general lighting - Safety specifications
LED modules for general lighting - Safety specifications
IEC 62031:2018 specifies general and safety requirements for light-emitting diode (LED) modules:
- non-integrated LED modules (LEDni modules) and semi-integrated LED modules (LEDsi modules) for operation under constant voltage, constant current or constant power;
- Integrated LED modules (LEDi modules) for use on DC supplies up to 250 V or AC supplies up to 1 000 V at 50 Hz or 60 Hz.
This second edition cancels and replaces the first edition published in 2008, Amendment 1:2012 and Amendment 2:2014. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a. the scope was clarified as well as the wording in several other clauses;
b. the normative references were updated;
c. the definitions for "replaceable LED module", "non-replaceable LED module" and "non-user replaceable LED module" were introduced while other definitions covered by IEC 62504 have been removed;
d. the marking clause was restructured and a table added to provide an informative overview;
e. the marking requirements for built-in LED modules were changed;
f. the entry for the marking with the working voltage was revised;
g. the provisions for terminals and heat management were revised;
h. Annex B was deleted;
i. information for luminaire design with regard to working voltage and water contact was introduced;
j. an abnormal temperature test was introduced.
Modules à LED pour éclairage général - Spécifications de sécurité
L'IEC 62031:2018 spécifie les exigences générales et les exigences de sécurité relatives aux modules à diodes électroluminescentes (LED):
- modules à LED non intégrés (modules LEDni) et les modules à LED semi-intégrés (modules LEDsi) pour fonctionnement sous tension constante, courant constant ou puissance constante;
- modules à LED intégrés (modules LEDi) pour utilisation sur des alimentations à courant continu jusqu’à 250 V ou à courant alternatif 50 Hz ou 60 Hz jusqu’à 1 000 V.
Cette deuxième édition annule et remplace la première édition parue en 2008, l’Amendement 1:2012 et l’Amendement 2:2014. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
a. le domaine d’application a été clarifié ainsi que la formulation de plusieurs autres articles;
b. les références normatives ont été mises à jour;
c. les définitions de "module à LED remplaçable", "module à LED non remplaçable" et "module à LED non remplaçable par l’utilisateur" ont été introduites tandis que d’autres définitions couvertes par l’IEC 62504 ont été supprimées;
d. l’article relatif au marquage a été restructuré et un tableau a été ajouté pour donner un aperçu informatif;
e. les exigences de marquage pour les modules à LED à monter ont été modifiées;
f. l’article relatif au marquage pour la tension de service a été révisé;
g. les dispositions relatives aux bornes et à la gestion thermique ont été révisées;
h. l’Annexe B a été supprimée;
i. des informations relatives à la conception des luminaires concernant la tension de service et le contact avec l’eau ont été introduites;
j. un essai de température anormale a été introduit.
General Information
Relations
Standards Content (Sample)
IEC 62031 ®
Edition 2.0 2018-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
LED modules for general lighting – Safety specifications
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.

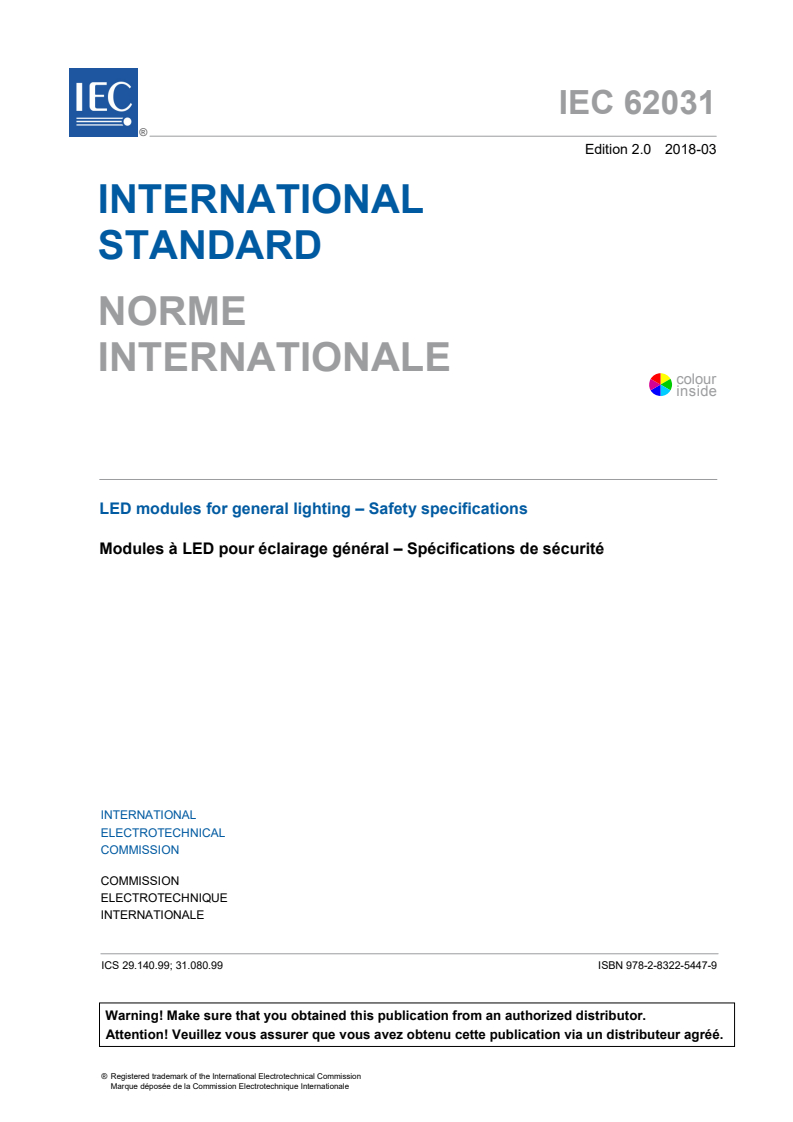

IEC 62031 ®
Edition 2.0 2018-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
LED modules for general lighting – Safety specifications
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.140.99; 31.080.99 ISBN 978-2-8322-5468-4

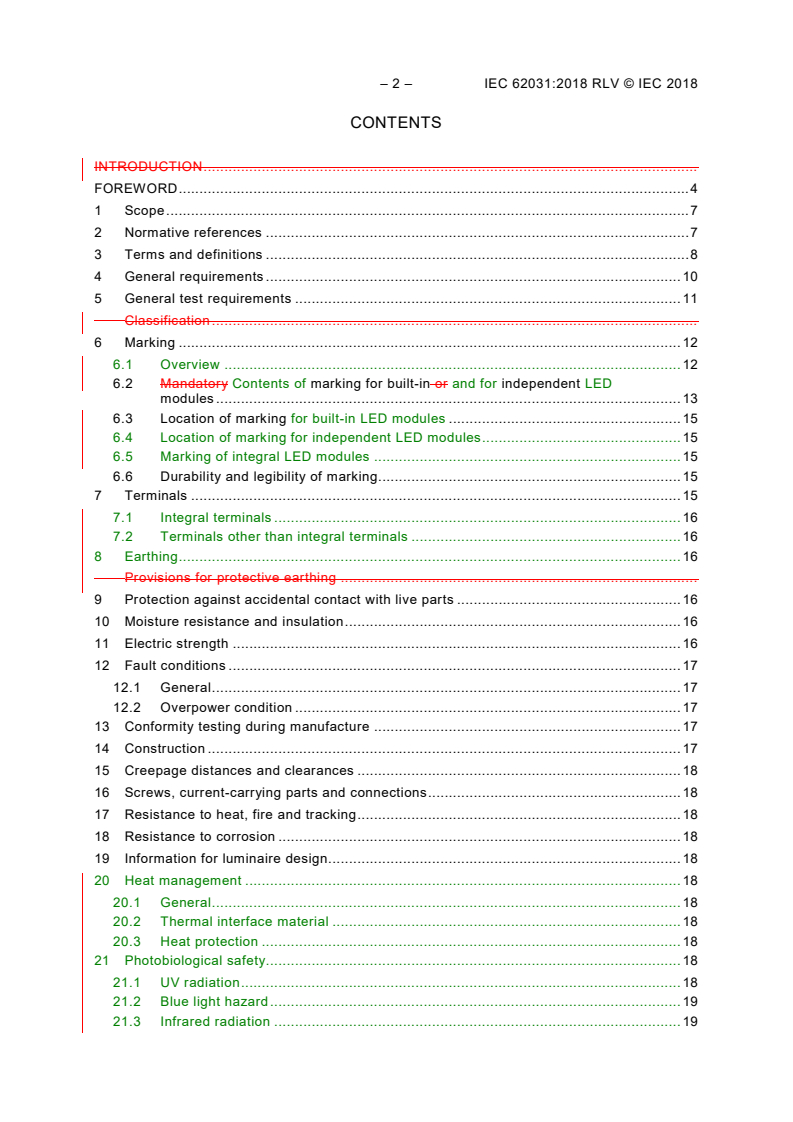

– 2 – IEC 62031:2018 RLV © IEC 2018
CONTENTS
INTRODUCTION .
FOREWORD . 4
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General requirements . 10
5 General test requirements . 11
Classification .
6 Marking . 12
6.1 Overview . 12
6.2 Mandatory Contents of marking for built-in or and for independent LED
modules . 13
6.3 Location of marking for built-in LED modules . 15
6.4 Location of marking for independent LED modules . 15
6.5 Marking of integral LED modules . 15
6.6 Durability and legibility of marking. 15
7 Terminals . 15
7.1 Integral terminals . 16
7.2 Terminals other than integral terminals . 16
8 Earthing . 16
Provisions for protective earthing .
9 Protection against accidental contact with live parts . 16
10 Moisture resistance and insulation . 16
11 Electric strength . 16
12 Fault conditions . 17
12.1 General . 17
12.2 Overpower condition . 17
13 Conformity testing during manufacture . 17
14 Construction . 17
15 Creepage distances and clearances . 18
16 Screws, current-carrying parts and connections . 18
17 Resistance to heat, fire and tracking . 18
18 Resistance to corrosion . 18
19 Information for luminaire design. 18
20 Heat management . 18
20.1 General . 18
20.2 Thermal interface material . 18
20.3 Heat protection . 18
21 Photobiological safety. 18
21.1 UV radiation . 18
21.2 Blue light hazard . 19
21.3 Infrared radiation . 19
Annex (informative) Overview of systems composed of LED modules and control gear .
Annex A (normative) Tests conditions . 20
Annex B (informative) Conformity testing during manufacture . 22
Annex C (informative) Information for luminaire design . 23
C.1 Heat management . 23
C.1.1 General . 23
C.1.2 Design freedom . 23
C.1.3 Testing in the luminaire . 25
C.2 Water contact . 25
C.3 Blue light hazard assessment . 25
C.3.1 LED modules of RG0 unlimited and RG1 unlimited . 25
C.3.2 LED modules with a threshold illuminance E . 25
thr
C.4 Working voltage . 25
Annex D (normative) Abnormal temperature test . 26
D.1 Test procedure. 26
D.2 Test setup . 26
Bibliography . 28
Figure – Overview of systems composed of LED modules and control gear .
Figure 1 – Symbol for built-in LED modules . 14
Figure C.1 – Diagrammatic cross section of an LED module fixed by means of a
lampholder to a luminaire . 24
Figure D.1 – Abnormal temperature test setup . 27
Table 1 – Overview on marking provisions . 12
– 4 – IEC 62031:2018 RLV © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LED MODULES FOR GENERAL LIGHTING –
SAFETY SPECIFICATIONS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.
International Standard IEC 62031 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2008,
Amendment 1:2012 and Amendment 2:2014. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the scope was clarified as well as the wording in several other clauses;
b) the normative references were updated;
c) the definitions for "replaceable LED module", "non-replaceable LED module" and "non-
user replaceable LED module" were introduced while other definitions covered by
IEC 62504 have been removed;
d) the marking clause was restructured and a table added to provide an informative overview;
e) the marking requirements for built-in LED modules were changed;
f) the entry for the marking with the working voltage was revised;
g) the provisions for terminals and heat management were revised;
h) Annex B was deleted;
i) information for luminaire design with regard to working voltage and water contact was
introduced;
j) an abnormal temperature test was introduced.
The text of this International Standard is based on the following documents:
FDIS Report on voting
34A/2052/FDIS 34A/2061/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62031:2018 RLV © IEC 2018
INTRODUCTION
The first edition of a safety standard for LED modules for general lighting applications
acknowledges the need for relevant tests for this new source of electrical light, sometimes
called “solid state lighting”.
The provisions in the standard represent the technical knowledge of experts from the fields of
the semiconductor industry and those of the traditional electrical light sources.
Two types of LED modules are covered: with integral and external control gear.
LED MODULES FOR GENERAL LIGHTING –
SAFETY SPECIFICATIONS
1 Scope
This document specifies general and safety requirements for light-emitting diode (LED)
modules:
• non-integrated LED modules without integral control gear (LEDni modules) and semi-
integrated LED modules (LEDsi modules) for operation under constant voltage, constant
current or constant power;
• self-ballasted Integrated LED modules (LEDi modules) for use on DC supplies up to 250 V
or AC supplies up to 1 000 V at 50 Hz or 60 Hz.
LED modules within the scope of this document can be integral, built-in or independent.
This document is not applicable for LED lamps.
NOTE 1 The safety requirements for separate control gear are specified in IEC 61347-2-13. The performance
requirements for separate control gear LED modules are specified in IEC 62384 IEC 62717.
NOTE 2 Requirements for LED modules with integrated control gear and equipped with a lamp cap (self-ballasted
lamp), intended for mains voltage general lighting service retrofit applications (thereby replacing existing lamps
with identical lamp caps) are specified in IEC 60968 (an amendment to the present edition or a new edition with
extended scope is in preparation).
Requirements for LED modules with integrated control gear and equipped with a lamp cap (self-ballasted lamp),
intended for non-mains voltage general lighting service retrofit applications (thereby replacing existing lamps with
identical lamp caps) are under consideration.
NOTE 3 Where in the requirements of this standard both types of LED modules, with and without integral control
gear, are addressed, the word “modules” is used instead. Where only the expression “LED module(s)” is used, it is
understood to refer to the type without integral control gear.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
)
IEC 60598-1:2003 2014, Luminaires – Part 1: General requirements and tests
IEC 60598-1:2014/AMD1:2017
IEC 60838-2-2, Miscellaneous lampholders – Part 2-2: Particular requirements – Connectors
for LED modules
IEC 61032:1997, Protection of persons and equipment by enclosures – Probes for verification
IEC 61347-1:2007 2015, Lamp controlgear – Part 1: General and safety requirements
IEC 61347-1:2015/AMD1:2017
IEC 61347-2-13:2006, Lamp controlgear – Part 2-13: Particular requirements for d.c. or a.c.
supplied electronic controlgear for LED modules
—————————
)
A consolidated 6.1 (2006) exists, that includes IEC 60598-1 (2003) and its Amendment 1 (2006).
– 8 – IEC 62031:2018 RLV © IEC 2018
IEC 62471:2006, Photobiological safety of lamps and lamp systems
IEC 62504, General lighting – Light emitting diode (LED) products and related equipment –
Terms and definitions
IEC TR 62778:2014, Application of IEC 62471 for the assessment of blue light hazard to light
sources and luminaires
ISO 4046-4:2002 2016, Paper, board, pulp and related terms – Vocabulary – Part 4: Paper
and board grades and converted products
ISO 7089:2000, Plain washers – Normal series – Product grade A
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62504 and the
following apply.
For expressions and terms in the field of LEDs and LED modules, refer to IEC TS 62504,
which is currently in development.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
light-emitting diode
LED
solid state device embodying a p-n junction, emitting optical radiation when excited by an
electric current
[IEV 845-04-40]
3.2
LED module
unit supplied as a light source. In addition to one or more LEDs, it may contain further
components, e.g. optical, mechanical, electrical and electronic, but excluding the control gear.
3.3
self-ballasted LED module
LED module, designed for connection to the supply voltage
NOTE If the self-ballasted LED module is equipped with a lamp cap, it is regarded to be a self-ballasted lamp.
3.4
integral LED module
LED module, generally designed to form a non-replaceable part of a luminaire
3.5
integral self-ballasted LED module
self-ballasted LED module, generally designed to form a non-replaceable part of a luminaire
3.6
built-in LED module
LED module, generally designed to form a replaceable part built into a luminaire, a box, an
enclosure or the like and not intended to be mounted outside a luminaire, etc. without special
precautions
3.7
built-in self-ballasted LED module
self-ballasted LED module, generally designed to form a replaceable part built into a luminaire,
a box, an enclosure or the like and not intended to be mounted outside a luminaire, etc.
without special precautions
3.8
independent LED module
LED module, so designed that it can be mounted or placed separately from a luminaire, an
additional box or enclosure or the like. The independent LED module provides all the
necessary protection with regard to safety according to its classification and marking.
NOTE The control gear must not necessarily be integrated in the module.
3.9
independent self-ballasted LED module
self-ballasted LED module, so designed that it can be mounted or placed separately from a
luminaire, an additional box or enclosure or the like. The independent LED module provides
all the necessary protection with regard to safety according to its classification and marking.
NOTE The control gear may be integrated in the module.
3.10
rated maximum temperature
t
c
highest permissible temperature which may occur on the outer surface of the LED module (at
the indicated position, if marked) under normal operating conditions and at the rated
voltage/current/power or the maximum of the rated voltage/current/power range
3.1
ultraviolet hazard efficacy of luminous radiation
K
S,v
quotient of an ultraviolet hazard quantity to the corresponding photometric quantity
Note 1 to entry: Ultraviolet hazard efficacy of luminous radiation is expressed in mW/klm.
Note 2 to entry: The ultraviolet hazard efficacy of luminous radiation is obtained by weighting the spectral power
distribution of the lamp or LED module with the UV hazard function S (λ). Information about the relevant UV
UV
hazard function is given in IEC 62471:2006. It only relates to possible hazards regarding UV exposure of human
beings. It does not deal with the possible influence of optical radiation on materials, such as mechanical damage or
discoloration.
3.2
replaceable LED module
LED module, designed to be replaced by an ordinary person or a qualified person
Note 1 to entry: When incorporated into a luminaire, a replaceable LED module can be classified as replaceable,
non-user replaceable or non-replaceable depending on the luminaire design.
3.3
non-replaceable LED module
LED module designed to be a non-replaceable part of the luminaire
Note 1 to entry: An integral LED module is always non-replaceable. A non-replaceable LED module is not always
an integral LED module.
– 10 – IEC 62031:2018 RLV © IEC 2018
Note 2 to entry: The non-replaceability can be the result of the luminaire design.
3.4
non-user replaceable LED module
LED module designed to be replaced only by the manufacturer, his service agent, or similar
qualified person
Note 1 to entry: When incorporated into a luminaire a non-user replaceable LED module can become classified as
non-replaceable depending on the luminaire design.
3.5
terminal
conductive part of an LED module, provided for connecting that LED module to one or more
external conductors
[SOURCE: IEC 60050-151:2001, 151.12.12, modified – "device, electric circuit or electric
network" has been replaced by "LED module" and the note has been deleted.]
3.6
integral terminal
terminal which forms a non-replaceable part of an LED module and which cannot be tested
separately from the LED module
[SOURCE: IEC 60598-1:2014, 1.2.58, modified – "component" replaced by "terminal",
"luminaire" replaced by "LED module".]
4 General requirements
4.1 LED modules shall be so designed and constructed that in normal use they operate
without danger to the user or surroundings when used as intended (see manufacturer’s
instructions).
NOTE IEC 61347-1:2015, Annex S gives examples of insulation coordination which can be appropriate for LED
modules.
4.2 LED modules shall be classified, according to the method of installation, as:
– built-in,
– independent, or
– integral.
4.3 For non-integrated LED modules and semi-integrated LED modules, all electrical
measurements, unless otherwise specified, shall be carried out at voltage limits (min/max),
current limits (min/max) or power limits (min/max) and minimum frequency, in a draught-free
room at the temperature limits of the allowed range specified by the manufacturer. Unless the
manufacturer indicates the most critical combination, all combinations (min/max) of
voltage/current/power and temperature shall be tested.
4.4 For self-ballasted integrated LED modules, the electrical measurements shall be
carried out at the tolerance limit values of the marked rated supply voltage.
4.5 Integral LED modules not having their own enclosure shall be treated regarded as
integral components of luminaires according to IEC 60598-1:2014, 0.5.1. They shall be tested
assembled in the luminaire, and as far as applicable with the present standard.
4.6 In addition to the requirements of this document, independent LED modules shall
comply with IEC 60598-1:2014 and IEC 60598-1:2014/AMD1:2017, where these requirements
are not already covered in this standard.
4.7 If the LED module is a factory sealed unit, it shall not be opened for any tests. In case
of doubt based on the inspection of the LED module and the examination of the circuit
diagram, and in agreement with the manufacturer or responsible vendor, such specially
prepared LED modules shall be submitted for testing so that a fault condition can be
simulated.
4.8 For LED modules with integrated controlgear providing SELV, the requirements
according to IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017, Clauses L.5, L.6, L.7, L.8,
L.9, L.10, and L.11 apply.
5 General test requirements
5.1 Tests according to this document shall be type tests.
NOTE The requirements and tolerances permitted by in this document are related to testing of a type-test sample
submitted by the manufacturer for that purpose. Compliance of the type-test sample does not ensure compliance of
the whole production of a manufacturer with this safety standard.
Conformity of production is the responsibility of the manufacturer and may can need routine tests and quality
assurance in addition to type testing.
5.2 Unless otherwise specified, The tests shall be carried out at an ambient temperature of
10 °C to 30 °C. If the manufacturer specifies a different ambient termperature, this shall be
used as test temperature.
5.3 Unless otherwise specified, the type test shall be carried out on one sample consisting
of one or more items submitted for the purpose of the type test.
In general, all tests shall be carried out on each type of LED module or, where a range of
similar LED modules is involved, for each wattage power in the range or on a representative
selection from the range, as agreed with the manufacturer.
5.4 If the light output has detectably substantially changed, the LED module shall not be
used for further tests.
NOTE Usually, a value of 50 % indicates irreversible changes in the LED module.
5.5 For SELV-operated LED modules, the requirements of IEC 61347-2-13, Annex I, apply
additionally.
General conditions for tests are given in Annex A.
Testing of integral LED modules not having their own enclosure shall be done as part of the
luminaire as far as applicable.
6 Classification
Modules are classified, according to the method of installation, as:
– built-in;
– independent;
– integral.
For integral modules, the NOTE to 1.2.1 in IEC 60598-1 applies.
– 12 – IEC 62031:2018 RLV © IEC 2018
6 Marking
6.1 Overview
The requirements of 6.2, 6.3, 6.4, 6.5, and 6.6 apply. Table 1 gives an overview for
information.
Table 1 – Overview on marking provisions
Item according to 6.2 Built-in LED modules Independent LED Integral LED modules
modules
a) Required Required Required
On the LED module On the LED module On the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
b) Required Required Required
On the LED module On the LED module On the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
c) Required Required Required
On the LED module, on On the LED module On the LED module
the LED module datasheet, on the LED
datasheet, on the LED module leaflet, or on the
module leaflet, or on the website of the
website of the manufacturer or
manufacturer or responsible vendor
responsible vendor
d) Required Required Required
On the LED module, on On the LED module, on On the LED module
the LED module the LED module datasheet, on the LED
datasheet, on the LED datasheet, on the LED module leaflet, or on the
module leaflet, or on the module leaflet, or on the website of the
website of the website of the manufacturer or
manufacturer or manufacturer or responsible vendor
responsible vendor responsible vendor
e) Required if necessary Required if necessary Required
On the LED module, on On the LED module, on On the LED module
the LED module the LED module datasheet, on the LED
datasheet, on the LED datasheet, on the LED module leaflet, or on the
module leaflet, or on the module leaflet, or on the website of the
website of the website of the manufacturer or
manufacturer or manufacturer or responsible vendor
responsible vendor responsible vendor
f) Required Required Required
On the LED module, on On the LED module On the LED module
the LED module datasheet, on the LED
datasheet, on the LED module leaflet, or on the
module leaflet, or on the website of the
website of the manufacturer or
manufacturer or responsible vendor
responsible vendor
Item according to 6.2 Built-in LED modules Independent LED Integral LED modules
modules
g) Required in case of E Required in case of E Required
thr thr
On the LED module, on On the LED module, on On the LED module
the LED module the LED module datasheet, on the LED
datasheet, on the LED datasheet, on the LED module leaflet, or on the
module leaflet, or on the module leaflet, or on the website of the
website of the website of the manufacturer or
responsible vendor
manufacturer or manufacturer or
responsible vendor responsible vendor
h) Required — —
On the LED module, on
the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
i) Required if capped — —
On the LED module, on
the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
j) Required if capped — —
On the LED module, on
the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
k) Required — —
On the LED module, on
the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
6.2 Mandatory Contents of marking for built-in or and for independent LED modules
The following marking information for built-in and independent LED modules shall be given:
a) Mark of origin (trade mark, manufacturer’s name or name of the responsible
vendor/supplier).
b) Model number or type reference of the manufacturer.
c) Either the
● rated supply voltage(s), or voltage range, supply frequency or/and
● rated supply current(s) or current range, supply frequency (the supply current may be
given in the manufacturer’s literature) or/and
● rated input power, or power range.
c) Rated supply voltage or rated supply current as follows:
1) If the LED module requires stable voltage, the rated supply voltage(s) or the rated
supply voltage range, both together with the supply frequency shall be marked.
Marking of the rated supply current(s) is voluntary.
– 14 – IEC 62031:2018 RLV © IEC 2018
2) If the LED module requires stable current, the rated supply current(s) or the rated
current range, both together with the supply frequency shall be marked. Marking of the
rated supply voltage(s) is voluntary.
d) Nominal Rated power.
e) Indication of position and purpose of the connections where it is necessary for safety. In
the case of connecting wires, a clear indication shall be given in a wiring diagram.
f) Value of the rated maximum temperature t . If this relates to a certain place on the LED
c
module, this place shall be indicated or specified in the manufacturer’s literature.
g) For eye protection, see requirements of IEC 62471.
g) If the assessment of blue light hazard according to IEC TR 62778:2014 results in
assignment to RG0 unlimited or RG1 unlimited, no marking for photobiological safety is
required. If the assessment of blue light hazard according to IEC TR 62778:2014 results in
a threshold illuminance value E , marking with the E , is required.
thr thr
h) Built-in LED modules shall be marked with the symbol according to Figure 1 in order to
separate them from independent LED modules. The mark shall be located on the
packaging or on the module itself.
NOTE The symbol is under consideration.
Source: IEC 60417-6053 (2011-05)
Figure 1 – Symbol for built-in LED modules
i) The heat transfer temperature t (if the LED module is provided with a cap enabling the
d
insertion and the withdrawal without the use of tools and reliant on heat-conduction to the
luminaire).
j) The power for heat-conduction P (if the LED module is provided with a cap enabling the
d
insertion and the withdrawal without the use of tools and reliant on heat-conduction to the
luminaire). If P is not known exactly, the rated power of the LED module may be taken
d
instead.
k) Working voltage at which the insulation between active parts of the LED module and parts
of the LED module designed as insulation barriers to a luminaire are designed together
with the type of insulation.
The type of insulation can be
• basic insulation for SELV operation only,
• basic insulation for SELV and other than SELV operation,
• supplementary insulation,
• double or reinforced insulation,
• no insulation (in this case the working voltage is 0 V).
Parts of the LED module designed as insulation barriers to a luminaire include insulation
barriers between active parts of the LED module and
• the mounting surface of the LED module,
• the parts of the LED module designed to be touchable when mounted in the luminaire.
This information is not required for independent LED modules.
6.3 Location of marking for built-in LED modules
Items a), b), c) and f) of 7.1 shall be marked on the module.
Items d), e), g) and h) of 7.1 shall be marked legible on the module or on the module data
sheet.
For integral modules, no marking is required, but the information given in 7.1 a) to g) shall be
provided in the technical literature of the manufacturer.
For built-in LED modules, items a) and b) according to 6.2 shall be marked on the LED
module. The other applicable items according to 6.2 shall be marked on the LED module, on
the LED module datasheet, on the LED module leaflet, or on the website of the manufacturer
or responsible vendor.
6.4 Location of marking for independent LED modules
For independent LED modules, items a), b), c) and f) according to 6.2 shall be marked on the
LED module. The other applicable items according to 6.2 shall be marked on the LED module,
on the LED module datasheet, on the LED module leaflet, or on the website of the
manufacturer or responsible vendor.
6.5 Marking of integral LED modules
For integral LED modules, the information given in 6.2 a) to g) shall be provided on the LED
module datasheet, on the LED module leaflet, or on the website of the manufacturer or
responsible vendor.
6.6 Durability and legibility of marking
Marking on the LED module shall be durable and legible.
For items a), b), c) and f) of 7.1, Compliance is checked by inspection and by trying to remove
the marking by rubbing the area lightly by hand for 15 s with a piece of smooth cloth,
dampened with water.
The marking shall be legible after the test.
Marking which is not on the LED module shall be legible.
For items d) to h) of 7.1, Compliance is checked by inspection.
7 Terminals
For screw terminals, the requirements of IEC 60598-1, Section 14, shall be used, if
applicable.
For screwless terminals, the requirements of IEC 60598-1, Section 15, shall be used, if
applicable.
For connectors, the requirements of IEC 60838-2-2 shall be used, if applicable.
– 16 – IEC 62031:2018 RLV © IEC 2018
7.1 Integral terminals
Integral terminals shall comply with the following sections of IEC 60598-1:2014 and IEC
60598-1:2014/AMD1:2017
• Section 14 for screw terminals;
• Section 15 for screwless terminals.
Compliance is checked by inspection and the relevant tests.
7.2 Terminals other than integral terminals
Terminals, other than integral terminals, shall comply with the requirements of the relevant
IEC standards, if any.
Terminals which comply with the requirements of the relevant IEC standard and marked with
individual ratings shall suit the conditions which may occur in use.
Aspects of use not covered by the respective standard shall require them to satisfy the
additional relevant requirements of this document.
Terminals complying with the requirements of their own standard and used in accordance with
their intended use, shall only meet the requirements of this document where there are no
requirements in the terminal standard.
Compliance is checked by inspection and the relevant tests.
NOTE Example terminal standards are IEC 60947-7-4 and IEC 60838-2-2.
8 Earthing
The requirements of IEC 61347-1:2015, Clause 9, apply.
9 Provisions for protective earthing
The requirements of IEC 61347-1, Clause 9, apply.
9 Protection against accidental contact with live parts
The requirements of IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017, Clause 10, apply.
10 Moisture resistance and insulation
The requirements of IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017, Clause 11, apply.
11 Electric strength
The requirements of IEC 61347-1:2015, Clause 12, apply.
12 Fault conditions
12.1 General
The LED module shall not impair safety when operated under fault conditions that may can
occur during the intended use. The requirements of IEC 61347-1:2015 and
IEC 61347-1:2015/AMD1:2017, Clause 14, apply. Additionally, the following test shall be
carried out.
Compliance is checked by the tests according to IEC 61347-1:2015 and
IEC 61347-1:2015/AMD1:2017, Clause 14 and the test according to 12.2.
12.2 Overpower condition
The test shall be started at an ambient temperature as specified in conditions according to
Annex A apply.
The LED module shall be switched on and the power monitored (at the input side) and. The
voltage or the current shall be increased until 150 % of the rated voltage, current or power is
reached. The test shall be continued until the LED module is thermally stabilized. A stable
condition is reached if the temperature does not change by more than 5 K in 1 h. The
temperature shall be measured in the t point. The LED module shall withstand the overpower
c
condition for at least 15 min, the time period which can lie within the stabilization period if the
temperature change is ≤ 5 K.
If the LED module contains an automatic protective device or circuit which limits the power, it
is subjected to a 15 min operation at this limit. If the device or circuit effectively limits the
power over this period, the LED module has passed the test, provided that compliance to 4.1
and the last paragraph of 12.2 is fulfilled.
After finalizing the overpower mode, the LED module is operated under normal conditions
until thermally stable.
For the purpose of this test, "operated" means that the LED module is supplied with the rated
input current or rated input voltage. The LED module does not need to emit light.
A module fails safe The test is considered as passed if no fire, smoke or flammable gas is
produced and if the 15 min overpower condition has been withstood. To check whether molten
material might present a safety hazard, a wrapping tissue paper, as specified in 4.187 of
according to ISO 4046-4:2016, 4.215, spread below the LED module shall not ignite.
13 Conformity testing during manufacture
See Annex B.
14 Construction
Wood, cotton, silk, paper and similar fibrous material shall not be used as insulation.
Compliance is checked by inspection.
The requirements of IEC 61347-1:2015, Clause 15, apply.
– 18 – IEC 62031:2018 RLV © IEC 2018
15 Creepage distances and clearances
The requirements of IEC 60598-1, Section 11 IEC 61347-1:2015 and IEC 61347-
1:2015/AMD1:2017, Clause 16 apply.
16 Screws, current-carrying parts and connections
The requir
...
IEC 62031 ®
Edition 2.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
LED modules for general lighting – Safety specifications
Modules à LED pour éclairage général – Spécifications de sécurité
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
IEC 62031 ®
Edition 2.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
LED modules for general lighting – Safety specifications
Modules à LED pour éclairage général – Spécifications de sécurité
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99; 31.080.99 ISBN 978-2-8322-5447-9
– 2 – IEC 62031:2018 © IEC 2018
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 8
5 General test requirements . 8
6 Marking . 9
6.1 Overview. 9
6.2 Contents of marking for built-in and for independent LED modules . 11
6.3 Location of marking for built-in LED modules . 12
6.4 Location of marking for independent LED modules . 12
6.5 Marking of integral LED modules . 12
6.6 Durability and legibility of marking . 12
7 Terminals . 12
7.1 Integral terminals . 12
7.2 Terminals other than integral terminals . 13
8 Earthing . 13
9 Protection against accidental contact with live parts . 13
10 Moisture resistance and insulation . 13
11 Electric strength . 13
12 Fault conditions . 13
12.1 General . 13
12.2 Overpower condition . 13
13 Conformity testing during manufacture . 14
14 Construction . 14
15 Creepage distances and clearances . 14
16 Screws, current-carrying parts and connections . 14
17 Resistance to heat, fire and tracking . 14
18 Resistance to corrosion . 14
19 Information for luminaire design . 14
20 Heat management . 15
20.1 General . 15
20.2 Thermal interface material . 15
20.3 Heat protection . 15
21 Photobiological safety . 15
21.1 UV radiation . 15
21.2 Blue light hazard . 15
21.3 Infrared radiation . 15
Annex A (normative) Test conditions . 16
Annex B (informative) Conformity testing during manufacture . 17
Annex C (informative) Information for luminaire design . 18
C.1 Heat management . 18
C.1.1 General . 18
C.1.2 Design freedom . 18
C.1.3 Testing in the luminaire . 20
C.2 Water contact . 20
C.3 Blue light hazard assessment . 20
C.3.1 LED modules of RG0 unlimited and RG1 unlimited . 20
C.3.2 LED modules with a threshold illuminance E . 20
thr
C.4 Working voltage . 20
Annex D (normative) Abnormal temperature test . 21
D.1 Test procedure . 21
D.2 Test setup . 21
Bibliography . 23
Figure 1 – Symbol for built-in LED modules . 11
Figure C.1 – Diagrammatic cross section of an LED module fixed by means of a
lampholder to a luminaire . 19
Figure D.1 – Abnormal temperature test setup . 22
Table 1 – Overview on marking provisions . 9
– 4 – IEC 62031:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LED MODULES FOR GENERAL LIGHTING –
SAFETY SPECIFICATIONS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62031 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2008,
Amendment 1:2012 and Amendment 2:2014. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the scope was clarified as well as the wording in several other clauses;
b) the normative references were updated;
c) the definitions for "replaceable LED module", "non-replaceable LED module" and "non-
user replaceable LED module" were introduced while other definitions covered by
IEC 62504 have been removed;
d) the marking clause was restructured and a table added to provide an informative overview;
e) the marking requirements for built-in LED modules were changed;
f) the entry for the marking with the working voltage was revised;
g) the provisions for terminals and heat management were revised;
h) Annex B was deleted;
i) information for luminaire design with regard to working voltage and water contact was
introduced;
j) an abnormal temperature test was introduced.
The text of this International Standard is based on the following documents:
FDIS Report on voting
34A/2052/FDIS 34A/2061/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62031:2018 © IEC 2018
LED MODULES FOR GENERAL LIGHTING –
SAFETY SPECIFICATIONS
1 Scope
This document specifies general and safety requirements for light-emitting diode (LED)
modules:
• non-integrated LED modules (LEDni modules) and semi-integrated LED modules (LEDsi
modules) for operation under constant voltage, constant current or constant power;
• Integrated LED modules (LEDi modules) for use on DC supplies up to 250 V or AC
supplies up to 1 000 V at 50 Hz or 60 Hz.
LED modules within the scope of this document can be integral, built-in or independent.
This document is not applicable for LED lamps.
NOTE The performance requirements for LED modules are specified in IEC 62717.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60598-1:2014, Luminaires – Part 1: General requirements and tests
IEC 60598-1:2014/AMD1:2017
IEC 61032:1997, Protection of persons and equipment by enclosures – Probes for verification
IEC 61347-1:2015, Lamp controlgear – Part 1: General and safety requirements
IEC 61347-1:2015/AMD1:2017
IEC 62471:2006, Photobiological safety of lamps and lamp systems
IEC 62504, General lighting – Light emitting diode (LED) products and related equipment –
Terms and definitions
IEC TR 62778:2014, Application of IEC 62471 for the assessment of blue light hazard to light
sources and luminaires
ISO 4046-4:2016, Paper, board, pulp and related terms – Vocabulary – Part 4: Paper and
board grades and converted products
ISO 7089:2000, Plain washers – Normal series – Product grade A
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62504 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
ultraviolet hazard efficacy of luminous radiation
K
S,v
quotient of an ultraviolet hazard quantity to the corresponding photometric quantity
Note 1 to entry: Ultraviolet hazard efficacy of luminous radiation is expressed in mW/klm.
Note 2 to entry: The ultraviolet hazard efficacy of luminous radiation is obtained by weighting the spectral power
distribution of the lamp or LED module with the UV hazard function S (λ). Information about the relevant UV
UV
hazard function is given in IEC 62471:2006. It only relates to possible hazards regarding UV exposure of human
beings. It does not deal with the possible influence of optical radiation on materials, such as mechanical damage or
discoloration.
3.2
replaceable LED module
LED module, designed to be replaced by an ordinary person or a qualified person
Note 1 to entry: When incorporated into a luminaire, a replaceable LED module can be classified as replaceable,
non-user replaceable or non-replaceable depending on the luminaire design.
3.3
non-replaceable LED module
LED module designed to be a non-replaceable part of the luminaire
Note 1 to entry: An integral LED module is always non-replaceable. A non-replaceable LED module is not always
an integral LED module.
Note 2 to entry: The non-replaceability can be the result of the luminaire design.
3.4
non-user replaceable LED module
LED module designed to be replaced only by the manufacturer, his service agent, or similar
qualified person
Note 1 to entry: When incorporated into a luminaire a non-user replaceable LED module can become classified as
non-replaceable depending on the luminaire design.
3.5
terminal
conductive part of an LED module, provided for connecting that LED module to one or more
external conductors
[SOURCE: IEC 60050-151:2001, 151.12.12, modified – "device, electric circuit or electric
network" has been replaced by "LED module" and the note has been deleted.]
3.6
integral terminal
terminal which forms a non-replaceable part of an LED module and which cannot be tested
separately from the LED module
[SOURCE: IEC 60598-1:2014, 1.2.58, modified – "component" replaced by "terminal",
"luminaire" replaced by "LED module".]
– 8 – IEC 62031:2018 © IEC 2018
4 General requirements
4.1 LED modules shall be so designed and constructed that they operate without danger to
the user or surroundings when used as intended (see manufacturer’s instructions).
NOTE IEC 61347-1:2015, Annex S gives examples of insulation coordination which can be appropriate for LED
modules.
4.2 LED modules shall be classified, according to the method of installation, as:
– built-in,
– independent, or
– integral.
4.3 For non-integrated LED modules and semi-integrated LED modules, all electrical
measurements, unless otherwise specified, shall be carried out at voltage limits (min/max),
current limits (min/max) or power limits (min/max) and minimum frequency, in a draught-free
room at the temperature limits of the allowed range specified by the manufacturer. Unless the
manufacturer indicates the most critical combination, all combinations (min/max) of
voltage/current/power and temperature shall be tested.
4.4 For integrated LED modules, the electrical measurements shall be carried out at the
tolerance limit values of the rated supply voltage.
4.5 Integral LED modules not having their own enclosure shall be regarded as integral
components of luminaires according to IEC 60598-1:2014, 0.5.1.
4.6 In addition to the requirements of this document, independent LED modules shall
comply with IEC 60598-1:2014 and IEC 60598-1:2014/AMD1:2017.
4.7 If the LED module is a factory sealed unit, it shall not be opened for any tests. In case
of doubt based on the inspection of the LED module and the examination of the circuit
diagram, and in agreement with the manufacturer or responsible vendor, such specially
prepared LED modules shall be submitted for testing so that a fault condition can be
simulated.
4.8 For LED modules with integrated controlgear providing SELV, the requirements
according to IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017, Clauses L.5, L.6, L.7, L.8,
L.9, L.10, and L.11 apply.
5 General test requirements
5.1 Tests according to this document shall be type tests.
NOTE The requirements and tolerances in this document are related to testing of a type-test sample submitted by
the manufacturer for that purpose.
Conformity of production is the responsibility of the manufacturer and can need routine tests and quality assurance
in addition to type testing.
5.2 The test shall be carried out at an ambient temperature of 10 °C to 30 °C. If the
manufacturer specifies a different ambient termperature, this shall be used as test
temperature.
5.3 Unless otherwise specified, the type test shall be carried out on one sample consisting
of one or more items submitted for the purpose of the type test.
In general, all tests shall be carried out on each type of LED module or, where a range of
similar LED modules is involved, for each power in the range or on a representative selection
from the range, as agreed with the manufacturer.
5.4 If the light output has substantially changed, the LED module shall not be used for
further tests.
NOTE Usually, a value of 50 % indicates irreversible changes in the LED module.
5.5 Testing of integral LED modules not having their own enclosure shall be done as part of
the luminaire as far as applicable.
6 Marking
6.1 Overview
The requirements of 6.2, 6.3, 6.4, 6.5, and 6.6 apply. Table 1 gives an overview for
information.
Table 1 – Overview on marking provisions
Item according to 6.2 Built-in LED modules Independent LED Integral LED modules
modules
a) Required Required Required
On the LED module On the LED module On the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
b) Required Required Required
On the LED module On the LED module On the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
c) Required Required Required
On the LED module, on On the LED module On the LED module
the LED module datasheet, on the LED
datasheet, on the LED module leaflet, or on the
module leaflet, or on the website of the
website of the manufacturer or
manufacturer or responsible vendor
responsible vendor
d) Required Required Required
On the LED module, on On the LED module, on On the LED module
the LED module datasheet, on the LED
the LED module
datasheet, on the LED datasheet, on the LED module leaflet, or on the
module leaflet, or on the module leaflet, or on the website of the
website of the website of the manufacturer or
manufacturer or manufacturer or responsible vendor
responsible vendor responsible vendor
– 10 – IEC 62031:2018 © IEC 2018
Item according to 6.2 Built-in LED modules Independent LED Integral LED modules
modules
e) Required if necessary Required if necessary Required
On the LED module, on On the LED module, on On the LED module
the LED module the LED module datasheet, on the LED
datasheet, on the LED datasheet, on the LED module leaflet, or on the
module leaflet, or on the module leaflet, or on the website of the
website of the website of the manufacturer or
manufacturer or manufacturer or responsible vendor
responsible vendor responsible vendor
f) Required Required Required
On the LED module, on On the LED module On the LED module
the LED module datasheet, on the LED
datasheet, on the LED module leaflet, or on the
module leaflet, or on the website of the
website of the manufacturer or
manufacturer or responsible vendor
responsible vendor
g) Required in case of E Required in case of E Required
thr thr
On the LED module, on On the LED module, on On the LED module
the LED module the LED module datasheet, on the LED
datasheet, on the LED datasheet, on the LED module leaflet, or on the
module leaflet, or on the module leaflet, or on the website of the
website of the website of the manufacturer or
manufacturer or manufacturer or responsible vendor
responsible vendor responsible vendor
h) Required — —
On the LED module, on
the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
i) Required if capped — —
On the LED module, on
the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
j) Required if capped — —
On the LED module, on
the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
k) Required — —
On the LED module, on
the LED module
datasheet, on the LED
module leaflet, or on the
website of the
manufacturer or
responsible vendor
6.2 Contents of marking for built-in and for independent LED modules
The following marking information for built-in and independent LED modules shall be given:
a) Mark of origin (trade mark, manufacturer’s name or name of the responsible
vendor/supplier).
b) Model number or type reference of the manufacturer.
c) Rated supply voltage or rated supply current as follows:
1) If the LED module requires stable voltage, the rated supply voltage(s) or the rated
supply voltage range, both together with the supply frequency shall be marked.
Marking of the rated supply current(s) is voluntary.
2) If the LED module requires stable current, the rated supply current(s) or the rated
current range, both together with the supply frequency shall be marked. Marking of the
rated supply voltage(s) is voluntary.
d) Rated power.
e) Indication of position and purpose of the connections where it is necessary for safety. In
the case of connecting wires, a clear indication shall be given in a wiring diagram.
f) Value of the rated maximum temperature t . If this relates to a certain place on the LED
c
module, this place shall be indicated or specified in the manufacturer’s literature.
g) If the assessment of blue light hazard according to IEC TR 62778:2014 results in
assignment to RG0 unlimited or RG1 unlimited, no marking for photobiological safety is
required. If the assessment of blue light hazard according to IEC TR 62778:2014 results in
a threshold illuminance value E , marking with the E , is required.
thr thr
h) Built-in LED modules shall be marked with the symbol according to Figure 1 in order to
separate them from independent LED modules.
Source: IEC 60417-6053 (2011-05)
Figure 1 – Symbol for built-in LED modules
i) The heat transfer temperature t (if the LED module is provided with a cap enabling the
d
insertion and the withdrawal without the use of tools and reliant on heat-conduction to the
luminaire).
(if the LED module is provided with a cap enabling the
j) The power for heat-conduction P
d
insertion and the withdrawal without the use of tools and reliant on heat-conduction to the
luminaire). If P is not known exactly, the rated power of the LED module may be taken
d
instead.
k) Working voltage at which the insulation between active parts of the LED module and parts
of the LED module designed as insulation barriers to a luminaire are designed together
with the type of insulation.
The type of insulation can be
• basic insulation for SELV operation only,
• basic insulation for SELV and other than SELV operation,
• supplementary insulation,
– 12 – IEC 62031:2018 © IEC 2018
• double or reinforced insulation,
• no insulation (in this case the working voltage is 0 V).
Parts of the LED module designed as insulation barriers to a luminaire include insulation
barriers between active parts of the LED module and
• the mounting surface of the LED module,
• the parts of the LED module designed to be touchable when mounted in the luminaire.
This information is not required for independent LED modules.
6.3 Location of marking for built-in LED modules
For built-in LED modules, items a) and b) according to 6.2 shall be marked on the LED
module. The other applicable items according to 6.2 shall be marked on the LED module, on
the LED module datasheet, on the LED module leaflet, or on the website of the manufacturer
or responsible vendor.
6.4 Location of marking for independent LED modules
For independent LED modules, items a), b), c) and f) according to 6.2 shall be marked on the
LED module. The other applicable items according to 6.2 shall be marked on the LED module,
on the LED module datasheet, on the LED module leaflet, or on the website of the
manufacturer or responsible vendor.
6.5 Marking of integral LED modules
For integral LED modules, the information given in 6.2 a) to g) shall be provided on the LED
module datasheet, on the LED module leaflet, or on the website of the manufacturer or
responsible vendor.
6.6 Durability and legibility of marking
Marking on the LED module shall be durable and legible.
Compliance is checked by inspection and by trying to remove the marking by rubbing the area
lightly by hand for 15 s with a piece of smooth cloth, dampened with water.
The marking shall be legible after the test.
Marking which is not on the LED module shall be legible.
Compliance is checked by inspection.
7 Terminals
7.1 Integral terminals
Integral terminals shall comply with the following sections of IEC 60598-1:2014 and IEC
60598-1:2014/AMD1:2017
• Section 14 for screw terminals;
• Section 15 for screwless terminals.
Compliance is checked by inspection and the relevant tests.
7.2 Terminals other than integral terminals
Terminals, other than integral terminals, shall comply with the requirements of the relevant
IEC standards, if any.
Terminals which comply with the requirements of the relevant IEC standard and marked with
individual ratings shall suit the conditions which may occur in use.
Aspects of use not covered by the respective standard shall require them to satisfy the
additional relevant requirements of this document.
Terminals complying with the requirements of their own standard and used in accordance with
their intended use, shall only meet the requirements of this document where there are no
requirements in the terminal standard.
Compliance is checked by inspection and the relevant tests.
NOTE Example terminal standards are IEC 60947-7-4 and IEC 60838-2-2.
8 Earthing
The requirements of IEC 61347-1:2015, Clause 9, apply.
9 Protection against accidental contact with live parts
The requirements of IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017, Clause 10, apply.
10 Moisture resistance and insulation
The requirements of IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017, Clause 11, apply.
11 Electric strength
The requirements of IEC 61347-1:2015, Clause 12, apply.
12 Fault conditions
12.1 General
The LED module shall not impair safety when operated under fault conditions that can occur
during the intended use. The requirements of IEC 61347-1:2015 and
IEC 61347-1:2015/AMD1:2017, Clause 14, apply.
Compliance is checked by the tests according to IEC 61347-1:2015 and
IEC 61347-1:2015/AMD1:2017, Clause 14 and the test according to 12.2.
12.2 Overpower condition
The test conditions according to Annex A apply.
The LED module shall be switched on and the power monitored (at the input side). The
voltage or the current shall be increased until 150 % of the rated power is reached. The test
shall be continued until the LED module is thermally stabilized. A stable condition is reached
if the temperature does not change by more than 5 K in 1 h. The temperature shall be
– 14 – IEC 62031:2018 © IEC 2018
measured in the t point. The LED module shall withstand the overpower condition for at least
c
15 min, the time period which can lie within the stabilization period if the temperature change
is ≤ 5 K.
If the LED module contains an automatic protective device or circuit which limits the power, it
is subjected to a 15 min operation at this limit. If the device or circuit effectively limits the
power over this period, the LED module has passed the test, provided that compliance to 4.1
and the last paragraph of 12.2 is fulfilled.
After finalizing the overpower mode, the LED module is operated under normal conditions
until thermally stable.
For the purpose of this test, "operated" means that the LED module is supplied with the rated
input current or rated input voltage. The LED module does not need to emit light.
The test is considered as passed if no fire, smoke or flammable gas is produced and if the
15 min overpower condition has been withstood. To check whether molten material might
present a safety hazard, a wrapping tissue according to ISO 4046-4:2016, 4.215, spread
below the LED module shall not ignite.
13 Conformity testing during manufacture
See Annex B.
14 Construction
The requirements of IEC 61347-1:2015, Clause 15, apply.
15 Creepage distances and clearances
The requirements of IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017, Clause 16 apply.
16 Screws, current-carrying parts and connections
The requirements of IEC 61347-1:2015, Clause 17, apply.
17 Resistance to heat, fire and tracking
The requirements of IEC 61347-1:2015, Clause 18, apply.
18 Resistance to corrosion
The requirements of IEC 60598-1:2014, 4.18, apply.
19 Information for luminaire design
Information is given in Annex C.
20 Heat management
20.1 General
Clause 20 is applicable if a heat conducting thermal interface to the luminaire is needed for
keeping the temperature below the rated maximum temperature t . It is applicable for
c
replaceable LED modules except for non-user replaceable LED modules.
20.2 Thermal interface material
For the purpose of heat-transfer from the LED module to the luminaire, the use of thermal
interface material can be necessary. Any thermal interface material shall be delivered within
the LED module packaging.
20.3 Heat protection
LED modules shall not impair safety when operated under poor heat-conduction conditions.
Compliance is checked by the test specified in Annex D.
21 Photobiological safety
21.1 UV radiation
The ultraviolet hazard efficacy of luminous radiation of an LED module shall not exceed
2 mW/klm.
Compliance is checked by measurement of the spectral power distribution and subsequent
calculation of the ultraviolet hazard efficacy of luminous radiation according to
IEC 62471:2006, Clause 5.
LED modules not relying on the conversion of UV radiation are expected to not exceed the
maximum allowed ultraviolet hazard efficacy of luminous radiation. They do not require
measurement.
21.2 Blue light hazard
For the assessment of the blue light hazard IEC TR 62778:2014 shall be applied. The
Technical Report shall be regarded as normative.
NOTE IEC TR 62778:2014, Clause C.2 gives a method to classify LED modules where full spectral data is not
available.
21.3 Infrared radiation
LED modules are expected to not reach a level of infrared radiation where marking or other
safety measures are required. They do not require measurement.
– 16 – IEC 62031:2018 © IEC 2018
Annex A
(normative)
Test conditions
IEC 61347-1:2015, Clauses H.1, H.2, H.4, H.7, H.8, and H.11 apply. In H.1.3, the first
paragraph shall be ignored. In all clauses, “lamp”, “(lamp) control gear” and “ballast” shall be
replaced with “LED module”.
Annex B
(informative)
Conformity testing during manufacture
This test is carried out at 100 % of production. It is combined with the measurement of input
power at rated voltage/current. The luminous flux of no LED module should be significantly
lower than that of the rest of the production.
NOTE Very low values of the luminous flux indicate internal losses that can be safety relevant, such as current
bridges.
For independent and built-in LED modules, IEC 60598-1:2014, Annex Q is applicable, but
without the polarity check.
– 18 – IEC 62031:2018 © IEC 2018
Annex C
(informative)
Information for luminaire design
C.1 Heat management
C.1.1 General
Clause C.1 applies for LED modules that rely on heat-conduction to the luminaire for safe
operation.
Annex C covers only those provisions that are related to the thermal needs specific for these
LED modules.
NOTE Because of their non-interchangeability, integral LED modules are excluded. Because independent LED
modules are luminaire-like, not needing protection or else from a luminaire neither using a lampholder, they
provide for their own heat management and are excluded. Only built-in LED modules remain within the scope of
Annex C.
For safe operation of these LED modules, it is essential to observe the recommendations of
Annex C.
C.1.2 Design freedom
A diagrammatic cross section of an LED module fixed by means of a lampholder to a
luminaire with the locations for temperature measurements (t , t , t , t and t ) and thermal
a c d j l
resistances (R , R and R ) is given with Figure C.1.
th, module th, luminaire th, ambient
LED junction
t
j
LED module t
c
Holder (mechanical and
R
th, module
electrical contact)
R
th, luminaire
Luminaire t
d
R
th, ambient
Heat transfer area
t
a
t
l
IEC
Key
Blue LED module
Yellow Lampholder
Light blue Luminaire with symbolized cooling fins
t rated maximum ambient temperature of the luminaire as defined in IEC 60598-1:2014
a
t rated maximum temperature
c
t minimum heat transfer temperature
d
t junction temperature (shown for illustration only)
j
t temperature on the surface of the luminaire (shown for illustration only)
l
R thermal resistance between t point and t point
th, module c d
R thermal resistance between t point and t point
th, luminaire d l
R thermal resistance between t and ambient temperature
th, ambient l
Figure C.1 – Diagrammatic cross section of an LED module fixed b
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
