IEC 61000-6-3:2006+AMD1:2010 CSV

IEC 61000-6-3 ®
Edition 2.1 2011-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
COMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES

Electromagnetic compatibility (EMC) –
Part 6-3: Generic standards – Emission standard for residential, commercial and
light-industrial environments
Compatibilité électromagnétique (CEM) –
Partie 6-3: Normes génériques – Norme sur l'émission pour les environnements
résidentiels, commerciaux et de l'industrie légère

IEC 61000-6-3:2006+A1:2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61000-6-3 ®
Edition 2.1 2011-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
COMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES

Electromagnetic compatibility (EMC) –
Part 6-3: Generic standards – Emission standard for residential, commercial and
light-industrial environments
Compatibilité électromagnétique (CEM) –
Partie 6-3: Normes génériques – Norme sur l'émission pour les environnements
résidentiels, commerciaux et de l'industrie légère

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX CH
ICS 33.100.10 ISBN 978-2-88912-336-0

– 1 –

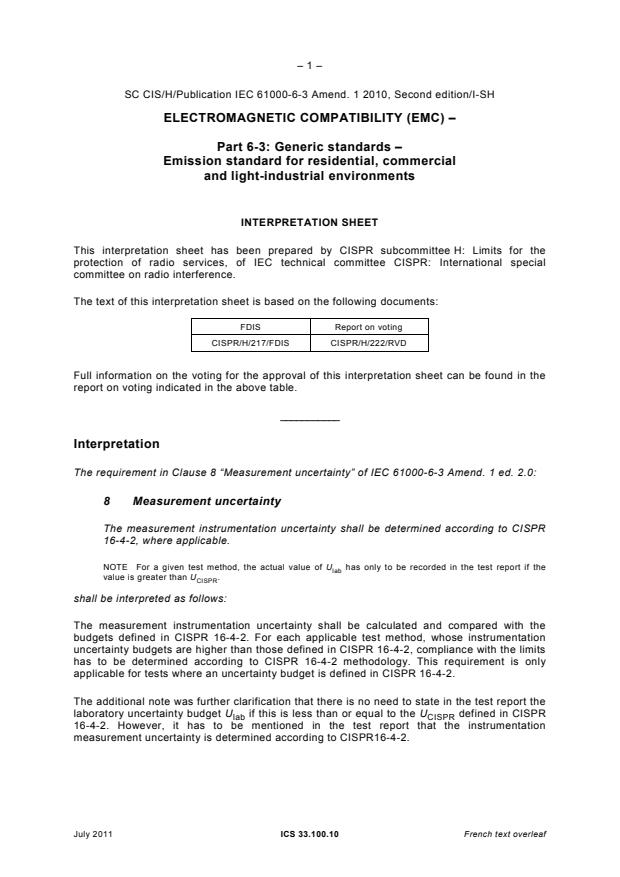

SC CIS/H/Publication IEC 61000-6-3 Amend. 1 2010, Second edition/I-SH
ELECTROMAGNETIC COMPATIBILITY (EMC) –

Part 6-3: Generic standards –
Emission standard for residential, commercial
and light-industrial environments

INTERPRETATION SHEET
This interpretation sheet has been prepared by CISPR subcommittee H: Limits for the
protection of radio services, of IEC technical committee CISPR: International special
committee on radio interference.
The text of this interpretation sheet is based on the following documents:
FDIS Report on voting
CISPR/H/217/FDIS CISPR/H/222/RVD

Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
Interpretation
The requirement in Clause 8 “Measurement uncertainty” of IEC 61000-6-3 Amend. 1 ed. 2.0:
8 Measurement uncertainty
The measurement instrumentation uncertainty shall be determined according to CISPR
16-4-2, where applicable.
NOTE For a given test method, the actual value of U has only to be recorded in the test report if the
lab
value is greater than U .
CISPR
shall be interpreted as follows:
The measurement instrumentation uncertainty shall be calculated and compared with the
budgets defined in CISPR 16-4-2. For each applicable test method, whose instrumentation
uncertainty budgets are higher than those defined in CISPR 16-4-2, compliance with the limits
has to be determined according to CISPR 16-4-2 methodology. This requirement is only
applicable for tests where an uncertainty budget is defined in CISPR 16-4-2.
The additional note was further clarification that there is no need to state in the test report the
laboratory uncertainty budget U if this is less than or equal to the U defined in CISPR
lab CISPR
16-4-2. However, it has to be mentioned in the test report that the instrumentation
measurement uncertainty is determined according to CISPR16-4-2.

July 2011 ICS 33.100.10 French text overleaf

– 2 – 61000-6-3 © IEC:2006+A1:2010
CONTENTS
FOREWORD . 3
INTRODUCTION . 5

1 Scope and object . 6
2 Normative references . 7
3 Terms, definitions and abbreviations . 8
4 Conditions during testing . 10
5 Product documentation . 10
6 Applicability . 10
7 Emission requirements . 11
8 Application of limits in tests for conformity of equipment in series production
Measurement uncertainty . 11
9 Measurement uncertainty Application of limits in tests for conformity of equipment
in series production . 12
10 Compliance with this standard . 12
11 Emission test requirements . 16

Bibliography . 21

Figure 1 – Examples of ports Ports covered by Tables 1 to 4 . 8

Table 1 – Emission – Enclosure port . 16
Table 2 – Emission – Low voltage AC mains port . 18
Table 3 – Emission – DC power port . 19
Table 4 – Emission – Telecommunications/network port . 20

61000-6-3 © IEC:2006+A1:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
___________
ELECTROMAGNETIC COMPATIBILITY (EMC) –

Part 6-3: Generic standards –
Emission standard for residential,
commercial and light-industrial environments

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This consolidated version of IEC 61000-6-3 consists of the second edition (2006)
[documents CISPR/H/121/FDIS and CISPR/H/124/RVD] and its amendment 1 (2010)
[documents CISPR/H/206/FDIS and CISPR/H/210/RVD]. It bears the edition number 2.1.
The technical content is therefore identical to the base edition and its amendment and
has been prepared for user convenience. A vertical line in the margin shows where the
base publication has been modified by amendment 1. Additions and deletions are
displayed in red, with deletions being struck through.

– 4 – 61000-6-3 © IEC:2006+A1:2010
International Standard IEC 61000-6-3 has been prepared by CISPR subcommittee H: Limits
for the protection of radio services.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

61000-6-3 © IEC:2006+A1:2010 – 5 –
INTRODUCTION
IEC 61000 is published in separate parts according to the following structure:
Part 1: General
General considerations (introduction, fundamental principles)
Definitions, terminology
Part 2: Environment
Description of the environment
Classification of the environment
Compatibility levels
Part 3: Limits
Emission limits
Immunity limits (insofar as they do not fall under the responsibility of the product
committees)
Part 4: Testing and measurement techniques
Measurement techniques
Testing techniques
Part 5: Installation and mitigation guidelines
Installation guidelines
Mitigation methods and devices
Part 6: Generic standards
Part 9: Miscellaneous
Each part is further subdivided into several parts published either as International Standards
or technical reports/specifications, some of which have already been published as sections.
Others will be published with the part number followed by a dash and a second number
identifying the subdivision (example: 61000-6-1).

– 6 – 61000-6-3 © IEC:2006+A1:2010
ELECTROMAGNETIC COMPATIBILITY (EMC) –

Part 6-3: Generic standards –
Emission standard for residential,
commercial and light-industrial environments

1 Scope and object
This part of IEC 61000 for EMC emission requirements applies to electrical and electronic
apparatus intended for use in residential, commercial and light-industrial environments.
Emission requirements in the frequency range 0 Hz to 400 GHz are covered. No
measurement needs to be performed at frequencies where no requirement is specified.
This generic EMC emission standard is applicable if no relevant dedicated product or product-
family EMC emission standard exists.
This standard applies to apparatus intended to be directly connected to a low-voltage public
mains network or connected to a dedicated DC source, which is intended to interface between
the apparatus and the low-voltage public mains network. This standard applies also to
apparatus which is battery operated or is powered by a non-public, but non-industrial, low-
voltage power distribution system if this apparatus is intended to be used in the locations
described below.
The environments encompassed by this standard are residential, commercial and light-
industrial locations, both indoor and outdoor. The following list, although not comprehensive,
gives an indication of locations that are included:
– residential properties, for example houses, apartments;
– retail outlets, for example shops, supermarkets;
– business premises, for example offices, banks;
– areas of public entertainment, for example cinemas, public bars, dance halls;
– outdoor locations, for example petrol stations, car parks, amusement and sports centres;
– light-industrial locations, for example workshops, laboratories, service centres.
Locations that are characterised by being supplied directly at low voltage from the public
mains network are considered to be residential, commercial or light-industrial.
The object of this standard is to define the emission test requirements for apparatus defined
in the scope in relation to continuous and transient, conducted and radiated disturbances.
The emission requirements have been selected so as to ensure that disturbances generated
by apparatus operating normally in residential, commercial and light-industrial locations do
not exceed a level which could prevent other apparatus from operating as intended. Fault
conditions of apparatus are not taken into account. Not all disturbance phenomena have been
included for testing purposes in this standard but only those considered as relevant for the
equipment covered by this standard. These requirements represent essential electromagnetic
compatibility emission requirements.

61000-6-3 © IEC:2006+A1:2010 – 7 –
Requirements are specified for each port considered.
NOTE 1 Safety considerations are not covered by this standard.
NOTE 2 In special cases, situations will arise where the levels specified in this standard will not offer adequate
protection; for example where a sensitive receiver is used in close proximity to an apparatus. In these instances,
special mitigation measures may have to be employed.
NOTE 3 As the requirements in this standard are more stringent than the requirements in IEC 61000-6-4,
equipment fulfilling the requirements of this standard will also comply with the requirements of IEC 61000-6-4.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050-161, International Electrotechnical Vocabulary (IEV) − Chapter 161: Electro-
magnetic compatibility
IEC 61000-3-2:2005, Electromagnetic compatibility (EMC) − Part 3-2: Limits − Limits for
harmonic current emissions (equipment input current ≤ 16 A per phase)
Amendment 1:2008
Amendment 2:2009
IEC 61000-3-3:2008, Electromagnetic compatibility (EMC) − Part 3-3: Limits − Limitation of
voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for
equipment with rated current ≤ 16 A per phase and not subject to conditional connection
IEC 61000-3-11:2000, Electromagnetic compatibility (EMC) – Part 3-11: Limits – Limitation of
voltage changes, voltage fluctuations and flicker in public low-voltage supply systems –
Equipment with rated current ≤ 75 A and subject to conditional connection
IEC 61000-3-12:2004, Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for
harmonic currents produced by equipment connected to public low-voltage systems with input
current > 16 A and ≤ 75 A per phase
IEC 61000-4-20:2010, Electromagnetic compatibility (EMC) – Part 4-20: Testing and
measurement techniques – Emission and immunity testing in transverse electromagnetic
(TEM) waveguide
CISPR 14-1:2005, Electromagnetic compatibility – Requirements for household appliances,
electric tools and similar apparatus – Part 1: Emission
Amendment 1:2008
CISPR 16-1-1:2010, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 1-1: Radio disturbance and immunity measuring apparatus – Measuring
apparatus
CISPR 16-1-2:2003, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 1-2: Radio disturbance and immunity measuring apparatus – Ancillary
equipment – Conducted disturbances
Amendment 1:2004
Amendment 2:2006
CISPR 16-1-4:2007, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 1-4: Radio disturbance and immunity measuring apparatus – Ancillary
equipment – Radiated disturbances
Amendment 1:2007
– 8 – 61000-6-3 © IEC:2006+A1:2010
CISPR 16-2-1:2008, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 2-1: Methods of measurement of disturbances and immunity – Conducted
disturbance measurements
CISPR 16-2-3:2006, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 2-3: Methods of measurement of disturbances and immunity – Radiated
disturbance measurements
CISPR 16-4-2:2003, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 4-2: Uncertainties, statistics and limit modelling – Uncertainty in EMC
measurements
CISPR 22:2008, Information technology equipment – Radio disturbance characteristics –
Limits and methods of measurement
3 Terms, definitions and abbreviations
For the purposes of this document, the following terms and definitions apply.
NOTE Definitions related to EMC and to relevant phenomena are given in IEC 60050-161 and in other IEC and
CISPR publications
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-161, as well
as the following apply.
3.1.1
port
particular interface of the specified apparatus with the external electromagnetic environment
(see Figure 1)
Enclosure port
Low voltage
a.c. mains port
Apparatus
Telecommunications/
DC power port
network port
IEC  1091/06
Figure 1 – Examples of ports
Enclosure port
Telecommunications/ Low voltage a.c. mains port

network port
Apparatus
DC power port
IEC  2580/10
Figure 1 – Ports covered by Tables 1 to 4

61000-6-3 © IEC:2006+A1:2010 – 9 –
3.2 3.1.2
enclosure port
physical boundary of the apparatus which electromagnetic fields may radiate through or
impinge on
3.3 3.1.3
cable port
port at which a conductor or a cable is connected to the apparatus
NOTE Examples are signal, control and power ports.
3.4 3.1.4
telecommunications/network port
point of connection for voice, data and signalling transfers intended to interconnect widely
dispersed systems via such means as direct connection to multi-user telecommunications
networks (e.g. public switched telecommunications networks (PSTN) integrated services
digital networks (ISDN), x-type digital subscriber lines (xDSL), etc.), local area networks (e.g.

Ethernet, Token Ring, etc.) and similar networks)
NOTE A port generally intended for interconnection of components of an ITE system under test (e.g. RS-232,RS-
485, field buses in the scope of IEC 61158, IEEE Standard 1284 (parallel printer), Universal Serial Bus (USB),
IEEE Standard 1394 (“Fire Wire”), etc.) and used in accordance with its functional specifications (e.g. for the
maximum length of cable connected to it), is not considered to be a telecommunications port.
3.5 3.1.5
power port
port at which a conductor or cable carrying the primary electrical power needed for the
operation (functioning) of an apparatus or associated apparatus is connected to the apparatus
3.6 3.1.6
public mains network
electricity lines to which all categories of consumers have access and which are operated by
a supply or distribution undertaking for the purpose of supplying electrical energy
3.7 3.1.7
low voltage
LV
low tension
voltage having a value below a conventionally adopted limit
[IEV 601-01-26, modified]
NOTE For the distribution of AC electric power, the upper limit is generally accepted to be 1 000 V.
3.8 3.1.8
d.c. power network
local electricity supply network in the infrastructure of a certain site or building intended for
flexible use by one ore more different types of equipment and guaranteeing continuous power
supply independently from the conditions of the public mains network
NOTE Connection to a remote local battery is not regarded as a DC power network, if such a link comprises only
power supply for a single piece of equipment.
3.1.9
low voltage AC mains port
port used to connect to the low voltage AC mains supply network to power the equipment
NOTE Equipment with a DC power port is considered low voltage AC mains powered if it is powered from an
AC/DC power converter.
3.1.10
highest internal frequency
highest fundamental frequency generated or used within the EUT, or the highest frequency at
which it operates
– 10 – 61000-6-3 © IEC:2006+A1:2010
3.2 Abbreviations
AC Alternating Current
DC Direct Current
EUT Equipment Under Test
FAR  Fully Anechoic Room
ISN Impedance Stabilization Network
OATS  Open Area Test Site
SAC  Semi Anechoic Chamber
TEM  Transverse Electromagnetic Mode
4 Conditions during testing
The equipment under test (EUT) shall be tested in the operating mode producing the largest
emission in the frequency band being investigated, e.g. based on limited pre-tests and
consistent with normal applications. The configuration of the test sample shall be varied to
achieve maximum emission consistent with typical applications and installation practice.
If the apparatus is part of a system, or can be connected to auxiliary apparatus, the apparatus
shall be tested while connected to the minimum representative configuration of auxiliary
apparatus necessary to exercise the ports in a similar manner to that described in CISPR 22.
In cases where a manufacturer's specification requires external filtering and/or shielding
devices or measures that are clearly specified in the user's manual, the measurement
requirements of this standard shall be applied with the specified devices or measures in
place.
The configuration and mode of operation during the measurements shall be precisely noted in
the test report. If the apparatus has a large number of similar ports or ports with many similar
connections, a sufficient number shall be selected to simulate actual operating conditions and
to ensure that all the different types of termination are covered.
The measurements shall be carried out at one single set of parameters within the operating
ranges of temperature, humidity and atmospheric pressure specified for the product and at the
rated supply voltage, unless otherwise indicated in the basic standard.
Where applicable, additional information on EUT configuration can be found in the CISPR 16-2
series and CISPR 22.
5 Product documentation
The purchaser/user shall be informed if special measures have to be taken to achieve
compliance, e.g. the use of shielded or special cables.
6 Applicability
The application of measurements for emission(s) depends on the particular apparatus, its
configuration, its ports, its technology and its operating conditions.
Measurements shall be applied to the relevant ports of the apparatus according to Tables 1 to 4.
Measurements shall only be carried out where the relevant ports exist.
It may be determined from consideration of the electrical characteristics and usage of a
particular apparatus that some of the measurements are inappropriate and therefore
unnecessary. In such a case it is required that the decision and justification not to measure
shall be recorded in the test report.

61000-6-3 © IEC:2006+A1:2010 – 11 –
7 Emission requirements
The emission requirements for apparatus covered by this standard are given on a port by port
basis. The requirements are stated in Tables 1 to 4
Measurements shall be conducted in a well-defined and reproducible manner.
The measurements may be performed in any order.
The description of the measurement, the measurement instrumentation, the measurement
methods and the measurement set-up to be used are given in the standards, which are
referred to in Tables 1 to 4.
The contents of the standards referenced in the tables are not repeated here, however
modifications or additional information needed for the practical application of the
measurements are given in this standard.
8 Application of limits in tests for conformity of equipment in series production
Measurement uncertainty
8.1 Tests shall be made:
– either on a sample of equipment of the type using the statistical method of evaluation set
out in 8.2,
– or, for simplicity’s sake, on one equipment only.
8.2 Statistically assessed compliance with limits shall be made as follows.
This test shall be performed on a sample of not less than five and not more than 12 items of
the type. If, in exceptional circumstances, five items are not available, a sample of four or
three shall be used. Compliance is judged from the following relationship:
x + kS ≤ L
n
where
x is the arithmetic mean of the measured value of n items in the sample
n
S = (x − x)²
n i
∑
n−1
i=1
x is the value of the individual item
n
L is the appropriate limit
k is the factor derived from tables of the non-central t-distribution which assures with 80 %
confidence that 80 % of the type is below the limit; the value of k depends on the sample
size n and is stated below.
The quantities x , x , S and L are expressed logarithmically: dB(µV), dB(µV/m) or dB(pW).
n n
n 3 4 5 6 7 8 9 10 11 12
k 2,04 1,69 1,52 1,42 1,35 1,30 1,27 1,24 1,21 1,20
The measurement instrumentation uncertainty shall be determined according to CISPR 16-4-2,
where applicable.
NOTE For a given test method, the actual value of U has only to be recorded in the test report if the value is
lab
greater than U .
CISPR
– 12 – 61000-6-3 © IEC:2006+A1:2010
9 Measurement uncertainty Application of limits in tests for conformity
of equipment in series production
The results of measurements of emissions from ITE shall reference the measurement
instrumentation uncertainty considerations contained in CISPR 16-4-2.
Determining compliance with the limits in this standard shall be based on the results of the
compliance measurement, not taking into account measurement instrumentation uncertainty.
However measurement uncertainty of the measurement instrumentation and its associated
connections between the various instruments in the measurement chain shall be calculated
and both the measurement results and the calculated uncertainty shall appear in the test
report.
9.1 Tests shall be made:
– either on a sample of equipment of the type using the statistical method of evaluation set
out in 9.2,
– or, for simplicity’s sake, on one equipment only.
9.2 Statistically assessed compliance with limits shall be made as follows.
This test shall be performed on a sample of not less than five and not more than 12 items of
the type. If, in exceptional circumstances, five items are not available, a sample of four or
three shall be used. Compliance is judged from the following relationship:
x + kS ≤ L
n
where
x is the arithmetic mean of the measured value of n items in the sample
n
S = (x − x)²
n ∑ i
n−1
i=1
x is the value of the individual item
n
L is the appropriate limit
k is the factor derived from tables of the non-central t-distribution which assures with 80 %
confidence that 80 % of the type is below the limit; the value of k depends on the sample
size n and is stated below.
The quantities x , x , S and L are expressed logarithmically: dB(µV), dB(µV/m) or dB(pW).
n n
n 3 4 5 6 7 8 9 10 11 12
k 2,04 1,69 1,52 1,42 1,35 1,30 1,27 1,24 1,21 1,20

10 Compliance with this standard
Where this standard gives options for testing particular requirements with a choice of test
methods, compliance can be shown against any of the test methods, using the specified limits
with the restrictions provided in the relevant tables.
In any situation where it is necessary to retest the equipment the test method original chosen
should be used in order to ensure consistency of the results.

61000-6-3 © IEC:2006+A1:2010 – 13 –
Equipment which fulfills the requirements across the frequency ranges specified in Clause 11
Tables 1 to 4 in this standard is deemed to fulfill the requirements in the entire frequency
range from 9 kHz to 400 GHz.
Measurements do not need to be performed at frequencies where no limits are specified.

– 14 –        61000-6-3 © IEC:2006+A1:2010

Table 1 − Emission
Port Frequency range Limits Basic standard Applicability note Remarks
1) 30 MHz – 230 MHz CISPR 16-2-3 See Notes 1 and 4. May be measured at 3 m
30 dB(µV/m) Quasi-peak at 10 m
Enclosure port – Open 230 MHz – 1 000 MHz distance using the limits
37 dB(µV/m) Quasi-peak at 10 m
area test site or semi- increased by 10 dB.
anechoic method
2) 0 kHz – 2 kHz IEC 61000-3-2 See Notes 2 and 3.
Low voltage AC mains IEC 61000-3-3
port
IEC 61000-3-11
IEC 61000-3-12
0,15 MHz – 0,5 MHz CISPR 16-2-1, 7.4.1 See Notes 4 and 5.
66 dB(µV) – 56 dB(µV) quasi-peak
56 dB(µV) – 46 dB(µV) average
CISPR 16-1-2, 4.3
0,5 MHz – 5 MHz 56 dB(µV) quasi-peak
46 dB(µV) average
5 MHz – 30 MHz
60 dB(µV) quasi-peak
50 dB(µV) average
0,15 MHz – 30 MHz See basic standard, clause: CISPR 14-1
discontinuous disturbance.
NOTE 1 If the internal emission source(s) is operating at a frequency below 9 kHz then measurements need only to be performed up to 230 MHz.
NOTE 2 Applicable to apparatus covered within the scope of IEC 61000-3-2, IEC 61000-3-3 or IEC 61000-3-12.
NOTE 3 If the apparatus is covered by the scope of IEC 61000-3-11, this may be used instead of IEC 61000-3-3.
NOTE 4 At transitional frequencies the lower limit applies.
NOTE 5 The limits decrease linearly with the logarithm of the frequency in the range 0,15 MHz to 0,5 MHz.
NOTE 6 The current and voltage disturbance limits are derived for use with an impedance stabilization network (ISN) which presents a common mode (asymmetric mode)
impedance of 150 Ω to the telecommunication port under test (conversion factor is 20 log 150 / l = 44 dB).
61000-6-3 © IEC:2006+A1:2010         – 15 –

Table 1 (continued)
Port Frequency range Limits Basic standard Applicability note Remarks
Applicable only to ports intended
3) 0,15 MHz − 0,50 MHz 79 dB(µV) quasi-peak CISPR 16-2-1, 7.4.1
for connection to:
DC power port
66 dB(µV) average
CISPR 16-1-2, 4.3 - a local DC power network, or
- a remote local battery by a
connecting cable exceeding a
length of 30 m.
See note 4
0,50 MHz − 30 MHz 73 dB(µV) quasi-peak
60 dB(µV) average
4) 0,15 MHz – 0,5 MHz CISPR 22 See notes 4, 5 and 6.
84 dB(µV) – 74 dB(µV) quasi-peak
Telecommunications/
74 dB(µV) – 64 dB(µV) average
network port
40 dB(µA) – 30 dB(µA) quasi-peak
30 dB(µA) – 20 dB(µA) average
0,5 MHz – 30 MHz See notes 4 and 6.
74 dB(µV) quasi-peak
64 dB(µV) average
30 dB(µA) quasi-peak
20 dB(µA) average
NOTE 1 If the internal emission source(s) is operating at a frequency below 9 kHz then measurements need only to be performed up to 230 MHz.
NOTE 2 Applicable to apparatus covered within the scope of IEC 61000-3-2, IEC 61000-3-3 or IEC 61000-3-12.
NOTE 3 If the apparatus is covered by the scope of IEC 61000-3-11 this may be used instead of IEC 61000-3-3.
NOTE 4 At transitional frequencies the lower limit applies.
NOTE 5 The limits decrease linearly with the logarithm of the frequency in the range 0,15 MHz to 0,5 MHz.
NOTE 6 The current and voltage disturbance limits are derived for use with an impedance stabilization network (ISN) which presents a common mode (asymmetric mode)
impedance of 150 Ω to the telecommunication port under test (conversion factor is 20 log 150 / l = 44 dB).
– 16 –        61000-6-3 © IEC:2006+A1:2010

11 Emission test requirements
Table 1 – Emission – Enclosure port
Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause
a, b and e
1.1 Enclosure 30 MHz to 230 MHz The measurement instrumentation See May be measured at 3 m
30 dB(µV/m) quasi-peak at 10 m
230 MHz to 1 000 MHz shall be as defined in 4 distance using the limits
37 dB(µV/m) quasi-peak at 10 m
Test facility: of CISPR 16-1-1. increased by 10 dB.
OATS or SAC
The measuring antennas shall be as As stated in CISPR 16-2-3
defined in 4.4 of CISPR 16-1-4. the antenna height shall be
varied between 1 m to 4 m.
The measuring site shall be as

described in Clause 5
Additional guidance on the
of CISPR 16-1-4.
test method can be found in
CISPR 16-2-3 clause 7.3
The measurement method shall be as
and clause 8.
specified in 7.2 of CISPR 16-2-3.
a, b and e
1.2 Enclosure 30 MHz to 230 MHz The measurement instrumentation See May be measured at greater
42 to 35 dB(µV/m) quasi-peak at
shall be as defined in 4 distances with the limits
3 m
Only applicable to table
Test facility: of CISPR 16-1-1. decreased by 20 dB/decade
top equipment.
FAR Limit reducing linearly with the (relative to distance).
The measuring antennas shall be as
logarithm of the frequency.
defined in 4.4 of CISPR 16-1-4. The limitations on EUT size
in CISPR 16-1-4 apply.
230 MHz to 1 000 MHz
42 dB(µV/m) quasi-peak at 3 m
The measuring site shall be as
described in Clause 5.8
of CISPR 16-1-4.
The measurement method shall be as
specified in 7.2.9.2 of CISPR 16-2-3.
1.3 Enclosure 30 MHz to 230 MHz IEC 61000-4-20 Only applicable to
30 dB(µV/m) quasi-peak
230 MHz to 1 000 MHz battery powered
37 dB(µV/m) quasi-peak
Test facility: equipment not intended
The small-EUT correction factor
TEM Waveguide to have external cables
given in A.4.3 of IEC 61000-4-20
attached. Restricted to
shall be used. The limit relates to
equipment complying
the OATS measurement distance
with the definition 6.2 in
of 10m
IEC 61000-4-20.
a, b and e
See
61000-6-3 © IEC:2006+A1:2010         – 17 –

Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause
a, c, d and e
1.4 Enclosure 1 GHz to 3 GHz The measurement instrumentation See May be measured at greater
70 dB(µV/m) peak at 3 m
shall be as defined in 5 and 6 of distances with the limits
50 dB(µV/m) average at 3 m
Test facility: CISPR 16-1-1. decreased by 20 dB/decade
3 GHz to 6 GHz 74 dB(µV/m) peak at 3 m
OATS, SAC or (relative to distance).
The measuring antennas shall be as
FAR 54 dB(µV/m) average at 3 m
defined in 4.5 of CISPR 16-1-4. For SAC and OATS facilities
absorber may be required to
The measuring site shall be as
achieve free space
described in Clause 8
conditions as defined in
of CISPR 16-1-4.
CISPR 16-1-4.
The measurement method shall be as
specified in 7.3 of CISPR 16-2-3.
a
For apparatus containing devices operating at frequencies less than 9 kHz measurements only need to be performed up to 230 MHz.
b
The apparatus is deemed to comply with the enclosure port requirement below 1 GHz if it meets the requirements defined in one or more of the table clauses 1.1, 1.2 or 1.3.
c
If the highest internal frequency of the EUT is less than 108 MHz, the measurement shall only be made up to 1 GHz.
If the highest internal frequency of the EUT is between 108 MHz and 500 MHz, the measurement shall only be made up to 2 GHz.
If the highest internal frequency of the EUT is between 500 MHz and 1 GHz, the measurement shall only be made up to 5 GHz.
If the highest internal frequency of the EUT is above 1 GHz, the measurement shall be made up to 6 GHz.
Where the highest internal frequency is not known, tests shall be performed up to 6 GHz.
d
The peak detector limits shall not be applied to disturbances produced by arcs or sparks that are high voltage breakdown events. Such disturbances arise when devices contain or control
mechanical switches that control current in inductors, or when devices contain or control subsystems that create static electricity (such as paper handling devices). The average limits apply to
disturbances from arcs or sparks, and both peak and average limits apply to other disturbances from such devices.
e
At transitional frequencies the lower limit applies.

– 18 –        61000-6-3 © IEC:2006+A1:2010

Table 2 – Emission – Low voltage AC mains port
Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause
a and b
2.1 Low voltage AC 0 kHz to 2 kHz Limits are presented in the basic IEC 61000-3-2 See
mains standards. See basic standards IEC 61000-3-3
column. IEC 61000-3-11
IEC 61000-3-12
c
0,15 MHz to 0,5 MHz The measurement instrumentation See
66 dB(µV) to 56 dB(µV) quasi-
peak shall be as defined in 4 and 6 of
CISPR 16-1-1.
56 dB(µV) to 46 dB(µV) average

The measuring networks shall be as
Limits decrease linearly with the
defined in 4 of CISPR 16-1-2.
logarithm of the frequency
The measurement set up and method
0,5 MHz to 5 MHz 56 dB(µV) quasi-peak
shall be as described in Clause 7 of
46 dB(µV) average
CISPR 16-2-1.
5 MHz to 30 MHz 60 dB(µV) quasi-peak
50 dB(µV) average
0,15 MHz to 30 MHz Discontinuous interference limits CISPR 14-1
defined in 4.2 of CISPR 14-1
a
Applicable to apparatus covered within the scope of IEC 61000-3-2, IEC 61000-3-3, IEC 61000-3-11 and IEC 61000-3-12.
b
Equipment which meets the requirements of IEC 61000-3-3, is excluded from IEC 61000-3-11.
c
At transitional frequencies the lower limit applies.

61000-6-3 © IEC:2006+A1:2010         – 19 –

Table 3 – Emission – DC power port
Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause
3.1 DC power 0,15 MHz to 0,50 79 dB(µV) quasi-peak The measurement Applicable only to ports
MHz instrumentation shall be as intended for connection to
66 dB(µV) average
defined in 4 and 6 of CISPR
...
