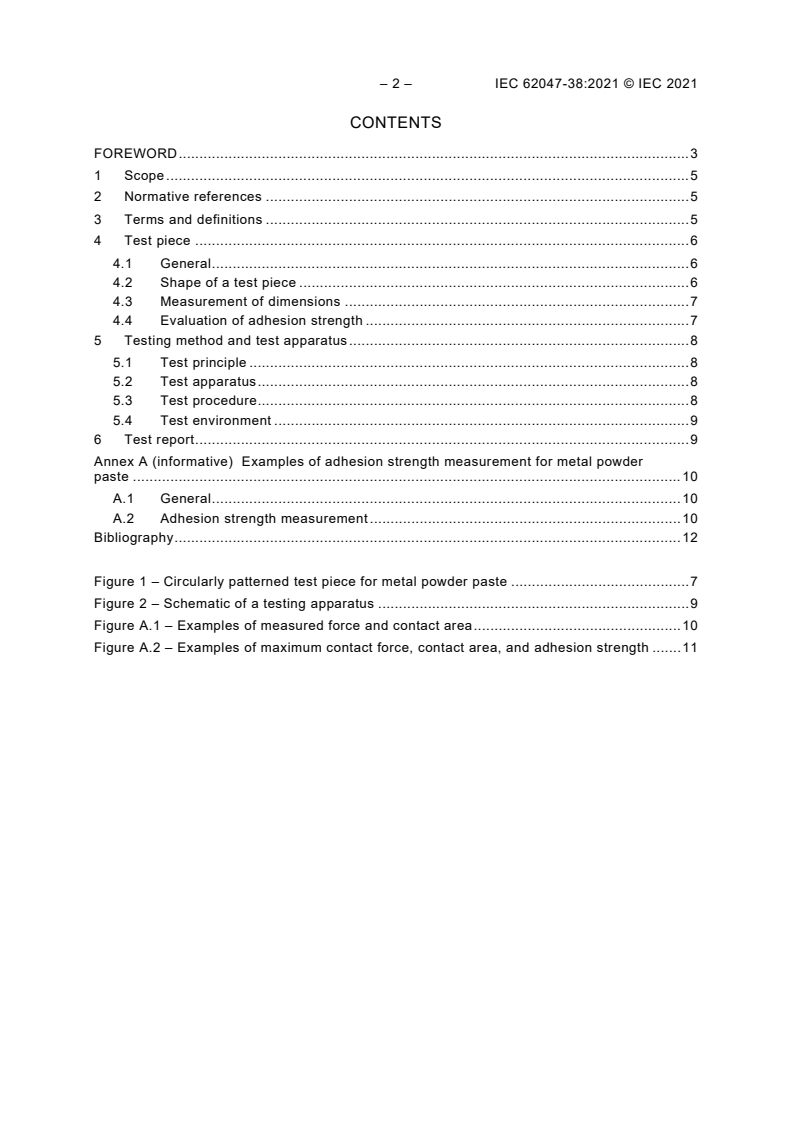

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test piece . 6
4.1 General . 6
4.2 Shape of a test piece . 6
4.3 Measurement of dimensions . 7
4.4 Evaluation of adhesion strength . 7
5 Testing method and test apparatus . 8
5.1 Test principle . 8
5.2 Test apparatus . 8
5.3 Test procedure . 8
5.4 Test environment . 9
6 Test report . 9
Annex A (informative) Examples of adhesion strength measurement for metal powder
paste . 10
A.1 General . 10
A.2 Adhesion strength measurement . 10
Bibliography . 12

Figure 1 – Circularly patterned test piece for metal powder paste . 7
Figure 2 – Schematic of a testing apparatus . 9
Figure A.1 – Examples of measured force and contact area . 10
Figure A.2 – Examples of maximum contact force, contact area, and adhesion strength . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
MICRO-ELECTROMECHANICAL DEVICES –

Part 38: Test method for adhesion strength of
metal powder paste in MEMS interconnection

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications. sw
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62047-38 has been prepared by subcommittee 47F: Micro-electromechanical systems, of
IEC technical committee 47: Semiconductor devices. It is an International Standard.
The text of this International Standard is based on the following documents:
FDIS Report on voting
47F/378/FDIS 47F/382/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 62047-38:2021 © IEC 2021
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 62047 series, published under the general title Semiconductor
devices – Micro-electromechanical devices, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
SEMICONDUCTOR DEVICES –
MICRO-ELECTROMECHANICAL DEVICES –

Part 38: Test method for adhesion strength of
metal powder paste in MEMS interconnection

1 Scope
This part of IEC 62047 specifies a test method for measuring the adhesion strength of metal
powder paste in the electrical interconnection between micro-electromechanical systems
(MEMS) and a circuit board. The typical examples of metal powder paste are anisotropic
conductive paste, solder paste, and nanoscale metallic inks. This testing method is valid for
metal powder diameters from 10 µm and 500 µm.
In this test method, a uniaxial compression load is applied to metal powder paste using a
glass lens simulating an actual MEMS device; then, the adhesion strength is measured by
retracting the lens. This test method is proper when the adhesion strength should be analyzed
by considering the actual contact area between the MEMS device and metal powder particles.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• ISO Online browsing platform: available at http://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1
contact load
P
L
predetermined force when the lens is contacted with metal powder paste
Note 1 to entry: Contact load is expressed in N.
3.2
maximum pulling force
P
C
maximum of pulling force endurable for a test piece
Note 1 to entry: Maximum pulling force is expressed in N.
3.3
contact area only with metal powder
A
MP
contact area made with metal powder only when the contact load(P ) is applied
L
Note 1 to entry: Contact area only with metal powder is expressed in m .

– 6 – IEC 62047-38:2021 © IEC 2021
3.4
contact area with metal powder paste
A
MPP
contact area made with metal powder paste when the contact load(P ) is applied
L
Note 1 to entry: Contact area with metal powder paste is expressed in m .
3.5
adhesion strength
S
C
maximum pulling force (P ) divided by the contact area
C
Note 1 to entry: Adhesion strength is expressed in N/m .
3.6
separation speed
V
SEP
predetermined speed when the test pieces are retracted from the lens
Note 1 to entry: Separation speed is expressed in μm/s.
3.7
contact radius
a
radius of contact area when the contact area with metal powder paste is assumed to the area
of a circle
Note 1 to entry: Contact radius is expressed in m.
3.8
radius of curvature
R
radius of curvature of the lens, which simulates an actual device
Note 1 to entry: Radius of curvature of the lens is expressed in m.
4 Test piece
4.1 General
The test piece for metal powder paste shall be prepared using the same preparation process
for MEMS interconnection. The circular patterns of a metal powder paste shown in Figure 1 is
formed by screen printing, ink-jet printing, or other deposition techniques. The interface
between the metal powder paste and the substrate and the interface between the metal
powder
...
