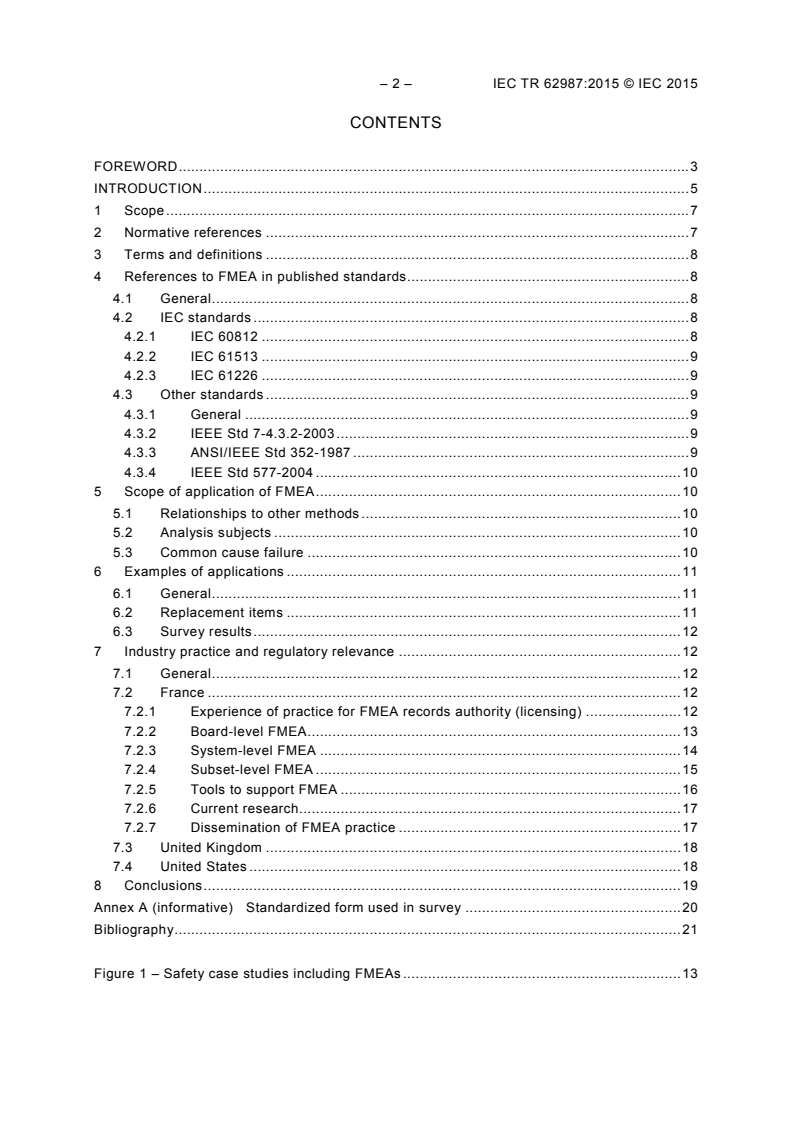

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 References to FMEA in published standards . 8
4.1 General . 8
4.2 IEC standards . 8
4.2.1 IEC 60812 . 8
4.2.2 IEC 61513 . 9
4.2.3 IEC 61226 . 9
4.3 Other standards . 9
4.3.1 General . 9
4.3.2 IEEE Std 7-4.3.2-2003 . 9
4.3.3 ANSI/IEEE Std 352-1987 . 9
4.3.4 IEEE Std 577-2004 . 10
5 Scope of application of FMEA . 10
5.1 Relationships to other methods . 10
5.2 Analysis subjects . 10
5.3 Common cause failure . 10
6 Examples of applications . 11
6.1 General . 11
6.2 Replacement items . 11
6.3 Survey results . 12
7 Industry practice and regulatory relevance . 12
7.1 General . 12
7.2 France . 12
7.2.1 Experience of practice for FMEA records authority (licensing) . 12
7.2.2 Board-level FMEA . 13
7.2.3 System-level FMEA . 14
7.2.4 Subset-level FMEA . 15
7.2.5 Tools to support FMEA . 16
7.2.6 Current research. 17
7.2.7 Dissemination of FMEA practice . 17
7.3 United Kingdom . 18
7.4 United States . 18
8 Conclusions . 19
Annex A (informative)  Standardized form used in survey . 20
Bibliography . 21

Figure 1 – Safety case studies including FMEAs . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
NUCLEAR POWER PLANTS – INSTRUMENTATION
AND CONTROL SYSTEMS IMPORTANT TO SAFETY – USE OF
FAILURE MODE AND EFFECTS ANALYSIS (FMEA) AND RELATED
METHODS TO SUPPORT THE JUSTIFICATION OF SYSTEMS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 62987, which is a technical report, has been prepared by subcommittee 45A:
Instrumentation, control and electrical systems of nuclear facilities, of IEC technical
committee 45: Nuclear instrumentation.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
45A/1006/DTR 45A/1028/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.

– 4 – IEC TR 62987:2015 © IEC 2015
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
a) Technical background, main issues and organisation of the Technical Report
Failure mode and effects analysis (FMEA) is a qualitative method of reliability analysis
that may be applied to many different types of systems. It is an inductive method of
performing system reliability or safety analysis from a low to a high level (IEC 60812).
There is a need to provide guidance on nuclear-specific issues, for example common
cause failure and meeting the single failure criteria, when applying failure mode and
effects analysis (FMEA) and related methods to instrumentation and control systems
important to safety in nuclear power plants. The information gathered in the development
of this technical report was used to determine if the topic can be standardised. If a positive
conclusion was reached the intent was to produce a scope and a first draft CD of a
standard. Such a standard would use IEC 60812 as its basis and provide guidance
specific to the nuclear industry for implementing IEC 60812. The conclusion in this
technical report is that the topic is not yet amenable to standardisation, however,
additional development of the topic by the committee would be beneficial and could result
in a standard at a later date.
This Technical Report identifies international standards applicable to nuclear power plant
instrumentation and control systems that invoke FMEA as a method. It describes the
contexts in which the standards invoke FMEA. The Technical Report describes how FMEA
and associated methods have been applied to nuclear power plant instrumentation and
control systems important to safety and to systems with similar attributes. The examples
are followed by descriptions of the response of regulators to the use of FMEA and related
methods in regulatory processes. The examples and regulatory experiences are based on
a survey of and contributions by participating national committees. A bibliography is
provided for further reference.
b) Situation of the current Technical Report in the structure of the IEC SC 45A standard
series
IEC TR 62987 as a technical report is a fourth level IEC SC 45A document.
For more details on the structure of the IEC SC 45A standard series, see item d) of this
introduction.
c) Recommendations and limitations regarding the application of the Technical Report
It is important to note that a technical report is entirely informative in nature. It gathers
data collected from different origins and it establishes no requirements.
d) Description of the structure of the IEC SC 45A standard series and relationships
with other IEC documents and other bodies documents (IAEA, ISO)
The top-level document of the IEC SC 45A standard series is IEC 61513. It provides
general requirements for I&C systems and equipment that are used to perform functions
important to safety in NPPs. IEC 61513 structures the IEC SC 45A standard series.
IEC 61513 refers directly to other IEC SC 45A standards for general topics related to
categorization of functions and classification of systems, qualification, separation of
systems, defence against common cause failure, software aspects of computer-based
systems, hardware aspects of computer-based systems, and control room design. The
standards referenced directly at this second level should be considered together with
IEC 61513 as a consistent document set.
At a third level, IEC SC 45A standards not directly referenced by IEC 61513 are standards
related to specific equipment, technical methods, or specific activities. Usually these
documents, which make reference to second-level documents for general topics, can be
used on their own.
A fourth level extending the IEC SC 45A standard series, corresponds to the Technical
Reports which are not normative.
IEC 61513 has adopted a presentation format similar to the basic safety publication
IEC 61508 with an overall safety life-cycle framework and a system life-cycle framework.
Regarding nuclear safety, it provides the interpretation of the general requirements of
IEC 61508-1, IEC 61508-2 and IEC 61508-4, for the nuclear application sector, regarding

– 6 – IEC TR 62987:2015 © IEC 2015
nuclear safety. In this framework IEC 60880 and IEC 62138 correspond to IEC 61508-3 for
the nuclear application sector. IEC 61513 refers to ISO as well as to IAEA GS-R-3 and
IAEA GS-G-3.1 and IAEA GS-G-3.5 for topics related to quality assurance (QA).
The IEC SC 45A standards series consistently implements and details the principles and
basic safety aspects provided in the IAEA code on the safety of NPPs and in the IAEA
safety series, in particular the Requirements SSR-2/1, establishing safety requirements
related to the design of Nuclear Power Plants, and the Safety Guide IAEA NS-G-1.3
dealing with instrumentation and control systems important to safety in Nuclear Power
Plants. The terminology and definitions used by SC 45A standards are consistent with
those used by the IAEA.
NOTE It is assumed that for the design of I&C systems in NPPs that implement conventional safety functions (e.g.
to address worker safety, asset protection, chemical hazards, process energy hazards) international or national
standards would be applied, that are based on the requirements of a standard such as IEC 61508.

NUCLEAR POWER PLANTS – INSTRUMENTATION
AND CONTROL SYSTEMS IMPORTANT TO SAFETY – USE OF
FAILURE MODE AND EFFECTS ANALYSIS (FMEA) AND RELATED
METHODS TO SUPPORT THE JUSTIFICATION OF SYSTEMS

1 Scope
This Technical Report provides guidance on nuclear-specific issues when applying Failure
Mode and Effects Analysis (FMEA) and related methods to instrumentation and control
systems important to safety in nuclear power plants. The information in this Technical Report
complements, for nuclear power plant applications, the procedure for FMEA in IEC 60812.
This Technical Report attempts to provide information, in the context of applications to
nuclear power plant instrumentation and control systems important to safety, on:
• terminology used in FMEA processes,
• benefits of using FMEA,
• shortcomings and limitations of FMEA methods,
• anticipated outcomes of and claims to be made from application of FMEA,
• relationships to other analysis methods used in establishing the safety / reliability of
nuclear power plant designs,
• typical FMEA process inputs,
• typical FMEA process outputs,
• typical initiators of FMEA processes,
• most prevalent uses of FMEA processes,
• recommended uses of FMEA processes,
• discouraged uses of FMEA processes,
• FMEA work product contents and characteristics,
• FMEA work product configuration management practices,
• good practices,
• supporting tools,
• specific examples of FMEA use for nuclear power plant licensing, and
• FMEA references.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60812:2006, Analysis techniques for system reliability – Procedure for failure mode and
effects analysis (FMEA)
IEC 61226:2009, Nuclear power plants – Instrumentation and control important to safety –
Classification of instrumentation and control functions

– 8 – IEC TR 62987:2015 © IEC 2015
IEC 61513:2011, Nuclear power plants – Instrumentation and control for systems important
for safety – General requirements for systems
ANSI/IEEE Std 352-1987, IEEE Guide for General Principles of Reliability Analysis of Nuclear
Power Generating Station Safety Systems
IEEE Std 577-2004, IEEE Standard Requirements for Reliability Analysis in the Design and
Operation of Safety Systems for Nuclear Facilities
IEEE Std 603-1998, IEEE Standard Criteria for Safety Systems for Nuclear Power Generating
Stations
IEEE Std 7-4.3.2-2003, IEEE Standard Criteria for Digital Computers in Safety Systems of
Nuclear Power Generating Stations
IAEA Nuclear Energy Series publication No. NP-T-1.5:2009, Protecting Against Common
Cause Failures in Digital I&C Systems of Nuclear Power Plants
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
common cause failure
CCF
failure of two or more structures, systems or components due to a single event or cause
Note 1 to entry: Common causes may be internal or external to an I&C system.
Note 2 to entry: The IAEA definition differs from the IEC definition in two points:
a) The term “specific” was deleted because otherwise the definition of CCF is not consistent with the definition of
CMF “Common mode failure”. Furthermore, this additional word is not necessary in order to understand the
definition.
b) The word “and” was replaced by “or” because IEC/SC 45A experts thought it was a typing fault. In the online
IAEA dictionary (NUSAFE) this correction was already made.
[SOURCE: IAEA Safety Glossary 2007 Edition, modified]
4 References to FMEA in published standards
4.1 General
This clause identifies and discusses international and national standards that discuss the use
of FMEA in their application and which may have applicability to nuclear power plants.
4.2 IEC standards
4.2.1 IEC 60812
IEC 60812 is one of a number of standards on analysis techniques for system reliability. It
defines a procedure for applying FMEA in the pursuit of reliable designs and processes. While
IEC 60812 focuses on reliability assurance, it does recognize that FMEA may be and often is
used in support of achieving system safety objectives. IEC 60812 is not specific to nuclear
safety applications and does not provide guidance specific to such applications.

4.2.2 IEC 61513
IEC 61513:2011 identifies failure mode and effect analysis as one of several systematic
analysis methods that may be used to determine the extent of preventive maintenance (in
6.3.8 System maintenance plan).
IEC 61513:2011, in 5.4.2.6, recommends an assessment of the possible failure modes and
failure sequences, including their effects on components whose loading is independent of
demand, and of components of the I&C systems performing category A functions whose
loading is demand dependent.
4.2.3 IEC 61226
IEC 61226 recommends that FMEA analysis techniques are used to analyse systems and
equipment which implement category A functions (7.3.2.1 of IEC 61226:2009).
4.3 Other standards
4.3.1 General
In addition to the IEC, a number of standards development organizations have discussed the
use of FMEA in their nuclear power plant standards.
4.3.2 IEEE Std 7-4.3.2-2003
This standard applies to the use of computer systems in the safety systems of nuclear power
plants. It is endorsed by the US NRC (Nuclear Regulatory Commission) as providing
acceptable methods for meeting regulatory requirements, with certain limitations, as identified
in US NRC Regulatory Guide 1.152.
Annex D is an informative annex to IEEE Std 7-4.3.2 on the identification, evaluation, and
resolution of hazards during the development of computer equipment for use in safety
systems of nuclear power generating stations. Clause D.4.2.3.2 of Annex D discusses the use
of FMEA as a way to elicit potential causes for evaluation against identified hazards. Annex D
itself was not endorsed by the US NRC because the staff concluded that the guidance
provided by Annex D was inadequate. Specific Annex D inadequacies are not identified in the
applicable regulatory guide.
Annex D to IEEE Std 7-4.3.2-2003 states that IEEE Std 603-1998, which standardizes criteria
for safety systems of nuclear power generating stations, suggests the use of FMEA for
performing reliability analysis, as evidenced by a reference in IEEE Std 603-1998 to
IEEE Std 352-1987, which provides guidance on the reliability analysis of nuclear power
generating station safety systems.
4.3.3 ANSI/IEEE Std 352-1987
This standard is a guide for the designers and operators of nuclear power plant safety
systems and the concerned regulatory groups that provides the essential methods and
procedures of reliability engineering that are applicable to such systems.
Subclause 4.5 of this standard is titled “Extended Qualitative Analysis for Common-Cause
Failures”. According to the standard, the section “describes an extended qualitative analysis
procedure, based on the FMEA, that is designed to suggest to the analyst possible common-
cause failure mechanisms not normally considered in an analysis of independent component
failures.”
IEEE Std 352-1987 is identified by IEEE Std 577-2004 as the source of guidance on the
application and use of the reliability techniques to which the standard refers.

– 10 – IEC TR 62987:2015 © IEC 2015
4.3.4 IEEE Std 577-2004
The stated purpose of IEEE Std 577-2004 is “to provide uniform, minimum acceptable
requirements for the performance of reliability analyses for safety-related systems found in
nuclear facilities.” It defines failure mode as “all applicable, significant failure modes for each
class of component, module, or device.”
IEEE Std 577-2004 identifies IEEE Std 352-1987 as the source of guidance on the application
and use of the reliability techniques to which the standard refers.
5 Scope of application of FMEA
5.1 Relationships to other methods
FMEA is one of several methods used in failure (or hazards) analysis. Other methods are
analysis of abnormal conditions and events (ACEs), fault tree analysis (FTA), hazards
analysis, and software safety analysis.
5.2 Analysis subjects
The design details that are available and the point in the life cycle at which FMEA is to be
applied are important factors in determining the scope of a FMEA. FMEA is a “bottom-up”
method: For the method to be used, the “bottom” of the system (to the extent that it exists at
the time of the analysis) shall be defined.
The selection of specific equipment for implementing safety systems is often intentionally
deferred. (For example, as in the standardised reactor design approach in the United States
under United States national regulation 10 CFR Part 52.) Even so, there is value in applying
FMEA at the level of design detail that is available at early stages in system design.
Information from a high-level FMEA may be used to guide instrumentation and control
equipment selections. Detail-level FMEA can be used on the equipment itself once equipment
candidates have been identified. Failure modes from the high-level analysis will correspond to
failure effects in the equipment. (See Figure 2 of IEC 60812:2006.)
FMEA may be applied at the lowest possible level of detail during the development of pre-
qualified safety system platforms, instruments, and other such items. Very specific failure
modes may be identified in these cases. However, failure effects will remain highly specific to
the item being developed since plant- and application-specific failure effects will not be known
during a generic qualification. The FMEA of a generic item should support future development
of a system based on that item. Guidance has been developed by the nuclear industry to
support this approach.
5.3 Common cause failure
IEC 60812 indicates that the FMEA method is not applicable to situations with multiple or
dependent failures. Even so, as described below, failure modes identified through a FMEA
process can have causal relationships to other failures within the analysed system, or to
failures outside of the scope of the relevant analysis. See IEEE Std 352-1987 for examples.
FMEA may be useful during the performance of the confirmatory assessment of a common
cause failure (CCF) evaluation (IAEA Nuclear Energy Series publication No. NP-T-1.5). The
basis of such a confirmatory assessment is the conceptual nuclear power plant design after
obvious CCF vulnerabilities have been removed. In the context of the confirmatory
assessment, FMEA is an analytical method that may be useful in developing reasonable
assurance that required safety functions will be performed in the presence of concurrent
design basis event (DBE) and CCF.
During evaluation of the I&C system, once the assumptions about the CCF susceptibility of
blocks are known, CCFs are postulated, and the effect on safety functions is determined. For

each set of blocks susceptible to the same CCF, the failure in the most adverse way should
be postulated and the effect on plant safety functions (when they are needed to mitigate
postulated accidents or transients) determined. (IAEA Nuclear Energy Series publication No.
NP-T-1.5)
FMEA is often used in assessments of an I&C architecture’s susceptibility to CCFs. Failures
to be considered are developed from detailed analyses of functional units and the integrated
architecture. These analyses can be performed after a representation of the decomposed I&C
architecture is available. (IAEA Nuclear Energy Series publication No. NP-T-1.5)
Subclause 4.5 of IEEE Std 352-1987 describes an extended qualitative analysis procedure,
based on FMEA, that is designed to suggest possible common-cause failure mechanisms not
normally considered in an analysis of independent component failures.
6 Examples of applications
6.1 General
This clause discusses examples of the application or use of FMEA in nuclear power plant
safety analysis.
Data collection for this Technical Report incl
...
