AC motor capacitors - Part 2: Motor start capacitors

Ta del IEC 60252 velja za zaganjalne kondenzatorje, namenjene povezavi z navitji asinhronih motorjev, napajanih iz enofaznega sistema, ki imajo frekvenco javnega omrežja. Ta standard zajema zaganjalne kondenzatorje motorjev, ki so ali niso impregnirani in ki imajo dielektrik iz papirja ali plastičnega filma ali kombinacije obeh, ter elektrolitske zaganjalne kondenzatorje, ki nimajo trdnih elektrolitov, z ocenjeno napetostjo do in vključno 660 V.

Wechselspannungsmotorkondensatoren - Teil 2: Motoranlaufkondensatoren

Condensateurs des moteurs à courant alternatif - Partie 2: Condensateurs de démarrage de moteurs

Izmenični kondenzatorji za motorje - 2. del: Zaganjalni kondenzatorji

Ta del IEC 60252 velja za zaganjalne kondenzatorje, namenjene povezavi z navitji asinhronih motorjev, napajanih iz enofaznega sistema, ki imajo frekvenco javnega omrežja.
Ta standard zajema zaganjalne kondenzatorje motorjev, ki so ali niso impregnirani in ki imajo dielektrik iz papirja ali plastičnega filma ali kombinacije obeh, ter elektrolitske zaganjalne kondenzatorje, ki nimajo trdnih elektrolitov, z ocenjeno napetostjo do in vključno 660 V.

General Information

Status
Published
Publication Date
31-Oct-2013
Withdrawal Date
02-Oct-2016
Technical Committee
Drafting Committee
Current Stage
6060 - Document made available - Publishing
Start Date
01-Nov-2013
Completion Date
01-Nov-2013

Relations

Buy Standard

Amendment
EN 60252-2:2011/A1:2014 - BARVE
English language
11 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-januar-2014
,]PHQLþQLNRQGHQ]DWRUML]DPRWRUMHGHO=DJDQMDOQLNRQGHQ]DWRUML
AC motor capacitors - Part 2: Motor start capacitors
Wechselspannungsmotorkondensatoren - Teil 2: Motoranlaufkondensatoren
Condensateurs des moteurs à courant alternatif - Partie 2: Condensateurs de démarrage
de moteurs
Ta slovenski standard je istoveten z: EN 60252-2:2011/A1:2013
ICS:
31.060.70 0RþQRVWQLNRQGHQ]DWRUML Power capacitors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60252-2/A1
NORME EUROPÉENNE
November 2013
EUROPÄISCHE NORM
ICS 31.060.30; 31.060.70
English version
AC motor capacitors -
Part 2: Motor start capacitors
(IEC 60252-2:2010/A1:2013)
Condensateurs des moteurs à courant Wechselspannungsmotorkondensatoren -
alternatif - Teil 2: Motoranlaufkondensatoren
Partie 2: Condensateurs de démarrage de (IEC 60252-2:2010/A1:2013)
moteurs
(CEI 60252-2:2010/A1:2013)
This amendment A1 modifies the European Standard EN 60252-2:2011; it was approved by CENELEC on 2013-
10-03. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate
the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60252-2:2011/A1:2013 E

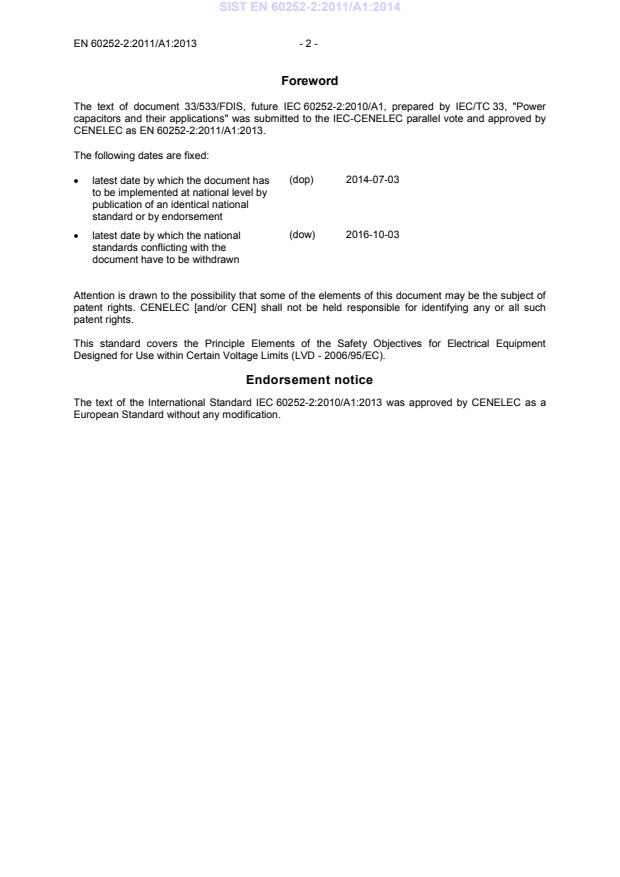

Foreword
