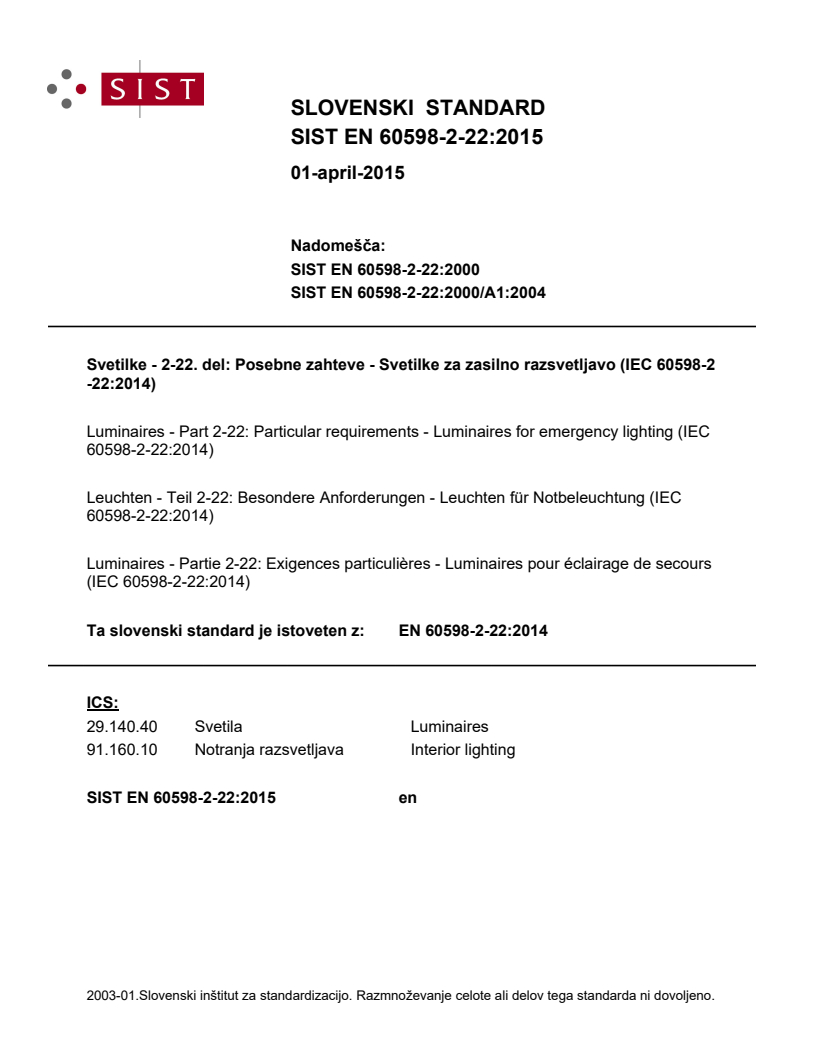

EN 60598-2-22:2014

SLOVENSKI STANDARD
01-april-2015
1DGRPHãþD
SIST EN 60598-2-22:2000
SIST EN 60598-2-22:2000/A1:2004
Svetilke - 2-22. del: Posebne zahteve - Svetilke za zasilno razsvetljavo (IEC 60598-2
-22:2014)
Luminaires - Part 2-22: Particular requirements - Luminaires for emergency lighting (IEC
60598-2-22:2014)
Leuchten - Teil 2-22: Besondere Anforderungen - Leuchten für Notbeleuchtung (IEC
60598-2-22:2014)
Luminaires - Partie 2-22: Exigences particulières - Luminaires pour éclairage de secours
(IEC 60598-2-22:2014)
Ta slovenski standard je istoveten z: EN 60598-2-22:2014
ICS:
29.140.40 Svetila Luminaires
91.160.10 Notranja razsvetljava Interior lighting
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

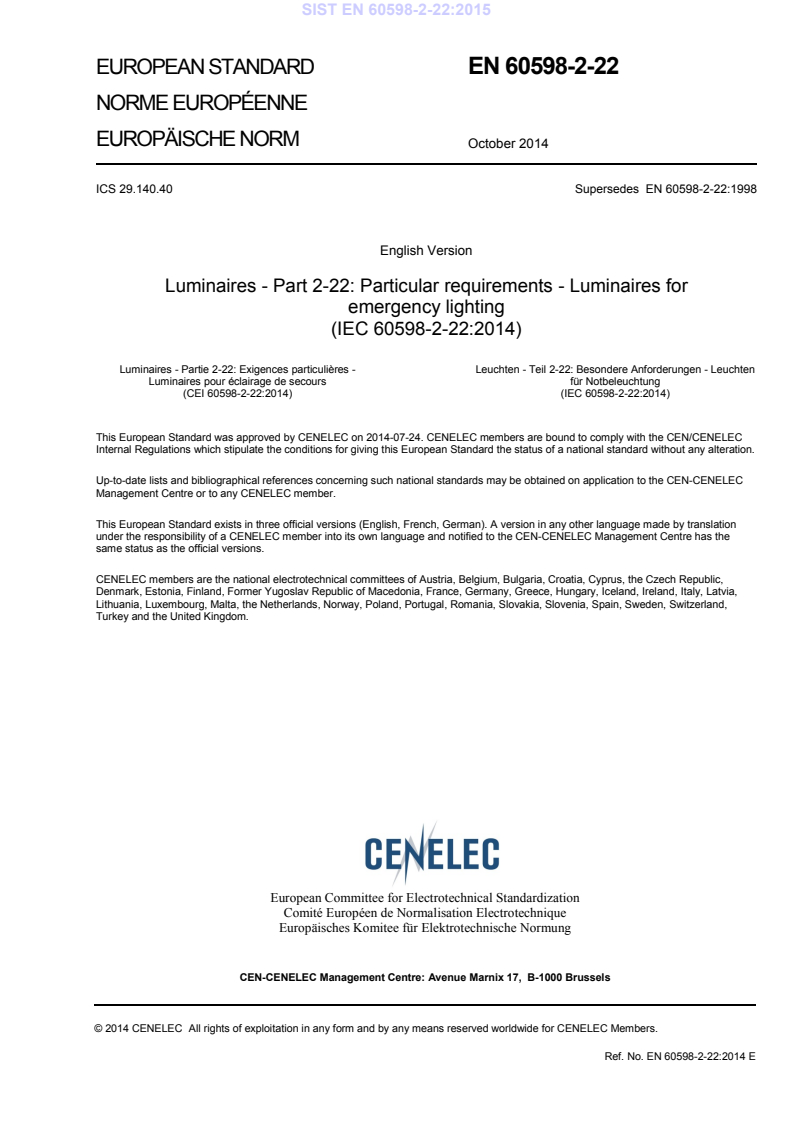

EUROPEAN STANDARD EN 60598-2-22

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2014
ICS 29.140.40 Supersedes EN 60598-2-22:1998
English Version
Luminaires - Part 2-22: Particular requirements - Luminaires for
emergency lighting
(IEC 60598-2-22:2014)
Luminaires - Partie 2-22: Exigences particulières - Leuchten - Teil 2-22: Besondere Anforderungen - Leuchten
Luminaires pour éclairage de secours für Notbeleuchtung
(CEI 60598-2-22:2014) (IEC 60598-2-22:2014)
This European Standard was approved by CENELEC on 2014-07-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60598-2-22:2014 E

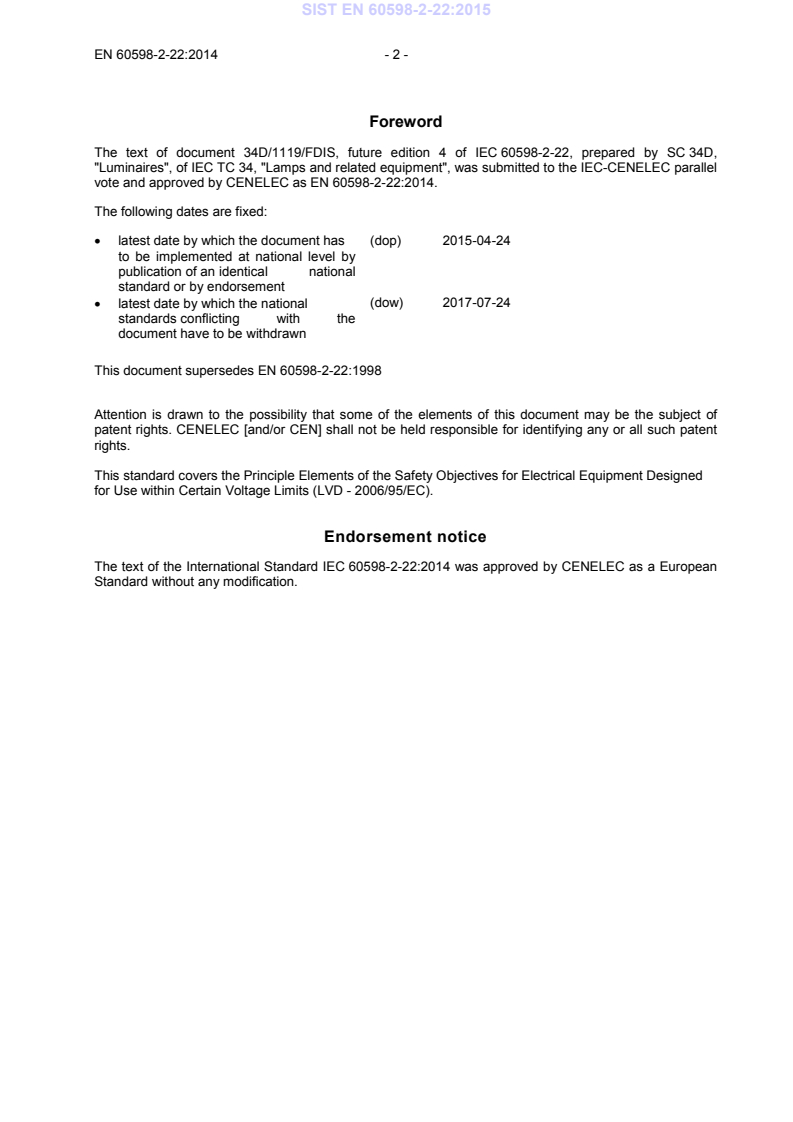

Foreword
The text of document 34D/1119/FDIS, future edition 4 of IEC 60598-2-22, prepared by SC 34D,
"Luminaires", of IEC TC 34, "Lamps and related equipment", was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN 60598-2-22:2014.
The following dates are fixed:
(dop) 2015-04-24
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2017-07-24
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60598-2-22:1998

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed
for Use within Certain Voltage Limits (LVD - 2006/95/EC).

Endorsement notice
The text of the International Standard IEC 60598-2-22:2014 was approved by CENELEC as a European
Standard without any modification.

- 3 - EN 60598-2-22:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60073 -  Basic and safety principles for man-machine EN 60073 -
interface, marking and identification - Coding
principles for indicators and actuators
IEC 60155 -  Glow-starters for fluorescent lamps EN 60155 -
IEC 60364-5-56 -  Low-voltage electrical installations -- Part 5- HD 60364-5-56 -
(mod) 56: Selection and erection of electrical
equipment - Safety services
+A11 2013
+A1 2011
+AA
IEC 60598-1 -  Luminaires -- Part 1: General requirements EN 60598-1 -
and tests
IEC 60896-21 -  Stationary lead-acid batteries -- Part 21: EN 60896-21 -
Valve regulated types - Methods of test
IEC 61056-1 -  General purpose lead-acid batteries (valve- EN 61056-1 -
regulated types) -- Part 1: General
requirements, functional characteristics -
Methods of test
IEC 61347-2-2 -  Lamp controlgear -- Part 2-2: Particular EN 61347-2-2 -
requirements for d.c. or a.c. supplied
electronic step-down convertors for filament
lamps
IEC 61347-2-3 -  Lamp controlgear -- Part 2-3: Particular EN 61347-2-3 -
requirements for a.c. and/or d.c. supplied
electronic control gear for fluorescent lamps
+AC 2011
IEC 61347-2-7 -  Lamp controlgear -- Part 2-7: Particular EN 61347-2-7 -
requirements for battery supplied electronic
controlgear for emergency lighting (self-
contained)
IEC 61347-2-12 -  Lamp controlgear - Part 2-12: Particular - -
requirements for d.c. or a.c. supplied
electronic ballasts for discharge lamps
(excluding fluorescent lamps)
IEC 61347-2-13 -  Lamp controlgear -- Part 2-13: Particular FprEN 61347-2-13 -
requirements for d.c. or a.c. supplied
electronic controlgear for LED modules
IEC 61951-1 -  Secondary cells and batteries containing EN 61951-1 -
alkaline or other non-acid electrolytes -
Portable sealed rechargeable single cells --
Part 1: Nickel-cadmium
IEC 61951-2 -  Secondary cells and batteries containing EN 61951-2 -
alkaline or other non-acid electrolytes -
Portable sealed rechargeable single cells --
Part 2: Nickel-metal hydride
IEC 62034 -  Automatic test systems for battery powered EN 62034 -
emergency escape lighting
ISO 3864-1 2011 Graphical symbols_- Safety colours and - -
safety signs_- Part_1: Design principles for
safety signs and safety markings
ISO 3864-4 -  Graphical symbols_- Safety colours and - -
safety signs_- Part_4: Colorimetric and
photometric properties of safety sign
materials
ISO 30061 -  Emergency lighting - -
CIE 121 SPI -  The Photometry and Goniophotometry of - -
Luminaires - Supplement 1: Luminaires for
Emergency Lighting
- 5 - EN 60598-2-22:2014
Annex ZB
(informative)
A-deviations
A-deviation: National deviation due to regulations, the alteration of which is for the time being outside
the competence of the CEN-CENELEC national member.

This European Standard falls under Directive 2006/95/EC.

NOTE (from CEN-CENELEC IR Part 2:2011, 2.17) Where standards fall under EU Directives, it is the view of
the Commission of the European Communities (OJ No C 59; 1982-03-09) that the effect of the decision of
the Court of Justice in case 815/79 Cremonini/Vrankovich (European Court Reports 1980, p. 3583) is
that compliance with A- deviations is no longer mandatory and that the free movement of products
be restricted except under the safeguard procedure provided for
complying with such a standard should not
in the relevant Directive.
A-deviations in an EFTA-country are valid instead of the relevant provisions of the European
Standard in that country until they have been removed.

Clause Deviation
22.6.18 France Ministry of the Interior, Overseas and Local Authorities - Order of 11
December 2009 approving various provisions supplementing and amending
Regulation for fire hazard safety for buildings open to the public -
Clause EL 10 paragraph 1.
In premises open to the public, electrical installations shall have only permanent
fittings.
22.11.1 France Ministry of the Interior, Overseas and Local Authorities - Order of 11
December 2009 approving various provisions supplementing and amending
Regulation for fire hazard safety for buildings open to the public -
Clause EL 10 paragraph 1.
In premises open to the public, electrical installations shall have only permanent
fittings.
France Ministry of the Interior - Order of 19 November 2001 approving various
22.6.15
provisions supplementing and amending regulation for fire hazard safety
for buildings open to the public - Clauses EC 9 and EC 10.

The required photometric characteristics of products are only based on the
“rated lumen output” as defined in 22.3.14, which shall be measured. Therefore
the photometric data distribution of the luminaire may not to be provided or
checked.
22.17.1 France Ministry of the Interior - Order of 19 November 2001 approving various
provisions supplementing and amending regulation for fire hazard safety
for buildings open to the public - Clauses EC 9 and EC 10.

The required photometric characteristics of products are only based on the
“rated lumen output” as defined in 22.3.14, which shall be measured. Therefore
the photometric data distribution of the luminaire may not to be provided or
checked.
IEC 60598-2-22 ®
Edition 4.0 2014-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-22: Particular requirements – Luminaires for emergency lighting

Luminaires –
Partie 2-22: Règles particulières – Luminaires pour éclairage de secours

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX V
ICS 29.140.40 ISBN 978-2-8322-1659-0

– 2 – IEC 60598-2-22:2014 © IEC 2014
CONTENTS
FOREWORD . 3
22.1 Scope . 5
22.2 Normative references . 5
22.3 Terms and definitions . 6
22.4 General test requirements . 9
22.5 Classification of luminaires . 9
22.6 Marking . 9
22.7 Construction . 11
22.8 Creepage distances and clearances . 14
22.9 Provision of earthing . 14
22.10 Terminals . 14
22.11 External and internal wiring . 14
22.12 Protection against electric shock . 14
22.13 Endurance test and thermal test. 14
22.14 Resistance to dust and moisture . 16
22.15 Insulation resistance and electric strength . 16
22.16 Resistance to heat, fire and tracking . 16
22.17 Photometric data . 17
22.18 Changeover operation . 18
22.19 High temperature operation . 18
22.20 Battery chargers for self-contained emergency luminaires . 19
22.21 Test devices for emergency operation . 19
Annex A (normative) Batteries for self-contained emergency luminaires . 20
Annex B (normative) Luminaire classification . 22
Annex C (normative) Luminance measurements . 24
Annex D (informative) Rest mode and inhibition mode facilities. 25
Annex E (normative) Requirements for self-contained portable emergency luminaires . 26
E.1 General . 26
E.2 Scope of requirements provided in Annex E . 26
E.3 Terms and definitions . 26
E.4 General test requirements . 27
E.5 Classification of luminaires . 27
E.6 Marking . 28
E.7 Construction . 28
E.8 Changeover operation . 30
E.9 High temperature operation . 30
E.10 Thermal test . 30

Table 1 – Voltage limits for discharge durations up to the end of declared battery life . 16

IEC 60598-2-22:2014 © IEC 2014 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-22: Particular requirements –
Luminaires for emergency lighting

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60598-2-22 has been prepared by subcommittee 34D: Luminaires
of IEC technical committee 34: Lamp and related equipment.
This fourth edition cancels and replaces the third edition published in 1997, AMD1:2002 and
AMD2:2008. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Clause 22.3, addition of definitions for PELF and Self-contained portable emergency
luminaire;
b) Clause 22.5, updated with the introduction of requirements for non-replaceable lamp and
batteries;
– 4 – IEC 60598-2-22:2014 © IEC 2014
c) Clause 22.6, improved requirements to confirm that the charge indication is correctly
connected to the circuit together with other clarifications regarding the controlgear and the
remote box with its connecting cabe to the emergency luminaire;
d) Clause 22.12, improved requirements to ensure that the luminaire shall not become
unsafe;
e) Clause 22.16, full revision of the photometric testing to align with ISO and CIE;
f) Clause 22.17, now only references the requirements which are now covered in
IEC 61347-2-7;
g) Clause 22.19, now only references the requirements which are now covered in
IEC 61347-2-7;
h) Annex A, now includes nickel metal hydride batteries and reference to cell types in
IEC 61951-1;
i) Annex B, minor changes to the classifications;
j) Annex C, Figure C.1 deleted in favour of a revised text;
k) Annex E, the additional requirements covering self-contained portable emergency
luminaires
The text of this standard is based on the following documents:
FDIS Report on voting
34D/1119/FDIS 34D/1131/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard is to be read in conjunction with IEC 60598-1 Luminaires – Part 1: General
requirements and tests.
A list of all parts in the IEC 60598 series, published under the general title Luminaires, can be
found on the IEC website.
In this standard, the following print types are used:
– requirements: in roman type
– test specifications: in italic type
– notes: in small roman type.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 60598-2-22:2014 © IEC 2014 – 5 –
LUMINAIRES –
Part 2-22: Particular requirements –
Luminaires for emergency lighting

22.1 Scope
This part of IEC 60598 specifies requirements for emergency luminaires for use with electrical
lamps on emergency power supplies not exceeding 1 000 V.
This part does not cover the effects of non-emergency voltage reductions on luminaires
incorporating high pressure discharge lamps.
This part gives general requirements for emergency lighting equipment.
This part continues to use the term “lamp” which also includes “light source(s)" where
appropriate.
22.2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60073, Basic and safety principles for man-machine interface, marking and identification
– Coding principles for indication devices and actuators
IEC 60155, Glow-starters for fluorescent lamps
IEC 60364-5-56, Electrical installations of buildings – Part 5: Selection and erection of
electrical equipment – Chapter 56: Safety services
IEC 60598-1, Luminaires – Part 1: General requirements and tests
IEC 60896-21, Stationary lead-acid batteries - Part 21: Valve regulated types - Methods of
test
IEC 61056-1, General purpose lead-acid batteries (valve-regulated types) - Part 1: General
requirements, functional characteristics - Methods of test
IEC 61347-2-2, Lamp controlgear - Part 2-2: Particular requirements for d.c. or a.c. supplied
electronic step-down convertors for filament lamps
IEC 61347-2-3, Lamp control gear - Part 2-3: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps
IEC 61347-2-7, Lamp controlgear – Part 2-7; Particular requirements for battery supplied
electronic controlgear for emergency lighting (self-contained)
IEC 61347-2-12, Lamp controlgear - Part 2-12: Particular requirements for d.c. or a.c.
supplied electronic ballasts for discharge lamps (excluding fluorescent lamps)

– 6 – IEC 60598-2-22:2014 © IEC 2014
IEC 61347-2-13, Lamp controlgear - Part 2-13: Particular requirements for d.c. or a.c.
supplied electronic controlgear for LED modules
IEC 61951-1, Secondary cells and batteries containing alkaline or other non-acid electrolytes.
Portable sealed rechargeable single cells – Part 1: nickel-cadmium
IEC 61951-2, Secondary cells and batteries containing alkaline or other non-acid electrolytes.
Portable sealed rechargeable single cells – Part 2: Nickel-metal hydride
IEC 62034, Automatic test systems for battery powered emergency escape lighting
ISO 3864-1:2011, Graphical symbols — Safety colours and safety signs. Part 1: Design
principles for safety signs and safety markings
ISO 3864-4:2011, Graphical symbols — Safety colours and safety signs. Part 4: Colorimetric
and photometric properties of safety sign materials
ISO 30061:2007, Emergency lighting
CIE 121 SP1, The photometry of emergency luminaires
22.3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60598-1 as well as
the following apply:
22.3.1
emergency lighting
lighting for use when the supply to the normal lighting fails; it includes emergency escape
lighting, high-risk task-area lighting and standby lighting
22.3.2
emergency escape lighting
that part of emergency lighting that provides illumination for the safety of people leaving an
area or attempting to terminate a dangerous process before vacating an area
22.3.3
standby lighting
that part of emergency lighting that enables normal activities to continue substantially
unchanged
22.3.4
high-risk task-area lighting
part of emergency lighting provided to ensure the safety of people involved in a potentially
dangerous process or situation and to enable proper shut-down procedures for the safety of
the operator and occupants of the premises
22.3.5
maintained emergency luminaire
luminaire in which the emergency lighting lamps are energized at all times when normal or
emergency lighting is required
22.3.6
non-maintained emergency luminaire
luminaire in which the emergency lighting lamps are in operation only when the supply to the
normal lighting fails
IEC 60598-2-22:2014 © IEC 2014 – 7 –
22.3.7
combined emergency luminaire
luminaire containing two or more lamps, at least one of which is energized from the
emergency lighting supply and the others from the normal lighting supply
Note 1 to entry: A combined emergency luminaire is either maintained or non-maintained.
22.3.8
self-contained emergency luminaire
luminaire providing maintained or non-maintained emergency lighting in which all the
elements, such as the battery, the lamp, the control unit and the test and monitoring facilities,
where provided, are contained within the luminaire or adjacent to it (that is, within 1 m cable
length)
22.3.9
centrally supplied emergency luminaire
luminaire for maintained or non-maintained operation which is energized from a central
emergency power system that is not contained within the luminaire
22.3.10
compound self-contained emergency luminaire
self-contained luminaire providing maintained or non-maintained emergency lighting and also
providing emergency supply for operating a satellite luminaire
22.3.11
satellite emergency luminaire
luminaire for maintained or non-maintained operation which derives emergency operation
supply from an associated compound self-contained emergency luminaire
22.3.12
control unit
unit or units comprising a supply changeover system, a battery charging device and, where
appropriate, a means for testing
Note 1 to entry: This unit may also contain the lamp controlgear.
22.3.13
normal supply failure
condition in which the normal lighting can no longer provide a minimum illuminance for
emergency escape purposes and when the emergency lighting should become operative
22.3.14
emergency luminaire rated luminous flux
lumen output as claimed by the luminaire manufacturer, 60 s (0,5 s for high-risk task-area
luminaires) after failure of the normal supply, and continuously maintained to the end of rated
duration of operation
22.3.15
rated duration of emergency operation
time, as claimed by the manufacturer, that the rated emergency lumen output is provided
22.3.16
normal mode
state of a self-contained emergency luminaire that is ready to operate in emergency mode
while the normal supply is on
Note 1 to entry: In the case of a normal supply failure, the self-contained luminaire automatically changes over to
the emergency mode.
– 8 – IEC 60598-2-22:2014 © IEC 2014
22.3.17
emergency mode
state of a self-contained emergency luminaire that provides lighting when energized by its
internal power source, the normal supply having failed
22.3.18
rest mode
state of a self-contained emergency luminaire that has been intentionally extinguished while
the normal supply is off and that, in the event of restoration of the normal supply,
automatically reverts to normal mode
22.3.19
maximum overcharge rate
maximum continuous charge rate that may be applied to a fully charged battery
22.3.20
remote inhibiting facility
means for inhibiting remotely a luminaire associated with an emergency lighting system
22.3.21
remote inhibiting mode
state of a self-contained emergency luminaire which is inhibited from operating by a remote
device while the normal supply is on and in case of a normal supply failure the luminaire does
not change-over to emergency mode
22.3.22
internally illuminated safety sign
self-contained or centrally supplied emergency luminaire intended to provide specific safety
message obtained by a combination of colour and geometric shapes
Note 1 to entry: Details are given in ISO 3864-1 and ISO 3864-4.
22.3.23
practical emergency lamp flux
PELF
minimum luminous flux of the lamp observed during the rated duration of the emergency mode
Note 1 to entry: PELF = LDL × EBLF
where LDL is the rated lumen output of the light source and, for discharge light sources, this is taken as the initial
lighting design lumens at 100 h.
Note 2 to entry: This note applies to the French language only.
22.3.24
self-contained portable emergency luminaire
portable luminaire providing emergency lighting where all of the elements, such as the battery,
the lamp(s), the control unit, a manual switch for switching on or off one or more lamp and the
test and monitoring facilities, where provided, are contained within the luminaire which can be
detached from its base unit for use in the emergency mode
22.3.25
emergency ballast lumen factor
EBLF
ratio of the emergency luminous flux of the lamp supplied by the emergency controlgear to the
luminous flux of the same lamp operated with the appropriate reference ballast at its rated
voltage and frequency
Note 1 to entry: The emergency ballast lumen factor is the minimum of the values measured at the appropriate
time after failure of the normal supply and continuously to the end of the rated time duration.
Note 2 to entry: This note applies to the French language only.

IEC 60598-2-22:2014 © IEC 2014 – 9 –
[SOURCE: IEC 61347-2-7, 3.13]
22.3.26
emergency luminaire mounted on lighting track system
emergency luminaire specifically designed to be used on luminaire track systems
22.3.27
emergency remote box
box complying with the same requirements as the emergency luminaire
Note 1 to entry: Its purpose is to contain any of the components e.g. battery, control gear etc. that will not be
fitted into the emergency luminaire.
22.4 General test requirements
The provisions of Section 0 of IEC 60598-1 shall apply. The tests described in each
appropriate section of IEC 60598-1 shall be carried out in the order listed in this part of
IEC 60598-2.
When testing combined emergency luminaires according to the requirements of this part, the
tests shall cover those parts of the luminaire which are involved with providing emergency
lighting taking into account the influence of all other luminaire parts and components. The
components and parts of the luminaires designed to provide only normal lighting shall be
subjected to the tests according to the requirements of the relevant part of IEC 60598-2 (for
example, if the luminaire is recessed, it shall be tested according to the requirements of the
part dealing with recessed luminaires).
If some elements of an emergency luminaire are adjacent (within 1 m cable length) to the
main part of the luminaire, all the elements of the luminaire, including the means of inter-
connection, shall satisfy the relevant requirements of this document.
The additional requirements covering self-contained portable emergency luminaires are given
in Annex E.
The photometric tests of Clause 22.17 shall be made on a separate sample luminaire.
Derating factors should be applied during emergency lighting installation scheme design
which is relevant to the application. These factors are normally defined by the relevant
application standard.
22.5 Classification of luminaires
Emergency luminaires shall be classified in accordance with the provisions of Section 2 of
IEC 60598-1 except that all emergency luminaires shall be classified as suitable for direct
mounting on normally flammable surfaces.
Emergency luminaires shall also be classified as specified in Annex B.
22.6 Marking
The provisions of Section 3 of IEC 60598-1 shall apply together with the requirements of
22.6.1 to 22.6.20 below.
22.6.1 Luminaires shall be clearly marked with the rated supply voltage or voltage range(s).

– 10 – IEC 60598-2-22:2014 © IEC 2014
22.6.2 Luminaires shall be clearly marked with details of their classification according to
Clause 22.5 (see Annex B).
22.6.3 Luminaires with replaceable lamps shall be clearly marked with details of the correct
replacement lamp in a position visible during lamp replacement. This ensures that the
emergency luminaire’s rated luminous flux can be achieved.
NOTE The information relating to correct lamp replacement can include the number, type, rated voltage and rated
wattage, etc.
22.6.4 Where appropriate, in addition to t marking, the range of ambient temperature shall
a
be marked or given in the instruction leaflet supplied with the luminaire.
22.6.5 Emergency luminaires employing replaceable fuses and/or replaceable indicator
lamps shall be marked with the details of fuse ratings and/or details of the indicator lamps.
22.6.6 For manual testing only, test facilities to simulate normal supply failure, where
provided, shall be clearly marked so that the marking is visible during routine testing.
22.6.7 Self-contained emergency luminaires shall be clearly marked with the details of
correct battery replacement including the battery technology (e.g. NiMH), rated voltage,
capacity, temperature rating, temperature classification and charge regime.
Luminaires containing non-replaceable battery(s) shall be marked to indicate that the battery
is non-replaceable.
22.6.8 In self-contained luminaires, the batteries shall be marked with the year and month or
year and week of manufacture.
In self-contained luminaires with replaceable batteries, space shall be provided on the battery
label to permit the marking, by the installer or commissioning engineer, of the date of
commissioning of the battery.
For luminaires with non-replaceable batteries, the space for marking the date of
commissioning shall be provided on the battery or on a label to be observed during
maintenance.
22.6.9 Combined emergency luminaires shall be marked with details relating to correct lamp
replacement for all lamps. If the lamps used in the emergency circuit and the normal supply
circuit differ, the respective types shall be clearly identified.
Lampholders for emergency lighting lamps in combined luminaires shall be identified by a
green dot, at least 5 mm in diameter, which shall be visible when replacing the lamp.
22.6.10 In the instruction leaflet supplied with the self-contained emergency luminaire, the
manufacturer shall state that the replacement of the battery or of the whole luminaire (if
having non-replaceable lamp(s) and/or battery) is needed when they no longer meet their
rated duration of operation after the corresponding recharge period.
22.6.11 In the instruction leaflet supplied with the luminaire, the manufacturer shall give
details of test facilities incorporated in the luminaire or appropriate instructions if these test
facilities are supplied separately. The instructions shall include details of test procedures.
22.6.12 In the instruction leaflet supplied with the luminaire, the manufacturer shall give
details of the connection leads to be used between a compound self-contained luminaire and
an associated satellite luminaire. The maximum length of cables that limits the voltage drop to
3 % shall be specified.
IEC 60598-2-22:2014 © IEC 2014 – 11 –
22.6.13 Void.
22.6.14 In the instruction leaflet supplied with self-contained emergency luminaires, the
manufacturer shall give details of any device which changes the mode of operation.
22.6.15 The manufacturer shall make available the photometric data in accordance with
Clause 22.17.
22.6.16 Any normal preparation procedure for use of the luminaire shall be stated in the
manufacturer's installation instructions. This preparation shall be carried out before type tests
are made.
nd
22.6.17 The marking required by 22.6.1, 22.6.2, 22.6.7 2 paragraph and 22.6.20 shall be in
a position such that the information can be seen when the luminaire has been installed.
The marking in 22.6.5, 22.6.7 1st paragraph and 22.6.9 shall be visible during the
maintenance of the relevant component.
NOTE For recessed luminaires, this information can be marked on the interior of the luminaire so that it is visible
when the light controlling cover is removed.
22.6.18 The mounting instructions for luminaires intended for external plug and socket
connections, without provisions to prevent accidental disconnection, shall be provided with
the warning: “This luminaire is intended only for mounting in locations where the plug and
socket are protected from unauthorized disconnection”.
22.6.19 In the instruction leaflet supplied with the luminaire, the manufacturer shall specify if
the lamp(s) and/or the battery is/are non-replaceable.
22.6.20 For emergency luminaires mounted on lighting track systems, they shall be marked
to indicate that they are an emergency luminaire and shall not be adjusted by unauthorised
persons. In the instruction leaflet supplied with the adjustable emergency track mounted
luminaire, the manufacturer shall provide the photometric data.
22.6.21
Compliance with the requirements of 22.6.1 to 22.6.20 is checked by inspection.
22.7 Construction
The provisions of Section 4 of IEC 60598-1 shall apply together with the requirements of
22.7.1 to 22.7.23 below. In addition, emergency luminaires with automatic testing systems
shall comply with the additional requirements of IEC 62034. For specific items, refer to
Annex K of IEC 61347-2-7.
22.7.1 In emergency luminaires, fluorescent lamps used to provide emergency lighting shall
start in the emergency mode without the aid of glow starters as specified in IEC 60155. Such
starters shall not be in circuit during the emergency mode. The emergency lighting shall not
be provided by means of fluorescent lamps with built-in glow starters.
Compliance is checked by inspection.
22.7.2 Lamp controlgear for operating the emergency lamp(s) and control units incorporated
into emergency luminaires shall comply with IEC 61347-2-7, IEC 61347-2-3: Annex J,
IEC 61347-2-2, IEC 61347-2-12 and IEC 61347-2-13 as appropriate.
Compliance is checked by the relevant tests specified in these standards.

– 12 – IEC 60598-2-22:2014 © IEC 2014
22.7.3 Emergency luminaires shall be equipped with a protection device which disconnects
the luminaire from the supply in case of any failure within that luminaire.
Compliance is checked by measurement and inspection.
22.7.4 For emergency luminaires, the mechanical strength tests given in Clause 4.13 of
IEC 60598-1 shall be applied with a minimum impact energy of 0,35 Nm to all external parts.
22.7.5 Whilst connected to a live supply, self-contained emergency luminaires shall have
adequate separation between the normal supply and live parts in the circuit for battery
charging. When there are exposed live parts, double insulation, reinforced insulation, earth
screen or other equivalent techniques can be used.
Additionally, in the event of bare contacts in the battery charging circuit, a safety isolating
transformer shall be used. If a separating transformer is used as insulation between the
normal supply and the battery charging circuit, the insulation in the battery charging circuit
shall consist of at least basic insulation.
Compliance is checked by inspection and by the tests of Clauses 22.8 and 22.15
22.7.6 In centrally supplied combined emergency luminaires, electrical separation between
normal and emergency supplies shall be ensured by double insulation, reinforced insulation,
earthed screen or other equivalent means.
EXAMPLE The use of basic insulation only, for both circuits, or double/reinforced insulation on the normal supply
circuit fulfils this requirement. The connection of both circuits to a terminal block where the required
creepage/clearances are obtained by leaving one terminal free, without the possibility of connection between the
circuits, is also acceptable.
Compliance is checked by inspection.
22.7.7 Self-contained emergency luminaires shall have adjacent to them or incorporated in
them a device for charging the battery from the normal supply and an indicator visible in
normal use, for example a lamp, which shows the following conditions:
a) the luminaire is connected and the charge of the battery is being maintained;
b) circuit continuity exists through the tungsten filament of emergency lighting lamps where
appropriate.
Where an electrical light source indicator is used, it shall comply with the colour requirements
of IEC 60073 and be green.
For emergency luminaires with tungsten filament lamp(s) both a) and b) apply at the same
time, and for other emergency luminaires without tungsten filaments, such as fluorescent and
LED lamps, only a) applies.
For emergency luminaires with tungsten filament lamps, compliance that circuit continuity
exists through the tungsten filament is checked in the following manner: disconnection of one
of the lamps, or all the lamps when connected in parallel, causes the indicator to extinguish or
change colour in accordance with IEC 60073.
For all emergency luminaires, compliance that the charge indicator is correctly connected to
the circuit is checked in the following manner: disconnection of the battery during the charging
phase, causes the indicator to extinguish or change colour in accordance with IEC 60073.
22.7.8 Self-contained emergency luminaires shall incorporate a battery that meets the
requirements of Annex A and is designed to provide the rated duration for at least four years
of normal operation. This battery shall be used only for emergency related functions within the
luminaire or its satellite.
---------------------- Pa
...
