CLC/TS 50459-6:2005

SLOVENSKI SIST-TS CLC/TS 50459-6:2006

STANDARD
januar 2006
Železniške naprave – Komunikacijski, signalni in procesni sistemi – Evropski
sistem za vodenje železniškega prometa – Vmesnik človek-stroj – 6. del:
Zvočne informacije
(istoveten CLC/TS 50459-6:2005)
Railway applications – Communication, signalling and processing systems –
European Rail Traffic Management System – Driver-Machine Interface – Part 6:
Audible information
ICS 03.220.30; 13.180; 35.240.60 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

TECHNICAL SPECIFICATION CLC/TS 50459-6
SPECIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION August 2005

ICS 03.220.30; 13.180; 35.240.60

English version
Railway applications –
Communication, signalling and processing systems –
European Rail Traffic Management System –
Driver-Machine Interface
Part 6: Audible information
Applications ferroviaires – Bahnanwendungen –
Systèmes de signalisation, de Telekommunikationstechnik, Signal-
télécommunications et de traitement – technik und Datenverarbeitungssysteme –
Système européen de gestion du trafic Europäisches Leitsystem für den
ferroviaire – Schienenverkehr –
Interface de conduite Mensch-Maschine Schnittstelle
Partie 6: Sons Teil 6: Akustische Informationen

This Technical Specification was approved by CENELEC on 2005-05-07.

CENELEC members are required to announce the existence of this TS in the same way as for an EN and to
make the TS available promptly at national level in an appropriate form. It is permissible to keep conflicting
national standards in force.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. CLC/TS 50459-6:2005 E

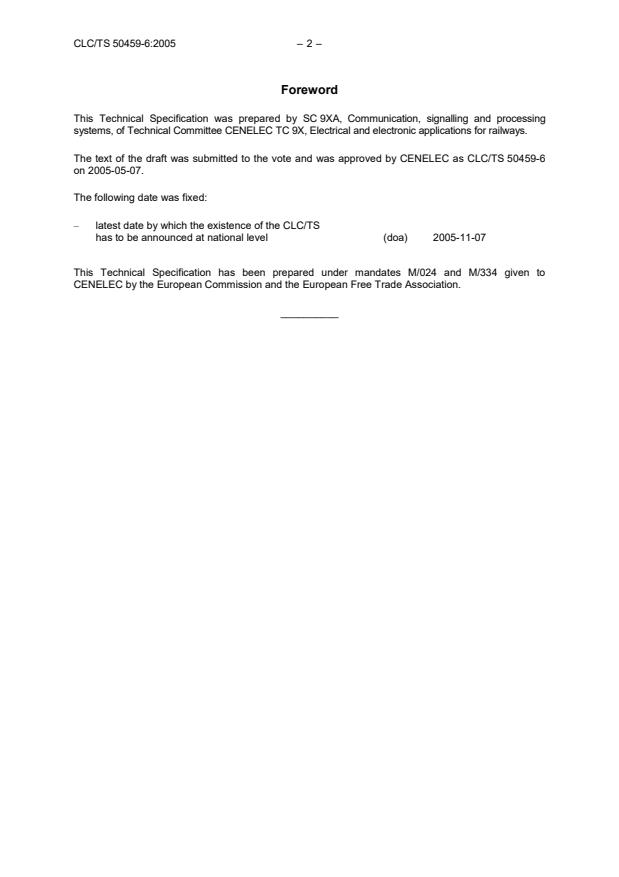

Foreword
This Technical Specification was prepared by SC 9XA, Communication, signalling and processing
systems, of Technical Committee CENELEC TC 9X, Electrical and electronic applications for railways.
The text of the draft was submitted to the vote and was approved by CENELEC as CLC/TS 50459-6
on 2005-05-07.
The following date was fixed:
– latest date by which the existence of the CLC/TS
has to be announced at national level (doa) 2005-11-07
This Technical Specification has been prepared under mandates M/024 and M/334 given to
CENELEC by the European Commission and the European Free Trade Association.
__________
– 3 – CLC/TS 50459-6:2005
Contents
Page
Foreword .1
Introduction.5
1 Scope.6
2 Normative references.6
3 Terms and definitions .7
4 Symbols and abbreviations.7
5 Audible information.7
5.1 ERTMS audible information .8
5.1.1 S feedback 1 - down.8
5.1.2 S feedback 2 - up .9
5.1.3 S feedback 3 - down and up .10
5.2 ERTMS/ETCS audible information.11
5.2.1 S info - Information on DMI.11
5.2.2 S1 - Driving too fast.12
5.2.3 S2 - Speed warning .13
5.2.4 S3 - End of intervention .14
5.2.5 S4 - Reserved .15
5.2.6 S5 – More restrictive target changed .15
5.2.7 S6 - Error occurred.15
5.2.8 S7 - New text message.15
5.2.9 S8 - New advisory .15
5.2.10 S9 - Driver activity warning.16
5.2.11 S10 - Release the brakes when applied by the driver.17
5.2.12 S11 - Brakes commanded by a system .17
5.2.13 S12 - Acknowledgement required .17
5.3 ERTMS/GSM-R Audible information .18
5.3.1 The incoming calls.18
5.3.2 The outgoing calls .21
5.3.3 R9 - Public Address – incoming / outgoing.26
5.3.4 R10 - Positive link assurance .27
5.3.5 R11 - Negative link assurance .28
5.3.6 R12 – Loss of the network .29
Bibliography.30

Figure 1 — S feedback 1 .8
Figure 2 — S feedback 2 .9
Figure 3 — S feedback 3 .10
Figure 4 — S info.11
Figure 5 — Driving too fast .12
Figure 6 — S2 - Speed warning .13
Figure 7 — S3 - End of intervention .14
Figure 8 — S9 - Driver activity warning .16
Figure 9 — R1 - Internal incoming call .18
Figure 10 — R2 - External incoming call .19

Figure 11 — R3 - Emergency incoming call.20
Figure 12 — R4 - Connection.21
Figure 13 — R5 - Line ringing .22
Figure 14 — R6 - Line busy .23
Figure 15 — R7 - Barred call .24
Figure 16 — R8 - Emergency outgoing call .25
Figure 17 — R9 - Public Address .26
Figure 18 — R10 - Positive link assurance.27
Figure 19 — R11 - Negative link assurance .28
Figure 20 — R12 - Loss of the network .29

Table 1 — S feedback 1 - down .8
Table 2 — S feedback 2 - up.9
Table 3 — S feedback 3 - down and up.10
Table 4 — S info - Information on DMI .11
Table 5 — Driving too fast .12
Table 6 — S2 - Speed warning .13
Table 7 — S3 - End of intervention .14
Table 8 — S9 - Driver activity warning .16
Table 9 — R1 - Internal incoming call .18
Table 10 — R2 - External incoming call .19
Table 11 — R3 - Emergency incoming call.20
Table 12 — R4 - Connection.21
Table 13 — R5 - Line ringing .22
Table 14 — R6 - Line busy .23
Table 15 — R7 - Barred call.24
Table 16 — R8 - Emergency outgoing call .25
Table 17 — R9 - Public Address – incoming / outgoing .26
Table 18 — R10 - Positive link assurance.27
Table 19 — R11 - Negative link assurance .28
Table 20 — R12 - Loss of the network .29

– 5 – CLC/TS 50459-6:2005
Introduction
This Technical Specification forms Part 6 of a series, the other parts being
CLC/TS 50459-1 for ergonomic principles for the presentation of ERTMS/ETCS/GSM-R information
CLC/TS 50459-2 for ergonomic arrangements of ERTMS/ETCS information
CLC/TS 50459-3 for ergonomic arrangements of ERTMS/GSM-R information
CLC/TS 50459-4 for data entry procedure for ERTMS/ETCS/GSM-R
CLC/TS 50459-5 for symbols for ERTMS/ETCS/GSM-R
These Technical Specifications contain the ergonomic arrangements of information on the ERTMS
DMI Display. Most items are illustrated with an example.
This document does not cover audible information to be used for STM.
The files, in a WAV-format, containing the examples for the sounds can be heard by clicking the
corresponding figures. The WAV-format file is only informative. The examples are given only to be
sure that the sounds provided by the real system are similar.

1 Scope
This Technical Specification describes from an ergonomic point of view how ERTMS information shall
be arranged and displayed. This Technical Specification describes more ergonomic details than
currently provided by the ERTMS/ETCS/GSM-R specifications.
This Technical Specification defines the ergonomics for the Driver-Machine Interface (DMI) for the
ERTMS/ETCS Train Control System, and for the integrated ERTMS/GSM-R Train Control and Train
Radio Systems, and for the stand alone ERTMS/GSM-R Train Radio Systems and for other technical
systems currently provided on the engines.
The ergonomics covers
– the general arrangements (dialogue structure, sequences, layout philosophy, colour philosophy),
– the symbols,
– the audible information,
– the data entry arrangements.
The aims of the ERTMS/ETCS/GSM-R Train Control and Train Radio Systems are standardised
systems facilitating interoperable movement of trains and permitting economies of scale in
procurement and operations. The objective of this Technical Specification is to define the minimum
requirements on the DMI that are necessary to enable these objectives to be achieved. Hence the
Technical Specification is limited to ergonomic considerations and does not define the technology to
be used for the implementation.
The reasons for defining the ergonomics of the DMI are as follows:
– achieving harmonised and coherent presentation for ERTMS/ETCS and STM information. Given
the large number of STM’s requiring the use the ERTMS/ETCS DMI, only a harmonised approach
is feasible;
– defining Driver-Machine Interface ergonomics that is compatible with agree
...
