EN 60519-11:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Safety in electroheat installations - Part 11: Particular requirements for installations using the effect of electromagnetic forces on liquid metalsSécurité dans les installations électrothermiques - Partie 11: Exigences particulieres pour les installations utilisant l'effet des forces électromagnétiques sur les métaux liquidesSicherheit in Elektrowärmeanlagen - Teil 11: Besondere Anforderungen an Anlagen, die die Wirkung elektromagnetischer Kräfte auf flüssige Metalle nutzenTa slovenski standard je istoveten z:EN 60519-11:2007SIST EN 60519-11:2008en,fr,de25.180.10Electric furnacesICS:SIST EN 60519-11:19991DGRPHãþDSLOVENSKI
STANDARDSIST EN 60519-11:200801-januar-2008

EUROPEAN STANDARD EN 60519-11 NORME EUROPÉENNE
EUROPÄISCHE NORM September 2007
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2007 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60519-11:2007 E
ICS 25.180.10 Supersedes EN 60519-11:1997
English version
Safety in electroheat installations -
Part 11: Particular requirements for installations
using the effect of electromagnetic forces on liquid metals (IEC 60519-11:2007)
Sécurité dans les installations électrothermiques -
Partie 11: Exigences particulières
pour les installations utilisant l'effet
des forces électromagnétiques
sur les métaux liquides (CEI 60519-11:2007)
Sicherheit in Elektrowärmeanlagen -
Teil 11: Besondere Anforderungen
an Anlagen, die die Wirkung elektromagnetischer Kräfte
auf flüssige Metalle nutzen (IEC 60519-11:2007)
This European Standard was approved by CENELEC on 2007-09-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

- 2 -

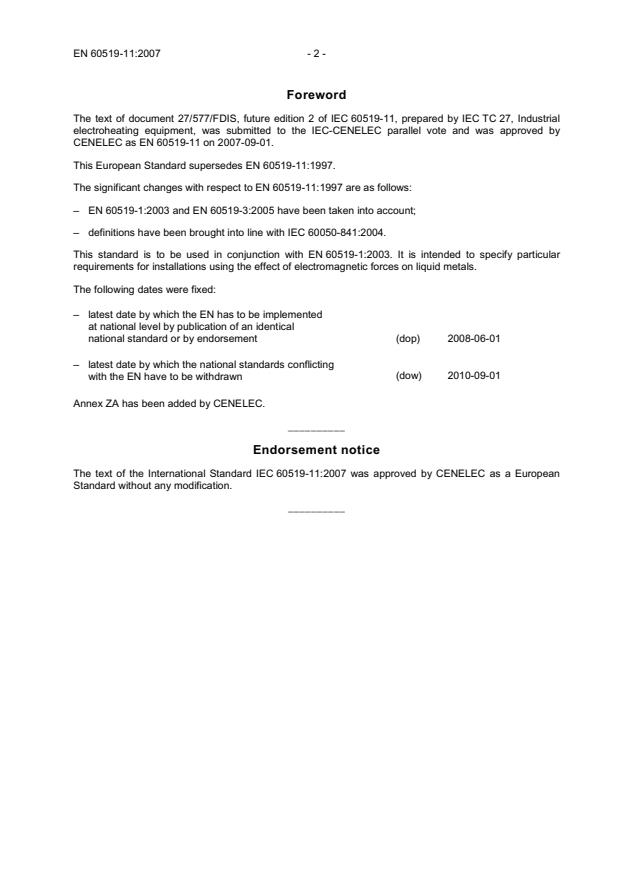

Foreword The text of document 27/577/FDIS, future edition 2 of IEC 60519-11, prepared by IEC TC 27, Industrial electroheating equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 60519-11 on 2007-09-01. This European Standard supersedes EN 60519-11:1997. The significant changes with respect to EN 60519-11:1997 are as follows: – EN 60519-1:2003 and EN 60519-3:2005 have been taken into account; – definitions have been brought into line with IEC 60050-841:2004. This standard is to be used in conjunction with EN 60519-1:2003. It is intended to specify particular requirements for installations using the effect of electromagnetic forces on liquid metals. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop)
2008-06-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)
2010-09-01 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 60519-11:2007 was approved by CENELEC as a European Standard without any modification. __________

- 3 - EN 60519-11:2007 Annex ZA
(normative)
Normative references to international publications with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
IEC 60050-841 2004 International Electrotechnical Vocabulary -
Part 841: Industrial electroheat - -
IEC 60110-1 1998 Power capacitors for induction heating installations -
Part 1: General EN 60110-1 1998
IEC 60143-1 2004 Series capacitors for power systems -
Part 1: General EN 60143-1 2004
IEC 60364-4-41 (mod) 2005 Low-voltage electrical installations -
Part 4-41: Protection for safety - Protection against electric shock HD 60364-4-41 + corr. July
2007 2007
IEC 60519-1 2003 Safety in electroheat installations -
Part 1: General requirements EN 60519-1 2003
CISPR 11 (mod) -1) Industrial, scientific and medical (ISM) radio-frequency equipment -
Electromagnetic disturbance characteristics -
Limits and methods of measurement EN 55011 20072)
1) Undated reference. 2) Valid edition at date of issue.

INTERNATIONAL STANDARD IECCEI NORME INTERNATIONALE60519-11Second editionDeuxième édition2007-06 Safety in electroheat installations – Part 11: Particular requirements for installations using the effect of electromagnetic forces on liquid metals
Sécurité dans les installations électrothermiques –Partie 11: Exigences particulières pour les installations utilisant l’effet des forces électromagnétiques
sur les métaux liquides P Commission Electrotechnique InternationaleInternational Electrotechnical CommissionPRICE CODE CODE PRIX For price, see current cataloguePour prix, voir catalogue en vigueur

– 2 – 60519-11 © IEC:2007 CONTENTS FOREWORD.3
1 Scope.5 2 Normative references.5 3 Terms and definitions.6 4 Inductor.7 5 Capacitors.7 6 Mains-frequency power sources.8 7 Solid-state frequency converters.8 8 Switchgear.9 9 Cables, wires and busbars.9 10 Liquid cooling.10 11 Rating plate.10 12 Clearance and creepage distances.11 13 Protection against electric shock.11 13.1 Protection against direct contact.11 13.1.1 Permissible touch voltage as a function of frequency.11 13.1.2 Accessibility of electrical equipment.11 13.1.3 Accessible plugs and sockets.11 13.1.4 Special requirements for live conductors at voltage bands 2 and 3.11 13.2 Protection against indirect contact.12 13.2.1 Permissible touch voltage as a function of duration and frequency.12 13.2.2 Electrical insulation resistance.12 13.3 Special requirements.12 13.4 Earthing provisions.13 13.5 Protective conductors.13 14 Radio interferences.14 15 Operation instructions.14
Annex A (normative)
Specific requirements for electromagnetic pouring equipment.15 Annex B (normative)
Specific requirements for electromagnetic equipment with lining.16

60519-11 © IEC:2007 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION ______________
SAFETY IN ELECTROHEAT INSTALLATIONS –
Part 11: Particular requirements for installations using the effect of electromagnetic forces on liquid metals
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment declared to be in conformity with an IEC Publication. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 60519-11 has been prepared by IEC technical committee 27: Industrial electroheating equipment. This second edition cancels and replaces the first edition published in 1997 and constitutes a technical revision. The significant changes with respect to the previous edition are as follows: • the latest editions of IEC 60519-1:2003 and IEC 60519-3:2005 have been taken into account; • definitions have been brought into line with the second edition of IEC 60050-841:2004. This standard is to be used in conjunction with IEC 60519-1:2003. It is intended to specify particular requirements for installations using the effect of electromagnetic forces on liquid metals.

– 4 – 60519-11 © IEC:2007 The text of this standard is based on the following documents: FDIS Report on voting 27/577/FDIS 27/585/RVD
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. The list of all parts of the IEC 60519 series, under the general title Safety in electroheat installations, can be found on the IEC website. The committee has decided that the contents of this publication will remain unchanged until the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended.

60519-11 © IEC:2007 – 5 –
SAFETY IN ELECTROHEAT INSTALLATIONS –
Part 11: Particular requirements for installations using the effect of electromagnetic forces on liquid metals
1 Scope This part of IEC 60519 applies to installations predominantly using the effect of electromagnetic forces on liquid metals: − installations for electromagnetic (induction) stirring or transport of liquid metals at low frequencies; − installations that influence the pouring process by an electromagnetic field; − parts directly affected by the electromagnetic stirring, transport or
...
