EUROPEAN STANDARD EN 61822
NORME EUROPÉENNE
EUROPÄISCHE NORM June 2003
ICS 93.120; 29.140.50
English version
Electrical installations for lighting and beaconing of aerodromes -
Constant current regulators
(IEC 61822:2002, modified)
Installations électriques pour l'éclairage  Elektrische Anlagen für Beleuchtung
et le balisage des aérodromes - und Befeuerung von Flugplätzen -
Régulateurs du courant constant Konstantstromregler
(CEI 61822:2002, modifiée) (IEC 61822:2002, modifiziert)

This European Standard was approved by CENELEC on 2003-02-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2003 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61822:2003 E

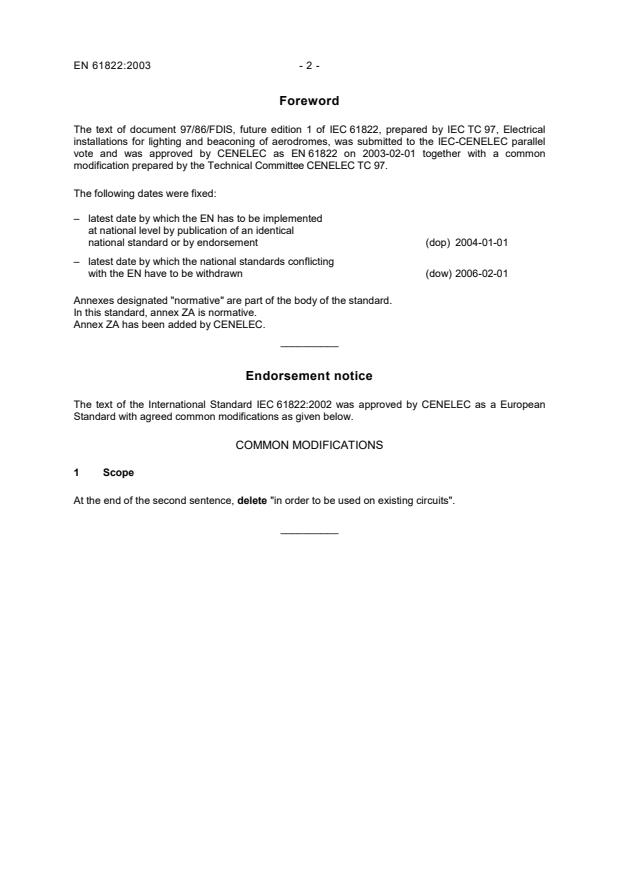

Foreword
The text of document 97/86/FDIS, future edition 1 of IEC 61822, prepared by IEC TC 97, Electrical
installations for lighting and beaconing of aerodromes, was submitted to the IEC-CENELEC parallel
vote and was approved by CENELEC as EN 61822 on 2003-02-01 together with a common
modification prepared by the Technical Committee CENELEC TC 97.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2004-01-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2006-02-01
Annexes designated "normative" are part of the body of the standard.
In this standard, annex ZA is normative.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61822:2002 was approved by CENELEC as a European
Standard with agreed common modifications as given below.
COMMON MODIFICATIONS
1 Scope
At the end of the second sentence, delete "in order to be used on existing circuits".
__________
- 3 - EN 61822:2003
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
1) 2) 3)
IEC 60038 (mod) - IEC standard voltages HD 472 S1 1989
+ corr. February 2002
4)
IEC 60439-1 1992 Low-voltage switchgear and controlgear EN 60439-1 1994
+ corr. December 1993 assemblies
Part 1: Type-tested and partially type-
tested assemblies
1) 3)
IEC 60529 - Degrees of protection provided by EN 60529 1991
enclosures (IP Code) + corr. May 1993

1) 3)
IEC 61000-6-2 - Electromagnetic compatibility (EMC) EN 61000-6-2 2001
(mod) Part 6-2: Generic standards - Immunity
for industrial environments
1) 3)
IEC 61000-6-4 - Part 6-4: Generic standards - Emission EN 61000-6-4 2001
(mod) standard for industrial environments

1)
IEC/TS 61000-6-5 - Part 6-5: Generic standards - Immunity - -
for power station and substation
environments
1) 3)
IEC 61140 - Protection against electric shock - EN 61140 2002
Common aspects for installation and
equipment
1) 3)
CISPR 11 (mod) - Industrial, scientific and medical (ISM) EN 55011 1998
radio-frequency equipment - Radio
disturbance characteristics - Limits and
methods of measurement
1) 3)
CISPR 22 (mod) - Information technology equipment - EN 55022 1998
Radio disturbance characteristics -
Limits and methods of measurement

1)
Undated reference.
2)
The title of HD 472 S1 is: Nominal voltages for low-voltage public electricity supply systems.
3)
Valid edition at date of issue.
4)
EN 60439-1 is superseded by EN 60439-1:1999, which is based on IEC 60439-1:1999.

INTERNATIONAL IEC
STANDARD
First edition
2002-06
Electrical installations for lighting
and beaconing of aerodromes –
Constant current regulators
Installations électriques pour l'éclairage
et le balisage des aérodromes –
Régulateurs de courant constant
 IEC 2002  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
S
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – 61822 © IEC:2002(E)
CONTENTS
FOREWORD.3
1 Scope.4
2 Normative references.4
3 Definitions .4
4 Classification .5
4.1 Output current .5
4.2 Current steps.5
4.3 Ratings.6
5 Requirements .6
5.1 General .6
5.2 Environmental requirements .6
5.3 Performance requirements.6
5.4 Electromagnetic compatibility (EMC) .10
5.5 Design requirements.10
5.6 Protection against electric shock.13
5.7 Optional accessories .13
6 Qualification and test requirements .15
6.1 Type tests .15
6.2 Routine tests .15
7 Tests description for type tests .16
7.1 Visual inspection .16
7.2 Protection against electric shock.16
7.3 Dielectric test .17
7.4 Enclosure temperature test .17
7.5 Leakage test.18
7.6 Test of protective devices .18
7.7 Operation test.18
7.8 Performance test .19
7.9 Environmental tests .21
7.10 Optional accessories .22

61822 © IEC:2002(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICAL INSTALLATIONS FOR LIGHTING
AND BEACONING OF AERODROMES –
CONSTANT CURRENT REGULATORS
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liasing with
the IEC also participate in this preparation. The IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61822 has been prepared by IEC Technical Committee 97:
Electrical installations for lighting and beaconing of aerodromes.
The text of this standard is based on the following documents:
FDIS Report on voting
97/86/FDIS 97/90/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
The committee has decided that the contents of this publication will remain unchanged until
2006. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
– 4 – 61822 © IEC:2002(E)
ELECTRICAL INSTALLATIONS FOR LIGHTING
AND BEACONING OF AERODROMES –
CONSTANT CURRENT REGULATORS
1 Scope
This International Standard specifies the requirements for a Constant Current Regulator (CCR)
having a nominal output of 6,6 A for use in an aeronautical ground lighting constant current
series circuit. However CCRs may be manufactured which have a different power rating (kVA)
and current steps than those specified in this standard in order to be used on existing circuits.
This standard shall be applied where appropriate for these CCRs.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60038, IEC standard voltages
IEC 60439-1:1991, Low-voltage switchgear and controlgear assemblies – Part 1: Type-tested
and partially type-tested assemblies
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 61000-6-2, Electromagnetic compatibility (EMC) – Part 6-2: Generic standard
...
