EN ISO 15652:2017

SLOVENSKI STANDARD
01-oktober-2017
1DGRPHãþD
SIST EN ISO 15652:2005
0DODSORYLOD'DOMLQVNLNUPLOQLVLVWHPLPLQLþROQRY]UHDNWLYQLPYRGQLPSRJRQRP
MHWERDWV,62
Small craft - Remote steering systems for inboard mini jet boats (ISO 15652:2003)
Kleine Wasserfahrzeuge - Steuerungssysteme für Minijetboote (ISO 15652:2003)
Petits navires - Appareils à gouverner commandés à distance pour petites embarcations
à tuyère intérieure (ISO 15652:2003)
Ta slovenski standard je istoveten z: EN ISO 15652:2017
ICS:
47.020.70 Navigacijska in krmilna Navigation and control
oprema equipment
47.080 ýROQL Small craft
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 15652
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2017
EUROPÄISCHE NORM
ICS 47.080 Supersedes EN ISO 15652:2005
English Version
Small craft - Remote steering systems for inboard mini jet
boats (ISO 15652:2003)
Petits navires - Appareils à gouverner commandés à Kleine Wasserfahrzeuge - Steuerungssysteme für
distance pour petites embarcations à tuyère intérieure Minijetboote (ISO 15652:2003)
(ISO 15652:2003)
This European Standard was approved by CEN on 16 July 2017.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 15652:2017 E
worldwide for CEN national Members.

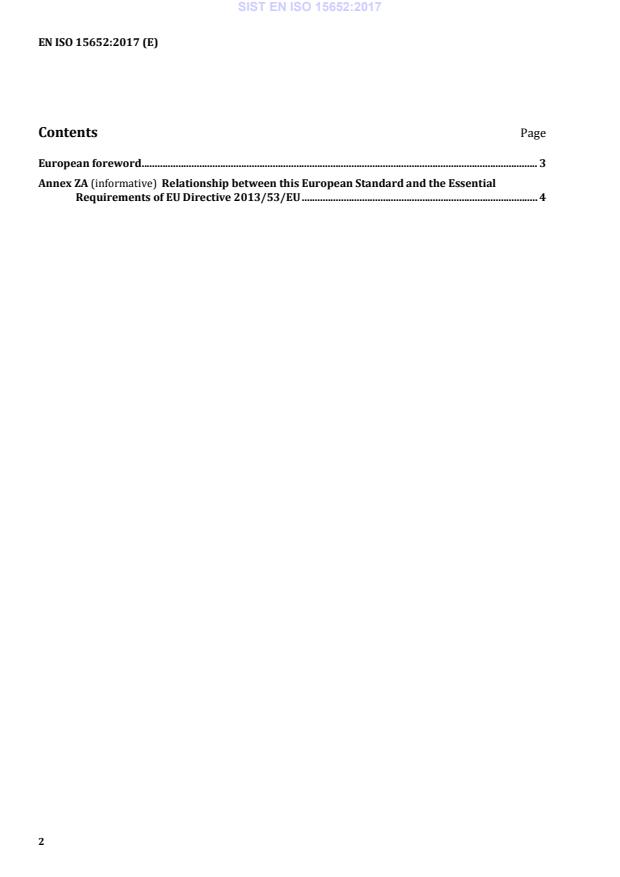

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2013/53/EU . 4

European foreword
The text of ISO 15652:2003 has been prepared by Technical Committee ISO/TC 188 “Small craft” of the
International Organization for Standardization (ISO) and has been taken over as EN ISO 15652:2017.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2018, and conflicting national standards
shall be withdrawn at the latest by February 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 15652:2005.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 15652:2003 has been approved by CEN as EN ISO 15652:2017 without any modification.
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 2013/53/EU
This European standard has been prepared under a mandate given to CEN by the European Commission
to provide one means of conforming to Essential Requirements of the New Approach Directive
2013/53/EU.
Once this standard is cited in the Official Journal of the European Union under that Directive and has
been implemented as a national standard in at least one member state, compliance with the normative
clauses of this standard given in Table ZA.1 confers, within the limits of the scope of this standard, a
presumption of conformity with the relevant Essential Requirements of that Directive and associated
EFTA regulations.
Table ZA.1 — Correspondence between this European Standard and Directive 2013/53/EU
Clauses/subclauses of Essential requirements (ERs) of Qualifying remarks/Notes
this European Standard EU Directive 2013/53/EU
6.2 Annex I.A.2.5 - Owner's manual
4, 5, 6 Annex I.A.5.4.1 - Steering system, The clauses of this standard apply
general only to remote steering systems for
inboard mini jet boats weighing
less than 1000 kg with an inboard
engine powering a water-jet pump
as its primary propulsion, designed
to be operated with one or more
persons within the confines of a
hull.
This standard excludes remote
steering systems for water scooters
(personal water craft (PWC) and Jet
Skis) which are addressed by EN
ISO 13590.
This standard does not address
electric, electronic or hydraulic
remote steering systems for
inboard mini jet boats.
4, 5, 6 Annex II, Components of Watercraft In respect of steering wheels and
(3) cable steering mechanisms and
assemblies for watercraft within
the scope of this standard.
WARNING: Other requirements and other EU Directives may be applicable to the product(s) falling
within the scope of this standard.
INTERNATIONAL ISO
STANDARD 15652
First edition
2003-11-01
Small craft — Remote steering systems
for inboard mini jet boats
Petits navires — Appareils à gouverner commandés à distance pour
petites embarcations à tuyère intérieure

Reference number
ISO 15652:2003(E)
©
ISO 2003
ISO 15652:2003(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
©
ii ISO 2003 – All rights reserved

ISO 15652:2003(E)
Contents Page
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Constructional requirements . 2
5 Testing the steering . 5
6 General installation requirements . 6
©
ISO 2003 – All rights reserved iii

ISO 15652:2003(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15652 was prepared by Technical Committee ISO/TC 188, Small craft.
©
iv ISO 2003 – All rights reserved

INTERNATIONAL STANDARD ISO 15652:2003(E)
Small craft — Remote steering systems for inboard mini jet
boats
1Scope
This International Standard specifies the minimum level of requirements for construction, operation and
1 000 kg
installation of remote steering systems for all small inboard jet boats weighing less than , excluding
water scooters.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 8848:1990, Small craft — Remote steering systems
ISO 9775:1990, Small craft — Remote steering systems for single outboard motors of 15 kW to 40 kW power
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
console
structure that contains the steering helm, shift and throttle controls, switches, and instruments for use in the
operation of mini jet boats
3.2
control station
console and its operating and/or controlling components, the only location in the boat from which steering, shift
and throttle control may be achieved
3.3
control element
wheel, handlebar or joystick
3.4
handlebar
mechanical means for applying manual steering effort to the helm, normally a horizontal configuration with hand
grips at each end and the helm connected at the middle
3.5
helm
mechanism, exclusive of a steering wheel or other means for manual application of controlling force, by which
the controlling force is fed into a boat steering-system cable
3.6
joystick
mechanical means for applying manual steering effort into the helm, normally a vertical configuration with hand
grips at the top end and the helm at the bottom end
©
ISO 2003 – All rights reserved 1

ISO 15652:2003(E)
3.7
mini jet boat
boat weighing less than 1 000 kg with an inboard engine powering a water-jet pump as its primary propulsion,
designed to be operated with one or more persons within the confines of a hull
3.8
minimum retained system performance
system capability after test(s) such that at least 90 % of the steering arc normally available at each side of the
mid-position may be attained by exertion of no more than 27 N·m of torque at the helm through the wheel or
other normal control
NOTE This criteria does not define steering-system performance while a boat is underway, but is intended to provide
quantitative limits for design and testing purposes.
4 Constructional requirements
4.1 General
All threaded fasteners whose integrity affects operation of the system, such that separation or loss of the
fastener would cause sudden loss of steering without warning, shall be provided with a locking means.
Threaded fasteners whose integrity affects operation of the system, such that separation or loss of the fastener
would cause sudden loss of steering without warning, and that may be expected to be disturbed by installation
or adjustment procedures, shall be referenced by instructions for correct assembly and shall either
— be locked by a device whose presence is determinable by visual inspection, or by feel, following assembly,
...
