EN 13032-3:2021

SLOVENSKI STANDARD
01-maj-2022
Nadomešča:
SIST EN 13032-3:2008
Svetloba in razsvetljava - Merjenje in podajanje fotometričnih podatkov svetlobnih
virov in svetilk - 3. del: Podajanje podatkov za zasilno razsvetljavo delovnega
mesta
Light and lighting - Measurement and presentation of photometric data of lamps and
luminaires - Part 3: Presentation of data for emergency lighting of workplaces
Licht und Beleuchtung - Messung und Darstellung photometrischer Daten von Lampen
und Leuchten - Teil 3: Darstellung von Daten für die Notbeleuchtung von Arbeitsstätten
Lumière et éclairage - Mesure et présentation des données photométriques des lampes
et des luminaires - Partie 3 : Présentation des données relatives à l’éclairage de sécurité
des lieux de travail
Ta slovenski standard je istoveten z: EN 13032-3:2021
ICS:
17.180.20 Barve in merjenje svetlobe Colours and measurement of
light
91.160.10 Notranja razsvetljava Interior lighting
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 13032-3
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2021
EUROPÄISCHE NORM
ICS 17.180.20; 91.160.10 Supersedes EN 13032-3:2007
English Version
Light and lighting - Measurement and presentation of
photometric data of lamps and luminaires - Part 3:
Presentation of data for emergency lighting of workplaces
Lumière et éclairage - Mesure et présentation des Licht und Beleuchtung - Messung und Darstellung
données photométriques des lampes et des luminaires photometrischer Daten von Lampen und Leuchten -
- Partie 3 : Présentation des données relatives à Teil 3: Darstellung von Daten für die Notbeleuchtung
l'éclairage de sécurité des lieux de travail von Arbeitsstätten
This European Standard was approved by CEN on 27 September 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13032-3:2021 E
worldwide for CEN national Members.

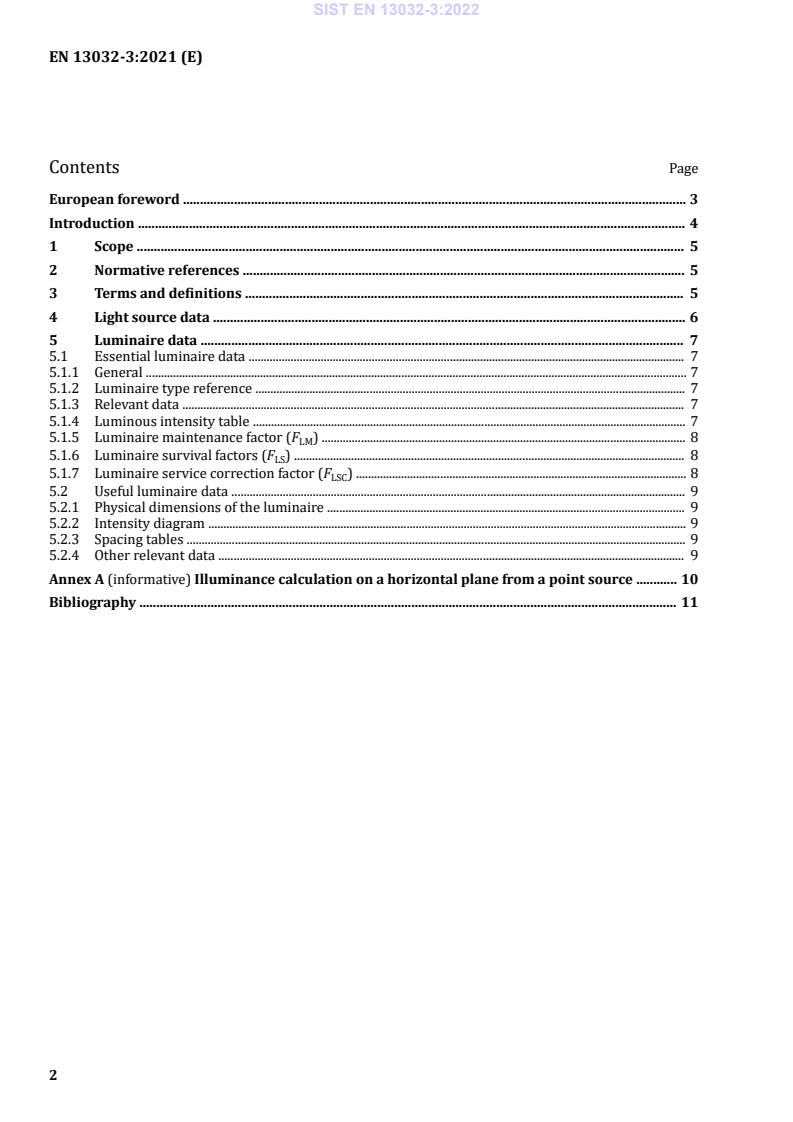

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Light source data . 6
5 Luminaire data . 7
5.1 Essential luminaire data . 7
5.1.1 General . 7
5.1.2 Luminaire type reference . 7
5.1.3 Relevant data . 7
5.1.4 Luminous intensity table . 7
5.1.5 Luminaire maintenance factor (F ) . 8
LM
5.1.6 Luminaire survival factors (F ) . 8
LS
5.1.7 Luminaire service correction factor (F ) . 8
LSC
5.2 Useful luminaire data . 9
5.2.1 Physical dimensions of the luminaire . 9
5.2.2 Intensity diagram . 9
5.2.3 Spacing tables . 9
5.2.4 Other relevant data . 9
Annex A (informative) Illuminance calculation on a horizontal plane from a point source . 10
Bibliography . 11
European foreword
This document (EN 13032‑3:2021) has been prepared by Technical Committee CEN/TC 169 “Light and
lighting”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by May 2022, and conflicting national standards shall be withdrawn
at the latest by May 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13032‑3:2007.
EN 13032‑3:2021 includes the following significant technical changes with respect to EN 13032‑3:2007:
— updated normative references and bibliography;
— consideration of LED technology and the change in luminaire design from lamps to light sources;
— consideration of data requirements for luminaires with replaceable and non-replaceable light
sources. This includes information on normalised and absolute photometric measurement data and
expanded maintenance factor data.
Any feedback and questions on this document should be directed to the users’ national standards body. A
complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
Introduction
Emergency lighting for work and other places is required by National Regulations in a number of European
countries and the lighting criteria is spècifièd in EN 1838. To assist in the design of suitable emergency
lighting solutions photometric and other characteristics data are required for the selected equipment. This
document spècifiès the required data to check the conformity of the emergency lighting luminaires to
EN 1838.
1 Scope
This document spècifiès the required data for lamps and luminaires for the vèrification of conformity to
the requirements of EN 1838. This document does not dèfinè the data requirements for signage, as these
can be found in EN 1838.
This document is used in conjunction with EN 13032‑1 and EN 13032‑4.
This document spècifiès the requirements for emergency lighting with or without a replaceable light
source.
NOTE Product, safety and performance data can be found in CENELEC documents (see Bibliography).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 1838, Lighting applications - Emergency lighting
EN 12665, Light and lighting - Basic terms and criteria for specifying lighting requirements
EN 13032‑1, Light and lighting - Measurement and presentation of photometric data of lamps and luminaires
- Part 1: Measurement and file format
EN 13032‑2, Light and lighting - Measurement and presentation of photometric data of lamps and luminaires
- Part 2: Presentation of data for indoor and outdoor work places
EN 13032‑4, Light and lighting - Measurement and presentation of photometric data of lamps and luminaires
- Part 4: LED lamps, modules and luminaires
3 Terms and definitions
For the purposes of this document, the terms and dèfinitions given in EN 12665 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
correction factor
factor to modify the luminaire data as presented on a particular photometric data sheet to those of
similar luminaires
EXAMPLE Ballast Lumen Factor, length, lumen corrections.
3.2
essential data
lamp and luminaire data required for the vèrification of conformity to the requirements of EN 1838
3.3
lamp code
any combination of letters and numbers by which the lamp type is idèntifièd
3.4
lamp dimensions
all dimensions of the lamp that are relevant for the luminaire
Note 1 to entry: This usually would not apply to Light Emitting Diodes
3.5
nominal lamp wattage
W
lamp
approximate wattage used to designate or identify the lamp
3.6
useful data
lamp and luminaire data bènèficial to the designers and users in the planning and operation of lighting
installations
3.7
emergency output factor (of a LED light source)
f
EOx
ratio of the electrical output parameter when the LED control gear under test is operated in emergency
mode to the electrical output parameter when the control gear is operated under normal lighting
conditions
3.8
practical emergency light source flux for discharge lamps
ϕ
PEL
lowest luminous flux of the light source observed during the rated duration of the emergency mode
Note 1 to entry: For discharge lamps ϕ = Φ × f
PEL EBL
where Φ is the rated luminous flux of fluorèscènt or discharge lamp and f the ballast emergency lumen factor
EBL
Note 2 to entry: For LED light sources:
a) if f is given ϕ = Φ × f
EOx PEL EOx
b) if I from constant current controlgear is dèfinèd: ϕ = Φ × (I / I )
emergency PEL emergency normal mode
where Φ is the luminous flux of the LED module under the condition corresponding to the operation in the luminaire
(identical tp) operated at the same current (I ), I is the current operating in emergency mode and
normal mode emergency
I is the current operating in mains healthy mode.
normal mode
4 Light source data
For luminaires with a non-replaceable light source data should always be given for the luminaire.
For luminaires with a replaceable light source, light source data should be provided in addition to luminaire
data.
For luminaires using replaceable lamps the following lamp data shall be provided for vèrification:
a) light source code;
b) light source dimensions;
c) luminous flux (ϕ );
LD
d) light source lumen maintenance factor (F );
LM
To generate an optimal maintenance scheme, it is recommended to present the data for the lamp lumen
maintenance in a tabular form.
NOTE 1 The data for the lamp lumen maintenance factor can be presented both as a graph or data in a table.
e) light source survival factor (F );
LS
To generate an optimal maintenance schedule it is recommended to give the data for the light source
survival factor in a table.
NOTE 2 The data for the light source survival factor can be presented as a graph or data in a table.
f) general colour rendering index (R );
a
g) nominal light source wattage (W ).
lamp
5 Luminaire data
5.1 Essential luminaire data
5.1.1 General
For luminaires the following data shall be provided for vèrification:
5.1.2 Luminaire type reference
Enabl
...
