EUROPEAN STANDARD
EN ISO 3037
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2013
ICS 85.080.30 Supersedes EN ISO 3037:2007
English Version
Corrugated fibreboard - Determination of edgewise crush
resistance (unwaxed edge method) (ISO 3037:2013)
Carton ondulé - Détermination de la résistance à la Wellpappe - Bestimmung des Kantenstauchwiderstandes
compression sur chant (méthode sans enduction de cire) (Verfahren für ungewachste Kanten) (ISO 3037:2013)
(ISO 3037:2013)
This European Standard was approved by CEN on 15 July 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 3037:2013: E
worldwide for CEN national Members.

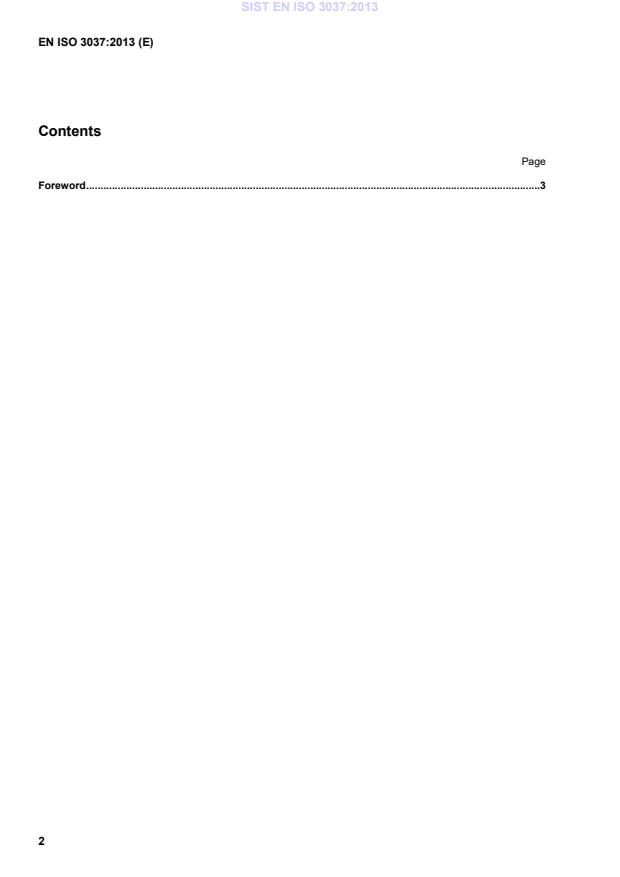

Contents
Page
Foreword .3
Foreword
This document (EN ISO 3037:2013) has been prepared by Technical Committee ISO/TC 6 “Paper, board and
pulps” in collaboration with Technical Committee CEN/TC 172 “Pulp, paper and board” the secretariat of
which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by February 2014, and conflicting national standards shall be withdrawn
at the latest by February 2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 3037:2007.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 3037:2013 has been approved by CEN as EN ISO 3037:2013 without any modification.
INTERNATIONAL ISO
STANDARD 3037
Fifth edition
2013-08-01
Corrugated fibreboard —
Determination of edgewise crush
resistance (unwaxed edge method)
Carton ondulé — Détermination de la résistance à la compression sur
chant (méthode sans enduction de cire)
Reference number
ISO 3037:2013(E)
©
ISO 2013
ISO 3037:2013(E)
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
ISO 3037:2013(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Apparatus . 1
6 Sampling . 2
7 Conditioning . 2
8 Preparation of test pieces . 2
9 Procedure. 3
10 Calculation . 3
11 Test report . 4
Annex A (informative) Examples of suitable cutting devices . 5
Annex B (informative) Precision data . 6
Bibliography . 8
ISO 3037:2013(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
The committee responsible for this document is ISO/TC 6, Paper, board and pulps, Subcommittee SC 2,
Test methods and quality specifications for paper and board.
This fifth edition cancels and replaces the fourth edition (ISO 3037:2007), which has been technically
revised. Specifications for the compression testing machine have been replaced by reference to ISO 13820.
Details of acceptable cutting devices have been moved to an informative annex and have been replaced
by specifications of the quality of cut. In addition, precision data have been inserted in Annex B.
iv © ISO 2013 – All rights reserved
ISO 3037:2013(E)
Introduction
A variety of methods for the determination of edgewise crush resistance are in use in different parts of
the world. These can be classified into three groups as follows:
a) Those in which a carefully cut rectangular test piece is tested without any special treatment or
modification (e.g. ISO 3037).
b) Those in which the edges of the test piece to which the force is applied are waxed, to prevent the test
result being influenced by “edge effects“ (e.g. ISO 13821, Corrugated fibreboard — Determination of
edgewise crush resistance — Waxed edge method).
c) Those in which the test piece edges are not waxed but the shape of the test piece is such that the
length is substantially reduced at a point midway between the loaded edges, in order to induce the
failure to occur away from those edges (e.g. JIS Z 0403-2).
The dimensions of the test piece vary from one group to the other and, in group c), the methods vary
in the shape and method of reducing the length, and in whether or not the test piece is held in a clamp
during crushing.
The methods may not give the same numerical results, but it can be shown that most of them can be used
to predict the top-to-bottom compression strength which will be achieved when the board is properly
converted into a transport package.
This International Standard describes a method from group a). It is intended as a method for quality
measurement and quality specification purposes and is selected because it correlates with the top-to-
bottom compression strength of the final transport package and because it is the simplest and most
operationally convenient method, an important factor when large numbers of tests need to be conducted.
However, it does not measure the actual intrinsic compressive strength of the corrugated fibreboard,
giving lower results than most of the methods in groups b) and c). This systematic difference is due to
edge effects.
Other methods may be used for other purposes, particularly when the object of the test is to study
fundamental structural characteristics of the package.
There are methods available for calculating the edgewise crush resistance from the compression
strength of the component papers.
INTERNATIONAL STANDARD ISO 3037:2013(E)
Corrugated fibreboard — Determination of edgewise crush
resistance (unwaxed edge method)
1 Scope
This International Standard specifies an unwaxed edge method for the determination of the edgewise
crush resistance of corrugated fibreboard. It is applicable to all corrugated fibreboard grades.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 186, Paper and board — Sampling to determine avera
...
