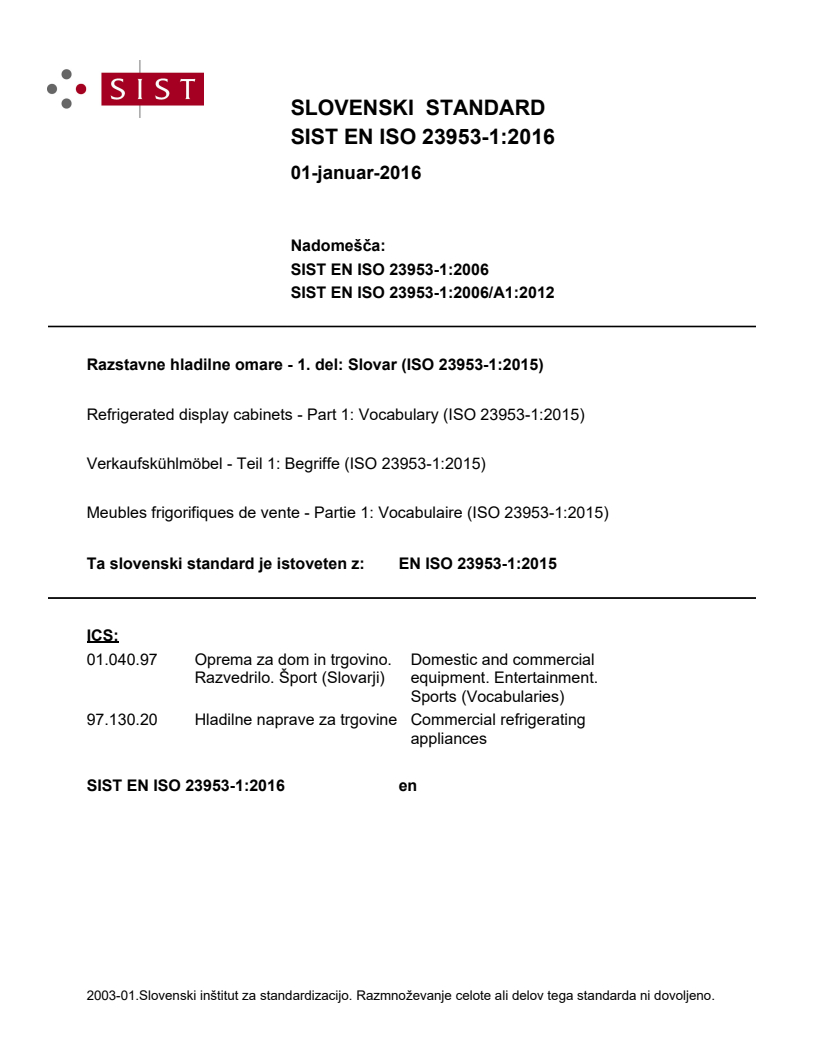

EN ISO 23953-1:2015

SLOVENSKI STANDARD
01-januar-2016
1DGRPHãþD
SIST EN ISO 23953-1:2006
SIST EN ISO 23953-1:2006/A1:2012
Razstavne hladilne omare - 1. del: Slovar (ISO 23953-1:2015)
Refrigerated display cabinets - Part 1: Vocabulary (ISO 23953-1:2015)
Verkaufskühlmöbel - Teil 1: Begriffe (ISO 23953-1:2015)
Meubles frigorifiques de vente - Partie 1: Vocabulaire (ISO 23953-1:2015)
Ta slovenski standard je istoveten z: EN ISO 23953-1:2015
ICS:
01.040.97 Oprema za dom in trgovino. Domestic and commercial
Razvedrilo. Šport (Slovarji) equipment. Entertainment.
Sports (Vocabularies)
97.130.20 Hladilne naprave za trgovine Commercial refrigerating
appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

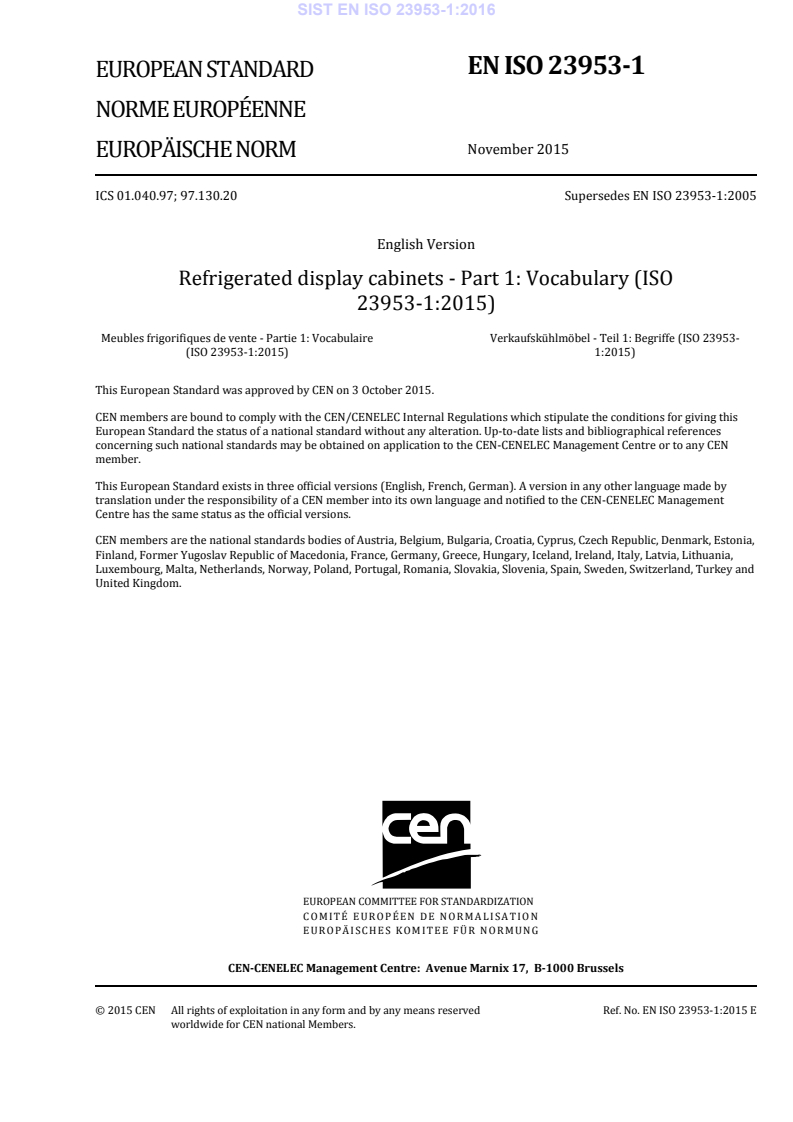

EN ISO 23953-1
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2015
EUROPÄISCHE NORM
ICS 01.040.97; 97.130.20 Supersedes EN ISO 23953-1:2005
English Version
Refrigerated display cabinets - Part 1: Vocabulary (ISO
23953-1:2015)
Meubles frigorifiques de vente - Partie 1: Vocabulaire Verkaufskühlmöbel - Teil 1: Begriffe (ISO 23953-
(ISO 23953-1:2015) 1:2015)
This European Standard was approved by CEN on 3 October 2015.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 23953-1:2015 E
worldwide for CEN national Members.

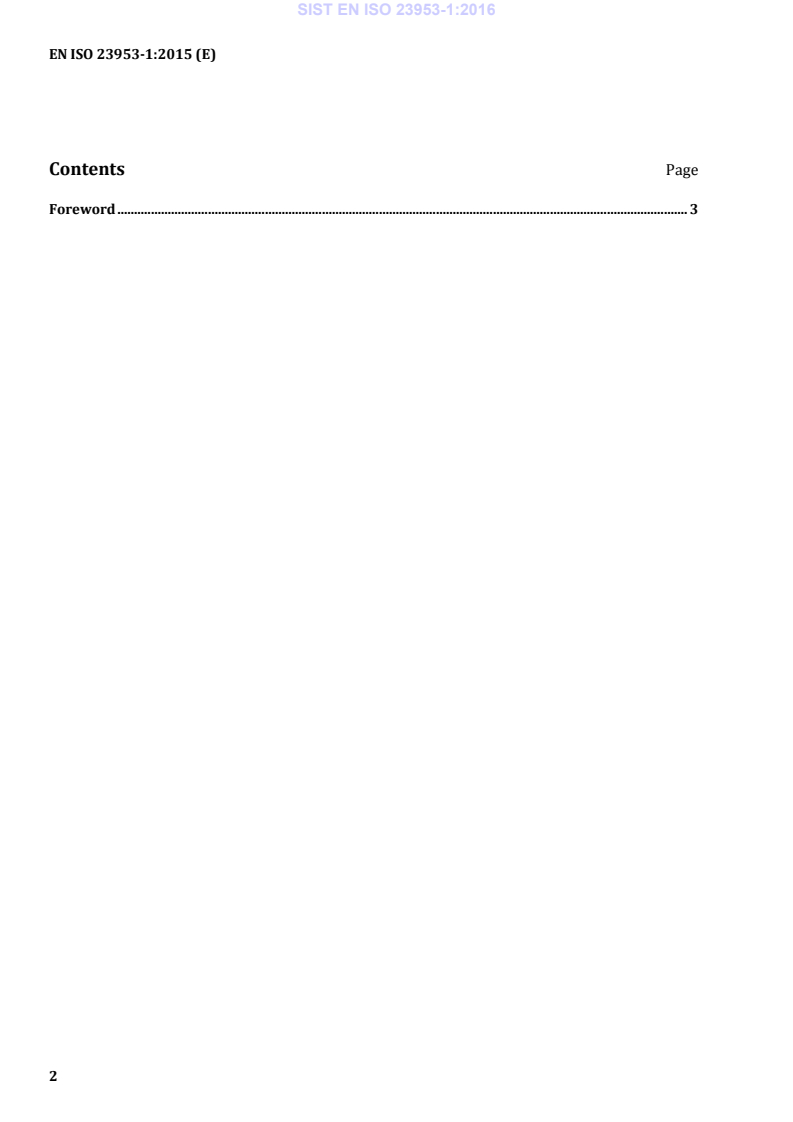

Contents Page
Foreword . 3
Foreword
This document (EN ISO 23953-1:2015) has been prepared by Technical Committee ISO/TC 86
"Refrigeration and air-conditioning" in collaboration with Technical Committee CEN/TC 44
“Commercial and Professional Refrigerating Appliances and Systems, Performance and Energy
Consumption” the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2016, and conflicting national standards shall be
withdrawn at the latest by May 2016.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
This document supersedes EN ISO 23953-1:2005.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 23953-1:2015 has been approved by CEN as EN ISO 23953-1:2015 without any
modification.
INTERNATIONAL ISO
STANDARD 23953-1
Second edition
2015-10-15
Refrigerated display cabinets —
Part 1:
Vocabulary
Meubles frigorifiques de vente —
Partie 1: Vocabulaire
Reference number
ISO 23953-1:2015(E)
©
ISO 2015
ISO 23953-1:2015(E)
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

ISO 23953-1:2015(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
3.1 Cabinet families and types . 1
3.2 Refrigerated display cabinet shapes. 2
3.3 Parts of refrigerated display cabinets . 5
3.4 Dimensional characteristics . 8
3.5 Operating characteristics . 9
3.6 Test environment .12
3.7 General .12
Annex A (informative) Designation of refrigerated display cabinet families .14
Annex B (normative) Equivalent terms in other languages .15
ISO 23953-1:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
ISO 23953-1 was prepared by European Committee for Standardization (CEN) in collaboration with
ISO/TC 86, Refrigeration and air-conditioning, Subcommittee SC 7, Testing and rating of commercial
refrigerated display cabinets, in accordance with the Agreement on technical cooperation between ISO
and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 23953-1:2005 and ISO 23953-1:2005/Amd
1:2012), which has been technically revised. ISO 23953-1 reports new terms and definitions also
taking into account Directive 2009/125/EC “establishing a framework for the setting of ecodesign
requirements for energy-related products”, oriented to an energy rating management. Moreover, new
terms and definitions were added on test environment. Some existing terms were updated consistently
to the modifications of ISO 23953-2.
ISO 23953 consists of the following parts, under the general title Refrigerated display cabinets:
— Part 1: Vocabulary
— Part 2: Classification, requirements and test conditions
iv © ISO 2015 – All rights reserved

INTERNATIONAL STANDARD ISO 23953-1:2015(E)
Refrigerated display cabinets —
Part 1:
Vocabulary
1 Scope
This part of ISO 23953 establishes a vocabulary of terms and definitions relative to refrigerated display
cabinets used for the sale and display of foodstuffs. It is not applicable to refrigerated vending machines
or cabinets intended for use in catering or similar non-retail applications.
NOTE In addition to terms in English and French, two of the three official ISO languages, this part of ISO 23953
gives the equivalent terms in German, Italian, and Spanish; these are published under the responsibility of the
member bodies for Germany (DIN), Italy (UNI), and Spain (AENOR). However, only the terms and definitions
given in the official languages can be considered as ISO terms and definitions.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 23953-2:2015, Refrigerated display cabinets — Part 2: Classification, requirements and test conditions
3 Terms and definitions
3.1 Cabinet families and types
See Annex A.
3.1.1
refrigerated display cabinet
cabinet cooled by a refrigerating system which enables chilled and frozen foodstuffs placed therein for
display to be maintained within prescribed temperature limits
3.1.2
vertical refrigerated display cabinet
refrigerated display cabinet, either semi-vertical multi-deck, roll-in, or glass door
3.1.3
semi-vertical refrigerated display cabinet
vertical refrigerated display cabinet whose overall height does not exceed 1,5 m and having either a
vertical or inclined display opening
3.1.4
horizontal refrigerated display cabinet (counter)
refrigerated display cabinet (counter) with horizontal display opening on its top and accessible from above
3.1.5
closed refrigerated display cabinet
refrigerated display cabinet where access to the foodstuffs is gained by opening a door or lid
ISO 23953-1:2015(E)
3.1.6
assisted service refrigerated display cabinet
serve-over counter
horizontal refrigerated display cabinet which requires that a person serve the consumer with fresh-cut
or packed foodstuffs
3.1.7
self-service refrigerated display cabinet
self-service counter
horizontal refrigerated display cabinet from which the consumer selects the prepacked foodstuffs
3.1.8
serve-over counter with integrated storage
refrigerated display cabinet for assisted service, including refrigerated storage which is normally
placed in its base
3.1.9
combined refrigerated display cabinet with glass door top
refrigerated display cabinet consisting of a refrigerated bottom, open or with glass lid, and a glass-door,
refrigerated top
3.1.10
combined refrigerated display cabinet with open top
refrigerated display cabinet consisting of a refrigerated bottom, open or with glass lid, and an open
refrigerated top
3.1.11
multi temperature combined refrigerated display cabinet
refrigerated display cabinet with different temperatures for chilled or frozen foodstuffs
...
