Reinforcement - Specifications for woven fabrics - Part 3: Specific requirements

1.1   This Part 3 of EN 13417 defines a specification for woven fabrics made from continuous filament reinforcement yarns, tows and rovings, which may be used as the basis for specifications.
The specification defines those parameters which shall be specified plus other parameters which may be specified if required for a particular application or processing method.
1.2   The specification does not define absolute or nominal values for any parameter. The value of a specified parameter is to be defined by the manufacturer but this specification defines the method of test to be used to determine the value of each specified parameter and the tolerance about which the parameter shall be controlled by the manufacturer.
1.3   The parameters which shall always be defined in any woven reinforcement fabric specification are defined in 4.1. In 4.2 the manufacturer shall define other obligatory information to be included in the specification. Other parameters can be included in the specification by agreement between manufacture and customer. These parameters are defined in clause 4.3.

Verstärkung - Spezifikationen für Gewebe - Teil 3: Besondere Anforderungen

1.1  Teil 3 der EN 13417 legt die Anforderungen, die als Grundlage für Spezifikationen verwendet werden dürfen,
für Gewebe, die aus Endlosfilamentverstärkungsgarnen, Werge und Rovings hergestellt wurden, fest.
Zusätzlich können jene Parameter, die für besondere Anwendungen oder Prozesse notwendig sind, vereinbart
werden.
1.2  Diese Norm definiert keine absoluten oder nominellen Werte der Parameter. Der Wert eines festgelegten
Parameters ist durch den Hersteller zu definieren, jedoch definiert diese Norm die Prüfverfahren, die anzuwenden
sind, um die Werte der Parameter festzustellen, und die Art, wie die Grenzabweichungen durch den Hersteller
kontrolliert werden müssen.
1.3  Die Parameter, welche immer an jedem Gewebe bestimmt werden müssen, sind in 4.1 definiert. Andere
verbindliche Angaben für die Spezifikation sind in 4.2 definiert. Parameter, welche in einer Spezifikation festgelegt
werden können, sind durch den Hersteller in Abstimmung mit dem Kunden zu definieren. Diese Parameter sind in
4.3 definiert.

Renfort - Spécification des tissus - Partie 3: Exigences spécifiques

1.1   Cette partie 3 de la En 13417 donne une spécification pouvant être utilisée comme base de spécifications pour les tissus décrits dans la partie 1.
La spécification définit les paramètres qui doivent être spécifiés ainsi que d'autres paramètres qui peuvent être spécifiés si nécessaire dans le cadre d'une application ou d'une mise en ¿uvre particulière.
1.2   La spécification ne définit pas les valeurs absolues ou nominales des paramètres. La valeur d'un paramètre spécifié doit être défini par le fabricant mais cette spécification indique la méthode d'essai à utiliser pour déterminer la valeur de chaque paramètre spécifié et la tolérance avec laquelle le paramètre doit être contrôlé par le fabricant.
1.3   Les paramètres qui doivent toujours être spécifiés dans les spécifications de tissus quelles qu'elles soient sont définis dans la clause 4.1. La clause 4.2 reprend d'autres types de paramètres obligatoires à inclure dans une spécification. Enfin, d'autres paramètres peuvent être inclus dans la spécification par accord entre le fabricant et le client.
Ces paramètres sont définis dans la clause 4.3.

Ojačitve - Specifikacije za tkanine - 3. del: Posebne zahteve

General Information

Status
Published
Publication Date
09-Oct-2001
ICS
59.100.01 - Materials for the reinforcement of composites in general
Technical Committee
CEN/TC 249 - Plastics
Drafting Committee
CEN/TC 249/SC 2/WG 1 - Reinforcements
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
03-Dec-2022
Completion Date
14-Apr-2025
Ref Project
SIST EN 13417-3:2002 - Reinforcement - Specifications for woven fabrics - Part 3: Specific requirements

Overview

EN 13417-3:2001 - "Reinforcement - Specifications for woven fabrics - Part 3: Specific requirements" is a CEN European Standard that defines how to specify woven reinforcement fabrics made from continuous filament reinforcement yarns, tows and rovings. It does not set absolute material values; instead it prescribes which parameters must be declared, the test methods to determine those values, and the tolerances manufacturers must control. The standard is intended as a basis for supplier specifications and customer–manufacturer agreements for reinforcement materials used in composite products.

Key topics and requirements

  • Scope and intent
    • Applies to woven reinforcement fabrics used for the reinforcement of composites (continuous filaments, tows, rovings).
    • Defines mandatory, optional and informational items to include in a fabric specification.
  • Mandatory (controlled) parameters (see Clause 4.1 / Table 1)
    • Mass per unit area (ISO 3374) - tolerance and lot/average control specified.
    • Length and width (ISO 5025) - dimensional limits and tolerances.
    • Number of yarns per unit length (warp and weft) (ISO 4602) - specified and controlled.
  • Mandatory (not controlled) designation parameters (Table 2)
    • Filament diameter, reinforcement type, weave type, yarn type - must be declared but are not subject to manufacturer control under this part.
  • Other obligatory information
    • Manufacturers must state resin/polymer/matrix compatibility of the fabric finish/size system (e.g., polyester, phenolic).
  • Optional parameters (Clause 4.3)
    • Combustible matter content (ISO 1887), moisture content (EN ISO 3344), conventional flexural stiffness (ISO 4604), thickness (ISO 4603), and mechanical properties from standardized laminates (ISO 1268).
  • Informative annexes
    • Annexes A–E list existing product designations and examples for glass (bi‑ and uni‑directional), carbon, aramid fabrics and rovings (informative, not exhaustive).

Applications and who uses it

  • Target users:
    • Fabric manufacturers creating product data sheets and quality-control plans.
    • Composite material specifiers and engineers who need standardized fabric data for design and procurement.
    • Quality and test laboratories that perform acceptance testing using the referenced ISO/EN test methods.
    • Buyers and procurement teams establishing supplier specifications and tolerances.
  • Practical uses:
    • Forming the contractual basis for fabric supply (declaration of nominal values, test methods, tolerances).
    • Ensuring compatibility of fabric finish/size with resin systems in composite manufacturing.
    • Streamlining acceptance testing and lot control for production and R&D.

Related standards

  • EN 13417 series: Part 1 (Designation) and Part 2 (Methods of test and general requirements).
  • Normative test references included in EN 13417-3: ISO 2113, ISO 3374, ISO 4602, ISO 4603, ISO 4604, ISO 1887, EN ISO 3344, ISO 1268, ISO 1888, ISO 11567, EN ISO 2078/13002 (designation systems).

Keywords: EN 13417-3:2001, woven reinforcement fabrics, continuous filament yarns, reinforcement specification, test methods, tolerance, composites reinforcement, fabric designation.

Frequently Asked Questions

EN 13417-3:2001 is a standard published by the European Committee for Standardization (CEN). Its full title is "Reinforcement - Specifications for woven fabrics - Part 3: Specific requirements". This standard covers: 1.1 This Part 3 of EN 13417 defines a specification for woven fabrics made from continuous filament reinforcement yarns, tows and rovings, which may be used as the basis for specifications. The specification defines those parameters which shall be specified plus other parameters which may be specified if required for a particular application or processing method. 1.2 The specification does not define absolute or nominal values for any parameter. The value of a specified parameter is to be defined by the manufacturer but this specification defines the method of test to be used to determine the value of each specified parameter and the tolerance about which the parameter shall be controlled by the manufacturer. 1.3 The parameters which shall always be defined in any woven reinforcement fabric specification are defined in 4.1. In 4.2 the manufacturer shall define other obligatory information to be included in the specification. Other parameters can be included in the specification by agreement between manufacture and customer. These parameters are defined in clause 4.3.

1.1 This Part 3 of EN 13417 defines a specification for woven fabrics made from continuous filament reinforcement yarns, tows and rovings, which may be used as the basis for specifications. The specification defines those parameters which shall be specified plus other parameters which may be specified if required for a particular application or processing method. 1.2 The specification does not define absolute or nominal values for any parameter. The value of a specified parameter is to be defined by the manufacturer but this specification defines the method of test to be used to determine the value of each specified parameter and the tolerance about which the parameter shall be controlled by the manufacturer. 1.3 The parameters which shall always be defined in any woven reinforcement fabric specification are defined in 4.1. In 4.2 the manufacturer shall define other obligatory information to be included in the specification. Other parameters can be included in the specification by agreement between manufacture and customer. These parameters are defined in clause 4.3.

EN 13417-3:2001 is classified under the following ICS (International Classification for Standards) categories: 59.100.01 - Materials for the reinforcement of composites in general. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase EN 13417-3:2001 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Verstärkung - Spezifikationen für Gewebe - Teil 3: Besondere AnforderungenRenfort - Spécification des tissus - Partie 3: Exigences spécifiquesReinforcement - Specifications for woven fabrics - Part 3: Specific requirements59.100.01Materials for the reinforcement of composites in generalICS:Ta slovenski standard je istoveten z:EN 13417-3:2001SIST EN 13417-3:2002en01-september-2002SIST EN 13417-3:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13417-3October 2001ICS 59.100.01English versionReinforcement - Specifications for woven fabrics - Part 3:Specific requirementsRenfort - Spécification des tissus - Partie 3: ExigencesspécifiquesVerstärkung - Spezifikationen für Gewebe - Teil 3:Besondere AnforderungenThis European Standard was approved by CEN on 16 August 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13417-3:2001 ESIST EN 13417-3:2002

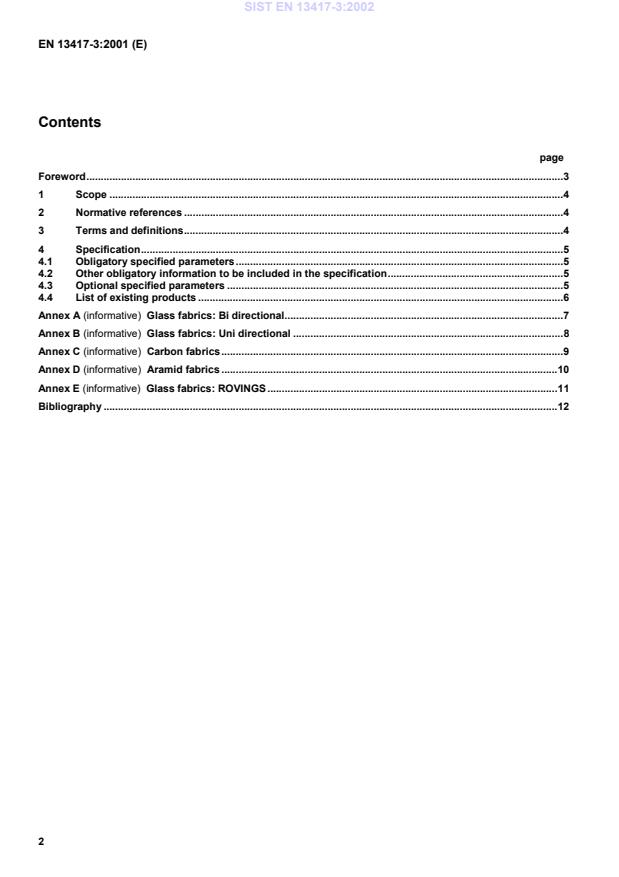

Glass fabrics: Bi directional.7Annex B (informative)
