EN 1096-4:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Glass in building - Coated glass - Part 4: Evaluation of conformity/Product standardSteklo v stavbah – Steklo z nanosi – 4. del: Ovrednotenje skladnosti/standard za izdelekVerre dans la construction - Verre a couche - Partie 4: Evaluation de la conformité/Norme de produitGlas im Bauwesen - Beschichtetes Glas - Teil 4: Konformitätsbewertung/Produktnorm81.040.20Steklo v gradbeništvuGlass in buildingICS:SIST EN 1096-4:2005enTa slovenski standard je istoveten z:EN 1096-4:200401-marec-2005SIST EN 1096-4:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1096-4October 2004ICS 81.040.20English versionGlass in building - Coated glass - Part 4: Evaluation ofconformity/Product standardVerre dans la construction - Verre à couche - Partie 4:Evaluation de la conformité/Norme de produitGlas im Bauwesen - Beschichtetes Glas - Teil 4:Konformitätsbewertung/ProduktnormThis European Standard was approved by CEN on 27 May 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1096-4:2004: E

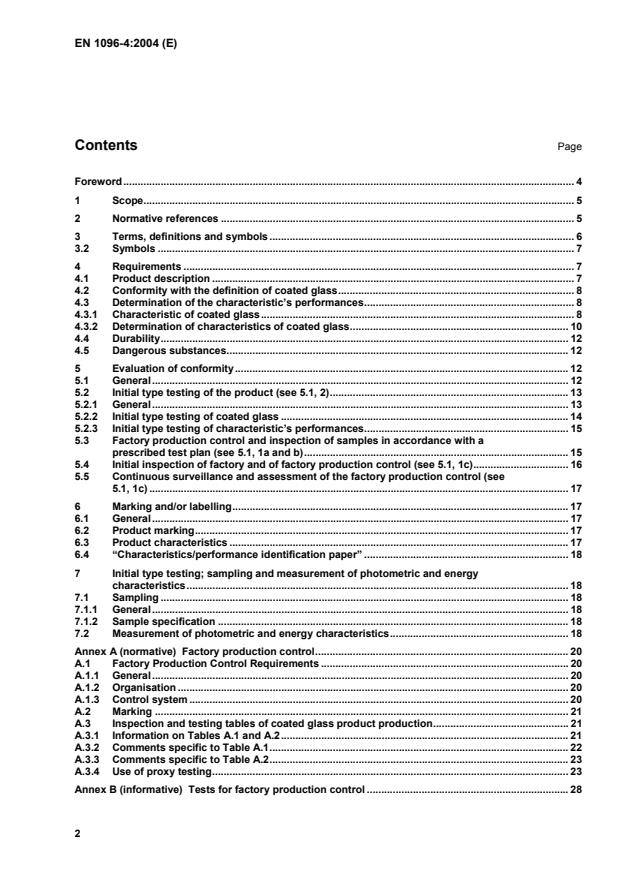

Factory production control.20 A.1 Factory Production Control Requirements.20 A.1.1 General.20 A.1.2 Organisation.20 A.1.3 Control system.20 A.2 Marking.21 A.3 Inspection and testing tables of coated glass product production.21 A.3.1 Information on Tables A.1 and A.2.21 A.3.2 Comments specific to Table A.1.22 A.3.3 Comments specific to Table A.2.23 A.3.4 Use of proxy testing.23 Annex B (informative)
Tests for factory production control.28

Provisions for voluntary involvement of third party(ies).30 C.1 General.30 C.2 Voluntary tasks for third parties.30 C.3 Marking and labelling.30 (informative)
Clauses of this European Standard addressing the provisions of EU Construction Products Directive.31 ZA.1 Scope and relevant characteristics.31 ZA.2 Procedure(s) for the attestation of conformity of coated glass products.33 ZA.2.1 System(s) of attestation of conformity.33 ZA.2.2 EC Certificate and Declaration of conformity.35 ZA.3 CE marking and labelling.37 Bibliography.39

Note: For glass products with electrical wiring or connections for, e.g. alarm or heating purposes, other directives, e.g. Low Voltage Directive, may apply.
2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 356, Glass in building - Security glazing - Testing and classification of resistance against manual attack EN 410, Glass in building - Determination of luminous and solar characteristics of glazing EN 572-1, Glass in building — Basic soda lime silicate glass products - Part 1: Definitions and general physical and mechanical properties EN 572-2, Glass in building — Basic soda lime silicate glass products - Part 2: Float glass EN 572-3, Glass in building — Basic soda lime silicate glass products - Part 3: Polished wired glass EN 572-4, Glass in building — Basic soda lime silicate glass products - Part 4: Drawn sheet glass EN 572-5, Glass in building — Basic soda lime silicate glass products - Part 5: Patterned glass EN 572-6, Glass in building — Basic soda lime silicate glass products - Part 6: Wired patterned glass EN 572-7, Glass in building — Basic soda lime silicate glass products - Part 7: Wired or unwired channel shaped glass EN 673, Glass in building – Determination of thermal transmittance (U value) – Calculation method EN 1063, Glass in building - Security glazing - Testing and classification of resistance against bullet attack EN 1096-1, Glass in building - Coated glass - Part 1: Definitions and classification EN 1096-2, Glass in building - Coated glass - Part 2: Requirements and test Methods for class A, B and S coatings EN 1096-3, Glass in building - Coated glass - Part 3: Requirements and test methods for class C and D coatings EN 1748-1-1, Glass in building - Special basic products - Borosilicate glasses – Part 1-1: Definition and general physical and mechanical properties EN 1748-2-1, Glass in building - Special basic products - Glass ceramics – Part 2-1: Definitions and general physical and mechanical properties EN 1863-1, Glass in building – Heat strengthened soda lime silicate glass
Part 1: Definition and description

- Part 1: Definition and description EN ISO 12543-1, Glass in building – Laminated and laminated safety glass
- Part 1: Definitions and description of component parts (ISO 12543-1:1998) EN 12600, Glass in building - Pendulum test - Impact test method and classification for flat glass
EN 12758, Glass in building - Glazing and airborne sound insulation – Product descriptions and determination of properties EN 12898, Glass in building - Determination of the emissivity EN 13024-1, Glass in building – Thermally toughened borosilicate safety glass - Part 1: Definition and description prEN 13474, Glass in building – Design of glass panes EN 13501-1, Fire classification of construction products and building elements – Part 1: Classification using test data from reaction to fire tests EN 13501-2, Fire classification of construction products and building elements – Part 2: Classification using data from fire resistance tests, excluding ventilation services prEN 13501-5, Fire classification of construction products and building elements - Part 5: Classification using data from fire exposure roof tests EN 13541, Glass in building - Security glazing - Testing and classification of resistance against explosion pressure EN 14178-1, Glass in building - Basic earth alkaline silicate glass products – Part 1: Float glass prEN 14179-1, Glass in building – Heat soaked thermally toughened soda lime silicate safety glass – Part 1 Definition and description prEN 14321-1, Glass in building – Thermally toughened alkaline earth silicate safety glass Part 1: Definition and description
3 Terms, definitions and symbols 3.1 Terms and definitions For the purpose of this document, the terms and definitions given in EN 1096-1, 2 and 3 and the following apply: 3.1.1
initial type testing determination of the performance of a product (characteristic, durability), on the basis of either actual tests or other procedures (such as conventional, standardised, tabulated or general accepted values, standardised or recognised calculation methods, test reports when made available, …), in accordance with this document that demonstrates compliance with this document

test report document that covers the results of tests undertaken on a representative sample of
the product from production
or on a prototype design of the product 3.1.3 product description document that details the relevant parameters, e.g. process conditions, structure, etc., for defining a product that complies with the standard. It includes specific reference(s) to characteristics that are modified by the production process 3.1.4 significant change variation in performance beyond the permitted tolerance for the characteristic 3.2 Symbols ε and ε'
emissivity of both sides of a coated glass pane τv
light transmittance ρv and ρv'
light reflectance of both sides of a coated glass pane τe
energy transmittance ρe and ρe'
energy reflectance of both sides of a coated glass pane ε i
emissivity of a test specimen measured during factory production control Additional subscripts: d
indicates that the value is a declared value m indicates that the value is a determined value obtained by measurement, calculation or other means 4 Requirements 4.1 Product description For conformity purposes, the coated glass manufacturer1 is responsible for the preparation and maintenance of a product description. This description shall describe the product and/or product family.
Disclosure of the product description shall be at the discretion of the coated glass manufacturer or his agent except in the case of regulatory requirements. The description shall contain at least a normative part. The description may also contain an informative part, when the manufacturer foresees further development of the product.
The terms ‘manufacturer’ and ‘producer’ are understood as being synonyms (see CPD working document NB-CPD/02/019 – issued 24 April 2002 – page 1)

Reference
Basic soda lime silicate glass products Special basic glass products Alkaline earth silicate glass products Thermally toughened soda lime silicate safety glass Heat soaked thermally toughened soda lime silicate safety glass Thermally toughened borosilicate safety glass Thermally toughened alkaline earth silicate safety glass Heat strengthened soda lime silicate glass Chemically strengthened soda lime silicate glass Laminated and laminated safety glass
EN 572-1, 2, 3, 4, 5, 6, 7 EN 1748-1-1, EN 1748-2-1 EN 14178-1 EN 12150-1 prEN 14179-1 EN 13024-1 prEN 14321-1
EN 1863-1 EN 12337-1 EN ISO 12543-1
Note: Certain coated glasses can be toughened or heat strengthened. These final products should comply with the appropriate product standard, e.g. EN 12150, EN 1863, etc., and the performance of the coated glass should be determined on the final product. The characteristics of the glass substrates are listed in Table 2 and the values can be found in the appropriate product standard, e.g. EN 572-1, EN 1748-1-1, etc. For the characteristics listed in Table 2, for the glass pane types, generally accepted values or calculated values shall be used.
Since the majority of the characteristics of Table 2 are not changed significantly by the coating process, they shall be used for coated glass. The characteristics being those for the glass substrate with the following exceptions: Resistance to fire
4.3.2.1 Emissivity
4.3.2.11 Light transmittance and reflectance
4.3.2.12 Solar energy characteristics
4.3.2.13
Characteristic
Symbol
Unit Generally accepted values: - - density - hardness - Young's modulus - Poisson's ratio - Characteristic bending strength - Resistance against sudden temperature changes and temperature differentials
- Specific heat capacity - Coefficient of linear expansion - Thermal conductivity (for U-value) - Mean refractive index to visible radiation - Emissivity
ρ HK0,1/20 E µ fg,k
c α λ n ε
kg/m³ GPa Pa Dimensionless Pa K J/(kg.K) K-1 W/(m.K) Dimensionless Dimensionless Measured values: - light transmittance - solar direct transmittance
τv τe
Dimensionless Dimensionless Calculated values: - total solar energy transmittance
g
Dimensionless
4.3.2 Determination of characteristics of coated glass If the coated glass manufacturer wishes to claim that any performance characteristic is independent of the production equipment used then the factory production control system shall be in accordance with this document including his specific process control conditions. 4.3.2.1 Safety in the case of fire - Resistance to fire Fire resistance shall be determined and classified in accordance with EN 13501-2. Note: EN 357 may be used as a classification reference specific to fire resistant glazed elements. 4.3.2.2 Safety in the case of fire - Reaction to fire Reaction to fire shall be determined and classified in accordance with EN 13501-1. 4.3.2.3 Safety in the case of fire - External fire behaviour Where the manufacturer wishes to declare external fire performance (e.g. when subject to regulatory requirements), the product shall be tested and classified in accordance with prEN 13501-5. Note: Compliance with this requirement is not possible until a version of prEN 13501-5 later than 2002 becomes available.

The manufactured or supplied thickness of coated glass shall conform to the ordered thickness. 4.3.2.10 Protection against noise - Direct airborne sound reduction The sound reduction indexes shall be determined in accordance with EN 12758. However, the information supplied with the incoming glass may be used, as the coating process does not alter the values. 4.3.2.11 Energy conservation and heat retention - Thermal properties The thermal transmittance value (U-value) shall be determined by calculation in accordance with EN 673 with:  emissivity ε: the declared value of the coating manufacturer. If the information is not available, the emissivity shall be determined in accordance with EN 12898.  nominal thickness of the glass panes 4.3.2.12 Energy conservation and heat retention - Radiation properties: Light transmittance and reflectance The light transmittance and reflectance shall be determined in accordance with EN 410. Subject to 5.2.1, the information supplied about the radiation properties of the incoming glass may be used if the coating process does not alter the values.

The manufacturer shall supply specific installation instructions or make reference to appropriate technical specifications. Note 1: The durability of glass products depends on:
 building and construction movements due to various actions;  building and construction vibrations due to various actions;  deflection and racking of the glass support due to various actions;  glass support design (e.g. drainage of infiltrated water in the rebate, prevention of direct contact between glass support members and glass);  accuracy of glass support and glass support member dimensions;  quality of the assembling of glass support members up to a glass support;  quality of installation of the glass support into or onto the buildings or constructions;  glass support expansion due to adsorbed moisture from the air or other sources;  the quality of installation of the glass product into or onto its support. 4.5 Dangerous substances Materials used in products shall not release any dangerous substances in excess of the maximum permitted levels specified in a relevant European Standard for the material or permitted in the national regulations of the member state of destination. 5 Evaluation of conformity 5.1 General Evaluation of conformity in accordance with this document shall be as a result of Factory Production Control and Initial Type Testing in accordance with this document:

This shall include the following:
a) Inspection of samples taken at the factory in accordance with a prescribed test plan;
b) Initial inspection of the factory and of factory production control;
c) Continuous surveillance and assessment of the factory production control. 2) Initial type testing of the product; Note: There may be a need to involve a third party, with 1b, 1c, and/or 2, for the purpose of regulatory marking (see Annex ZA). 5.2 Initial type testing of the product (see 5.1, 2) 5.2.1 General All the product’s characteristics shall be initial type tested to verify they are in conformity with the requirements of this document. In addition, instead of performing any real testing, initial type testing may make use of:  generally accepted and/or conventional and/or standardised values, in the Clause 2 referenced standards, or in publications that are referred to in these standards;  standardised calculation methods and recognised calculation methods in Clause 2 referenced standards, or in publications that are referred to in these standards;  test report(s) on the basis of 5.2.1.2 when made available except for the characteristics listed in 5.2.2.  where components are used, whose characteristics have already been determined, by the component manufacturer, on the basis of conformity with other product standards, these characteristics need not be re-assessed providing they remain unchanged by the manufacturing process.  release of dangerous substances maybe assessed indirectly by controlling the amount of the substance concerned.  Durability may be assessed indirectly by controlling the production processes according to this document. Note 1: Products CE marked in accordance with appropriate harmonised European specifications may be presumed to have the performances stated with the CE marking.
Note 2: There may be a need to involve a third party for the purpose of regulatory marking (see Annex ZA). When actual testing is required then the Initial Type Testing (ITT) shall be undertaken on a sample representative of the product taken from direct production or a prototype, any plant and/ or line. Whenever a change occurs in the raw material or production process (subject to the definition of a family), which would change significantly one or more of the characteristics, the type tests shall be repeated for the appropriate characteristic(s).

2 The terms ‘manufacturer’ and ‘producer’ are understood as being synonyms (see CPD working document NB-CPD/02/019-issued 24 April 2002 – page1)

Characteristic
Method of Determining conformity Determined Value Declared value
Requirement Light transmittance EN 410 τv,m τv,d τv,m = τv,d ±0,03 Light reflectance: – first side – second side EN 410
ρv,m
ρ'v,m
ρv,d
ρ'v,d
ρv,m = ρv,d ±0,03 ρ'v,m = ρ'v,d ±0,03 Energy transmittance EN 410 τe τe,d τe = τe,d ±0,03 Energy reflectance – first side – second side EN 410
ρe,m ρ'e,m
ρe,d
ρ'e,d
ρe,m = ρe,d ±0,03 ρ'e,m = ρ'e,d ±0,03 Emissivity – first side – second side EN 12898
εm ε'm
εd ε'd
εm ≤ εd +0,02 ε'm ≤ ε'd +0,02
The performances of the photometric and energy characteristics shall be determined of both sides of the coated glass. These may be conventional values, calculated values and/or results of measurements. Where calculations are applied, whether or not in combination with measurements, the incoming glass products shall be accompanied by the declared values of the characteristics as listed in Table 3. Clause 7 details sampling for initial type testing and method of measurement for photometric and energy characteristics. 5.2.3 Initial type testing of characteristic’s performances
All characteristics in 4.3 shall be subject to initial type tests in accordance with Clause 5.2.1. 5.3 Factory production control and inspection of samples in accordance with a prescribed test plan (see 5.1, 1a and b) Factory production control means the permanent internal control of production exercised by the manufacturer
All elements, requirements and provisions adopted by the manufacturer shall be documented in a systematic manner in the form of written policies and procedures. This production control system documentation shall ensure a common understanding of quality assurance and enable the achievement of the required product characteristics and the effective operation of the production control system to be checked. Factory production control shall be according to Annex A of this document. Note 1: A factory production control system similar to EN ISO 9001 made product specific to this document is deemed to satisfy the requirements of this clause.

Note: There may be a need to involve a third party for the purpose of regulatory marking (see Annex ZA). Table 4: Characteristics of interest for the Factory Production Control
Nr
Characteristic
Interested parameter related to the characteristic
For details, refer to
a
Resistance to fire Reaction to fire External fire behaviour
- checking incoming materials - product control after coating process (not required for reaction to fire) - labelling outgoing glass product
Annex A
b
Release of dangerous substances
- checking incoming materials
Annex A
c
Bullet resistance Explosion resistance Burglar resistance Pendulum body impact resistance Resistance against sudden temperature changes and temperature differentials Wind, snow, permanent and imposed load resistance of the glass unit
- checking incoming glass - labelling outgoing glass product
Annex A
d
Direct airborne sound reduction Thermal properties Radiation properties: – light transmittance and reflection – solar energy characteristic
- checking incoming glass - product control after coating process (not required for sound reduction)
labelling outgoing product
Annex A
When assessment of factory production control fails to identify major non-conformances during four successive assessments the frequency can be reduced to once a year.
When a major non-conformance is recorded, the inspection shall be repeated within two months. The frequency of production surveillance shall return to, or remain at twice a year. When the repeated inspection also results in a major non-conformance, then the production shall be subject within two months to a repeated initial inspection of the factory and of the factory production control together with a surveillance inspection. When this repeated initial inspection and surveillance inspection also results in a major non-conformance, then the products are considered as no longer conforming to this document. 6 Marking and/or labelling 6.1 General All voluntary marking and/or labelling shall comply with Annex C.3.
Care shall be taken to ensure that any voluntary marking and/or labelling does not cause confusion with respect to the mandatory requirements. Note: All marking and/or labelling of product to demonstrate compliance with the regulatory requirement is detailed in Annex ZA. 6.2 Product marking There is no requirement to mark coated glass products. However, if they are processed, e.g. thermally toughened, heat strengthened etc, then they have to comply with the appropriate product standard, e.g. EN 12150, EN 1863. 6.3 Product characteristics
The manufacturer or his agent shall organise a system of references that allows for the following:  identification of exactly which characteristics have to be assessed (see Clause 4.3);  those characteristics that will be assessed;  values, classes, categories, etc. that have been determined for those characteristics.
This system shall be documented as part of the evaluation of conformity.

7.2 Measurement of photometric and energy characteristics When measuring in accordance with EN 410 and EN 12898, using an appropriate spectrophotometer, then three measurements per characteristic shall be made. The specimen shall be mounted in the spectrophotometer and a measurement made. Then the specimen shall be demounted, remounted and a further measurement made. This shall be repeated until the three measurements have been made. The average of the three measurements for each characteristic shall be used for the evaluation of the characteristic as required by Table 3. Note: These three measurements are made to remove any possible angular influence caused by the mounting of the measurement specimen.

Factory production control A.1 Factory Production Control Requirements A.1.1 General The factory production control system shall consist of procedures, regular inspections and tests and/or assessments and the use of the results to control [raw and other] incoming materials or components, equipment, the production process and the product. Note: A factory production control system conforming to EN ISO 9001 and made specific to the requirements of this document is deemed to satisfy the requirements of this document. A.1.2 Organisation A.1.2.1 A.1.2.1 Responsibility and authority The responsibility, authority and the interrelation of all personnel who manage, perform and verify work affecting conformity shall be defined, particularly for personnel who have the organizational freedom and authority to: a) initiate action to prevent the occurrence of product non-conformity; b) identify and record any product non-conformances. A.1.2.2 A.1.2.2 Management representative for factory production control The manufacturer shall appoint a management representative who, irrespective of other responsibilities, shall have defined authority and responsibility for ensuring that the requirements of this document are implemented and maintained. A.1.2.3 A.1.2.3 Management review The production control system shall be reviewed by the manufacturer’s management at appropriate intervals in accordance with the manufacturer’s control system to ensure its continuing suitability and effectiveness. Records of such reviews shall be maintained for a minimum period of 5 years. A.1.3 Control system A.1.3.1 A.1.3.1 General The manufacturer shall establish and maintain a documented system as a means of ensuring that the product conforms to EN 109
...
