Glass in building - Shatter properties - Requirements and assessment methods

This document gives test methods to assess the shatter properties of different types of monolithic flat glass for use in building and construction works, for which a specific fragmentation pattern is required when tested under defined conditions.
NOTE Thermally treated monolithic glass is a product for which such a requirement exists.

Glas im Bauwesen - Brucheigenschaften - Anforderungen und Bewertungsmethoden

Dieses Dokument enthält Prüfverfahren zur Bewertung der Brucheigenschaften verschiedener Arten von Einscheiben-Flachglas, die für die Verwendung in Gebäuden und Bauten vorgesehen sind und für die ein bestimmtes Bruchbild erforderlich ist, wenn sie unter festgelegten Bedingungen geprüft werden.
ANMERKUNG Thermisch behandeltes Einscheibenglas ist ein Produkt, für das eine solche Anforderung besteht.

Verre dans la construction - Comportement lors du bris - Exigences et méthodes d'évaluation

Le présent document fournit des méthodes d'essai pour évaluer le comportement lors du bris de différents types de verre plat monolithique utilisés dans le bâtiment et les travaux de construction, pour lesquels un certain type de fragmentation est nécessaire lorsqu'ils sont soumis à essai dans des conditions définies.
NOTE Ce type d’exigences existe pour le verre monolithique ayant subi un traitement thermique.

Steklo v gradbeništvu - Lastnosti loma - Zahteve in metode ocenjevanja

Ta dokument določa preskusne metode za ocenjevanje lastnosti loma različnih vrst monolitnega ploskega stekla, ki se uporablja v stavbah in gradbenih objektih ter za katero se med preskušanjem pod določenimi pogoji zahteva poseben vzorec drobljenja.
OPOMBA:   Toplotno obdelano monolitno steklo so izdelki, za katere takšna zahteva obstaja.

General Information

Status
Published
Publication Date
29-Nov-2022
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
30-Nov-2022
Due Date
09-Nov-2022
Completion Date
30-Nov-2022

Buy Standard

Standard
EN 17635:2023
English language
14 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-februar-2023
Steklo v gradbeništvu - Lastnosti loma - Zahteve in metode ocenjevanja
Glass in buildig - Shatter properties - Requirements and assessment methods
Glas in Bauwesen - Brucheigenschaften - Anforderungen und Bewertungsmethoden
Verre dans la construction - Comportement lors du bris - Exigences et méthodes
d'évaluation
Ta slovenski standard je istoveten z: EN 17635:2022
ICS:
81.040.20 Steklo v gradbeništvu Glass in building
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 17635
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2022
EUROPÄISCHE NORM
ICS 81.040.20
English Version
Glass in building - Shatter properties - Requirements and
assessment methods
Verre dans la construction - Comportement lors du bris Glas im Bauwesen - Brucheigenschaften -
- Exigences et méthodes d'évaluation Anforderungen und Bewertungsmethoden
This European Standard was approved by CEN on 30 October 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17635:2022 E
worldwide for CEN national Members.

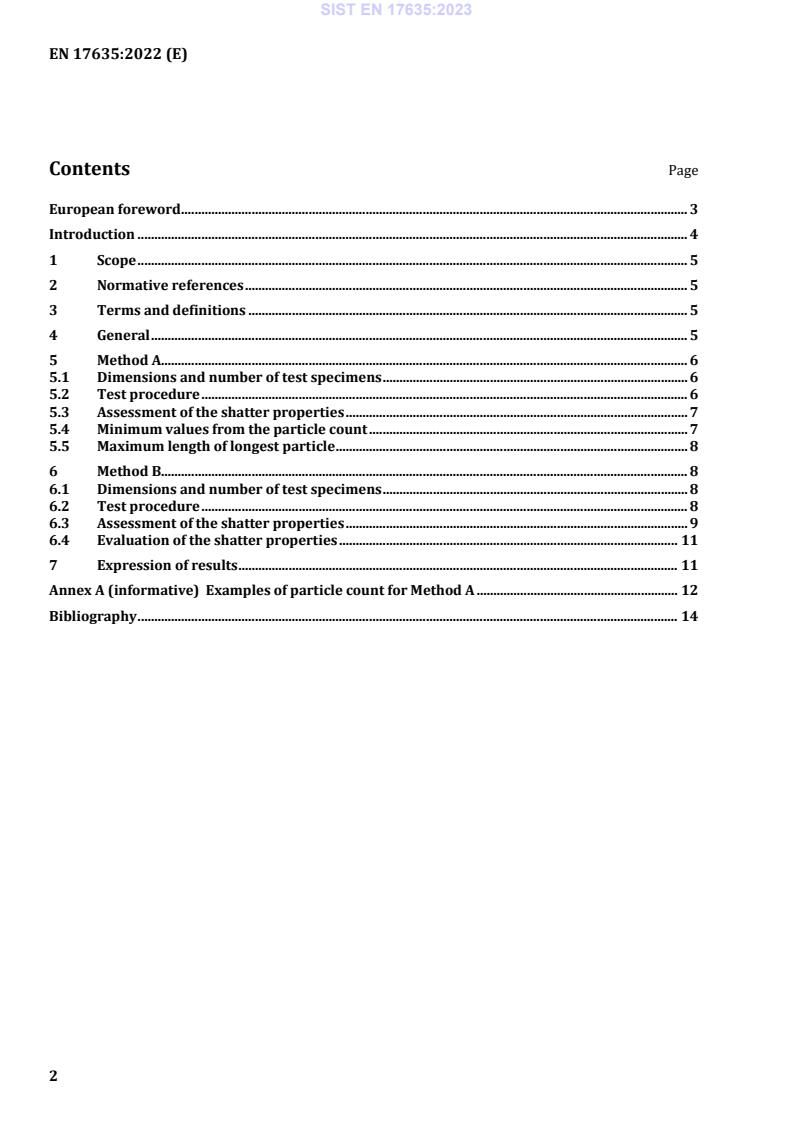

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General . 5
5 Method A. 6
5.1 Dimensions and number of test specimens . 6
5.2 Test procedure . 6
5.3 Assessment of the shatter properties . 7
5.4 Minimum values from the particle count . 7
5.5 Maximum length of longest particle . 8
6 Method B. 8
6.1 Dimensions and number of test specimens . 8
6.2 Test procedure . 8
6.3 Assessment of the shatter properties . 9
6.4 Evaluation of the shatter properties . 11
7 Expression of results . 11
Annex A (informative) Examples of particle count for Method A . 12
Bibliography . 14

European foreword
This document (EN 17635:2022) has been prepared by Technical Committee CEN/TC 129 “Glass in
building”, the secretariat of which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2023, and conflicting national standards shall be
withdrawn at the latest by May 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
Under the former Construction Products Directive, the concept of “conformity with the standard” has
make the assessment of fragmentation properties mandatory for thermally treated glass, as failing to
satisfy the fragmentation test (pass/fail criterion) forbid the manufacturer to claim compliance with the
relevant standard.
With the Construction Products Regulation, the concept of “conformity with the standard” doesn't exist
anymore. Therefore, in order to fulfil the needs of national regulations which presuppose that this
assessment is made, fragmentation properties have to be declared explicitly in the declaration of
performances (DoP).
The description of the fragmentation test was in the part 1 of six product standards, five of them using
the Method A and one using the method B (see bibliography, references [3] to [8]). But no reference was
made to this test in the harmonized part (part 2) of the same product standard. Moreover, glass
presenting specific shatter properties can be used as substrate or as component of further transformed
glass products, for which the possibility to declare the shatter property was not explicitly mentioned in
the respective hEN.
The aim by transferring the description of the fragmentation tests in a separate standard on shatter
properties is to allow for a declaration of this characteristic in the DoP. All hENs on glass products, when
revised, will make a reference to the shatter properties standard in their Clause 4, “Characteristics”.
Shatter properties will be a characteristic that will be possible to declare, like any other characteristic
already included in Clause 4.
The wording “shatter properties” is the one used in Mandate M/135. In order to be compliant with that
Mandate, the word “fragmentation” is replaced by “shatter properties” although nothing has been
modified in the description of the test methods.
1 Scope
This document gives test methods to assess the shatter properties of different types of monolithic flat
glass for use in building and construction works, for which a specific fragmentation pattern is required
when tested under defined conditions.
NOTE Thermally treated monolithic glass is a product for which such a requirement exists.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
shatter properties
property of a glass pane to fragment in accordance with a specified pattern when tested under defined
conditions
3.2
fragment
any portion of a glass pane obtained after its fracture and having the same thickness as the original pane
Note 1 to entry: Gl
...
