EN 10290:2002
(Main)Steel tubes and fittings for onshore and offshore pipelines - External liquid applied polyurethane and polyurethane-modified coatings
Steel tubes and fittings for onshore and offshore pipelines - External liquid applied polyurethane and polyurethane-modified coatings
The standard defines the requirements of liquid applied external coating, polyurethane (PUR) and polyurethane-modified (PUR-MOD), for the corrosion protection of tubes and pipeline fittings.
The coating in this standard can be applied to longitudinally or spirally welded and to seamless steel tubes and fittings used for the construction of pipelines for conveying liquids or gases.
In accordance with the elongation properties, if the component has to be cold bent the coating shall be applied after bending unless otherwise approved by the purchaser.
The coating shall consist normally of one layer of liquid product, applied by brush or by an airless spray technique.
Other application methods can be recommended by the product manufacturer, in accordance with the kind of product (spatula, injection, spreading, etc.).
This coating can be used for the protection of buried or submerged steel tubes for service at the following temperatures and with two thickness classes A (1000 *m) and B (1500 *m) based on the following combination.
Lower thickness can be agreed between the coating manufacturer and the purchaser.
- type 1 : - 20 °C to 40 °C, thickness class A or B
- type 2 : - 20 °C to 60 °C, thickness class B
- type 3 : - 20 °C to 80 °C, thickness class B
Other temperatures can be agreed; in this case, tests shall be carried out at the required temperature.
In this standard the word components is used for tubes and fittings.
Frequencies of tests on fittings shall be agreed by the parties at the ordering stage.
Components coated with these types of coatings may be further protected by means of cathodic protection.
Stahlrohre und -formstücke für On- und Offshore-verlegte Rohrleitungen - Umhüllung (Außenbeschichtung) mit Polyurethan und Polyurethan-modifizierten Materialien
Diese Europäische Norm legt die Anforderungen an die Umhüllung mit flüssig aufgebrachtem Polyurethan (PUR) und Polyurethan-modifiziertem Material (PUR-MOD) für den Korrosionsschutz von Rohren und Formteilen fest.
Nach dieser Norm kann die Umhüllung auf längs- und spiralgeschweißten sowie auf nahtlose Stahlrohre und Formteile zum Bau von Rohrleitungen für die Beförderung von Flüssigkeiten und Gasen aufgebracht werden.
Bei der Kaltbiegung von Stahlteilen muss die Beschichtung in Abhängigkeit ihren Dehneigenschaften nach dem Biegevorgang aufgebracht werden, wenn vom Besteller nicht anders vorgegeben.
Die Umhüllung muss normal aus einem einschichtigen Auftragen eines Flüssigprodukts bestehen; das Auftragen erfolgt mittels Streichen oder im Airless-Spritzverfahren.
Andere Auftragsarten (wie Spachteln, Vergießen, Streichen, usw.) können vom Hersteller je nach Art des Produktes empfohlen werden.
Der Einsatz dieser Umhüllung kann zum Schutz von erd- oder wasserverlegten Rohren bei folgenden Betriebstemperaturen, aufgegliedert nach zwei Klassen, Klasse A (1000 µm) und Klasse B (1500 µm), wie folgt erfolgen. Geringere Schichtdicken können zwischen Besteller und Hersteller vereinbart werden.
Typ 1: -20 °C bis 40 °C Schichtdicke Klasse A oder
Typ 2: -20 °C bis 60 °C Schichtdicke Klasse B
Typ 3: -20 °C bis 80 °C Schichtdicke Klasse B
Andere Temperatureinsatzbereiche können vereinbart werden; in diesem Fall müssen für die gewünschten Temperaturen Prüfungen durchgeführt werden.
In dieser Norm gilt der Begriff �Teile" für Rohre und Formteile.
Bei Auftragserteilung muss für die Formteile die Häufigkeit der durchzuführenden Prüfungen von den Vertrags-schließenden bei der Auftragsvergabe festgelegt werden.
Mit einer solchen Umhüllung versehene Teile können zusätzlich kathodisch geschützt werden.
Tubes et raccords en acier pour canalisations enterrées et immergées - Revêtements externes en polyuréthanne ou polyuréthanne modifié liquides
La présente norme définit l'application de revêtements externes à base de polyuréthanne (PUR) et de polyuréthanne modifié (PUR-MOD) liquides, pour la protection anti-corrosion des tubes et raccords de canalisations. Dans la présente norme, le revêtement peut être appliqué à des tubes en acier soudés en long ou en hélice ou sans soudure et raccords utilisés pour la construction de canalisations de transport de fluides liquides ou gazeux.
Jeklene cevi in fitingi za cevovode v zemlji in pod vodo - Zunanja prevleka, izdelana iz tekočega poliuretanskega in modificiranega poliuretanskega premaza
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stahlrohre und -formstücke für On- und Offshore-verlegte Rohrleitungen - Umhüllung (Außenbeschichtung) mit Polyurethan und Polyurethan-modifizierten MaterialienTubes et raccords en acier pour canalisations enterrées et immergées - Revetements externes en polyuréthanne ou polyuréthanne modifié liquidesSteel tubes and fittings for onshore and offshore pipelines - External liquid applied polyurethane and polyurethane-modified coatings77.140.75Jeklene cevi in cevni profili za posebne nameneSteel pipes and tubes for specific use25.220.60Organske prevlekeOrganic coatingsICS:Ta slovenski standard je istoveten z:EN 10290:2002SIST EN 10290:2003en01-april-2003SIST EN 10290:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 10290August 2002ICS 23.040.99; 25.220.60English versionSteel tubes and fittings for onshore and offshore pipelines -External liquid applied polyurethane and polyurethane-modifiedcoatingsTubes et raccords en acier pour canalisations enterrées etimmergées - Revêtements externes en polyuréthanne oupolyuréthanne modifié liquidesStahlrohre und -formstücke für On- und Offshore-verlegteRohrleitungen - Umhüllung (Außenbeschichtung) mitPolyurethan und polyurethan-modifizierten MaterialienThis European Standard was approved by CEN on 11 April 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 10290:2002 ESIST EN 10290:2003

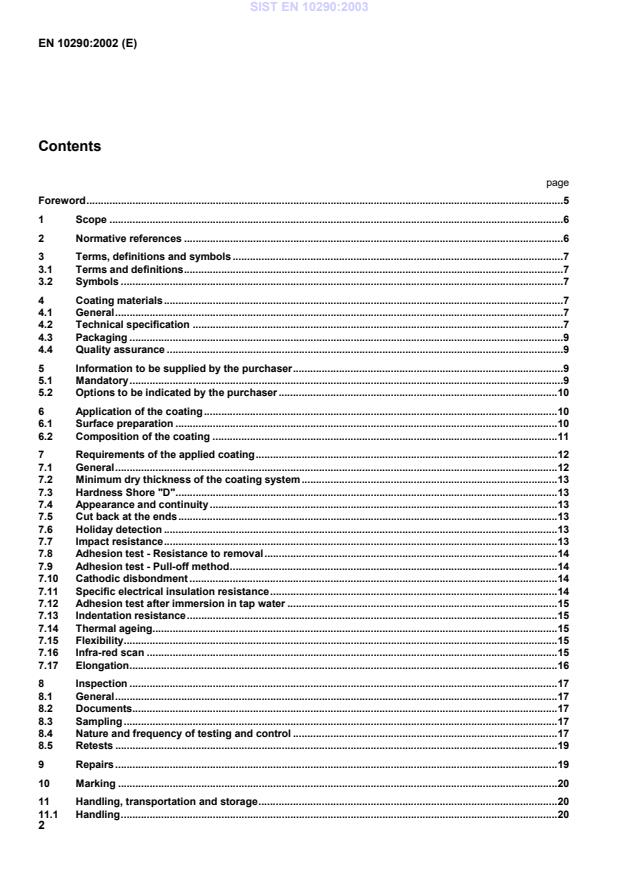

Dry thickness of the coating system.21A.1General.21A.2Apparatus.21A.3Procedure.21A.4Results.21Annex B (normative)
Holiday detection test.22B.1General.22B.2Apparatus.22B.3Procedure.22B.4Results.22Annex C (normative)
Impact test.23C.1General.23C.2Apparatus.23C.3Procedure.23C.4Results.24Annex D (normative)
Adhesion test - Resistance to removal.25D.1General.25D.2Apparatus.25D.3Procedure.25D.4Results.26Annex E (normative)
Cathodic disbondment test.27E.1Principle.27E.2Apparatus.27E.3Sampling.28E.4Procedure.29E.5Investigation procedure.29E.6Results.29Annex F (normative)
Specific electrical insulation resistance test.33F.1Test at ambient temperature ((23 ± 2) °C).33F.2Test at maximum service temperature.34Annex G (normative)
Adhesion test after immersion tap water.37G.1General.37G.2Apparatus.37G.3Procedure.37G.4Results.37Annex H (normative)
Indentation test.38H.1General.38H.2Apparatus.38H.3Procedure.38H.4Results.38Annex J (normative)
Thermal ageing.39J.1General.39J.2Apparatus.39J.3Sampling.39J.4Procedure.39J.5Results.39Annex K (normative)
Flexibility.40K.1General.40K.2Apparatus.40K.3Procedure.40SIST EN 10290:2003
Types of inspection documents.43Bibliography.44SIST EN 10290:2003
Required for the polyol and isocyanate. b
Required for the polyol, isocyanate and for the mixed product.SIST EN 10290:2003
Rs
RsTable 3 - Specific electrical insulation resistanceRs value (in Wm²)after 100 days at (23 ± 2) °CRs value (in Wm²)after 30 days at maximum servicetemperature ± 2 °CClass AClass BClass AClass B1061071041047.12 Adhesion test after immersion in tap waterThis test shall be carried out in accordance with the method defined in annex G.Results shall be given for information.7.13 Indentation resistanceIndentation resistance shall be determined by testing in accordance with the method defined in annex H.The test shall be carried out on a coating thickness in the range of 1 000 µm to 1 200 µm for class A and in therange of 1 500 µm to 2 000 µm for class B.The test shall be carried out at (23 ± 2) °C and at the maximum tube service temperature ± 2 °C.The indentation shall not be more than 0,2 mm at (23 ± 2) °C and 30 % of the initial measured coating thickness atthe maximum service temperature ± 2 °C.7.14 Thermal ageingThermal ageing shall be determined by testing in accordance with the method defined in annex J after exposure tothe following conditions:¾ Type 1:100 days at (60 ± 2) °C ;¾ Type 2:100 days at (80 ± 2) °C ;¾ Type 3:100 days at (100 ± 2) °C.Results shall be given for information.7.15 FlexibilityThe test shall be carried out in accordance with the method defined in annex K.The test shall be carried out at (23 ± 2) °C and at (0 ± 2) °C.7.16 Infra-red scanAn infra-red scan obtained with a KBr standard disk or other method approved by the purchaser, shall be carriedout on polyol, isocyanate and cured product.SIST EN 10290:2003
+ 40 °CType 2 and 3 : - 30 °C to
+ 60 °CServicetemperatureType 1 :- 20 °C to 40 °Cfor thickness class A or BType 2 :- 20 °C to 60 °Cfor thickness class BType 3 :- 20 °C to 80 °Cfor thickness class BPropertiesRequirementsSubclauseDry thickness of thecoating systemClass A : 1 000 mm minimumClass B : 1 500 mm minimum7.2Hardness Shore "D"Specified by the manufacturer7.3Appearance andcontinuityUniform colour, smooth appearance and free fromdefects7.4Cut back(150 ± 20) mm7.5Holiday detectionFree from holiday7.6(23 ± 2) °C(- 5 ± 3) °C7.7Impact resistance5 J ´ k ´ mm(mm of coating thickness)3 J ´ k ´ mm(mm of coating thickness)Adhesion test Resistanceto(23 ± 2) °Cmaximum servicetemperature ± 2 °C7.8removal£ rating 3£ rating 4Adhesion test(23 ± 2) °Cmaximum servicetemperature ± 2 °C7.9Pull-off method7 MpaResults for informationCathodicAverageMaximum7.10disbondment£ 8 mm£ 10 mmSpecific electricalinsulation resistanceMinimum Rs after set number of days at constanttemperature7.11Adhesion test afterimmersion in tap waterResults for information7.12Indentation resistance(23 ± 2) °Cmaximum servicetemperature ± 2 °C7.13£ 0,2 mm£ 30 % of initialmeasured thicknessThermal AgeingResults for information7.14Flexibility7.15Infra-red scanAcceptable comparison with reference scan7.16Elongation³ 10 %7.17 a
Different handling temperature can be agreed.SIST EN 10290:2003
All tests detailed shall be undertaken at least every 3 years for the same system, material and significant technicalprocess. The system and applicator approval may be combined with a coating production run. b
Option 12
Other scheme of procedure qualification may be requested by the purchaser. c
If the process is discontinu
...
