ASTM D6555-23

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D6555 − 17 D6555 − 23
Standard Guide for
Evaluating System Effects in Repetitive-Member Wood
Assemblies
This standard is issued under the fixed designation D6555; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
The apparent stiffness and strength of repetitive-member wood assemblies is generally greater than
the stiffness and strength of the members in the assembly acting alone. The enhanced performance is
a result of load sharing, partial composite action, and residual capacity obtained through the joining
of members with sheathing or cladding, or by connections directly. The contributions of these effects
are quantified by comparing the response of a particular assembly under an applied load to the
response of the members of the assembly under the same load. This guide defines the individual effects
responsible for enhanced repetitive-member performance and provides general information on the
variables that should be considered in the evaluation of the magnitude of such performance.
The influence of load sharing, composite action, and residual capacity on assembly performance
varies with assembly configuration and individual member properties, as well as other variables. The
relationship between such variables and the effects of load sharing and composite action is discussed
in engineering literature. Consensus committees have recognized design stress increases for
assemblies based on the contribution of these effects individually or on their combined effect.
The development of a standardized approach to recognize “system effects” in the design of
repetitive-member assemblies requires standardized analyses of the effects of assembly construction
and performance. Users are cautioned to understand that the performance improvements that might be
observed in system testing are often related to load paths or boundary conditions in the assembly that
differ from those of individual members. This is especially true for relatively complex assemblies. For
such assemblies, users are encouraged to design the test protocols such that internal load paths, as well
as summations of “loads in” versus “loads out” are measured (see X3.11.7.1). Data from testing,
preferably coupled with analytical predictions, provide the most effective means by which system
factors can be developed. When system factors are intended to apply to strength (rather than being
limited to stiffness), loads must be applied to produce failures so that the effects of nonlinearities or
changes in failure modes can be quantified.
1. Scope
1.1 This guide identifies variables to consider when evaluating repetitive-member assembly performance for parallel framing
systems.
1.2 This guide defines terms commonly used to describe interaction mechanisms.
This guide is under the jurisdiction of ASTM Committee D07 on Wood and is the direct responsibility of Subcommittee D07.05 on Wood Assemblies.
Current edition approved Nov. 1, 2017Oct. 1, 2023. Published November 2017October 2023. Originally approved in 2000. Last previous edition approved in 20142017
as D6555 – 03D6555 – 17.(2014). DOI: 10.1520/D6555-17.10.1520/D6555-23.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D6555 − 23
1.3 This guide discusses general approaches to quantifying an assembly adjustment including limitations of methods and materials
when evaluating repetitive-member assembly performance.
1.4 This guide does not detail the techniques for modeling or testing repetitive-member assembly performance.
1.5 The analysis and discussion presented in this guideline are based on the assumption that a means exists for distributing applied
loads among adjacent, parallel supporting members of the system.
1.6 Evaluation of creep effects is beyond the scope of this guide.
1.7 This guide does not purport to suggest or establish appropriate safety levels for assemblies, but cautions users that designers
often interpret that safety levels for assemblies and full structures should be higher than safety levels for individual structural
members.
D6555 − 23
NOTE 1—Methods other than traditional safety factor approaches, such as reliability methods, are increasingly used to estimate the probability of failure
of structural elements. However, the extension of these methods to assemblies or to complete structures is still evolving. For example, complete structures
will likely exhibit less variability than individual structural elements. Additionally, there is a potential for beneficial changes in failure modes (i.e., (that
is, more ductile failure modes in systems). These considerations are beyond the scope of this guide.
1.8 The values stated in inch-pound units are to be regarded as the standard. The SI equivalents are approximate in many
cases.values given in parentheses are mathematical conversions to SI units that are provided for information only and are not
considered standard.
1.9 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and healthsafety, health, and environmental practices and determine
the applicability of regulatory limitations prior to use.
1.10 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D245 Practice for Establishing Structural Grades and Related Allowable Properties for Visually Graded Lumber
D1990 Practice for Establishing Allowable Properties for Visually-Graded Dimension Lumber from In-Grade Tests of Full-Size
Specimens
D2915 Practice for Sampling and Data-Analysis for Structural Wood and Wood-Based Products
D5055 Specification for Establishing and Monitoring Structural Capacities of Prefabricated Wood I-Joists
2.2 Other Documents:
ANSI/ASAE EP559.1-2010EP559.1 Design Requirements and Bending Properties for Mechanically-Laminated Wood Assem-
blies
ASCE/SEI 7-107 Minimum Design Loads and Associated Criteria for Buildings and Other Structures
ANSI/AWC SPDWS-2015SPDWS Special Design Provisions for WindsWind and Seismic
ANSI/AWC NDS-2015NDS National Design Specification (NDS) for Wood Construction
ANSI/TPI 1-20141 National Design Standard for Metal Plate Connected Wood Truss Construction
3. Terminology
3.1 Definitions:
3.1.1 composite action, n—interaction of two or more connected wood members that increases the effective section properties over
that determined for the individual members.
3.1.2 element, n—a discrete physical piece of a member such as a truss chord.
3.1.3 global correlation, n—correlation of member properties based on analysis of property data representative of the species or
species group for a large defined area or region rather than mill-by-mill or lot-by-lot data. The area represented may be defined
by political, ecological, or other boundaries.
3.1.3.1 Discussion—
The area represented may be defined by political, ecological, or other boundaries.
3.1.4 load sharing, n—distribution of load among adjacent, parallel members in proportion to relative member stiffness.
3.1.5 member, n—a structural wood element or elements such as studs, joists, rafters, trusses, that carry load directly to assembly
supports. A member may consist of one element or multiple elements.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from American Society of Agricultural and Biological Engineers (ASABE), 2950 Niles Road, St. Joseph, MI 49085, http://www.asabe.org.
Available from American Society of Civil Engineers (ASCE), 1801 Alexander Bell Dr., Reston, VA 20191, http://www.asce.org.
Available from American Wood Council, 22250 Catoctin Circle SE,NE, Suite 201, Leesburg, VA 20175.20176.
Available from Truss Plate Institute, 218 N. Lee Street, Ste. 312, Alexandria, VA 22314.
D6555 − 23
3.1.5.1 Discussion—
A member may consist of one element or multiple elements.
3.1.6 parallel framing system, n—a system of parallel framing members.
3.1.7 repetitive-member wood assembly, n—a system in which three or more members are joined using a transverse
load-distributing element.
3.1.7.1 Discussion—
Exception: Two-ply assemblies can be considered repetitive-member assemblies when the members are in direct side-by-side
contact and are joined together by mechanical connections or adhesives, or both, to distribute load.
3.1.8 residual capacity, n—ratio of the maximum assembly capacity to the assembly capacity at first failure of an individual
member or connection.
3.1.9 sheathing gaps, n—interruptions in the continuity of a load-distributing element such as joints in sheathing or decking.
3.1.10 transverse load-distributing elements, n—structural components such as sheathing, siding and decking that support and
distribute load to members. Other components such as cross bridging, solid blocking, distributed ceiling strapping, strongbacks,
and connection systems may also distribute load among members.
3.1.10.1 Discussion—
Other components such as cross bridging, solid blocking, distributed ceiling strapping, strongbacks, and connection systems may
also distribute load among members.
4. Significance and Use
4.1 This guide covers variables to be considered in the evaluation of the performance of repetitive-member wood assemblies.
System performance is attributable to one or more of the following effects:
4.1.1 Load sharing,
4.1.2 Composite action, or
4.1.3 Residual capacity.
4.2 This guide is intended for use where design stress adjustments for repetitive-member assemblies are being developed.
4.3 This guide serves as a basis to evaluate design stress adjustments developed using a combination of analysis and testing.
NOTE 2—Enhanced assembly performance due to intentional overdesign or the contribution of elements not considered in the design are beyond the scope
of this guide.
5. Load Sharing
5.1 Explanation of Load Sharing:
5.1.1 Load sharing reduces apparent stiffness variability of members within a given assembly. In general, member stiffness
variability results in a distribution of load that increases load on stiffer members and reduces load on more flexible members.
5.1.2 A positive strength-stiffness correlation for members results in load sharing increases, which give the appearance of higher
strength for minimum strength members in an assembly under uniform loads.
NOTE 3—Positive correlations between modulus of elasticity and strength are generally observed in samples of “mill run” dimension lumber; however,
no process is currently in place to ensure or improve the correlation of these relationships on a grade-by-grade or lot-by-lot basis. Where design values
for a member grade are based on global values, global correlations may be used with that grade when variability in the stiffness of production lots is taken
into account. Users are cautioned to not extrapolate bending strength and stiffness correlations to other properties. As discussed in the appendices, early
implementation of repetitive-member factors focused on sawn lumber flexural members. The beneficial load sharing in these systems was often
characterized as being related to the positive correlation between flexural strength and stiffness in these elements. For other systems where stresses are
D6555 − 23
primarily axial (compression or tension), the appropriate property correlation (if used in the analysis) should relate axial strength and stiffness rather than
flexural correlations.
5.1.3 Load sharing tends to increase as member stiffness variability increases and as transverse load-distributing element stiffness
increases. Assembly capacity at first member failure is increased as member strength-stiffness correlation increases.
NOTE 4—From a practical standpoint, the system performance due to load sharing is bounded by the minimum performance when the minimum member
in the assembly acts alone and by the maximum performance when all members in the assembly achieve average performance.
5.2 Variables affecting Load Sharing Effects on Stiffness include:Variables Affecting Load Sharing Effects on Stiffness Include:
5.2.1 Loading conditions;
5.2.2 Member span, end conditions, and support conditions;
5.2.3 Member spacing;
5.2.4 Variability of member stiffness;
5.2.5 Ratio of average transverse load-distributing element stiffness to average member stiffness;
5.2.6 Sheathing gaps;
5.2.7 Number of members;
5.2.8 Load-distributing element end conditions;
5.2.9 Lateral bracing; and
5.2.10 Attachment between members.
5.3 Variables affecting Load Sharing Effects on Strength include:Variables Affecting Load Sharing Effects on Strength Include:
5.3.1 Load sharing for stiffness (5.2), and
5.3.2 Level of member strength-stiffness correlation.
6. Composite Action
6.1 Explanation of Composite Action:
6.1.1 For bending members, composite action results in increased flexural rigidity by increasing the effective moment of inertia
of the combined cross-section. The increased flexural rigidity results in a redistribution of stresses which usually results in
increased strength.
6.1.2 Partial composite action is the result of a non-rigid connection between elements which allows interlayer slip under load.
6.1.3 Composite action decreases as the rigidity of the connection between the transverse load-distributing element and the
member decreases.
6.2 Variables affecting Composite Action Effects on Stiffness include:Variables Affecting Composite Action Effects on Stiffness
Include:
6.2.1 Loading conditions,
6.2.2 Load magnitude,
D6555 − 23
6.2.3 Member span,
6.2.4 Member spacing,
6.2.5 Connection type and stiffness,
6.2.6 Sheathing gap stiffness and location in transverse load-distributing elements, and
6.2.7 Stiffness of members and transverse load-distributing elements (see 3.1.5).
6.3 Variables affecting Composite Action Effects on Strength include:Variables Affecting Composite Action Effects on Strength
Include:
6.3.1 Composite action for stiffness (6.2), and
6.3.2 Location of sheathing gaps along members.
7. Residual Capacity of the Assembly
7.1 Explanation of Residual Capacity:
7.1.1 Residual capacity is a function of load sharing and composite action which occur after first member failure. As a result,
actual capacity of an assembly can be higher than capacity at first member failure.
NOTE 5—Residual capacity theoretically reduces the probability that a “weak-link” failure will propagate into progressive collapse of the assembly.
However, an initial failure under a gravity or similar type loading may precipitate dynamic effects resulting in instantaneous collapse.
7.1.2 Residual capacity does not reduce the probability of failure of a single member. In fact, the increased number of members
in an assembly reduces the expected load at which first member failure (FMF) will occur (see Note 6). For some specific
assemblies, residual capacity from load sharing after FMF may reduce the probability of progressive collapse or catastrophic
failure of the assembly.
NOTE 6—Conventional engineering design criteria do not include factors for residual capacity after FMF in the design of single structural members. The
increased probability of FMF with increased number of members can be derived using probability theory and is not unique to wood. The contribution
of residual capacity should not be included in the development of system factors unless it can be combined with load sharing beyond FMF and assembly
performance criteria which take into account general structural integrity requirements such as avoidance of progressive collapse (that is, increased safety
factor, load factor, or reliability index). Development of acceptable assembly criteria should consider the desired reliability of the assembly.
7.2 Variables affecting Residual Capacity Effects on Strength include:Variables Affecting Residual Capacity Effects on Strength
Include:
7.2.1 Loading conditions,
7.2.2 Load sharing,
7.2.3 Composite action,
7.2.4 Number and type of members,
7.2.5 Member ductility (brittle versus ductile),
7.2.6 Connection system,
7.2.7 Contribution from structural or nonstructural elements not considered in design, and
7.2.8 Contribution from structural redundancy.
D6555 − 23

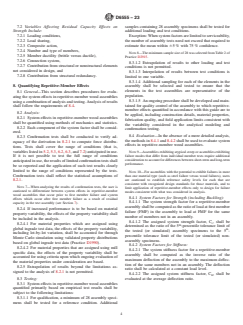

8. Quantifying Repetitive-Member Effects
8.1 General—This section describes procedures for evaluating the system effects in repetitive-member wood assemblies using a
combination of analysis and testing. Analysis of results shall follow the requirements of 8.4.
8.2 Analysis:
8.2.1 System effects in repetitive-member wood assemblies shall be quantified using methods of mechanics and statistics.
8.2.2 Each component of the system factor shall be considered.
8.2.3 Confirmation tests shall be conducted to verify adequacy of the derivation in 8.2.1 to compute force distributions. Tests shall
cover the range of conditions (that is, variables listed in 5.2, 5.3, 6.2, 6.3, and 7.2) anticipated in use. If it is not possible to test
the full range of conditions anticipated in use, the results of limited confirmation tests shall be so reported and the application of
such test results clearly limited to the range of conditions represented by the tests. Confirmation tests shall reflect the statistical
assumptions of 8.2.1.
NOTE 7—When analyzing the results of confirmation tests, the user is cautioned to differentiate between system effects in repetitive-member wood
assemblies that occur prior to first member failure and system effects which occur after first member failure as a result of residual capacity in the test
assembly (see Section 7).
8.2.4 If increased performance is to be based on material property variability, the effects of the property variability shall be
included in the analysis.
8.2.4.1 For material properties which are assigned using global ingrade test data, the effects of the property variability, including
lot-by-lot variation, shall be accounted for through Monte Carlo simulation using validated property distributions based on global
ingrade test data (Practice D1990).
8.2.4.2 For material properties that are assigned using mill specific data, the effects of the property variability shall be accounted
for using criteria upon which ongoing evaluation of the material properties under consideration are based.
8.2.5 Extrapolation of results beyond the limitations assigned to the analysis of 8.2.1 is not permitted.
8.3 Testing:
8.3.1 System effects in repetitive-member wood assemblies quantified primarily based on empirical test results shall be subject to
the following limitations:
8.3.1.1 For qualification, a minimum of 28 assembly specimens shall be tested for a reference condition. Additional samples
containing 28 assembly specimens shall be tested for additional loading and test conditions.
Exception: When system factors are limited to serviceability, the number of assembly tests need not exceed that required to
estimate the mean within 65% with 75%65 % with 75 % confidence.
NOTE 8—The minimum sample size of 28 was selected from Table 2 of Practice D2915.
8.3.1.2 Extrapolation of results to other loading and test conditions is not permitted.
8.3.1.3 Interpolation of results between test conditions is limited to one variable.
8.3.1.4 Additional sampling for each of the elements in the assembly shall be selected and tested to ensure that the elements in
the test assemblies are representative of the population.
8.3.1.5 An ongoing procedure shall be developed and maintained for quality control of the assembly to which repetitive-member
effects quantified in accordance with this guide are to be applied, including construction details, material properties, fabrication
quality, and field application limits consistent with the variability considered in the analytical modeling and confirmation testing.
D6555 − 23
8.4 Evaluation—In the absence of a more detailed analysis, the methods in 8.4.1 and 8.4.2 shall be used to evaluate system effects
in repetitive-member wood assemblies.
NOTE 9—Assemblies exhibiting atypical creep or assemblies exhibiting failure modes that differ from individual member tests require additional
consideration to account for differences between short-term and long-term performance.
NOTE 10—For assemblies with the potential to exhibit failures in more than one material type (such as steel failure versus wood failures), users are
cautioned to establish reference safety levels for each that are consistent with recognized design standards for those materials, and to limit application
of repetitive-member effects only to design for failure modes consistent with what was considered in analysis.
TABLE 1 Default System Strength Factors, C ,
r
for Repetitive-Member Assemblies
C Repetitive-Member Assembly
r
1.15 to 1.50 Bending stress of wall studs in assemblies as
specified in ANSI/AWC SPDWS-2015.
1.15 to 1.50 Bending stress of wall studs in assemblies as
specified in ANSI/AWC SPDWS.
1.30 to 1.40 Bending stress of mechanically-laminated 4-ply,
visually- and mechanically-graded wood assemblies
complying with ANSI/ASAE EP559.1.
1.25 to 1.35 Bending stress of mechanically-laminated 3-ply,
visually- and mechanically-graded wood assemblies
complying with ANSI/ASAE EP559.1.
1.15 Bending stress of solid sawn wood member (3 or
more members spaced not more than 24 in. (610
mm) o.c.) as specified in ANSI/AWC NDS-2015.
1.15 Bending stress of solid sawn wood member (3 or
more members spaced not more than 24 in.
(610 mm) o.c.) as specified in ANSI/AWC NDS.
1.10 Bending stress of 2-ply solid sawn beams or
headers (2 members in direct contact) as specified
in ANSI/AWC NDS-2015.
1.10 Bending stress of 2-ply solid sawn beams or
headers (2 members in direct contact) as specified
in ANSI/AWC NDS.
1.10 Axial stress and E of solid sawn truss chords (3
min
or more trusses spaced not more than 24 in. (610
mm) o.c.) as specified in ANSI/TPI 1-2014.
1.10 Axial stress and E of solid sawn truss chords (3
min
or more trusses spaced not more than 24 in.
(610 mm) o.c.) as specified in ANSI/TPI 1.
1.04 Bending stress of structural composite lumber as
specified in ANSI/AWC NDS-2015.
1.04 Bending stress of structural composite lumber as
specified in ANSI/AWC NDS.
8.4.1 System Factors for Strength (including Buckling):
8.4.1.1 The system strength factor for a repetitive-member assembly shall be computed as the ratio of load at first member failure
(FMF) in the assembly to load at FMF for the same number of members not in an assembly.
th
8.4.1.2 The assigned system strength factor, C , shall be determined as the ratio of the 5 -percentile tolerance limit of the tested
r
th
(or simulated) assembly specimens to the 5 -percentile tolerance limit of the tested (or simulated) non-assembly specimens.
8.4.2 System Factors for Stiffness:
D6555 − 23
8.4.2.1 The system stiffness factor for a repetitive-member assembly shall be computed as the inverse ratio of the maximum
deflection of the assembly to the maximum deflection of the same members not in an assembly. The deflection ratio shall be
calculated at a constant load level.
8.4.2.2 The assigned system stiffness factor, C , shall be evaluated at the average deflection ratio.
E
D6555 − 23
8.5 Default System Factors:
8.5.1 In lieu of the more rigorous methods required by 8.2 – 8.4, system strength factors defined in Table 1 shall be permitted to
be used for repetitive-member assemblies. These factors are applied by multiplying the single member allowable design stress by
the applicable factor.
9. Keywords
9.1 repetitive members; system effects; system performance; wood assemblies
APPENDIXES
(Nonmandatory Information)
X1. BACKGROUND OF ASTM REPETITIVE-MEMBER FACTORS
X1.1 A repetitive-member bending stress increase factor has been provided in Practice D245 for many years. Development and
use of new prefabricated structural components and emphasis on reliability-based design formats have focused attention on the
basis for this repetitive-member adjustment.
X1.2 The 1.15 repetitive-member bending stress increase factor, referenced in Practice D245, has its root in a short-lived tentative
ASTM standard (ASTM D2018-62T). The procedures in D2018 were intended to provide increases in allowable design stresses
for any established grade or specific group of framing lumber used as joists, truss chords, rafters, studs, planks, decking, or similar
members which are in contact or spaced not more than 24 in. (610 mm) on centers, are not less than three in number and are joined
by floor, roof, or other load distributing elements adequate to support the design load.
X2. CONCEPTUAL DISCUSSION OF “SAFETY FACTORS”
X2.1 Acceptable “Safety Factors” for Strength
X2.1.1 The choice of an acceptable “safety factor” for an assembly is complicated. For simplicity, in the context of this discussion,
the term “safety factor” is used in a generic sense – as an expression of the ratio of peak load capacity divided by design capacity
(neglecting statistical, load duration, or other adjustment factor issues). Since the initial development of this guide in the years prior
to 2003, several concepts have evolved that shed additional light on this topic. Most notably, ASCE/SEI 7-107 has added
Commentary (to Chapter 1) that specifies minimum target reliability levels over the design life of the building that are provided
as a function of the following:
X2.1.1.1 The occupancy category of the structure,
X2.1.1.2 The consequences of failure of the member (i.e., (that
...
