Standard Guide for
Multivariate Data Analysis in Pharmaceutical Development
and Manufacturing Applications
This standard is issued under the fixed designation E2891; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This guide covers the applications of multivariate data analysis (MVDA) to support pharmaceutical development and
manufacturing activities. MVDA is one of the key enablers for process understanding and decision making in pharmaceutical
development, and for the release of intermediate and final products. products after being validated appropriately using a science
and risk-based approach.
1.2 The scope of this guide is to provide general guidelines on the application of MVDA in the pharmaceutical industry. While
MVDA refers to typical empirical data analysis, the scope is limited to providing a high level guidance and not intended to provide
application-specific data analysis procedures. This guide provides considerations on the following aspects:
1.2.1 Use of a risk-based approach (understanding the objective requirements and assessing the fit-for-use status),status);
1.2.2 Considerations on the data collection and diagnostics used for MVDA (including data preprocessing and outliers),
outliers);
1.2.3 Considerations on the different types of data analysis and model validation,analysis, model testing, and validation;
1.2.4 Qualified and competent personnel,personnel; and
1.2.5 Life-cycle management of MVDA.MVDA model.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
C1174 Guide for Evaluation of Long-Term Behavior of Materials Used in Engineered Barrier Systems (EBS) for Geological
Disposal of High-Level Radioactive Waste
E178 Practice for Dealing With Outlying Observations
E1355 Guide for Evaluating the Predictive Capability of Deterministic Fire Models
E1655 Practices for Infrared Multivariate Quantitative Analysis
E1790 Practice for Near Infrared Qualitative Analysis
E2363 Terminology Relating to Process Analytical Technology in the Pharmaceutical Industry
E2474 Practice for Pharmaceutical Process Design Utilizing Process Analytical Technology (Withdrawn 2020)
E2476 Guide for Risk Assessment and Risk Control as it Impacts the Design, Development, and Operation of PAT Processes
for Pharmaceutical Manufacture
E2617 Practice for Validation of Empirically Derived Multivariate Calibrations
This guide is under the jurisdiction of ASTM Committee E55 on Manufacture of Pharmaceutical and Biopharmaceutical Products and is the direct responsibility of
Subcommittee E55.01 on Process Understanding and PAT System Management, Implementation and Practice.
Current edition approved Nov. 1, 2013July 1, 2020. Published November 2013July 2020. Originally approved in 2013. Last previous edition approved in 2013 as E2891
– 13. DOI: 10.1520/E2891-13.10.1520/E2891-20.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’sstandard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E2891 − 20
2.2 ICH Standards:Publications:
ICH Q2(R1) Validation of Analytical Procedures: Text and Methodology
ICH-Endorsed Guide for ICH Q8/Q9/Q10 Implementation ICH Quality Implementation Working Group Points to Consider (R2)
ICH Q2(R1) Validation of Analytical Procedures: Text and Methodology
3. Terminology
3.1 Definitions—Common term definitions can be found in Terminology E2363 for pharmaceutical applications and some terms
can be found in other standards and are cited when they are mentioned.
4. Significance and Use
4.1 A significant amount of data is being generated during pharmaceutical development and manufacturing activities. The
interpretation of such data is becoming increasingly difficult. Individual examination of the univariate process variables is relevant
but can be significantly complemented by multivariate data analysis (MVDA). Such methodology has been shown to be
particularly efficient at handling large amounts of data from multiple sources, summarizing complex information into meaningful
low dimensional graphical representations, identifying intricate correlations between multivariate datasets taking into account
variable interactions. The output from MVDA will generate useful information that can be used to MVDA may be particularly
appropriate for exploring and handling large sets of heterogenous data, mapping data of high dimensionality onto lower
dimensional representations, exposing significant correlations among multivariate variables within a single data set or significant
correlations among multivariate variables across data sets. MVDA may extract statistically significant information which may
enhance process understanding, decision making in process development, process monitoring and control (including product
release), product life-cycle management, and continualcontinuous improvement.
4.2 MVDA is a widely used tool in various industries including the pharmaceutical industry. To generateachieve a valid
outcome, an MVDA model/application should containincorporate the following components: following:
4.2.1 A predefined objective based on a risk and scientific hypothesisrisk-based objective incorporating one or more relevant
scientific hypotheses specific to the application,application;
4.2.2 Relevant data,Sufficient relevant data of requisite quality covering the variance space encountered during intended use,
that is, pharmaceutical development, or pharmaceutical manufacturing, or both;
4.2.3 Appropriate data analysis techniques, and model utilization practices including considerations on validation,testing,
validation, and qualification of all new data prior to using a model to analyze it;
4.2.4 Appropriately trained staff, andstaff;
4.2.5 Appropriate standard operating procedures; and
4.2.6 Life-cycle management.
4.3 This guide can be used to support data analysis activities associated with pharmaceutical development and manufacturing,
process performance and product quality monitoring in manufacturing, as well as for troubleshooting and investigation events.
Technical details in data analysis can be found in the scientific literature and standard practices in data analysis are already
available (such as Practices E1655 and E1790 for spectroscopic applications, Practice E2617 for model validation, and Practice
E2474 for utilizing process analytical technology).
5. Risk-Based Approach for MVDA
5.1 A risk-based approach requires consideration of two aspects: the risk associated with the use of MVDA for a specific
objective and the justifications and rationales during the data analysis to ensure the model is fit for use. Aspects of general risk
assessment and control are described in Guide E2476 and more specific model considerations are discussed in ICH-Endorsed
Guide for ICH Q8/Q9/Q10 Implementation.
5.2 The risk level is considered high when the data analysis is an integral part of the control strategy, is used directly for the
product or intermediate product release or is used to directly control the process. The risk is considered low when the output of
the data analysis does not have significant impact on the assessment of the product quality.
5.3 In assessment of fitness for use of data analysis, several aspects should be considered:
5.3.1 Criteria for Acceptable Data Analysis—Criteria for the data analysis are defined by user requirements and project
objectives.
5.3.2 Data Source—Relevant data should be collected and used in MVDA.
5.3.3 Data Integrity—Confirmation of accuracy, consistency, and traceability of the data from the source to the analysis.
5.3.4 Data Analysis Practice (Technique and Procedure)—In data analysis practice, numerous options are available and
different options may generate similar results, all of which may be deemed fit for use. The data analysis process is an iterative
Available from International Conference onCouncil for Harmonisation of Technical Requirements for Registration of Pharmaceuticals for Human Use (ICH), ICH
Secretariat, c/o IFPMA, 15 ch. Louis-Dunant, P.O. Box 195, 1211 Geneva 20, Switzerland, http://www.ich.org.Route de Pré-Bois, 20, P.O Box 1894, 1215 Geneva,
Switzerland, https://www.ich.org.
E2891 − 20
approach; in case of an unsatisfactory result, a different data analysis technique may be used or it may be necessary to obtain
additional data or data of higher quality, or both, until a valid model can be established which is deemed fit for use.
6. Concepts of MVDA Model and MVDA Method
6.1 When implementing MVDA it is important to understand the differentiation between a multivariate model and a multivariate
method. This is especially true as an MVDA application reaches the validation stage.
E2891 − 20
6.2 MVDA Model:
6.2.1 As defined in PracticeGuide C1174, a model is a simplified representation of a system or phenomenon with multiple
variables based on a set of hypotheses (assumptions, data, simplifications, or idealizations, or a combinations thereof) that describe
the system or explain the phenomenon, often expressed mathematically. In the context of this guidance the term MVDA model is
to be taken in a broad sense covering, for example multivariate exploratory, regression as well as latent variable-based
techniques—such dimension reduction techniques — such as, but not limited to, Principal Component Analysis (PCA) and Partial
Least Squares (PLS) Regression.to latent variable-based, principal component analysis (PCA), principal component regression
(PCR) and partial least-squares (PLS) regression. These models often relate observational data to a known property or set of
properties from a process. process, or a summarized measure of the process state that can be used for statistical process control
(SPC) approach, as described in 8.3. The mathematical relationship is established for a sufficient number of cases—preferably
cases — preferably derived from experimental designs. The model can then be applied to a similar set of observational data in order
to predictestimate the targeted property/properties.
6.2.2 MVDA is not limited to such multivariate calibrations and predictions, and similar considerations as the ones described
in this guidance are applicable to direct and indirect calibration, as well as PCA-based approaches used for example for exploratory
data analysis.
6.3 MVDA Method:Analytical and Process Control Methods, Including One or More MVDA Elements:
6.3.1 The MVDA method uses the output from the MVDA model to define the targeted and predefined process characteristic
of interest. The MVDA model is one component of the broader concept that is an MVDA method. Such method should typically
be characterized by the collection of data, the input data to the calculation, the data analysis, and some potential transformation
from the MVDA model output to generate the pre-defined MVDA method characteristic of interest. (See Fig. 1.)
6.3.2 Note that an MVDA method can incorporate multiple MVDA models (for example, across multiple unit operations, from
multiple pieces of equipment, etc.) that can be running in parallel or feeding sequentially into one another to provide the
pre-defined MVDA method output. MVDA methods can also incorporate mechanistic and univariate models. The validation of the
MVDA model and the MVDA method are two different activities. Section 97 of this guideline provides an overview of the MVDA
model validation. The validation of an MVDA method should follow the same overarching principles as for any method validation,
such as the ones described in ICH Q2(R1).
6.3.3 Method development comprises the creation of a model, its testing, and validation
6.3.4 Method validation consists in the validation of not only the model but also all the aspects of data acquisition, analysis and
reporting outlined in Fig. 1. The level of method validation will depend on the intended model impact as defined in ICH-Endorsed
Guide for ICH Q8/Q9/Q10 Implementation. A low impact model will require a fit for purpose model calibration, testing and
validation but a lower consideration for method validation. A medium or high impact model will require a higher consideration
for method validation.
6.4 Two-Phase Nature of MVDA:
6.4.1 Data analysis usually, but not always, has two phases. In predictive analysis, the The first phase is the creation of a model
from acquired data with a corresponding known property, and the second phase is the application of the model to newly acquired
independent data to predictestimate a value of the property. The first-phase analysis is usually called a multivariate calibration for

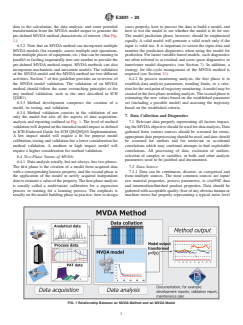

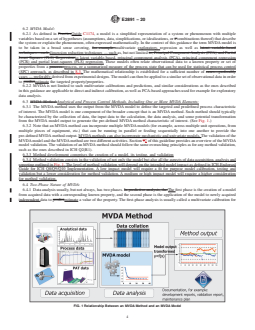

FIG. 1 Relationship Between an MVDA Method and an MVDA Model
E2891 − 20
a regression process or training for a learning process. The emphasis is usually on the model building phase in practice: how to
design cases properly, how to process the data to build a model, and how to test the model to see whether the model is fit for use.
The model prediction phase, however, should be emphasized equally. A valid model does not always generate a valid result; it will
generate a valid result only if the input data is valid too. It is important to screen the input data and monitor the prediction
diagnostics when using the model for prediction. Such For latent variable-based models, such diagnostics are often referred to as
residual and score space diagnostics or inner/outer model diagnostics.diagnostics (see Section 7). In addition, a strategy for
life-cycle management of the MVDA method is required (see Section 11).
6.4.2 In tracking and trending process monitoring analysis, the first phase is to establish data analysis parameters, trending
limits, or a criterion for the end point of trajectory tracking.monitoring. A model may be created in the first-phase trending analysis.
The second phase is predictingestimating the new values based on the established parameter set (including a possible model) and
assessing the trajectory based on the established criteria.
6. Risk-Based Approach for MVDA
6.1 A risk-based approach requires consideration of two aspects: the risk associated with the use of MVDA for a specific
objective and the justifications and rationales during the data analysis to ensure the model is fit for use. Aspects of general risk
assessment and control are described in Practice E2476 and more specific model considerations are discussed in ICH-Endorsed
Guide for ICH Q8/Q9/Q10 Implementation.
6.2 The risk level is considered high when the data analysis is an integral part of the control strategy, is used directly for the
product or intermediate product release, or is used to directly control the process. The risk is considered low when the output of
the data analysis does not have significant impact on the product quality or the assessment of the product quality.
6.3 In assessment of fitness for use of data analysis, three aspects should be considered:
6.3.1 Criteria for Acceptable Data Analysis—Criteria for the data analysis are defined by user requirements and project
objectives.
6.3.2 Data Source—Appropriate and relevant data should be collected and used in MVDA.
6.3.3 Data Analysis Practice (Technique and Procedure)—In data analysis practice, numerous options are available and
different options may generate similar results, all of which may be deemed fit for use. The data analysis process is an iterative
approach; in case of an unsatisfactory result, a different data analysis technique may be used or it may be necessary to obtain
additional data and/or data of higher quality.
7. Data Collection and Diagnostics
7.1 Relevant data properly representing all factors impacting the MVDA objective should be used for data analysis. Data
gathered from various sources should be screened for errors, appropriate data preprocessing should be used, and data should be
screened for outliers. outliers and for irrelevant or accidental correlations which may confound attempts to find exploitable
correlations. All processing of data, exclusion of outliers, selection of samples or variables, or both, and other analysis parameters
need to be justified and documented.
7.2 Data Source:
7.2.1 Data can be continuous, discrete, or categorical and from multiple sources. The most common sources are input/raw
material properties, process parameters, in situ/PAT data and intermediate/finished product properties. Data should be gathered with
acceptable quality (free of any obvious human or machine errors but properly representing a typical noise level likely to be present
in such data), with appropriate significant figures. Outlier detection is strongly recommended (see 7.4).
7.2.2 Depending on the MVDA-defined objective, the data couldcan come from designed experiments (DOE) specifically for
developing the MVDA model, or from routineother development runs and manufacturing processes,routine manufacturing, or both.
Data originating from a DOE on input/process parameters has inherent variation (special cause variability), while data obtained
from routine operations may reflect smaller variation within the acceptable operational ranges, tighter than ranges studied during
process development (common cause variability). The data collected from a routine process may be used for trending, process
monitoring, identification of atypical behavior but rarely for predictive regression-based multivariate analysis. A predictive
empirical model built from the data that has small variation will typically have a very small range limited by the combination of
specification, constrained incoming material variation and routine process parameter variation (operating ranges). Model
diagnostics should be used to ensure the model is predicting a meaningful result. providing reliable outputs. Often, intentionally
induced variations, preferably following a DOE, are created so that the data with a larger variation range and non-confounded
process conditions is used as part of the training set to build the model.
7.2.3 Data can be continuous, discrete, or categorical and from multiple sources. The most common sources are input/raw
material properties, process parameters, in situ/PAT data and intermediate/finished product properties. Data should be gathered with
acceptable quality (free of any obvious human or machine errors but properly representing a typical noise level likely to be present
in such data), with appropriate significant figures. Outlier detection is strongly recommended (seeThe manufacturing scale at which
data collection is performed should be carefully considered. While collecting full-scale manufacturing data at target conditions is
necessary, it is often prohibitive (time and cost) to perform DOEs at full-scale. Small scale DOEs are often preferred. However,
if the MVDA model is to be used as part of the control strategy or the final release of the commercial manufacturing scale, or both,
E2891 − 20
the commercial manufacturing scale should be considered during the MVDA data collection phase. When appropriate and the
MVDA model is to be used at full-scale manufacturing, the relevance and equivalence of the data collected at other scales than
full-scale (scale, operation, raw materials, process dynamics, impact on the signal, batch run time, etc.) should be discussed and
documented to support the overall data collection strategy, such that the impact of ma
...
