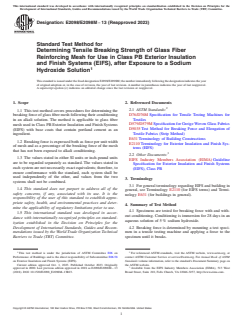

ASTM E2098/E2098M-13(2023)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: E2098/E2098M − 13 (Reapproved 2023)
Standard Test Method for
Determining Tensile Breaking Strength of Glass Fiber
Reinforcing Mesh for Use in Class PB Exterior Insulation
and Finish Systems (EIFS), after Exposure to a Sodium
Hydroxide Solution
This standard is issued under the fixed designation E2098/E2098M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2.1 ASTM Standards:
1.1 This test method covers procedures for determining the
D76/D76M Specification for Tensile Testing Machines for
breaking force of glass fiber mesh following their conditioning
Textiles
in an alkali solution. The method is applicable to glass fiber
D579/D579M Specification for Greige Woven Glass Fabrics
mesh used in Class PB Exterior Insulation and Finish Systems
D5035 Test Method for Breaking Force and Elongation of
(EIFS) with base coats that contain portland cement as an
Textile Fabrics (Strip Method)
ingredient.
E631 Terminology of Building Constructions
1.2 Breaking force is expressed both as force per unit width
E2110 Terminology for Exterior Insulation and Finish Sys-
of mesh and as a percentage of the breaking force of the mesh
tems (EIFS)
that has not been exposed to alkali conditioning.
2.2 Other Documents:
1.3 The values stated in either SI units or inch-pound units
EIFS Industry Members Association (EIMA) Guideline
are to be regarded separately as standard. The values stated in
Specification for Exterior Insulation and Finish Systems
each system are not necessarily exact equivalents; therefore, to
(EIFS), Class PB
ensure conformance with the standard, each system shall be
used independently of the other, and values from the two
3. Terminology
systems shall not be combined.
3.1 For general terminology regarding EIFS and building in
1.4 This standard does not purport to address all of the
general, see Terminology E2110 (for EIFS terms) and Termi-
safety concerns, if any, associated with its use. It is the
nology E631 (for buildings in general).
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter-
4. Summary of Test Method
mine the applicability of regulatory limitations prior to use.
4.1 Specimens are tested for breaking force with and with-
1.5 This international standard was developed in accor-
out conditioning. Conditioning is immersion for 28 days in an
dance with internationally recognized principles on standard-
aqueous solution of 5 % sodium hydroxide.
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
4.2 Breaking force is determined by mounting a test speci-
mendations issued by the World Trade Organization Technical men in a tensile testing machine and applying a force to the
Barriers to Trade (TBT) Committee.
specimen until it breaks.
1 2
This test method is under the jurisdiction of ASTM Committee E06 on For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Performance of Buildings and is the direct responsibility of Subcommittee E06.58 contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
on Exterior Insulation and Finish Systems (EIFS). Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Oct. 1, 2023. Published October 2023. Originally the ASTM website.
approved in 2000. Last previous edition approved in 2018 as E2098/E2098M – 13 Available from the EIFS Industry Members Association (EIMA), 513 West
(2018). DOI: 10.1520/E2098_E2098M–13R23. Broad Street, Suite 210, Falls Church, VA 22046-3257, http://www.eima.com.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

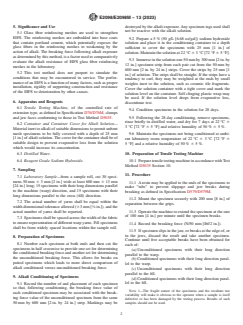

E2098/E2098M − 13 (2023)
5. Significance and Use destroyed by the alkali exposure. Any specimen tags used shall
not be reactive with the alkali solution.
5.1 Glass fiber reinforcing meshes are used to strengthen
EIFS. The reinforcing meshes are embedded into base coats
9.2 Prepare a 5 % (50 g/L [6.68 oz/gal]) sodium hydroxide
that contain portland cement, which potentially exposes the
solution and place it in the conditioning container to a depth
glass fibers in the reinforcing meshes to weakening by the
sufficient to cover the specimens with 25 mm [1 in.] of
action of alkali. The breaking force following alkali exposure
solution. Maintain the solution at 22 °C 6 3 °C [72 °F 6 5 °F].
as determined by this method, is a factor used to comparatively
9.3 Immerse in the solution one 50 mm by 300 mm [2 in. by
evaluate the alkali resistance of EIFS glass fiber reinforcing
12 in.] specimen strip from each pair cut from the 50 mm by
meshes in the laboratory.
600 mm [2 in. by 24 in.] strips. Cover the strips by 25 mm [1
5.2 This test method does not purport to simulate the
in.] of solution. The strips shall be straight. If the strips have a
conditions that may be encountered in service. The perfor-
tendency to curl, they may be weighted at the ends by small
mance of an EIFS is a function of many factors, such as proper
weights inert to the solution, such as ceramic tile fragments.
installation, rigidity of supporting construction and resistance
Cover the solution container with a tight cover and mark the
of the EIFS to deterioration by other causes.
solution level on the container. Self clinging plastic wrap may
be used. If the solution level drops from evaporative loss,
6. Apparatus and Reagents
discontinue test.
6.1 Tensile Testing Machine, of the controlled rate of
9.4 Condition specimens in the solution for 28 days.
extension type, as defined in Specification D76/D76M, clumps
and jaw faces conforming to those in Test Method D5035. 9.5 Following the 28 day conditioning, remove specimens,
rinse briefly in distilled water, and dry for 7 days at 22 °C 6
6.2 Container and Container Cover for Alkali Solution—
3 °C [72 °F 6 5 °F] and relative humidity of 50
...
