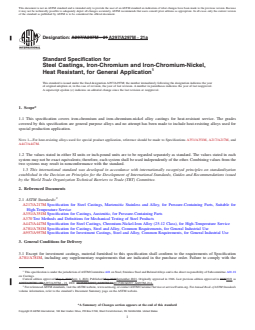

Designation: A297/A297M − 21 A297/A297M − 21a

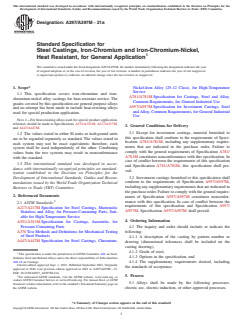

Standard Specification for
Steel Castings, Iron-Chromium and Iron-Chromium-Nickel,
Heat Resistant, for General Application
This standard is issued under the fixed designation A297/A297M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers iron-chromium and iron-chromium-nickel alloy castings for heat-resistant service. The grades
covered by this specification are general purpose alloys and no attempt has been made to include heat-resisting alloys used for
special production application.
NOTE 1—For heat-resisting alloys used for special product application, reference should be made to Specifications A351/A351M, A217/A217M, and
A447/A447M.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the
two systems may result in nonconformance with the standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
A217/A217M Specification for Steel Castings, Martensitic Stainless and Alloy, for Pressure-Containing Parts, Suitable for
High-Temperature Service
A351/A351M Specification for Castings, Austenitic, for Pressure-Containing Parts
A370 Test Methods and Definitions for Mechanical Testing of Steel Products
A447/A447M Specification for Steel Castings, Chromium-Nickel-Iron Alloy (25-12 Class), for High-Temperature Service
A781/A781M Specification for Castings, Steel and Alloy, Common Requirements, for General Industrial Use
A957/A957M Specification for Investment Castings, Steel and Alloy, Common Requirements, for General Industrial Use
3. General Conditions for Delivery
3.1 Except for investment castings, material furnished to this specification shall conform to the requirements of Specification
A781/A781M, including any supplementary requirements that are indicated in the purchase order. Failure to comply with the
This specification is under the jurisdiction of ASTM Committee A01 on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee A01.18
on Castings.
Current edition approved May 1, 2021Sept. 1, 2021. Published May 2021September 2021. Originally approved in 1946. Last previous edition approved in 20202021 as
A297/A297M – 20.A297/A297M – 21. DOI: 10.1520/A0297_A0297M-21.10.1520/A0297_A0297M-21A.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
A297/A297M − 21a

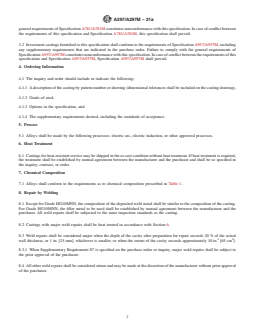

general requirements of Specification A781/A781M constitutes nonconformance with this specification. In case of conflict between
the requirements of this specification and Specification A781/A781M, this specification shall prevail.
3.2 Investment castings furnished to this specification shall conform to the requirements of Specification A957/A957M, including
any supplementary requirements that are indicated in the purchase order. Failure to comply with the general requirements of
Specification A957/A957M constitutes nonconformance with this specification. In case of conflict between the requirements of this
specification and Specification A957/A957M, Specification A957/A957M shall prevail.
4. Ordering Information
4.1 The inquiry and order should include or indicate the following:
4.1.1 A description of the casting by pattern number or drawing (dimensional tolerances shall be included on the casting drawing),
4.1.2 Grade of steel,
4.1.3 Options in the specification, and
4.1.4 The supplementary requirements desired, including the standards of acceptance.
5. Process
5.1 Alloys shall be made by the following processes: electric arc, electric induction, or other approved processes.
6. Heat Treatment
6.1 Castings for heat-resistant service may be shipped in the as-cast condition without heat treatment. If heat treatment is required,
the treatment shall be established by mutual agreement between the manufacturer and the purchaser and shall be so specified in
the inquiry, contract, or order.

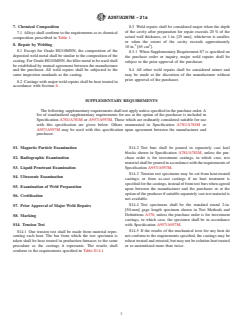

7. Chemical Composition
7.1 Alloys shall conform to the requirements as to chemical composition prescribed in Table 1.
8. Repair by Welding
8.1 Except for Grade HG10MNN, the composition of the deposited weld metal shall be similar to the composition of the casting.
For Grade HG10MNN, the filler metal to be used shall be established by mutual agreement between the manufacturer and the
purchaser. All weld repairs shall be subjected to the same inspection standards as the casting.
8.2 Castings with major weld repairs shall be heat treated in accordance with Section 6.
8.3 Weld repairs shall be considered major when the depth of the cavity after preparation for repair exceeds 20 % of the actual
2 2
wall thickness, or 1 in. [25 mm], whichever is smaller, or when the extent of the cavity exceeds approximately 10 in. [65 cm ].
8.3.1 When Supplementary Requirement S7 is specified on the purchase order or inquiry, major weld repairs shall be subject to
the prior approval of the purchaser.
8.4 All other weld repairs shall be considered minor and may be made at the discretion of the manufacturer without prior approval
of the purchaser.
A297/A297M − 21a
A,B

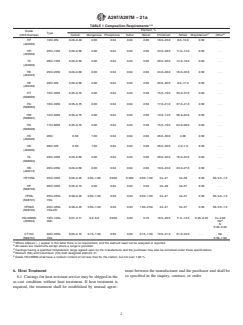

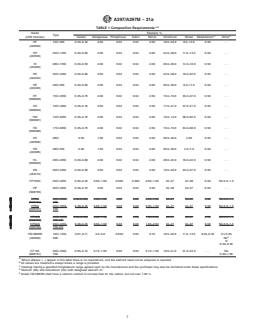

TABLE 1 Composition Requirements
Element, %
Grade
Type
C D
(UNS Number)
Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel Molybdenum Other
HF 19Cr-9Ni 0.20–0.40 2.00 0.04 0.04 2.00 18.0–23.0 8.0–12.0 0.50 . . .
(J92603)
HH 25Cr-12Ni 0.20–0.50 2.00 0.04 0.04 2.00 24.0–28.0 11.0–14.0 0.50 . . .
(J93503)
HI 28Cr-15Ni 0.20–0.50 2.00 0.04 0.04 2.00 26.0–30.0 14.0–18.0 0.50 . . .
(J94003)
HK 25Cr-20Ni 0.20–0.60 2.00 0.04 0.04 2.00 24.0–28.0 18.0–22.0 0.50 . . .
(J94224)
HE 29Cr-9Ni 0.20–0.50 2.00 0.04 0.04 2.00 26.0–30.0 8.0–11.0 0.50 . . .
(J93403)
HT 15Cr-35Ni 0.35–0.75 2.00 0.04 0.04 2.50 15.0–19.0 33.0–37.0 0.50 . . .
(N08605)
HU 19Cr-39Ni 0.35–0.75 2.00 0.04 0.04 2.50 17.0–21.0 37.0–41.0 0.50 . . .
(N08004)
HW 12Cr-60Ni 0.35–0.75 2.00 0.04 0.04 2.50 10.0–14.0 58.0–62.0
...
