ASTM A1119/A1119M-23a

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: A1119/A1119M − 23 A1119/A1119M − 23a
Standard Specification for
Welded Partially Corrugated Stainless Steel Tube for
Potable Water and General Service
This standard is issued under the fixed designation A1119/A1119M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification describes welded austenitic, ferritic, and duplex stainless steel tube on which the external and internal
surface has been modified by a cold forming process to produce an intermittent corrugation for improved formability and resistance
to seismic and other environmental distortions. The tubes are used for potable water service lines and other liquid delivery systems
in nominal diameters from ⁄2 to 2 in. [13 to 50 mm].
1.2 The tube sizes and thicknesses usually furnished to this specification are 0.625 to 2.125 in. [15.88 to 48.60 mm], outside
diameter and 0.028 to 0.049 in. [0.8 to 1.2 mm], inclusive, in wall thickness.
1.3 The grades of austenitic, ferritic, and duplex stainless steels included in this specification shall conform to materials listed in
the governing straight tube Specifications A268/A268M, A269/A269M, or A789/A789M. Selection will depend upon design and
service requirements.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the
two systems may result in non-conformance with the standard.
1.5 This specification is expressed in both inch-pound and SI units. However, unless the order specifies the applicable “M”
specification designation (SI units), the material shall be furnished in inch-pound units.
1.6 The following safety hazards statement pertains only to the test methods of this specification. This standard does not purport
to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish
appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
A268/A268M Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service
This specification is under the jurisdiction of ASTM Committee A01 on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee A01.10
on Stainless and Alloy Steel Tubular Products.
Current edition approved March 1, 2023May 1, 2023. Published May 2023. Originally approved in 2020. Last previous edition approved in 20222023 as
A1119/A1119M – 22.A1119/A1119M – 23. DOI: 10.1520/A1119_A1119M-23.10.1520/A1119_A1119M-23A.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
A1119/A1119M − 23a
A269/A269M Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
A789/A789M Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
A1016/A1016M Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless Steel
Tubes
A1047/A1047M Test Method for Pneumatic Leak Testing of Tubing
E384 Test Method for Microindentation Hardness of Materials
2.2 Other Standard:
JWWA G 119 Corrugated Stainless Steel Tubes for Water Supply
3. Terminology and Symbols
3.1 Definitions—For definition of general terms used in this specification, refer to Specification A1016/A1016M.
3.2 Symbols (Corrugation Nomenclature):
d = outside diameter of straight section
d = outside diameter of corrugated section
L = total tube length
l = end to first corrugation
l = end to center of first corrugation
l = corrugation centerline to corrugation centerline
l = last corrugation centerline to tube end
l = length of corrugation
t = wall thickness of straight section
N = number of corrugations in a corrugated section
4. Ordering Information
4.1 It is the responsibility of the purchaser to specify all requirements that are necessary for material ordered under this
specification. Such requirements may include, but are not limited to, the following:
4.1.1 ASTM designation and year of issue (this specification);
4.1.2 ASTM designation and year of issue (straight tube specification);
4.1.3 Alloy grade and UNS designation;
4.1.4 Dimensions; straight tube outside diameter, tube wall thickness (average or minimum specified) and the total tube length.
Configuration of corrugated surfaces shall be according to Figs. 1 and 2, and Tables 1-3;

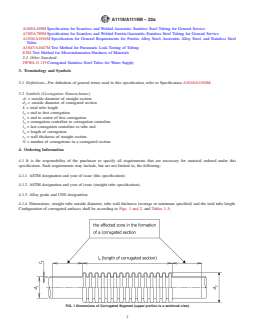

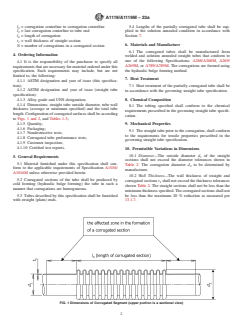

FIG. 1 Dimensions of Corrugated Segment (upper portion is a sectional view)
A1119/A1119M − 23a

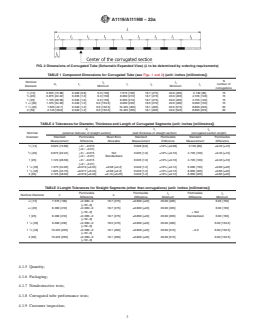

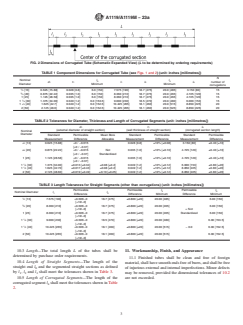

FIG. 2 Dimensions of Corrugated Tube (Schematic Expanded View) (L to be determined by ordering requirements)
TABLE 1 Component Dimensions for Corrugated Tube (see Figs. 1 and 2) (unit: inches [millimetres])
N
Nominal l l
0 3
d t l l l number of
1 1 1 2 4
Diameter Minimum Minimum
corrugations
⁄2 [13] 0.625 [15.88] 0.028 [0.8] 6.0 [150] 7.575 [190] 18.7 [475] 20.0 [485] 3.150 [80] 15
⁄4 [20] 0.875 [22.22] 0.035 [1.0] 6.0 [150] 8.360 [210] 18.7 [475] 20.0 [465] 4.725 [120] 15
1 [25] 1.125 [28.58] 0.035 [1.0] 6.0 [150] 8.360 [210] 18.7 [475] 20.0 [465] 4.725 [120] 15
1 ⁄4 [30] 1.375 [34.00] 0.049 [1.2] 6.0 [153.5] 9.000 [230] 18.5 [470] 20.0 [480] 6.000 [153] 15
1 ⁄2 [40] 1.625 [42.7] 0.049 [1.2] 6.0 [152.5] 10.425 [265] 18.1 [460] 20.0 [515] 8.850 [225] 20
2 [50] 2.125 [48.6] 0.049 [1.2] 6.0 [152.5] 10.425 [265] 18.1 [460] 20.0 [525] 8.850 [225] 20
TABLE 2 Tolerances for Diameter, Thickness and Length of Corrugated Segments (unit: inches [millimetres])
d t l
1 1 4
(external diameter of straight section) (wall thickness of straight section) (corrugated section length)
Nominal
Diameter
Standard Permissible Mean Bore Standard Permissible Standard Permissible
Measurement Difference Allowable Measurement Difference Measurement Difference
⁄2 [13] 0.625 [15.88] +0 / –0.015 0.028 [0.8] ±10% [±0.08] 3.150 [80] ±0.40 [±10]
[+0 / –0.37]
⁄4 [20] 0.875 [22.22] +0 / –0.015 Not 0.035 [1.0] ±10% [±0.10] 4.725 [120] ±0.40 [±10]
[+0 / –0.37] Standardized
1 [25] 1.125 [28.58] +0 / –0.015 0.035 [1.0] ±10% [±0.10] 4.725 [120] ±0.40 [±10]
[+0 / –0.37]
1 ⁄4 [30] 1.375 [34.00] ±0.013 [±0.34] ±0.08 [±0.2] 0.049 [1.2] ±10% [±0.12] 6.000 [153] ±0.80 [±20]
1 ⁄2 [40] 1.625 [42.70] ±0.017 [±0.43] ±0.08 [±0.2] 0.049 [1.2] ±10% [±0.12] 8.850 [225] ±0.80 [±20]
2 [50] 2.125 [48.60] ±0.019 [±0.49] ±0.10 [±0.25] 0.049 [1.2] ±10% [±0.12] 8.850 [225] ±0.80 [±20]
TABLE 3 Length Tolerances for Straight Segments (other than corrugations) (unit: inches [millimetres])
Permissible Permissible l Permissible l
3 0
Nominal Diameter l l
1 2
Difference Difference Minimum Difference Minimum
⁄2 [13] 7.575 [190] +0.395/–0 18.7 [475] ±0.800 [±20] 20.00 [485] 6.00 [150]
[+10/–0]
⁄4 [20] 8.360 [210] +0.395/–0 18.7 [475] ±0.800 [±20] 20.00 [465] 6.00 [150]
[+10/–0] + Not
1 [25] 8.360 [210] +0.395/–0 18.7 [475] ±0.800 [±20] 20.00 [465] Standardized 6.00 [150]
[+10/–0]
1 ⁄4 [30] 9.000 [230] +0.395/–0 18.5 [470] ±0.800 [±20] 20.00 [480] 6.00 [153.5]
[+10/–0]
1 ⁄2 [40] 10.425 [265] +0.395/–0 18.1 [460] ±0.800 [±20] 20.00 [515] – 0.0 6.00 [152.5]
[+10/–0]
2 [50] 10.425 [265] +0.395/–0 18.1 [460] ±0.800 [±20] 20.00 [515] 6.00 [152.5]
[+10/–0]
4.1.5 Quantity;
4.1.6 Packaging;
4.1.7 Nondestructive tests;
4.1.8 Corrugated tube performance tests;
4.1.9 Customer inspection;
A1119/A1119M − 23a
4.1.10 Certified test reports.
5. General Requirements
5.1 Material furnished under this specification shall conform to the applicable requirements of Specification A1016/A1016M
unless otherwise provided herein.
5.2 Corrugated sections of the tube shall be produced by cold forming (hydraulic bulge forming) the tube in such a manner that
corrugations are homogeneous.
5.3 Tubes described by this specification shall be furnished with straight (plain) ends.
5.4 Lengths of the partially corrugated tube shall be supplied in the solution annealed condition in accordance with Section 7.
6. Materials and Manufacture
6.1 The corrugated tubes shall be manufactured from welded and solution annealed straight tubes that conform to one of the
following Specifications: A268/A268M, A269/A269M, or A789/A789M. The corrugations are formed using the hydraulic bulge
forming method.
7. Heat Treatment
7.1 Heat treatment of the partially corrugated tube shall be in accordance with the governing straight tube specification.
8. Chemical Composition
8.1 The tubing specified shall conform to the chemical requirements prescribed in the governing straight tube specification.
9. Mechanical Properties
9.1 The straight tube prior to the corrugation, shall conform to the requirements for tensile properties prescribed in the governing
straight tube specification.
10. Permissible Variations in Dimensions
10.1 Diameter—The outside diameter d of the straight sections shall not exceed the diameter tolerances shown in Table 2. The
corrugation diameter d to be determined by manufacturer.
10.2 Wall Thickness—The wall thickness of straight and corrugated sections t shall not exceed the thickness tolerances shown
Table 2. The straight sections shall not be less than the minimum thickness specified. The corrugated sections shall not be less than
the maximum 20 % reduction as measured per 13.1.7.
10.3 Length—The total length L of the tubes shall be determined by purchase order requirements.
10.4 Length of Straight Segments—The length of the straight end l and the segmented straight sections as defined by l , l and
0 1 2
l shall meet the tolerances shown in Table 3.
10.5 Length of Corrugated Segments—The length of the corrugated segment l shall meet the tolerances shown in Table 2.
11. Workmanship, Finish, and Appearance
11.1 Finished tubes shall be clean and free of foreign material, shall have smooth ends free of burrs, and shall be free of injurious
external and internal imperfections. Minor defects may be removed, provided the dimensional tolerances of 10.2 are not exceeded.
A1119/A1119M − 23a

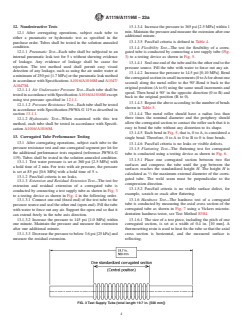

12. Nondestructive Tests
12.1 After corrugating operations, subject each tube to either a pneumatic or hydrostatic test as specified in the purchase order.
Tubes shall be tested in the solution annealed condition.
12.1.1 Pneumatic Test—Each tube shall be subjected to an internal pneumatic leak test for 5 s without showing evidence of
leakage. Any evidence of leakage shall be cause for rejecti
...
