ASTM E2934-23
(Practice)Standard Practice for Digital Imaging and Communication in Nondestructive Evaluation (DICONDE) for Eddy Current (EC) Test Methods
Standard Practice for Digital Imaging and Communication in Nondestructive Evaluation (DICONDE) for Eddy Current (EC) Test Methods
SIGNIFICANCE AND USE
5.1 Personnel that are responsible for the creation, transfer, and storage of eddy current NDE test results will use this standard. This practice defines a set of information modules that, along with Practice E2339 and the DICOM standard, provide a standard means to organize eddy current test parameters and results. The eddy current examination results may be displayed or analyzed on any device that conforms to the standard. Personnel wishing to view any eddy current examination data stored according to Practice E2339 may use this document to help them decode and display the data contained in the DICONDE compliant inspection record.
SCOPE
1.1 This practice covers the interoperability of eddy current imaging and data acquisition equipment by specifying the image data transfer and archival storage in commonly accepted terms. This document is intended to be used in conjunction with Practice E2339 on Digital Imaging and Communication in Nondestructive Evaluation (DICONDE). Practice E2339 defines an industrial adaptation of NEMA PS3 / ISO 12052, an international standard for image data acquisition, review, storage, and archival storage. The goal of Practice E2339, commonly referred to as DICONDE, is to provide a standard that facilitates the display and analysis of NDE results on any system conforming to the DICONDE standard. Toward that end, Practice E2339 provides a data dictionary and a set of information modules that are applicable to all NDE modalities. This practice supplements Practice E2339 by providing information object definitions, information modules, and a data dictionary that are specific to eddy current test methods.
1.2 This practice has been developed to overcome the issues that arise when analyzing or archiving data from eddy current test equipment using proprietary data transfer and storage methods. As digital technologies evolve, data must remain decipherable through the use of open, industry-wide methods for data transfer and archival storage. This practice defines a method where all the eddy current technique parameters and inspection data are communicated and stored in a standard manner regardless of changes in digital technology.
1.3 This practice does not specify:
1.3.1 A testing or validation procedure to assess an implementation's conformance to the standard,
1.3.2 The implementation details of any features of the standard on a device claiming conformance, or
1.3.3 The overall set of features and functions to be expected from a system implemented by integrating a group of devices each claiming DICONDE conformance.
1.4 Units—Although this practice contains no values that require units, it does describe methods to store and communicate data that do require units to be properly interpreted. The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 14-Jun-2023
- Technical Committee
- E07 - Nondestructive Testing
Relations
- Effective Date
- 01-Feb-2024
- Effective Date
- 01-Dec-2019
- Effective Date
- 01-Mar-2019
- Effective Date
- 01-Jan-2018
- Effective Date
- 15-Jun-2017
- Effective Date
- 01-Feb-2017
- Effective Date
- 01-Aug-2016
- Effective Date
- 01-Feb-2016
- Effective Date
- 01-Dec-2015
- Effective Date
- 01-Sep-2015
- Effective Date
- 01-Jun-2014
- Effective Date
- 01-Jun-2014
- Effective Date
- 01-Dec-2013
- Effective Date
- 15-Jun-2013
- Effective Date
- 01-Jun-2013
Overview
ASTM E2934-23 is the industry standard practice for the digital imaging and communication of eddy current (EC) test results in nondestructive evaluation (NDE) applications, leveraging the DICONDE (Digital Imaging and Communication in Nondestructive Evaluation) framework. Published by ASTM International, this standard addresses the digital interoperability, storage, and transfer of eddy current test data, ensuring results can be efficiently analyzed, displayed, and archived across various compliant systems. By supplementing ASTM E2339 and incorporating the international NEMA PS3 / ISO 12052 DICOM standard, ASTM E2934-23 provides a robust, open, and standardized protocol for managing eddy current NDE data.
Key Topics
Standardized Data Interchange:
Specifies methods for organizing, transferring, and archiving digital eddy current test images and results in open, universally accepted formats.Interoperability:
Ensures that EC imaging and acquisition equipment from different manufacturers can exchange data seamlessly, overcoming proprietary protocol limitations.Information Modules and Data Dictionary:
Provides information object definitions, modules, and an extended data dictionary specific to EC NDE, compatible with DICONDE infrastructure as described in ASTM E2339.Consistent Data Interpretation:
Maintains the integrity and accessibility of archived data by documenting all parameters and measurement units in standardized SI terms for accurate decoding and display.Compatibility with DICONDE and DICOM:
Designed for use with systems conforming to ASTM E2339 and DICOM, supporting the open, industrial adaptation of healthcare imaging standards for the NDE sector.
Applications
ASTM E2934-23 supports a wide range of industries where nondestructive eddy current testing is fundamental. Its key applications include:
Aerospace and Transportation:
Facilitates the archiving and comparison of critical EC inspection data for maintenance, repairs, and safety documentation.Energy and Power Generation:
Supports standardized records of EC inspection for pipelines, turbines, and reactor components, simplifying regulatory compliance and life-cycle management.Manufacturing and Metallurgy:
Assists quality assurance teams in documenting welds, detecting flaws in components, and maintaining traceable digital records.Asset Integrity Management:
Enhances traceability and long-term storage for recurring asset assessments and audits using digital EC inspection files.
By using ASTM E2934-23, organizations can ensure EC test data remains interpretable and accessible, even as technology evolves or equipment is upgraded, eliminating issues related to proprietary file formats or vendor lock-in.
Related Standards
Adopting ASTM E2934-23 often involves integration with related standards to ensure comprehensive compliance and interoperability:
ASTM E2339:
Practice for Digital Imaging and Communication in Nondestructive Evaluation (DICONDE) - foundational framework for digital data management in NDE.ASTM E1316:
Terminology for Nondestructive Examinations - provides definitions and standard terms for NDE processes.NEMA PS3 / ISO 12052 (DICOM):
International standard for medical and industrial imaging data acquisition, review, storage, and archival.
These related documents help establish a consistent, standardized environment for all aspects of digital nondestructive evaluation, especially when integrating multiple NDE modalities.
Key SEO Terms:
ASTM E2934-23, eddy current NDE, DICONDE, digital imaging and communication, nondestructive evaluation, EC test data, data archival, data interoperability, standardized data format, NDE standards, digital eddy current inspection, DICOM for NDE, open data protocols
Buy Documents
ASTM E2934-23 - Standard Practice for Digital Imaging and Communication in Nondestructive Evaluation (DICONDE) for Eddy Current (EC) Test Methods
REDLINE ASTM E2934-23 - Standard Practice for Digital Imaging and Communication in Nondestructive Evaluation (DICONDE) for Eddy Current (EC) Test Methods
Get Certified
Connect with accredited certification bodies for this standard
BSI Group
BSI (British Standards Institution) is the business standards company that helps organizations make excellence a habit.
IMP NDT d.o.o.
Non-destructive testing services. Radiography, ultrasonic, magnetic particle, penetrant, visual inspection.
Inštitut za kovinske materiale in tehnologije
Institute of Metals and Technology. Materials testing, metallurgical analysis, NDT.
Sponsored listings
Frequently Asked Questions
ASTM E2934-23 is a standard published by ASTM International. Its full title is "Standard Practice for Digital Imaging and Communication in Nondestructive Evaluation (DICONDE) for Eddy Current (EC) Test Methods". This standard covers: SIGNIFICANCE AND USE 5.1 Personnel that are responsible for the creation, transfer, and storage of eddy current NDE test results will use this standard. This practice defines a set of information modules that, along with Practice E2339 and the DICOM standard, provide a standard means to organize eddy current test parameters and results. The eddy current examination results may be displayed or analyzed on any device that conforms to the standard. Personnel wishing to view any eddy current examination data stored according to Practice E2339 may use this document to help them decode and display the data contained in the DICONDE compliant inspection record. SCOPE 1.1 This practice covers the interoperability of eddy current imaging and data acquisition equipment by specifying the image data transfer and archival storage in commonly accepted terms. This document is intended to be used in conjunction with Practice E2339 on Digital Imaging and Communication in Nondestructive Evaluation (DICONDE). Practice E2339 defines an industrial adaptation of NEMA PS3 / ISO 12052, an international standard for image data acquisition, review, storage, and archival storage. The goal of Practice E2339, commonly referred to as DICONDE, is to provide a standard that facilitates the display and analysis of NDE results on any system conforming to the DICONDE standard. Toward that end, Practice E2339 provides a data dictionary and a set of information modules that are applicable to all NDE modalities. This practice supplements Practice E2339 by providing information object definitions, information modules, and a data dictionary that are specific to eddy current test methods. 1.2 This practice has been developed to overcome the issues that arise when analyzing or archiving data from eddy current test equipment using proprietary data transfer and storage methods. As digital technologies evolve, data must remain decipherable through the use of open, industry-wide methods for data transfer and archival storage. This practice defines a method where all the eddy current technique parameters and inspection data are communicated and stored in a standard manner regardless of changes in digital technology. 1.3 This practice does not specify: 1.3.1 A testing or validation procedure to assess an implementation's conformance to the standard, 1.3.2 The implementation details of any features of the standard on a device claiming conformance, or 1.3.3 The overall set of features and functions to be expected from a system implemented by integrating a group of devices each claiming DICONDE conformance. 1.4 Units—Although this practice contains no values that require units, it does describe methods to store and communicate data that do require units to be properly interpreted. The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 5.1 Personnel that are responsible for the creation, transfer, and storage of eddy current NDE test results will use this standard. This practice defines a set of information modules that, along with Practice E2339 and the DICOM standard, provide a standard means to organize eddy current test parameters and results. The eddy current examination results may be displayed or analyzed on any device that conforms to the standard. Personnel wishing to view any eddy current examination data stored according to Practice E2339 may use this document to help them decode and display the data contained in the DICONDE compliant inspection record. SCOPE 1.1 This practice covers the interoperability of eddy current imaging and data acquisition equipment by specifying the image data transfer and archival storage in commonly accepted terms. This document is intended to be used in conjunction with Practice E2339 on Digital Imaging and Communication in Nondestructive Evaluation (DICONDE). Practice E2339 defines an industrial adaptation of NEMA PS3 / ISO 12052, an international standard for image data acquisition, review, storage, and archival storage. The goal of Practice E2339, commonly referred to as DICONDE, is to provide a standard that facilitates the display and analysis of NDE results on any system conforming to the DICONDE standard. Toward that end, Practice E2339 provides a data dictionary and a set of information modules that are applicable to all NDE modalities. This practice supplements Practice E2339 by providing information object definitions, information modules, and a data dictionary that are specific to eddy current test methods. 1.2 This practice has been developed to overcome the issues that arise when analyzing or archiving data from eddy current test equipment using proprietary data transfer and storage methods. As digital technologies evolve, data must remain decipherable through the use of open, industry-wide methods for data transfer and archival storage. This practice defines a method where all the eddy current technique parameters and inspection data are communicated and stored in a standard manner regardless of changes in digital technology. 1.3 This practice does not specify: 1.3.1 A testing or validation procedure to assess an implementation's conformance to the standard, 1.3.2 The implementation details of any features of the standard on a device claiming conformance, or 1.3.3 The overall set of features and functions to be expected from a system implemented by integrating a group of devices each claiming DICONDE conformance. 1.4 Units—Although this practice contains no values that require units, it does describe methods to store and communicate data that do require units to be properly interpreted. The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM E2934-23 is classified under the following ICS (International Classification for Standards) categories: 19.100 - Non-destructive testing; 35.140 - Computer graphics. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM E2934-23 has the following relationships with other standards: It is inter standard links to ASTM E1316-24, ASTM E1316-19b, ASTM E1316-19, ASTM E1316-18, ASTM E1316-17a, ASTM E1316-17, ASTM E1316-16a, ASTM E1316-16, ASTM E1316-15a, ASTM E1316-15, ASTM E1316-14e1, ASTM E1316-14, ASTM E1316-13d, ASTM E1316-13c, ASTM E1316-13b. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM E2934-23 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

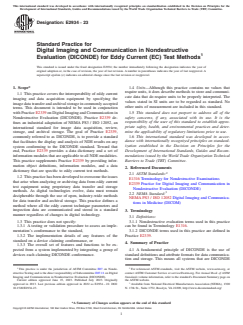

Designation: E2934 − 23
Standard Practice for
Digital Imaging and Communication in Nondestructive
Evaluation (DICONDE) for Eddy Current (EC) Test Methods
This standard is issued under the fixed designation E2934; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 1.4 Units—Although this practice contains no values that
require units, it does describe methods to store and communi-
1.1 This practice covers the interoperability of eddy current
cate data that do require units to be properly interpreted. The
imaging and data acquisition equipment by specifying the
values stated in SI units are to be regarded as standard. No
image data transfer and archival storage in commonly accepted
other units of measurement are included in this standard.
terms. This document is intended to be used in conjunction
1.5 This standard does not purport to address all of the
with Practice E2339 on Digital Imaging and Communication in
safety concerns, if any, associated with its use. It is the
Nondestructive Evaluation (DICONDE). Practice E2339 de-
responsibility of the user of this standard to establish appro-
fines an industrial adaptation of NEMA PS3 / ISO 12052, an
priate safety, health, and environmental practices and deter-
international standard for image data acquisition, review,
mine the applicability of regulatory limitations prior to use.
storage, and archival storage. The goal of Practice E2339,
1.6 This international standard was developed in accor-
commonly referred to as DICONDE, is to provide a standard
dance with internationally recognized principles on standard-
that facilitates the display and analysis of NDE results on any
ization established in the Decision on Principles for the
system conforming to the DICONDE standard. Toward that
Development of International Standards, Guides and Recom-
end, Practice E2339 provides a data dictionary and a set of
mendations issued by the World Trade Organization Technical
information modules that are applicable to all NDE modalities.
Barriers to Trade (TBT) Committee.
This practice supplements Practice E2339 by providing infor-
mation object definitions, information modules, and a data
2. Referenced Documents
dictionary that are specific to eddy current test methods.
2.1 ASTM Standards:
1.2 This practice has been developed to overcome the issues
E1316 Terminology for Nondestructive Examinations
that arise when analyzing or archiving data from eddy current
E2339 Practice for Digital Imaging and Communication in
test equipment using proprietary data transfer and storage
Nondestructive Evaluation (DICONDE)
methods. As digital technologies evolve, data must remain
2.2 NEMA Standard:
decipherable through the use of open, industry-wide methods
NEMA PS3 / ISO 12052 Digital Imaging and Communica-
for data transfer and archival storage. This practice defines a
tions in Medicine (DICOM)
method where all the eddy current technique parameters and
inspection data are communicated and stored in a standard 3. Terminology
manner regardless of changes in digital technology.
3.1 Definitions:
1.3 This practice does not specify: 3.1.1 Nondestructive evaluation terms used in this practice
1.3.1 A testing or validation procedure to assess an imple-
can be found in Terminology E1316.
mentation’s conformance to the standard, 3.1.2 DICONDE terms used in this practice are defined in
1.3.2 The implementation details of any features of the
Practice E2339.
standard on a device claiming conformance, or
4. Summary of Practice
1.3.3 The overall set of features and functions to be ex-
4.1 A fundamental principle of DICONDE is the use of
pected from a system implemented by integrating a group of
standard definitions and attribute formats for data communica-
devices each claiming DICONDE conformance.
tion and storage. This means all systems that are DICONDE
1 2
This practice is under the jurisdiction of ASTM Committee E07 on Nonde- For referenced ASTM standards, visit the ASTM website, www.astm.org, or
structive Testing and is the direct responsibility of Subcommittee E07.11 on Digital contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Imaging and Communication in Nondestructive Evaluation (DICONDE). Standards volume information, refer to the standard’s Document Summary page on
Current edition approved June 15, 2023. Published July 2023. Originally the ASTM website.
approved in 2013. Last previous edition approved in 2022 as E2934 – 22. DOI: Available from National Electrical Manufacturers Association (NEMA), 1300
10.1520/E2934-23. N. 17th St., Suite 1752, Rosslyn, VA 22209, http://www.dicomstandard.org/
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E2934 − 23

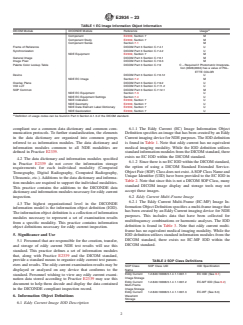

TABLE 1 EC Image Information Object Information
A
DICOM Module DICONDE Module Reference Usage
Component E2339, Section 7 M
Component Study E2339, Section 7 M
Component Series Section 7.1 M
Frame of Reference DICOM Part 3 Section C.7.4.1 U
Synchronization DICOM Part 3 Section C.7.4.2 U
NDE Equipment E2339, Section 7 M
General Image DICOM Part 3 Section C.7.6.1 M
Image Pixel DICOM Part 3 Section C.7.6.3 M
Palette Color Lookup Table DICOM Part 3 Section C.7.9 C – Required if Photometric Interpreta-
tion (0028,0004) has a value of PAL-
ETTE COLOR
Device DICOM Part 3 Section C.7.6.12 U
NDE EC Image Section 7.2 M
Overlay Plane DICOM Part 3 Section C.7.9.2 U
VOI LUT DICOM Part 3 Section C.7.11.2 U
SOP Common DICOM Part 3 Section C.7.12.1 M
NDE EC Equipment Section 7.3 U
NDE EC Equipment Settings Section 7.4 U
NDE Indication E2339, Section 7 U
NDE Geometry E2339, Section 7 U
NDE Data Element Label Dictionary E2339, Section 7 U
NDE Geolocation E2339, Section 7 U
A
Definition of usage codes can be found in Part 3 Section A.1.3 of the DICOM standard.
compliant use a common data dictionary and common com- 6.1.1 The Eddy Current (EC) Image Information Object
munication protocols. To further standardization, the elements Definition specifies an image that has been created by an Eddy
in the data dictionary are organized into common groups Current imaging device for NDE purposes. The IOD definition
referred to as information modules. The data dictionary and is found in Table 1. Note that eddy current has no equivalent
information modules common to all NDE modalities are medical imaging modality. While the IOD definition utilizes
defined in Practice E2339. standard information modules from the DICOM standard, there
exists no EC IOD within the DICOM standard.
4.2 The data dictionary and information modules specified
6.1.2 Since there is no EC IOD within the DICOM standard,
in Practice E2339 do not cover the information storage
the option of using a DICOM Standard Extended Service-
requirements for each individual modality (Computed
Object Pair (SOP) Class does not exist. A SOP Class Name and
Tomography, Digital Radiography, Computed Radiography,
Unique Identifier (UID) have been provided to the EC IOD in
Ultrasonic, etc.). Additions to the data dictionary and informa-
Table 2. Note that since this is not a DICOM SOP Class, many
tion modules are required to support the individual modalities.
standard DICOM image display and storage tools may not
This practice contains the additions to the DICONDE data
accept these images.
dictionary and information modules necessary for eddy current
inspection. 6.2 Eddy Current Multi-Frame Image
6.2.1 The Eddy Current Multi-Frame (EC-MF) Image In-
4.3 The highest organizational level in the DICONDE
formation Object Definition specifies a multi-frame image that
information model is the information object definition (IOD).
has been created by an Eddy Current imaging device for NDE
The information object definition is a collection of information
purposes. This includes data that have been collected for
modules necessary to represent a set of examination results
multifrequency combinations or harmonic analyses. The IOD
from a specific modality. This practice contains information
definition is found in Table 3. Note that eddy current multi-
object definitions necessary for eddy current inspection.
frame has no equivalent medical imaging modality. While the
5. Significance and Use
IOD definition utilizes standard information modules from the
DICOM standard, there exists no EC-MF IOD within the
5.1 Personnel that are responsible for the creation, transfer,
DICOM standard.
and storage of eddy current NDE test results will use this
standard. This practice defines a set of information modules
that, along with Practice E2339 and the DICOM standard,
provide a standard means to organize eddy current test param-
TABLE 2 SOP Class Definitions
eters and results. The eddy current examination results may be
SOP Class SOP Class UID IOD Specification
Name
displayed or analyzed on any device that conforms to the
standard. Personnel wishing to view any eddy current exami- Eddy Current 1.2.840.10008.5.1.4.1.1.601.1 EC IOD (See 6.1)
Image Storage
nation data stored according to Practice E2339 may use this
Eddy Current 1.2.840.10008.5.1.4.1.1.601.2 EC-MF IOD (See 6.2)
document to help them decode and display the data contained
Multi-Frame
Image Storage
in the DICONDE compliant inspection record.
Eddy Current 1.2.840.10008.5.1.4.1.1.601.3 EC-WF (See 6.3)
Waveform
6. Information Object Definitions
Storage
6.1 Eddy Current Image IOD Description
E2934 − 23

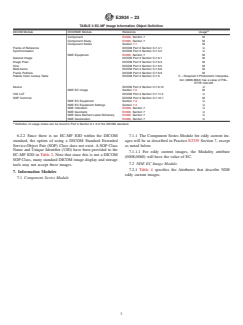

TABLE 3 EC-MF Image Information Object Definition
A
DICOM Module DICONDE Module Reference Usage
Component E2339, Section 7 M
Component Study E2339, Section 7 M
Component Series Section 7.1 M
Frame of Reference DICOM Part 3 Section C.7.4.1 U
Synchronization DICOM Part 3 Section C.7.4.2 U
NDE Equipment E2339, Section 7 M
General Image DICOM Part 3 Section C.7.6.1 M
Image Pixel DICOM Part 3 Section C.7.6.3 M
Cine DICOM Part 3 Section C.7.6.5 M
Multi-frame DICOM Part 3 Section C.7.6.6 M
Frame Pointers DICOM Part 3 Section C.7.6.9 M
Palette Color Lookup Table DICOM Part 3 Section C.7.9 C – Required if Photometric Interpreta-
tion (0028,0004) has a value of PAL-
ETTE COLOR
Device DICOM Part 3 Section C.7.6.12 U
NDE EC Image Section 7.2 M
VOI LUT DICOM Part 3 Section C.7.11.2 U
SOP Common DICOM Part 3 Section C.7.12.1 M
NDE EC Equipment Section 7.3 U
NDE EC Equipment Settings Section 7.4 U
NDE Indication E2339, Section 7 U
NDE Geometry E2339, Section 7 U
NDE Data Element Label Dictionary E2339, Section 7 U
NDE Geolocation E2339, Section 7 U
A
Definition of usage codes can be found in Part 3 Section A.1.3 of the DICOM standard.
6.2.2 Since there is no EC-MF IOD within the DICOM 7.1.1 The Component Series Module for eddy current im-
standard, the option of using a DICOM Standard Extended ages will be as described in Practice E2339 Section 7, except
Service-Object Pair (SOP) Class does not exist. A SOP Class
as noted below.
Name and Unique Identifier (UID) have been provided to the
7.1.1.1 For eddy current images, the Modality attribute
EC-MF IOD in Table 2. Note that since this is not a DICOM
(0008,0060) will have the value of EC.
SOP Class, many standard DICOM image display and storage
7.2 NDE EC Image Module
tools may not accept these images.
7.2.1 Table 4 specifies the Attributes that describe NDE
7. Information Modules
eddy current images.
7.1 Component Series Module
E2934 − 23

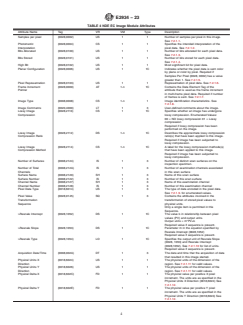

TABLE 4 NDE EC Image Module Attributes
Attribute Name Tag VR VM Type Description
Samples per pixel (0028,0002) US 1 1 Number of samples per pixel in this image.
See 7.2.1.1.
Photometric (0028,0004) CS 1 1 Specifies the intended interpretation of the
Interpretation pixel data. See 7.2.1.2.
Bits Allocated (0028,0100) US 1 1 Number of bits allocated for each pixel data.
See 7.2.1.3.
Bits Stored (0028,0101) US 1 1 Number of bits stored for each pixel data.
See 7.2.1.4.
High Bit (0028,0102) US 1 1 Most significant bit for pixel data.
Planar Configuration (0028,0006) US 1 1C Indicates whether the pixel data is sent color
by plane or color by pixel. Required if
Samples Per Pixel (0028, 0002) has a value
greater than 1. See 7.2.1.5.
Pixel Representation (0028,0103) US 1 1 Representation of pixel data. See 7.2.1.6.
Frame Increment (0028,0009) AT 1-n 1C Contains the Data Element Tag of the
Pointer attribute that is used as the frame increment
in multi-frame pixel data. Required if number
of frames is sent. See 7.2.1.7.
Image Type (0008,0008) CS 1-n 1 Image identification characteristics. See
7.2.1.8.
Image Comments (0020,4000) LT 1 3 User-defined comments about the image.
Lossy Image (0028,2110) CS 1 1C Specifies whether an image has undergone
Compression lossy compression. Enumerated Values:
00 = NO lossy compression 01 = Lossy
compression
Required if lossy compression has been
performed on the image.
Lossy Image (0028,2112) DS 1-n 1C Describes the approximate lossy compression
Compression Ratio ratio(s) that have been applied to this image.
Required if image has been subjected to
lossy compression.
Lossy Image (0028,2114) CS 1-n 1C A label for the lossy compression methods(s)
Compression Method that have been applied to this image.
Required if image has been subjected to
lossy compression.
Number of Surfaces (0008,2124) IS 1 3 Number of distinct scan surfaces on the
inspection specimen.
Number of Total (0008,212A) IS 1 3 Number of examination channels associated
Channels in this scan surface
Surface Name (0008,2120) SH 1 3 Name of this scan surface
Surface Number (0008,2122) IS 1 3 Number of this scan surface
Channel Name (0008,2127) SH 1 3 Name of this examination channel
Channel Number (0008,2128) IS 1 3 Number of this examination channel
Pixel Data Type (0018,6014) US 1 3 The type of data encoded in the pixel data.
See 7.2.1.9. for enumerated values.
Pixel Value (0028,9145) SQ 1 3 Contains the attributes involved in the
Transformation transformation of stored pixel values to
Sequence physical units.
Only a single item is permitted in this
Sequence.
>Rescale Intercept (0028,1052) DS 1 1C The value b in relationship between pixel
values (PV) and output units.
Output units = m*PV+b
Required value if sequence is present.
>Rescale Slope (0028,1053) DS 1 1C Parameter m in the equation specified by
Rescale Intercept (0028,1052)
Required value if sequence is present.
>Rescale Type (0028,1054) LO 1 1C Specifies the output unit of Rescale Slope
(0028, 1053) and Rescale Intercept
(0028,1052). See 7.2.1.10 for list of units.
Required value if sequence is present.
Acquisition Date/Time (0008,002A) DT 1 3 The date and time that the acquisition of data
that resulted in this image started.
Physical Units X (0018,6024) US 1 1 The physical units of the dimension of the
Direction region. See 7.2.1.11 for valid values.
Physical Units Y (0018,6026) US 1 1 The physical units of the dimension of the
Direction region. See 7.2.1.11 for valid values.
Physical Delta X (0018,602C) FD 1 1 The physical value per positive X pixel
increment. The units are as specified in the
Physical Units X Direction (0018,6024) See
7.2.1.12.
Physical Delta Y (0018,602E) FD 1 1 The physical value per positive Y pixel
increment. The units are as specified in the
Physical Units Y Direction (0018,6024) See
7.2.1.12.
E2934 − 23
7.2.1.1 For NDE EC Images, Samples per Pixel (0028, 7.2.1.8 For NDE EC Images, Image Type (0008,0008) is
0002) is specified to use the following values for specified specified to be Type 1. The defined terms for value 3 are:
Photometric Interpretations. C SCAN
TABLE 5 NDE EC Image Samples Per Pixel
B SCAN
Photometric Interpretation Samples Per Pixel value A SCAN
MONOCHROME2 1 STRIP CHART
COMPLEX VALUES 2
PHASE PLANE
RGB 3
IMPEDANCE PLANE
PALETTE COLOR 1
MULTIFREQUENCY
Value 4 contains information about the eddy current exami-
nation mode. The defined terms for value 4 are:
7.2.1.2 For NDE EC Images, Photometric Interpretation
ABSOLUTE
(0028,0004) is specified to use the following defined terms. See
DIFFERENTIAL
Part 3 Section C.7.6 of the DICOM standard for definitions of
DOUBLE DIFF
the terms:
TANG CROSS AXIS
MONOCHROME2
REFLECTION
PALETTE COLOR
RGB
7.2.1.9 Pixel Data Type (0018,6014) provides Enumerated
Values indicating the type of data encoded in the pixel data
7.2.1.3 For NDE EC Images, Bits Allocated (0028,0100) is
values.
specified to use the following values for specified Photometric
Value Meaning Value Meaning
Interpretations.
0000H= None or not 0001H= Impedance
TABLE 6 NDE EC Image Bits Allocated
applicable
Photometric Interpretation Bits Allocated Value
0002H= Inductance 0003H= Voltage
MONOCHROME2 8 or 16
0004H= Current 0005H= Field Intensity
RGB 8
0006H= Flux Density 0007H= Phase
PALETTE COLOR 8-8 bit palette or 16-16 bit palette
0008H= Frequency 0009H= Time
000AH= Electrical 000BH= Magnetic
Conductivity Permeability
000CH= Thickness
7.2.1.4 For NDE EC Images, Bits Stored (0028,0101) is
specified to use the following values for specified Photometric
Interpretations.
7.2.1.10 Rescale Type (0028,1054) provides Enumerated
TABLE 7 NDE EC Image Bits Stored
Values indicating the units for the output transformation on the
Photometric Interpretation Bits Stored Value
pixel data defined by the Rescale Intercept (0028,1052) and
MONOCHROME2 8 or 16
Rescale Slope (0028,1053).
RGB 8
PALETTE COLOR 8-8 bit palette or 16-16 bit palette
Value Meaning Value Meaning
NA= None or not OHM= ohms
applicable
HEN= henries VOL= volts
7.2.1.5 For NDE EC Images, Planar Configuration (0028,
AMP= amperes AMM= ampere/metre
0006) is specified to use the following values for specified TES= tesla DEG= degrees
HZ= hertz SEC= seconds
Photometric Interpretations.
SIM= siemens/metre HEM= henries/metre
TABLE 8 NDE EC Planar Configuration
MM= millimetre
Photometric Interpretation Planar Configuration Value
RGB 0–color by pixel, or 1–color by plane
7.2.1.11 Physica
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

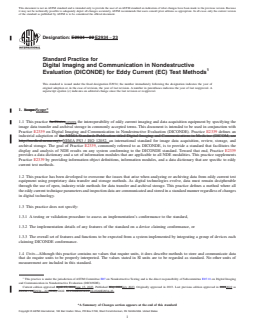

Designation: E2934 − 22 E2934 − 23
Standard Practice for
Digital Imaging and Communication in Nondestructive
Evaluation (DICONDE) for Eddy Current (EC) Test Methods
This standard is issued under the fixed designation E2934; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 This practice facilitatescovers the interoperability of eddy current imaging and data acquisition equipment by specifying the
image data transfer and archival storage in commonly accepted terms. This document is intended to be used in conjunction with
Practice E2339 on Digital Imaging and Communication in Nondestructive Evaluation (DICONDE). Practice E2339 defines an
industrial adaptation of the NEMA Standards Publication titled Digital Imaging and Communications in Medicine (DICOM, see
http://medical.nema.org), NEMA PS3 / ISO 12052, an international standard for image data acquisition, review, storage, and
archival storage. The goal of Practice E2339, commonly referred to as DICONDE, is to provide a standard that facilitates the
display and analysis of NDE results on any system conforming to the DICONDE standard. Toward that end, Practice E2339
provides a data dictionary and a set of information modules that are applicable to all NDE modalities. This practice supplements
Practice E2339 by providing information object definitions, information modules, and a data dictionary that are specific to eddy
current test methods.
1.2 This practice has been developed to overcome the issues that arise when analyzing or archiving data from eddy current test
equipment using proprietary data transfer and storage methods. As digital technologies evolve, data must remain decipherable
through the use of open, industry-wide methods for data transfer and archival storage. This practice defines a method where all
the eddy current technique parameters and inspection data are communicated and stored in a standard manner regardless of changes
in digital technology.
1.3 This practice does not specify:
1.3.1 A testing or validation procedure to assess an implementation’s conformance to the standard,
1.3.2 The implementation details of any features of the standard on a device claiming conformance, or
1.3.3 The overall set of features and functions to be expected from a system implemented by integrating a group of devices each
claiming DICONDE conformance.
1.4 Units—Although this practice contains no values that require units, it does describe methods to store and communicate data
that do require units to be properly interpreted. The values stated in SI units are to be regarded as standard. No other units of
measurement are included in this standard.
This practice is under the jurisdiction of ASTM Committee E07 on Nondestructive Testing and is the direct responsibility of Subcommittee E07.11 on Digital Imaging
and Communication in Nondestructive Evaluation (DICONDE).
Current edition approved April 15, 2022June 15, 2023. Published May 2022July 2023. Originally approved in 2013. Last previous edition approved in 20182022 as
E2934 – 14E2934 – 22.(2018). DOI: 10.1520/E2934-22.10.1520/E2934-23.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

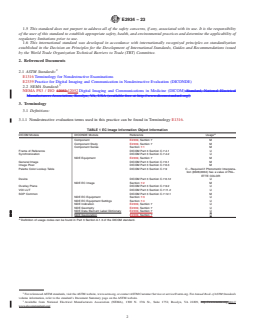

E2934 − 23
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
E1316 Terminology for Nondestructive Examinations
E2339 Practice for Digital Imaging and Communication in Nondestructive Evaluation (DICONDE)
2.2 NEMA Standard:
NEMA PS3 / ISO 12052,12052 Digital Imaging and Communications in Medicine (DICOM) Standard, National Electrical
Manufacturers Association, Rosslyn, VA, USA (available free at http://www.dicomstandard.org/)
3. Terminology
3.1 Definitions:
3.1.1 Nondestructive evaluation terms used in this practice can be found in Terminology E1316.
TABLE 1 EC Image Information Object Information
A
DICOM Module DICONDE Module Reference Usage
Component E2339, Section 7 M
Component Study E2339, Section 7 M
Component Series Section 7.1 M
Frame of Reference DICOM Part 3 Section C.7.4.1 U
Synchronization DICOM Part 3 Section C.7.4.2 U
NDE Equipment E2339, Section 7 M
General Image DICOM Part 3 Section C.7.6.1 M
Image Pixel DICOM Part 3 Section C.7.6.3 M
Palette Color Lookup Table DICOM Part 3 Section C.7.9 C – Required if Photometric Interpreta-
tion (0028,0004) has a value of PAL-
ETTE COLOR
Device DICOM Part 3 Section C.7.6.12 U
NDE EC Image Section 7.2 M
Overlay Plane DICOM Part 3 Section C.7.9.2 U
VOI LUT DICOM Part 3 Section C.7.11.2 U
SOP Common DICOM Part 3 Section C.7.12.1 M
NDE EC Equipment Section 7.3 U
NDE EC Equipment Settings Section 7.4 U
NDE Indication E2339, Section 7 U
NDE Geometry E2339, Section 7 U
NDE Data Element Label Dictionary E2339, Section 7 U
NDE Geolocation E2339, Section 7 U
A
Definition of usage codes can be found in Part 3 Section A.1.3 of the DICOM standard.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from National Electrical Manufacturers Association (NEMA), 1300 N. 17th St., Suite 1752, Rosslyn, VA 22209, http://www.nema.org.http://
www.dicomstandard.org/

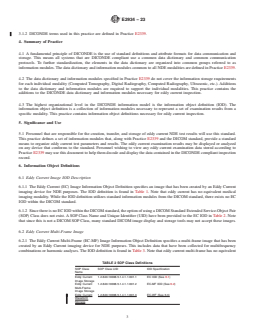

E2934 − 23
3.1.2 DICONDE terms used in this practice are defined in Practice E2339.
4. Summary of Practice
4.1 A fundamental principle of DICONDE is the use of standard definitions and attribute formats for data communication and
storage. This means all systems that are DICONDE compliant use a common data dictionary and common communication
protocols. To further standardization, the elements in the data dictionary are organized into common groups referred to as
information modules. The data dictionary and information modules common to all NDE modalities are defined in Practice E2339.
4.2 The data dictionary and information modules specified in Practice E2339 do not cover the information storage requirements
for each individual modality (Computed Tomography, Digital Radiography, Computed Radiography, Ultrasonic, etc.). Additions
to the data dictionary and information modules are required to support the individual modalities. This practice contains the
additions to the DICONDE data dictionary and information modules necessary for eddy current inspection.
4.3 The highest organizational level in the DICONDE information model is the information object definition (IOD). The
information object definition is a collection of information modules necessary to represent a set of examination results from a
specific modality. This practice contains information object definitions necessary for eddy current inspection.
5. Significance and Use
5.1 Personnel that are responsible for the creation, transfer, and storage of eddy current NDE test results will use this standard.
This practice defines a set of information modules that, along with Practice E2339 and the DICOM standard, provide a standard
means to organize eddy current test parameters and results. The eddy current examination results may be displayed or analyzed
on any device that conforms to the standard. Personnel wishing to view any eddy current examination data stored according to
Practice E2339 may use this document to help them decode and display the data contained in the DICONDE compliant inspection
record.
6. Information Object Definitions
6.1 Eddy Current Image IOD Description
6.1.1 The Eddy Current (EC) Image Information Object Definition specifies an image that has been created by an Eddy Current
imaging device for NDE purposes. The IOD definition is found in Table 1. Note that eddy current has no equivalent medical
imaging modality. While the IOD definition utilizes standard information modules from the DICOM standard, there exists no EC
IOD within the DICOM standard.
6.1.2 Since there is no EC IOD within the DICOM standard, the option of using a DICOM Standard Extended Service-Object Pair
(SOP) Class does not exist. A SOP Class Name and Unique Identifier (UID) have been provided to the EC IOD in Table 2. Note
that since this is not a DICOM SOP Class, many standard DICOM image display and storage tools may not accept these images.
6.2 Eddy Current Multi-Frame Image
6.2.1 The Eddy Current Multi-Frame (EC-MF) Image Information Object Definition specifies a multi-frame image that has been
created by an Eddy Current imaging device for NDE purposes. This includes data that have been collected for multifrequency
combinations or harmonic analyses. The IOD definition is found in Table 3. Note that eddy current multi-frame has no equivalent
TABLE 2 SOP Class Definitions
SOP Class SOP Class UID IOD Specification
Name
Eddy Current 1.2.840.10008.5.1.4.1.1.601.1 EC IOD (See 6.1)
Image Storage
Eddy Current 1.2.840.10008.5.1.4.1.1.601.2 EC-MF IOD (See 6.2)
Multi-Frame
Image Storage
Eddy Current 1.2.840.10008.5.1.4.1.1.601.3 EC-WF (See 6.3)
Waveform
Storage

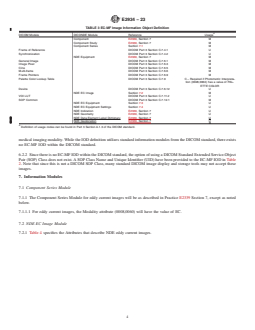

E2934 − 23
TABLE 3 EC-MF Image Information Object Definition
A
DICOM Module DICONDE Module Reference Usage
Component E2339, Section 7 M
Component Study E2339, Section 7 M
Component Series Section 7.1 M
Frame of Reference DICOM Part 3 Section C.7.4.1 U
Synchronization DICOM Part 3 Section C.7.4.2 U
NDE Equipment E2339, Section 7 M
General Image DICOM Part 3 Section C.7.6.1 M
Image Pixel DICOM Part 3 Section C.7.6.3 M
Cine DICOM Part 3 Section C.7.6.5 M
Multi-frame DICOM Part 3 Section C.7.6.6 M
Frame Pointers DICOM Part 3 Section C.7.6.9 M
Palette Color Lookup Table DICOM Part 3 Section C.7.9 C – Required if Photometric Interpreta-
tion (0028,0004) has a value of PAL-
ETTE COLOR
Device DICOM Part 3 Section C.7.6.12 U
NDE EC Image Section 7.2 M
VOI LUT DICOM Part 3 Section C.7.11.2 U
SOP Common DICOM Part 3 Section C.7.12.1 M
NDE EC Equipment Section 7.3 U
NDE EC Equipment Settings Section 7.4 U
NDE Indication E2339, Section 7 U
NDE Geometry E2339, Section 7 U
NDE Data Element Label Dictionary E2339, Section 7 U
NDE Geolocation E2339, Section 7 U
A
Definition of usage codes can be found in Part 3 Section A.1.3 of the DICOM standard.
medical imaging modality. While the IOD definition utilizes standard information modules from the DICOM standard, there exists
no EC-MF IOD within the DICOM standard.
6.2.2 Since there is no EC-MF IOD within the DICOM standard, the option of using a DICOM Standard Extended Service-Object
Pair (SOP) Class does not exist. A SOP Class Name and Unique Identifier (UID) have been provided to the EC-MF IOD in Table
2. Note that since this is not a DICOM SOP Class, many standard DICOM image display and storage tools may not accept these
images.
7. Information Modules
7.1 Component Series Module
7.1.1 The Component Series Module for eddy current images will be as described in Practice E2339 Section 7, except as noted
below.
7.1.1.1 For eddy current images, the Modality attribute (0008,0060) will have the value of EC.
7.2 NDE EC Image Module
7.2.1 Table 4 specifies the Attributes that describe NDE eddy current images.
E2934 − 23
TABLE 4 NDE EC Image Module Attributes
Attribute Name Tag VR VM Type Description
Samples per pixel (0028,0002) US 1 1 Number of samples per pixel in this image.
See 7.2.1.1.
Photometric (0028,0004) CS 1 1 Specifies the intended interpretation of the
Interpretation pixel data. See 7.2.1.2.
Bits Allocated (0028,0100) US 1 1 Number of bits allocated for each pixel data.
See 7.2.1.3.
Bits Stored (0028,0101) US 1 1 Number of bits stored for each pixel data.
See 7.2.1.4.
High Bit (0028,0102) US 1 1 Most significant bit for pixel data.
Planar Configuration (0028,0006) US 1 1C Indicates whether the pixel data is sent color
by plane or color by pixel. Required if
Samples Per Pixel (0028, 0002) has a value
greater than 1. See 7.2.1.5.
Pixel Representation (0028,0103) US 1 1 Representation of pixel data. See 7.2.1.6.
Frame Increment (0028,0009) AT 1-n 1C Contains the Data Element Tag of the
Pointer attribute that is used as the frame increment
in multi-frame pixel data. Required if number
of frames is sent. See 7.2.1.7.
Image Type (0008,0008) CS 1-n 1 Image identification characteristics. See
7.2.1.8.
Image Comments (0020,4000) LT 1 3 User-defined comments about the image.
Lossy Image (0028,2110) CS 1 1C Specifies whether an image has undergone
Compression lossy compression. Enumerated Values:
00 = NO lossy compression 01 = Lossy
compression
Required if lossy compression has been
performed on the image.
Lossy Image (0028,2112) DS 1-n 1C Describes the approximate lossy compression
Compression Ratio ratio(s) that have been applied to this image.
Required if image has been subjected to
lossy compression.
Lossy Image (0028,2114) CS 1-n 1C A label for the lossy compression methods(s)
Compression Method that have been applied to this image.
Required if image has been subjected to
lossy compression.
Number of Surfaces (0008,2124) IS 1 3 Number of distinct scan surfaces on the
inspection specimen.
Number of Total (0008,212A) IS 1 3 Number of examination channels associated
Channels in this scan surface
Surface Name (0008,2120) SH 1 3 Name of this scan surface
Surface Number (0008,2122) IS 1 3 Number of this scan surface
Channel Name (0008,2127) SH 1 3 Name of this examination channel
Channel Number (0008,2128) IS 1 3 Number of this examination channel
Pixel Data Type (0018,6014) US 1 3 The type of data encoded in the pixel data.
See 7.2.1.9. for enumerated values.
Pixel Value (0028,9145) SQ 1 3 Contains the attributes involved in the
Transformation transformation of stored pixel values to
Sequence physical units.
Only a single item shall be included in this
Sequence.
Pixel Value (0028,9145) SQ 1 3 Contains the attributes involved in the
Transformation transformation of stored pixel values to
Sequence physical units.
Only a single item is permitted in this
Sequence.
>Rescale Intercept (0028,1052) DS 1 1C The value b in relationship between pixel
values (PV) and output units.
Output units = m*PV+b
Required value if sequence is present.
>Rescale Slope (0028,1053) DS 1 1C Parameter m in the equation specified by
Rescale Intercept (0028,1052)
Required value if sequence is present.
>Rescale Type (0028,1054) LO 1 1C Specifies the output unit of Rescale Slope
(0028, 1053) and Rescale Intercept
(0028,1052). See 7.2.1.10 for list of units.
Required value if sequence is present.
Acquisition Date/Time (0008,002A) DT 1 3 The date and time that the acquisition of data
that resulted in this image started.
Physical Units X (0018,6024) US 1 1 The physical units of the dimension of the
Direction region. See 7.2.1.11 for valid values.
Physical Units Y (0018,6026) US 1 1 The physical units of the dimension of the
Direction region. See 7.2.1.11 for valid values.
E2934 − 23
TABLE 4 Continued
Attribute Name Tag VR VM Type Description
Physical Delta X (0018,602C) FD 1 1 The physical value per positive X pixel
increment. The units are as specified in the
Physical Units X Direction (0018,6024) See
7.2.1.12.
Physical Delta Y (0018,602E) FD 1 1 The physical value per positive Y pixel
increment. The units are as specified in the
Physical Units Y Direction (0018,6024) See
7.2.1.12.
7.2.1.1 For NDE EC Images, Samples per Pixel (0028,0002) is specified to use the following values for specified Photometric
Interpretations.
TABLE 5 NDE EC Image Samples Per Pixel
Photometric Interpretation Samples Per Pixel value
MONOCHROME2 1
COMPLEX VALUES 2
RGB 3
PALETTE COLOR 1
7.2.1.2 For NDE EC Images, Photometric Interpretation (0028,0004) is specified to use the following defined terms. See Part 3
Section C.7.6 of the DICOM standard for definitions of the terms:
MONOCHROME2
PALETTE COLOR
RGB
7.2.1.3 For NDE EC Images, Bits Allocated (0028,0100) is specified to use the following values for specified Photometric
Interpretations.
TABLE 6 NDE EC Image Bits Allocated
Photometric Interpretation Bits Allocated Value
MONOCHROME2 8 or 16
RGB 8
PALETTE COLOR 8-8 bit palette or 16-16 bit palette
7.2.1.4 For NDE EC Images, Bits Stored (0028,0101) is specified to use the following values for specified Photometric
Interpretations.
TABLE 7 NDE EC Image Bits Stored
Photometric Interpretation Bits Stored Value
MONOCHROME2 8 or 16
RGB 8
PALETTE COLOR 8-8 bit palette or 16-16 bit palette
7.2.1.5 For NDE EC Images, Planar Configuration (0028,0006) is specified to use the following values for specified Photometric
Interpretations.
TABLE 8 NDE EC Planar Configuration
Photometric Interpretation Planar Configuration Value
RGB 0–color by pixel, or 1–color by plane
E2934 − 23
7.2.1.6 For NDE EC Images, Pixel Representation (0028,0103) is specified to use the following Enumerated Value:
0000H = unsigned integer
0001H = signed integer
7.2.1.7 For NDE EC multi-frame images, the Attribute Frame Increment Pointer (0028,0009) of the Multi-frame Module (See
DICOM Part 3 Section C.7.6.6) is specified by the following defined terms:
00181063 = sequencing by Frame Time (0018,1063)
00181065 = sequencing by Frame Time Vector (0018,1065)
7.2.1.8 For NDE EC Images, Image Type (0008,0008) is specified to be Type 1. The defined terms for Valuevalue 3 are:
C SCAN
B SCAN
A SCAN
STRIP CHART
PHASE PLANE
IMPEDANCE PLANE
MULTIFREQUENCY
Value 4 contains information about the eddy current examination mode. The defined terms for Valuevalue 4 are:
ABSOLUTE
DIFFERENTIAL
DOUBLE DIFF
TANG CROSS AXIS
REFLECTION
7.2.1.9 Pixel Data Type (0018,6014) provides Enumerated Values indicating the type of data encoded in the pixel data values.
Value Meaning Value Meaning
0000H= None or not applicable 0001H= Impedance
0002H= Inductance 0003H= Voltage
0004H= Current 0005H= Field Intensity
0006H= Flux Density 0007H= Phase
0008H= Frequency 0009H= Time
000AH= Electrical Conductivity 000BH= Magnetic Permeability
000CH= Thickness
7.2.1.10 Rescale Type (0028,1054) provides Enumerated Values indicating the units for the output transformation on the pixel data
defined by the Rescale Intercept (0028,1052) and Rescale Slope (0028,1053).
Value Meaning Value Meaning
NA= None or not applicable OHM= ohms
HEN= henries VOL= volts
AMP= amperes AMM= ampere/meter
AMP= amperes AMM= ampere/metre
TES= tesla DEG= Degrees
TES= tesla DEG= degrees
HZ= hertz SEC= Seconds
HZ= hertz SEC= seconds
SIM= siemens/meter HEM= henries/meter
SIM= siemens/metre HEM= henries/metre
MM= millimeter
MM= millimetre
E2934 − 23
7.2.1.11 Physical Units X Direction (0018,6024) and Physical Units Y Direction (0018,6026) provide Enumerated
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
