ASTM B221-21

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

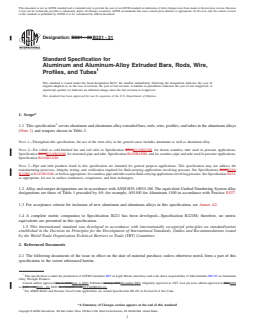

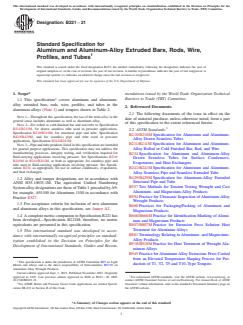

Designation: B221 − 20 B221 − 21
Standard Specification for
Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire,
Profiles, and Tubes
This standard is issued under the fixed designation B221; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification covers aluminum and aluminum-alloy extruded bars, rods, wire, profiles, and tubes in the aluminum alloys
(Note 1) and tempers shown in Table 2.
NOTE 1—Throughout this specification, the use of the term alloy in the general sense includes aluminum as well as aluminum alloy.
NOTE 2—For rolled or cold-finished bar and rod refer to Specification B211B211/B211M, for drawn seamless tube used in pressure applications,
Specification B210B210/B210M, for structural pipe and tube, Specification B429/B429M, and for seamless pipe and tube used in pressure applications,
Specification B241/B241M.
NOTE 3—Pipe and tube products listed in this specification are intended for general purpose applications. This specification may not address the
manufacturing processes, integrity testing, and verification required for fluid-carrying applications involving pressure. See Specifications B210B210/
B210M or B241/B241M, or both as appropriate, for seamless pipe and tube used in fluid-carrying applications involving pressure. See Specification B234,
as appropriate, for use in surface condensers, evaporators, and heat exchangers.
1.2 Alloy and temper designations are in accordance with ANSI H35.1/H35.1M. The equivalent Unified Numbering System alloy
designations are those of Table 1 preceded by A9; for example, A91100 for Aluminum 1100 in accordance with Practice E527.
1.3 For acceptance criteria for inclusion of new aluminum and aluminum alloys in this specification, see Annex A2.
1.4 A complete metric companion to Specification B221 has been developed—Specification B221M; therefore, no metric
equivalents are presented in this specification.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 The following documents of the issue in effect on the date of material purchase, unless otherwise noted, form a part of this
specification to the extent referenced herein:
This specification is under the jurisdiction of ASTM Committee B07 on Light Metals and Alloys and is the direct responsibility of Subcommittee B07.03 on Aluminum
Alloy Wrought Products.
Current edition approved Dec. 1, 2020Sept. 1, 2021. Published January 2021November 2021. Originally approved in 1947. Last previous edition approved in 20142020
as B221 – 14.B221 – 20. DOI: 10.1520/B0221-20.10.1520/B0221-21.
For ASME Boiler and Pressure Vessel Code applications see related Specification SB-221 in Section II of this Code.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B221 − 21

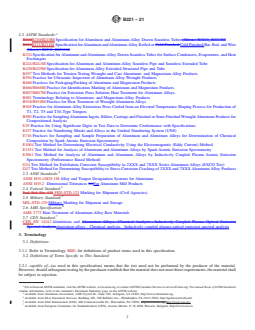

2.2 ASTM Standards:
B210B210/B210M Specification for Aluminum and Aluminum-Alloy Drawn Seamless Tubes (Metric) B0210_B0210M
B211B211/B211M Specification for Aluminum and Aluminum-Alloy Rolled or Cold-Finished Cold Finished Bar, Rod, and Wire
(Metric) B0211_B0211M
B234 Specification for Aluminum and Aluminum-Alloy Drawn Seamless Tubes for Surface Condensers, Evaporators, and Heat
Exchangers
B241/B241M Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Tube
B429/B429M Specification for Aluminum-Alloy Extruded Structural Pipe and Tube
B557 Test Methods for Tension Testing Wrought and Cast Aluminum- and Magnesium-Alloy Products
B594 Practice for Ultrasonic Inspection of Aluminum-Alloy Wrought Products
B660 Practices for Packaging/Packing of Aluminum and Magnesium Products
B666/B666M Practice for Identification Marking of Aluminum and Magnesium Products
B807/B807M Practice for Extrusion Press Solution Heat Treatment for Aluminum Alloys
B881 Terminology Relating to Aluminum- and Magnesium-Alloy Products
B918/B918M Practice for Heat Treatment of Wrought Aluminum Alloys
B945 Practice for Aluminum Alloy Extrusions Press Cooled from an Elevated Temperature Shaping Process for Production of
T1, T2, T5 and T10–Type Tempers
B985 Practice for Sampling Aluminum Ingots, Billets, Castings and Finished or Semi-Finished Wrought Aluminum Products for
Compositional Analysis
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)
E716 Practices for Sampling and Sample Preparation of Aluminum and Aluminum Alloys for Determination of Chemical
Composition by Spark Atomic Emission Spectrometry
E1004 Test Method for Determining Electrical Conductivity Using the Electromagnetic (Eddy Current) Method
E1251 Test Method for Analysis of Aluminum and Aluminum Alloys by Spark Atomic Emission Spectrometry
E3061 Test Method for Analysis of Aluminum and Aluminum Alloys by Inductively Coupled Plasma Atomic Emission
Spectrometry (Performance Based Method)
G34 Test Method for Exfoliation Corrosion Susceptibility in 2XXX and 7XXX Series Aluminum Alloys (EXCO Test)
G47 Test Method for Determining Susceptibility to Stress-Corrosion Cracking of 2XXX and 7XXX Aluminum Alloy Products
2.3 ANSI Standards:
ANSI H35.1/H35.1M Alloy and Temper Designation Systems for Aluminum
ANSI H35.2 Dimensional Tolerances forFor Aluminum Mill Products
2.4 Federal Standard:
Fed. Std. No. 123 FED-STD-123 Marking for Shipment (Civil Agencies)
2.5 Military Standard:
MIL-STD-129 Military Marking for Shipment and Storage
2.6 AMS Specification:
AMS 2772 Heat Treatment of Aluminum Alloy Raw Materials
2.7 CEN Standard:
CEN EN 14242 Aluminium and Aluminium Alloys—Chemical Analysis—Inductively Coupled Plasma Optical Emission
Spectral Analysisaluminium alloys - Chemical analysis - Inductively coupled plasma optical emission spectral analysis
3. Terminology
3.1 Definitions:
3.1.1 Refer to Terminology B881 for definitions of product terms used in this specification.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 capable of—(as used in this specification) means that the test need not be performed by the producer of the material.
However, should subsequent testing by the purchaser establish that the material does not meet these requirements, the material shall
be subject to rejection.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from Aluminum Association, 1400 Crystal Dr., Suite 430, Arlington, VA 22202, http://www.aluminum.org.
Available from DLA Document Services, Building 4/D, 700 Robbins Ave., Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
Available from SAE International (SAE), 400 Commonwealth Dr., Warrendale, PA 15096, http://www.sae.org.http://www.sae.org.
Available from European Committee for Standardization (CEN), Avenue Marnix 17, B-1000, Brussels, Belgium, http://www.cen.eu.
B221 − 21

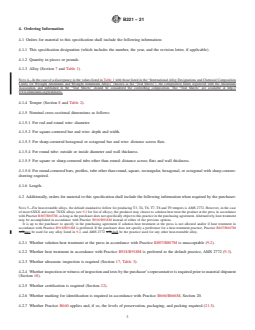

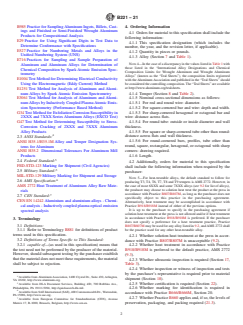

4. Ordering Information
4.1 Orders for material to this specification shall include the following information:
4.1.1 This specification designation (which includes the number, the year, and the revision letter, if applicable).
4.1.2 Quantity in pieces or pounds.
4.1.3 Alloy (Section 7 and Table 1).
NOTE 4—In the case of a discrepancy in the values listed in Table 1 with those listed in the “International Alloy Designations and Chemical Composition
Limits for Wrought Aluminum and Wrought Aluminum Alloys” (known as the “Teal Sheets”), the composition limits registered with the Aluminum
Association and published in the “Teal Sheets” should be considered the controlling composition. The “Teal Sheets” are available at http://
www.aluminum.org/tealsheets.
4.1.4 Temper (Section 8 and Table 2).
4.1.5 Nominal cross-sectional dimensions as follows:
4.1.5.1 For rod and round wire: diameter.
4.1.5.2 For square-cornered bar and wire: depth and width.
4.1.5.3 For sharp-cornered hexagonal or octagonal bar and wire: distance across flats.
4.1.5.4 For round tube: outside or inside diameter and wall thickness.
4.1.5.5 For square or sharp-cornered tube other than round: distance across flats and wall thickness.
4.1.5.6 For round-cornered bars, profiles, tube other than round, square, rectangular, hexagonal, or octagonal with sharp corners:
drawing required.
4.1.6 Length.
4.2 Additionally, orders for material to this specification shall include the following information when required by the purchaser:
NOTE 5—For heat-treatable alloys, the default standard to follow for producing T3, T4, T6, T7, T8 and T9 tempers is AMS 2772. However, in the case
of most 6XXX and some 7XXX alloys (see 9.2 for list of alloys), the producer may choose to solution heat treat the product at the press in accordance
with Practice B807/B807M, as long as the purchaser does not specifically object to this practice in the purchasing agreement. Alternatively, heat treatment
may be accomplished in accordance with Practice B918/B918M instead of either of the previous options.
It is up to the purchaser to specify in the purchasing agreement if solution heat treatment at the press is not allowed and/or if heat treatment in
accordance with Practice B918/B918M is preferred. If the purchaser does not specify a preference for a heat treatment practice, Practice B807/B807M
willmay be used for any alloy listed in 9.2, and AMS 2772 willshall be the practice used for any other heat-treatable alloy.
4.2.1 Whether solution heat treatment at the press in accordance with Practice B807/B807M is unacceptable (9.2).
4.2.2 Whether heat treatment in accordance with Practice B918/B918M is preferred to the default practice, AMS 2772 (9.3).
4.2.3 Whether ultrasonic inspection is required (Section 17, Table 3).
4.2.4 Whether inspection or witness of inspection and tests by the purchaser’s representative is required prior to material shipment
(Section 18).
4.2.5 Whether certification is required (Section 22).
4.2.6 Whether marking for identification is required in accordance with Practice B666/B666M, Section 20.
4.2.7 Whether Practice B660 applies and, if so, the levels of preservation, packaging, and packing required (21.3).
B221 − 21
A,B,C,V

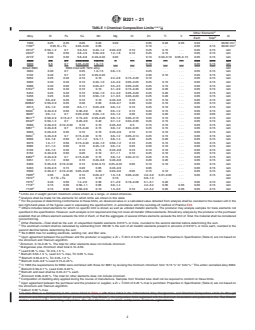

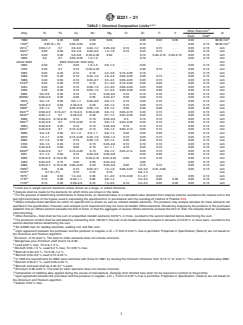

TABLE 1 Chemical Composition Limits
D
Other Elements
Alloy Si Fe Cu Mn Mg Cr Zn Ti V Al
E
Each Total
F
1060 0.25 0.35 0.05 0.03 0.03 . . . 0.05 0.03 0.05 0.03 . . . 99.60 min
G F
1100 0.95 Si + Fe 0.05–0.20 0.05 . . . . . . 0.10 . . . . 0.05 0.15 99.00 min
H
2014 0.50–1.2 0.7 3.9–5.0 0.40–1.2 0.20–0.8 0.10 0.25 0.15 . . . 0.05 0.15 rem
H
2024 0.50 0.50 3.8–4.9 0.30–0.9 1.2–1.8 0.10 0.25 0.15 . . . 0.05 0.15 rem
I
2219 0.20 0.30 5.8–6.8 0.20–0.40 0.02 . . . 0.10 0.02–0.10 0.05–0.15 0.05 0.15 rem
3003 0.6 0.7 0.05–0.20 1.0–1.5 . . . . 0.10 . . . . . . 0.05 0.15 rem
3003 0.6 0.7 0.05–0.20 1.0–1.5 . . . . . . 0.10 . . . . . . 0.05 0.15 rem
Alclad 3003 . . . 3003 Clad with 7072 alloy . . . . . . . . . . . . . . . . . . . . . rem
3004 0.30 0.7 0.25 1.0–1.5 0.8–1.3 . . . 0.25 . . . . . . 0.05 0.15 rem
3102 0.40 0.7 0.10 0.05–0.40 . . . . . . 0.30 0.10 . . . 0.05 0.15 rem
5052 0.25 0.40 0.10 0.10 2.2–2.8 0.15–0.35 0.10 . . . . . . 0.05 0.15 rem
5083 0.40 0.40 0.10 0.40–1.0 4.0–4.9 0.05–0.25 0.25 0.15 . . . 0.05 0.15 rem
5086 0.40 0.50 0.10 0.20–0.7 3.5–4.5 0.05–0.25 0.25 0.15 . . . 0.05 0.15 rem
G
5154 0.25 0.40 0.10 0.10 3.1–3.9 0.15–0.35 0.20 0.20 . . . 0.05 0.15 rem
5454 0.25 0.40 0.10 0.50–1.0 2.4–3.0 0.05–0.20 0.25 0.20 . . . 0.05 0.15 rem
5456 0.25 0.40 0.10 0.50–1.0 4.7–5.5 0.05–0.20 0.25 0.20 . . . 0.05 0.15 rem
6005 0.6–0.9 0.35 0.10 0.10 0.40–0.6 0.10 0.10 0.10 . . . 0.05 0.15 rem
J
6005A 0.50–0.9 0.35 0.30 0.50 0.40–0.7 0.30 0.20 0.10 . . . 0.05 0.15 rem
6013 0.6–1.0 0.50 0.6–1.1 0.20–0.8 0.8–1.2 0.10 0.25 0.10 . . . 0.05 0.15 rem
K
6020 0.40–0.9 0.50 0.30–0.9 0.35 0.6–1.2 0.15 0.20 0.15 . . . 0.05 0.15 rem
L
6026 0.6–1.4 0.7 0.20–0.50 0.20–1.0 0.6–1.2 0.30 0.30 0.20 . . . 0.05 0.05 rem
M
6041 0.50–0.9 0.15–0.7 0.15–0.6 0.05–0.20 0.8–1.2 0.05–0.15 0.25 0.15 . . . 0.05 0.15 rem
N
6042 0.50–1.2 0.7 0.20–0.6 0.40 0.7–1.2 0.04–0.35 0.25 0.15 . . . 0.05 0.15 rem
6060 0.30–0.6 0.10–0.30 0.10 0.10 0.35–0.6 0.5 0.15 0.10 . . . 0.05 0.15 rem
O
6061 0.40–0.8 0.7 0.15–0.40 0.15 0.8–1.2 0.04–0.35 0.25 0.15 . . . 0.05 0.15 rem
6063 0.20–0.6 0.35 0.10 0.10 0.45–0.9 0.10 0.10 0.10 . . . 0.05 0.15 rem
P
6064 0.40–0.8 0.7 0.15–0.40 0.15 0.8–1.2 0.05–0.14 0.25 0.15 . . . 0.05 0.15 rem
6066 0.9–1.8 0.50 0.7–1.2 0.6–1.1 0.8–1.4 0.40 0.25 0.20 . . . 0.05 0.15 rem
6070 1.0–1.7 0.50 0.15–0.40 0.40–1.0 0.50–1.2 0.10 0.25 0.15 . . . 0.05 0.15 rem
6082 0.7–1.3 0.50 0.10 0.40–1.0 0.6–1.2 0.25 0.20 0.10 . . . 0.05 0.15 rem
6105 0.6–1.0 0.35 0.10 0.15 0.45–0.8 0.10 0.10 0.10 . . . 0.05 0.15 rem
6162 0.40–0.8 0.50 0.20 0.10 0.7–1.1 0.10 0.25 0.10 . . . 0.05 0.15 rem
Q
6262 0.40–0.8 0.7 0.15–0.40 0.15 0.8–1.2 0.04–0.14 0.25 0.15 . . . 0.05 0.15 rem
6351 0.7–1.3 0.50 0.10 0.40–0.8 0.40–0.8 . . . 0.20 0.20 . . . 0.05 0.15 rem
6360 0.35–0.8 0.10–0.30 0.15 0.02–0.15 0.25–0.45 0.05 0.10 0.10 . . . 0.05 0.15 rem
6463 0.20–0.6 0.15 0.20 0.05 0.45–0.9 . . . 0.05 . . . . . . 0.05 0.15 rem
6560 0.30–0.7 0.10–0.30 0.05–0.20 0.20 0.20–0.6 0.05 0.15 0.10 . . . 0.05 0.15 rem
R
7005 0.35 0.40 0.10 0.20–0.7 1.0–1.8 0.06–0.20 4.0–5.0 0.01–0.06 . . . 0.05 0.15 rem
S
7072 0.7 Si + Fe 0.10 0.10 0.10 . 0.8–1.3 . . . . rem
T
7075 0.40 0.50 1.2–2.0 0.30 2.1–2.9 0.18–0.28 5.1–6.1 0.20 . . . 0.05 0.15 rem
U
7116 0.15 0.30 0.50–1.1 0.05 0.8–1.4 . 4.2–5.2 0.05 0.05 0.05 0.15 rem
U
7129 0.15 0.30 0.50–0.9 0.10 1.3–2.0 0.10 4.2–5.2 0.05 0.05 0.05 0.15 rem
A
Limits are in weight percent maximum unless shown as a range, or stated otherwise.
B
Analysis shall be made for the elements for which limits are shown in this table.
C
For the purpose of determining conformance to these limits, an observed value or a calculated value obtained from analysis shall be rounded to the nearest unit in the
last right-hand place of the figures used in expressing the specified limit, in accordance with the rounding-off method of Practice E29.
D
Others includes listed elements for which no specific limit is shown as well as unlisted metallic elements. The producer may analyze samples for trace elements not
specified in the specification. However, such analysis is not required and may not cover all metallic Others elements. Should any analysis by the producer or the purchaser
establish that an Others element exceeds the limit of Each, or that the aggregate of several Others elements exceeds the limit of Total, the material shall be considered
nonconforming.
E
Other Elements—Total shall be the sum of unspecified metallic elements 0.010 % or more, rounded to the second decimal before determining the sum.
F
The aluminum content shall be calculated by subtracting from 100.00 % the sum of all metallic elements present in amounts of 0.010 % or more each, rounded to the
second decimal before determining the sum.
G
Be 0.0003 max for welding electrode, welding rod, and filler wire.
H
Upon agreement between the purchaser and the producer or supplier, a Zr + Ti limit of 0.20 % max is permitted. Properties in Specification (Table 2) are not based on
the Zirconium and Titanium algorithm.
I
Zirconium, 0.10–0.25 %. The total for other elements does not include zirconium.
J
Manganese plus chromium shall total 0.12–0.50.
K
Lead 0.05 % max, Tin 0.9–1.5 %.
L
Bismuth 0.50–1.5 %, Lead 0.4 % max, Tin 0.05 % max.
M
Bismuth 0.30–0.9 %, Tin 0.35–1.2 %.
N
Bismuth 0.20–0.8 % Lead 0.15–0.40 %.
O
In 1965 the requirements for 6062 were combined with those for 6061 by revising the minimum chromium from “0.15 %” to“ 0.04 %.” This action cancelled alloy 6062.
P
Bismuth 0.50–0.7 %, Lead 0.20–0.40 %,
Q
Bismuth and lead shall be 0.40–0.7 % each.
R
Zirconium 0.08–0.20 %. The total for other elements does not include zirconium.
S
Composition of cladding alloy applied during the course of manufacture. Samples from finished tube shall not be required to conform to these limits.
T
Upon agreement between the purchaser and the producer or supplier, a Zr + Ti limit of 0.25 % max is permitted. Properties in Specification (Table 2) are not based on
the Zirconium and Titanium algorithm.
U
Gallium 0.03 % max.
V
In case there is a discrepancy in the values listed in Table 1 with those listed in the “International Alloy Designations and Chemical Composition Limits for Wrought
Aluminum and Wrought Aluminum Alloys” (known as the “Teal Sheets”), the composition limits registered with the Aluminum Association and published in the “Teal Sheets”
shall be considered the controlling composition. The “Teal Sheets” are available at http://www.aluminum.org/tealsheets.
B221 − 21
A,B

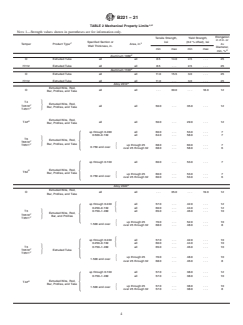

TABLE 2 Mechanical Property Limits
NOTE 1—Strength values shown in parentheses are for information only.
Elongation
Tensile Strength, Yield Strength,
in 2 inches
Specified Section or ksi (0.2 % offset), ksi
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
D
Aluminum 1060
E
Aluminum 1060
O Extruded Tube all all 8.5 14.0 2.5 . . . 25
H112 Extruded Tube all all 8.5 . . . 2.5 . . . 25
D
Aluminum 1100
E
Aluminum 1100
O Extruded Tube all all 11.0 15.5 3.0 . . . 25
H112 Extruded Tube all all 11.0 . . . 3.0 . . . 25
D
Alloy 2014
E
Alloy 2014
Extruded Wire, Rod,
O all all . . . 30.0 . . . 18.0 12
Bar, Profiles, and Tube
T4
Extruded Wire, Rod,
E
J all all 50.0 . . . 35.0 . . . 12
T4510
Bar, Profiles, and Tube
E
T4511
T4
Extruded Wire, Rod,
F
all all 50.0 . . . 35.0 . . . 12
T4510 J
Bar, Profiles, and Tube
F
T4511
Extruded Wire, Rod,
F
T42 all all 50.0 . . . 29.0 . . . 12
Bar, Profiles, and Tube
Extruded Wire, Rod,
G
T42 all all 50.0 . . . 29.0 . . . 12
Bar, Profiles, and Tube
up through 0.499 all 60.0 . . . 53.0 . . . 7
0.500–0.749 all 64.0 . . . 58.0 . . . 7
T6
Extruded Wire, Rod,
E
up
T6510 J
Bar, Profiles, and Tube
E
through all 60.0 . . .53.0. . . 7
T6511
0.499 all 64.0 . . .58.0. . . 7
T6 Extruded Wire, Rod,
0.500–0.749
F
Bar, Profiles, and
T6510 J
F
T6511 Tube
up through 25 68.0 . . . 60.0 . . . 7
H
0.750 and over
over 25 through 32 68.0 . . . 58.0 . . . 6
up through 0.749 all 60.0 . . . 53.0 . . . 7
Extruded Wire, Rod,
F
T62
up
Bar, Profiles, and Tube
through all 60.0 . . .53.0. . . 7
Extruded Wire, Rod,
0.749
G
T62 Bar, Profiles, and
Tube 5
up through 25 60.0 . . . 53.0 . . . 7
H
0.750 and over
over 25 through 32 60.0 . . . 53.0 . . . 6
D
Alloy 2024
E
Alloy 2024
Extruded Wire, Rod,
O all all . . . 35.0 . . . 19.0 12
Bar, Profiles, and Tube
4.2.8 Requirements for tensile property and dimensional tolerance for sizes not specifically covered (8.1.3 and 15.1.1).
4.2.9 Whether Titanium and Zirconium algorithm is allowed as shown in Table 1 (Footnote H), when ordering 2014 or 2024.
4.2.10 Whether Titanium and Zirconium algorithm is allowed as shown in Table 1 (Footnote T), when ordering 7075.
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
up through 0.249 all 57.0 . . . 42.0 . . . 12
0.250–0.749 all 60.0 . . . 44.0 . . . 12
H
0.750–1.499 all 65.0 . . . 46.0 . . . 10
T3
Extruded Wire, Rod,
E
T3510 J
Bar, and Profiles up
E
T3511
through all 57.0 . . .42.0. . .12
0.249 all 60.0 . . .44.0. . .12
H
T3 0.250–0.749 all 65.0 . . .46.0. . .10
Extruded Wire, Rod,
F
J 0.750–1.499
T3510
Bar, and Profiles
F
T3511 5
up through 25 70.0 . . . 52.0 . . . 10
H
1.500 and over
over 25 through 32 68.0 . . . 48.0 . . . 8
up through 0.249 all 57.0 . . . 42.0 . . . 10
0.250–0.749 all 60.0 . . . 44.0 . . . 10
H
0.750–1.499 all 65.0 . . . 46.0 . . . 10
T3
E
Extruded Tube
T3510 J
E up
T3511
through all 57.0 . . .42.0. . .10
0.249 all 60.0 . . .44.0. . .10
H
0.250–0.749 all 65.0 . . .46.0. . .10
T3
F
Extruded Tube
T3510 J 0.750–1.499
F
T3511
up through 25 70.0 . . . 48.0 . . . 10
H
1.500 and over
over 25 through 32 68.0 . . . 46.0 . . . 8
up through 0.749 all 57.0 . . . 38.0 . . . 12
0.750–1.499 all 57.0 . . . 38.0 . . . 10
Extruded Wire, Rod,
F
up
T42
Bar, Profiles, and Tube
through all 57.0 . . .38.0. . .12
0.749 all 57.0 . . .38.0. . .10
Extruded Wire, Rod,
0.750–1.499
G
T42 Bar, Profiles, and
Tube 5
up through 25 57.0 . . . 38.0 . . . 10
H
1.500 and over
over 25 through 32 57.0 . . . 38.0 . . . 8
D
Alloy 2024 (Continued)
E
Alloy 2024 (Continued)
0.050–0.249 all 64.0 . . . 56.0 . . . 4
T81
Extruded Wire, Rod,
E
0.250–1.499 all 66.0 . . . 58.0 . . . 5
T8510 J H
Bar, Profiles, and Tube
E
T8511 1.500 and over up through 32 66.0 . . . 58.0 . . . 5
0.050–0.249 all 64.0 . . . 56.0 . . . 4
T81
Extruded Wire, Rod,
F
0.250–1.499 all 66.0 . . . 58.0 . . . 5
T8510 J H
Bar, Profiles, and Tube
F
T8511 1.500 and over up through 32 66.0 . . . 58.0 . . . 5
D
Alloy 2219
E
Alloy 2219
Extruded Wire, Rod,
O all all . . . 32.0 . . . 18.0 12
Bar, Profiles, and Tube
T31
Extruded Wire, Rod, up through 0.499 up through 25 42.0 . . . 26.0 . . . 14
E
H
T3510 J
Bar, Profiles, and Tube 0.500–2.999 up through 25 45.0 . . . 27.0 . . . 14
E
T3511
T31
Extruded Wire, Rod, up through 0.499 up through 25 42.0 . . . 26.0 . . . 14
F
H
T3510 J
Bar, Profiles, and Tube 0.500–2.999 up through 25 45.0 . . . 27.0 . . . 14
F
T3511
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
Extruded Wire, Rod, up through 0.999 up through 25 54.0 . . . 36.0 . . . 6
F
H
T62
Bar, Profiles, and Tube 1.000 and over up through 25 54.0 . . . 36.0 . . . 6
Extruded Wire, Rod, up through 0.999 up through 25 54.0 . . . 36.0 . . . 6
G
H
T62
Bar, Profiles, and Tube 1.000 and over up through 25 54.0 . . . 36.0 . . . 6
T81
Extruded Wire, Rod,
E
up through 2.999 up through 25 58.0 . . . 42.0 . . . 6
T8510 J
Bar, Profiles, and Tube
E
T8511
T81
Extruded Wire, Rod,
F
up through 2.999 up through 25 58.0 . . . 42.0 . . . 6
T8510 J
Bar, Profiles, and Tube
F
T8511
D
Alloy 3003
E
Alloy 3003
Extruded Wire, Rod,
O all all 14.0 19.0 5.0 . . . 25
Bar, Profiles, and Tube
Extruded Wire, Rod,
H112 all all 14.0 . . . 5.0 . . . . . .
Bar, and Profiles
H112 Extruded Tube all all 14.0 . . . 5.0 . . . 25
D
Alloy Alclad 3003
E
Alloy Alclad 3003
O Extruded Tube all all 13.0 18.0 4.5 . . . 25
I
H112 Extruded Tube all all 13.0 . . . 4.5 . . . 25
D
Alloy 3004
E
Alloy 3004
O Extruded Tube all all 23.0 29.0 8.5 . . . . . .
Alloy 3102
J
H112 Extruded Tube 0.028–0.050 all 11.0 18.0 4.0 . . . 25
H112 Extruded Tube 0.028–0.050 all 11.0 18.0 4.0 . . . 25
D
Alloy 5052
E
Alloy 5052
O Extruded Tube all all 25.0 35.0 10.0 . . . . . .
D
Alloy 5083
E
Alloy 5083
Extruded Wire, Rod,
K
O up through 5.000 up through 32 39.0 51.0 16.0 . . . 14
Bar, and Profiles
Extruded Wire, Rod,
O up through 5.000 up through 32 39.0 51.0 16.0 . . . 14
Bar, and Profiles
Extruded Wire, Rod,
K
H111 up through 5.000 up through 32 40.0 . . . 24.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
H111 up through 5.000 up through 32 40.0 . . . 24.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
K
H112 up through 5.000 up through 32 39.0 . . . 16.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
H112 up through 5.000 up through 32 39.0 . . . 16.0 . . . 12
Bar, and Profiles
G
O Extruded Tube up through 2.999 up through 32 39.0 51.0 16.0 . . . 14
H
O Extruded Tube up through 2.999 up through 32 39.0 51.0 16.0 . . . 14
G
H111 Extruded Tube up through 2.999 up through 32 40.0 . . . 24.0 . . . 12
H
H111 Extruded Tube up through 2.999 up through 32 40.0 . . . 24.0 . . . 12
G
H112 Extruded Tube up through 2.999 up through 32 39.0 . . . 16.0 . . . 12
H
H112 Extruded Tube up through 2.999 up through 32 39.0 . . . 16.0 . . . 12
D
Alloy 5086
E
Alloy 5086
Extruded Wire, Rod,
K
O up through 5.000 up through 32 35.0 46.0 14.0 . . . 14
Bar, and Profiles
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
Extruded Wire, Rod,
O up through 5.000 up through 32 35.0 46.0 14.0 . . . 14
Bar, and Profiles
Extruded Wire, Rod,
K
H111 up through 5.000 up through 32 36.0 . . . 21.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
H111 up through 5.000 up through 32 36.0 . . . 21.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
K
H112 up through 5.000 up through 32 35.0 . . . 14.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
H112 up through 5.000 up through 32 35.0 . . . 14.0 . . . 12
Bar, and Profiles
G
O Extruded Tube up through 2.999 up through 32 35.0 46.0 14.0 . . . 14
H
O Extruded Tube up through 2.999 up through 32 35.0 46.0 14.0 . . . 14
D
Alloy 5086 (Continued)
E
Alloy 5086 (Continued)
G
H111 Extruded Tube up through 2.999 up through 32 36.0 . . . 21.0 . . . 12
H
H111 Extruded Tube up through 2.999 up through 32 36.0 . . . 21.0 . . . 12
G
H112 Extruded Tube up through 2.999 up through 32 35.0 . . . 14.0 . . . 12
H
H112 Extruded Tube up through 2.999 up through 32 35.0 . . . 14.0 . . . 12
Alloy 5154
Extruded Wire, Rod,
O all all 30.0 41.0 11.0 . . . . . .
Bar, Profiles, and Tube
Extruded Wire, Rod,
H112 all all 30.0 . . . 11.0 . . . . . .
Bar, Profiles, and Tube
D
Alloy 5454
E
Alloy 5454
Extruded Wire, Rod,
K
O up through 5.000 up through 32 31.0 41.0 12.0 . . . 14
Bar, and Profiles
Extruded Wire, Rod,
O up through 5.000 up through 32 31.0 41.0 12.0 . . . 14
Bar, and Profiles
Extruded Wire, Rod,
K
H111 up through 5.000 up through 32 33.0 . . . 19.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
H111 up through 5.000 up through 32 33.0 . . . 19.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
K
H112 up through 5.000 up through 32 31.0 . . . 12.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
H112 up through 5.000 up through 32 31.0 . . . 12.0 . . . 12
Bar, and Profiles
G
O Extruded Tube up through 2.999 up through 32 31.0 41.0 12.0 . . . 14
H
O Extruded Tube up through 2.999 up through 32 31.0 41.0 12.0 . . . 14
G
H111 Extruded Tube up through 2.999 up through 32 33.0 . . . 19.0 . . . 12
H
H111 Extruded Tube up through 2.999 up through 32 33.0 . . . 19.0 . . . 12
G
H112 Extruded Tube up through 2.999 up through 32 31.0 . . . 12.0 . . . 12
H
H112 Extruded Tube up through 2.999 up through 32 31.0 . . . 12.0 . . . 12
D
Alloy 5456
E
Alloy 5456
Extruded Wire, Rod,
K
O up through 5.000 up through 32 41.0 53.0 19.0 . . . 14
Bar, and Profiles
Extruded Wire, Rod,
O up through 5.000 up through 32 41.0 53.0 19.0 . . . 14
Bar, and Profiles
Extruded Wire, Rod,
K
H111 up through 5.000 up through 32 42.0 . . . 26.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
H111 up through 5.000 up through 32 42.0 . . . 26.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
K
H112 up through 5.000 up through 32 41.0 . . . 19.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
H112 up through 5.000 up through 32 41.0 . . . 19.0 . . . 12
Bar, and Profiles
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
G
O Extruded Tube up through 2.999 up through 32 41.0 53.0 19.0 . . . 14
I
O Extruded Tube up through 2.999 up through 32 41.0 53.0 19.0 . . . 14
G
H111 Extruded Tube up through 2.999 up through 32 42.0 . . . 26.0 . . . 12
I
H111 Extruded Tube up through 2.999 up through 32 42.0 . . . 26.0 . . . 12
G
H112 Extruded Tube up through 2.999 up through 32 41.0 . . . 19.0 . . . 12
I
H112 Extruded Tube up through 2.999 up through 32 41.0 . . . 19.0 . . . 12
Alloy 6005
Extruded Wire, Rod,
T1 up through 0.500 all 25.0 . . . 15.0 . . . 16
Bar, Profiles, and Tube
Extruded Wire, Rod, up through 0.124 all 38.0 . . . 35.0 . . . 8
H
T5
Bar, Profiles, and Tube 0.125–1.000 all 38.0 . . . 35.0 . . . 10
Alloy 6005A
Extruded Wire, Rod,
T1 up through 0.249 all 25.0 . . . 14.5 . . . 15
Bar, Profiles, and Tube
Extruded Wire, Rod, up through 0.249 all 38.0 . . . 31.0 . . . 7
H
T5
Bar, Profiles, and Tube 0.250–0.999 all 38.0 . . . 31.0 . . . 9
Extruded Wire, Rod, up through 0.249 all 38.0 . . . 35.0 . . . 8
H
T61
Bar, Profiles, and Tube 0.250–1.000 all 38.0 . . . 35.0 . . . 10
Alloy 6013
0.200–0.499 all 49.0 . . . 46.0 . . . 8
T6 Extruded Wire, Rod,
J
0.500–0.749 all 49.0 . . . 46.0 . . . 8
H
F
T6511 Bar, Profiles, and Tube
0.750–2.000 all 49.0 . . . 45.0 . . . 8
Alloy 6020
F
T6511 Extruded Rod and Bar 3.250–6.000 all 38.0 . . . 35.0 . . . 10
Alloy 6026
T6
E
Extruded Profiles 0.200–1.500 all 49.0 . . . 38.0 . . . 6
T6510 J
E
T6511
T6
F
Extruded Profiles 0.200–1.500 all 49.0 . . . 38.0 . . . 6
T6510 J
F
T6511
T6
E
Extruded Tube 0.400–1.300 all 49.0 . . . 38.0 . . . 6
T6510, J
E
T6511
T6
F
Extruded Tube 0.400–1.300 all 49.0 . . . 38.0 . . . 6
T6510 J
F
T6511
T6 1.300–5.500 all 54.0 . . . 44.0 . . . 6
Extruded Wire, Rod,
E
5.501–8.000 all 49.0 . . . 36.0 . . . 6
T6510 J H
and Bar
E
T6511
8.001-10.000 all 44.0 . . . 29.0 . . . 6
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
1.300–5.500 all 54.0 . . . 44.0 . . . 6
T6
Extruded Wire, Rod,
F
5.501–8.000 all 49.0 . . . 36.0 . . . 6
T6510 J H
and Bar
F
T6511
8.001-10.000 all 44.0 . . . 29.0 . . . 6
Alloy 6041
Extruded Rod,
E
T6, T6511 0.400–2.000 all 45.0 . . . 40.0 . . . 10
Bar, and Profiles
Extruded Rod,
F
T6, T6511 0.400–2.000 all 45.0 . . . 40.0 . . . 10
Bar, and Profiles
Alloy 6042
Extruded Rod, 0.400–0.499 all 38.0 . . . 35.0 . . . 10
E
T5, T5511
Bar, and Profiles Extruded Rod, 0.400–0.499 all 38.0 . . .35.0. . .10
F
T5, T5511
0.500–1.800 all 42.0 Bar, and Profiles . . . 35.0 . . . 10
Alloy 6060
Extruded Wire, Rod,
T51 up through 0.125 all 22.0 . . . 16.0 . . . 8
Bar, and Profiles
Extruded Wire, Rod, up through 0.124 30.0 . . . 25.0 . . . 8
H
T61
Bar, and Profiles 0.125–1.000 30.0 . . . 25.0 . . . 10
D
Alloy 6061
E
Alloy 6061
Extruded Wire, Rod,
O all all . . . 22.0 . . . 16.0 16
Bar, Profiles, and Tube
Extruded Wire, Rod,
T1 up through 0.625 all 26.0 . . . 14.0 . . . 16
Bar, Profiles, and Tube
T4
Extruded Wire, Rod,
E
T4510 J all all 26.0 . . . 16.0 . . . 16
Bar, Profiles, and Tube
E
T4511
T4
Extruded Wire, Rod,
F
T4510 J all all 26.0 . . . 16.0 . . . 16
Bar, Profiles, and Tube
F
T4511
Extruded Wire, Rod,
F
T42 all all 26.0 . . . 12.0 . . . 16
Bar, Profiles, and Tube
Extruded Wire, Rod,
G
T42 all all 26.0 . . . 12.0 . . . 16
Bar, Profiles, and Tube
Extruded Wire, Rod,
T51 up through 0.625 all 35.0 . . . 30.0 . . . 8
Bar, Profiles, and Tube
F
T6, T62
Extruded Wire, Rod, up through 0.249 all 38.0 . . . 35.0 . . . 8
E
T6510, J
E Bar, Profiles, and Tube 0.250 and over all 38.0 . . . 35.0 . . . 10
T6511
G
T6, T62
Extruded Wire, Rod, up through 0.249 all 38.0 . . . 35.0 . . . 8
F
T6510 J
F Bar, Profiles, and Tube 0.250 and over all 38.0 . . . 35.0 . . . 10
T6511
Alloy 6063
Extruded Wire, Rod,
O all all . . . 19.0 . . . . . . 18
Bar, Profiles, and Tube
Extruded Wire, Rod, up through 0.500 all 17.0 . . . 9.0 . . . 12
H
T1
Bar, Profiles, and Tube 0.501–1.000 all 16.0 . . . 8.0 . . . 12
Extruded Wire, Rod, up through 0.500 all 19.0 . . . 10.0 . . . 14
F
H
T4, T42
Bar, Profiles, and Tube 0.501–1.000 all 18.0 . . . 9.0 . . . 14
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
Extruded Wire, Rod, up through 0.500 all 19.0 . . . 10.0 . . . 14
G
H
T4, T42
Bar, Profiles, and Tube 0.501–1.000 all 18.0 . . . 9.0 . . . 14
. . . . . .
Alloy 6063 (Continued)
Extruded Wire, Rod, up through 0.500 all 22.0 . . . 16.0 . . . 8
H
T5
Bar, Profiles, and Tube 0.501–1.000 all 21.0 . . . 15.0 . . . 8
Extruded Wire, Rod,
T52 up through 1.000 all 22.0 30.0 16.0 25.0 8
Bar, Profiles, and Tube
Extruded Wire, Rod, up through 0.124 all 33.0 . . . 30.0 . . . 8
H
T54
Bar, Profiles, and Tube 0.125–0.499 all 33.0 . . . 30.0 . . . 10
Extruded Wire, Rod, up through 0.124 all 30.0 . . . 25.0 . . . 8
F
H
T6, T62
Bar, Profiles, and Tube 0.125–1.000 all 30.0 . . . 25.0 . . . 10
Extruded Wire, Rod, up through 0.124 all 30.0 . . . 25.0 . . . 8
G
H
T6, T62
Bar, Profiles, and Tube 0.125–1.000 all 30.0 . . . 25.0 . . . 10
Extruded Wire, Rod,
T65 up through 0.182 all 36.0 . . . 33.0 . . . 8
Bar, Profiles, and Tube
Alloy 6064
Extruded Rod, Bar,
F
T6, T6511 0.180–3.250 all 42.0 . . . 38.0 . . . 10
and Profiles
Alloy 6066
Extruded Wire, Rod,
O all all 29.0 . . . 18.0 16
Bar, Profiles, and Tube
T4
Extruded Wire, Rod,
T4510 J all all 40.0 . . . 25.0 . . . 14
Bar, Profiles, and Tube
E
T4511
T4
Extruded Wire, Rod,
F
all all 40.0 . . . 25.0 . . . 14
T4510 J
Bar, Profiles, and Tube
F
T4511
Extruded Wire, Rod,
F
T42 all all 40.0 . . . 24.0 . . . 14
Bar, Profiles, and Tube
Extruded Wire, Rod,
G
T42 all all 40.0 . . . 24.0 . . . 14
Bar, Profiles, and Tube
T6
Extruded Wire, Rod,
T6510 all all 50.0 . . . 45.0 . . . 8
J
Bar, Profiles, and Tube
E
T6511
T6
Extruded Wire, Rod,
F
all all 50.0 . . . 45.0 . . . 8
T6510 J
Bar, Profiles, and Tube
F
T6511
Extruded Wire, Rod,
F
T62 all all 50.0 . . . 42.0 . . . 8
Bar, Profiles, and Tube
Extruded Wire, Rod,
G
T62 all all 50.0 . . . 42.0 . . . 8
Bar, Profiles, and Tube
Alloy 6070
Extruded Wire, Rod,
F
T6, T62 up through 2.999 up through 32 48.0 . . . 45.0 . . . 6
Bar, Profiles, and Tube
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
Extruded Wire, Rod,
G
T6, T62 up through 2.999 up through 32 48.0 . . . 45.0 . . . 6
Bar, Profiles, and Tube
Alloy 6082
0.200–0.750 all 45.0 . . . 38.0 . . . 6
Extruded Wire, Rod,
F
T6, T6511 0.751–6.000 all 45.0 . . . 38.0 . . . 8
H
Bar, and Profiles
6.001–8.000 all 41.0 . . . 35.0 . . . 6
T6 Extruded Tube 0.200–1.000 all 45.0 . . . 38.0 . . . 8
Alloy 6105
Extruded Wire, Rod,
T1 up through 0.500 all 25.0 . . . 15.0 . . . 16
Bar, Profiles, and Tube
Extruded Wire, Rod,
H
T5 up through 0.500 all 38.0 . . . 35.0 . . . 8
Bar, Profiles, and Tube
Extruded Wire, Rod,
T6 up through 0.500 all 38.0 . . . 35.0 . . . 8
Bar, and Profiles
Alloy 6162
T5
Extruded Wire, Rod,
E
up thru 1.000 all 37.0 . . . 34.0 . . . 7
T5510 J
Bar, Profiles, and Tube
E
T5511
T5
Extruded Wire, Rod,
F
up thru 1.000 all 37.0 . . . 34.0 . . . 7
T5510 J
Bar, Profiles, and Tube
F
T5511
T6
Extruded Wire, Rod, up thru 0.249 all 38.0 . . . 35.0 . . . 8
E
H
J
T6510
Bar, Profiles, and Tube 0.250–0.499 all 38.0 . . . 35.0 . . . 10
E
T6511
T6
Extruded Wire, Rod, up thru 0.249 all 38.0 . . . 35.0 . . . 8
F
H
T6510 J
Bar, Profiles, and Tube 0.250–0.499 all 38.0 . . . 35.0 . . . 10
F
T6511
Alloy 6262
F
T6, T62,
Extruded Wire, Rod,
E
T6510 all all 38.0 . . . 35.0 . . . 10
J
E Bar, Profiles, and Tube
T6511
G
T6, T62
Extruded Wire, Rod,
F
T6510 all all 38.0 . . . 35.0 . . . 10
J
F Bar, Profiles, and Tube
T6511
Alloy 6351
Extruded Wire, Rod,
T1 up through 0.499 up through 20 26.0 . . . 13.0 . . . 15
Bar, and Profiles
Extruded Wire, Rod,
T11 up through 0.749 all 26.0 . . . 16.0 . . . 16
Bar, and Profiles
Extruded Wire, Rod,
T4 up through 0.749 all 32.0 . . . 19.0 . . . 16
Bar, Profiles, and Tube
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
Extruded Wire, Rod, up through 0.249 all 38.0 . . . 35.0 . . . 8
H
T5
Bar, and Profiles 0.250–1.000 all 38.0 . . . 35.0 . . . 10
Extruded Wire, Rod,
T51 0.125–1.000 up through 20 36.0 . . . 33.0 . . . 10
Bar, and Profiles
Extruded Wire, Rod,
T54 up through 0.500 up through 20 30.0 . . . 20.0 . . . 10
Bar, and Profiles
Extruded Wire, Rod, up through 0.124 all 42.0 . . . 37.0 . . . 8
H
T6
Bar, Profiles, and Tube 0.125–0.749 all 42.0 . . . 37.0 . . . 10
Alloy 6360
Extruded Wire, Rod,
T5 up through 0.250 all 22.0 . . . 16.0 . . . 8
Bar, and Profiles
Extruded Wire, Rod, up through 0.120 all 30.0 . . . 25.0 . . . 8
H
T6
Bar, and Profiles 0.121–0.250 all 30.0 . . . 25.0 . . . 10
Alloy 6463
Extruded Wire, Rod,
T1 up through 0.500 up through 20 17.0 . . . 9.0 . . . 12
Bar, and Profiles
Extruded Wire, Rod,
T5 up through 0.500 up through 20 22.0 . . . 16.0 . . . 8
Bar, and Profiles
Extruded Wire, Rod, up through 0.124 up through 20 30.0 . . . 25.0 . . . 8
F
H
T6, T62
Bar, and Profiles 0.125–0.500 up through 20 30.0 . . . 25.0 . . . 10
Extruded Wire, Rod, up through 0.124 up through 20 30.0 . . . 25.0 . . . 8
G
H
T6, T62
Bar, and Profiles 0.125–0.500 up through 20 30.0 . . . 25.0 . . . 10
Alloy 6560
Extruded Wire, Rod,
T5 0.090–0.125 all 22.0 . 16.0 . 8
Bar, Profiles, and Tube
Extruded Wire, Rod,
T6 0.090–0.125 all 30.0 . 25.0 . 8
Bar, Profiles, and Tube
Alloy 7005
Extruded Wire, Rod,
T53 up through 0.750 all 50.0 . . . 44.0 . . . 10
Bar, and Profiles
D
Alloy 7075
E
Alloy 7075
Extruded Wire, Rod,
O all all . . . 40.0 . . . 24.0 10
Bar, Profiles, and Tube
up through 0.249 all 78.0 . . . 70.0 . . . 7
0.250–0.499 all 81.0 . . . 73.0 . . . 7
0.500–1.499 all 81.0 . . . 72.0 . . . 7
1.500–2.999 all 81.0 . . . 72.0 . . . 7
up
through all 78.0 . . .70.0. . . 7
0.249 all 81.0 . . .73.0. . . 7
F
T6, T62
Extruded Wire, Rod, 0.250–0.499 all 81.0 . . .72.0. . . 7
E
T6510
J
E Bar, and Profiles 0.500–1.499 all 81.0 . . .72.0. . . 7
T6511
G
1.500–2.999
T6, T62
Extruded Wire, Rod,
F
T6510 up
J
F Bar, and Profiles
T6511
through
5 20 81.0 . . .71.0. . . 7
H
3.000–4.499
over 20 78.0 . . .70.0. . . 6
through
4.500–5.000 up through 32 78.0 . . . 68.0 . . . 6
B221 − 21
TABLE 2 Continued
Elongation
Tensile Strength, Yield Strength,
in 2 inches
ksi (0.2 % offset), ksi
Specified Section or
HC 2
Temper Product Type Area, in. 2 in. or 4×
Wall Thickness, in.
Diameter,
min max min max
CD
min, %
up through 0.249 all 78.0 . . . 70.0 . . . 7
F
T6, T62
0.250–0.499 all 81.0 . . . 73.0 . . . 7
E
T6510 Extended Tube
J H
E 0.500–1.499 all 81.0 . . . 72.0 . . . 7
T6511
1.500–2.999 all 81.0 . . . 72.0 . . . 7
up through 0.249 all 78.0 . . . 70.0 . . . 7
G
T6, T62
0.250–0.499 all 81.0 . . . 73.0 . . . 7
F
T6510 Extended Tube
J H
F 0.500–1.499 all 81.0 . . . 72.0 . . . 7
T6511
1.500–2.999 all 81.0 . . . 72.0 . . . 7
0.062–0.249 up through 20 68.0 . . . 58.0 . . . 7
0.250–1.499 up through 25 70.0 . . . 61.0 . . . 8
1.500–2.999 up through 25 69.0 . . . 59.0 . . . 8
up
through
0.062–0.249 up 68.0 . . .58.0. . . 7
0.250–1.499 through 70.0 . . .61.0. . . 8
T73
Extruded Wire, Rod, 1.500–2.999 25 69.0 . . .59.0. . . 8
E
J
T73510
Bar and Profiles up
E
T73511
T73
through
Extruded Wire, Rod,
F
T73510 J
Bar and Profiles 25
F
T73511
up
through
20 68.0 . . .57.0. . . 7
3.000–4.499
over 20 65.0 . . .55.0. . . 7
through
4.500–5.000 up through 36 65.0 . . . 53.0 . . . 7
0.062–0.249 all 68.0 . . . 58.0 . . . 7
T73
E
Extended Tube 0.250–1.499 up through 25 70.0 . . . 61.0 . . . 8
T73510 J H
E
T73511 1.500–2.999 up through 25 69.0 . . . 59.0 . . . 8
0.062–0.249 all 68.0 . . . 58.0 . . . 7
T73
F
Extended Tube 0.250–1.499 up through 25 70.0 . . . 61.0 . . . 8
T73510 J H
F
T73511 1.500–2.999 up through 25 69.0 . . . 59.0 . . . 8
up through 0.049 all 73.0 . . . 63.0 . . . 7
0.050–0.124 all 74.0 . . . 64.0 . . . 7
0.125–0.249 up through 20 74.0 . . . 64.0 . . . 7
T76
Extruded Wire, Rod, 0.250–0.499 up through 20 75.0 . . . 65.0 . . . 7
E
J
T76510
Bar, and Profiles 0.500–1.000 up through 20 75.0 . . . 65.0 . . . 7
E
T76511
1.001–2.000 up through 20 75.0 . . . 65.0 . . . 7
2.001–3.000 up through 20 74.0 . . . 64.0 . . . 7
3.001–4.000 up through 20 74.0 . . . 63.0 . . . 7
up through 0.049 all 73.0 . . . 63.0 . . . 7
0.050–0.124 all 74.0 . . . 64.0 . . . 7
0.125–0.249 up through 20 74.0 . . . 64.0 . . . 7
T76
Extruded Wire, Rod, 0.250–0.499 up through 20 75.0 . . . 65.0 . . . 7
F
T76510 J
Bar, and Profiles 0.500–1.000 up through 20 75.0 . . . 65.0 . . . 7
F
T76511
1.001–2.000 up through 20 75.0 . . . 65.0 . . . 7
2.001–3.000 up through 20 74.0 . . . 64.0 . . . 7
3.001–4.000 up through 20 74.0 . . . 63.0 . . . 7
Alloy 7116
T5 Extrusion 0.125–0.500 all 48.0 . . . 42.0 . . . 8
Alloy 7129
T5, T6 Extrusion up through 0.500 all 55.0 . . . 49.0 . . . 9
B221 − 21
A
The basis for establishment of tensile property limits is shown in Annex A1.
B
To determine conformance to this specification, each value shall be rounded to the nearest 0.1 ksi for strength and nearest 0.5 % for elongation in accordance with the
rounding-off-method of Practice E29.
C
Product type as specified in by Aluminum Association Registrations found in Yellow Sheets and AS&D
D
Elongation of full-section and cut-out sheet-type specimens is measured in 2 in. Elongation of cut-out round specimens is measured in 4× specimen diameter. See 8.1.1
and 8.1.2 for conditions under which measurements are not required.
E
These alloys are also produced in the F temper for which no tensile properties are specified or guaranteed.
F
For stress relieved tempers (T3510, T3511, T4510, T4511, T5510, T5511, T6510, T6511, T73510, T73511, T76510, T76511, T8510, T8511), characteristics and properties
other than those specified may differ somewhat from the corresponding characteristics and properties of material in the basic tempers.
G
Material in the T42 and T62 tempers is not available from the material producers.
H
Specified wall thickness range is limited to 2.999 in. This differs from Aluminum Standards and Data, which specifies wall thickness range as “All.”
I
Product type as specified in by Aluminum Association Registrations found in Yellow Sheets and AS&D Specified wall thickness range is limited to 2.999 in. This differs
from Aluminum Association Yellow Sheets, which specifies wall thickness range as 5.000 in for all extrusion products.
I
Yield strength is not applicable in tube.
J
Only in tube form.
K
Properties not applicable to extruded tube over 2.999 in wall thickness.
TABLE 3 Ultrasonic Discontinuity Limits for Extruded Bar and
A
Profiles
Max Width:
B
Alloy Thickness, in. Weight, max Thickness Discontinuity
C
per Piece, lb Ratio Class
2024 0.500 and over 600 10:1 B
J
0.500–1.499 600 10:1 B
J
1.500 and over 600 10:1 A
A
Discontinuities in excess of those listed in this table shall be allowed, subject to
the approval of the procuring activity, if it is established that they will be removed
by machining or that they are in noncritical areas.
B
The thickness of any element of a profile shall be deemed to be the smallest
dimension of that element and the discontinuity class applicable to that particular
thickness shall apply to that element of the profile.
C
The discontinuity class limits are defined in Section 11 of Practice B594.
5. Materials and Manufacture
5.1 The products covered by this specification shall be produced by the hot extrusion method or by similar methods at the option
of the producer, p
...
