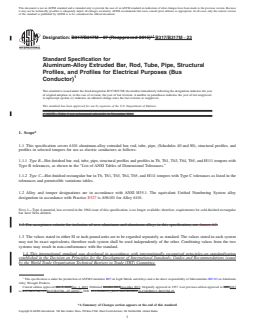

ASTM B317/B317M-23

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
´1

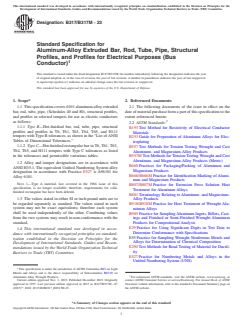

Designation: B317/B317M − 07 (Reapproved 2015) B317/B317M − 23
Standard Specification for
Aluminum-Alloy Extruded Bar, Rod, Tube, Pipe, Structural
Profiles, and Profiles for Electrical Purposes (Bus
Conductor)
This standard is issued under the fixed designation B317/B317M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
ε NOTE—Table 2 was reformatted editorially in November 2016.
1. Scope*
1.1 This specification covers 6101 aluminum-alloy extruded bar, rod, tube, pipe, (Schedules 40 and 80), structural profiles, and
profiles in selected tempers for use as electric conductors as follows:
1.1.1 Type B—Hot-finished bar, rod, tube, pipe, structural profiles and profiles in T6, T61, T63, T64, T65, and H111 tempers with
Type B tolerances, as shown in the “List of ANSI Tables of Dimensional Tolerances.”
1.1.2 Type C—Hot-finished rectangular bar in T6, T61, T63, T64, T65, and H111 tempers with Type C tolerances as listed in the
tolerances and permissible variations tables.
1.2 Alloy and temper designations are in accordance with ANSI H35.1. The equivalent Unified Numbering System alloy
designation in accordance with Practice E527 is A96101 for Alloy 6101.
NOTE 1—Type A material, last covered in the 1966 issue of this specification, is no longer available; therefore, requirements for cold-finished rectangular
bar have been deleted.
1.3 For acceptance criteria for inclusion of new aluminum and aluminum alloys in this specification, see Annex A2.
1.3 The values stated in either SI or inch-pound units are to be regarded separately as standard. The values stated in each system
may not be exact equivalents; therefore each system shall be used independently of the other. Combining values from the two
systems may result in non-conformance with the standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
This specification is under the jurisdiction of ASTM Committee B07 on Light Metals and Alloys and is the direct responsibility of Subcommittee B07.03 on Aluminum
Alloy Wrought Products.
Current edition approved Oct. 1, 2015Nov. 1, 2023. Published October 2015December 2023. Originally approved in 1957. Last previous edition approved in 20072015
ɛ1
as B317/B317M – 07.B317/B317M – 07 (2015) . DOI: 10.1520/B0317_B0317M-07R15E01.10.1520/B0317_B0317M-23.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B317/B317M − 23

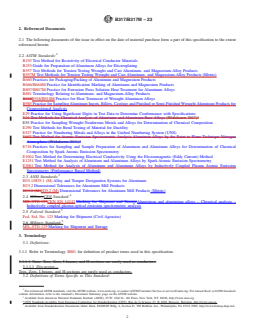

2. Referenced Documents
2.1 The following documents of the issue in effect on the date of material purchase form a part of this specification to the extent
referenced herein:
2.2 ASTM Standards:
B193 Test Method for Resistivity of Electrical Conductor Materials
B253 Guide for Preparation of Aluminum Alloys for Electroplating
B557 Test Methods for Tension Testing Wrought and Cast Aluminum- and Magnesium-Alloy Products
B557M Test Methods for Tension Testing Wrought and Cast Aluminum- and Magnesium-Alloy Products (Metric)
B660 Practices for Packaging/Packing of Aluminum and Magnesium Products
B666/B666M Practice for Identification Marking of Aluminum and Magnesium Products
B807/B807M Practice for Extrusion Press Solution Heat Treatment for Aluminum Alloys
B881 Terminology Relating to Aluminum- and Magnesium-Alloy Products
B918B918/B918M Practice for Heat Treatment of Wrought Aluminum Alloys
B985 Practice for Sampling Aluminum Ingots, Billets, Castings and Finished or Semi-Finished Wrought Aluminum Products for
Compositional Analysis
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E34 Test Methods for Chemical Analysis of Aluminum and Aluminum-Base Alloys (Withdrawn 2017)
E55 Practice for Sampling Wrought Nonferrous Metals and Alloys for Determination of Chemical Composition
E290 Test Methods for Bend Testing of Material for Ductility
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)
E607 Test Method for Atomic Emission Spectrometric Analysis Aluminum Alloys by the Point to Plane Technique Nitrogen
Atmosphere (Withdrawn 2011)
E716 Practices for Sampling and Sample Preparation of Aluminum and Aluminum Alloys for Determination of Chemical
Composition by Spark Atomic Emission Spectrometry
E1004 Test Method for Determining Electrical Conductivity Using the Electromagnetic (Eddy Current) Method
E1251 Test Method for Analysis of Aluminum and Aluminum Alloys by Spark Atomic Emission Spectrometry
E3061 Test Method for Analysis of Aluminum and Aluminum Alloys by Inductively Coupled Plasma Atomic Emission
Spectrometry (Performance Based Method)
2.3 ANSI Standards:
H35.1/H35.1 (M) Alloy and Temper Designation Systems for Aluminum
H35.2 Dimensional Tolerances for Aluminum Mill Products
H35.2 (M)H35.2 (M) Dimensional Tolerances for Aluminum Mill Products (Metric)
2.4 MilitaryCEN Standard:
MIL-STD-129CEN EN 14242 Marking for Shipment and StorageAluminium and aluminium alloys – Chemical analysis –
Inductively coupled plasma optical emission spectrometric analysis
2.5 Federal Standard:
Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
2.6 Military Standard:
MIL-STD-129 Marking for Shipment and Storage
3. Terminology
3.1 Definitions:
3.1.1 Refer to Terminology B881 for definition of product terms used in this specification.
3.1.1.1 Note: Tees, Zees, I-beams, and H-sections are rarely used as conductors.
3.1.1.1 Discussion—
Tees, Zees, I-beams, and H-sections are rarely used as conductors.
3.2 Definitions of Terms Specific to This Standard:
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
CEN Standards:Available from European Committee for Standardization (CEN), Rue de la Science 23, B-1000, Brussels, Belgium, http://www.cen.eu.
Available from Standardization Documents Order Desk, DODSSP, Bldg. 4, Section D, 700 Robbins Ave., Philadelphia, PA 19111-5098, http://www.dodssp.daps.mil.
B317/B317M − 23

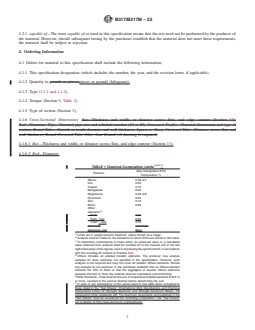

3.2.1 capable of—The term capable of as used in this specification means that the test need not be performed by the producer of
the material. However, should subsequent testing by the purchaser establish that the material does not meet these requirements,
the material shall be subject to rejection.
4. Ordering Information
4.1 Orders for material to this specification shall include the following information:
4.1.1 This specification designation (which includes the number, the year, and the revision letter, if applicable),
4.1.2 Quantity in pounds or pieces,pieces or pounds (kilograms),
4.1.3 Type (1.1.1 and 1.1.2),
4.1.4 Temper (Section 9, Table 2),
4.1.5 Type of section (Section 3),
4.1.6 Cross-Sectional Dimensions: Bar—Thickness and width, or distance across flats, and edge contour (Section 13);
Rod—Diameter; Pipe—Nominal pipe size and schedule number (40 or 80); Structural Profile—Nominal dimensions and type of
section; Round Tube—Outside or inside diameter and wall thickness; Square or Sharp-Cornered Tube—Distance across flats and
wall thickness; Round-Cornered Tube Other than Round—A drawing is required,
4.1.6.1 Bar—Thickness and width, or distance across flats, and edge contour (Section 13);
4.1.6.2 Rod—Diameter;
A,B,C,F

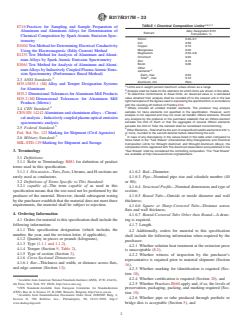

TABLE 1 Chemical Composition Limits
Alloy Designation 6101
Element
Composition, %
Silicon 0.30–0.7
Iron 0.50
Copper 0.10
Manganese 0.03
Magnesium 0.35–0.8
Chromium 0.03
Zinc 0.10
Boron 0.06
Other
D
elements:
Each 0.03
Each, max 0.03
E
Total , max 0.10
Aluminum remainder
Aluminum, min Rem.
A
Limits are in weight percent maximum unless shown as a range.
B
Analysis shall be made for the elements for which limits are shown in this table.
C
To determine conformance to these limits, an observed value or a calculated
value obtained from analysis shall be rounded off to the nearest unit in the last
right-hand place of the figures used in expressing the specified limit, in accordance
with the rounding-off method of Practice E29.
D
Others includes all unlisted metallic elements. The producer may analyze
samples for trace elements not specified in the specification. However, such
analysis is not required and may not cover all metallic Others elements. Should
any analysis by the producer or the purchaser establish that an Others element
exceeds the limit of Each or that the aggregate of several Others elements
exceeds the limit of Total, the material shall be considered nonconforming.
E
Other Elements—Total shall be the sum of unspecified metallic elements 0.010 %
or more, rounded to the second decimal before determining the sum.
F
In case of any discrepancy in the values listed in this table when compared to
those listed in the “Teal Sheets” (International Alloy Designations and Chemical
Composition Limits for Wrought Aluminum and Wrought Aluminum Alloys), the
composition limits registered with The Aluminum Association and published in the
“Teal Sheets” shall be considered the controlling composition. The “Teal Sheets”
are available at http://www.aluminum.org/tealsheets.
B317/B317M − 23
A,B,C

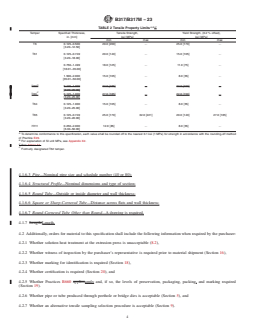

TABLE 2 Tensile Property Limits
Temper Specified Thickness, Tensile Strength, Yield Strength, (0.2 % offset),
in. [mm] ksi [MPa] ksi [MPa]
min max min max
T6 0.125–0.500 29.0 [200] . 25.0 [170] .
[3.20–12.50]
T61 0.125–0.749 20.0 [140] . 15.0 [105] .
[3.20–18.00]
0.750–1.499 18.0 [125] . 11.0 [75] .
[18.01–35.00]
1.500–2.000 15.0 [105] . 8.0 [55] .
[35.01–50.00]
D
T63 0.125–1.000 27.0 [185] . 22.0 [150] .
[3.20–25.00]
C
T63 0.125–1.000 27.0 [185] . 22.0 [150] .
[3.20–25.00]
T64 0.125–1.000 15.0 [105] . 8.0 [55] .
[3.20–25.00]
T65 0.125–0.749 25.0 [170] 32.0 [221] 20.0 [140] 27.0 [185]
[3.20–20.00]
H111 0.250–2.000 12.0 [85] . 8.0 [55] .
[6.30–50.00]
A
To determine conformance to this specification, each value shall be rounded off to the nearest 0.1 ksi (1 MPa) for strength in accordance with the rounding-off method
of Practice E29.
B
For explanation of SI unit MPa, see Appendix X2.
C
See Annex A1.
C
Formerly designated T62 temper.
4.1.6.3 Pipe—Nominal pipe size and schedule number (40 or 80);
4.1.6.4 Structural Profile—Nominal dimensions and type of section;
4.1.6.5 Round Tube—Outside or inside diameter and wall thickness;
4.1.6.6 Square or Sharp-Cornered Tube—Distance across flats and wall thickness;
4.1.6.7 Round-Cornered Tube Other than Round—A drawing is required,
4.1.7 Length,Length.
4.2 Additionally, orders for material to this specification shall include the following information when required by the purchaser:
4.2.1 Whether solution heat treatment at the extrusion press is unacceptable (8.2),
4.2.2 Whether witness of inspection by the purchaser’s representative is required prior to material shipment (Section 16),
4.2.3 Whether marking for identification is required (Section 18),
4.2.4 Whether certification is required (Section 20), and
4.2.5 Whether Practices B660 appliesapply and, if so, the levels of preservation, packaging, packing, and marking required
(Section 19).
4.2.6 Whether pipe or tube produced through porthole or bridge dies is acceptable (Section 5), and
4.2.7 Whether an alternative tensile sampling selection procedure is acceptable (Section 9).
B317/B317M − 23
5. Manufacture
5.1 The bars, rods, tubes, pipes, structural profiles, and profiles shall be produced by hot extrusion or by similar methods at the
option of the producer, provided that the production method results in material that meets all requirements of this specification.
Pipe or tube may be produced through porthole or bridge type dies when specified by the purchaser.
6. Quality Assurance
6.1 Responsibility for Inspection and Tests—Unless otherwise specified in the contract or purchase order, the producer is
responsible for the performance of all inspection and test requirements specified herein. The producer may use his own or any other
suitable facilities for the performance of the inspection and test requirements specified herein, unless disapproved by the purchaser
in the order or at the time of contract signing. The purchaser shall have the right to perform any of the inspections and tests set
forth in this specification where such inspections are deemed necessary to assure that material conforms to prescribed requirements.
6.2 Lot Definition—An inspection lot shall be defined as follows:
6.2.1 For heat-treated tempers, an inspection lot shall consist of an identifiable quantity of material of the same mill form, alloy,
temper, and nominal dimensions traceable to a heat-treat lot or lots, and subjected to inspection at one time.
6.2.2 For nonheat-treated tempers, an inspection lot shall consist of an identifiable quantity of material of the same mill form,
alloy, temper, and nominal dimensions subjected to inspection at one time.
7. Chemical Composition
7.1 Limits—The material shall conform to the chemical composition limits in Table 1. Conformance shall be determined by the
producer by analyzing samples taken at the time ingots are poured, or samples taken from the finished or semifinished product.
If chemical composition has been determined during the course of manufacture, analysis of the finished product shall not be
required.
NOTE 2—It is standard practice in the United States aluminum industry to determine conformance to the chemical composition limits prior to further
processing of ingots into wrought products. Due to the continuous nature of the process, it is not practical to keep a specific ingot analysis identified with
a specific quantity of finished material.
7.2 Number of Samples—If it becomes necessary to analyze bar, rod, tube, pipe, (Schedules 40 and 80), structural profiles, or
profiles for conformance to chemical composition limits, the method used for determination of chemicals composition shall be by
agreement between the producer and purchaser. Analysis shall be performed in accordance with Practices E716, Test Methods
E1251 or E3061, or ECN EN 14242 (ICP Method). The number of samples taken for determination of chemical composition shall
be as follows:
7.2.1 Methods of Sampling—When samples are taken at the time the ingots are poured, at least one sample Samples for chemical
analysis shall be taken for each group ofin accordance with Practice B985ingots poured simultaneously from the same source of
molten metal.
7.2.2 Methods of Analysis—When samples are taken from the finished or semifinished product, a sample shall be taken to represent
each 4000 lb (1800 kg), or fraction thereof, in the lot, except thatAnalysis shall be performed in accordance with Test Method
E1251not more than, Test Method E3061one sample shall be required per piece., or CEN EN 14242 (ICP Method).
7.3 Methods of Sampling—Samples for determination of chemical composition shall be taken in accordance with one of the
following methods:
7.3.1 Samples for chemical analysis shall be taken from the material by sawing, milling, turning, or clipping a representative piece
or pieces to obtain a prepared sample of not less than 75 g. Sampling shall be in accordance with Practice E55.
7.3.2 Sampling for spectrochemical analysis shall be in accordance with Practices E716. Samples for other methods of analysis
shall be taken by methods suitable for the form of material being analyzed and the type of analytical method used.
7.3 Methods of Analysis—The determination of chemical composition shall be made in accordance with suitable chemical (Test
B317/B317M − 23
Methods E34) or spectrochemical (Test Methods E607 and E1251), methods. Other methods may be used only when no published
ASTM method is available. In case of dispute, the methods of analysis shall be agreed uponOther methods of analysis or in the
case of dispute may be by agreement between the producer and purchaser.

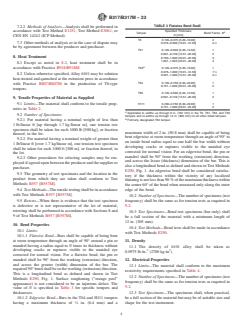

8. Heat Treatment
8.1 Except as noted in 8.2, heat treatment shall be in accordance with Practice B918B918/B918M.
8.2 Unless otherwise specified, Alloy 6101 may be solution heat-treated and quenched at the extrusion press in accordance with
Practice B807/B807M in the production of T6-type tempers.
9. Tensile Properties of Material as Supplied

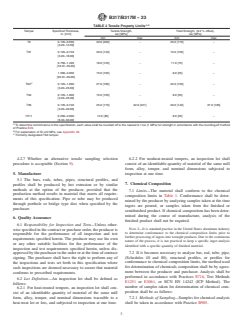

9.1 Limits—The material shall conform to the tensile properties in Table 2.
9.2 Number of Specimens:
9.2.1 For material having a nominal weight of less than 11 lb lb/linear ⁄linear ft [up through 1.71.7 kg kg/linear ⁄linear m], one
tension test specimen shall be taken for each 1000 lb [500 kg], 1000 lb [500 kg], or fraction thereof, in the lot.
9.2.2 For material having a nominal weight of greater than 1 lb/linear ft [over 1.7 kg/linear m], one tension test specimen shall
be taken for each 1000ft1000 ft [300 m], or fraction thereof, in the lot.
9.2.3 Other procedures for selecting samples may be employed if agreed upon between the producer and the supplier or purchaser.
9.3 The geometry of test specimens and the location in the product from which they are taken shall conform to Test Methods B557.
[B557M].
9.4 Test Methods—The tensile testing shall be in accordance with Test MethodMethods B557. [B557M].
9.5 Retests—When there is evidence that the test specimen is defective or is not representative of the lot of material, retesting shall
be performed in accordance with Sections 8 and 9 of Test MethodMethods B557. [B557M].
10. Bend Properties
10.1 Limits:
10.1.1 Flatwise Bends—Bend—Bars shall be capable of being bent at room temperature through an angle of 90° around a pin or
mandrel having a radius equal to N times its thickness without developing cracks or ruptures visible to the unaided eye corrected
for normal vision. For a flatwise bend, the pin or mandrel shall be 90° from the working (extrusion) direction, and across the greater
(width) dimension of the bar. The required 90° bend shall be in the working (extrusion) direction. This is a longi
...
