ASTM F1587-22

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F1587 − 12a (Reapproved 2018) F1587 − 22 An American National Standard
Standard Specification for
Head and Face Protective Equipment for Ice Hockey
Goaltenders
This standard is issued under the fixed designation F1587; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
Ice hockey is a contact sport with intrinsic hazards. The use of protective equipment will not
eliminate all injuries but should substantially reduce the severity and frequency of many injuries.
Participation in the sport of ice hockey by a player implies acceptance of some risk of injury. The goal
is to reduce the risk.
This performance specification for ice hockey goaltender head and face protective equipment has
been prepared after consideration of head and face protection relative to the following principle risks:
high-mass/low-velocity impact with respect to head protection, low-mass/high-velocity with respect to
face protection (various playing situations), and fit. This performance specification may be modified
as other risks are identified.
Performance requirements were determined after consideration of the state of the art of head and
face protective design and manufacture. This specification was developed to address the unique
demands and hazards associated with the position of ice hockey goaltender.
Two types of protectors are designated. Both types are subject to impact resistance and shock
attenuation requirements. Type I protectors are subject to hockey stick blade penetration resistance
requirements over their entire area of coverage. Type II protectors are subject to hockey puck
penetration resistance requirements within the area of the field of vision and hockey stick blade
penetration resistance requirements over the remainder of the area of coverage. It is recommended that
Type II protectors be used only by players 18 years of age and older.
1. Scope
1.1 This performance specification covers performance requirements for ice hockey goaltender head and face protectors.
1.2 The intent of this performance specification is to reduce the risk of injury to the head and face of ice hockey goaltenders
without compromising the form and appeal of the game.
1.3 This specification has requirements for: (1) materials, assembly, and design; (2) protected areas (coverage) and penetration
resistance; (3) shock absorption; (4) puck impact resistance; (5) extensibility and strength of the chin strap and its attachment; and
(6) optical quality.
This specification is under the jurisdiction of ASTM Committee F08 on Sports Equipment, Playing Surfaces, and Facilities and is the direct responsibility of
Subcommittee F08.15 on Ice Hockey.
Current edition approved April 1, 2018June 15, 2022. Published May 2018July 2022. Originally approved in 1995. Last previous edition approved in 20122018 as
F1587 – 12a.F1587 – 12a (2018). DOI: 10.1520/F1587-12AR18.10.1520/F1587-22.
This performance specification is subject to revision as indicated by subsequent injury statistics and subject to review at least every five years.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F1587 − 22
1.4 Units—The values stated in SI units are to be regarded as the standard. No other units of measurement are included in this
standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

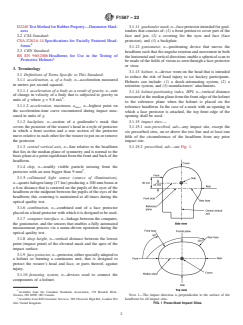

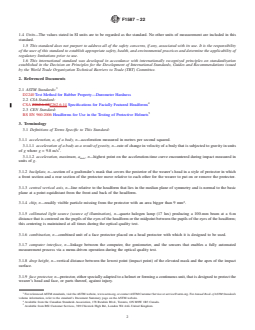

2. Referenced Documents
2.1 ASTM Standards:
D2240 Test Method for Rubber Property—Durometer Hardness
2.2 CSA Standard:
CSA Z262.6-02Z262.6-14 Specifications for Facially Featured Headforms
2.3 CEN Standard:
BS EN 960:2006 Headforms for Use in the Testing of Protective Helmets
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 acceleration, a, of a body, n—acceleration measured in metres per second squared.
3.1.1.1 acceleration of a body as a result of gravity, n—rate of change in velocity of a body that is subjected to gravity in units
of g where g = 9.8 m/s .
3.1.1.2 acceleration, maximum, a , n—highest point on the acceleration-time curve encountered during impact measured in
max
units of g.
3.1.2 backplate, n—section of a goaltender’s mask that covers the posterior of the wearer’s head in a style of protector in which
a front section and a rear section of the protector move relative to each other for the wearer to put on or remove the protector.
3.1.3 central vertical axis, n—line relative to the headform that lies in the median plane of symmetry and is normal to the basic
plane at a point equidistant from the front and back of the headform.
3.1.4 chip, n—readily visible particle missing from the protector with an area bigger than 9 mm .
3.1.5 collimated light source (source of illumination), n—quartz halogen lamp (17 lux) producing a 100-mm beam at a 6-m
distance that is centered on the pupils of the eyes of the headform or the midpoint between the pupils of the eyes of the headform;
this centering is maintained at all times during the optical quality test.
3.1.6 combination, n—combined unit of a face protector placed on a head protector with which it is designed to be used.
3.1.7 computer interface, n—linkage between the computer, the goniometer, and the sensors that enables a fully automated
measurement process via a menu-driven operation during the optical quality test.
3.1.8 drop height, n—vertical distance between the lowest point (impact point) of the elevated mask and the apex of the impact
surface.
3.1.9 face protector, n—protector, either specially adapted to a helmet or forming a continuous unit, that is designed to protect the
wearer’s head and face, or parts thereof, against injury.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from the Canadian Standards Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3 Canada.
Available from BSI Customer Services, 389 Chiswick High Rd., London W4 4AL United Kingdom.
F1587 − 22
3.1.10 fastening system, n—devices used to connect the components of a helmet.
3.1.11 goaltender mask, n—face protector intended for goaltenders that consists of: (1) a front portion to cover part of the face
and jaw, (2) a covering for the eyes and face (face protector), and (3) a backplate.
3.1.12 goniometer, n—positioning device that moves the headform such that the angular rotation and movement in both the
horizontal and vertical directions enable a spherical scan to be made of the fields of vision as seen through a face protector or visor.
3.1.13 helmet, n—device worn on the head that is intended to reduce the risk of head injury to ice hockey participants. Helmets
can include: (1) a shock-attenuating system, (2) a retention system, and (3) manufacturers’ attachments.
3.1.14 helmet-positioning index, HPI, n—vertical distance measured at the median plane from the front edge of the helmet to the
reference plane when the helmet is placed on the reference headform. In the case of a mask with an opening in which a face
protector is attached, the top front edge of the opening shall be used.
3.1.15 impact sites:—
3.1.15.1 non-prescribed, adv—any impact site, except the six prescribed sites, on or above the test line and at least one fifth of
the circumference of the headform from any prior impact site.
3.1.15.2 prescribed, adv—see Fig. 1.
(1) front, adv—located on the median plane and 50 mm above the anterior intersection of the median and reference planes.
(2) front boss, n—point on a plane 45° in a clockwise direction from the anterior intersection of the median and reference planes
and 25 mm above the reference plane.
(3) side, n—located on the frontal plane and 25 mm above the point of intersection of the reference plane and the frontal plane.
NOTE 1—The impact direction is perpendicular to the surface of the headform for all impact sites.

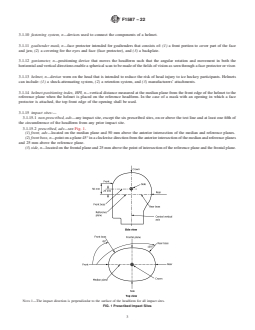

FIG. 1 Prescribed Impact Sites
F1587 − 22
(4) rear boss, n—point on a plane 135° in a clockwise direction from the anterior intersection of the median and reference
planes on the reference plane. If the protector is a mask with a back plate, the impact shall be delivered on the back plate, 19 mm
from any edge.
(5) rear, n— point at the posterior intersection of the median and reference planes.
(6) crown, n—point at the intersection of the median and frontal planes.

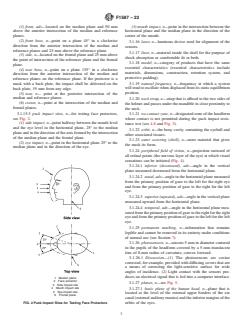

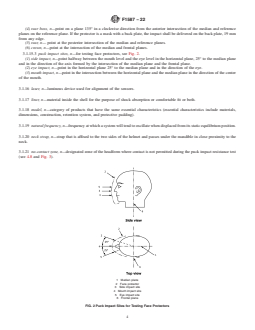

3.1.15.3 puck impact sites, n—for testing face protectors, see Fig. 2.
(1) side impact, n—point halfway between the mouth level and the eye level in the horizontal plane, 25° to the median plane
and in the direction of the axis formed by the intersection of the median plane and the frontal plane.
(2) eye impact, n—point in the horizontal plane 25° to the median plane and in the direction of the eye.
(3) mouth impact, n—point in the intersection between the horizontal plane and the median plane in the direction of the center
of the mouth.
3.1.16 laser, n—luminous device used for alignment of the sensors.
3.1.17 liner, n—material inside the shell for the purpose of shock absorption or comfortable fit or both.
3.1.18 model, n—category of products that have the same essential characteristics (essential characteristics include materials,
dimensions, construction, retention system, and protective padding).
3.1.19 natural frequency, n—frequency at which a system will tend to oscillate when displaced from its static equilibrium position.
3.1.20 neck strap, n—strap that is affixed to the two sides of the helmet and passes under the mandible in close proximity to the
neck.
3.1.21 no-contact zone, n—designated zone of the headform where contact is not permitted during the puck impact resistance test
(see 4.8 and Fig. 3).
1 Median plane
2 Face protector
3 Side impact site
4 Mouth impact site
5 Eye impact site
6 Frontal plane
FIG. 2 Puck Impact Sites for Testing Face Protectors
F1587 − 22
Dimensions (mm)
Facially Featured Headform
(according to CSA Z262.6-02)Z262.6-14)
A B C D E F
Adult (50th percentile) 48 16 28 17 36 68
Juvenile 60 0 25 0 36 60
Child 55 0 23 0 35 55

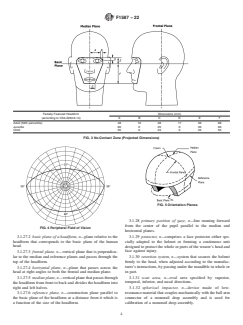

FIG. 3 No-Contact Zone (Projected Dimensions)
3.1.22 orbit, n—the bony cavity containing the eyeball and other associated tissues.
3.1.23 outer covering (shell), n—outer material that gives the mask its form.
3.1.24 peripheral field of vision, n—projection outward of all retinal points (the nervous layer of the eye) at which visual
sensations can be initiated (Fig. 4).
3.1.24.1 inferior (downward), adv—angle in the vertical plane measured downward from the horizontal plane.
3.1.24.2 nasal, adv—angle in the horizontal plane measured from the primary position of gaze to the left for the right eye and
from the primary position of gaze to the right for the left eye.
3.1.24.3 superior (upward), adv—angle in the vertical plane measured upward from the horizontal plane.
FIG. 4 Peripheral Field of Vision
F1587 − 22
3.1.24.4 temporal, adv—angle in the horizontal plane measured from the primary position of gaze to the right for the right eye
and from the primary position of gaze to the left for the left eye.
3.1.25 permanent marking, n—information that remains legible and cannot be removed in its entirety under conditions of normal
use (see Section 7).
3.1.26 photosensors, n—sensors 5 mm in diameter centered in the pupils of the headform covered by a 5-mm translucent lens of
8-mm radius of curvature, convex forward.
3.1.26.1 Discussion—
(1) The photosensors are cosine corrected, for example, provided with diffusing covers that are a means of correcting the
light-sensitive surface for wide angles of incidence. (2) Light contact with the sensors produces an electrical signal that is fed into
a computer interface.
3.1.27 planes, n—see Fig. 5.
3.1.27.1 basic plane of the human head, n—plane that is located at the level of the external upper borders of the ear canal
(external auditory meatus) and the inferior margins of the orbits of the eyes.
3.1.27.2 basic plane of a headform, n—plane relative to the headform that corresponds to the basic plane of the human head.
3.1.27.3 frontal plane, n—vertical plane that is perpendicular to the median and reference planes and passes through the top of
the headform.
3.1.27.4 horizontal plane, n—plane that passes across the head at right angles to both the frontal and median plane.
3.1.27.5 median plane, n—vertical plane that passes through the headform from front to back and divides the headform into
right and left halves.
3.1.27.6 reference plane, n—construction plane parallel to the basic plane of the headform at a distance from it which is a
function of the size of the headform.
3.1.28 primary position of gaze, n—line running forward from the center of the pupil parallel to the median and horizontal planes.
3.1.29 protector, n—comprises a face protector either specially adapted to the helmet or forming a continuous unit designed to
protect the whole or parts of the wearer’s head and face against injury.
3.1.30 retention system, n—system that secures the helmet firmly to the head, when adjusted according to the manufacturer’s
instructions, by passing under the mandible in whole or in part.
3.1.31 scan area, n—oval area specified by superior, temporal, inferior, and nasal directions.
3.1.32 scotomata, n—blind spot in the field of vision.
3.1.32 spherical impactor, n—device made of low-resonance material that couples mechanically with the ball arm connector of
a monorail drop assembly and is used for calibration of a monorail drop assembly.
FIG. 5 Orientation Planes
F1587 − 22
3.1.32.1 Discussion—
Low-resonance material includes magnesium, aluminum alloy, and stainless steel.
3.1.33 subnasale, Sn, n—deepest point on the concavity of the anterior surface of the maxilla in the midline, within 3.0 mm of
the floor of the nose (see Fig. 6).
3.1.34 support assembly, n—drop assembly in the monorail system minus the weight of the headform, ball arm, ball clamp, ball
clamp bolts, and accelerometer.
3.1.35 test area, n—area on and above the test line where an impact site is located.
3.1.36 test line, n—line that defines the boundaries of the test area.
3.1.37 threshold value, n—output reading obtained when the collimated light beam has been centered on the midpoint between
the pupils in the primary position of gaze.
3.1.37.1 Discussion—
The headform is rotated 90° in the horizontal plane, and the collimated light source contacts the pupillary sensor closest to the light
source.
3.1.38 types of protectors:—
3.1.38.1 Type I, n—Combination head and face protectors that meet requirements for ice hockey stick blade penetration over
the entire area of coverage.
3.1.38.2 Type II, n—Combination head and face protectors that meet the requirements for ice hockey puck penetration resistance
over the area of the field of vision and the requirements for ice hockey stick blade penetration resistance over the remainder of
the area of coverage.
4. Requirements
4.1 General—A goaltender mask shall be capable of meeting the requirements in this performance specification throughout its full
range of adjustment.
Dimensions (mm)
Facially Featured Headform
(according to CSA Z262.6-02)Z262.6-14)
A B C D E F P
Adult (50th percentile) 100.8 34 25.4 100.5 25 32 129.9
Juvenile 94.3 28 25.4 90 21 31 121.5
Child 91.1 22.5 25.4 79.5 21 21 102
FIG. 6 Minimum Protected Area (Coverage) of the Face
F1587 − 22
4.2 Material:
4.2.1 Integrity—All materials used in the fabrication of masks shall be known to be suitable for the intended application. They
shall be resistant to irreversible polymeric changes when exposed to temperatures of up to 70°C or ultraviolet radiation. All
materials shall be rot resistant and shall not undergo significant loss of strength, flexibility, or other physical change as a result of
contact with perspiration, oil, or grease from the wearer’s hair. In addition, paints, glues, and finishes used in manufacture shall
be compatible with the mask shell and shock absorption system materials.
4.2.2 Cleaners—Any material used in the construction of masks shall not be adversely affected by ordinary household soap and
water, mild household detergent, or cleaners recommended by the manufacturer.
4.2.3 Non-irritants—Materials coming into contact with the wearer’s head shall not be the type known to cause skin irritation or
disease.
4.2.4 Documentation—The manufacturer shall provide documentation indicating that the materials used in the construction of the
mask meet the requirements of 4.2.1 – 4.2.3.
4.3 Assembly:
4.3.1 Component Assemblies—A goaltender mask may be assembled from a separate head and face protector provided that the
combination meets all of the requirements of this specification and that the components are designed to be compatible without
modification.
4.3.2 Attachment System—The mask shall be designed to allow the face protector to be attached to the helmet without requiring
any operation of machines by the user.
4.3.3 The methods of assembling protector components shall be such as to prevent disengagement of the components from each
other and from the test headforms as a result of the tests performed under this specification.
4.3.4 Padding or cushioning material shall be incorporated in such a way as to cover all hard surfaces that could otherwise come
into contact with the wearer’s head. The method of securing padding shall not fail to maintain the padding material in position
under normal conditions of heat, cold, moisture, or force distortion by the wearer.
4.4 Design:
4.4.1 Finishes—All parts shall be well finished and free of any sharp edges or other irregularities that could present a potential
hazard to the user or an opposing player.
4.4.2 External Projections—In protectors that incorporate a backplate, the edge of the front section, which extends over the
backplate, shall not project more than 25.4 mm beyond the adjacent edges of the backplate, as measured along a square-ended
12.7-mm diameter cylindrical rod, when the rod end is inserted behind the projecting edge of the front section and along the inner
surface of the front section until the end of the rod is flush with the outer edge of the backplate.
4.4.2 Access—All protectors shall be so constructed that access to the wearer’s face is provided, without the use of tools, and
without causing movement to the cervical spine, in the event of injury. The access provided shall be sufficient for the administration
of cardiopulmonary resuscitation to the wearer.
4.4.3 Protectors should be designed to minimize rotation on the head under the normal stresses encountered in use.
4.4.4 Welded Wire Components—All wire ends shall terminate at the perimeter of the wire component and shall overlap the shell
material of the protector in such a way as to prevent stick or puck entry between components.
4.4.5 Attachments—The fasteners for securing components to the shell shall be so attached that the degree of protection afforded
the wearer by the protective padding or cushioning material of the helmet is not thereby reduced.
F1587 − 22
4.4.6 Maximum Distance (Face Protector to Headform)—The distance measured on the median plane, parallel to the basic plane,
between the inside of the face protector and Points K and Sn on the facially featured headform shall not exceed 60 mm (see Fig.
6).
4.4.7 Minimum Distance (Face Protector to Headform)—Except where it is covered by padding, no part of the mask shall be
closer than 10 mm to the surface of the facially featured headform.
4.4.8 Load-Bearing Area—Masks shall have a minimum padded load-bearing area in accordance with Fig. 7.
4.4.9 Overlap:
4.4.9.1 Where the face protector portion is made to overlap the edges of the open front portion of the mask, it shall do so by at
least 6 mm.
4.4.9.2 For a face protector/helmet combination, the face protector shall overlap the lower edge of the helmet by at least 6 mm.
4.5 Protected Areas (Coverage):
4.5.1 The protected areas shall correspond to the headform size with which the mask is to be tested.
4.5.2 Protected Area of the Head—The mask shall cover, at minimum, the area above the Line B-CL-DL-EL-F-ER-DR –CR-B
(where L is left and R is right) in Fig. 8 when the mask is tested in accordance with 5.4.1.
4.5.3 Ear Aperture—No ear aperture shall have a linear dimension exceeding 38 mm. The distance to any other edge of the helmet
shall be not less than 20 mm. The ear aperture shall be completely surrounded by the outer covering of the mask (shell).
4.5.4 Ventilation Openings—Ventilation openings shall meet the requirements of 4.6.
4.5.5 Protected Area of the Face—The mask shall cover the front portion of the area extending to at least the Line
G’-H’L-HL-Z-HR-H’R-G’ (where L is left and R is right) in Fig. 6 when the mask is tested in accordance with 5.4.2.
4.6 Penetration Resistance—With the exception of the ear apertures and when tested in accordance with 5.5:
Dimensions (mm)
Facially Featured Headform
(according to CSA Z262.6-02)Z262.6-14)
D A B
Adult (50th Percentile) 53 18–27 18
Juvenile 48 15–24 15
Child 42 15–24 15
FIG. 7 Minimum Load-Bearing Area
F1587 − 22
Headform
Dimensions (mm)
Circumference,
P Q R S T
mm
495 23.5 89.7 33.3 42.3 24
535 25.5 96 32 44 26
575 27.5 102.4 27.5 42.5 27
605 29 107.2 25 44 28
FIG. 8 Minimum Protected Area (Coverage) of the Head
4.6.1 Type I—There shall be no contact with the bare headform by the test blade within the protected areas.
4.6.2 Type II—There shall be no contact with the bare headform by (1) the test disk over the area of the field of vision and (2)
the test blade over the remainder of the protected areas.
4.7 Shock-Absorbing Capacity—When tested in accordance with 5.6, no single impact shall exceed a peak acceleration of 275 g
under all impact test conditions. The outer covering (shell) shall remain intact with no cracks visible through its thickness.
4.8 Puck Impact Resistance:
4.8.1 Contact Test—Neither the protector nor the puck shall touch the facially featured headform within the no-contact zone (see
Fig. 3) when tested in accordance with 5.7. The shock-absorbing material at the load-bearing area shall remain securely attached
to the face protector. There shall be neither breakage of the structural components of the face protector nor failure of the protector’s
points of attachment to the helmet. Cracking of surface coatings may be present, but there shall be no chips.
4.8.2 Toughness Test—When a mask is tested in accordance with 5.7, there shall be no breakage of the wire face protector.
4.9 Retention System:
4.9.1 Neck Strap—Protectors shall incorporate a neck strap with a minimum width of 13 mm.
4.9.2 Extensibility and Strength—When tested in accordance with 5.8, the displacement of the roller holder shall not exceed 25
mm during a load of between 5 and 110 N. The release force shall be not less than 110 N and not more than 300 N.
4.10 Optical Quality:
4.10.1 Peripheral Field of Vision—The field of vision for masks shall be tested in accordance with 5.9 at 20 6 2°C. There shall
be no occultation in the field of vision bounded by the following angles (see Fig. 4):
4.10.1.1 35° in the superior direction,
F1587 − 22
4.10.1.2 60° in the inferior direction,
4.10.1.3 90° in the temporal direction, and
4.10.1.4 45° in the nasal direction.
4.10.2 Scotomata—When tested in accordance with 5.9, face protectors shall have no overlapping bilateral scotomata in the field
of vision.
5. Test Methods
5.1 General:
5.1.1 Samples—Only new and complete goaltender head/face protector combinations as offered for sale shall be tested. The masks
shall be inspected visually and by hand before conditioning.
5.1.2 Quantity—For a given model/size, five complete masks and two additional face protectors shall be used as outlined in Tables
1 and 2. Samples shall be numbered 1, 2, 3, and so forth.
5.1.3 Assembly—Face protectors shall be assembled and mounted on the appropriate helmet in accordance with the manufacturer’s
instructions.
5.2 Conditioning:
5.2.1 Ambient Conditioning—The sample shall be exposed to a temperature of 20 6 2°C and a relative humidity not exceeding
55 % for not less than 4 h.
5.2.2 Low-Temperature Conditioning—The sample shall be exposed to a temperature of −23 to −27°C. Helmets shall be
conditioned for a period of not less than 4 h nor more than 24 h. Testing shall begin within 40 s of removal from the low
temperature chamber.
5.2.3 Elevated Temperature Conditioning—The sample shall be exposed to a temperature of 30 6 2°C for not less than 24 h.
Testing shall begin within 40 s of removal from the heating chamber.
5.2.4 Testing Conditioned Masks—Testing shall be completed within 5 min after the removal of the mask from the conditioning
environment specified in 5.2.2 and 5.2.3. Masks may be returned to the conditioning environment to meet this requirement. Before
the resumption of testing, masks shall remain in the conditioning environment for a minimum of 15 min for each 5 min they are
out of the conditioning environment.
5.3 Helmet-Positioning Index (HPI) and Headform Size—The HPI and corresponding headform si
...
