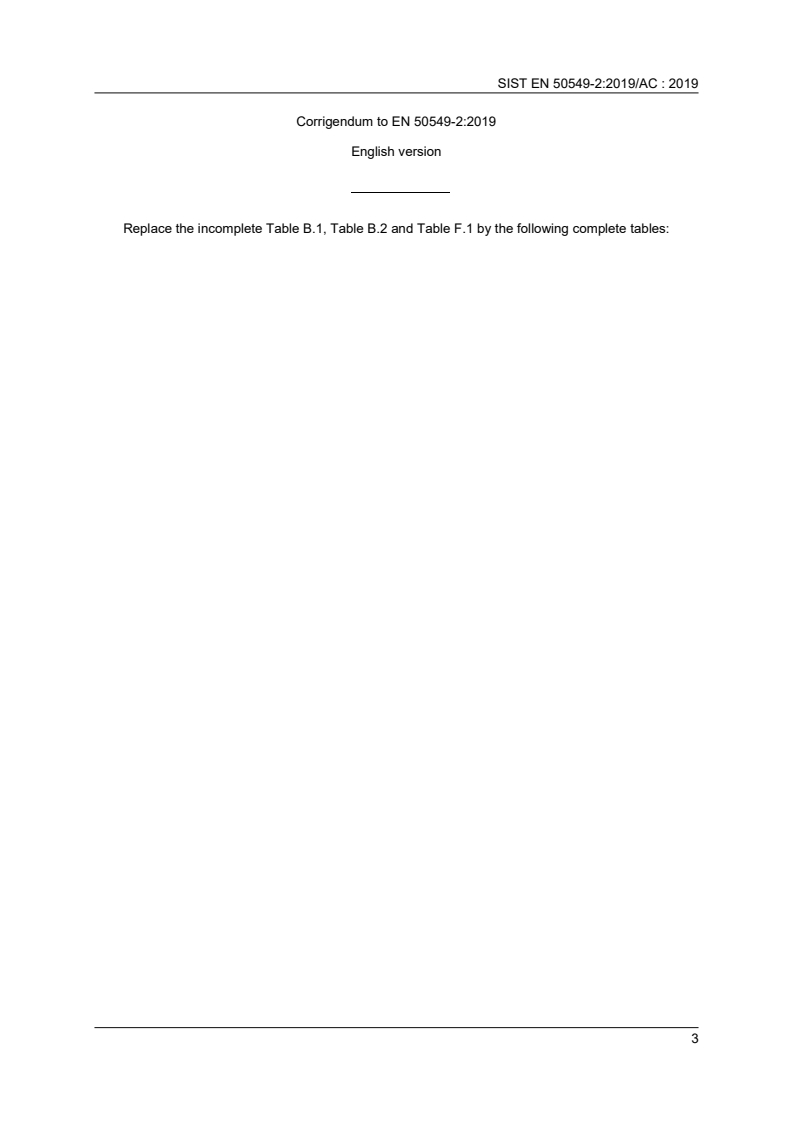

Corrigendum to EN 50549-2:2019
English version
___________
Replace the incomplete Table B.1, Table B.2 and Table F.1 by the following complete tables:

---------------------- Page: 3 ----------------------

SIST EN 50549-2:2019/AC:2019
EN 50549-2:2019 (E)

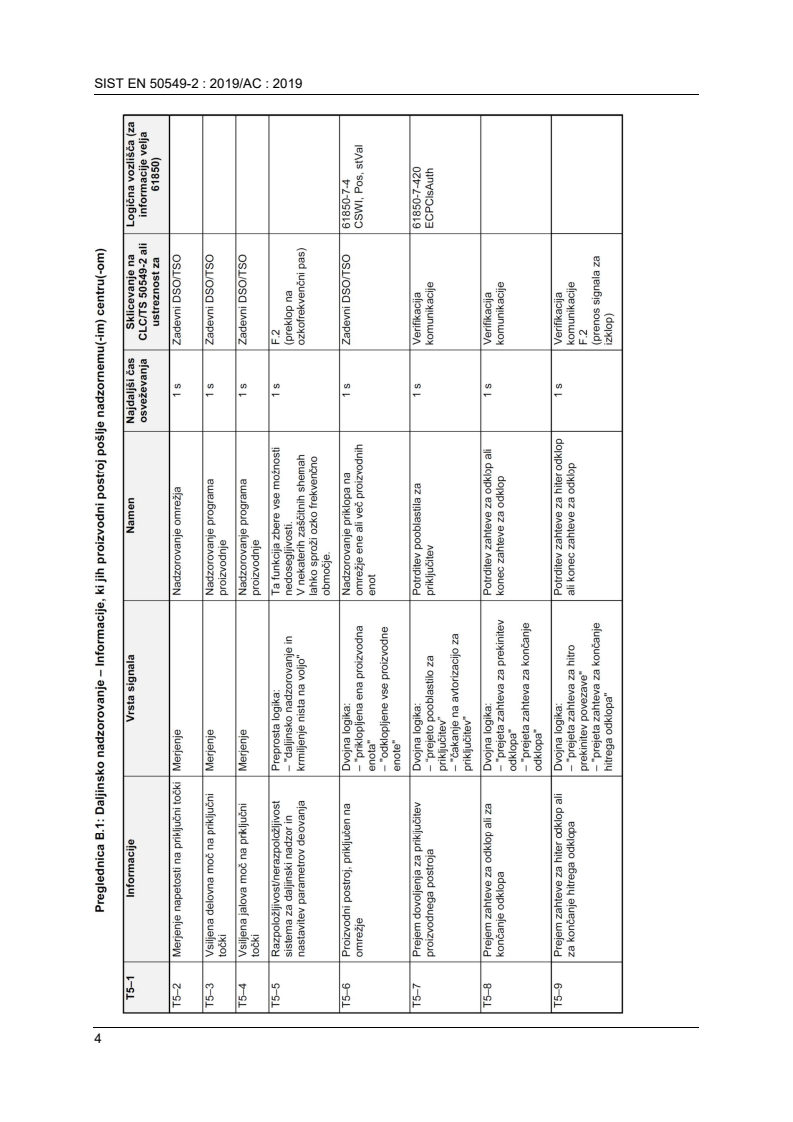

Table B.1 — Remote monitoring - Information sent by the generating plant to the control centre(s)
T5–1 Information Type of signal Purpose Maximum Reference to Logical nodes
refresh CLC/TS 50549-2 (for information
time or 61850 applies)
Relevance for
T5–2 voltage measurement at the point measurement network monitoring 1 s Relevant for DSO/TSO
of connection
T5–3 active power injected at the point measurement generation program monitoring 1 s Relevant for DSO/TSO
of connection
T5–4 reactive power injected at the measurement generation program monitoring 1 s Relevant for DSO/TSO
point of connection
T5–5 availability / unavailability of the simple Logic: This function gathers all 1 s F.2
remote monitoring and operation - “remote monitoring and unavailability possibilities. (switch to narrow frequency
parameters setting system control unavailable” It may trigger narrow frequency range)
range in some protection
schemes.
T5–6 generating plant connected to the double Logic: monitoring of the connection to 1 s Relevant for DSO/TSO 61850–7–4
network - “one generating unit the network of one or more CSWI, Pos, stVal
coupled” generating units
- “all generating units
decoupled”
T5–7 reception of the authorization for double logic: acknowledgement of 1 s Communication verification 61850–7–420
the generating plant to connect - “authorization to connect authorization to connect ECPClsAuth
received”
- “waiting for the
authorization to connect”
T5–8 reception of the request for double logic: acknowledgement of 1 s Communication verification
disconnection or for end of - “disconnection request disconnection request or end of
disconnection received” disconnection request
- “end of disconnection
request received”
T5–9 reception of request for fast double logic: acknowledgement of fast 1 s Communication verification
disconnection or for end of fast - “fast disconnection request disconnection request or end of F.2
disconnection received” fast disconnection request (transfer trip)
- “end of fast disconnection
request received”
