Printing and business paper - Determination of toner adhesion

This European Standard specifies the determination of the adhesion of dry toner on paper sheets, printed with imaging machines such as copiers and printers. The chosen measuring range allows discrimination of toner adhesion around the level found with many common paper and machine combinations. Since divers imaging processes give different toner adhesion, the described method at constant IGT speed is not advised to compare degree of toner adhesion between different types of machines.

Druck- und Büropapier - Bestimmug der Tonerhaftung

Diese Europäische Norm legt ein Prüfverfahren zur Bestimmung der Tonerhaftung auf Papierbogen fest, die mit Vervielfältigungsgeräten, wie Kopiergeräte und Drucker, bedruckt werden. Dieser ausgewählte Meßbereich ermöglicht eine Unterscheidung der Tonerhaftung auf einem Niveau, das bei vielen üblichen Kombinationen von Papier und Gerät gefunden wurde. Da unterschiedliche Vervielfältigungsverfahren eine unterschiedliche Tonerhaftung aufweisen, ist das beschriebene Verfahren mit konstanter IGT-Geschwindigkeit für einen Vergleich der Tonerhaftung zwischen unterschiedlichen Gerätearten nicht zu empfehlen.

Papier - Papier d'impression et de bureau - Détermination de l'adhésion du toner

La présente Norme européenne spécifie une méthode pour déterminer l'adhésion du toner sec au papier imprimé à partir de machines à reproduire telles que des photocopieurs et des imprimantes. La plage de mesurage choisie permet de distinguer le degré d'adhésion du toner généralement obtenu en fonction les combinaisons les plus courantes de papier et de machines.
Puisque l'adhésion du toner est différente selon les procédés de reproduction utilisés, il est déconseillé d'utiliser la présente méthode décrite à vitesse IGT constante pour comparer le degré d'adhésion du toner selon les différents types de machines.

Tiskovni papir in papirji za poslovne namene - Ugotavljanje vezivnosti tonerja

General Information

Status
Published
Publication Date
31-Aug-2003
ICS
85.080.10 - Office paper
Technical Committee
VPK - Pulp, paper, board and products
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Sep-2003
Due Date
01-Sep-2003
Completion Date
01-Sep-2003
Ref Project
EN 12283:2002 - Printing and business paper - Determination of toner adhesion

Relations

Replaces
SIST ENV 12283:1997 - Paper - Printing and business paper - Determination of toner adhesion
Effective Date
01-Sep-2003

Overview

EN 12283:2002 - "Printing and business paper - Determination of toner adhesion" (CEN) defines a laboratory method to measure the adhesion of dry toner on paper printed by imaging machines (copiers, laser printers). The standard specifies a quantitative IGT picking test procedure that yields reproducible toner-adhesion values for many common paper–machine combinations. It also emphasizes that results are machine-dependent and that the method at constant IGT speed is not recommended for comparing different imaging technologies.

Key topics and requirements

  • Scope: Measurement of dry toner adhesion on paper sheets printed with dry toner imaging processes (copiers, printers).
  • Principle: Create solid black areas on A4 sheets, subject printed area to an IGT picking test and compare optical density before and after picking.
  • Sampling & conditioning:
    • Sampling per EN ISO 186.
    • Condition test pieces at 23 °C and 50% relative humidity (EN 20187) for at least 8 hours.
  • Test image: A4 original containing two heavy solid black stripes, 30 mm wide and parallel to the long side (or equivalent high-density digital image for printers).
  • Apparatus & materials:
    • Any commercial dry-toner imaging machine in good working order.
    • IGT tester per ISO 3783 with 20 mm discs.
    • Medium-viscosity picking oil (ISO 3783).
    • Optical densitometer for density readings.
    • Internal reference paper for machine calibration.
  • Test settings: IGT printing force 800 N and constant speed 0.4 m/s.
  • Calculation: Toner adhesion T = DIGT / Dsolid_black, where DIGT is mean optical density after IGT picking and Dsolid_black is mean optical density of untreated black area.
  • Quality control: Use an internal reference sample; record mean and standard deviation. Repeatability observed coefficient of variation 5–15% in intertests.

Applications and users

  • Paper manufacturers and R&D teams: evaluate how paper surface and coatings affect dry-toner adhesion.
  • Quality control laboratories and third‑party testing services: routine checks of paper batches for print performance.
  • Copier/printer manufacturers and service engineers: verify machine performance with an internal reference and diagnose toner-transfer issues.
  • Procurement and specification writers: include toner adhesion data in product datasheets and tender documentation.
  • Print buyers and office managers: assess paper suitability for high-volume or high-density toner printing.

Limitations

  • Results are machine‑dependent; the method at constant IGT speed should not be used to compare toner adhesion across different types of imaging machines or technologies.

Related standards

  • EN ISO 186 - Sampling to determine average quality
  • EN ISO 216 - Trimmed sizes (A and B series)
  • EN 20187 - Standard atmosphere for conditioning and testing
  • ISO 3783 - IGT picking test (accelerating speed method)

Keywords: EN 12283:2002, toner adhesion, printing and business paper, IGT tester, picking test, optical densitometer, dry toner, paper testing, CEN standard.

Frequently Asked Questions

SIST EN 12283:2003 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Printing and business paper - Determination of toner adhesion". This standard covers: This European Standard specifies the determination of the adhesion of dry toner on paper sheets, printed with imaging machines such as copiers and printers. The chosen measuring range allows discrimination of toner adhesion around the level found with many common paper and machine combinations. Since divers imaging processes give different toner adhesion, the described method at constant IGT speed is not advised to compare degree of toner adhesion between different types of machines.

This European Standard specifies the determination of the adhesion of dry toner on paper sheets, printed with imaging machines such as copiers and printers. The chosen measuring range allows discrimination of toner adhesion around the level found with many common paper and machine combinations. Since divers imaging processes give different toner adhesion, the described method at constant IGT speed is not advised to compare degree of toner adhesion between different types of machines.

SIST EN 12283:2003 is classified under the following ICS (International Classification for Standards) categories: 85.080.10 - Office paper. The ICS classification helps identify the subject area and facilitates finding related standards.

SIST EN 12283:2003 has the following relationships with other standards: It is inter standard links to SIST ENV 12283:1997. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase SIST EN 12283:2003 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.

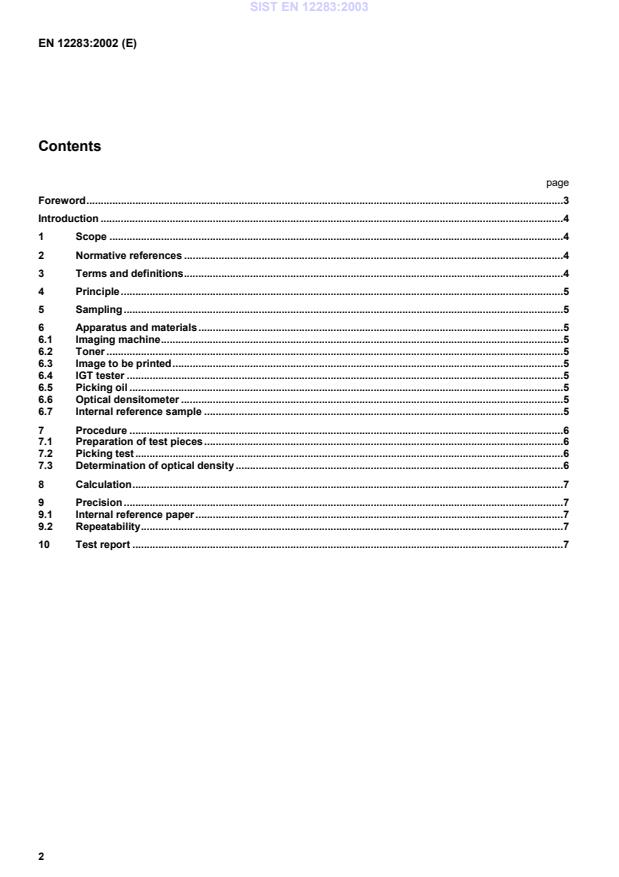

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tiskovni papir in papirji za poslovne namene - Ugotavljanje vezivnosti tonerjaDruck- und Büropapier - Bestimmug der TonerhaftungPapier - Papier d'impression et de bureau - Détermination de l'adhésion du tonerPrinting and business paper - Determination of toner adhesion85.080.10Pisarniški papirOffice paperICS:Ta slovenski standard je istoveten z:EN 12283:2002SIST EN 12283:2003en01-september-2003SIST EN 12283:2003SLOVENSKI
STANDARDSIST ENV 12283:19971DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12283October 2002ICS 85.080Supersedes ENV 12283:1996English versionPrinting and business paper - Determination of toner adhesionPapier d'impression et de bureau - Détermination del'adhésion du tonerDruck- und Büropapier - Bestimmug der TonerhaftungThis European Standard was approved by CEN on 17 August 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12283:2002 ESIST EN 12283:2003
...
