ISO 15003:2006

INTERNATIONAL ISO
STANDARD 15003
First edition
2006-02-15


Agricultural engineering — Electrical
and electronic equipment — Testing
resistance to environmental conditions
Génie agricole — Matériel électrique et électronique — Essais de
résistance aux conditions environnementales





Reference number
ISO 15003:2006(E)
©
ISO 2006

---------------------- Page: 1 ----------------------
ISO 15003:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2006 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 15003:2006(E)
Contents Page
Foreword. iv
1 Scope .1
2 Normative references .1
3 Terms and definitions .2
4 General.3
4.1 General conditions for testing.3
4.2 Test sequence.3
4.3 Test report .3
4.4 ISO 16750 compliance.4
5 Tests.4
5.1 General.4
5.2 Cold and dry heat.4
5.3 Damp heat, steady state.7
5.4 Damp heat, cyclic.7
5.5 Impact .9
5.6 Vibration .10
5.7 Corrosive atmosphere.12
5.8 Degrees of protection provided by enclosures (IP Code) .12
5.9 Air pressure (altitude) .13
5.10 Chemical brush or spray.14
5.11 Solar radiation (ultraviolet).15
5.12 Readability of displays.15
5.13 Electromagnetic compatibility.16
5.14 Electrical environment .16
Annex A (informative) Example test report .19
Annex B (informative) Machinery/equipment codes and guidance for use of severity levels.20
Bibliography .25

© ISO 2006 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 15003:2006(E)

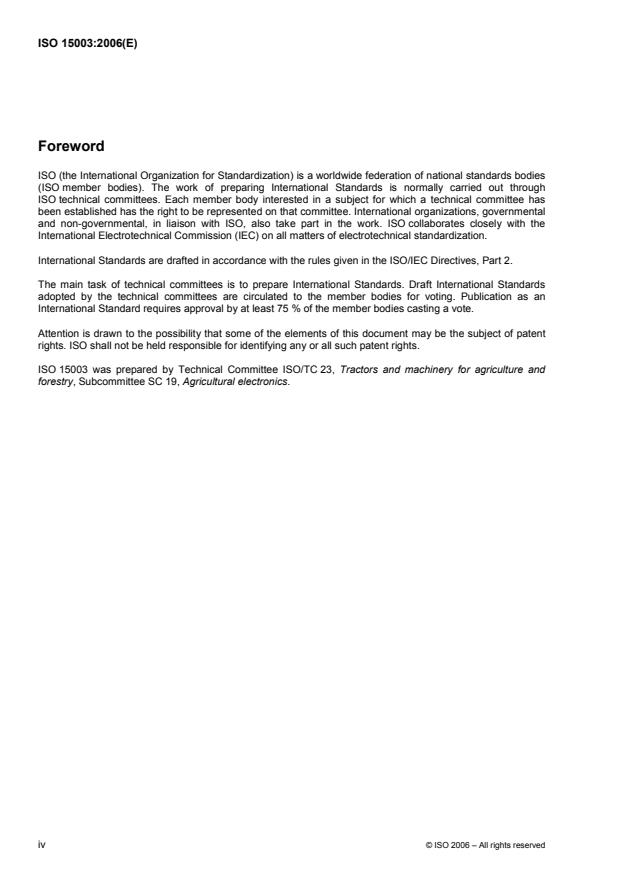

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has
been established has the right to be represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15003 was prepared by Technical Committee ISO/TC 23, Tractors and machinery for agriculture and
forestry, Subcommittee SC 19, Agricultural electronics.

iv © ISO 2006 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 15003:2006(E)

Agricultural engineering — Electrical and electronic
equipment — Testing resistance to environmental conditions
1 Scope
This International Standard provides design requirements and guidance for the manufacturers of electrical and
electronic equipment for use in all kinds of mobile (including hand-held) agricultural machinery, forestry
machinery, landscaping and gardening machinery [referred to hereafter as machine(s)]. It gives tests for
specific environmental conditions and defines severity levels for tests which relate to the environmental
extremes that can be experienced in practical operation of the equipment.
The standard is intended to be used in determining the suitability of the equipment of the these machines, for
use in a specified range of environmental conditions.
NOTE The severity levels given are general guidelines and not guaranteed worst-case exposure levels.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IEC 60068-1:1988, Environmental testing — Part 1: General and guidance
IEC 60068-2-5:1975, Basic environmental testing procedures — Part 2: Tests — Test Sa: Simulated solar
radiation at ground level
IEC 60068-2-6:1995, Environmental testing — Part 2: Tests — Test Fc: Vibration (sinusoidal)
IEC 60068-2-9: 1975, Basic environmental testing procedures — Part 2: Tests — Guidance for solar radiation
testing
IEC 60068-2-11:1981, Basic environmental testing procedures — Part 2: Tests — Test Ka. Salt mist
IEC 60068-2-13:1983, Basic environmental testing procedures — Part 2: Tests — Test M: Low air pressure
IEC 60068-2-14:1984, Basic environmental testing procedures — Part 2: Tests — Test N: Change of
temperature
IEC 60068-2-27:1987, Basic environmental testing procedures — Part 2: Tests — Test Ea and guidance:
Shock
IEC 60068-2-30:1980, Basic environmental testing procedures — Part 2: Tests — Test Db and guidance:
Damp heat, cyclic (12 + 12-hour cycle)
IEC 60068-2-47:2005, Environmental testing — Part 2: Tests — Mounting of specimens to vibration, impact
and similar dynamic tests
© ISO 2006 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 15003:2006(E)
IEC 60068-2-64:1993, Environmental testing — Part 2: Test methods — Test Fh: Vibration, broad-band
random (digital control) and guidance
IEC 60068-2-78:2001, Environmental testing — Part 2-78: Tests — Test Cab: Damp heat, steady state
IEC 60512-1:2001, Connectors for electronic equipment — Tests and measurements — Part 1: General
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
ISO 14982:1998, Agricultural and forestry machinery — Electromagnetic compatibility — Test methods and
acceptance criteria
ISO 16750:2003, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
display device
device displaying alpha-numeric characters or graphical symbols designed to be read by operative or service
personnel
3.2
equipment
self-contained electronic system containing electric, electronic and mechanical components which is
electrically connected to other machinery (including power sources) by means of connectors
3.3
impaired function
state in which one or more of the functions of the equipment as stated by the manufacturer are not operative
or do not conform to the manufacturer's specification
3.4
location
position within machines where the equipment will normally be operating
3.5
normal mounting configuration
orientation of the equipment when in normal use
3.6
severity level
severity of the conditions under which an environmental test is undertaken, selected according to the intended
location and application of the equipment
3.7
portable equipment
equipment that can be battery operated and that a person can carry
2 © ISO 2006 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 15003:2006(E)
4 General
4.1 General conditions for testing
Except where otherwise specified for a particular test, testing shall be carried out under standard reference
conditions as specified in IEC 60068-1:1998, section 5. The severity levels used shall be recorded in the test
report. Tests shall be conducted in accordance with IEC 60512-1.
It is desirable to use the same sample of equipment in all tests unless specified otherwise for a particular test.
It is recommended that a functionality check be done before and after each test and that functionality be
monitored during a test when practical.
Combined testing is advisable in cases where equipment is subjected in use to extremes of two or more
different environmental factors simultaneously (e.g. temperature and vibration) and recorded as such on the
test report.
NOTE Combined testing can be used as a means of reducing overall test time.
4.2 Test sequence
The electromagnetic compatibility tests shall be carried out last, since electromagnetic emissions and
susceptibility can be affected by prior exposure to other tests. The test sequence shall be recorded in the test
report.
The tests should be carried out in progressively increasing order of severity.
4.3 Test report
The test report shall, as a minimum, include the following information:
⎯ description of the equipment;
⎯ model number or other identification;
⎯ manufacturer’s name and address;
⎯ test lab’s name and address;
⎯ test date(s);
⎯ tests to be conducted;
⎯ test equipment used/calibration status and test set up information;
⎯ the order in which the tests were conducted;
⎯ duration of each individual test conducted;
⎯ severity level used for testing;
⎯ test results;
⎯ any additional details regarding the test.
An example test report is given in Annex A.
© ISO 2006 – All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 15003:2006(E)
4.4 ISO 16750 compliance
Electrical and electronic equipment in accordance with ISO 16750 that corresponds to the requirements of this
International Standard is in compliance with this International Standard.
5 Tests
5.1 General
5.1.1 Monitoring for impaired function
Where equipment is to be monitored for impaired function during or after a test, the equipment shall be
connected to power and signal input and output lines in accordance with the manufacturer’s instructions.
5.2 Cold and dry heat
5.2.1 Changes of temperature with specified rate of change
5.2.1.1 Test method
A cold and dry heat test shall be conducted in accordance with IEC 60068-2-14:1984, Test Nb, with the
exception that testing can be done using one test chamber. The temperature cycle is shown in Figure 1. The
steady state time shall be 3 h; the transition times shall be adjusted to yield three cycles in 24 h.

Key
T minimum temperature
A
T maximum temperature
B
t time
t steady state time = 3 h
1
1 first cycle
2 second cycle
Figure 1 — Temperature cycle for cold and dry heat test
4 © ISO 2006 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 15003:2006(E)
5.2.1.2 Test limits
See Table 1.
Table 1 — Test levels for temperatures
T T
A B
Level
°C °C
1 0 70
2 −20 70
3 −40 85
4 −40 105
5 −40 125
Refer to B.2 for examples of severity levels.

5.2.2 Temperature shock
5.2.2.1 Test method
The temperature shock test shall be conducted in accordance with IEC 60068-2-14:1984, Test Na, with the
cycle shown in Figure 2. The steady state time t shall be 0,5 h, and the transition time t u 1 min; the number
1 2
of cycles shall be 10.
© ISO 2006 – All rights reserved 5

---------------------- Page: 9 ----------------------
ISO 15003:2006(E)

Key
T minimum temperature
A
T maximum temperature
B
t time
t steady state time = 0,5 h
1
t transition time u 1 min
2
1 first cycle
2 second cycle
Figure 2 — Cycle for temperature shock test
5.2.2.2 Test limits
See Table 2.
Table 2 — Test levels for temperatures
T T
A B
Level
°C °C
1 0 70
2 −20 70
3 −40 85
4 −40 105
5 −40 125
Refer to B.2 for examples of severity levels.

6 © ISO 2006 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 15003:2006(E)
5.3 Damp heat, steady state
5.3.1 Test method
The steady state damp heat test shall be conducted in accordance with IEC 60068-2-78.
5.3.2 Test limits
+2
Expose the equipment under test to 93 % relative humidity at 40 ± 2 °C for the lengths of time (durations)
−3
according to Table 3.
Table 3 — Test levels for durations
Duration
Level
days
1 4
2 10
3 21
Refer to B.3 for examples of severity levels.

5.4 Damp heat, cyclic
5.4.1 Test method
The cyclic damp heat test shall be conducted in accordance with IEC 60068-2-30 and Figure 3.
© ISO 2006 – All rights reserved 7

---------------------- Page: 11 ----------------------
ISO 15003:2006(E)

Key
T temperature, °C
T minimum temperature
A
t time
H humidity, %
1 end of temperature rise
2 start of temperature fall
Figure 3 — Damp heat test cycle
5.4.2 Test limits
See Table 4.
Table 4 — Test levels for number of cycles
T
A
Level Number of cycles
°C
1 2 40
2 2 55
3 6 55
Refer to B.4 for examples of severity levels.
8 © ISO 2006 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 15003:2006(E)
5.5 Impact
5.5.1 Particle impact
5.5.1.1 Test method
Use gravel, 0,5 l (approx. 250 to 300 stones), of a size that will pass through a 15 mm mesh screen and be
retained on a 10 mm mesh screen.
Use equipment for producing an air blast, devices for measuring air blast pressure and equipment for injecting
gravel into the air blast, in a tube with 50 mm diameter bore, through a 7 mm diameter nozzle in the tube,
where the nozzle is 20 mm from the end of the tube from which the stones are to be ejected.
Use protective screens to protect personnel and monitoring equipment.
Mount the equipment under test in its normal mounting configuration, positioned so that the distance from the
outlet of the air blast equipment to the nearest point on the equipment under test is 350 mm.
If desired, this test may be performed after the equipment has been heated or cooled.
5.5.1.2 Test limits
Turn on the air blast equipment and adjust it to give an air blast pressure at the point of gravel injection of
500 kPa ± 20 kPa. Inject the gravel into the air blast over a period of 5 s to 10 s. Carry out the test 10 times.
Refer to B.5 for test applicability.
5.5.2 Mechanical shock
5.5.2.1 Test method
Operational mechanical shock shall be tested in accordance with IEC 60068-2-27.
5.5.2.2 Test limits
Subject the equipment to three sinusoidal impulses of a duration and acceleration according to Table 5, in
each of three mutually perpendicular axes. The normal mounting configuration shall be one of these axes.
Monitor the equipment under test for impaired function and examine for loose parts or visible cracks at the
conclusion of the tests.
Table 5 — Test levels for peak acceleration
Peak acceleration Duration
Level
2
m/s ms
1 150 11
2 300 18
3 500 11
Refer to B.6 for examples of severity levels.
© ISO 2006 – All rights reserved 9

---------------------- Page: 13 ----------------------
ISO 15003:2006(E)
5.6 Vibration
5.6.1 Random vibration test
5.6.1.1 Test method
The vibration tests shall be carried out in accordance with IEC 60068-2-64 and IEC 60068-2-6, except for as
follows.
Mount the equipment under test in its normal mounting configuration on the vibration test equipment in
accordance
...
