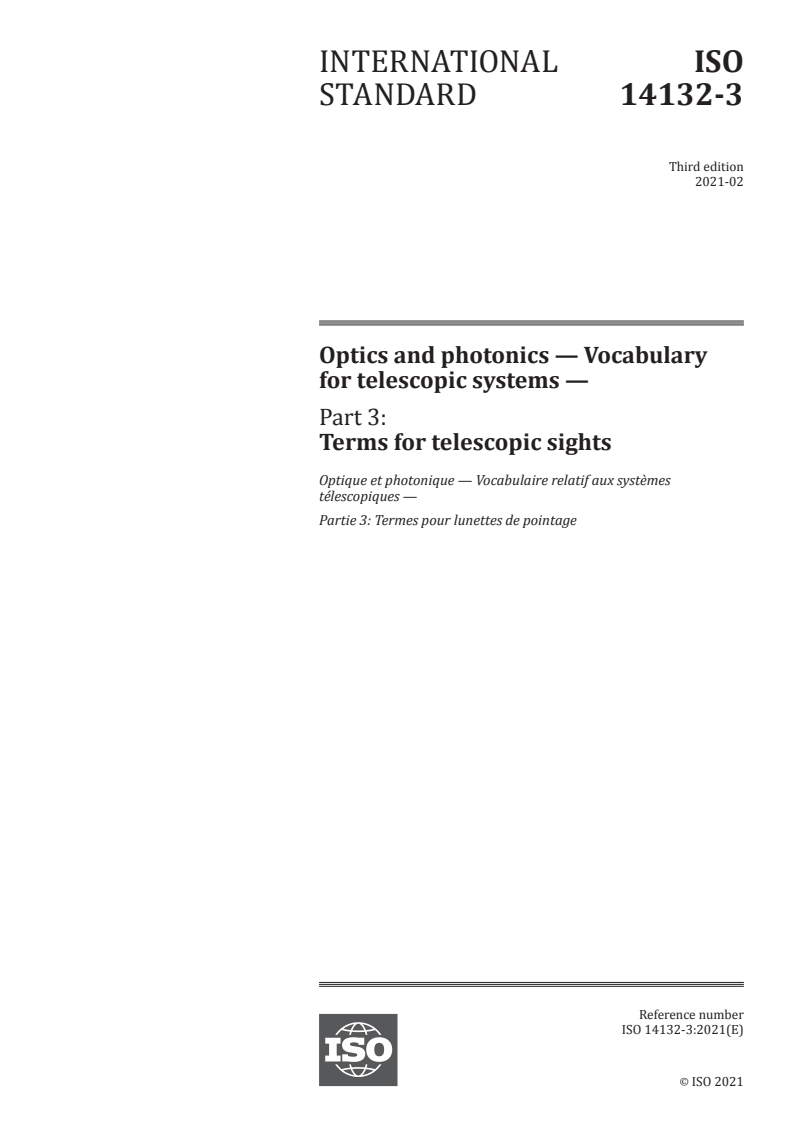

ISO 14132-3:2021

Overview

ISO 14132-3:2021 is an international standard published by ISO that defines vocabulary specifically for telescopic sights used on hand-held firearms and airguns. As part of the ISO 14132 series on optics and photonics for telescopic systems, Part 3 focuses exclusively on terms and definitions relating to telescopic sights. This standardized vocabulary ensures consistent communication and understanding across the optics industry, manufacturers, users, and regulatory bodies.

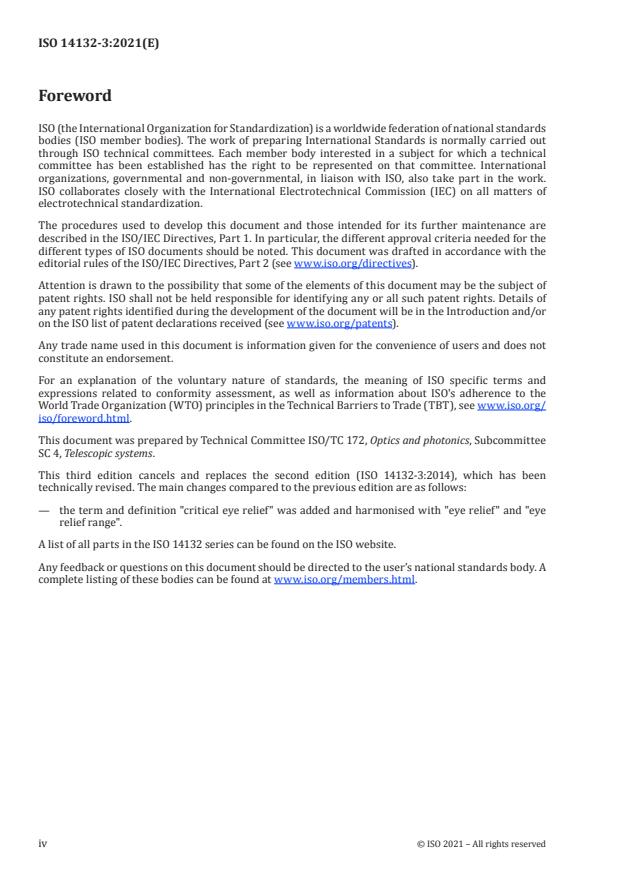

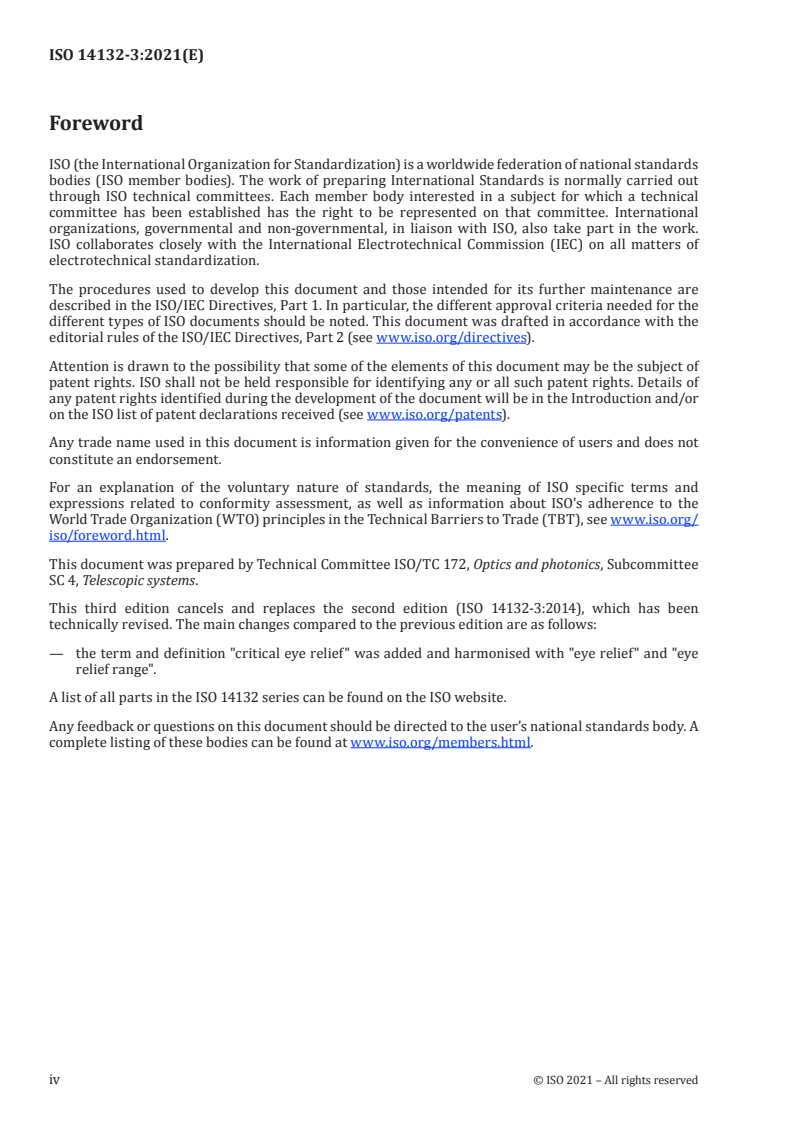

The document provides precise definitions for components, features, and functional aspects of telescopic sights, supporting accuracy, safety, and interoperability. It also introduces the new term "critical eye relief," enhancing safety guidelines related to shooter eye positioning relative to the riflescope eyecup. The standard excludes general terms that are shared with other parts of ISO 14132, which are covered under ISO 14132-1.

Key Topics

• Telescopic sight: Defined as an optical instrument mounted on firearms or airguns to assist aiming.
• Main tube and central tube: Structural elements of telescopic sights, describing the main body and the slim section between eyepiece and objective housing.
• Parallax and parallax-free distance: Concepts explaining angular deviation in aiming between on-axis and off-axis observations and the object distance where this deviation becomes negligible.
• Elevation and windage adjustments: Mechanisms used to move the reticle vertically and horizontally to correct aim.
• Reticle and aiming mark: Terminology related to the crosshair or design used for aiming, including the positional relationship to the aiming point on the target.
• Eye relief, eye relief range, and critical eye relief: Definitions detailing the optimal distance between the shooter’s eye and the riflescope eyepiece that provides full field of view without vignetting, and safety considerations to prevent recoil injuries.
• Zoom riflescope and image behavior: Terms addressing magnification variability and phenomena such as image jump and line of sight shift caused by zoom or focusing actions.

Applications

ISO 14132-3:2021 is essential for professionals involved in the design, manufacturing, testing, and use of telescopic sights. Its practical value includes:

• Manufacturers ensuring clarity in product specifications and labeling by using internationally recognized terms.
• Firearms and airgun users, including hunters and sport shooters, gaining better understanding of sight features and safety parameters.
• Test laboratories applying uniform nomenclature in performance evaluation and quality control.
• Regulatory and standards bodies harmonizing terminology for certifications, compliance, and procurement.
• Educators and trainers in optics, firearms safety, and marksmanship relying on standardized language for training materials.

By standardizing terminology, ISO 14132-3 supports improved communication, better product development, enhanced user safety, and consistent interpretation across global markets.

Related Standards

• ISO 14132-1: Vocabulary for telescopic systems - Part 1: General terms and alphabetical indexes
  This part complements ISO 14132-3 by providing common terms applicable to the entire telescopic system family.

• ISO 14490-3:2021 - Test methods for telescopic systems - Part 3: Test methods for telescopic sights
  Defines testing procedures for evaluating performance parameters of telescopic sights, directly related to the terminology in ISO 14132-3.

These related standards create an integrated framework for terminology and testing specific to optics and photonics in telescopic instruments, supporting comprehensive standardization efforts.

Keywords: ISO 14132-3:2021, telescopic sights, rifle scopes, optics vocabulary, photonics, firearms optics, parallax, eye relief, elevation adjustment, windage adjustment, reticle, aiming mark, zoom riflescope, critical eye relief, standards for optics, optical instrument terminology.
