ISO 24259:2022

INTERNATIONAL ISO
STANDARD 24259
First edition
2022-05
Steel strapping for packaging
Cerclage métallique destiné à l’emballage
Reference number
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification . 2
4.1 Tensile strength . 2
4.2 Surface finish . 2
4.3 Wound type . 2
5 Dimensions, shape and tolerances . 3
5.1 Nominal dimensions . 3
5.2 Dimension tolerances . 3
5.3 Shape tolerances . 3
5.4 Weld . 3
5.5 Coil inside diameter . 4
6 Technical requirements . 4
6.1 Mechanical properties . 4
6.2 Appearance quality . 4
6.3 Corrosion resistance properties . 4
7 Inspection and testing .5
7.1 Dimensions and appearance quality . 5
7.2 Coating thickness . 5
7.3 Elongation . 5
7.4 Test unit . 5
7.5 Test method . 5
7.6 Re-testing and acceptance rules . 5
8 Marking . . 5
9 Ordering information . 6
10 Logistics . 6
Annex A (informative) Surface finish and wound types . 7
Annex B (informative) Bend test . 8
Annex C (normative) Measurements of shape .10
Annex D (informative) Packaging .12
Bibliography .17
iii

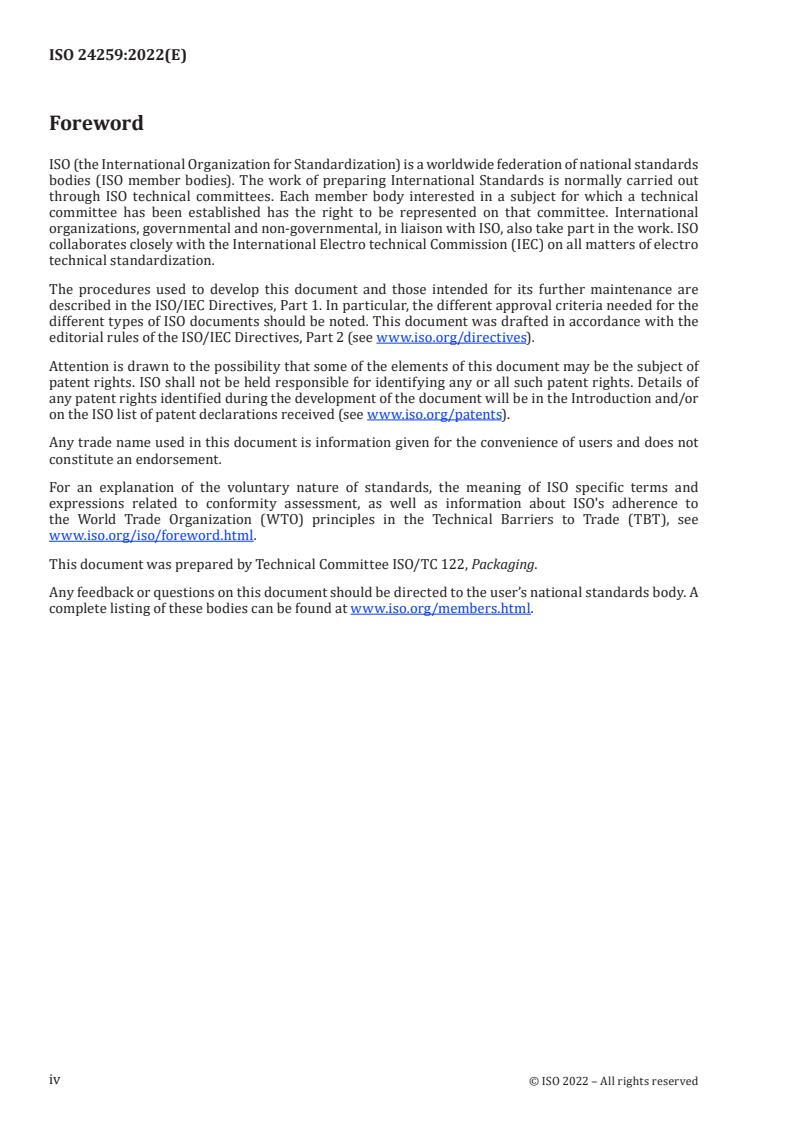

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electro technical Commission (IEC) on all matters of electro
technical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 122, Packaging.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
INTERNATIONAL STANDARD ISO 24259:2022(E)
Steel strapping for packaging
1 Scope
This document specifies the classification, dimensions, shape, technical requirements, inspection rules
and testing methods as well as marking, ordering information and logistics of the steel strapping for
packaging.
This document is applicable to steel strapping for packaging in the field of metallic material, glass, light
industrial products and logistics, etc.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 404, Steel and steel products — General technical delivery requirements
ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
ISO 9227, Corrosion tests in artificial atmospheres — Salt spray tests
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
packaging
product to be used for the containment, protection, handling, delivery, storage, transport and
presentation of goods, from raw materials to processed goods, from the producer or manufacturer to
the user or purchaser, including processor, assembler or other intermediary
[SOURCE: ISO 21067-1:2016, 2.1.1, modified]
3.2
steel strapping
strip of metal material, which is made from carbon steel or alloy steel through heat treatment process,
used in bundling, reinforcing and connection for industrial goods and transport process by manual or
automatic machine
3.3
camber
greatest deviation of a side edge from a straight line, the measurement being taken on the concave side
with a straight edge
[SOURCE: ISO 3574:2012, 3.3]
3.4
flatness
maximum distance between the lower surface of steel strapping and the horizontal surface
3.5
twist
maximum dip angle formed by the lower surface of steel strapping from the horizontal surface
4 Classification
4.1 Tensile strength
Steel strapping’s tensile strength classification shall be in accordance with Table 1.
Table 1 — Tensile strength classification
Classification Abbreviation
Regular tensile strength RT
High tensile strength HT
Super high tensile strength SHT
4.2 Surface finish
Steel strapping’s surface finish classification shall be in accordance with Table 2.
Table 2 — Surface finish classification
Classification Abbreviation
Bright B
Blue and waxed BW
Painted and waxed (Painted only) PW(P)
Zinc coated Z
For the description of each category, see Annex A.
When agreed between the manufacturer and the purchaser, stainless steel strapping may be supplied.
The painted and zinc coated thickness on each side shall not be less than 3 μm.
The colour of painted coating is normally black. When agreed between the manufacturer and the
purchaser, other colours may be supplied.
4.3 Wound type
Steel strapping’s wound type classification shall be in accordance with Table 3.
Table 3 — Wound type classification
Classification Abbreviation
Ribbon R
Oscillated O
For the description of each category, see Annex A.
5 Dimensions, shape and tolerances
5.1 Nominal dimensions
The
...
