ISO/TS 18617:2025

Technical
Specification
ISO/TS 18617
First edition
Hand hole design principles and
2025-09
test methods for handheld packages
Principes de conception et méthodes d'essai des systèmes de
préhension pour emballages portatifs
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Design criteria . 2
4.1 General .2
4.2 Hand hole .2
4.2.1 General .2
4.2.2 Hand hole design .2
4.3 Caution signs .4
4.3.1 General .4
4.3.2 Weight warning label .4
5 Testing methods . 5
5.1 General .5
5.2 Jerk test .5
5.2.1 Application .5
5.2.2 Use .5
5.2.3 Tools . .5
5.2.4 Test procedure.7
5.3 Tensile test .8
5.3.1 Application target .8
5.3.2 Use .8
5.3.3 Tools . .8
5.3.4 Samples .9
5.3.5 Test procedure.10
6 Test report .11
Annex A (informative) Alternative test method for tensile strength of hand holes .12
Bibliography . 14

iii

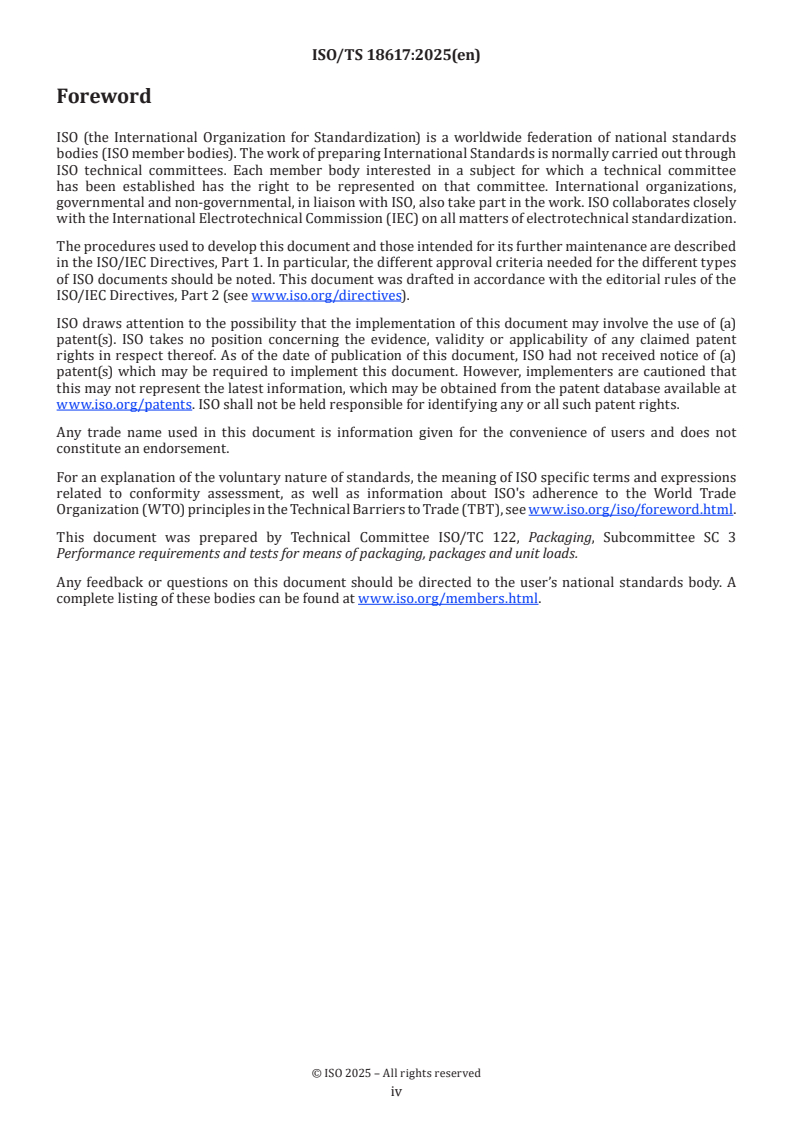

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 122, Packaging, Subcommittee SC 3
Performance requirements and tests for means of packaging, packages and unit loads.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
The product categories that logistics workers handle manually are diverse, including various electrical and
electronic products, household goods, food and beverage products, etc. One of the major ergonomic safety
issues that arise is musculoskeletal disorders and spinal injuries caused by repetitive vertical movements,
movements, and momentary loads.
According to Reference [11] most market staff are women in their 40’s and 50’s. They pick up and put down
boxes an average of 149 times a day, and 85,3 % of them suffer from musculoskeletal injuries such as pain
in the shoulders, backs, and knees. The study concluded that even just adding hand holes to boxes would
reduce the load by 10 %.
Although hand holes in boxes cannot completely eliminate all risks of accidents, they can enhance safety
and efficiency by making logistics and distribution activities, including loading, unloading, warehousing,
sorting, and transportation, more convenient and less dangerous to handlers, thus helping to prevent
musculoskeletal disorders. Transport packaging designed appropriately for the size and/or weight of the
product, the durability of the package material, etc., reduces the risk of workers using excessive lifting
forces. Poor design can lead to product damage or worker injury.
This document provides hand hole design criteria and test methods for handheld packages to provide a safer
working environment for workers who lift or move boxes. Some criteria and test methods in this document
are based on ASTM D6804, with some modifications to the design requirements and test methods to ensure
the usability of this document.

v
Technical Specification ISO/TS 18617:2025(en)
Hand hole design principles and test methods for handheld
packages
1 Scope
This document describes the ergonomic design criteria and test evaluation methods for the hand holes of
handheld packages that are handled by human operators during the distribution and logistics process. This
document is applicable to handheld packages with a maximum weight of up to 23 kg.
This document does not cover all issues of safety, health, and the environment related to the handling of
packages.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 186, Paper and board — Sampling to determine average quality
ISO 187, Paper, board and pulps — Standard atmosphere for conditioning and testing and procedure for
monitoring the atmosphere and conditioning of samples
ISO 527-1, Plastics — Determination of tensile properties — Part 1: General principles
ISO 21067-1, Packaging — Vocabulary — Part 1: General terms
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21067-1 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
handheld package
distribution package, weighing up to 23 kg, intended to be handled by one adult
Note 1 to entry: The maximum allowed weight that one person can handle at one time can vary depending on individual
strength, box weight, size, operation frequency, moving distance, and country-specific regulations.
3.2
hand hole
pre-cut hole on the package, intended to be used as a handle during logistics and distribution activities

4 Design criteria
4.1 General
When establishing the design criteria for hand holes, manufacturers and sellers of handheld boxes can take
into account various elements including those covered in this document as well as material, structural and
technical feasibility, logistical suitability, application effects, and other safety functions and costs.
4.2 Hand hole
4.2.1 General
An adequate hand hole should be used for packages, allowing one or two people to safely handle the product.
Such hand holes are intended for lifting the package upwards in a vertical direction. It is not designed to be
pulled, pushed, or lifted with one hand. The hand holes described in this document are intended to be used
with two hands in common handling conditions.
Hand holes can be used as handles, but not all hand holes are designed for this function. Some of them can be
designed for other purposes, such as ventilation, or inspection and adjustment of the contents. Some hand
holes can be designed to facilitate moving or rotating heavy packages rather than lifting them. Even if the
packaging has holes for ventilation or inspection of contents, if it is used for handling purposes, it shall meet
the design criteria in 4.2.2.
4.2.2 Hand hole design
4.2.2.1 Structure and size
A hand hole should allow the box to be gripped by hands. The perforated part should not be sharp so as to
avoid injuries. The hole should have a high shear durability and a streamlined shape for the dispersion of
pressure.
Figure 1 shows the structure and size of a standard hand hole suitable for most adults. The shape and size
depend on a number of factors such as the characteristics and the weight of the product and may be subject
to negotiation
...
