ISO/IEC 19752:2004

INTERNATIONAL ISO/IEC
STANDARD 19752
First edition
2004-06-15
Corrected version
2004-09-15
Information technology — Method for the
determination of toner cartridge yield for
monochromatic electrophotographic
printers and multi-function devices that
contain printer components
Technologies de l'information — Méthode pour la détermination du
rendement des cartouches de toner pour les imprimantes
électrophotographiques monochromatiques et pour les dispositifs
multifonctionnels qui contiennent des composants d'imprimantes

Reference number
©
ISO/IEC 2004
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2004 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Terms and definitions. 1
3 Test Parameters and Conditions. 2
3.1 Set-up. 2
3.2 Sample Size. 3
3.3 Print Mode. 3
3.4 Print Environment. 3
3.5 Paper. 4
3.6 Maintenance. 4
3.7 Print File. 4
4 Test Methodology. 5
4.1 Testing Procedure. 5
4.2 Procedure for handling a defective cartridge or printer . 5
4.2.1 Defective Cartridge. 5
4.2.2 Defective Printer. 5
5 Determination of the declared yield value and declaration. 6
5.1 Determination of the declared yield value. 6
5.2 Test data reporting. 6
5.3 Declaration of the yield. 6
Annex A (informative) Examples of Fade. 7
Annex B (informative) Process Flowchart and Examples . 8
Annex C (normative) Standard test page. 11
Annex D (informative) Sample reporting form. 16
Annex E (informative) Comparison of Yield for Two Printing Systems. 18

© ISO/IEC 2004 – All rights reserved iii

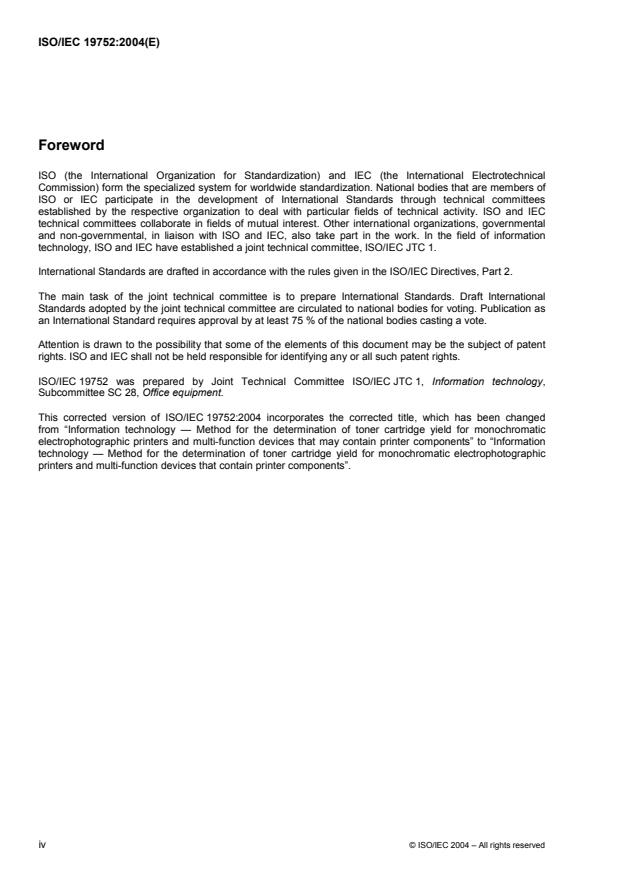

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 19752 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 28, Office equipment.
This corrected version of ISO/IEC 19752:2004 incorporates the corrected title, which has been changed
from “Information technology — Method for the determination of toner cartridge yield for monochromatic
electrophotographic printers and multi-function devices that may contain printer components” to “Information
technology — Method for the determination of toner cartridge yield for monochromatic electrophotographic
printers and multi-function devices that contain printer components”.

iv © ISO/IEC 2004 – All rights reserved

Introduction
The purpose of this International Standard is to provide a process for determining the page yield for toner
cartridges for monochromatic printers using a standard office consumer type test page.
This standard prescribes the following:
• The test method that manufacturers should use to determine cartridge yield.
• The method for determination of declared yield values from the test results.
• The appropriate method of describing the yield of cartridges in documentation supplied to the
consumer by the manufacturer.
The end of life is judged with either of two phenomena - “image fade” caused by toner depletion of the
cartridge in the printing system or "automatic printing stop" by the Toner Out detection function.
© ISO/IEC 2004 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 19752:2004(E)

Information technology — Method for the determination of
toner cartridge yield for monochromatic electrophotographic
printers and multi-function devices that contain printer
components
1 Scope
The scope of this International Standard is limited to evaluation of toner cartridge yield for toner containing
cartridges (i.e. all-in-one toner cartridges and toner cartridges without a photoconductor) for monochrome
electrophotographic printers. This International Standard could also be applied to the printer component of any
multifunctional device that has a digital input-printing path (i.e. multi-function devices that contain printer
components).
This International Standard is only intended for the measurement of toner cartridge yield. No other claims can
be made from this testing regarding quality, reliability, etc.
NOTE Application of this International Standard for yield measurement of toner replenishment systems (i.e. toner
cartridge- and bottle type systems where the toner reservoir is internal to the printing system and not user-replaceable)
requires some procedural modifications specifically noted herein. This International Standard is intended for equipment
used in the office space and does not apply to production volume or large format printing machines where the major cost
of ownership is not caused by the consumable yield measured in this International Standard.
2 Terms and definitions
For the purposes of ISO 19752, the following terms and definitions apply.
2.1
Fade
a phenomenon whereby a noticeable reduction in density uniformity across the page occurs
NOTE In this test, fade is defined as a noticeably lighter, 3 mm or greater, gap located in the text or boxes around the
periphery of the test page. The determination of the change in lightness is to be made referenced to the 100th page
printed for each cartridge in testing. For examples of fade, please consult Annex A.
2.2
Shake Procedure
in the case that the cartridge user’s manual instructs cartridge shaking and its method, shaking the cartridge
according to the procedures specified
NOTE If a shake procedure is used in testing it will be noted in the report.
2.3
Toner Low
a signal generated by the printer when it has been detected that the amount of toner is such that a toner
change will be required soon
NOTE It does not indicate that the system is out of toner.
© ISO/IEC 2004 – All rights reserved 1

2.4
Toner Out
a signal generated by the printer when the toner in the system is depleted and the printer is incapable of
reliable printing without user intervention
NOTE For the purpose of this test, the toner out signal will only be used if it causes the printer to stop printing and
requires toner replacement to continue printing.
2.5
End of Life
when the printer declares “Toner Out”
NOTE 1 The general intent of this definition is to allow 2 shake procedures near end of life and to declare end of life at
the first fade after the 2 shake procedures. Nominally the shake procedures are to be executed at print fade. However, if
the printer is equipped with a Toner Low device, then the first, second or both shake procedures can be executed at Toner
Low instead of at fade as a convenience for the tester. If the user’s guide does not specify a shake procedure then the
shake procedures are not done and end of life occurs at the first fade.
NOTE 2 When fade occurs before Toner Out and no shake procedure is specified, then end of life is declared at the
fade. If a shake procedure is specified for a printer with a Toner Out device, then up to 2 shake procedures can be
executed as described in the paragraph above when fade occurs before Toner Out. In this case, if fade occurs after
2 shake procedures but before Toner Out, then end of life is declared at the third fade. If Toner Out occurs at any time
during testing, the cartridge is considered to be at end of life.
NOTE 3 When applied to replenishment systems (bulk toner replacement or multi-part toner systems), the intent of this
definition is to declare a quasi-end of cartridge life at a regular predetermined point. If the printer is equipped with a Toner
Low or Toner Out signal, these can be used as the point of quasi-end of life. In either case, the end of life condition
chosen must be noted in the test report.
NOTE 4 When shake procedures have been performed during the test, the test report will note for both the first and
second shake procedures whether they were done at Toner Low or at fade. Any faded pages printed during the test are to
be excluded from the cartridge page count.
NOTE 5 Application of this definition may be clarified by reference to a flow chart and examples found in Annex B.
2.6
Individual Page Yield
the number of “standard page file” pages printed between cartridge installation and end of life (as defined in
Section 3.5)
NOTE For replenishment systems, the individual page yield is determined by counting the number of “standard page
file” pages printed between prescribed quasi-end of life conditions (defined in Section 3.5).
2.7
Declared Page Yield
(see Clause 6)
3 Test Parameters and Conditions
3.1 Set-up
Place the printer on a horizontal surface and set-up the printer according to the installation guide provided in
the printer user’s manual. Use the most recent printer driver available from the manufacturer. The driver
version will be specified on the test report. Cartridge installation shall be completed following the instructions
in the cartridge installation guide. If there is a contradiction between the printer and cartridge manuals for the
cartridge installation, the cartridge manual will take precedence except if changes are recommended for
printer or driver settings.
If the cartridge used in testing is a toner replenishment or toner bottle type, then one complete toner cartridge
will be used in each printer before the start of the test. The pages printed to deplete this priming cartridge do
2 © ISO/IEC 2004 – All rights reserved

not have to be recorded and printing can be conducted at any environment. This priming cartridge is used to
bring the printing system to a set toner level condition.
All image and print quality modifiers should be at their factory pre-set configuration for the printer and default
installed condition for the driver. If the printer and driver differ, then the driver defaults should be used. Any
user selectable toner conservation modes should be disabled during testing.
If the printer under test uses an internal PDF interpreter, it is ok to use it as long as the printer defaults are set
to not substitute fonts. If the internal interpreter is used, this should be noted on the report.
To assure that the test page is rendered correctly, any page size modifiers such as “Fit to Page”, “Page
Centring” and font substitution should be turned off. To further insure that font substitution does not occur,
fonts should be downloaded as TrueType fonts if the driver provides that option. If the option exists, rendering
of graphics should be performed by the printer, not the application software or operating system. The file
should be printed using the fonts embedded in the file and should be rendered on the page in a size
corresponding to the dimensions in the test page description. Page placement modifies such as page
centering can be used to place the image properly on the page. If there is a question about rendering settings
affecting the yield, the setting should be noted in the report.
NOTE The application software (i.e. Adobe Reader), printer driver and printer may have page size modifier functions,
such as “Fit to Page”. Make sure that all of these functions are disabled.
3.2 Sample Size
A combination of at least three cartridges shall be run on a combination of at least three printers (for a
minimum of nine cartridges and three printers). This is the minimum number of engines and cartridges that
should be used for testing. When feasible it is recommended that additional engines and cartridges be used in
testing. When testing additional engines and cartridges above the minimum, an effort should be made to test
equal number of cartridges on each engine. For example, if an additional engine is to be tested then the
minimum number of cartridges to be tested would be 12 (3 cartridges X 4 engines). When testing cartridges
for a released product, it is recommended that cartridges and printers are procured from various sources, or
selected from different production lots. The printers and cartridges must be within their useful life as stated in
their user’s manual.
NOTE It is recommended that an additional cartridge be procured to allow for the possibility of cartridge failure during
testing.
3.3 Print Mode
For reporting cartridge yield, the test shall be run in continuous print mode simplex printing, with printed output
occurring at or near rated printer speed. The actual print speed will be semi-continuous because of printing
being interrupted for paper replenishment etc. Every attempt should be made to have printing be continuous
from the start of a cartridge to the end of cartridge life.
3.4 Print Environment
The temperature and humidity can have a profound effect on test results. For this reason, the test must be
carried out according to the following test conditions:
Temperature: Testing room average 23.0C ± 2C
Readings to be made with a running average of 1 hour with readings recorded at
least every 15 minutes, all running average temperatures are to be between 20.0C
and 26.0C.
Relative Humidity: Testing room average 50% ± 10% RH
Readings to be made with a running average of 1 hour with readings recorded at
least every 15 minutes, all running average RHs are to be between 35% and 65%.
© ISO/IEC 2004 – All rights reserved 3

Example: An example of the calculation of the temperature is shown below for temperature readings taken on
15-minute intervals for the testing of one cartridge.
t t t t t t t t t t t t
1 2 3 4 5 6 7 8 9 10 11 12
Temperature 24.0 23.4 20.5 24.2 23.6 22.0 25.5 24.7 22.1 20.8 22.0 23.5Testing Room Average
Running Average N/A N/A N/A 23.0 22.9 22.6 23.8 24.0 23.6 23.3 22.4 22.1 23.0

Running Average at t = (t +t +t +t )/4
i i-3 i-2 i-1 i
Testing Room Average = (t +t + … +t )/12
1 2 12
From this the testing room average would be 23.0C, the maximum running average reading 24.0C and
the minimum running average reading 22.1C. These values can be found highlighted in the table of
temperature measurements. It should be noted that the testing room average for both temperature and
RH are averages of all measurements, not the running averages.
Prior to testing, the printer, paper and cartridges should be acclimated to the above conditions for a minimum
of 8 hours. Before acclimation, packaging and shipping materials should be opened with care taken to prevent
any light damage from occurring to the cartridge during acclimation. Paper may be acclimated in the ream
wrapper. Before final acclimation, all materials should be temperature acclimated to an office environment.
Any water condensation must be avoided when printer, paper and cartridges are carried in the test
environment
3.5 Paper
The paper used in this test should represent a “common” medium weight paper, and must conform to the
printer’s list of approved papers. The paper manufacturer, weight and size, A4 or equivalent, used in the test
will be noted on the report.
3.6 Maintenance
Printer maintenance shall be performed throughout yield testing per the printer and cartridge user’s manual.
(For example, developer roller or fuser replacement)
3.7 Print File
The print test file is outlined and specified in detail in Annex C. The test must be conducted using the most
recent official electronic test file as the input. The most recent official file can be located at
http://www.iso.org/jtc1/sc28. Failure to use the exact file specifications will invalidate test results. In addition to
the PDF test file, the latest version of the printer driver will be used to print the test pages. If the printer under
test uses an internal PDF interpreter, it is ok to use it as long as the printer defaults are set to not substitute
fonts. If the internal interpreter is used, this should be noted on the report. The version of the test file and
version and maker of the PDF reader will be included in the test report. Previous to starting the test a sample
file should be printed to check the image and assure the proper size. A measurement should be made
between A – B for short edge feeding paper and the dimension be 170.0mm±1%. For long edge feeding paper
these measurements should be A – C 250.0mm ±1%.as shown in Annex C. This is done because image
stretch can occur in the feeding direction that does not affect the use of toner.
NOTE To aid in counting and tracking pages, a header or footer can be added to the test page. Every attempt should
be made by reducing the size of this addition to reduce the effect on calculated yield.
If the given tolerances cannot be met with all scaling modifiers off, then testing cannot continue.
4 © ISO/IEC 2004 – All rights reserved

4 Test Methodology
4.1 Testing Procedure
1) Install at least three printers following the user’s manual. If the cartridge used in testing is a toner
replenishment or toner bottle type, then one complete toner cartridge will be used in each printer before
the start of the test. The pages printed to deplete this priming cartridge do not have to be recorded and
printing can be conducted at any environment.
2) Install corresponding cartridges following the cartridge installation guide. If there is a contradiction
between the printer and cartridge manuals for the cartridge installation, the cartridge manual will take
precedence except if changes are recommended for printer or driver settings.
3) Begin test and start tracking the number of pages run on each test cartridge.
th
4) When the 100 page is printed for the cartridge, save page for
...
