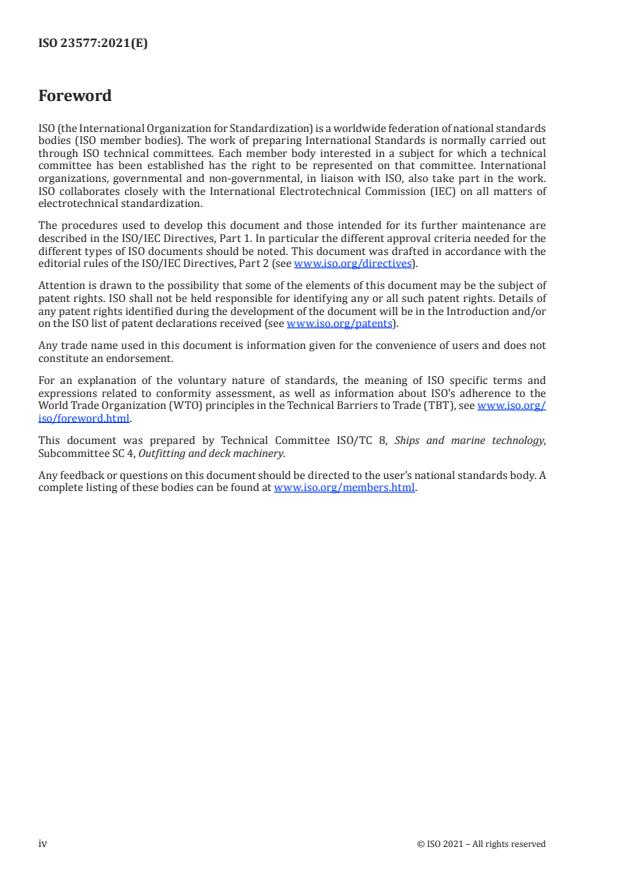

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non­governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology,
Subcommittee SC 4, Outfitting and deck machinery.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

---------------------- Page: 4 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 23577:2020(E)
Ships and marine technology — Cargo securing systems on
ships — Vocabulary
1 Scope
This document specifies general terms for cargo securing systems on ships, as well as specific terms for
cargo securing on container ships and on ro­ro ships.
It is applicable to the design, manufacture, trade, teaching and other fields of cargo securing systems
on ships.
NOTE ISO 3874 defines specific terms for handling and securing methods on series 1 freight containers.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1 General terms for cargo securing system
3.1.1
cargo securing device
securing device
fixed and portable devices used to secure and support cargo units (3.1.20)
3.1.2
fixed fitting
securing device (3.1.1) permanently installed in the vessel
3.1.3
portable fitting
loose fitting
securing device (3.1.1) not permanently installed in the vessel
3.1.4
maximum securing load
MSL
maximum allowable load capacity for a device used to secure cargo to a ship
3.1.5
proof load
PL
test load during testing of a securing device (3.1.1)
© ISO 2020 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO/FDIS 23577:2020(E)

3.1.6
minimum breaking load
MBL
tested minimum breaking strength of a securing device (3.1.1)
3.1.7
cargo securing manual
document that specifies the arrangements to be used, and the cargo securing fittings (3.2.1) provided on
board, to ensure safe stowage, stacking and securing (3.1.17) of the cargo
Note 1 to entry: It is a mandatory ship-specific document.
3.1.8
transverse acceleration
acceleration parallel to the ship’s deck in transverse direction, due to the ship’s motion
3.1.9
longitudinal acceleration
acceleration parallel to the ship’s deck in longitudinal direction, due to the ship’s motion
3.1.10
vertical acceleration
acceleration perpendicular to the ship’s deck in vertical direction, due to the ship’s motion
3.1.11
lashing point
structure used to bear the force of the lashing and to distribute it to the structure of the hull (or cargo),
which can be e.g. a hole, a ring or a bar
3.1.12
cargo safe access
area used by the operator for the safe operation of cargo securing devices (3.1.1)
3.1.13
cargo securing system
system combining several securing devices (3.1.1) and structures together to ensure cargo
transportation safety through combined action
3.1.14
fixed fitting arrangement plan
layout plan of fixed fittings (3.1.2) on a ship
3.1.15
wind load
force by wind affecting cargo units (3.1.20) on open decks
3.1.16
sea load
force by sea affecting cargo units (3.1.20) on open decks
3.1.17
securing
process to secure cargo with cargo securing devices (3.1.1)
3.1.18
securing force
force required to prevent cargo from shifting, e.g. sliding or tipping on board, based on calculations
3.1.19
ship’s cargo
cargo or cargo unit (3.1.20) loaded on ships or other floating units for sea transport
2 © ISO 2020 – All rights reserved

---------------------- Page: 6 ----------------------
ISO/FDIS 23577:2020(E)

3.1.20
cargo unit
loading equipment, or any part thereof, which belongs to the ship but is not fixed to the ship, such as
vehicles, containers, flats, pallets, portable tanks, packaged units, or any other entity
[7]
Note 1 to entry: The IMO Assembly Resolution A.489(XII) defines cargo units and other entities in 1.
3.1.21
standardized cargo
cargo for which the ship is provided with an approved securing system based upon cargo units (3.1.20)
of specific types, such as e.g. containers, railway wagons and shipborne barges
3.1.22
semi-standardized cargo
cargo for which the ship is provided with a securing system capable of accommodating a limited variety
of cargo units (3.1.20), such as e.g. vehicles and trailers
3.1.23
non-standardized cargo
cargo that requires individual stowage and securing arrangements
3.1.24
gravity centre of cargo unit
point of action of the resultant force of gravity borne by different parts of a cargo unit (3.1.20)
3.1.25
lashing angle
securing angle
angle between a lashing device and the horizontal plane or vertical plane
3.1.26
vertical lashing angle
α
lashing angle (3.1.25) between a lashing device and the horizontal plane.
Note 1 to entry: See Figure 1.
3.1.27
horizontal lashing angle
β
lashing angle (3.1.25) between a lashing device and the transverse direction on board the vessel
Note 1 to entry: See Figure 1.
© ISO 2020 – All rights reserved 3

---------------------- Page: 7 ----------------------
ISO/FDIS 23577:2020(E)

Key
1 vertical lashing angle, α
2 horizontal lashing angle, β
Figure 1 — Lashing angles diagram
3.1.28
lashing interference
conditions where securing equipment conflict with each other or with the vessel structure
3.1.29
storage device
device used to store portable fittings (3.1.3)
EXAMPLE Storage rack (3.1.30), storage bin (3.1.31).
3.1.30
storage rack
rack used to store portable fittings (3.1.3)
3.1.31
storage bin
bin used to store portable fittings (3.1.3)
3.1.32
lashing
securing (3.1.17) method providing pulling forces to prevent cargo from shifting, which can impact
transportation safety
EXAMPLE Securing containers with lashing rods (3.2.5) and turnbuckles (3.2.30).
3.1.33
cargo securing method
securing (3.1.17) method to prevent cargo from shifting by lashing (3.1.32), blocking or locking by
respectively providing a pulling force, pushing force or both
3.1.34
tensioning device
device used to tighten lashings
4 © ISO 2020 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/FDIS 23577:2020(E)

3.2 Terms for container securing
3.2.1
container securing fitting
securing fitting
securing device (3.1.1) used between containers and between a container and the deck, hatch cover, or
bilge, to prevent the container from longitudinal, transverse or vertical movements relative to the hull
during transportation
3.2.2
container lashing fitting
lashing fitting
securing device (3.1.1) used to lash a container to a hatch cover or deck
3.2.3
container buttress fitting
buttress fitting
securing device (3.1.1) used to eliminate the clearance between a container and a longitudinal bulkhead,
and to transfer any transverse forces to the longitudinal bulkhead
3.2.4
twistlock
portable fitting (3.1.3) used for securing (3.1.17) between containers or between the container and fixed
fittings (3.1.2), bearing longitudinal, transverse and vertical forces, and provided with opening and
closing devices
3.2.5
lashing rod
rod­shaped portable fitting (3.1.3) used to resist container distortion and to improve the stack weight
of the container
3.2.6
bridge fitting
portable fitting (3.1.3) used for the transverse connection of roof corners on the top of adjacent
containers
3.2.7
allowable torsion
safe racking load allowed by the container
3.2.8
allowable pressure
safe pressure allowed by the conta
...
