ISO 20299-1:2006

INTERNATIONAL ISO
STANDARD 20299-1
First edition
2006-01-15


Film for wrapping rubber bales —
Part 1:
Butadiene rubber (BR) and styrene-
butadiene rubber (SBR)
Emballage des balles en caoutchouc —
Partie 1: Caoutchouc butadiène (BR) et caoutchouc styrène-butadiène
(SBR)




Reference number
ISO 20299-1:2006(E)
©
ISO 2006

---------------------- Page: 1 ----------------------
ISO 20299-1:2006(E)

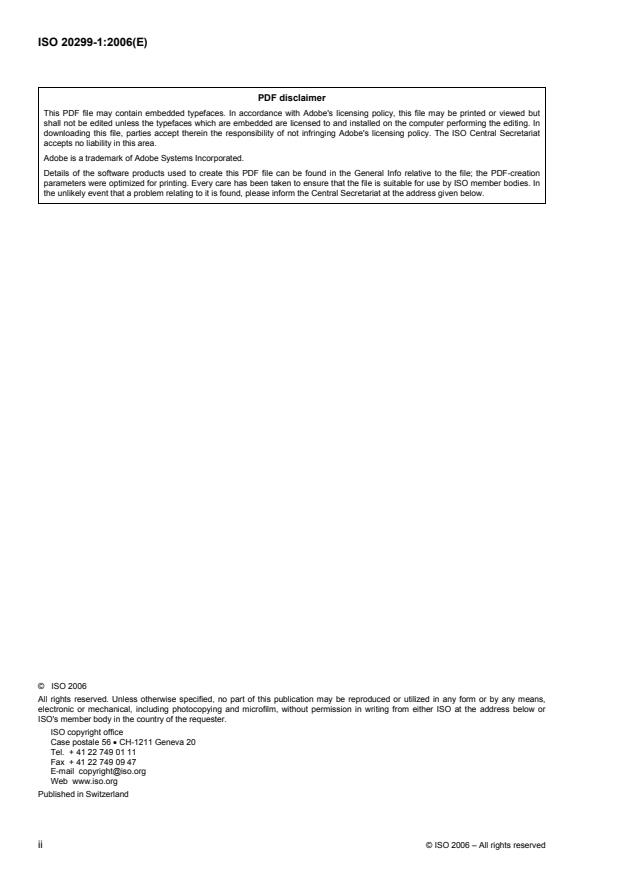

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2006 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 20299-1:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 20299-1 was prepared by Technical Committee ISO/TC 45, Rubber and rubber products, Subcommittee
SC 3, Raw materials (including latex) for use in the rubber industry.
ISO 20299 consists of the following parts, under the general title Film for wrapping rubber bales:
⎯ Part 1: Butadiene rubber (BR) and styrene-butadiene rubber (SBR)
⎯ Part 2: Natural rubber
⎯ Part 3: Ethylene-propylene-diene rubber (EPDM), nitrile-butadiene rubber (NBR), hydrogenated nitrile-
butadiene rubber (HNBR), acrylic-ethylene rubber (AEM) and acrylic rubber (ACM) (in preparation)

© ISO 2006 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 20299-1:2006(E)

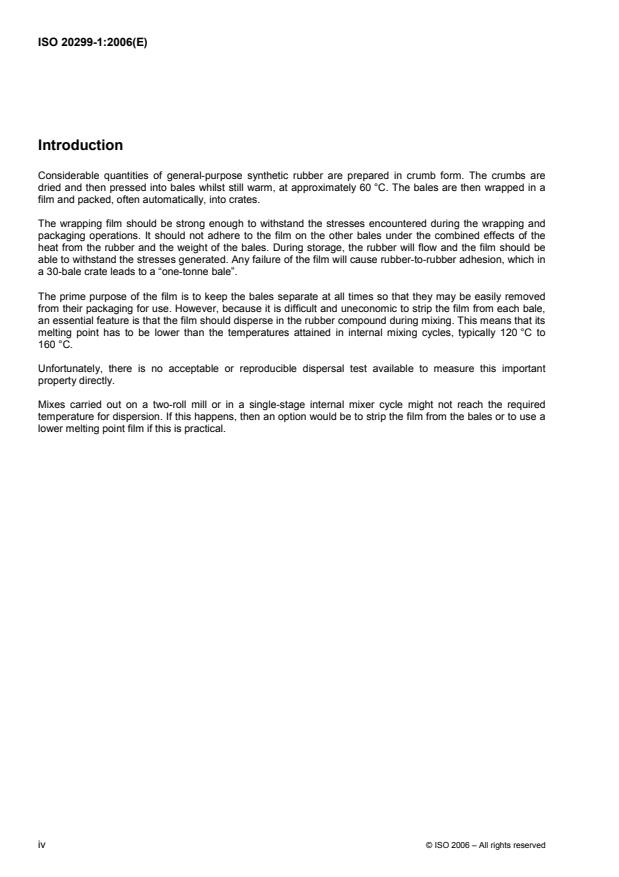

Introduction
Considerable quantities of general-purpose synthetic rubber are prepared in crumb form. The crumbs are
dried and then pressed into bales whilst still warm, at approximately 60 °C. The bales are then wrapped in a
film and packed, often automatically, into crates.
The wrapping film should be strong enough to withstand the stresses encountered during the wrapping and
packaging operations. It should not adhere to the film on the other bales under the combined effects of the
heat from the rubber and the weight of the bales. During storage, the
...
