ISO 3881:1977
(Main)Building construction - Modular co-ordination - Stairs and stair openings - Co-ordinating dimensions
Building construction - Modular co-ordination - Stairs and stair openings - Co-ordinating dimensions
Gives general principles for coordinating dimensions of stairs and stair openings in building construction. Applies to buildings of all types. Belongs to a series of ISO publications concerning modular co-ordination in building construction.
Construction immobilière — Coordination modulaire — Escaliers et trémies d'escaliers — Dimensions de coordination
General Information
- Status
- Published
- Publication Date
- 31-Jul-1977
- Technical Committee
- ISO/TC 59 - Buildings and civil engineering works
- Drafting Committee
- ISO/TC 59 - Buildings and civil engineering works
- Current Stage
- 9060 - Close of review
- Completion Date
- 02-Sep-2029
Relations
- Effective Date
- 06-Jun-2022
Overview
ISO 3881:1977 - Building construction - Modular co-ordination - Stairs and stair openings - Co-ordinating dimensions - gives general principles for establishing coordinated dimensions for stairs and stair openings in building construction. Applicable to buildings of all types, the standard is part of the ISO series on modular co-ordination, helping designers and manufacturers align stair geometry with a building’s modular grid and finished floor levels.
Key topics and requirements
- Scope and definitions: Uses vocabulary and definitions from related ISO documents (ISO 1791 and ISO 3880).
- Co-ordinating planes: Stair openings are bounded by co-ordinating planes; enclosing walls and floor heads must not trespass these boundary planes.
- Horizontal coordinating dimensions:
- Preferred dimensions are multiples of 3 M (n × 3 M).
- Secondary preference is multiples of 1 M (n × 1 M).
- Vertical coordinating dimensions:
- Vertical distances between co-ordinating planes shall be multiples of 1 M.
- Co‑ordinating planes for floor locations are related to finished floor levels (as illustrated in the standard).
- Illustrative examples: The standard includes application diagrams showing co-ordinating planes, enclosing walls and typical layout examples to guide practical implementation.
Practical applications
ISO 3881 is intended to make stair and stair-opening dimensions compatible with modular building systems, which supports:
- Consistent stair geometry across multi-storey buildings
- Easier integration of prefabricated stair elements with modular floors and structural grids
- Reduced on-site adjustment and clashes between stair openings and enclosing walls or floor heads
- Clear reference points for finished floor level integration
Typical users:
- Architects and building designers specifying stair and opening layouts
- Structural and façade engineers coordinating openings with structural grids
- Manufacturers of prefabricated stair components and modular building systems
- Contractors, site planners, and BIM modelers ensuring dimensional coordination during design and construction
Related standards
ISO 3881 forms part of a modular co‑ordination series; important companion documents include:
- ISO 1006 - Modular co-ordination - Basic module
- ISO 1040 - Multimodules for horizontal co-ordinating dimensions
- ISO 1789 - Storey heights and room heights for residential buildings
- ISO/R 1790 and ISO 1791 - Reference lines and vocabulary for modular co‑ordination
- ISO 2848 - Principles and rules of modular co‑ordination
Applying ISO 3881 helps ensure that stairs and stair openings fit neatly into a building’s modular design framework, improving constructability and interoperability of components.
ISO 3881:1977 - Building construction -- Modular co-ordination -- Stairs and stair openings -- Co-ordinating dimensions
ISO 3881:1977 - Construction immobiliere -- Coordination modulaire -- Escaliers et trémies d'escaliers -- Dimensions de coordination
ISO 3881:1977 - Construction immobiliere -- Coordination modulaire -- Escaliers et trémies d'escaliers -- Dimensions de coordination
Frequently Asked Questions
ISO 3881:1977 is a standard published by the International Organization for Standardization (ISO). Its full title is "Building construction - Modular co-ordination - Stairs and stair openings - Co-ordinating dimensions". This standard covers: Gives general principles for coordinating dimensions of stairs and stair openings in building construction. Applies to buildings of all types. Belongs to a series of ISO publications concerning modular co-ordination in building construction.
Gives general principles for coordinating dimensions of stairs and stair openings in building construction. Applies to buildings of all types. Belongs to a series of ISO publications concerning modular co-ordination in building construction.
ISO 3881:1977 is classified under the following ICS (International Classification for Standards) categories: 91.060.30 - Ceilings. Floors. Stairs. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 3881:1977 has the following relationships with other standards: It is inter standard links to ISO 10993-13:1998. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 3881:1977 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL STANDARD
INTERNATIONAL ORGANIZATION FOR STANDARDKATION l MEXAYHAPOAHAII OPTAHM3AUWI I-IO CTAHAAPTM3AI_IWW *ORGANISATION INTERNATIONALE DE NORMALISATION
Building construction - Modular Co-Ordination - Stairs and
- Co-ordinating dimensions
stair openings
Escaliers et trt!mies d %scaliers - Dimensions de Coordination
Construction immobilitire - Coordination modulaire -
First edition - 1977-08-01
w
-
Ref. No. ISO 38814977 (E)
UDC 69.026 : 721.013 : 389.63
E
cn
P
bscriptors : buildings, stairways, modular structures, dimensional co-ordination.
Price based on 2 pages

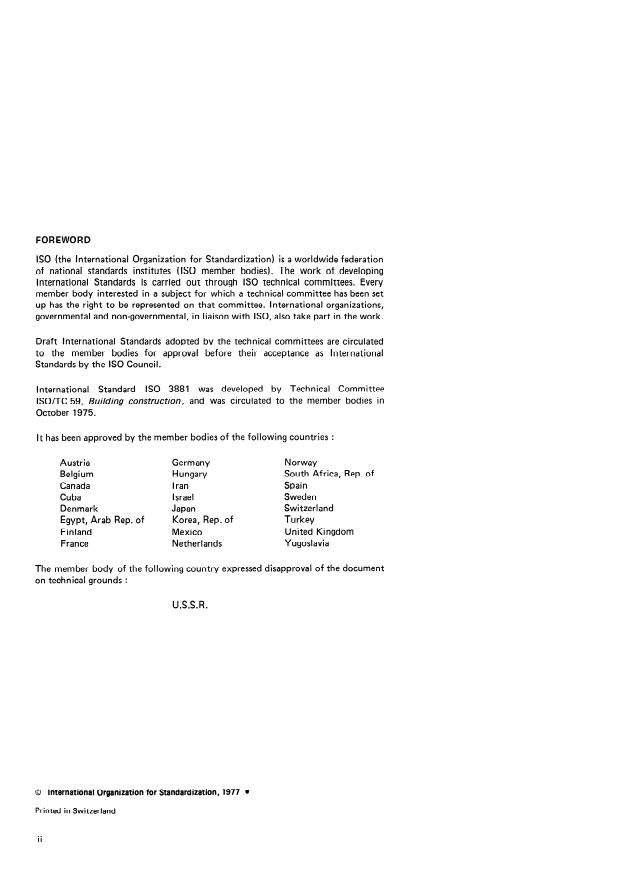

FOREWORD
ISO (the International Organitation for Standardization) is a worldwide federation
of national Standards institutes (ISO member bodies). The work of developing
International Standards is carried out through ISO technical committees. Every
member body interested in a subject for which a technical committee has been set
up has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated
to the member bodies for approval before their acceptance as International
Standards by the ISO Council.
International Standard ISO 3881 was developed by Technical (Zornmittee
and was circulated to the member bedies in
ISO/TC 59, Building construction,
October 1975.
lt has been approved by the member bodies of the following countries :
Austria Germany Norway
Belgium South Africa, Rep. of
Hungary
Iran Spain
Canada
Cuba Israel Sweden
Denmark Japan Switzerland
Egypt, Arab Rep. of Korea, Rep. of Turkey
Finland Mexico United Kingdom
France Netherlands Yugoslavia
expressed disapproval of the document
The member body of the following country
on technical grounds :
U.S.S.R.
0 International Organization for Standardkation, 1977 l
Printed in Switzerland
ii
ies of ISO publications concerning
This International Standard forms part of a ser
mod ,ular Co-Ordination in bui Iding construction.
following documents, which lay down the
This series incl udes among others, the
lar Co-Ordination.
basic principles and d esign rules of modu
ISO 1006, Modular co-ordina tion - Basic module.
Multimodules for horizontal co-ordina ting
ISO 1040, Modula
...
NORME INTERNATIONALE
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION l ME>KflYHAPOAHAII OPTAHM3ALW’l Il0 CTAHflAPTM3AWH .ORGANISATION INTERNATIONALE DE NORMALISATION
Construction immobilière - Coordination modulaire -
Escaliers et trémies d’escaliers - Dimensions de coordination
Building construction - Modular co-rdination - Stairs and stair openings - Co-ordinating dimensions
Première édition - 1977-0841
CDU 69.026 : 721.013 : 389.63 Réf. no : ISO 3881-1977 (F)
Descripteurs : bâtiment, escalier, structure modulaire, coordination dimensionnelle.
Prix basé sur 2 pages
AVANT-PROPOS
L’ISO (Organisation internationale de normalisation) est une fédération mondiale
d’organismes nationaux de normalisation (comités membres de I’ISO). L’élaboration
des Normes internationales est confiée aux comités techniques de I’ISO. Chaque
comité membre intéressé par une étude a le droit de faire partiedu comité technique
correspondant. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec I’ISO, participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont
soumis aux comités membres pour approbation, avant leur acceptation comme
Normes internationales par le Conseil de I’ISO.
La Norme internationale ISO 3881 a été élaborée par le comité technique
ISO/TC 59, Construction immobilière, et a été soumise aux comités membres en
octobre 1975.
Les comités membres des pays suivants l’ont approuvée :
Égypte, Rep. arabe d’ Mexique
Afrique du Sud, Rép. d’
Norvège
Allemagne Espagne
Finlande Pays-Bas
Autriche
France Royaume-Uni
Belgique
Hongrie Suède
Canada
Corée, Rep. de Iran Suisse
Cuba Israël Turquie
Danemark Japon Yougoslavie
Le comité membre du pays suivant l’a désapprouvée pour des raisons techniques :
U.R.S.S.
0 Organisation internationale de normalisation, 1977 l
Imprimé en Suisse
ii
La présente Norme internationale fait partie d’une série de documents ISO concer-
nant la coordination modulaire relative à la construction immobilière.
Cette série comprend, entre autres, les documents suivants précisant les principes de
base ainsi que les prescriptions ayant trait à la coordination modulaire.
ISO 1006, Coordination modulaire - Module de base.
ISO 1040, Coordination modulaire - Multimodules pour dimensions de coordina-
tion horizon tale.
I SO 1789, Coordination modulaire - Hau
...
NORME INTERNATIONALE
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION l ME>KflYHAPOAHAII OPTAHM3ALW’l Il0 CTAHflAPTM3AWH .ORGANISATION INTERNATIONALE DE NORMALISATION
Construction immobilière - Coordination modulaire -
Escaliers et trémies d’escaliers - Dimensions de coordination
Building construction - Modular co-rdination - Stairs and stair openings - Co-ordinating dimensions
Première édition - 1977-0841
CDU 69.026 : 721.013 : 389.63 Réf. no : ISO 3881-1977 (F)
Descripteurs : bâtiment, escalier, structure modulaire, coordination dimensionnelle.
Prix basé sur 2 pages

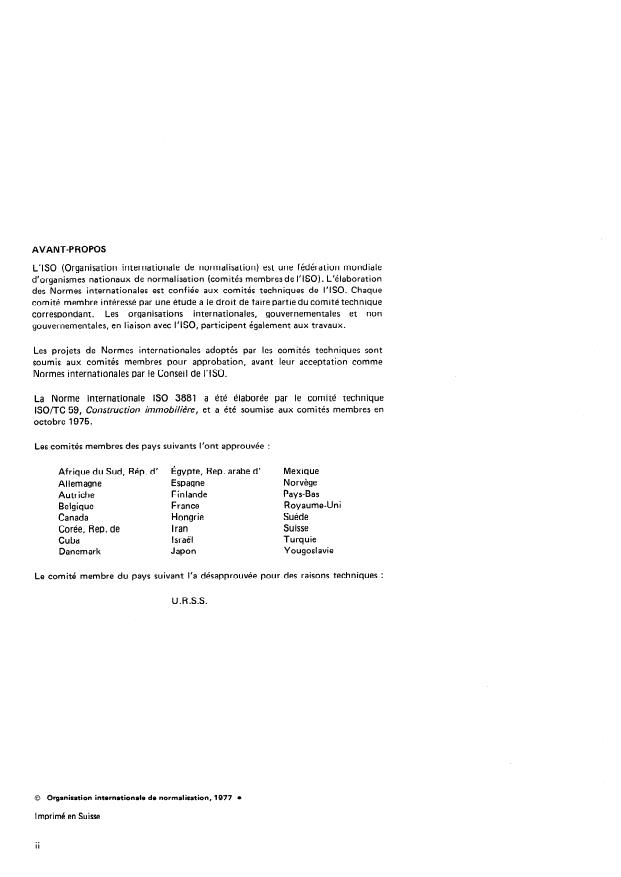

AVANT-PROPOS
