Thermal spraying — Determination of interfacial toughness of ceramic coatings by indentation

ISO 20267:2017 specifies a method for measuring the interfacial toughness of thermal spray ceramic coatings at room temperature based on an indentation method. The interfacial toughness is calculated from the mean length of cracks emanating from the corners of the impression induced by a Vickers hardness tester, and it is intended for use with ceramic coatings with a single layer or multilayers. The test procedures proposed in this document are intended for use in an ambient environment. ISO 20267:2017 is recommended for thermal spray ceramic coatings such as thermal barrier coatings, wear resistant coatings and electrical insulating coatings.

Projection thermique — Détermination de la ténacité interfaciale des revêtements céramiques par indentation

General Information

Status
Published
Publication Date
16-May-2017
Current Stage
9093 - International Standard confirmed
Completion Date
20-Dec-2022
Ref Project

Buy Standard

Standard
ISO 20267:2017 - Thermal spraying -- Determination of interfacial toughness of ceramic coatings by indentation
English language
10 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 20267
First edition
2017-05
Thermal spraying — Determination
of interfacial toughness of ceramic
coatings by indentation
Projection thermique — Détermination de la ténacité interfaciale des
revêtements céramiques par indentation
Reference number
ISO 20267:2017(E)
©
ISO 2017

---------------------- Page: 1 ----------------------
ISO 20267:2017(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 20267:2017(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and units . 1
5 Principle . 3
6 Test pieces and sample preparation . 3
6.1 Thicknesses of coating and substrate . 4
6.2 Sample size . 4
6.3 Sample cutting . 4
6.4 Mounting . 4
6.5 Surface polishing . 4
7 Apparatus . 5
8 Procedure and conditions of testing . 5
8.1 Indentation . 5
8.2 Indentation and crack length measurement . 5
9 Evaluation of indentation interfacial toughness . 7
9.1 Analysis. 7
9.2 Test validity . 7
10 Test report . 8
10.1 Items to be reported . 8
10.2 Other items to be reported . 9
Bibliography .10
© ISO 2017 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 20267:2017(E)

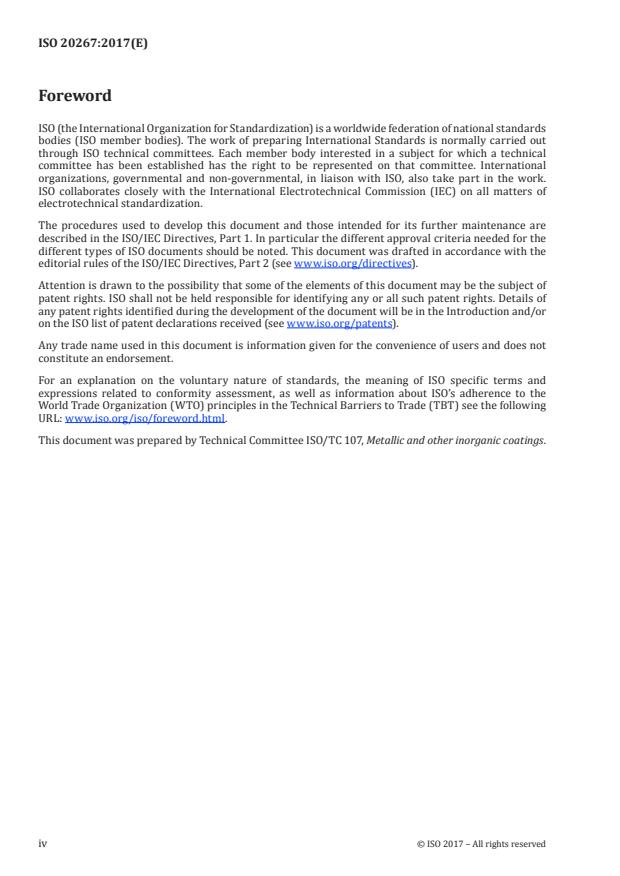

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 107, Metallic and other inorganic coatings.
iv © ISO 2017 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 20267:2017(E)

Introduction
The interfacial toughness of thermal spray ceramic coatings is required for two reasons:
a) to understand quantitatively degradation of adhesion in service;
b) for life assessment of the coated components.
Adhesion strength of thermal spray coatings is usually measured in accordance with the tensile
method specified by ISO 14916. However, there is a technical limitation in the application of ISO 14916.
It requires preparation of a tensile adhesion test specimen using glue and, as such, coatings with
higher adhesion strength than glue cannot be quantitatively evaluated. By virtue of its simplicity and
practicality, an indentation method is a promising method to evaluate the adhesion of such coatings. In
this method, a Vickers hardness tester is used. An interfacial toughness value is evaluated by measuring
a length of the crack formed after pushing the indenter on the coating interface. The application of the
method specified in this document can reduce uncertainty over the adhesion strength evaluation of
coatings and makes it possible to evaluate the adhesion strength in a simpler way.
-3/2
The results can be expressed either as a stress intensity factor, in MN∙m , or as a fracture surface
-2
energy, in J∙m .
“Interfacial toughness” can have several meanings.
-3/2
a) Interfacial fracture toughness, K , in MN∙m , is a material constant that shows how easily the
Ic
coating may be peeled away from a substrate.
b) Energy release rate (or work done to fracture), G, is an alternative expression for interfacial fracture
2 2
toughness, often obtained by converting K to G [i.e. G = K (1 - ν )/E, where E is Young’s modulus and
-2
ν is Poisson’s ratio]. G has units of J∙m .
For the purposes of developing the test method, the term indentation interfacial toughness, K , is
IFC
defined separately from interfacial fracture toughness, K . The indentation interfacial toughness is
Ic
a value obtained by using Vickers hardness tester, and is calculated from the total length of cracks
induced along the interface by the indentation. Shorter crack lengths indicate that the coating has
higher interfacial toughness or adhesion strength than other samples with longer cracks. There is no
standard method to determine such interfacial toughness for thermal spray ceramic coatings, and
different organizations or groups currently use their own evaluation procedures.
When measurements are carefully performed following the methods defined in this document,
the evaluation of crack length, and thus interfacial toughness, will not require much effort and can
describe the adhesion characteristics of the system (substrate chemistry, pre-preparation/roughness
of substrate surface, coating chemistry and properties). This document recommends good practice to
minimize uncertainty in the measurement procedures.
© ISO 2017 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 20267:2017(E)
Thermal spraying — Determination of interfacial
toughness of ceramic coatings by indentation
1 Scope
This document specifies a method for measuring the interfacial toughness of thermal spray ceramic
coatings at room temperature based on an indentation method. The interfacial toughness is calculated
from the mean length of cracks emanating from the corners of the impression induced by a Vickers
hardness tester, and it is intended for use with ceramic coatings with a single layer or multilayers. The
test procedures proposed in this document are intended for use in an ambient environment.
This document is recommended for thermal spray ceramic coatings such as thermal barrier coatings,
wear resistant coatings and electrical insulating coatings.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 6507-1, Metallic materials — Vickers hardness test — Part 1: Test method
ISO 6507-2, Metallic materials — Vickers hardness test — Part 2: Verification and calibration of testing
machines
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Symbols and units
For the purposes of this document, the symbols and units given in Table 1 apply (see also Figures 1 and 2).
Table 1 — Symbols and designations
Symbol Designation Unit
a diagonal half-length of impression parallel to interface m
c mean value of half crack length: (c + c )/2 m
1 2
c , c individual crack lengths at corner of impression (lengths from crack tip to centre of m
1 2
impression, parallel with the macroscopic interface)
−2
E Young’s modulus of ceramic coating GN·m
1
−2
E Young’s
...
