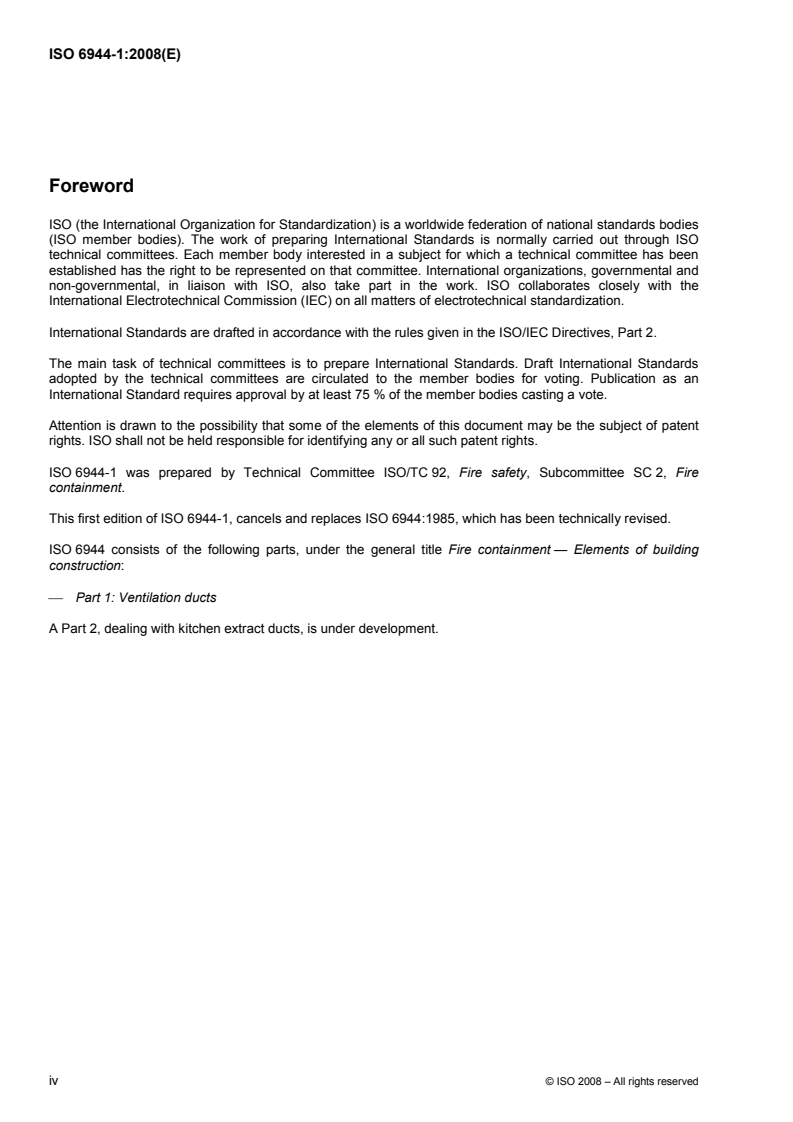

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 6944-1 was prepared by Technical Committee ISO/TC 92, Fire safety, Subcommittee SC 2, Fire
containment.
This first edition of ISO 6944-1, cancels and replaces ISO 6944:1985, which has been technically revised.
ISO 6944 consists of the following parts, under the general title Fire containment — Elements of building
construction:
⎯ Part 1: Ventilation ducts
A Part 2, dealing with kitchen extract ducts, is under development.

iv © ISO 2008 – All rights reserved

Introduction
The purpose of this test is to measure the ability of a representative duct or duct assembly that is part of an
air-distribution system to resist the spread of fire from one fire compartment to another, with fire attack from
inside or outside the duct. It is applicable to vertical and horizontal ducts, with or without branches, taking into
account joints and exhaust openings, as well as suspension devices and penetration points.
This part of ISO 6944 is very similar to EN 1366-1, but includes an alternative arrangement for testing elbows.
The test measures the length of time during which ducts of specified dimensions, suspended as they normally
are in practice, satisfy defined criteria when exposed to fire from either inside or outside the duct.
All ducts inside the furnace are fully restrained in all directions. Outside the furnace, ducts exposed to fire from
the outside are tested unrestrained, while ducts exposed to fire from the inside (horizontal only) are tested
restrained.
The test takes into account the effect of fire exposure from the outside, where a 300 Pa underpressure is
maintained in the duct, as well as the effect of fire entering the ducts under conditions where forced air
movement might or might not be present, by maintaining an air velocity of 3 m/s.
Ducts exposed to fire from the inside are supplied with air in a manner that is representative of the “fan off”
and “fan on” situations that can arise in practice.

INTERNATIONAL STANDARD ISO 6944-1:2008(E)

Fire containment — Elements of building construction —
Part 1:
Ventilation ducts
CAUTION — The attention of all persons concerned with managing and carrying out this fire
resistance test is drawn to the fact that fire testing can be hazardous and that there is the possibility
that toxic and/or harmful smoke and gases can be evolved during the test. Mechanical and operational
hazards can also arise during the construction of the test elements or structures, their testing and
disposal of test residues.
It is strongly recommended that the duct assembly be allowed to cool completely after the fire test,
before dismantling, to minimize the possibility of ignition of combustible residues.
An assessment of all potential hazards and risks to health shall be made and safety precautions shall
be identified and provided. Written safety instructions shall be issued. Appropriate training shall be
given to relevant personnel. Laboratory personnel shall ensure that they follow written safety
instructions at all times.
1 Scope
This part of ISO 6944 specifies a method for determining the fire resistance of vertical and horizontal
ventilation ducts under standardized fire conditions. The test examines the behaviour of ducts exposed to fire
from the outside (duct A) and fire inside the duct (duct B). It is intended that this part of ISO 6944 be used in
conjunction with ISO 834-1.
This part of ISO 6944 is not applicable to
a) ducts whose fire resistance depends on the fire resistance performance of a ceiling,
b) ducts containing fire dampers at points where they pass through fire separations,
c) doors of inspection openings, unless included in the duct to be tested,
d) two- or three-sided ducts,
e) the fixing of suspension devices to floors or walls.
NOTE Annex A provides general guidance and gives background information.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 834-1, Fire-resistance tests — Elements of building construction — Part 1: General requirements
ISO 5167-1, Measurement of fluid flow by means of pressure differential devices inserted in circular cross-
section conduits running full — Part 1: General principles and requirements
ISO 5221, Air distribution and air diffusion — Rules to methods of measuring air flow rate in an air handling
duct
ISO 13943, Fire safety — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 834-1 and ISO 13943, and the
following apply.
3.1
fire resisting duct
duct used for the distribution or extraction of air and designed to provide a degree of fire resistance
3.2
suspension device
components used for supporting and fixing a duct from a floor or supporting a duct from a wall
3.3
supporting devices
wall, partition or floor through which the duct passes during the test
3.4
compensator
device that is used to prevent damage from the forces generated by expansion
4 Apparatus
4.1 In addition to the test equipment specified in ISO 834-1, the following apparatus is required.
4.2 Furnace, capable of subjecting ventilation ducts to the standard heating conditions specified in
ISO 834-1 and suitable for testing ducts in the vertical (see Figure 1) or horizontal (see Figure 2) orientation.
Figures 1 and 2 show two ducts being tested together. When two ducts are tested together, they shall be
separated by a minimum of 500 mm. It is also permitted to test each duct singularly in the furnace.
4.3 Fan A, capable of producing an underpressure of (300 ± 15) Pa within duct A (see Figure 3) at the start
and throughout the test, and shall be connected, either directly or by a suitable length of flexible ducting, to the
measuring station (4.5).
4.4 Fan B, capable of producing an air velocity when extracting gas from duct B (see Figure 4) of at least
3 m/s measured at ambient temperature in the duct before the test.
It shall be connected, either directly or by a suitable length of flexible ducting, to the velocity-measuring station
(4.8). The fan shall be provided with a by-pass vent that can be opened prior to shutting the damper (4.7).
2 © ISO 2008 – All rights reserved

Dimensions in millimetres
Key
1 7
furnace wall furnace chamber
2 8
sealed end openings providing a total area of 50% of duct cross-section
fire-protection system 9 furnace floor
location for fire stopping (normal practice) 10 leakage-measuring station (see Figure 3 for details)
joint in fire-protection system 11 gas-velocity-measuring station (see Figure 4 for details)
furnace roof 12 duct A
13 duct B
W
width
H
height
D
diameter
See 4.2.
Figure 1 — Test arrangement for vertical ducts
Dimensions in millimetres
Key
1 furnace wall 9 duct B
2 duct with 90° elbow 10 supporting construction
3 sealed end 11 furnace chamber
4 location for fire stopping (normal practice) 12
openings providing a total area of 50 % of duct cross-section
5 fire-protection system 13 sealed end of elbow
6 location of restraint positions 14
200 mm minimum supporting construction
7 joints in fire-protection system 15 leakage-measuring station (see Figure 3 for details)
8 duct A 16
gas-velocity-measuring station (see Figure 4 for details)
W width or diameter
See 4.2.
Figure 2 — Test arrangement for horizontal ducts
4 © ISO 2008 – All rights reserved

Figure 3 (continued)
Key
1 pressure sensor to furnace 11 flexible connecting duct
2 pressure sensor on centre-line of duct 12 support for flow-measuring system
3 office plate, venture or similar 13 thermocouple, 1,5 mm diameter
4 14 flow straightener (where necessary)
pressure differential of 300 Pa
5 pressure sensor in laboratory 15 flange
6 pressure-differential control box 16 support for duct outside furnace
7 pressure-control dilution damper 17 test duct
8 pneumatic-actuator manual control 18 condensing device
9 balancing damper 19
horizontal duct A
10 fan 20
vertical duct A
a
Thermocouple located 2d from key item 3; see Note.
NOTE d is the diameter of the measuring duct downstream from the flow-measuring device.
Figure 3 — Leakage-measuring
...
