ISO 3767-1:2016/Amd 1:2020
(Amendment)Tractors, machinery for agriculture and forestry, powered lawn and garden equipment - Symbols for operator controls and other displays - Part 1: Common symbols - Amendment 1
Tractors, machinery for agriculture and forestry, powered lawn and garden equipment - Symbols for operator controls and other displays - Part 1: Common symbols - Amendment 1
Tracteurs, matériels agricoles et forestiers, matériel à moteur pour jardins et pelouses — Symboles pour les commandes de l'opérateur et autres indications — Partie 1: Symboles communs — Amendement 1
General Information
- Status
- Published
- Publication Date
- 29-Oct-2020
- Current Stage
- 6060 - International Standard published
- Start Date
- 30-Oct-2020
- Due Date
- 14-Sep-2021
- Completion Date
- 30-Oct-2020
Relations
- Effective Date
- 26-Nov-2021
Overview
ISO 3767-1:2016/Amd 1:2020 is an important amendment to the international standard dedicated to symbols for operator controls and displays used in tractors, agricultural and forestry machinery, as well as powered lawn and garden equipment. Published by the International Organization for Standardization (ISO), this amendment updates Part 1 of the standard, which focuses on common symbols. These standardized graphical symbols improve operator understanding, safety, and usability by ensuring consistent communication across machinery interfaces worldwide.
This amendment introduces new symbols and clarifies usage to reflect modern machinery control technologies, such as reconfigurable controls, transmission sensitivity settings, and advanced steering functions. It supports manufacturers, operators, and maintenance personnel with clear, universally recognized symbols, driving better equipment operation and interoperability.
Key Topics
New Symbol Additions
- Reconfigurable control symbol for machines with programmable functions
- Priority control symbol indicating function priority levels
- Sensitivity setting symbols for adjustable controls (engine, transmission, steering)
- Field operation and trailer towing modes for transmission controls
- Universal Serial Bus (USB) port and plug identification
- Hydraulic valve timer and motor mode indications
- Armrest status symbols recognizing integrated control consoles
Transmission and Engine Controls
Updated symbols specify- Engine load and percentage of rated torque
- Engine and transmission sensitivity settings (stepwise, continuous variation)
- Continuously variable transmission (CVT) operation
- Clutch pedal depress instruction as an interlock function
Steering and Brake Assist Functions
Introduction of symbols for braking-assisted steering and variable rate steering sensitivity, enhancing machine maneuverability and operator control.Tyre and Track Radius Inputs
Symbols to identify input controls related to tyre and track radius data for precision machine operations.
Applications
Agricultural and Forestry Machinery
Uniform control symbols streamline operator training and reduce machine misuse risk, especially on multifunctional tractors and harvesters.Powered Lawn and Garden Equipment
Enhances safe operation and maintenance of powered garden tools by clearly indicating control statuses and modes.Operator Interfaces and Manuals
Manufacturers use ISO 3767-1 symbols extensively in dashboard displays, control panels, and operator manuals to provide intuitive guidance.Automation and Smart Controls
Symbols such as reconfigurable control and transmission sensitivity settings are critical for machines with advanced programmable or automated features.Regulatory Compliance and International Trade
Adherence to ISO symbols facilitates compliance with international safety standards and eases cross-border machinery operation and servicing.
Related Standards
ISO 3767 Series
Part 2 and subsequent parts address symbols for other specific machinery controls and advanced display features.ISO/IEC 7000 Graphical Symbols Database
Many symbols referenced are registered under ISO/IEC 7000, ensuring global alignment on graphical symbol usage.AEF ISOBUS Guidelines
ISO 3767-1 complements ISOBUS communication standards (AEF 004 and AEF 021), enhancing symbol use in electronic control systems.ISO/IEC Directives
The development and amendment process follows ISO/IEC Directives, ensuring structured maintenance and international consensus.
Conclusion
ISO 3767-1:2016/Amd 1:2020 significantly advances the clarity and utility of operator control symbols in agricultural and forestry machinery and powered lawn equipment. By adopting these updated common symbols, manufacturers and operators benefit from enhanced safety, operational efficiency, and international harmonization. This amendment is essential for anyone involved in the design, operation, or regulation of modern agricultural machinery and related equipment.
ISO 3767-1:2016/Amd 1:2020 - Tractors, machinery for agriculture and forestry, powered lawn and garden equipment — Symbols for operator controls and other displays — Part 1: Common symbols — Amendment 1 Released:10/30/2020
ISO 3767-1:2016/Amd 1:2020 - Tracteurs, matériels agricoles et forestiers, matériel à moteur pour jardins et pelouses — Symboles pour les commandes de l'opérateur et autres indications — Partie 1: Symboles communs — Amendement 1 Released:10/30/2020
Frequently Asked Questions
ISO 3767-1:2016/Amd 1:2020 is a standard published by the International Organization for Standardization (ISO). Its full title is "Tractors, machinery for agriculture and forestry, powered lawn and garden equipment - Symbols for operator controls and other displays - Part 1: Common symbols - Amendment 1". This standard covers: Tractors, machinery for agriculture and forestry, powered lawn and garden equipment - Symbols for operator controls and other displays - Part 1: Common symbols - Amendment 1
Tractors, machinery for agriculture and forestry, powered lawn and garden equipment - Symbols for operator controls and other displays - Part 1: Common symbols - Amendment 1
ISO 3767-1:2016/Amd 1:2020 is classified under the following ICS (International Classification for Standards) categories: 01.080.20 - Graphical symbols for use on specific equipment; 65.060.01 - Agricultural machines and equipment in general. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 3767-1:2016/Amd 1:2020 has the following relationships with other standards: It is inter standard links to ISO 3767-1:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 3767-1:2016/Amd 1:2020 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 3767-1
Fourth edition
2016-09-01
AMENDMENT 1
2020-10
Tractors, machinery for agriculture
and forestry, powered lawn and
garden equipment — Symbols
for operator controls and other
displays —
Part 1:
Common symbols
AMENDMENT 1
Tracteurs, matériels agricoles et forestiers, matériel à moteur pour
jardins et pelouses — Symboles pour les commandes de l'opérateur et
autres indications —
Partie 1: Symboles communs
AMENDEMENT 1
Reference number
ISO 3767-1:2016/Amd.1:2020(E)
©
ISO 2020

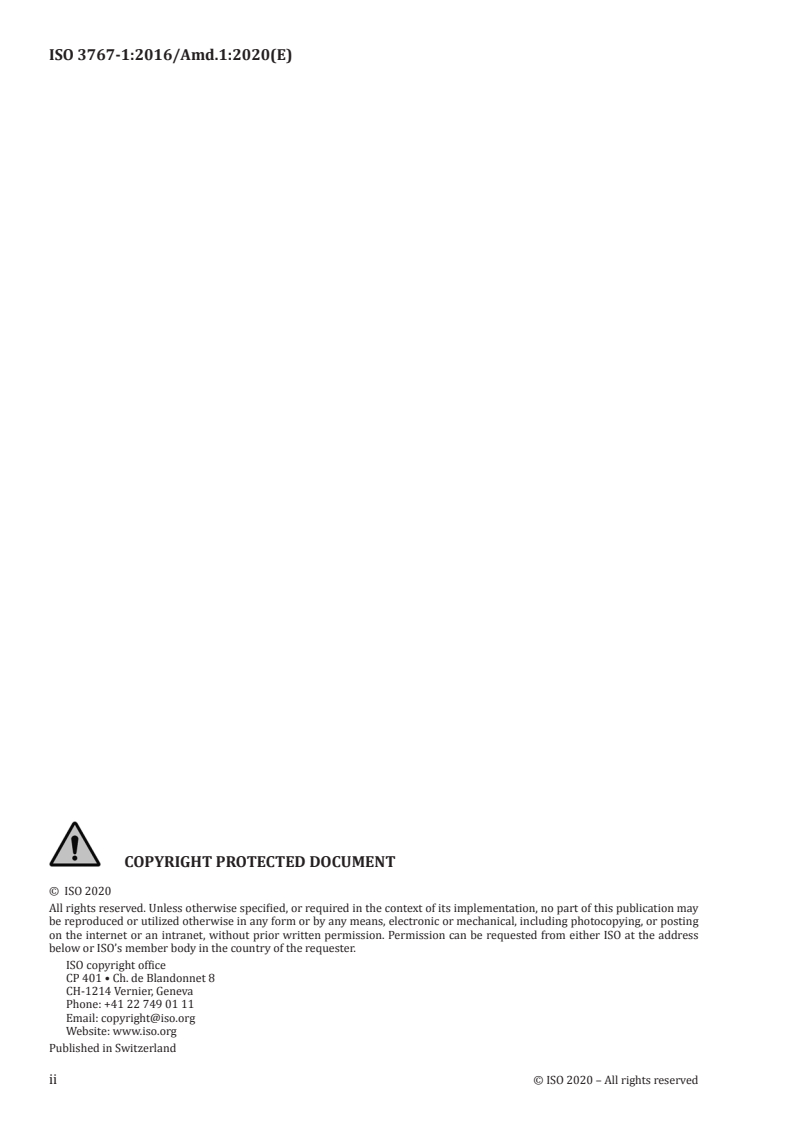

ISO 3767-1:2016/Amd.1:2020(E)
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
ISO 3767-1:2016/Amd.1:2020(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 23, Tractors and machinery for agriculture
and forestry, Subcommittee SC 14, Operator controls, operator symbols and other displays, operator
manuals.
A list of all parts in the ISO 3767 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
ISO 3767-1:2016/Amd.1:2020(E)
Tractors, machinery for agriculture and forestry, powered
lawn and garden equipment — Symbols for operator
controls and other displays —
Part 1:
Common symbols
AMENDMENT 1
Clause 9
Add the following new symbols:
ISO/IEC
No. Graphical symbol Symbol title and description registration
number
Title: Reconfigurable control
Description: To identify a control that can be con-
figured for different machine functions or operating
parameters, depending on selection or program-
9.202 ming by the operator. ISO 7000-3668
Note: Different specific functions to be controlled
using variable operating parameters can be iden-
tified by inserting an appropriate graphic into the
open centre of this symbol.
Title: Priority
Description: To identify the control that sets the
priority for an apparatus, circuit, or function. To
indicate the priority for an apparatus, circuit, or
function.
9.203 Note: A number inside the diamond can be used ISO 7000-5430
to indicate the priority level. A graphical symbol
inside the diamond can be used to identify the func-
tion receiving priority. If a graphical symbol is used
to identify the function receiving priority, a number
can be added outside the diamond to the lower right
to indicate the priority level for that function.
Title: Sensitivity
Description: To identify the control that sets or
adjusts the sensitivity to be applied to the operation
9.204 of an unspecified apparatus, circuit, or function. ISO 7000-3638
Note: If the equipment to which the sensitivity ap-
plies is to be identified, use this symbol in combina-
tion with a symbol for the function.
ISO 3767-1:2016/Amd.1:2020(E)
ISO/IEC
No. Graphical symbol Symbol title and description registration
number
Title: Field mode
Description: To identify the control that, when ac-
tivated, provides optimal management during field
9.205 ISO 7000-3639
operations. To indicate that the operational status
of the system is for field operation.
Title: Wake up
Description: To identify the control that returns
the machine or device to its normal operating state
9.206 ISO 7000-3640
by enabling the previously disabled functions.
Title: Universal Serial Bus (USB), port/plug
Description: To identify a port or plug as meeting
the generic requirements of the Universal Serial
Bus (USB). To indicate that the device is plugged
into a USB port or is compatible with a USB port.
9.207 ISO 7000-3650
Note: Use of this symbol may be subject to organ-
izational or regulatory compliance testing and
acceptance criteria for the device on which this
symbol is to be used. Refer to www .usb .org for
additional information.
Clause 10
Add the following new symbols and renumber the subsequent symbols as appropriate:
ISO/IEC
No. Graphical symbol Symbol title and description registration
number
Title: Engine load (torque)
Description: To indicate the engine load (torque) or
the rated engine load.
10.55 ISO 7000-3641
Title: Engine load, percentage of rated torque
Description: To identify the control that sets the
operating engine load as a percentage of rated
10.56 ISO 7000-3669
engine torque. To indicate the
...
NORME ISO
INTERNATIONALE 3767-1
Quatrième édition
2016-09-01
AMENDEMENT 1
2020-10
Tracteurs, matériels agricoles et
forestiers, matériel à moteur pour
jardins et pelouses — Symboles pour
les commandes de l'opérateur et
autres indications —
Partie 1:
Symboles communs
AMENDEMENT 1
Tractors, machinery for agriculture and forestry, powered lawn
and garden equipment — Symbols for operator controls and other
displays —
Part 1: Common symbols
AMENDMENT 1
Numéro de référence
ISO 3767-1:2016/Amd.1:2020(F)
©
ISO 2020
ISO 3767-1:2016/Amd.1:2020(F)
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2020
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii © ISO 2020 – Tous droits réservés
ISO 3767-1:2016/Amd.1:2020(F)
Avant-propos
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
Le présent document a été élaboré par le comité technique ISO/TC 23, Tracteurs et matériels agricoles et
forestiers, sous-comité SC 14, Commandes, symboles ou autres indications et manuels d’utilisation pour les
opérateurs.
Une liste de toutes les parties de la série ISO 3767 se trouve sur le site web de l’ISO.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
ISO 3767-1:2016/Amd.1:2020(F)
Tracteurs, matériels agricoles et forestiers, matériel à
moteur pour jardins et pelouses — Symboles pour les
commandes de l'opérateur et autres indications —
Partie 1:
Symboles communs
AMENDEMENT 1
Article 9
Ajouter les nouveaux symboles suivants:
Numéro d’enregis-
N Symbole graphique Description/application du symbole trement
ISO/IEC
Titre: Commande reconfigurable
Description: Pour identifier une commande qui
peut être configurée pour différentes fonctions de
la machine ou paramètres de fonctionnement, en
fonction de la sélection ou de la programmation
9.202 faite par l’opérateur. ISO 7000-3668
Note: Il est possible d’identifier différentes fonctions
spécifiques devant être contrôlées au moyen de
paramètres de fonctionnement variables en insérant
un graphique approprié dans la partie centrale vide
de ce symbole.
Titre: Priorité
Description: Pour identifier la commande qui définit
la priorité pour un appareil, un circuit ou une fonc-
tion. Pour indiquer la priorité pour un appareil, un
circuit ou une fonction.
Note: Un nombre peut être ajouté à l’intérieur du
9.203 ISO 7000-5430
diamant pour indiquer le niveau de priorité. Un
symbole graphique à l’intérieur du diamant peut
servir à identifier la fonction recevant la priorité. Si
un symbole graphique sert à identifier la fonction
recevant la priorité, un nombre peut être ajouté à
l’extérieur du diamant, en bas à droite, pour indiquer
le niveau de priorité de cette fonction.
Titre: Sensibilité
Description: Pour identifier la commande qui règle
ou ajuste la sensibilité à appliquer à l’opération d’un
9.204 appareil, d’un circuit ou d’une fonction non spécifié(e). ISO 7000-3638
Note: Pour identifier l’équipement auquel s’applique
la sensibilité, utiliser ce symbole avec le symbole
de la fonction.
ISO 3767-1:2016/Amd.1:2020(F)
Numéro d’enregis-
N Symbole graphique Description/application du symbole trement
ISO/IEC
Titre: Mode champ
Description: Pour identifier la commande qui,
lorsqu’elle est activée, fournit une gestion optimale
9.205 ISO 7000-3639
pendant les opérations sur champ. Pour indiquer
que l’état de fonctionnement du système concerne
une opération sur champ.
Titre: Réveil
Description: Pour identifier la commande qui replace
la machine ou le dispositif dans son état normal de
9.206 ISO 7000-3640
fonctionnement en activant des fonctions qui avaient
été désactivées.
Titre: Universal Serial Bus (USB), port/prise
Description: Pour identifier un port ou une prise
qui respecte les exigences génériques Universal
Serial Bus (USB). Pour indiquer que le dispositif est
branché dans un port USB ou est compatible avec
9.207 un port USB. ISO 7000-3650
Note: L’utilisation de ce symbole peut être soumise
à la réalisation d’essais de conformité organisation-
nelle ou règlementaire et à des critères d’acceptation
pour le dispositif sur lequel ce symbole sera utilisé.
Se référer à www. usb. org pour plus d’informations.
2 © ISO 2020 – Tous droits réservés
ISO 3767-1:2016/Amd.1:2020(F)
Article 10
Ajouter les nouveaux symboles suivants et renuméroter ceux qui suivent si nécessaire:
Numéro d’enre-
gistrement
N° Symbole graphique Description/application du symbole
ISO/IEC
Titre: Charge du moteur (couple)
Description: Pour indiquer la charge du moteur
(couple) ou la charge nominale du moteur.
10.55 ISO 7000-3641
Titre: Charge du moteur, pourcentage du couple
nominal
Description: Pour identifier la commande qui règle
10.56 ISO 7000-3669
la charge opérationnelle du moteur en pourcentage
du couple nominal du moteur. Pour indiquer la
charge réelle du moteur en pourcentage du couple
nominal du moteur.
T
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
