IEC PAS 62596:2009

IEC/PAS 62596
Edition 1.0 2009-01
PUBLICLY AVAILABLE
SPECIFICATION
PRE-STANDARD
Electrotechnical products – Determination of restricted substances – Sampling
procedure – Guidelines
IEC/PAS 62596:2009(E)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC/PAS 62596
Edition 1.0 2009-01
PUBLICLY AVAILABLE
SPECIFICATION
PRE-STANDARD
Electrotechnical products – Determination of restricted substances – Sampling
procedure – Guidelines
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XA
ICS 13.020, 43.040.10 ISBN 978-2-88910-813-8

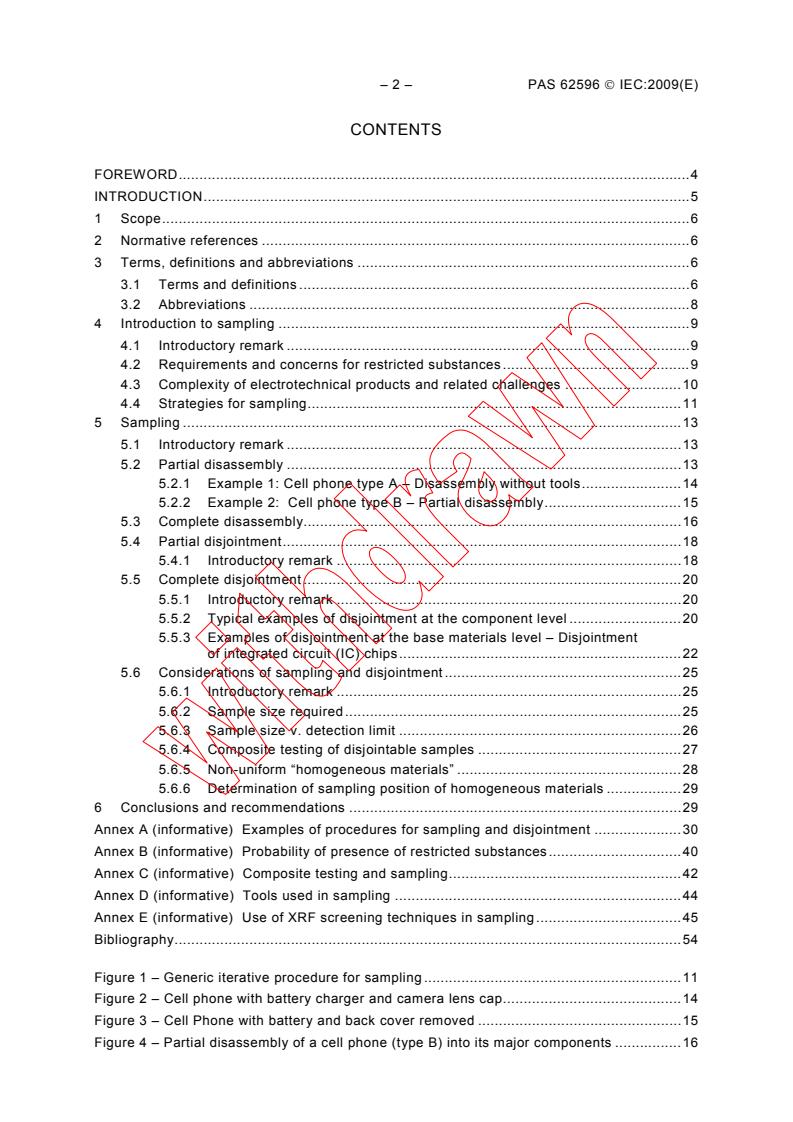

– 2 – PAS 62596 © IEC:2009(E)
CONTENTS
FOREWORD.4
INTRODUCTION.5
1 Scope.6
2 Normative references .6
3 Terms, definitions and abbreviations .6
3.1 Terms and definitions .6
3.2 Abbreviations .8
4 Introduction to sampling .9
4.1 Introductory remark .9
4.2 Requirements and concerns for restricted substances .9
4.3 Complexity of electrotechnical products and related challenges .10
4.4 Strategies for sampling.11
5 Sampling .13
5.1 Introductory remark .13
5.2 Partial disassembly .13
5.2.1 Example 1: Cell phone type A – Disassembly without tools.14
5.2.2 Example 2: Cell phone type B – Partial disassembly.15
5.3 Complete disassembly.16
5.4 Partial disjointment.18
5.4.1 Introductory remark .18
5.5 Complete disjointment .20
5.5.1 Introductory remark .20
5.5.2 Typical examples of disjointment at the component level .20
5.5.3 Examples of disjointment at the base materials level – Disjointment
of integrated circuit (IC) chips.22
5.6 Considerations of sampling and disjointment .25
5.6.1 Introductory remark .25
5.6.2 Sample size required.25
5.6.3 Sample size v. detection limit .26
5.6.4 Composite testing of disjointable samples .27
5.6.5 Non-uniform “homogeneous materials” .28
5.6.6 Determination of sampling position of homogeneous materials .29
6 Conclusions and recommendations .29
Annex A (informative) Examples of procedures for sampling and disjointment .30
Annex B (informative) Probability of presence of restricted substances.40
Annex C (informative) Composite testing and sampling.42
Annex D (informative) Tools used in sampling .44
Annex E (informative) Use of XRF screening techniques in sampling.45
Bibliography.54

Figure 1 – Generic iterative procedure for sampling .11
Figure 2 – Cell phone with battery charger and camera lens cap.14
Figure 3 – Cell Phone with battery and back cover removed .15
Figure 4 – Partial disassembly of a cell phone (type B) into its major components .16

PAS 62596 © IEC:2009(E) – 3 –
Figure 5 – Complete disassembly of the key pad .17
Figure 6 – Complete disassembly of the bottom housing.17
Figure 7 – Complete disassembly of the other housing/frame .18
Figure 8 – Components of the TFT display of the cell phone after partial disjointment.19
Figure 9 – Components of the main PWB of the cell phone after partial disjointment .19
Figure 10 – Disjointment of lead frame component.22
Figure 11 – BGA package prior to disjointment .23
Figure 12 – BGA package disjointed by the hand removal procedure .23
Figure 13 – Solder ball material collected from BGA using a hand removal procedure .24
Figure 14 – BGA solder ball removal using the ball shear procedure.24
Figure 15 – Cross-section of a 900 µm wide lead oxide-based resistor (SMD) .28
Figure A.1 – Example of methodology for sampling and disjointment .31
Figure A.2 – Methodology for sampling and disjointment.32
Figure A.3 – Sampling of DVD player.33
Figure A.4 – Sampling of CRT .34
Figure A.5 – Sampling of LCD TV .35
Figure A.6 – Sampling of PDA/phone.36
Figure A.7 – Sampling of desk fan .37
Figure A.8 – Compoments – Example 1 – thick film resistor .38
Figure D.1 – Hot gas gun for removing the electronic components .44
Figure D.2 – Vacuum pin to remove the target electronic devices .44
Figure E.1 – AC power cord, X-ray spectra of sampled sections .47
Figure E.2 – RS232 cable and its X-ray spectra .48
Figure E.3 – Cell phone charger shown partially disassembled. .48
Figure E.4 – PWB and cable of cell phone charger .49
Figure E.5 – Spots from 1,27 mm and 0,3 mm collimaters.50
Figure E.6 – Examples of substance mapping on PWBs .52
Figure E.7 – SEM-EDX image of Pb free solder with small intrusions of Pb

(size = 30 μm).53

Table 1 – Possible restricted or screening substances from a cell phone .15
Table 2 – Possible restricted substances in major components of the cell phone .16
Table 3 – Examples of disjointment for typical small electronic components .21
Table 4 – Minimum number of lead frame samples required for analytical testing .26
Table 5 – Levels of a restricted substance in a composite sample .27
Table B.1 – Probability of presence of restricted substances in materials and
components used in electrotechnical products .40
Table C.1 – Calculated maximum concentration for a composite sample based on

detection limit .43
Table C.2 – Required detection limit for a composite sample based on the maximum
allowable concentration .43
Table E.1 – Selection of samples for analysis of AC power cord .46
Table E.2 – Selection of samples (testing locations) for analysis after visual
inspection – Cell phone charger.49
Table E.3 – Results of XRF analysis at spots 1 and 2 as shown in Figure E.6.52

– 4 – PAS 62596 © IEC:2009(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROTECHNICAL PRODUCTS –
DETERMINATION OF RESTRICTED SUBSTANCES –
SAMPLING PROCEDURE – GUIDELINES

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
A Publicly Available Specification (PAS) is a technical specification not fulfilling the
requirements for a standard, but made available to the public.
IEC-PAS 62596 has been processed by IEC technical committee 111: Environmental
standardization for electrotechnical products and systems.
The text of this PAS is based on the This PAS was approved for
following document: publication by the P-members of the
committee concerned as indicated in
the following document
Draft PAS Report on voting
111/112/PAS 111/126/RVD
Following publication of this PAS, which is a pre-standard publication, the technical committee
or subcommittee concerned may transform it into an International Standard.
This PAS shall remain valid for an initial maximum period of 3 years starting from the
publication date. The validity may be extended for a single 3-year period, following which it
shall be revised to become another type of normative document, or shall be withdrawn.

PAS 62596 © IEC:2009(E) – 5 –
INTRODUCTION
In the electrotechnical industry, much emphasis has been placed on minimizing the
environmental burden of its products. Waste handling, recycling, chemicals and energy
consumption are covered by regulations. Specifically, the use of materials containing lead
(Pb), mercury (Hg), cadmium (Cd) and hexavalent chromium (Cr VI), as well as two types of
brominated flame retardants (polybrominated biphenyls, PBBs, and polybrominated diphenyl
ethers, PBDEs) in electrotechnical equipment is restricted in current and proposed regional
legislation.
To demonstrate compliance with these requirements, it may be necessary to analyse
electrotechnical products for a variety of reasons:
• to supplement supply chain material declarations (companies may choose to test products
directly to determine compliance);
• companies may require their suppliers to perform analysis to support material
declarations;
• companies may perform "spot checks" of their suppliers to assess compliance
• enforcement authorities may perform testing as part of their market surveillance activities.
IEC 62321 already provides test methods for the determination of six regulated substances in
electrotechnical products. However, the preparatory steps before the analysis are critically
important in obtaining accurate, reproducible results. Prior to this PAS, there was virtually no
guidance or consensus as to how electrotechnical products should be sampled.
The purpose of this PAS is primarily to complement IEC 62321 by providing agreed guidelines
on how electrotechnical products, assemblies and components should be sampled to
determine the levels of restricted substances present.
Please note sampling and analytical testing is not the only way to obtain relevant information
on the levels of substances in an electrotechnical product or component. Experience and
knowledge of the materials used could remove the need for sampling and testing; for
example, flame retardants are never used in metals. Furthermore, analytical test reports and
material declarations received can be used to demonstrate that the levels of restricted
substances are below the required limits.

– 6 – PAS 62596 © IEC:2009(E)
ELECTROTECHNICAL PRODUCTS –
DETERMINATION OF RESTRICTED SUBSTANCES –
SAMPLING PROCEDURE – GUIDELINES

1 Scope
This PAS provides general sampling guidelines and strategies of sampling for electrotechnical
products, electronic assemblies, electronic components. In order to obtain samples that can
be used for analytical testing to determine the levels of restricted substances as described in
the test methods of IEC 62321. Restrictions for substances will vary between geographic
regions and from time to time. This PAS describes a generic process for the sampling of any
substance which could be restricted.
This PAS does not provide:
• Full guidance on each and every product that could be classified as electrotechnical
equipment. Since there is a huge variety of electrotechnical components, with various
structures and processes, along with the continuous innovations in the industry, it is
unrealistic to attempt to provide procedures for the disjointment of every type of
component.
• Analysis procedures to measure the levels of restricted substances. This is covered by
other standards (for example the future IEC 62321), which are referred to as the "test
standard" in this PAS.
• Guidelines for assessment of compliance.
• Guidance regarding other routes to gather additional information on restricted substances
in a product, although the information collected has relevance to the sampling strategies in
this PAS.
• Sampling procedures for packaging and packaging materials.
• Safe disassembly and mechanical disjointment instructions related to electrotechnical
products (e.g. Hg containing switches) and the recycling industry (e.g. how to handle
CRTs or the safe removal of batteries).
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 62321, Electrotechnical products – Determination of levels of six restricted substances
(lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated
diphenyl ethers)
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purpose of this document, the following terms and definitions apply.
NOTE As this PAS is closely related to IEC 62321, terms and definitions from that standard have not been
duplicated here.
PAS 62596 © IEC:2009(E) – 7 –
3.1.1
electronic assembly
group of components, at least one of which is an electronic device, but in which individual
parts may be replaced without damage to the assembly
[Definition H.2.5.9, IEC 60730-1:1999]
EXAMPLE Group of components mounted on a printed wiring board.
3.1.2
electronic components
electrical or electronic devices that are not subject to disassembly without destruction or
impairment of design use. They are sometimes called electronic parts, or piece parts
[Definition 3.1.5, IEC 62239:2008]
EXAMPLE Resistors, capacitors, diodes, integrated circuits, hybrids, application specific integrated circuits,
wound components and relays.
3.1.3
composite testing
testing two or more materials as a single sample that could be mechanically disjointed if
necessary
3.1.3
electronics
electronic assembly and/or electronic component and/or field replaceable unit
3.1.4
field replaceable unit
FRU
part, component or subassembly that is easily removed (mechanically disjointed) using
ordinary tools
NOTE "Easily removed" consists of using ordinary tools to perform such functions as screwing or disconnecting,
and only without irreversibly destroying the unit.
[Definition 3.7, IEC Guide 114:2005]
3.1.5
disassembly
process of taking apart an electrotechnical product; possibly using simple hand tools such as
a screwdriver, pliers and wrenches
NOTE A disassembled unit can, in theory, be re-assembled and be made operational.
3.1.6
disjointment
process of, in principle, separating the materials by mechanical actions such as: unscrewing,
cutting, grinding, scratching and abrasive processes
NOTE A disjointed part or assembly cannot be re-assembled into an operational unit.
3.1.7
homogeneous material
material that cannot be mechanically disjoined into different materials
NOTE 1 The term "homogeneous" means "of uniform composition throughout". Examples of "homogeneous
materials" are individual types of: plastics, ceramics, glass, metals, alloys, paper, board, resins and coatings.
NOTE 2 The term "mechanically disjointed" means that the materials can, in principle, be separated by
mechanical actions such as: unscrewing, cutting, crushing, grinding and abrasive processes

– 8 – PAS 62596 © IEC:2009(E)
3.1.8
infinite thickness
critical thickness
thickness of the specimen which, if increased, yields no increase in intensity of X-rays
measured from the sample due to their absorption by the sample matrix. This thickness varies
with the energy of X-rays
3.1.9
sampling
process of selecting a representative part or section of a product (any electrotechnical device)
for the purpose of determining by means of analysis the concentrations of restricted
substances present. Sampling can be carried out by selecting a section on an object or by
disassembly and disjointment
NOTE Representative part or section could be the lead-frame of an integrated circuit or the plastic jacket of an
electrical wire.
3.1.10
screening
analytical procedure to determine the presence or absence of substances or compounds in
the representative part or section of a product, relative to the value or values accepted as the
criterion for this decision
NOTE If the screening method produces values that are not conclusive, then additional analysis or other follow-up
actions may be necessary to make a final presence/absence decision
3.2 Abbreviations
AAS Atomic absorption spectroscopy
ABS Acrylonitrile butadiene styrene
AFS Atomic fluorescence spectroscopy
ASTM American Society for Testing and Materials
BGA Ball grid array (electronic component)
CV-AAS Cold vapour atomic absorption spectrometry
CRT Cathode ray rube (television)
DIP Dual-in-line package (electronic component)
DVD Digital versatile disc
ED XRF Energy dispersive X-ray fluorescence
EDX Energy dispersive X-ray spectroscopy
FRU Field replaceable unit
GC-MS Gas chromatography – mass spectrometry
GLP Good laboratory practice
HPLC-UV High-performance liquid chromatography – Ultraviolet
IC Integrated circuit
ICP-OES Inductively coupled plasma optical emission spectrometry
ICP-MS Inductively coupled plasma mass spectrometry
MDL Minimum detection level
LCD Liquid crystal display
MQCA Minimal quantity for chemical analysis
OEM Original equipment manufacturer
PAS Publicly Available Specification
PBB Polybrominated biphenyl
PAS 62596 © IEC:2009(E) – 9 –
PBDE Polybrominated diphenyl ether
PC Polycarbonate
PDA Personal digital assistant
PE-HD High-density polyethylene
PS-HI High-impact polystyrene
PVC Polyvinyl chloride
PWB Printed wiring board
QA Quality assurance
SEM-EDX Scanning electron microscopy – energy dispersive XRF
SMD Surface mounted device
TFT Thin film transistor
TV Television
WD XRF Wavelength dispersive X-ray fluorescence
XRF X-ray fluorescence
4 Introduction to sampling
4.1 Introductory remark
Obtaining a sample (i.e. sampling) is the first step in analyzing electrotechnical products for
the presence of restricted substances. The strategy and process of sampling is often as
important as the analytical measurement itself. Hence an effective sampling strategy requires
a clear understanding of the electrotechnical product, reasons for the analysis, and the
requirements that are to be met.
Sampling and testing for restricted substances is performed for many reasons including:
• business-to-business for commercial release (e.g. contractual agreement between the
OEM and component manufacturer).
• compliance with regulatory limits.
• forensic/impact assessment (why the product does not satisfy contractual or legal
requirements, when did this happen, and how many products are affected?).
4.2 Requirements and concerns for restricted substances
While many governments, industry partners and other stakeholders have their own
requirements, it is not the intention of this PAS to discuss fully all of these differences.
However, awareness of different limits for regulated substances is an important step in
preparing the sampling strategy. This clause highlights the main areas of concern regarding
the requirements for restricted substances.
1. Restricted substances: Not all geographic regions or industrial partners restrict the same
substances. For example, some regions have chosen to restrict the use of only a few
specific PBDE compounds, while others have a broader restriction regarding this class of
flame-retardants. When sampling a product, component etc. it is critical to keep in mind
what are the applicable legal requirements.
2. Allowable limits for restricted substances: Generally speaking, the allowable levels of
most restricted substances are below 1 000 mg/kg. Some geographic regions and
industrial partners have limits below 1 000 mg/kg. For some product types, limits for
restricted substance are above 1 000 mg/kg, e.g. lead in copper and aluminum alloys.
3. Application of the allowable level: The manner in which the allowable level of a restricted
substance is applied to an electrotechnical product determines the sampling strategy and
how the test results are interpreted. Many geographic regions apply their allowable limits

– 10 – PAS 62596 © IEC:2009(E)
to "homogeneous materials". In this PAS an “homogeneous material” (3.1.8) is defined as
a material that cannot be mechanically disjointed into different materials. However, the
interpretation of "homogeneous material" is not consistent across the different regions.
Some regions have defined the smallest possible amount of material to be homogeneous
(e.g. bonding wires in semiconductor chips only several microns thick), while other regions
try to apply a more pragmatic approach.
4. Applicable exemptions: Some types of electrotechnical products are exempt from
restricted substances requirements. These exemptions may be based on different
rationales including the scope of the restrictions (e.g. for military purposes), the
application of the material (e.g high melting temperature solder), size of the sample, or the
electrical properties of the product.
4.3 Complexity of electrotechnical products and related challenges
The complex characteristics of electrotechnical products are another important consideration
when preparing a sampling strategy. These characteristics have a bearing on the practical
execution of sampling and analysis. The following elements are identified as relevant to
analysis and sampling:
1. Miniaturization: Miniaturization is one of the key trends in the electrotechnical industry.
This implies that more functionality is provided within a smaller volume. More and more
components and materials are used per cm² of printed wiring board (PWB) every year.
Taking samples for measurement from these small amounts of material is difficult. For
example, the size of surface mounted devices (SMDs) is too small for regular tools to
further disjoint or separate and the quantity of the remaining sample is often too small
after disjointment to satisfy the requirements of adequate analysis.
2. Number of homogeneous materials: Many components have complex structures and are
constructed of multiple layers of different materials. In a typical case, one single
component has more than 10 to 20 material layers, whereas many electrotechnical
products or assemblies contain hundreds or thousands of components. This means one
electrotechnical product can have more than 1 000 to more than 10 000 homogeneous
materials. Often homogeneous materials adhere too tightly together for a clean separation
in a practical manner (see Figure 15). Experience has shown that the composition often
changes due to molecular diffusion between materials (e.g. the composition of a plating is
affected by a base material containing Pb). Similarly, current electrotechnical products are
made of many components and parts. A typical TV or laptop computer for example,
contains thousands of parts/components. Hence the design database for an OEM may
include several tens of thousands of components. In Clause 5 this point is further
illustrated in the disassembly of a mobile phone.
3. "Invisible" substances: Another complicating factor in sampling and analysis is that
generally restricted substances are not visibly apparent. A component containing a
restricted substance looks and performs in an identical manner to one that is "clean". The
presence or absence of restricted substances can vary from lot to lot in the manufacturing
process without any readily observable clues. While there are some visible indications
(e.g. a yellow coating on steel products suggests the presence of hexavalent chromium)
as to the presence of restricted substances, visual detection is not practical.
4. Batch–to-batch variations: Most product assembly manufacturers use commodity
components from several suppliers simultaneously, e.g. cables, resistors and capacitors.
Commodity components are mixed during production, because technically they are fully
interchangeable as long as they fit the umbrella specification. However in most cases they
are not chemically identical. Furthermore experience has shown that base materials can
be changed by commodity manufacturers (e.g. in times of shortage) which leads to a
change in the chemical composition as well. Notifications of these changes do not always
occur if the component still meets its technical specification.
5. Depth of the supply chain: Producing electronic components/parts involves a complex
supply chain. Relatively simple products such as an external cable, can utilize supply
chains at least seven tiers deep. The supply chain for a more complex component like an
LCD screen or IC is considerably deeper.

PAS 62596 © IEC:2009(E) – 11 –
These characteristics of the electrotechnical industry show that the management of restricted
substances, along with sampling and analysis, is not straightforward. The size and number of
components, and complexity of the supply chain make it challenging to fully grasp the
locations of restricted substances in an electrotechnical product. The prospect of
implementing homogeneous material level sampling and testing at the upper regions of the
supply chain (towards finished products) is not practical for complex products.
4.4 Strategies for sampling
While different sampling approaches may be utilized as appropriate for the broad range of
electrotechnical products, it is possible to describe a generic procedure that will be applicable
in the majority of cases. This is shown in Figure 1.

Figure 1 – Generic iterative procedure for sampling
The process depicted in Figure 1 can have several iterative loops including:
st
• 1 iteration: partial disassembly (see 5.2)
nd
• 2 iteration: complete disassembly (see 5.3)
rd
• 3 iteration: partial disjointment (see 5.4).
• 4th – nth iteration: complete disjointment (see 5.5)
These iterative steps are described further in Clause 5.
Development of the sampling strategy for a particular electrotechnical product/part/assembly
begins with an information gathering stage. Some basic questions to be considered include:
• What is the complexity of the product/part/assembly and is it practical to consider
sampling and testing at the homogeneous material level?

– 12 – PAS 62596 © IEC:2009(E)
• Which substances are restricted?
• What are the allowable limits for these restricted substances?
• Are there appropriate exemptions for the restricted substance?
• Is a bill of materials available for the components/assemblies/materials in the product?
• Are specifications/drawings of the components available?
• What is the depth of the supply chain for the components and materials in this product?
• Are material declarations for this product available?
• Is there any previous experience evaluating this product or similar products that could be
helpful?
• Are there any published probability of presence matrices for the materials or parts used in
this product?
• Was any screening (e.g. XRF) previously performed on this product or similar products
that could be helpful?
• Is there any information regarding the manufacturing process of materials/components
(metal making or IC production) used in this product or similar products that could be
helpful?
• Are there any perceived process controls present at the component or material suppliers
(e.g. level of trust in the manufacturer)
• Is there any history of concern with the component or material supplier?
The answers to these questions and other characteristics will influence the sampling strategy.
The organization’s position in the supply chain will determine what extent of sampling is
appropriate. Release for production of products/components etc. requires a more in-depth
sampling strategy than an occasional verification check on specifications. In order to optimize
costs and efficiency the desired outcome of the testing needs to be understood. As previously
stated, it is often impractical to sample and test all components/materials. An organization is
left to determine the optimum balance of effort/costs against effectiveness of the sampling
strategy. Some considerations to minimize sampling/testing efforts and costs are listed below:
• homogeneous materials with a low probability of containing restricted substances (see
Annex B);
• applicable exemptions for restricted substances;
• material declarations;
• historical test data;
• composite sampling and testing (see 5.6 and Annex C);
• minimum sample size necessary to run analytical tests and the number of samples
necessary to determine whether or not it’s practical to test.
The sampling strategy will depend very much on the ultimate objective of analysis. One
strategy (perhaps used by enforcement authorities) could be an analysis to verify if the
product contains at least one restricted substance at the level exceeding the allowable limit.
This approach involves gradual, selective sampling, targeting deliberately those parts of the
product that are either known to, or are likely to, contain restricted substances. Each sampling
phase could be followed by analysis. If the results show no restricted substances above the
allowable limit, a further stage of sampling and analysis could be performed. Once the test
results exceed the allowable limit for at least one restricted substance in any part of the
product, it is deemed non-compliant and no further sampling and analysis is necessary.
Annex B provides a list of components where there is currently a probability of the presence
of one or more of six restricted substances.
Another strategy may be to prove total compliance of the product, as far as possible down to
the homogeneous material level. This approach would be typical of the product or component
manufacturer. Samples would be prepared from each individual material or component. As the

PAS 62596 © IEC:2009(E) – 13 –
objective is to cover all components and materials in a product/assembly, other routes may be
used to gather information on a product level. In the downstream supply chain process
documentation and/or analysis reports may exist that would reduce the effort required in
sampling and analysis.
Once the objective of the analysis has been defined, an assessment is performed as to the
feasibility of testing (e.g. is the sample mass/size/volume sufficient?). Further sampling and
disjointment may be necessary, in which a choice can be made to either completely disjoint or
only select materials with a high probability of containing restricted substances. Table B.1 can
be used to assist in the identification of these components and materials.
If testing is appropriate, the relevant testing procedure should be followed. Where restricted
substances are present in the product/part there may be an applicable exemption (some
examples are given in Table B.1).
Following the flowchart in Figure 1 is an iterative process, retrieving samples at an ever
deeper level. How far this process is pursued will be dependent on the objective of the
sampling strategy. After the screening steps further analytical testing may be undertaken.
5 Sampling
5.1 Introductory remark
This PAS only provides general sampling guidelines, which are intended to form the basis of
the sampling strategy appropriate to the electrotechnical product.
Whenever possible, sampling should be performed by stages of minimal disassembly and
disjointment. Each stage is followed by an assessment of its effectiveness (see the flowchart
in Figure 1), typically by screening analysis. Depending on the results of the assessment and
objectives of the analysis, further disassembly and sampling may be required, especially for
verification analysis of the product’s components/materials. This approach to sampling and
assessment offers the least expensive, fastest and the most efficient means of analysis,
especially when undertaken on the finished product.
The enormous number of types and diversity of electrotechnical products make it impractical
to provide detailed sampling strategies for each product. Instead, sampling procedures
covering four levels of disjointment and sampling are described for two products:
• cell phone;
• printed wiring board (PWB).
The cell phone is a compact and complex product containing large number of small
components. Therefore, sampling procedure of such product should be a good example of
how sampling strategies can be developed for virtually any other electrotechnical product.
Annex A provides generic sampling flowcharts based on Figure 1 for some characteristic
electrotechnical products: DVD player, CRT tube, LCD TV Set, PDA/phone and a desk fan,
along with two components, a thick film resistor and SMD potentiometer. Annex D lists some
commonly used disassembly and disjointment tools, and Annex E describes the use of XRF
screening techniques in sampling.
NOTE During disjointment, several tools are used. In restricted substances assessment is highly recommended to
ensure that the tools are free of the restricted substances to avoid possible contamination.
5.2 Partial disassembly
Sampling of the complete product is the first step in the iterative sampling strategy. It infers
that representative parts of the product can be analysed without disassembly or disjointment;

– 14 – PAS 62596 © IEC:2009(E)
that is in a non-destructive manner. Even if we decide to disassemble the product to gain
access to its subassemblies, we may still be able to test them non-destructively.
However, "complete product" is a relative term. For example, an AC power cord is a complete
product for its manufacturer, but it may be just a component in a television set. Complete
products may be evaluated without disassembly if they have a very simple construction, or if
the locations of expected restricted substances are known and it is possible to test for them
without disassembly. Examples of such products are power cords, printer or other peripheral
cables, equipment housings, etc. Please note even a seemingly simple product such as a
power cord may be composed of between 10 to 20 different homogeneous materials.
Before sampling, the following questions need to be asked:
1. Based on knowledge of the product, can any sections/parts be identified that are likely to
contain restricted substances (see Annex B)?
2. Is it practical to analyse any of these sections/parts without its disassembly?
3. Can the section/part selected be regarded as homogeneous material for the purpose of
the analysis?
4. Is the section/part selected for analysis representative?
5. Does the sample selected fulfil the criteria of minimum mass, area, thickness or volume
required by the chosen analytical methods?
If the answer to all of these questions is "yes" then the sampling strategy can begin with
disassembly and analysis of the complete product.
5.2.1 Example 1: Cell phone type A – Disassembly without tools

Figure 2 – Cell phone with battery charger and camera lens cap
This cell phone offers limited opportunities for analysis as a complete product. The charger
includes at least six individual areas that are made of different materials, and may be
screened without disassembly. The phone back cover may be removed and phone battery
taken out. As the back cover is metallized on the outside it should be analysed (screening) on
both sides. This partia
...
