IEC TR 62541-2:2016

IEC TR 62541-2 ®
Edition 2.0 2016-10
TECHNICAL
REPORT
colour
inside
OPC unified architecture –
Part 2: Security Model
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.

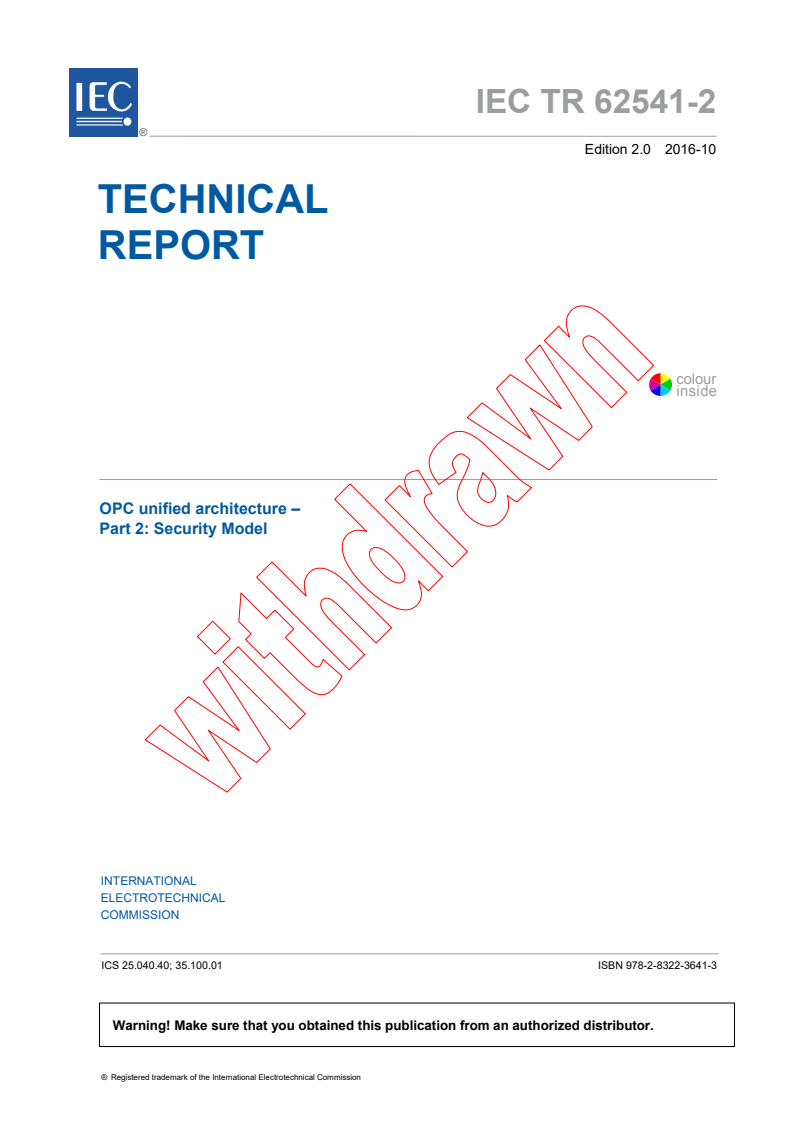

IEC TR 62541-2 ®
Edition 2.0 2016-10
TECHNICAL
REPORT
colour
inside
OPC unified architecture –
Part 2: Security Model
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.040.40; 35.100.01 ISBN 978-2-8322-3641-3

– 2 – IEC TR 62541-2:2016 © IEC 2016

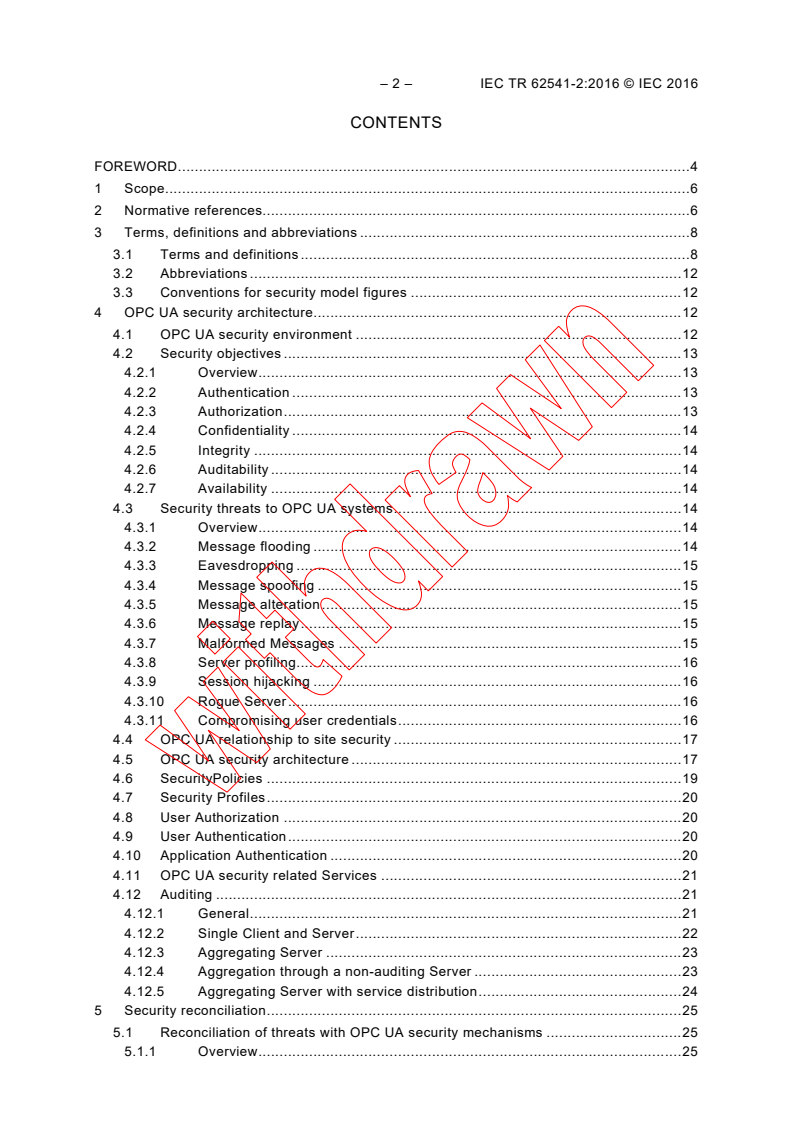

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references. 6
3 Terms, definitions and abbreviations . 8
3.1 Terms and definitions . 8
3.2 Abbreviations . 12
3.3 Conventions for security model figures . 12
4 OPC UA security architecture. 12
4.1 OPC UA security environment . 12
4.2 Security objectives . 13
4.2.1 Overview . 13
4.2.2 Authentication . 13
4.2.3 Authorization . 13
4.2.4 Confidentiality . 14
4.2.5 Integrity . 14
4.2.6 Auditability . 14
4.2.7 Availability . 14
4.3 Security threats to OPC UA systems . 14
4.3.1 Overview . 14
4.3.2 Message flooding . 14
4.3.3 Eavesdropping . 15
4.3.4 Message spoofing . 15
4.3.5 Message alteration . 15
4.3.6 Message replay . 15
4.3.7 Malformed Messages . 15
4.3.8 Server profiling . 16
4.3.9 Session hijacking . 16
4.3.10 Rogue Server . 16
4.3.11 Compromising user credentials . 16
4.4 OPC UA relationship to site security . 17
4.5 OPC UA security architecture . 17
4.6 SecurityPolicies . 19
4.7 Security Profiles . 20
4.8 User Authorization . 20
4.9 User Authentication . 20
4.10 Application Authentication . 20
4.11 OPC UA security related Services . 21
4.12 Auditing . 21
4.12.1 General . 21
4.12.2 Single Client and Server . 22
4.12.3 Aggregating Server . 23
4.12.4 Aggregation through a non-auditing Server . 23
4.12.5 Aggregating Server with service distribution . 24
5 Security reconciliation . 25
5.1 Reconciliation of threats with OPC UA security mechanisms . 25
5.1.1 Overview . 25

5.1.2 Message flooding . 25
5.1.3 Eavesdropping . 26
5.1.4 Message spoofing . 26
5.1.5 Message alteration . 26
5.1.6 Message replay . 26
5.1.7 Malformed Messages . 27
5.1.8 Server profiling . 27
5.1.9 Session hijacking . 27
5.1.10 Rogue Server . 27
5.1.11 Compromising user credentials . 27
5.2 Reconciliation of objectives with OPC UA security mechanisms . 27
5.2.1 Overview . 27
5.2.2 Application Authentication . 28
5.2.3 User Authentication . 28
5.2.4 Authorization . 28
5.2.5 Confidentiality . 28
5.2.6 Integrity . 28
5.2.7 Auditability . 28
5.2.8 Availability . 29
6 Implementation and deployment considerations . 29
6.1 Overview. 29
6.2 Appropriate timeouts . 29
6.3 Strict Message processing . 29
6.4 Random number generation . 29
6.5 Special and reserved packets . 30
6.6 Rate limiting and flow control . 30
6.7 Administrative access . 30
6.8 Alarm related guidance . 30
6.9 Program access . 30
6.10 Audit event management . 31
6.11 Certificate management . 31
Bibliography . 36

Figure 1 – OPC UA network model . 13
Figure 2 – OPC UA security architecture . 18
Figure 3 – Simple Servers . 22
Figure 4 – Aggregating Servers . 23
Figure 5 – Aggregation with a non-auditing Server . 24
Figure 6 – Aggregate Server with service distribution. 25
Figure 7 – Manual Certificate handling . 32
Figure 8 – CA Certificate handling . 33
Figure 9 – Certificate handling . 34

– 4 – IEC TR 62541-2:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPC UNIFIED ARCHITECTURE –
Part 2: Security Model
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 62541-2, which is a technical report, has been prepared by subcommittee 65E:
Devices and integration in enterprise systems, of IEC technical committee 65: Industrial-
process measurement, control and automation.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
65E/413/DTR 65E/464/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.

This second edition cancels and replaces the first edition of IEC TR 62541-2, published in
2010.
This second edition includes no technical changes with respect to the first edition but a
number of clarifications and additional text for completeness.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
Throughout this document and the referenced other parts of the series, certain document
conventions are used:
– Italics are used to denote a defined term or definition that appears in the “Terms and
definition” clause in one of the parts of the series.
– Italics are also used to denote the name of a service input or output parameter or the
name of a structure or element of a structure that are usually defined in tables.
– The italicized terms and names are also often written in camel-case (the practice of writing
compound words or phrases in which the elements are joined without spaces, with each
element's initial letter capitalized within the compound). For example the defined term is
AddressSpace instead of Address Space. This makes it easier to understand that there is
a single definition for AddressSpace, not separate definitions for Address and Space.
A list of all parts of the IEC 62541 series, published under the general title OPC unified
architecture, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC TR 62541-2:2016 © IEC 2016
OPC UNIFIED ARCHITECTURE –
Part 2: Security Model
1 Scope
This part of IEC 62541, which a Technical Report, describes the OPC unified architecture
(OPC UA) security model. It describes the security threats of the physical, hardware, and
software environments in which OPC UA is expected to run. It describes how OPC UA relies
upon other standards for security. It provides definition of common security terms that are
used in this and other parts of the OPC UA specification. It gives an overview of the security
features that are specified in other parts of the OPC UA specification. It references services,
mappings, and Profiles that are specified normatively in other parts of this multi-part
specification. It provides suggestions or best practice guidelines on implementing security.
Any seeming ambiguity between this part of IEC 62541 and one of the normative parts of
IEC 62541 does not remove or reduce the requirement specified in the normative part.
Note that there are many different aspects of security that have to be addressed when
developing applications. However since OPC UA specifies a communication protocol, the
focus is on securing the data exchanged between applications. This does not mean that an
application developer can ignore the other aspects of security like protecting persistent data
against tampering. It is important that the developers look into all aspects of security and
decide how they can be addressed in the application.
This part of IEC 62541 is directed to readers who will develop OPC UA Client or Server
applications or implement the OPC UA services layer. It is also for end users that wish to
understand the various security features and functionality provided by OPC UA. It also offers
some suggestions that can be applied when deploying systems. These suggestions are
generic in nature since the details would depend on the actual implementation of the OPC UA
Applications and the choices made for the site security.
It is assumed that the reader is familiar with Web Services and XML/SOAP. Information on
these technologies can be found in SOAP Part 1: and SOAP Part 2.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62351 (all parts), Power systems management and associated information exchange –
Data and communications security
IEC TR 62541-1, OPC unified architecture – Part 1: Overview and concepts
IEC 62541-4, OPC unified architecture – Part 4: Services
IEC 62541-5, OPC unified architecture – Part 5: Information Model
IEC 62541-6, OPC unified architecture – Part 6: Mappings
IEC 62541-7, OPC unified architecture – Part 7: Profiles

SOAP Part 1: SOAP Version 1.2 Part 1: Messaging Framework
Available from Internet: http://www.w3.org/TR/soap12-part1/ (website checked 2016-04-05)
SOAP Part 2: SOAP Version 1.2 Part 2: Adjuncts
Available from Internet: http://www.w3.org/TR/soap12-part2/ (website checked 2016-04-05)
XML Encryption: XML Encryption Syntax and Processing
Available from Internet: http://www.w3.org/TR/xmlenc-core/ (website checked 2016-04-05)
XML Signature:: XML-Signature Syntax and Processing
Available from Internet: http://www.w3.org/TR/xmldsig-core/ (website checked 2016-04-05)
WS Security: SOAP Message Security 1.1
Available from Internet: http://www.oasis-open.org/committees/download.php/16790/wss-v1.1-
spec-os-SOAPMessageSecurity.pdf (website checked 2016-04-05)
WS Secure Conversation: Web Services Secure Conversation Language (WS-
SecureConversation)
Available from Internet:http://specs.xmlsoap.org/ws/2005/02/sc/WS-SecureConversation.pdf
(website checked 2016-04-05)
SSL/TLS: RFC 2246: The TLS Protocol Version 1.0
Available from Internet: http://www.ietf.org/rfc/rfc2246.txt (website checked 2016-04-05)
:X509: X.509 Public Key Certificate Infrastructure
Available from Internet: https://www.ietf.org/rfc/rfc2459 (website checked 2016-04-05)
HTTP: RFC 2616: Hypertext Transfer Protocol - HTTP/1.1
Available from Internet: http://www.ietf.org/rfc/rfc2616.txt (website checked 2016-04-05)
HTTPS: RFC 2818: HTTP Over TLS
Available from Internet: http://www.ietf.org/rfc/rfc2818.txt (website checked 2016-04-05)
IS Glossary: Internet Security Glossary
Available from Internet: http://www.ietf.org/rfc/rfc2828.txt (website checked 2016-04-05)
NIST 800-57: Part 3: Application-Specific Key Management Guidance
Available from Internet:http://csrc.nist.gov/publications/nistpubs/800-57/sp800-
57_PART3_key-management_Dec2009.pdf (website checked 2016-04-05)
NERC CIP: CIP 002-1 through CIP 009-1, by North-American Electric Reliability Council
Available from Internet: http:// www.nerc.com/files/cip-002-1.pdf (website checked 2016-04-
05)
SHA-1: Secure Hash Algorithm RFC
Available from Internet: http://tools.ietf.org/html/rfc3174 (website checked 2016-04-05)
PKI: Public Key Infrastructure article in Wikipedia
Available from Internet: http://en.wikipedia.org/wiki/Public_key_infrastructure (website
checked 2016-04-05)
X509 PKI: Internet X.509 Public Key Infrastructure
Available from Internet: http://www.ietf.org/rfc/rfc3280.txt (website checked 2016-04-05)

– 8 – IEC TR 62541-2:2016 © IEC 2016
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC TR 62541-1 as well
as the following apply.
3.1.1
Application Instance
individual installation of a program running on one computer
Note 1 to entry: There can be several Application Instances of the same application running at the same time on
several computers or possibly the same computer.
3.1.2
Application Instance Certificate
Digital Certificate of an individual Application Instance that has been installed in an individual
host
Note 1 to entry: Different installations of one software product would have different Application Instance
Certificates.
3.1.3
Asymmetric Cryptography
Cryptography method that uses a pair of keys, one that is designated the Private Key and
kept secret, the other called the Public Key that is generally made available
Note 1 to entry: Asymmetric Cryptography is also known as "public-key cryptography". In an Asymmetric
Encryption algorithm when an entity A wants to ensure Confidentiality for data it sends to another entity B, entity A
encrypts the data with a Public Key provided by entity B. Only entity B has the matching Private Key that is needed
to decrypt the data. In an asymmetric Digital Signature algorithm when an entity A wants to ensure Integrity or
provide Authentication for data it sends to an entity B, entity A uses its Private Key to sign the data. To verify the
signature, entity B uses the matching Public Key that entity A has provided. In an asymmetric key agreement
algorithm, entity A and entity B send their own Public Key to the other entity. Then each uses their own Private Key
and the other's Public Key to compute the new key value according to IS Glossary.
3.1.4
Asymmetric Encryption
the mechanism used by Asymmetric Cryptography for encrypting data with the Public Key of
an entity and for decrypting data with the associated Private Key
3.1.5
Asymmetric Signature
the mechanism used by Asymmetric Cryptography for signing data with the Private Key of an
entity and for verifying the data’s signature with the associated Public Key
3.1.6
Auditability
security objective that assures that any actions or activities in a system can be recorded
3.1.7
Auditing
the tracking of actions and activities in the system, including security related activities where
the Audit records can be used to review and verify system operations
3.1.8
Authentication
security objective that assures that the identity of an entity such as a Client, Server, or user
can be verified
3.1.9
Authorization
the ability to grant access to a system resource
3.1.10
Availability
security objective that assures that the system is running normally; that is, no services have
been compromised in such a way to become unavailable or severely degraded
3.1.11
CertificateAuthority
entity that can issue Digital Certificates, also known as a CA
Note 1 to entry: The Digital Certificate certifies the ownership of a Public Key by the named subject of the
Certificate. This allows others (relying parties) to rely upon signatures or assertions made by the Private Key that
corresponds to the Public Key that is certified. In this model of trust relationships, a CA is a trusted third party that
is trusted by both the subject (owner) of the Certificate and the party relying upon the Certificate. CAs are
characteristic of many Public Key infrastructure (PKI) schemes.
3.1.12
CertificateStore
persistent location where Certificates and Certificate revocation lists (CRLs) are stored
Note 1 to entry: It may be a disk resident file structure or on Windows platforms, it may be a Windows registry
location.
3.1.13
Confidentiality
security objective that assures the protection of data from being read by unintended parties
3.1.14
Cryptography
transforming clear, meaningful information into an enciphered, unintelligible form using an
algorithm and a key
3.1.15
Cyber Security Management System
CSMS
program designed by an organization to maintain the security of the entire organization’s
assets to an established level of Confidentiality, Integrity, and Availability, whether they are
on the business side or the industrial automation and control systems side of the organization
3.1.16
Digital Certificate
structure that associates an identity with an entity such as a user, a product or an Application
Instance where the Certificate has an associated asymmetric key pair which can be used to
authenticate that the entity does, indeed, possess the Private Key
3.1.17
Digital Signature
value computed with a cryptographic algorithm and appended to data in such a way that any
recipient of the data can use the signature to verify the data's origin and Integrity
3.1.18
Hash Function
algorithm such as SHA-1 for which it is computationally infeasible to find either a data object
that maps to a given hash result (the "one-way" property) or two data objects that map to the
same hash result (the "collision-free" property) , see IS Glossary

– 10 – IEC TR 62541-2:2016 © IEC 2016
3.1.19
Hashed Message Authentication Code
HMAC
MAC that has been generated using an iterative Hash Function
3.1.20
Integrity
security objective that assures that information has not been modified or destroyed in an
unauthorized manner, see IS Glossary
3.1.21
Key Exchange Algorithm
protocol used for establishing a secure communication path between two entities in an
unsecured environment whereby both entities apply a specific algorithm to securely exchange
secret keys that are used for securing the communication between them
Note 1 to entry: A typical example of a Key Exchange Algorithm is the SSL Handshake Protocol specified in
SSL/TLS.
3.1.22
Message Authentication Code
MAC
short piece of data that results from an algorithm that uses a secret key (see Symmetric
Cryptography) to hash a Message whereby the receiver of the Message can check against
alteration of the Message by computing a MAC that should be identical using the same
Message and secret key
3.1.23
Message Signature
Digital Signature used to ensure the Integrity of Messages that are sent between two entities
Note 1 to entry: There are several ways to generate and verify Message Signatures however they can be
categorized as symmetric (See 3.1.34) and asymmetric (See 3.1.5) approaches.
3.1.24
Non-Repudiation
strong and substantial evidence of the identity of the signer of a Message and of Message
Integrity, sufficient to prevent a party from successfully denying the original submission or
delivery of the Message and the Integrity of its contents
3.1.25
Nonce
random number that is used once, typically by algorithms that generate security keys
3.1.26
OPC UA Application
OPC UA Client, which calls OPC UA services, or an OPC UA Server, which performs those
services
3.1.27
Private Key
the secret component of a pair of cryptographic keys used for Asymmetric Cryptography
3.1.28
Public Key
the publicly-disclosed component of a pair of cryptographic keys used for Asymmetric
Cryptography, see IS Glossary
3.1.29
Public Key Infrastructure
PKI
the set of hardware, software, people, policies, and procedures needed to create, manage,
store, distribute, and revoke Digital Certificates based on Asymmetric Cryptography
Note 1 to entry: The core PKI functions are to register users and issue their public-key Certificates, to revoke
Certificates when required, and to archive data needed to validate Certificates at a much later time. Key pairs for
data Confidentiality may be generated by a Certificate authority (CA), but requiring a Private Key owner to
generate its own key pair improves security because the Private Key would never be transmitted according to
IS Glossary. See PKI and X509 PKI for more details on Public Key Infrastructures.
3.1.30
Rivest-Shamir-Adleman
RSA
algorithm for Asymmetric Cryptography, invented in 1977 by Ron Rivest, Adi Shamir, and
Leonard Adleman, see IS Glossary
3.1.31
Secure Channel
in OPC UA, a communication path established between an OPC UA Client and Server that
have authenticated each other using certain OPC UA services and for which security
parameters have been negotiated and applied
3.1.32
Symmetric Cryptography
branch of cryptography involving algorithms that use the same key for two different steps of
the algorithm (such as encryption and decryption, or Signature creation and signature
verification), see IS Glossary
3.1.33
Symmetric Encryption
the mechanism used by Symmetric Cryptography for encrypting and decrypting data with a
cryptographic key shared by two entities
3.1.34
Symmetric Signature
the mechanism used by Symmetric Cryptography for signing data with a cryptographic key
shared by two entities
Note 1 to entry: The signature is then validated by generating the signature for the data again and comparing
these two signatures. If they are the same then the signature is valid, otherwise either the key or the data is
different from the two entities. Definition 3.1.19 defines a typical example for an algorithm that generates
Symmetric Signatures.
3.1.35
TrustList
list of Certificates that an application has been configured to trust
3.1.36
Transport Layer Security
TLS
standard protocol for creating Secure Channels over IP based networks
3.1.37
X.509 Certificate
Digital Certificate in one of the formats defined by X.509 v1, 2, or 3
Note 1 to entry: An X.509 Certificate contains a sequence of data items and has a Digital Signature computed on
that sequence.
– 12 – IEC TR 62541-2:2016 © IEC 2016
3.2 Abbreviations
AES Advanced Encryption Standard
CA Certificate Authority
CRL Certificate Revocation List
CSMS Cyber Security Management System
DNS Domain Name System
DSA Digital Signature Algorithm
ECDH Elliptic Curve Diffie-Hellman
ECDSA Elliptic Curve Digital Signature Algorithm
HMAC Hash-based Message Authentication Code
NIST National Institute of Standard and Technology
PKI Public Key Infrastructure
RSA public key algorithm for signing or encryption, Rivest, Shamir, Adleman
SHA Secure Hash Algorithm (Multiple versions exist SHA1, SHA256,…)
SOAP Simple Object Access Protocol
SSL Secure Sockets Layer
TLS Transport Layer Security
UA Unified Architecture
URI Uniform Resource Identifier
XML Extensible Mark-up Language
3.3 Conventions for security model figures
The figures in this document do not use any special common conventions. Any conventions
used in a particular figure are explained for that figure.
4 OPC UA security architecture
4.1 OPC UA security environment
OPC UA is a protocol used between components in the operation of an industrial facility at
multiple levels: from high-level enterprise management to low-level direct process control of a
device. The use of OPC UA for enterprise management involves dealings with customers and
suppliers. It may be an attractive target for industrial espionage or sabotage and may also be
exposed to threats through untargeted malware, such as worms, circulating on public
networks. Disruption of communications at the process control end causes at least an
economic cost to the enterprise and can have employee and public safety consequences or
cause environmental damage. This may be an attractive target for those who seek to harm the
enterprise or society.
OPC UA will be deployed in a diverse range of operational environments, with varying
assumptions about threats and accessibility, and with a variety of security policies and
enforcement regimes. OPC UA, therefore, provides a flexible set of security mechanisms.
Figure 1 is a composite that shows a combination of such environments. Some OPC UA
Clients and Servers are on the same host and can be more easily protected from external
attack. Some Clients and Servers are on different hosts in the same operations network and
might be protected by the security boundary protections that separate the operations network
from external connections. Some OPC UA Applications run in relatively open environments
where users and applications might be difficult to control. Other applications are embedded in
control systems that have no direct electronic connection to external systems.

Internet
OPC Client CA
S
Ted
Enterprise Network
S S
Attacker
Attacker OPC Server S
Eve
OPC Client
CA
OPC Client
Bob Theresa
Operations Network
OPC Client
OPC Server
OPC Server
Alice
OPC Client
OPC Client
Plant Floor Network
OPC Server OPC Server
= Security
S
Boundary
Protection
IEC
Figure 1 – OPC UA network model
4.2 Security objectives
4.2.1 Overview
Fundamentally, information system security reduces the risk of damage from attacks. It does
this by identifying the threats to the system, identifying the system’s vulnerabilities to these
threats, and providing countermeasures. The countermeasures reduce vulnerabilities directly,
counteract threats, or recover from successful attacks.
Industrial automation system security is achieved by meeting a set of objectives. These
objectives have been refined through many years of experience in providing security for
information systems in general and they remain quite constant despite the ever-changing set
of threats to systems. They are described in 4.2.2, 4.2.3, 4.2.4, 4.2.5, 4.2.6, and 4.2.7, and
Subclause 5.2 reconciles these objectives against the OPC UA functions. Clause 6 offers
additional best practice guidelines to Client and Server developers or those that deploy OPC
UA Applications.
4.2.2 Authentication
Entities such as clients, Servers, and users should prove their identities. Authentication can
be based on something the entity is, has, or knows.
4.2.3 Authorization
The access to read, write, or execute resources should be authorized for only those entities
that have a need for that access within the requirements of the system. Authorization can be
as coarse-grained as allowing or disallowing a Client to access a Server or it could be much
finer grained, such as allowing specific actions on specific information items by specific users.

– 14 – IEC TR 62541-2:2016 © IEC 2016
4.2.4 Confidentiality
Data shall be protected from passive attacks, such as eavesdropping, whether the data is
being transmitted, in memory, or being stored. To provide Confidentiality, data encryption
algorithms using special secrets for securing data are used along with Authentication and
Authorization mechanisms for accessing that secret.
4.2.5 Integrity
Receivers shall receive the same information that the original sender sent, without the data
being changed during transmission.
4.2.6 Auditability
Actions taken by a system have to be recorded in order to provide evidence to stakeholders:
• that this system works as intended (successful actions are tracked),
• to identify the initiator of certain actions (user activity is tracked),
• that attempts to compromise the system were denied (unsuccessful actions are tracked).
4.2.7 Availability
Availability is impaired when the execution of software that needs to run is turned off or when
software or the communication system is overwhelmed processing input. Impaired Availability
in OPC UA can appear as slowing down of Subscription performance or inability to add
sessions for example.
4.3 Security threats to OPC UA systems
4.3.1 Overview
OPC UA provides countermeasures to resist the threats to the security of the information that
is communicated. Subclauses 4.3.2, 4.3.3, 4.3.4, 4.3.5, 4.3.6, 4.3.7, 4.3.8, 4.3.9, 4.3.10, and
4.3.11 list the currently known threats to environments in which OPC UA will be deployed.
Following Clause 4, that describes the OPC UA security architecture and functions,
Subclause 5.1 reconciles these threats against the OPC UA functions.
4.3.2 Message flooding
An attacker can send a large volume of Messages, or a single Message that contains a large
number of requests, with the goal of overwhelming the OPC UA Server or components on
which the OPC UA Server may depend for reliable operation such as CPU, TCP/IP stack,
Operating System, or the File System. Flooding attacks can be conducted at multiple layers
including OPC UA, SOAP, [HTTP] or TCP.
Message flooding attacks can use both well-formed and malformed Messages. In the first
scenario, the attacker could be a malicious person using a legitimate Client to flood the
Server with requests. Two cases exist, one in which the Client does not have a Session with
the Server and one in which it does. Message flooding may impair the ability to establish OPC
UA sessions, or terminate an existing session. In the second scenario, an attacker could use
a malicious Client that floods an OPC UA Server with malformed Messages in order to
exhaust the Server’s resources.
In general, Message flooding may impair the ability to communicate with an OPC UA entity
and result in denial of service.
Message flooding impacts Availability.
See 5.1.2 for the reconciliation of this threat.

4.3.3 Eavesdropping
Eavesdropping is the unauthorized disclosure of sensitive information that might result
directly in a critical security breach or be used in follow-on attacks.
If an attacker has compromised the underlying operating system or the network infrastructure,
the attacker might record and capture Messages. It may be beyond the capability of a Client
or Server to recover from a compromise of the operating system.
Eavesdropping impacts Confidentiality directly and threatens all of the other security
objectives indirectly.
See 5.1.3 for the reconciliation of this threat.
4.3.4 Message spoofing
An attacker may forge Messages from a Client or a Server. Spoofing may occur at multiple
layers in the protocol stack.
By spoofing Messages from a Client or a Server, attackers may perform unauthorized
operations and avoid detection of their activities.
Message spoofing impacts Integrity and Authorization.
See 5.1.4 for the reconciliation of this threat.
4.3.5 Message alteration
Network traffic and application layer Messages may be captured, modified, and the modified
Message forwarded to OPC UA Clients and
...
