IEC 61786-1:2013/AMD1:2024

IEC 61786-1 ®
Edition 1.0 2024-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
HO RIZONTAL PUBLICATION
PU BLICATION HORIZONTALE
AMENDMENT 1
AMENDEMENT 1
Measurement of DC magnetic, AC magnetic and AC electric fields from 1 Hz to
100 kHz with regard to exposure of human beings –
Part 1: Requirements for measuring instruments

Mesure de champs magnétiques continus et de champs magnétiques et
électriques alternatifs dans la plage de fréquences de 1 Hz à 100 kHz dans leur
rapport à l'exposition humaine –
Partie 1: Exigences applicables aux instruments de mesure

IEC 61786-1:2013-12/AMD1:2024-07(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications, symboles
La recherche avancée permet de trouver des publications IEC graphiques et le glossaire. Avec un abonnement , vous aurez
en utilisant différents critères (numéro de référence, texte, toujours accès à un contenu à jour adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 500 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 25 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch

IEC 61786-1 ®
Edition 1.0 2024-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
HO RIZONTAL PUBLICATION
PU BLICATION HORIZONTALE
AMENDMENT 1
AMENDEMENT 1
Measurement of DC magnetic, AC magnetic and AC electric fields from 1 Hz to

100 kHz with regard to exposure of human beings –

Part 1: Requirements for measuring instruments

Mesure de champs magnétiques continus et de champs magnétiques et

électriques alternatifs dans la plage de fréquences de 1 Hz à 100 kHz dans leur

rapport à l'exposition humaine –

Partie 1: Exigences applicables aux instruments de mesure

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.20 ISBN 978-2-8322-9449-9

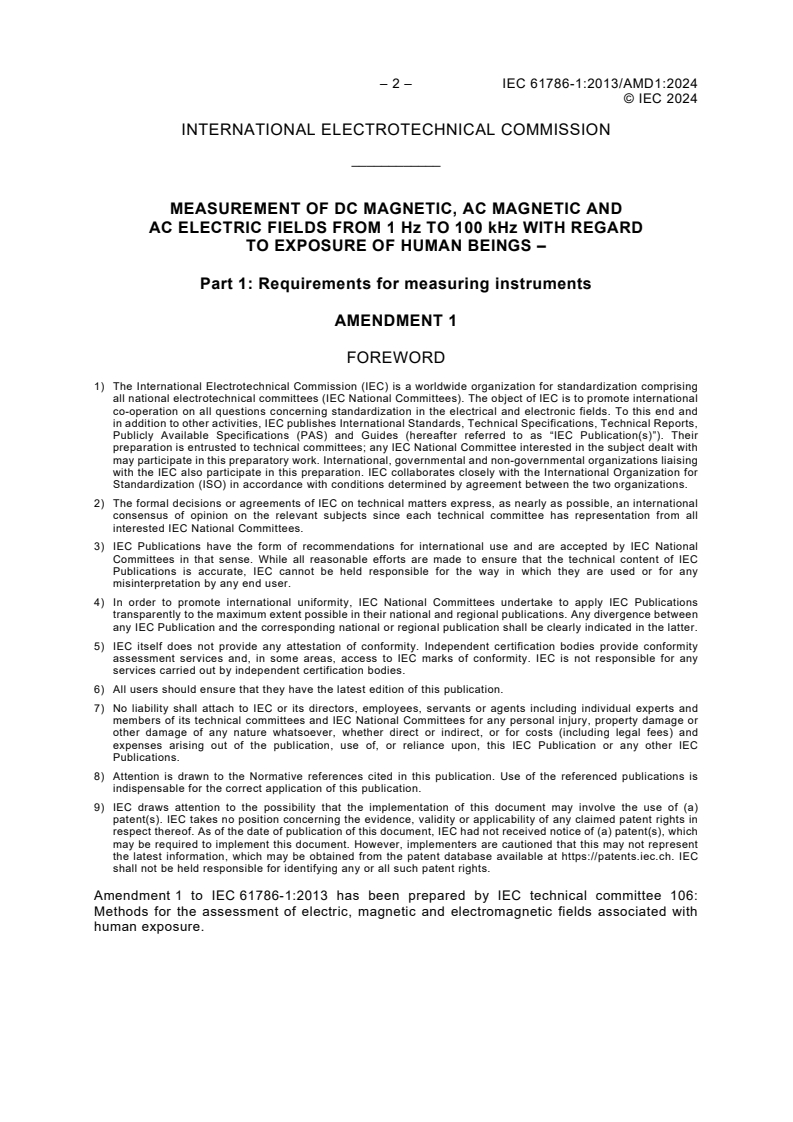

– 2 – IEC 61786-1:2013/AMD1:2024
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MEASUREMENT OF DC MAGNETIC, AC MAGNETIC AND
AC ELECTRIC FIELDS FROM 1 Hz TO 100 kHz WITH REGARD
TO EXPOSURE OF HUMAN BEINGS –
Part 1: Requirements for measuring instruments

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 61786-1:2013 has been prepared by IEC technical committee 106:
Methods for the assessment of electric, magnetic and electromagnetic fields associated with
human exposure.
© IEC 2024
The text of this Amendment is based on the following documents:
Draft Report on voting
106/647/FDIS 106/655/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
2 Normative references
Add the following new reference:
IEC 61000-6-1:2016, Electromagnetic compatibility (EMC) – Part 6-1: Generic standards –
Immunity standard for residential, commercial and light-industrial environments

5.4 Pass-band
Replace the penultimate sentence with the following:
This range is not as broad as the pass band but shall be still broad enough to cover all
frequencies of interest.
5.7 Readability of scale
Delete the first paragraph.
Delete the first sentence of the last paragraph.

– 4 – IEC 61786-1:2013/AMD1:2024
© IEC 2024
5.8.1 General schema
Replace the 5.8.1 title with the following new title:
5.8.1 General schematic
Replace the first sentence with the following:
A general schematic of a meter is given in Figure 1.
Replace the title of Figure 1 with the following new title:
Figure 1 – Schematic of a field meter
Replace the paragraph below Figure 1 with the following:
The probes should be three-axis. For the weighted peak method (see IEC 61786-2:2014, 4.2.3),
three-axis probes shall be used.

5.8.4 Support for electric field meter
Replace the first paragraph with the following:
The support for the electric field meter shall be made of insulating materials, such as synthetic
or composite materials, or wood.

5.9.1 Immunity
c) Radiated electromagnetic fields
Replace the first paragraph with the following:
The operation of instrumentation shall not be affected by electromagnetic radiation for an
electric field defined in IEC 61000-6-1:2016, Table 1, rows 1.2 and 1.3. Equipment intended to
be used in industrial environment should reference the equivalent tables of IEC 61000-6-2 [37].
Delete NOTE 2.
5.9.2 Emissions
b) Conducted disturbances – 0,15 MHz to 30 MHz (instrumentation connected to AC power
supply)
Replace the first paragraph by the following:
The conducted disturbances shall be less than the limits defined in Table 4 of CISPR 11:2024,
as reproduced in Table 1 below.

© IEC 2024
c) Radiated disturbances – 30 MHz to 1 000 MHz
Replace the first paragraph with the following:
The electromagnetic radiated emissions from instrumentation containing devices operating at
frequencies 30 MHz to 1 GHz shall be limited to the values given in Table 9 of CISPR 11:2024
for class B group 1 equipment measured on a test site at 10 m. The limits are briefly summarized
below.
5.11 Durability
Replace the last sentence with the following:
The instrumentation shall be compliant with IEC 60721-3: storage class 1M2, transport class
2M6 and operation class 7M3.
6.1 General
Replace the third paragraph with the following:
The first method is detailed in 6.2.2. The other two methods, which are detailed in Annex A,
can be used when a calibrated coil and measurement system are not available.
NOTE The voltage injection technique is useful for the design or manufacturing stage of the field meter.

6.2.5 Calibration v
...
