IEC 60730-2-14:2017

IEC 60730-2-14 ®
Edition 2.0 2017-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls –
Part 2-14: Particular requirements for electric actuators

Dispositifs de commande électrique automatiques –
Partie 2-14: Exigences particulières pour les actionneurs électriques

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60730-2-14 ®
Edition 2.0 2017-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls –

Part 2-14: Particular requirements for electric actuators

Dispositifs de commande électrique automatiques –

Partie 2-14: Exigences particulières pour les actionneurs électriques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.01; 97.120 ISBN 978-2-8322-4695-5

– 2 – IEC 60730-2-14:2017 © IEC 2017

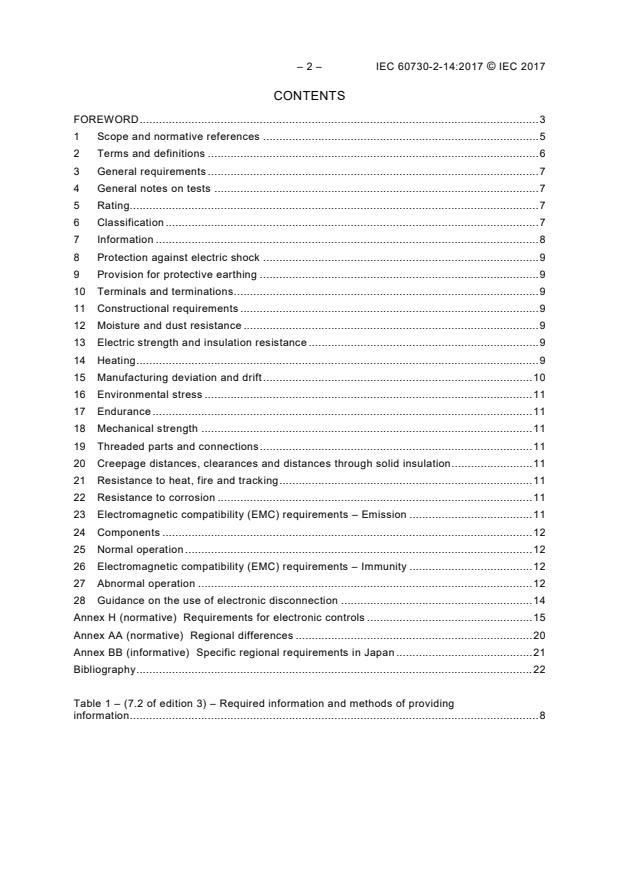

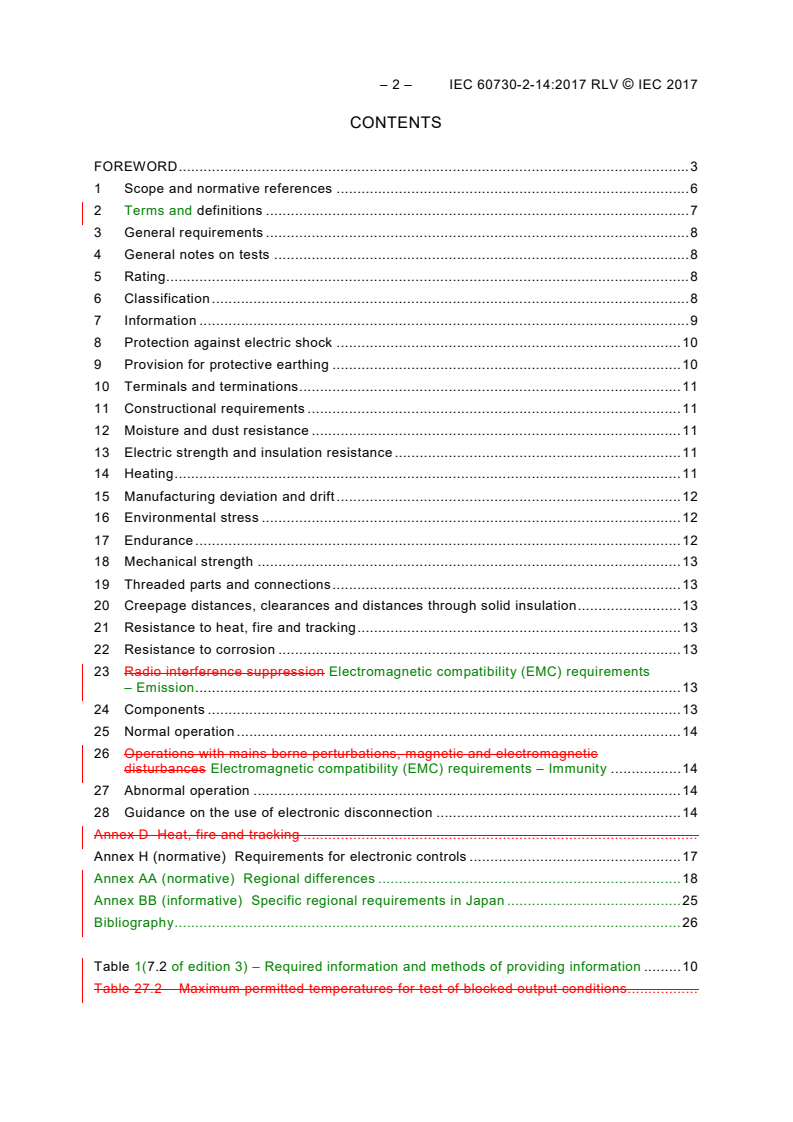

CONTENTS
FOREWORD . 3
1 Scope and normative references . 5
2 Terms and definitions . 6
3 General requirements . 7
4 General notes on tests . 7
5 Rating. 7
6 Classification . 7
7 Information . 8
8 Protection against electric shock . 9
9 Provision for protective earthing . 9
10 Terminals and terminations . 9
11 Constructional requirements . 9
12 Moisture and dust resistance . 9
13 Electric strength and insulation resistance . 9
14 Heating . 9
15 Manufacturing deviation and drift . 10
16 Environmental stress . 11
17 Endurance . 11
18 Mechanical strength . 11
19 Threaded parts and connections . 11
20 Creepage distances, clearances and distances through solid insulation . 11
21 Resistance to heat, fire and tracking . 11
22 Resistance to corrosion . 11
23 Electromagnetic compatibility (EMC) requirements – Emission . 11
24 Components . 12
25 Normal operation . 12
26 Electromagnetic compatibility (EMC) requirements – Immunity . 12
27 Abnormal operation . 12
28 Guidance on the use of electronic disconnection . 14
Annex H (normative) Requirements for electronic controls . 15
Annex AA (normative) Regional differences . 20
Annex BB (informative) Specific regional requirements in Japan . 21
Bibliography . 22

Table 1 – (7.2 of edition 3) – Required information and methods of providing
information . 8

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-14: Particular requirements for electric actuators

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60730-2-14 has been prepared by IEC technical committee 72:
Automatic electrical controls.
This second edition cancels and replaces the first edition, published in 1995, its Amendment 1
(2001) and its Amendment 2 (2007). This edition constitutes a technical revision. This edition
includes the following significant technical changes with respect to the previous edition:
th
• adapting it to the 5 Ed of IEC 60730-1,
• addition of checking electric actuators with action 1.AB or 2AB, and
• modification of tests under abnormal condition.
This Part 2-14 is intended to be used in conjunction with IEC 60730-1. It was established on
th
the basis of the 5 edition of that standard (2013). Consideration may be given to future
editions of, or amendments to, IEC 60730-1.

– 4 – IEC 60730-2-14:2017 © IEC 2017
This part 2-14 supplements or modifies the corresponding clauses in IEC 60730-1, so as to
convert that publication into the IEC standard: Particular requirements for electric actuators.
Where this part 2-14 states "addition", "modification" or "replacement", the relevant require-
ment, test specification or explanatory matter in part 1 should be adapted accordingly.
Where no change is necessary part 2-14 indicates that the relevant clause or subclause
applies.
In the development of a fully international standard it has been necessary to take into
consideration the differing requirements resulting from practical experience in various parts of
the world and to recognize the variation in national electrical systems and wiring rules.
The "in some countries" notes regarding differing national practice are contained in the
following subclauses:
• Table 1,
• 27.2.3.1.
In this publication:
1) The following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– explanatory matter: in smaller roman type.
– Defined terms: bold type.
2) Subclauses, notes or items which are additional to those in Part 1 are numbered starting
from 101, additional annexes are lettered AA, BB, etc.
The text of this International Standard is based on the following documents:
FDIS Report on voting
72/1079/FDIS 72/1100/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-14: Particular requirements for electric actuators

1 Scope and normative references
This clause of Part 1 is applicable except as follows:
1.1 Replacement:
This part 2-14 applies to electric actuators for use in, on, or in association with equipment
for household and similar use. The equipment may use electricity, gas, oil, solid fuel, solar
thermal energy, etc., or a combination thereof.
NOTE Throughout this standard the word "equipment" means "appliance and equipment."
EXAMPLE 1 Electric actuators for appliances within the scope of IEC 60335.
This International Standard is applicable to controls for building automation within the scope
of ISO 16484.
This part 2-14 also applies to automatic electrical controls for equipment that may be used
by the public, such as equipment intended to be used in shops, offices, hospitals, farms and
commercial and industrial applications.
EXAMPLE 2 Controls for commercial catering, heating and air-conditioning equipment.
This part 2-14 is also applicable to individual electric actuators utilized as part of a control
system or controls, which are mechanically integral with multifunctional controls having
non-electrical outputs.
EXAMPLE 3 Independently mounted water valves, controls in smart grid systems and controls for building
automation systems within the scope of ISO 16484-2.
This part 2-14 does not apply to automatic electric actuators intended exclusively for
industrial process applications unless explicitly mentioned in the relevant part 2 or the
equipment standard.
1.1.1 This part 2-14 applies to the inherent safety, to the operating values, operating
times and operating sequences where such are associated with equipment safety and to the
testing of electric actuators used in or in association with equipment.
NOTE Requirements for specific operating values, operating times and operating sequences may be given in
the standards for appliances and equipment.
This standard is also applicable to the functional safety of low complexity safety related
systems and controls.
This part 2-14 does not apply to electric actuators which are mechanically integrated with
valves covered by a separate part 2, e.g. IEC 60730-2-8.
This part 2-14 does not apply to electric motors, requirements for which are contained in
IEC 60034.
1.1.2 Requirements for manual switches not integral with an electric actuator are contained
in IEC 61058-1.
– 6 – IEC 60730-2-14:2017 © IEC 2017
1.1.3 Replacement
This part 2-14 applies to a.c. or d.c. powered electric actuators with a rated voltage not
exceeding 690 V a.c. or 600 V d.c.
1.1.4 Replacement
This part 2-14 does not take into account the response value of an automatic action of an
electric actuator, if such a response value is dependent upon the method of mounting the
electric actuator in the equipment. Where a response value is of significant purpose for the
protection of the user, or surroundings, the value defined in the appropriate household
equipment or as determined by the manufacturer shall apply.
2 Terms and definitions
This clause of part 1 is applicable, except as follows:
2.2 Definitions of types of control according to purpose
Additional definition:
2.2.101
electric actuator
device in which a prime mover is mechanically linked to a valve, damper or similar device
and which responds to initiation from a control or switch
Note 1 to entry: The electric actuator moves the valve, damper or similar device to defined positions and may also
incorporate other functions, such as electric interlock switches and/or feedback.
2.3 Definitions relating to the function of controls
Additional definitions:
2.3.101
multi-position action
action denoting that the electric actuator operates in such a manner that only two or more
defined positions can be reached
2.3.102
modulating action
action denoting that the electric actuator operates in such a manner that every position
between two defined limits can be reached
2.3.103
travel time
time taken by an electric actuator to move from one defined position to another
2.3.104
stroke
distance travelled by a linear actuator
2.3.105
angular rotation
operating movement of a rotary actuator given in radians or degrees

3 General requirements
This clause of Part 1 is applicable.
4 General notes on tests
This clause of Part 1 is applicable.
5 Rating
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable, except as follows:
6.1 According to nature of supply
6.1.1 Control for a.c. only
Replacement:
Electric actuators which are designed for a.c. supply only shall not be used on d.c. supply.
6.3 According to their purpose
Additional subclauses:
6.3.101 – electric actuator;
6.3.102 – electric actuator as a component of a multi-purpose control or system.
NOTE See also H.6.18 according to classes of control functions.
6.4 According to features of automatic action
Additional subclauses:
6.4.101 Type of action
6.4.101.1 Multi-position action
6.4.101.2 Modulating action
6.4.102 Type of movement
6.4.102.1 Rotary movement
6.4.102.2 Linear movement
6.4.3 Additional subclauses:
6.4.3.101 –an action in which the electric actuator assumes a predefined position upon loss
of the electrical supply and/or upon loss of the control signal (type 1.AA or type 2.AA);

– 8 – IEC 60730-2-14:2017 © IEC 2017
6.4.3.102 – an action in which the electric actuator operates normally between 1,1 V and
R
0,85 V inclusive and in which it either operates normally or assumes a predefined position
R
between 0,85 V and a declared lower percentage of rated voltage (type 1.AB or type 2.AB).
R
6.11 According to number of automatic cycles (A) of each automatic action
Modification:
Subclauses 6.11.8 to 6.11.12 inclusive are not applicable.
7 Information
This clause of part 1 is applicable except as follows:
Table 1 – (7.2 of edition 3) – Required information and methods of providing information
Information Clause or Method
subclause
Modifications:
7 The type of load controlled by each external circuit 6.2, 14 D
22 Temperature limits of the actuator, if T lower than 0 °C D
6.7, 14,5,
min
or T other than 60 °C 14.7, 17.3
max
23 Temperature limits of mounting surfaces (T ) 6.12.2, 14.1, 17,3 D
s
27 Number of automatic cycles (A) for each automatic action 6.11 X
28 Not applicable
101, 103
34 Detail of any limitation of operating time 14, 17 C
37 Not applicable
38 Not applicable
43 Not applicable
44 Not applicable
47 Not applicable
Additional requirements:
101 Impedance protected motor 14.4.101 D
102 Thermally protected motor 14.4.102 D
103 Type of movement 2.3.104, 2.3.105, D
6.4.102
104 Type of action 2.3.101, 2.3.102, D
6.4.101
105 Maximum rated mechanical load 14.4, 15.5.102 D
106 Travel time 2.3.103, 15.5.101, D
15.5.102
107 Stroke 2.3.104 D
108 Angular rotation 2.3.105 D
D
109 Response time and method of measurement 6.4.3.101
(for types 1.AA or 2.AA) 15.5.102
110 Lower percentage of rated voltage 6.4.3.102 D
(for types 1.AB or 2.AB)
Additional notes:
This may be given as a maximum percentage of ON time of the power supply to avoid over-heating of the
windings in a declared period of time.
Electric actuators are subjected to a minimum of 6 000 cycles.
For integrated and incorporated electric actuators, the method is D.

7.3.1 Addition:
NOTE Actuators of class II construction provided with a cord for connection to the fixed wiring which does not
have a plug fitted may carry the symbol for class II construction.
8 Protection against electric shock
This clause of part 1 is applicable.
9 Provision for protective earthing
This clause of Part 1 is applicable.
10 Terminals and terminations
This clause of Part 1 is applicable.
11 Constructional requirements
This clause of Part 1 is applicable except as follows:
11.4 Actions
Additional subclauses:
11.4.101 A type 1.AA or 2.AA action shall operate such that for any duration of voltage
interruption which is greater than the response time declared in Table 1, requirement 109, the
actuator assumes the predefined position and resumes normal operation upon restoration of
the supply.
Compliance is checked by test.
11.4.102 A type 1.AB or 2.AB action shall operate normally between 1,1 V and 0,85 V
R R
inclusive and shall respond as declared by the manufacturer at voltages below 0,85 V and
R
the voltage declared in Table 1, requirement 110.
Compliance is checked by test.
12 Moisture and dust resistance
This clause of Part 1 is applicable.
13 Electric strength and insulation resistance
This clause of Part 1 is applicable.
14 Heating
This clause of Part 1 is applicable except as follows:
14.3 Not applicable.
– 10 – IEC 60730-2-14:2017 © IEC 2017
14.4 Replacement of the first paragraph by the following:
The tests based on an action type 1.AB or 2.AB shall be checked by the lowest (0,85 V ) and
R
the highest (1,1 V ) rated voltage as declared by the manufacturer. During this test, the
R
temperature shall not exceed the values specified in Table 13 (14.1 of edition 3.)
The actuator shall be loaded with the maximum rated mechanical load. Each duty cycle shall
be operated at the declared maximum stroke or angular rotation.
14.4.3.1 to 14.4.3.3 Not applicable.
14.4.4 Not applicable.
Additional subclauses:
14.4.101 If stalling of the electric actuator drive shaft is part of normal operation, then the
drive shaft of motorized actuators shall be stalled and temperatures measured after steady-
state conditions are reached. The temperatures shall comply with the limits of Table 13. In
addition, if any protective device provided does not cycle under stalled conditions, then the
electric actuator is also considered to comply with the requirements of the burnout test of
27.2.
14.4.102 If stalling of the electric actuator drive shaft is not part of normal operation, then
Table 13 limits do not apply during stalling. The electric actuator shall comply with the
requirements of the burnout test of 27.2.
14.5.1 Replacement:
Change "switch head" to "electric actuator".
14.5.2 Not applicable.
14.6 Replacement:
The temperatures specified for the electric actuator shall be attained in approximately 1 h.
14.7 Replacement:
The temperature of the medium in which the electric actuator is located shall be measured
as near as possible to the centre of the space occupied by the samples and at a distance of
approximately 50 mm from the actuator.
15 Manufacturing deviation and drift
This clause of Part 1 is applicable except as follows:
15.5 Additional subclauses:
15.5.101 The travel time shall be measured at 0,85 V .
R
15.5.102 The travel time and the response time shall be measured with the maximum rated
mechanical load declared by the manufacturer and in the most unfavourable mounting
position declared by the manufacturer.
15.6 Not applicable.
16 Environmental stress
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable except as follows:
17.4 Manual and mechanical conditions for the tests
17.4.2 Replacement:
The speed of movement of the electric actuator drive shaft shall be as declared by the
manufacturer.
17.4.4 Replacement:
The method of acceleration shall be as agreed between the manufacturer and the testing
authority.
17.6 Not applicable.
Additional subclause:
17.8.101 The tests based on an action type 1.AB or 2.AB shall be checked with 50 % of the
cycles at 0,85 of the minimum V at ambient temperature or T , if lower than 0 °C, and 50 %
R min
of the cycles at 1,1 of the maximum V at T .
R max
18 Mechanical strength
This clause of Part 1 is applicable.
19 Threaded parts and connections
This clause of Part 1 is applicable.
20 Creepage distances, clearances and distances through solid insulation
This clause of Part 1 is applicable.
21 Resistance to heat, fire and tracking
This clause of Part 1 is applicable.
22 Resistance to corrosion
This clause of Part 1 is applicable.
23 Electromagnetic compatibility (EMC) requirements – Emission
This clause of Part 1 is applicable.

– 12 – IEC 60730-2-14:2017 © IEC 2017
24 Components
This clause of Part 1 is applicable.
25 Normal operation
This clause of Part 1 is applicable.
26 Electromagnetic compatibility (EMC) requirements – Immunity
This clause of Part 1 is applicable.
27 Abnormal operation
This clause of Part 1 is applicable except as follows:
27.2 Burnout test
Replacement of the first sentence by the following:
This clause is applicable to actuators where an external mechanical blockage will not cause
an internal overload of the actuator. If means (e.g. a clutch) is used to decouple the external
blockage to the internal mechanical structure, then a blockage of the mechanical parts
between the motor and the decoupling means shall be tested according 27.2.1.
27.2.2 Replacement:
After this test, the actuator shall comply with the items a) to g) of H.27.1.1.3 .
27.2.3 Blocked mechanical output test (abnormal temperature test)
Replacement of the first paragraph by the following:
Electric actuators shall withstand the effects of blocked output without exceeding the
temperatures indicated in Table 26. Temperatures are measured by the method specified
in 14.7.1.
This test is not conducted on electric actuators which meet the requirements of 14.4.101.
27.2.3.1
Replacement of the first and second paragraph, including the NOTE, by the following:
Electric actuators are tested for 24 h or until thermal equilibrium has been reached with the
output blocked in the most unfavorable position at rated voltage and in a room temperature in
the range of 15 °C to 30 °C, the resulting measured temperature being corrected to a 25 °C
reference value.
NOTE For the test with disconnected phase on three phase actuators, see 27.101.
27.3 Not applicable.
27.101 Test with disconnected phase on three phase actuators
27.101.1 With any one phase disconnected, the actuator is operated under normal
operation and supplied at rated voltage. For asymmetrical motor windings, the test is to be
repeated until all phases have been singly opened.
27.101.1.1 The test duration shall be such that the first and second hour winding
temperatures are recorded or until temperatures stabilize, whichever is longer. Temperatures
are measured by the method specified in 14.7.1.
27.101.1.2 The temperature of the winding shall not exceed the temperatures indicated in
Table 26.
27.102 Running overload
27.102.1 A running overload test is carried out on electrical actuators that are intended to be
remotely or automatically controlled or liable to be operated continuously in unattended mode.
If present, overload protective devices relying on electronic circuits to protect the motor
windings are also subjected to the running overload test. This test is not applicable to
integrated actuators.
27.102.2 The electrical actuator is operated under normal operation, carrying its rated load
and supplied at rated voltage until the temperature of the motor windings stabilizes. The
protector or protective circuit shall not operate or open the circuit while the actuator is
operating under the above conditions.
27.102.2.1 For all actuators where the trip point in the sensing variable is not known or
cannot be quickly determined (for example, temperature sensing, impedance protected motors,
sensor-less motor protection, position sensing, etc.), the load to the actuator is increased in
increments of 10 % of the rated value (torque, current, etc.) and operated until temperatures
of the winding stabilize. If the protector or the protective circuit does not operate under this
overload condition, the load to the actuator is again increased by 10 % of the previous load
setting and the actuator is operated until temperatures of the windings stabilize. This process
is continued until the protective device or protective circuit operates.
When the protector or protective circuit operates, the load is slowly decreased until the
protector or protective circuit is not activated. The loading parameters (torque, current, etc.)
shall be measured and recorded. The actuator is then run at this load until the temperature of
the winding stabilizes.
Any mechanical protection, such as a clutch, shall be defeated for this test.
27.102.2.2 For actuators where the trip point in the sensing variable is known or can be
quickly determined (example, current sensing), the load to the actuator is gradually increased,
in a controlled manner, until the protective device or protective circuit is activated. This is the
trip point and the loading parameters (torque, current etc.) shall be measured and recorded.
Then, the load is slowly decreased until the protector or protective circuit is not activated. The
actuator is then run at this load until the temperature of the winding stabilizes.
NOTE A brake dynamometer can be used to gradually increase the torque on the actuator shaft in a controlled
manner.
27.102.3 During the test, the winding temperature prior to the operation of the protective
device or protective circuit shall not exceed
– 140 °C, for class 105 (A) winding insulation;
– 155 °C, for class 120 (E) winding insulation;
– 165 °C, for class 130 (B) winding insulation;

– 14 – IEC 60730-2-14:2017 © IEC 2017
– 180 °C, for class 155 (F) winding insulation;
– 200 °C, for class 180 (H) winding insulation;
– 220 °C, for class 200 (N) winding insulation;
– 240 °C, for class 220 (R) winding insulation;
– 270 °C, for class 250 winding insulation.
NOTE If the load cannot be increased in appropriate steps, the motor and the protective electronics, if applicable,
can be removed from the appliance and tested separately.
27.102.3.1 During the test, the maximum temperature recorded on insulating parts shall not
exceed 1,5 times the relevant values specified in Clause 14.
27.102.4 For electrical actuators which are used in a continuous operation for longer than
24 h without interruption the load is again increased and the test is repeated until the
protective device operates or the motor stalls.
27.102.5 For electrical actuators which are used in operation mode which will not exceed
24 h without interruption, the test is repeated after the winding temperature has reached
environmental temperature conditions. The test will be performed with an increased load so
that the current through the motor windings is raised by 10 % increments. The electrical
actuator is operated again until steady conditions are established, the supply voltage being
maintained at its original value. This procedure will be repeated until the protective device
operates or the motor stalls
28 Guidance on the use of electronic disconnection
This clause of Part 1 is applicable.
Figures
The figures of Part 1 are applicable.
Annexes
The annexes of Part 1 are applicable, except as follows:

Annex H
(normative)
Requirements for electronic controls
This annex of Part 1 is applicable except as follows:
H.11 Constructional requirements
H.11.12 Controls using software
H.11.12.2.6 Addition:
The values declared in Table 1, requirement 71, may be given in the applicable equipment
standard.
Additional subclause:
H.11.12.2.6.101
The control response(s) declared in Table 1, requirement 72, may be given in the applicable
equipment standard.
H.26  Electromagnetic compatibility (EMC) requirements – Immunity
H.26.1 Addition:
If an electric actuator is a component of a multi-purpose control or system and provides a
protective control function, then the electric actuator shall be treated as a protective
control throughout Clause H.26.
H.26.5 Voltage dips, voltage interruptions and voltage variations in the power supply
network
H.26.5.1.2 Test procedure for voltage dips and interruptions
Addition:
Each test is performed three times.
Additional subclause:
H.26.5.1.2.101 Compliance
After the test according to H.26.5.2 of all the voltage dips and the voltage interruption of more
than one cycle of the supply wave form, the electric actuator shall provide normal operation.
During the test according to H.26.5.2 of an interruption of one cycle of the supply wave form,
the control shall continue to operate after restoration of the supply voltage from the position
the electric actuator was in right before the interruption.
H.26.5.2.2 Test procedure
Addition:
– 16 – IEC 60730-2-14:2017 © IEC 2017
The test shall be performed in the fully open, fully closed, and if possible, in a partly open
position.
H.26.6 Not applicable.
H.26.8 Surge immunity test
H.26.8.3 Test procedure
Addition:
The five pulses in each polarity shall be distributed in the following operating modes:
– 1 pulse in the closed position;
– 3 pulses during energized movement in the most surge sensitive position;
– 1 pulse in the open position.
Additional subclause:
H.26.8.101 Compliance
The electric actuator shall tolerate the surge immunity test on the mains supply and signal
lines, so that, when tested in accordance with H.26.9.3,
a) for the value of test level 2: it shall continue to function in accordance with the
requirements of this standard. No influence to the actual position of the electric actuator
is recognized;
b) for the value of test level 3: for a protective electric actuator used as a component of a
protective multi-purpose control or system, it shall either perform as in a) or it may stop
operating and shall indicate that it has done so to the protective multi-purpose control or
system.
NOTE The acceptability of the indication to the protective multi-purpose control or system is dependent on the
application.
c) if declared according to Table 1, requirement 90 after the tests,
• shall comply with H.27.1.1.3,
• surge protective components shall not be destroyed.
H.26.9 Electrical fast transient/burst immunity test
H.26.9.3 Test procedure
Addition:
Operating modes are:
– being in the closed position;
– during energized movement in the most surge sensitive position;
– being in the open position.
The test shall be performed in each operating mode for 1 min each with positive and negative
polarity.
Additional subclause:
H.26.9.3.101 Compliance
The electric actuator shall tolerate electrical fast/transient bursts on the mains supply and
signal lines, so that, when tested in accordance with H.26.9.3,
a) for the value of test level 2: it shall continue to function in accordance with the
requirements of this standard. No influence to the actual position of the electric actuator
is recognized;
b) for the value of test level 3: for a protective electric actuator used as a component of a
protective multi-purpose control or system, it shall either perform as in a) or it may stop
operating and shall indicate that it has done so to the protective multi-purpose control or
system.
NOTE The acceptability of the indication to the protective multi-purpose control or system is dependent on
the application.
c) if declared according to Table 1, requirement 90: after the tests,
• shall comply with H.27.1.1.3,
• surge protective components shall not be destroyed.
H.26.11 Electrostatic discharge test
Additional subclause:
H.26.11.101 Compliance
The electric actuator shall tolerate the electrostatic discharge test, so that, when tested in
accordance with H.26.11,
a) for the value of test level 3: it shall continue to function in accordance with the
requirements of this standard. No influence to the actual position of the electric actuator
is recognized;
b) if declared according to Table 1, requirement 90: after the tests,
• shall comply with H.27.1.1.3,
• surge protective components shall not be destroyed.
H.26.12 Radio-frequency electromagnetic field immunity
H.26.12.2 Immunity to conducted disturbances
Additional subclause:
H.26.12.2.101 Compliance
The system shall tolerate conducted electromagnetic fields so that, when tested in
accordance with H.26.12.2.1,
a) for the value of test level 2: it shall continue to function in accordance with the
requirements of this standard. No influence to the actual position of the electric actuator
is recognized;
b) for the value of test level 3: for a protective electric actuator used as a component of a
protective multi-purpose control or system, it shall either perform as in a) or it may stop
operating and shall indicate that it has done so to the protective multi-purpose control or
system.
H.26.12.3 Immunity to radiated disturbances
Additional subclause:
– 18 – IEC 60730-2-14:2017 © IEC 2017
H.26.12.3.101 Compliance
The system shall tolerate radiated electromagnetic fields so that, when tested in accordance
with H 26.12.3.2,
a) for the value of test level 2: it shall continue to function in accordance with the
requirements of this standard. No influence to the actual position of the electric actuator
is recognized;
b) for the value of test level 3: for a protective electric actuator used as a component of a
protective multi-purpose control or system, it shall either perform as in a) or it may stop
operating and shall indicate that it has done so to the protective multi-purpose control or
system.
H.26.13 Test of influence of supply frequency variations
Addition:
This subclause is applicable for electric actuators where the travel time depends on the
supply frequency.
H.26.13.3 Test procedure
Addition:
The travel time to move the electric actuator from the closed position to the open position as
well as in the other direction shall be verified for each of the frequencies of Table H.19.
Additional subclause:
H.26.13.101 Compliance
The system shall tolerate supply frequency variations so that, when tested in accordance
with H 26.12.3.2,
a) for the value of test level 2: it shall continue to function in accordance with the
requirements of this standard. No influence to the actual position of the electric actuator
is recognized. The percentage of the travel time deviation shall not be higher than the
percentage of the frequency variation;
b) for the value of test level 3: for a protective electric actuator used as a
...

IEC 60730-2-14 ®
Edition 2.1 2019-03
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Automatic electrical controls –
Part 2-14: Particular requirements for electric actuators

Dispositifs de commande électrique automatiques –
Partie 2-14: Exigences particulières pour les actionneurs électriques

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60730-2-14 ®
Edition 2.1 2019-03
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Automatic electrical controls –

Part 2-14: Particular requirements for electric actuators

Dispositifs de commande électrique automatiques –

Partie 2-14: Exigences particulières pour les actionneurs électriques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.01; 97.120 ISBN 978-2-8322-6729-5

IEC 60730-2-14 ®
Edition 2.1 2019-03
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Automatic electrical controls –
Part 2-14: Particular requirements for electric actuators

Dispositifs de commande électrique automatiques –
Partie 2-14: Exigences particulières pour les actionneurs électriques

– 2 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
CONTENTS
FOREWORD . 3
1 Scope and normative references . 6
2 Terms and definitions . 7
3 General requirements . 8
4 General notes on tests . 8
5 Rating. 8
6 Classification . 8
7 Information . 10
8 Protection against electric shock . 10
9 Provision for protective earthing . 11
10 Terminals and terminations . 11
11 Constructional requirements . 11
12 Moisture and dust resistance . 11
13 Electric strength and insulation resistance . 11
14 Heating . 11
15 Manufacturing deviation and drift . 12
16 Environmental stress . 12
17 Endurance . 12
18 Mechanical strength . 13
19 Threaded parts and connections . 13
20 Creepage distances, clearances and distances through solid insulation . 13
21 Resistance to heat, fire and tracking . 13
22 Resistance to corrosion . 13
23 Electromagnetic compatibility (EMC) requirements – Emission . 13
24 Components . 14
25 Normal operation . 14
26 Electromagnetic compatibility (EMC) requirements – Immunity . 14
27 Abnormal operation . 14
28 Guidance on the use of electronic disconnection . 16
Annex H (normative) Requirements for electronic controls . 17
Annex AA (normative) Regional differences . 22
Annex BB (informative) Specific regional requirements in Japan . 23
Bibliography . 24

Table 1 – (7.2 of edition 3) – Required information and methods of providing
information . 10

© IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS –
Part 2-14: Particular requirements for electric actuators
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 60730-2-14 edition 2.1 contains the second edition (2017-08) [documents 72/1079/
FDIS and 72/1100/RVD] and its amendment 1 (2019-03) [documents 72/1168FDIS and
72/1175/RVD].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
– 4 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
International Standard IEC 60730-2-14 has been prepared by IEC technical committee 72:
Automatic electrical controls.
This second edition constitutes a technical revision. This edition includes the following
significant technical changes with respect to the previous edition:
th
• adapting it to the 5 Ed of IEC 60730-1,
• addition of checking electric actuators with action 1.AB or 2AB, and
• modification of tests under abnormal condition.
This part 2-14 is intended to be used in conjunction with IEC 60730-1. It was established on
the basis of the fifth edition of that standard (2013) including its amendment 1 (2015).
Consideration may be given to future editions of, or amendments to, IEC 60730-1.
This part 2-14 supplements or modifies the corresponding clauses in IEC 60730-1, so as to
convert that publication into the IEC standard: Particular requirements for electric actuators.
Where this part 2-14 states "addition", "modification" or "replacement", the relevant require-
ment, test specification or explanatory matter in part 1 should be adapted accordingly.
Where no change is necessary part 2-14 indicates that the relevant clause or subclause
applies.
In the development of a fully international standard it has been necessary to take into
consideration the differing requirements resulting from practical experience in various parts of
the world and to recognize the variation in national electrical systems and wiring rules.
The "in some countries" notes regarding differing national practice are contained in the
following subclauses:
• Table 1,
• 27.2.3.1.
In this publication:
1) The following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– explanatory matter: in smaller roman type.
– Defined terms: bold type.
2) Subclauses, notes or items which are additional to those in Part 1 are numbered starting
from 101, additional annexes are lettered AA, BB, etc.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

© IEC 2019
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-14: Particular requirements for electric actuators

1 Scope and normative references
This clause of Part 1 is applicable except as follows:
1.1 Replacement:
This part 2-14 applies to electric actuators for use in, on, or in association with equipment
for household and similar use. The equipment may use electricity, gas, oil, solid fuel, solar
thermal energy, etc., or a combination thereof.
NOTE Throughout this standard the word "equipment" means "appliance and equipment."
EXAMPLE 1 Electric actuators for appliances within the scope of IEC 60335.
This International Standard is applicable to controls for building automation within the scope
of ISO 16484.
This part 2-14 also applies to automatic electrical controls for equipment that may be used
by the public, such as equipment intended to be used in shops, offices, hospitals, farms and
commercial and industrial applications.
EXAMPLE 2 Controls for commercial catering, heating and air-conditioning equipment.
This part 2-14 is also applicable to individual electric actuators utilized as part of a control
system or controls, which are mechanically integral with multifunctional controls having
non-electrical outputs.
EXAMPLE 3 Independently mounted water valves, controls in smart grid systems and controls for building
automation systems within the scope of ISO 16484-2.
This part 2-14 does not apply to automatic electric actuators intended exclusively for
industrial process applications unless explicitly mentioned in the relevant part 2 or the
equipment standard.
This part 2-14 applies to electric actuators powered by primary or secondary batteries,
requirements for which are contained within the standard, including Annex V.
1.1.1 This part 2-14 applies to the inherent safety, to the operating values, operating
times and operating sequences where such are associated with equipment safety and to the
testing of electric actuators used in or in association with equipment.
NOTE Requirements for specific operating values, operating times and operating sequences may be given in
the standards for appliances and equipment.
This standard is also applicable to the functional safety of low complexity safety related
systems and controls.
This part 2-14 does not apply to electric actuators which are mechanically integrated with
valves covered by a separate part 2, e.g. IEC 60730-2-8.
This part 2-14 does not apply to electric motors, requirements for which are contained in
IEC 60034.
© IEC 2019
1.1.2 Requirements for manual switches not integral with an electric actuator are contained
in IEC 61058-1.
1.1.3 Replacement
This part 2-14 applies to a.c. or d.c. powered electric actuators with a rated voltage not
exceeding 690 V a.c. or 600 V d.c.
1.1.4 Replacement
This part 2-14 does not take into account the response value of an automatic action of an
electric actuator, if such a response value is dependent upon the method of mounting the
electric actuator in the equipment. Where a response value is of significant purpose for the
protection of the user, or surroundings, the value defined in the appropriate household
equipment or as determined by the manufacturer shall apply.
1.1.5 Void.
1.1.6 Void.
1.1.7 Replacement:
This part 2-14 applies also to electric actuators incorporating electronic devices,
requirements for which are contained in Annex H.
1.1.8 Replacement:
This part 2-14 applies also to electric actuators using NTC or PTC thermistors,
requirements for which are contained in Annex J.
1.1.9 Replacement:
This part 2-14 applies to the electrical and functional safety of electric actuators capable of
receiving and responding to communications signals, including signals for power billing rate
and demand response.
The signals may be transmitted to or received from external units being part of the electric
actuator (wired), or to and from external units, which are not part of the electric actuator
(wireless) under test.
1.1.10 Replacement:
This part 2-14 does not address the integrity of the output signal to the network devices, such
as interoperability with other devices unless it has been evaluated as part of the control
system.
2 Terms and definitions
This clause of part 1 is applicable, except as follows:
2.2 Definitions of types of control according to purpose
Additional definition:
– 8 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
2.2.101
electric actuator
device in which a prime mover is mechanically linked to a valve, damper or similar device
and which responds to initiation from a control or switch
Note 1 to entry: The electric actuator moves the valve, damper or similar device to defined positions and may also
incorporate other functions, such as electric interlock switches and/or feedback.
2.3 Definitions relating to the function of controls
Additional definitions:
2.3.101
multi-position action
action denoting that the electric actuator operates in such a manner that only two or more
defined positions can be reached
2.3.102
modulating action
action denoting that the electric actuator operates in such a manner that every position
between two defined limits can be reached
2.3.103
travel time
time taken by an electric actuator to move from one defined position to another
2.3.104
stroke
distance travelled by a linear actuator
2.3.105
angular rotation
operating movement of a rotary actuator given in radians or degrees
2.3.106
maximum rated mechanical load
maximum mechanical resistance to the active movement of an actuator under normal
operating conditions
Note 1 to entry: See also 6.4.102.1 and 6.4.102.2.
3 General requirements
This clause of Part 1 is applicable.
4 General notes on tests
This clause of Part 1 is applicable.
5 Rating
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable, except as follows:

© IEC 2019
6.1 According to nature of supply
6.1.1 Control for a.c. only
Replacement:
Electric actuators which are designed for a.c. supply only shall not be used on d.c. supply.
6.3 According to their purpose
Additional subclauses:
6.3.101 – electric actuator;
6.3.102 – electric actuator as a component of a multi-purpose control or system.
NOTE See also H.6.18 according to classes of control functions.
6.4 According to features of automatic action
Additional subclauses:
6.4.101 Type of action
6.4.101.1 Multi-position action
6.4.101.2 Modulating action
6.4.102 Type of movement
6.4.102.1 Rotary movement
NOTE Maximum rated mechanical load for rotary movement actuators can be declared in terms of rated torque
(for the complete angular rotation) or, alternatively, in terms of maximum torque, running torque and percentage
of the angular rotation in which the maximum torque occurs. The value of the percentage of the angular rotation in
which the maximum torque occurs is independent from any specific position within the travel of the actuator;
maximum torque can be reached at any position within the actuator travel (e.g. at start position, at end position, at
each end, in the middle, etc.).
6.4.102.2 Linear movement
NOTE Maximum rated mechanical load for linear movement actuators can be declared in terms of rated force
(for the complete stroke) or, alternatively, in terms of maximum force, running force and percentage of the stroke
in which the maximum force occurs. The value of the percentage of the stroke in which the maximum force occurs
is independent from any specific position within the travel of the actuator; maximum force can be reached at any
position within the actuator travel (e.g. at start position, at end position, at each end, in the middle, etc.).
6.4.3 Additional subclauses:
6.4.3.101 –an action in which the electric actuator assumes a predefined position upon loss
of the electrical supply and/or upon loss of the control signal (type 1.AA or type 2.AA);
6.4.3.102 – an action in which the electric actuator operates normally between 1,1 V and
R
0,85 V inclusive and in which it either operates normally or assumes a predefined position
R
between 0,85 V and a declared lower percentage of rated voltage (type 1.AB or type 2.AB).
R
6.11 According to number of automatic cycles (A) of each automatic action
Modification:
Subclauses 6.11.8 to 6.11.12 inclusive are not applicable.

– 10 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
7 Information
This clause of part 1 is applicable except as follows:
Table 1 – (7.2 of edition 3) – Required information and methods of providing information
Information Clause or Method
subclause
Modifications:
7 The type of load controlled by each external circuit 6.2, 14 D
22 Temperature limits of the actuator, if T lower than 0 °C 6.7, 14,5, D
min
or T other than 60 °C 14.7, 17.3
max
23 Temperature limits of mounting surfaces (T ) 6.12.2, 14.1, 17,3 D
s
27 Number of automatic cycles (A) for each automatic 6.11 X
102 bb
action
28 Not applicable
101, 103 aa cc
34 Detail of any limitation of operating time 14, 17 C
37 Not applicable
38 Not applicable
43 Not applicable
44 Not applicable
47 Not applicable
Additional requirements:
101 Impedance protected motor 14.4.101 D
102 Thermally protected motor 14.4.102 D
103 Type of movement 2.3.104, 2.3.105, D
6.4.102
104 Type of action 2.3.101, 2.3.102, D
6.4.101
105 Maximum rated mechanical load maximum rated 2.3.106, 6.4.102.1, D
dd
mechanical load 6.4.102.2, 14.4,
15.5.102, 17.4.101
106 Travel time 2.3.103, 15.5.101, D
15.5.102
107 Stroke 2.3.104 D
108 Angular rotation 2.3.105 D
109 Response time and method of measurement 6.4.3.101
D
(for types 1.AA or 2.AA) 15.5.102
110 Lower percentage of rated voltage 6.4.3.102 D
(for types 1.AB or 2.AB)
Additional footnotes:
101aa
This may be given as a maximum percentage of ON time of the power supply to avoid over-heating of the
windings in a declared period of time.
102bb
Electric actuators are subjected to a minimum of 6 000 cycles.
103cc
For integrated and incorporated electric actuators, the method is D.
dd
For test purposes, representative physical load may be defined by agreement between the manufacturer and
testing authority (e.g. dedicated test device).

7.3.1 Addition:
NOTE Actuators of class II construction provided with a cord for connection to the fixed wiring which does not
have a plug fitted may carry the symbol for class II construction.
8 Protection against electric shock
This clause of part 1 is applicable.

© IEC 2019
9 Provision for protective earthing
This clause of Part 1 is applicable.
10 Terminals and terminations
This clause of Part 1 is applicable.
11 Constructional requirements
This clause of Part 1 is applicable except as follows:
11.4 Actions
Additional subclauses:
11.4.101 A type 1.AA or 2.AA action shall operate such that for any duration of voltage
interruption which is greater than the response time declared in Table 1, requirement 109, the
actuator assumes the predefined position and resumes normal operation upon restoration of
the supply.
Compliance is checked by test.
11.4.102 A type 1.AB or 2.AB action shall operate normally between 1,1 V and 0,85 V
R R
and
inclusive and shall respond as declared by the manufacturer at voltages below 0,85 V
R
the voltage declared in Table 1, requirement 110.
Compliance is checked by test.
12 Moisture and dust resistance
This clause of Part 1 is applicable.
13 Electric strength and insulation resistance
This clause of Part 1 is applicable.
14 Heating
This clause of Part 1 is applicable except as follows:
14.3 Not applicable.
14.4 Replacement of the first paragraph by the following:
The tests based on an action type 1.AB or 2.AB shall be checked by the lowest (0,85 V ) and
R
the highest (1,1 V ) rated voltage as declared by the manufacturer. During this test, the
R
temperature shall not exceed the values specified in Table 13 (14.1 of edition 3.)
The actuator shall be loaded with the maximum rated mechanical load. Each duty cycle shall
be operated at the declared maximum stroke or angular rotation.

– 12 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
14.4.3.1 to 14.4.3.3 Not applicable.
14.4.4 Not applicable.
Additional subclauses:
14.4.101 If stalling of the electric actuator drive shaft is part of normal operation, then the
drive shaft of motorized actuators shall be stalled and temperatures measured after steady-
state conditions are reached. The temperatures shall comply with the limits of Table 13. In
addition, if any protective device provided does not cycle under stalled conditions, then the
electric actuator is also considered to comply with the requirements of the burnout test of
27.2.
14.4.102 If stalling of the electric actuator drive shaft is not part of normal operation, then
Table 13 limits do not apply during stalling. The electric actuator shall comply with the
requirements of the burnout test of 27.2.
14.5.1 Replacement:
Change "switch head" to "electric actuator".
14.5.2 Not applicable.
14.6 Replacement:
The temperatures specified for the electric actuator shall be attained in approximately 1 h.
14.7 Replacement:
The temperature of the medium in which the electric actuator is located shall be measured
as near as possible to the centre of the space occupied by the samples and at a distance of
approximately 50 mm from the actuator.
15 Manufacturing deviation and drift
This clause of Part 1 is applicable except as follows:
15.5 Additional subclauses:
15.5.101 The travel time shall be measured at 0,85 V .
R
15.5.102 The travel time and the response time shall be measured with the maximum rated
mechanical load declared by the manufacturer and in the most unfavourable mounting
position declared by the manufacturer.
15.6 Not applicable.
16 Environmental stress
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable except as follows:

© IEC 2019
17.4 Manual and mechanical conditions for the tests
17.4.2 Replacement:
The speed of movement of the electric actuator drive shaft shall be as declared by the
manufacturer.
17.4.4 Replacement:
The method of acceleration shall be as agreed between the manufacturer and the testing
authority.
Additional subclause:
17.4.101 The electric actuator shall be loaded with the maximum rated mechanical load
(item 105 of Table 1).
17.6 Not applicable.
Additional subclause:
17.8.101 The tests based on an action type 1.AB or 2.AB shall be checked with 50 % of the
at ambient temperature or T , if lower than 0 °C, and 50 %
cycles at 0,85 of the minimum V
R min
of the cycles at 1,1 of the maximum V at T .
R max
18 Mechanical strength
This clause of Part 1 is applicable.
19 Threaded parts and connections
This clause of Part 1 is applicable.
20 Creepage distances, clearances and distances through solid insulation
This clause of Part 1 is applicable.
21 Resistance to heat, fire and tracking
This clause of Part 1 is applicable.
22 Resistance to corrosion
This clause of Part 1 is applicable.
23 Electromagnetic compatibility (EMC) requirements – Emission
This clause of Part 1 is applicable.

– 14 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
24 Components
This clause of Part 1 is applicable.
25 Normal operation
This clause of Part 1 is applicable except as follows:
25.2 Not applicable.
26 Electromagnetic compatibility (EMC) requirements – Immunity
This clause of Part 1 is applicable.
27 Abnormal operation
This clause of Part 1 is applicable except as follows:
27.2 Burnout test
Replacement of the first sentence by the following:
This clause is applicable to actuators where an external mechanical blockage will not cause
an internal overload of the actuator. If means (e.g. a clutch) is used to decouple the external
blockage to the internal mechanical structure, then a blockage of the mechanical parts
between the motor and the decoupling means shall be tested according 27.2.1.
27.2.2 Replacement:
After this test, the actuator shall comply with the items a) to g) of H.27.1.1.3 .
27.2.3 Blocked mechanical output test (abnormal temperature test)
Replacement of the first paragraph by the following:
Electric actuators shall withstand the effects of blocked output without exceeding the
temperatures indicated in Table 26. Temperatures are measured by the method specified
in 14.7.1.
This test is not conducted on electric actuators which meet the requirements of 14.4.101.
27.2.3.1
Replacement of the first and second paragraph, including the NOTE, by the following:
Electric actuators are tested for 24 h or until thermal equilibrium has been reached with the
output blocked in the most unfavorable position at rated voltage and in a room temperature in
the range of 15 °C to 30 °C, the resulting measured temperature being corrected to a 25 °C
reference value.
NOTE For the test with disconnected phase on three phase actuators, see 27.101.
27.3 Not applicable.
© IEC 2019
27.101 Test with disconnected phase on three phase actuators
27.101.1 With any one phase disconnected, the actuator is operated under normal
operation and supplied at rated voltage. For asymmetrical motor windings, the test is to be
repeated until all phases have been singly opened.
27.101.1.1 The test duration shall be such that the first and second hour winding
temperatures are recorded or until temperatures stabilize, whichever is longer. Temperatures
are measured by the method specified in 14.7.1.
27.101.1.2 The temperature of the winding shall not exceed the temperatures indicated in
Table 26.
27.102 Running overload
27.102.1 A running overload test is carried out on electrical actuators that are intended to be
remotely or automatically controlled or liable to be operated continuously in unattended mode.
If present, overload protective devices relying on electronic circuits to protect the motor
windings are also subjected to the running overload test. This test is not applicable to
integrated actuators.
27.102.2 The electrical actuator is operated under normal operation, carrying its rated load
and supplied at rated voltage until the temperature of the motor windings stabilizes. The
protector or protective circuit shall not operate or open the circuit while the actuator is
operating under the above conditions.
27.102.2.1 For all actuators where the trip point in the sensing variable is not known or
cannot be quickly determined (for example, temperature sensing, impedance protected motors,
sensor-less motor protection, position sensing, etc.), the load to the actuator is increased in
increments of 10 % of the rated value (torque, current, etc.) and operated until temperatures
of the winding stabilize. If the protector or the protective circuit does not operate under this
overload condition, the load to the actuator is again increased by 10 % of the previous load
setting and the actuator is operated until temperatures of the windings stabilize. This process
is continued until the protective device or protective circuit operates.
When the protector or protective circuit operates, the load is slowly decreased until the
protector or protective circuit is not activated. The loading parameters (torque, current, etc.)
shall be measured and recorded. The actuator is then run at this load until the temperature of
the winding stabilizes.
Any mechanical protection, such as a clutch, shall be defeated for this test.
27.102.2.2 For actuators where the trip point in the sensing variable is known or can be
quickly determined (example, current sensing), the load to the actuator is gradually increased,
in a controlled manner, until the protective device or protective circuit is activated. This is the
trip point and the loading parameters (torque, current etc.) shall be measured and recorded.
Then, the load is slowly decreased until the protector or protective circuit is not activated. The
actuator is then run at this load until the temperature of the winding stabilizes.
NOTE A brake dynamometer can be used to gradually increase the torque on the actuator shaft in a controlled
manner.
27.102.3 During the test, the winding temperature prior to the operation of the protective
device or protective circuit shall not exceed
– 140 °C, for class 105 (A) winding insulation;
– 155 °C, for class 120 (E) winding insulation;
– 165 °C, for class 130 (B) winding insulation;

– 16 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
– 180 °C, for class 155 (F) winding insulation;
– 200 °C, for class 180 (H) winding insulation;
– 220 °C, for class 200 (N) winding insulation;
– 240 °C, for class 220 (R) winding insulation;
– 270 °C, for class 250 winding insulation.
NOTE If the load cannot be increased in appropriate steps, the motor and the protective electronics, if applicable,
can be removed from the appliance and tested separately.
27.102.3.1 During the test, the maximum temperature recorded on insulating parts shall not
exceed 1,5 times the relevant values specified in Clause 14.
27.102.4 For electrical actuators which are used in a continuous operation for longer than
24 h without interruption the load is again increased and the test is repeated until the
protective device operates or the motor stalls.
27.102.5 For electrical actuators which are used in operation mode which will not exceed
24 h without interruption, the test is repeated after the winding temperature has reached
environmental temperature conditions. The test will be performed with an increased load so
that the current through the motor windings is raised by 10 % increments. The electrical
actuator is operated again until steady conditions are established, the supply voltage being
maintained at its original value. This procedure will be repeated until the protective device
operates or the motor stalls
28 Guidance on the use of electronic disconnection
This clause of Part 1 is applicable.
Figures
The figures of Part 1 are applicable.
Annexes
The annexes of Part 1 are applicable, except as follows:

© IEC 2019
Annex H
(normative)
Requirements for electronic controls
This annex of Part 1 is applicable except as follows:
H.11 Constructional requirements
H.11.12 Controls using software
H.11.12.2.6 Addition:
The values declared in Table 1, requirement 71, may be given in the applicable equipment
standard.
Additional subclause:
H.11.12.2.6.101
The control response(s) declared in Table 1, requirement 72, may be given in the applicable
equipment standard.
H.26  Electromagnetic compatibility (EMC) requirements – Immunity
H.26.1 Addition:
If an electric actuator is a component of a multi-purpose control or system and provides a
protective control function, then the electric actuator shall be treated as a protective
control throughout Clause H.26.
H.26.5 Voltage dips, voltage interruptions and voltage variations in the power supply
network
H.26.5.1.2 Test procedure for voltage dips and interruptions
Addition:
Each test is performed three times.
Additional subclause:
H.26.5.1.2.101 H.26.5.1.101 Compliance
After the test according to H.26.5.1.2 of all the voltage dips and the voltage interruption of
more than one cycle of the supply wave form, the electric actuator shall provide normal
operation.
During the tests according to H.26.5.1.2 of an interruption of one cycle and of an interruption
of one half-cycle of the supply waveform, the control shall continue to operate after
restoration of the supply voltage from the position the electric actuator was in right before
the interruption.
– 18 – IEC 60730-2-14:2017+AMD1:2019 CSV
© IEC 2019
H.26.5.2.2 Test procedure
Addition:
The test shall be performed in the fully open, fully closed, and if possible, in a partly open
position.
Additional subclause:
H.26.5.2.101 Compliance
After the test according to H.26.5.2.2 of voltage test level 0 % V , the electric actuator shall
R
provide normal operation.
During the tests according to H.26.5.2.2 of voltage test level 40 % V , the control shall
R
continue to operate after restoration of the supply voltage from the position the electric
actuator was in immediately before the interruption.
H.26.6 Not applicable.
H.26.8 Surge immunity test
H.26.8.3 Test procedure
Addition:
The five pulses in each polarity shall be distributed in the following operating modes:
– 1 pulse in the closed position;
– 3 pulses during energized movement in the most surge sensitive position;
– 1 pulse in the open position.
Additional subclause:
H.26.8.101 Compliance
The electric actuator shall tolerate the surge immunity test on the mains supply and signal
lines, so that, when tested in accordance with H.26.9.3 H.26.8.3,
a) for the value of test level 2: it shall continue to function in accordance with the
requirements of this standard. No influence to the actual position of the electric actuator
is recognized;
b) for the value of test level 3: for a protective electric actuator used as a component of a
protective multi-purpose control or system, it shall either perform as in a) or it may stop
operating and shall indicate that it has done so to the protective multi-purpose control or
system.
NOTE The acceptability of the indication to the protective multi-purpose control or system is dependent on the
application.
c) if declared according to Table 1, requirement 90 after the tests,
• shall comply with H.27.1.1.3,
• surge protective components shall not be destroyed.
H.26.9 Electrical fast transient/burst immunity test
H.26.9.3 Test procedure
Addition:
...

IEC 60730-2-14 ®
Edition 2.2 2021-10
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Automatic electrical controls –
Part 2-14: Particular requirements for electric actuators
Dispositifs de commande électrique automatiques –
Partie 2-14: Exigences particulières pour les actionneurs électriques
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60730-2-14 ®
Edition 2.2 2021-10
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Automatic electrical controls –
Part 2-14: Particular requirements for electric actuators
Dispositifs de commande électrique automatiques –
Partie 2-14: Exigences particulières pour les actionneurs électriques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.01; 97.120 ISBN 978-2-8322-4476-0
IEC 60730-2-14 ®
Edition 2.2 2021-10
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Automatic electrical controls –
Part 2-14: Particular requirements for electric actuators

Dispositifs de commande électrique automatiques –
Partie 2-14: Exigences particulières pour les actionneurs électriques

– 2 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
CONTENTS
FOREWORD . 3
1 Scope and normative references . 6
2 Terms and definitions . 8
3 General requirements . 9
4 General notes on tests . 9
5 Rating. 9
6 Classification . 9
7 Information . 10
8 Protection against electric shock . 11
9 Provision for protective earthing . 11
10 Terminals and terminations . 11
11 Constructional requirements . 11
12 Moisture and dust resistance . 12
13 Electric strength and insulation resistance . 12
14 Heating . 12
15 Manufacturing deviation and drift . 13
16 Environmental stress . 13
17 Endurance . 13
18 Mechanical strength . 14
19 Threaded parts and connections . 14
20 Creepage distances, clearances and distances through solid insulation . 14
21 Resistance to heat, fire and tracking . 14
22 Resistance to corrosion . 14
23 Electromagnetic compatibility (EMC) requirements – Emission . 14
24 Components . 14
25 Normal operation . 14
26 Electromagnetic compatibility (EMC) requirements – Immunity . 14
27 Abnormal operation . 14
28 Guidance on the use of electronic disconnection . 17
Annex H (normative) Requirements for electronic controls . 18
Annex AA (normative) Regional differences . 23
Annex BB (informative) Specific regional requirements in Japan . 24
Bibliography . 25

Table 1 – (7.2 of edition 3) – Required information and methods of providing
information . 10

+AMD2:2021 CSV © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-14: Particular requirements for electric actuators

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been
prepared for user convenience.
IEC 60730-2-14 edition 2.2 contains the second edition (2017-08) [documents
72/1079/FDIS and 72/1100/RVD], its amendment 1 (2019-03) [documents 72/1168FDIS
and 72/1175/RVD] and its amendment 2 (2021-10) [documents 72/1284/FDIS and
72/1286/RVD].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendments 1 and 2. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is available
in this publication.
– 4 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
International Standard IEC 60730-2-14 has been prepared by IEC technical committee 72:
Automatic electrical controls.
This second edition constitutes a technical revision. This edition includes the following
significant technical changes with respect to the previous edition:
th
• adapting it to the 5 Ed of IEC 60730-1,
• addition of checking electric actuators with action 1.AB or 2AB, and
• modification of tests under abnormal condition.
This part 2-14 is intended to be used in conjunction with IEC 60730-1. It was established on
the basis of the fifth edition of that standard (2013) including its amendment 1 (2015) and
amendment 2 (2021). Consideration may be given to future editions of, or amendments to,
IEC 60730-1.
This part 2-14 supplements or modifies the corresponding clauses in IEC 60730-1, so as to
convert that publication into the IEC standard: Particular requirements for electric actuators.
Where this part 2-14 states "addition", "modification" or "replacement", the relevant require-
ment, test specification or explanatory matter in part 1 should be adapted accordingly.
Where no change is necessary part 2-14 indicates that the relevant clause or subclause
applies.
In the development of a fully international standard it has been necessary to take into
consideration the differing requirements resulting from practical experience in various parts of
the world and to recognize the variation in national electrical systems and wiring rules.
The "in some countries" notes regarding differing national practice are contained in the
following subclauses:
• Table 1,
• 27.2.3.1.
The reader's attention is drawn to the fact that Annex AA and Annex BB list all of the "in-
some-country" clauses on differing practices of a less permanent nature relating to the subject
of this document.
In this publication:
1) The following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– explanatory matter: in smaller roman type.
– Defined terms: bold type.
2) Subclauses, notes or items which are additional to those in Part 1 are numbered starting
from 101, additional annexes are lettered AA, BB, etc.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

+AMD2:2021 CSV © IEC 2021
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-14: Particular requirements for electric actuators

1 Scope and normative references
This clause of Part 1 is applicable except as follows:
1.1 Replacement:
This part 2-14 applies to electric actuators for use in, on, or in association with equipment
for household and similar use. The equipment may use electricity, gas, oil, solid fuel, solar
thermal energy, etc., or a combination thereof.
NOTE Throughout this standard document the word "equipment" means "appliance and equipment".
EXAMPLE 1 Electric actuators for appliances within the scope of IEC 60335.
This International Standard document is applicable to controls electric actuators for building
automation within the scope of ISO 16484.
This part 2-14 also applies to automatic electrical controls for equipment that may be used
by the public, such as equipment intended to be used in shops, offices, hospitals, farms and
commercial and industrial applications.
EXAMPLE 2 Controls for commercial catering, heating and air-conditioning equipment.
This part 2-14 is also applicable to individual electric actuators utilized as part of a control
system or controls, which are mechanically integral with multifunctional controls having
non-electrical outputs.
EXAMPLE 3 Independently mounted water valves, controls in smart grid systems and controls for building
automation systems within the scope of ISO 16484-2.
This part 2-14 does not apply to automatic electric actuators intended exclusively for
industrial process applications unless explicitly mentioned in the relevant part 2 or the
equipment standard.
This part 2-14 applies to electric actuators powered by primary or secondary batteries,
requirements for which are contained within the standard, including Annex V.
1.1.1 Replacement:
This part 2-14 applies to the inherent safety, to the operating values, operating times and
operating sequences where such are associated with equipment safety, and to the testing of
electric actuators used in or in association with equipment.
NOTE Requirements for specific operating values, operating times and operating sequences may can be
given in the standards for appliances and equipment.
This standard document is also applicable to the functional safety of low complexity safety
related systems and controls.
This part 2-14 does not apply to electric actuators which are mechanically integrated with
valves covered by a separate part 2, e.g. IEC 60730-2-8.

+AMD2:2021 CSV © IEC 2021
This part 2-14 does not apply to electric motors, requirements for which are contained in
IEC 60034.
1.1.2 Replacement:
This part -2-14 applies to automatic electric actuators, mechanically or electrically operated,
responsive to or controlling such characteristics as temperature, pressure, passage of time,
humidity, light, electrostatic effects, flow, or liquid level, current, voltage, acceleration, or
combinations thereof.
Requirements for manual switches not integral with an electric actuator are contained in
IEC 61058-1 and IEC 61058-1-1.
1.1.3 Replacement Void.
This part 2-14 applies to a.c. or d.c. powered electric actuators with a rated voltage not
exceeding 690 V a.c. or 600 V d.c.
1.1.4 Replacement Void.
This part 2-14 does not take into account the response value of an automatic action of an
electric actuator, if such a response value is dependent upon the method of mounting the
electric actuator in the equipment. Where a response value is of significant purpose for the
protection of the user, or surroundings, the value defined in the appropriate household
equipment or as determined by the manufacturer shall apply.
1.1.5 Void. Replacement:
This part 2-14 applies to AC or DC powered electric actuators with a rated voltage not
exceeding 690 V AC or 600 V DC.
1.1.6 Void. Replacement:
This part 2-14 does not take into account the response value of an automatic action of an
electric actuator, if such a response value is dependent upon the method of mounting the
electric actuator in the equipment. Where a response value is of significant purpose for the
protection of the user, or surroundings, the value defined in the appropriate household
equipment or as determined by the manufacturer applies.
1.1.7 Replacement:
This part 2-14 applies also to electric actuators incorporating electronic devices,
requirements for which are contained in Annex H.
1.1.8 Replacement:
This part 2-14 applies also to electric actuators using NTC or PTC thermistors,
requirements for which are contained in Annex J.
1.1.9 Replacement:
This part 2-14 applies to the electrical and functional safety of electric actuators capable of
receiving and responding to communications signals, including signals for power billing rate
and demand response.
– 8 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
The signals may be transmitted to or received from external units being part of the electric
actuator (wired), or to and from external units, which are not part of the electric actuator
(wireless) under test.
1.1.10 Replacement:
This part 2-14 does not address the integrity of the output signal to the network devices, such
as interoperability with other devices unless it has been evaluated as part of the control
system.
1.2 Normative references
Additional reference:
IEC 61058-1-1, Switches for appliances – Part 1-1: Requirements for mechanical switches
2 Terms and definitions
This clause of part 1 is applicable, except as follows:
2.2 Definitions of types of control according to purpose
Additional definition:
2.2.101
electric actuator
device in which a prime mover is mechanically linked to a valve, damper or similar device
and which responds to initiation from a control or switch
Note 1 to entry: The electric actuator moves the valve, damper or similar device to defined positions and may also
incorporate other functions, such as electric interlock switches and/or feedback.
2.3 Definitions relating to the function of controls
Additional definitions:
2.3.101
multi-position action
action denoting that the electric actuator operates in such a manner that only two or more
defined positions can be reached
2.3.102
modulating action
action denoting that the electric actuator operates in such a manner that every position
between two defined limits can be reached
2.3.103
travel time
time taken by an electric actuator to move from one defined position to another
2.3.104
stroke
distance travelled by a linear actuator
2.3.105
angular rotation
operating movement of a rotary actuator given in radians or degrees

+AMD2:2021 CSV © IEC 2021
2.3.106
maximum rated mechanical load
maximum mechanical resistance to the active movement of an actuator under normal
operating conditions
Note 1 to entry: See also 6.4.102.1 and 6.4.102.2.
3 General requirements
This clause of Part 1 is applicable.
4 General notes on tests
This clause of Part 1 is applicable.
5 Rating
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable, except as follows:
6.1 According to nature of supply
6.1.1 Control for a.c. only
Replacement:
Electric actuators which are designed for a.c. supply only shall not be used on d.c. supply.
6.3 According to their purpose
Additional subclauses:
6.3.101 – electric actuator;
6.3.102 – electric actuator as a component of a multi-purpose control or system.
NOTE See also H.6.18 according to classes of control functions.
6.4 According to features of automatic action
Additional subclauses:
6.4.101 Type of action
6.4.101.1 Multi-position action
6.4.101.2 Modulating action
6.4.102 Type of movement
– 10 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
6.4.102.1 Rotary movement
NOTE Maximum rated mechanical load for rotary movement actuators can be declared in terms of rated torque
(for the complete angular rotation) or, alternatively, in terms of maximum torque, running torque and percentage
of the angular rotation in which the maximum torque occurs. The value of the percentage of the angular rotation in
which the maximum torque occurs is independent from any specific position within the travel of the actuator;
maximum torque can be reached at any position within the actuator travel (e.g. at start position, at end position, at
each end, in the middle, etc.).
6.4.102.2 Linear movement
NOTE Maximum rated mechanical load for linear movement actuators can be declared in terms of rated force
(for the complete stroke) or, alternatively, in terms of maximum force, running force and percentage of the stroke
in which the maximum force occurs. The value of the percentage of the stroke in which the maximum force occurs
is independent from any specific position within the travel of the actuator; maximum force can be reached at any
position within the actuator travel (e.g. at start position, at end position, at each end, in the middle, etc.).
6.4.3 Additional subclauses:
6.4.3.101 –an action in which the electric actuator assumes a predefined position upon loss
of the electrical supply and/or upon loss of the control signal (type 1.AA or type 2.AA);
6.4.3.102 – an action in which the electric actuator operates normally between 1,1 V and
R
0,85 V inclusive and in which it either operates normally or assumes a predefined position
R
between 0,85 V and a declared lower percentage of rated voltage (type 1.AB or type 2.AB).
R
6.11 According to number of automatic cycles (A) of each automatic action
Modification:
Subclauses 6.11.8 to 6.11.12 inclusive are not applicable.
7 Information
7.2 Methods of providing information
This clause of part 1 is applicable except as follows:
Table 1 – (7.2 of edition 3) – Required information and methods of providing information
Information Clause or Method
subclause
Modifications:
7 The type of load controlled by each external circuit 6.2, 14 D
22 Temperature limits of the actuator, if T lower than 0 °C 6.7, 14,5, D
min
or T other than 60 °C 14.7, 17.3
max
23 Temperature limits of mounting surfaces (T ) Maximum 6.12.2, 14.1, 17,3 D
s
temperature of mounting surface (T ) if it differs by more
s max
than 20 K from T
max
27 Number of automatic cycles (A) for each automatic 6.11 X
102 bb
action
28 Not applicable
101, 103 aa cc
34 Detail of any limitation of operating time 14, 17 C
37 Not applicable
38 Not applicable
43 Not applicable
44 Not applicable
47 Not applicable
Additional requirements:
+AMD2:2021 CSV © IEC 2021
101 Impedance protected motor 14.4.101 D
102 Thermally protected motor 14.4.102 D
103 Type of movement 2.3.104, 2.3.105, D
6.4.102
104 Type of action 2.3.101, 2.3.102, D
6.4.101
105 Maximum rated mechanical load maximum rated 2.3.106, 6.4.102.1, D
dd
mechanical load 6.4.102.2, 14.4,
15.5.102, 17.4.101
106 Travel time 2.3.103, 15.5.101, D
15.5.102
107 Stroke 2.3.104 D
108 Angular rotation 2.3.105 D
109 Response time and method of measurement 6.4.3.101 D
(for types 1.AA or 2.AA) 15.5.102
110 Lower percentage of rated voltage 6.4.3.102 D
(for types 1.AB or 2.AB)
Additional footnotes:
101aa
This may be given as a maximum percentage of ON time of the power supply to avoid over-heating of the
windings in a declared period of time.
102bb
Electric actuators are subjected to a minimum of 6 000 cycles.
103cc
For integrated and incorporated electric actuators, the method is D.
dd
For test purposes, representative physical load may be defined by agreement between the manufacturer and
testing authority (e.g. dedicated test device).

7.3.1 Addition:
NOTE Actuators of class II construction provided with a cord for connection to the fixed
wiring which does not have a plug fitted may carry the symbol for class II construction.
8 Protection against electric shock
This clause of part 1 is applicable.
9 Provision for protective earthing
This clause of Part 1 is applicable.
10 Terminals and terminations
This clause of Part 1 is applicable.
11 Constructional requirements
This clause of Part 1 is applicable except as follows:
11.4 Actions
Additional subclauses:
11.4.101 A type 1.AA or 2.AA action shall operate such that for any duration of voltage
interruption which is greater than the response time declared in Table 1, requirement 109, the
actuator assumes the predefined position and resumes normal operation upon restoration of
the supply.
– 12 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
Compliance is checked by test.
11.4.102 A type 1.AB or 2.AB action shall operate normally between 1,1 V and 0,85 V
R R
inclusive and shall respond as declared by the manufacturer at voltages below 0,85 V and
R
the voltage declared in Table 1, requirement 110.
Compliance is checked by test.
12 Moisture and dust resistance
This clause of Part 1 is applicable.
13 Electric strength and insulation resistance
This clause of Part 1 is applicable.
14 Heating
This clause of Part 1 is applicable except as follows:
14.3 Not applicable.
14.4 Replacement of the first paragraph by the following:
The tests based on an action type 1.AB or 2.AB shall be checked by the lowest (0,85 V ) and
R
the highest (1,1 VR) rated voltage as declared by the manufacturer. During this test, the
temperature shall not exceed the values specified in Table 13 (14.1 of edition 3.)
The actuator shall be loaded with the maximum rated mechanical load. Each duty cycle shall
be operated at the declared maximum stroke or angular rotation.
14.4.3.1 to 14.4.3.3 Not applicable.
14.4.4 Not applicable.
Additional subclauses:
14.4.101 If stalling of the electric actuator drive shaft is part of normal operation, then the
drive shaft of motorized actuators shall be stalled and temperatures measured after steady-
state conditions are reached. The temperatures shall comply with the limits of Table 13. In
addition, if any protective device provided does not cycle under stalled conditions, then the
electric actuator is also considered to comply with the requirements of the burnout test of
27.2.
14.4.102 If stalling of the electric actuator drive shaft is not part of normal operation, then
Table 13 limits do not apply during stalling. The electric actuator shall comply with the
requirements of the burnout test of 27.2.
14.5.1 Replacement:
Change "switch head" to "electric actuator".
14.5.2 Not applicable.
+AMD2:2021 CSV © IEC 2021
14.6 Replacement:
The temperatures specified for the electric actuator shall be attained in approximately 1 h.
14.7 Replacement:
The temperature of the medium in which the electric actuator is located shall be measured
as near as possible to the centre of the space occupied by the samples and at a distance of
approximately 50 mm from the actuator.
15 Manufacturing deviation and drift
This clause of Part 1 is applicable except as follows:
15.5 Additional subclauses:
15.5.101 The travel time shall be measured at 0,85 V .
R
15.5.102 The travel time and the response time shall be measured with the maximum rated
mechanical load declared by the manufacturer and in the most unfavourable mounting
position declared by the manufacturer.
15.6 Not applicable.
16 Environmental stress
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable except as follows:
17.4 Manual and mechanical conditions for the tests
17.4.2 Replacement:
The speed of movement of the electric actuator drive shaft shall be as declared by the
manufacturer.
17.4.4 Replacement:
The method of acceleration shall be as agreed between the manufacturer and the testing
authority.
Additional subclause:
17.4.101 The electric actuator shall be loaded with the maximum rated mechanical load
(item 105 of Table 1).
17.6 Not applicable.
– 14 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
Additional subclause:
17.8.101 The tests based on an action type 1.AB or 2.AB shall be checked with 50 % of the
cycles at 0,85 of the minimum V at ambient temperature or T , if lower than 0 °C, and 50 %
R min
of the cycles at 1,1 of the maximum V at T .
R max
18 Mechanical strength
This clause of Part 1 is applicable.
19 Threaded parts and connections
This clause of Part 1 is applicable.
20 Creepage distances, clearances and distances through solid insulation
This clause of Part 1 is applicable.
21 Resistance to heat, fire and tracking
This clause of Part 1 is applicable.
22 Resistance to corrosion
This clause of Part 1 is applicable.
23 Electromagnetic compatibility (EMC) requirements – Emission
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable.
25 Normal operation
This clause of Part 1 is applicable except as follows:
25.2 Not applicable.
26 Electromagnetic compatibility (EMC) requirements – Immunity
This clause of Part 1 is applicable.
27 Abnormal operation
This clause of Part 1 is applicable except as follows:

+AMD2:2021 CSV © IEC 2021
27.2 Burnout test
Replacement of the first sentence by the following:
This clause is applicable to actuators where an external mechanical blockage will not cause
an internal overload of the actuator. If means (e.g. a clutch) is used to decouple the external
blockage to the internal mechanical structure, then a blockage of the mechanical parts
between the motor and the decoupling means shall be tested according 27.2.1.
27.2.2 Replacement:
After this test, the actuator shall comply with the items a) to g) of H.27.1.1.3 .
27.2.3 Blocked mechanical output test (abnormal temperature test)
Replacement of the first paragraph by the following:
Electric actuators where the motor employs insulation for the protection against electric
shock shall withstand the effects of blocked output without exceeding the temperatures
indicated in Table 26. Temperatures are measured by the method specified in 14.7.1.
Electrical actuators where the motor employs only functional insulation shall withstand the
effects of a blocked output. During the test the exceeding of temperatures in Table 26 is
allowed provided that, after the test, the electric actuator complies with items a) to g) of
H.27.1.1.3, where applicable.
This test is not conducted on electric actuators which meet the requirements of 14.4.101.
27.2.3.1
Replacement of the first and second paragraph, including the NOTE, by the following:
Electric actuators are tested for 24 h or until thermal equilibrium has been reached with the
output blocked in the most unfavorable position at rated voltage and in a room temperature in
the range of 15 °C to 30 °C, the resulting measured temperature being corrected to a 25 °C
reference value.
NOTE For the test with disconnected phase on three phase actuators, see 27.101.
27.3 Not applicable.
27.101 Test with disconnected phase on three phase actuators
27.101.1 With any one phase disconnected, the actuator is operated under normal
operation and supplied at rated voltage. For asymmetrical motor windings, the test is to be
repeated until all phases have been singly opened.
27.101.1.1 The test duration shall be such that the first and second hour winding
temperatures are recorded or until temperatures stabilize, whichever is longer. Temperatures
are measured by the method specified in 14.7.1.
27.101.1.2 The temperature of the winding shall not exceed the temperatures indicated in
Table 26.
27.102 Running overload
27.102.1 A running overload test is carried out on electrical actuators that are intended to be
remotely or automatically controlled or liable to be operated continuously in unattended mode.

– 16 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
If present, overload protective devices relying on electronic circuits to protect the motor
windings are also subjected to the running overload test. This test is not applicable to
integrated actuators.
27.102.2 The electrical actuator is operated under normal operation, carrying its rated load
and supplied at rated voltage until the temperature of the motor windings stabilizes. The
protector or protective circuit shall not operate or open the circuit while the actuator is
operating under the above conditions.
27.102.2.1 For all actuators where the trip point in the sensing variable is not known or
cannot be quickly determined (for example, temperature sensing, impedance protected motors,
sensor-less motor protection, position sensing, etc.), the load to the actuator is increased in
increments of 10 % of the rated value (torque, current, etc.) and operated until temperatures
of the winding stabilize. If the protector or the protective circuit does not operate under this
overload condition, the load to the actuator is again increased by 10 % of the previous load
setting and the actuator is operated until temperatures of the windings stabilize. This process
is continued until the protective device or protective circuit operates.
When the protector or protective circuit operates, the load is slowly decreased until the
protector or protective circuit is not activated. The loading parameters (torque, current, etc.)
shall be measured and recorded. The actuator is then run at this load until the temperature of
the winding stabilizes.
Any mechanical protection, such as a clutch, shall be defeated for this test.
27.102.2.2 For actuators where the trip point in the sensing variable is known or can be
quickly determined (example, current sensing), the load to the actuator is gradually increased,
in a controlled manner, until the protective device or protective circuit is activated. This is the
trip point and the loading parameters (torque, current etc.) shall be measured and recorded.
Then, the load is slowly decreased until the protector or protective circuit is not activated. The
actuator is then run at this load until the temperature of the winding stabilizes.
NOTE A brake dynamometer can be used to gradually increase the torque on the actuator shaft in a controlled
manner.
27.102.3 During the test, the winding temperature of motors employing insulation for the
protection against electric shock prior to the operation of the protective device or protective
circuit shall not exceed
– 140 °C, for class 105 (A) winding insulation;
– 155 °C, for class 120 (E) winding insulation;
– 165 °C, for class 130 (B) winding insulation;
– 180 °C, for class 155 (F) winding insulation;
– 200 °C, for class 180 (H) winding insulation;
– 220 °C, for class 200 (N) winding insulation;
– 240 °C, for class 220 (R) winding insulation;
– 270 °C, for class 250 winding insulation.
Electrical actuators where the motor employs only functional insulation shall comply with
items a) to g) of H.27.1.1.3, where applicable.
NOTE If the load cannot be increased in appropriate steps, the motor and the protective electronics, if applicable,
can be removed from the appliance and tested separately.
27.102.3.1 During the test, the maximum temperature recorded on insulating parts shall not
exceed 1,5 times the relevant values specified in Clause 14.

+AMD2:2021 CSV © IEC 2021
27.102.4 For electrical actuators which are used in a continuous operation for longer than
24 h without interruption the load is again increased and the test is repeated until the
protective device operates or the motor stalls.
27.102.5 For electrical actuators which are used in operation mode which will not exceed
24 h without interruption, the test is repeated after the winding temperature has reached
environmental temperature conditions. The test will be performed with an increased load so
that the current through the motor windings is raised by 10 % increments. The electrical
actuator is operated again until steady conditions are established, the supply voltage being
maintained at its original value. This procedure will be repeated until the protective device
operates or the motor stalls
28 Guidance on the use of electronic disconnection
This clause of Part 1 is applicable.
Figures
The figures of Part 1 are applicable.
Annexes
The annexes of Part 1 are applicable, except as follows:

– 18 – IEC 60730-2-14:2017+AMD1:2019
+AMD2:2021 CSV © IEC 2021
Annex H
(normative)
Requirements for electronic controls
This annex of Part 1 is applicable except as follows:
H.11 Constructional requirements
H.11.12 Controls using software
H.11.12.2.6 Addition:
The values declared in Table 1, requirement 71, may be given in the applicable equipment
standard.
Additional subclause:
H.11.12.2.6.101
The control response(s) declared in Table 1, requirement 72, may be given in the applicable
equipment standard.
H.26  Electromagnetic compatibility (EMC) requirements – Immunity
H.26.1 Addition:
If an electric actuator is a component of a multi-purpose control or system and provides a
protective control function, then the electric actuator shall be treated as a protective
control throughout Clause H.26.
H.26.5 Voltage dips, voltage interruptions and voltage variations in the power supply
network
H.26.5.1.2 Test procedure for voltage dips and interruptions
Addition:
Each test is performed three times.
Additional subclause:
H.26.5.1.2.101 H.26.5.1.101 Compliance
After the test according to H.26.5.1.2 of all the voltage dips and the voltage interruption of
more than one cycle of the supply wave form, the electric actuator shall provide normal
operation.
During the tests according to H.26.5.1.2 of an interruption of one cycle and of an interruption
of one half-cycle of the supply waveform, the control shall continue to operate after
restoration of the
...
