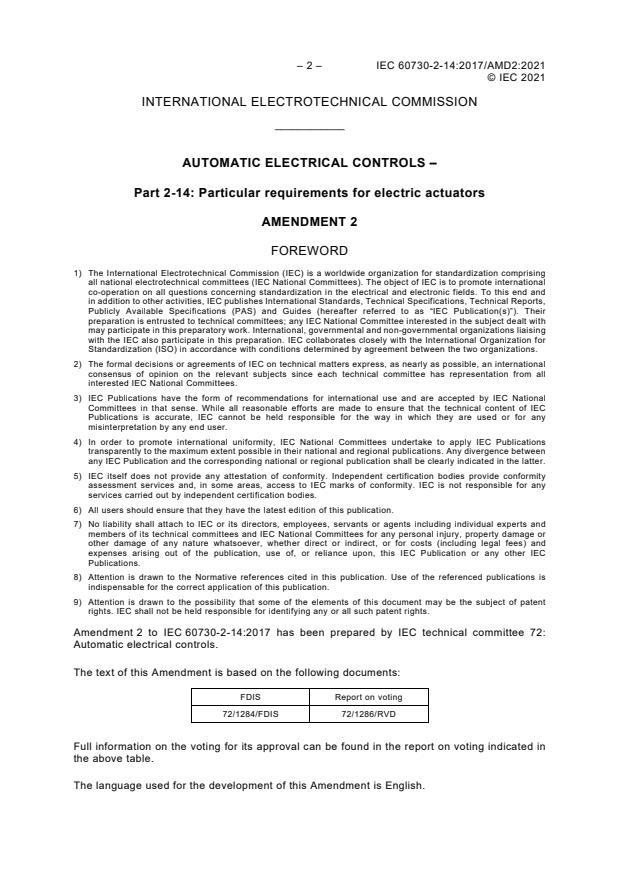

– 2 – IEC 60730-2-14:2017/AMD2:2021
© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-14: Particular requirements for electric actuators

AMENDMENT 2
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to IEC 60730-2-14:2017 has been prepared by IEC technical committee 72:
Automatic electrical controls.
The text of this Amendment is based on the following documents:
FDIS Report on voting
72/1284/FDIS 72/1286/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

© IEC 2021
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
___________
FOREWORD
Replace the third paragraph, beginning with "This Part 2-14 is intended to be used", as modified
by Amendment 1, with the following:
This part -2-14 is intended to be used in conjunction with IEC 60730-1. It was established on
the basis of the fifth edition of that standard (2013) including its amendment 1 (2015) and
amendment 2 (2021). Consideration may be given to future editions of, or amendments to,
IEC 60730-1.
Delete the text beginning with "The "in some country notes"", as well as the two bullet points.
Add the following text before "In this publication":
The reader's attention is drawn to the fact that Annex AA and Annex BB list all of the "in-some-
country" clauses on differing practices of a less permanent nature relating to the subject of this
document.
1 Scope and normative references
1.1 Scope
Replace the NOTE with the following:
NOTE Throughout this document the word "equipment" means "appliance and equipment".
Replace the second paragraph with the following:
This document is applicable to electric actuators for building automation within the scope of
ISO 16484.
– 4 – IEC 60730-2-14:2017/AMD2:2021
© IEC 2021
1.1.1
Replace the first paragraph with the following:
1.1.1 Replacement:
This part 2-14 applies to the inherent safety, to the operating values, operating times and
operating sequences where such are associated with equipment safety, and to the testing of
electric actuators used in or in association with equipment.
Replace, in the NOTE, the word "may" with "can".
Replace the second paragraph with the following:
This document is also applicable to the functional safety of low complexity safety related
systems and controls.
1.1.2
Replace the text with the following:
1.1.2 Replacement:
This part -2-14 applies to automatic electric actuators, mechanically or electrically operated,
responsive to or controlling such characteristics as temperature, pressure, passage of time,
humidity, light, electrostatic effects, flow, or liquid level, current, voltage, acceleration, or
combinations thereof.
Requirements for manual switches not integral with an electric actuator are contained in
IEC 61058-1 and IEC 61058-1-1.

1.1.3
Replace the text with the following:
1.1.3 Void.
1.1.4
Replace the text with the following:
1.1.4 Void.
© IEC 2021
1.1.5
Replace the text, as modified by Amendment 1, with the following:
1.1.5 Replacement:
This part 2-14 applies to AC or DC powered electric actuators with a rated voltage not
exceeding 690 V AC or 600 V DC.

1.1.6
Replace the text, as modified by Amendment 1, with the following:
1.1.6 Replacement:
This part 2-14 does not take into account the response value of an automatic action of an
electric actuator, if such a response value is dependent upon the method of mounting the
electric actuator in the equipment. Where a response value is of significant purpose for the
protection of the user, or surroundings, the value defined in the appropriate household
equipment or as determined by the manufacturer applies.

Add the following subclause:
1.2 Normative references
Additional reference:
IEC 61058-1-1, Switches for appliances – Part 1-1: Requirements for mechanical switches

7 Information
Add the following heading:
7.2 Methods of providing information
Table 1 – (7.2 of edition 3) – Required information and methods of providing information
Replace Item 23 of Table 1 with the following:
Information Clause or Method
subclause
23 Maximum temperature of mounting surface (T ) if it differs by more 6.12.2, 14.1,
D
s max
17.3
than 20 K from T
max
– 6 – IEC 60730-2-14:2017/AMD2:2021
© IEC 2021
7.3.1
Replace the NOTE with the following text:
Actuators of class II construction provided with a cord for connection to the fixed wiring which
does not have a plug fitted may carry the symbol for class II construction.

27 Abnormal operation
27.2.3 Blocked mechanical output test (abnormal temperature tes
...
