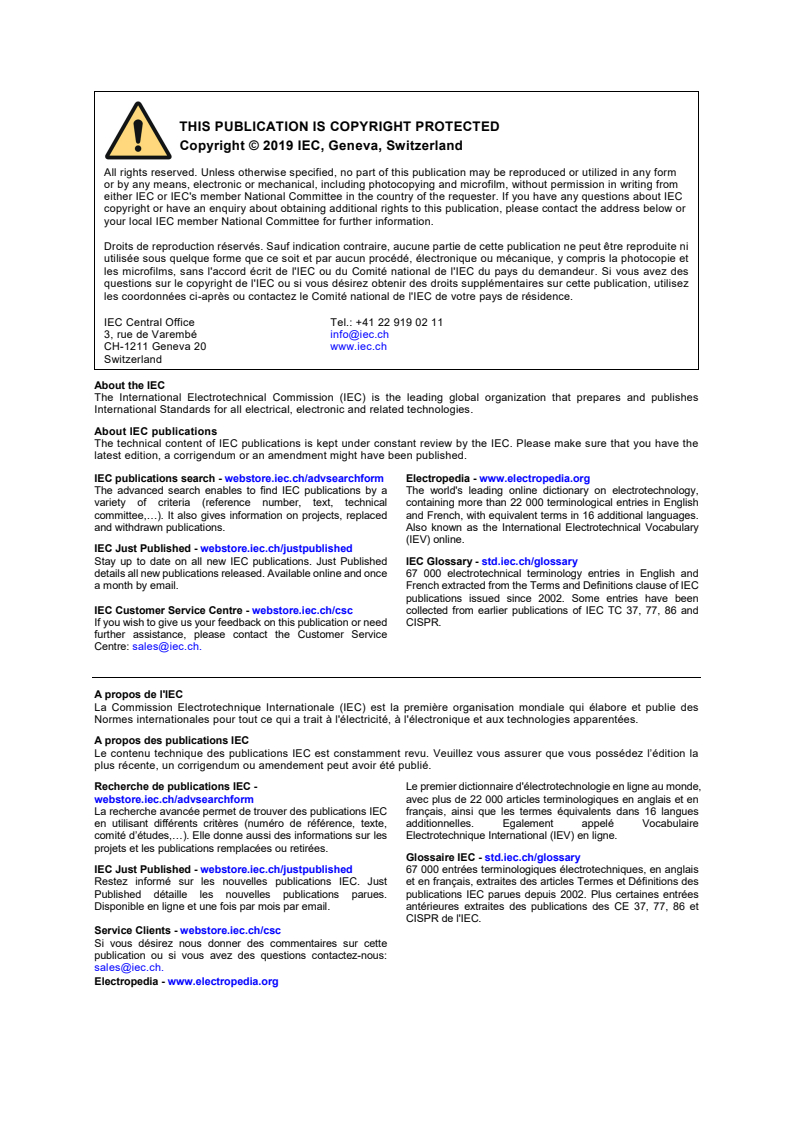

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and
a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or need CISPR.

further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,
webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en
La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues
en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire
comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.

projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary
IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais
Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des
Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées
Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org

IEC 60730-2-14 ®
Edition 2.0 2019-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Automatic electrical controls –

Part 2-14: Particular requirements for electric actuators

Dispositifs de commande électrique automatiques –

Partie 2-14: Exigences particulières pour les actionneurs électriques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.01; 97.120 ISBN 978-2-8322-6561-1

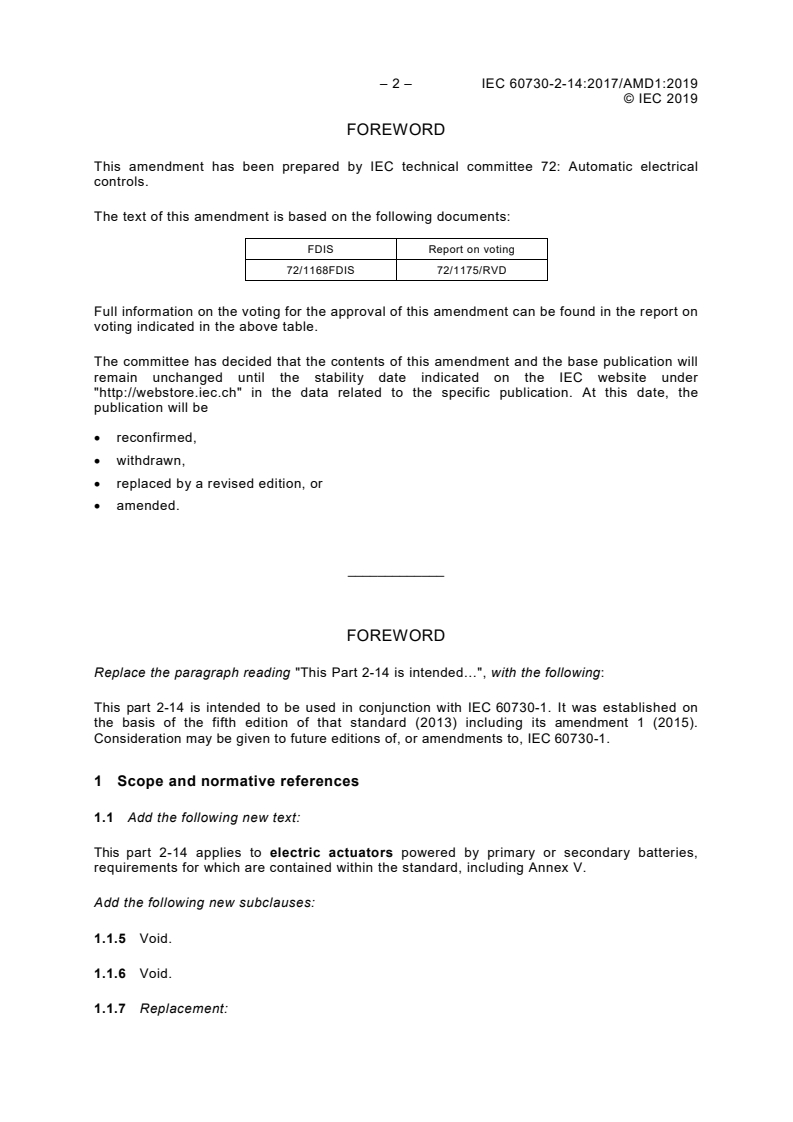

– 2 – IEC 60730-2-14:2017/AMD1:2019
© IEC 2019
FOREWORD
This amendment has been prepared by IEC technical committee 72: Automatic electrical
controls.
The text of this amendment is based on the following documents:
FDIS Report on voting
72/1168FDIS 72/1175/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
FOREWORD
Replace the paragraph reading "This Part 2-14 is intended…", with the following:
This part 2-14 is intended to be used in conjunction with IEC 60730-1. It was established on
the basis of the fifth edition of that standard (2013) including its amendment 1 (2015).
Consideration may be given to future editions of, or amendments to, IEC 60730-1.
1 Scope and normative references
1.1 Add the following new text:
This part 2-14 applies to electric actuators powered by primary or secondary batteries,
requirements for which are contained within the standard, including Annex V.
Add the following new subclauses:
1.1.5 Void.
1.1.6 Void.
1.1.7 Replacement:
© IEC 2019
This part 2-14 applies also to electric actuators incorporating electronic devices,
requirements for which are contained in Annex H.
1.1.8 Replacement:
This part 2-14 applies also to electric actuators using NTC or PTC thermistors, requirements
for which are contained in Annex J.
1.1.9 Replacement:
This part 2-14 applies to the electrical and functional safety of electric actuators capable of
receiving and responding to communications signals, including signals for power billing rate
and demand response.
The signals may be transmitted to or received from external units being part of the electric
actuator (wired), or to and from external units, which are not part of the electric actuator
(wireless) under test.
1.1.10 Replacement:
This part 2-14 does not address the integrity of the output signal to the network devices, such
as interoperability with other devices unless it has been evaluated as part of the control system.

2 Terms and definitions
Add the following new definition:
2.3.106
maximum rated mechanical load
maximum mechanical resistance to the active movement of an actuator under normal operating
conditions
Note 1 to entry: See also 6.4.102.1 and 6.4.102.2.

6 Classification
6.4.102.1 Rotary movement
Add the following new note:
NOTE Maximum rated mechanical load for rotary movement actuators can be declared in terms of rated torque
(for the complete angular rotation) or, alternatively, in terms of maximum torque, running torque and percentage of
the angular rotation in which the maximum torque occurs. The value of the percentage of the angular rotation in
which the maximum torque occurs is independent from any specific position within the travel of the actuator; maximum
torque can be reached at any position within the actuator travel (e.g. at start position, at end position, at each end,
in the middle, etc.).
6.4.102.2 Linear movement
Add the following new note:
NOTE Maximum rated mechanical load for linear movement actuators can be declared in terms of rated force (for
the complete stroke) or, alternatively, in terms of maximum force, running force and percentage of the stroke in
which the maximum force occurs. The value of the percentage of the stroke in which the maximum force occurs is

– 4 – IEC 60730-2-14:2017/AMD1:2019
© IEC 2019
independent from any specific position within the travel of the actuator; maximum force can be reached at any position
within the actuator travel (e.g. at start position, at end position, at each end, in the middle, etc.).

7 Information
Table 1 – (7.2 of edition 3) – Required information and methods of providing information
102 bb
Replace, in item 27, "automatic action " with "automatic action ".
101, 103 aa
Replace, in item 34, "operating time " with "operating time ".
cc
Add, in item 34, under "Method", footnote "cc" after "C", to read "C ".
Replace the row for item 105 with the following:
dd
2.3.106, 6.4.102.1, 6.4.102.2, D
105 maximum rated mechanical load
14.4, 15.5.102, 17.4.101
Replace the row "Additional notes" with the following:
Additional footnotes:
aa
This may be given as a maximum percentage of ON time of the power supply to avoid over-heating of the
windings in a declared period of time.
bb
Electric actuators are subjected to a minimum of 6 000 cycles.
cc
For integrated and incorporated electric actuators, the method is D.
dd
For test purposes, representative physical load may be defined by agreement between the manufacturer and
testing authority (e.g. dedicated test device).

17.4 Manual and mechanical conditions for the tests
Add, after 17.4.4, the following new text:
Additional subclause:
17.4.101 The electric actuator shall be loaded with the maximum rated mechanical load
(item 105 of Table 1).
25 Normal operation
Replace the existing text with the following:
This clause of Part 1 is applicable except as follows:
25.2 Not applicable.
© IEC 2019
27 Abnormal oper
...
