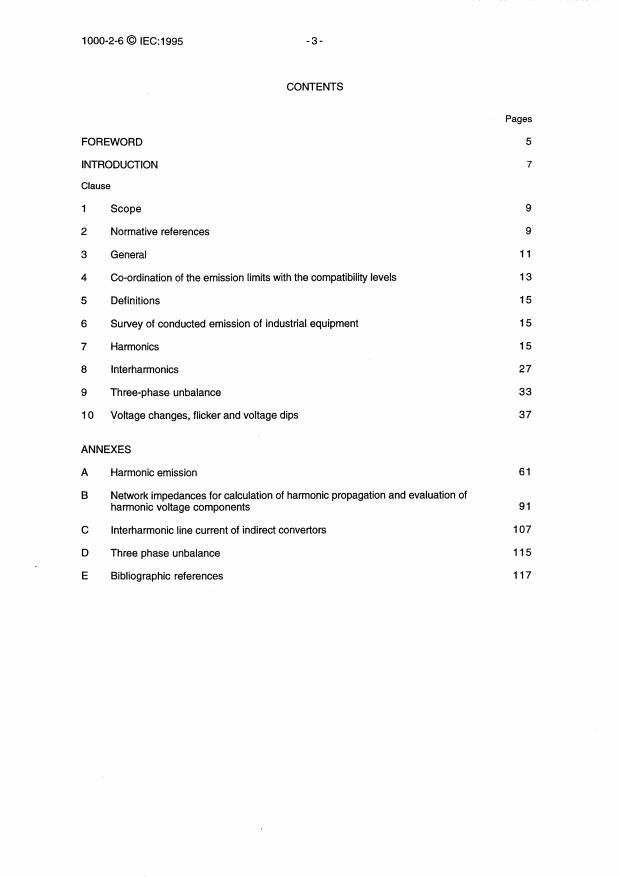

1000-2-6 © IEC:1995 - 3 -
CONTENTS
Pages
5
FOREWORD
7
INTRODUCTION
Clause
1 Scope 9
9
2 Normative references
3 General 11
4 Co-ordination of the emission limits with the compatibility levels 13
5 15
Definitions
15
6 Survey of conducted emission of industrial equipment
7 15
Harmonics
8 27
Interharmonics
9 33
Three-phase unbalance
10 Voltage changes, flicker and voltage dips 37
ANNEXES
A 61
Harmonic emission
Network impedances for calculation of harmonic propagation and evaluation of
B
91
harmonic voltage components
107
C Interharmonic line current of indirect convertors
115
D Three phase unbalance
117
E Bibliographic references

---------------------- Page: 3 ----------------------

1000-2-6 © IEC:1995 - 5 -
INTERNATIONAL ELECTROTECHNICAL COMMISSION
ELECTROMAGNETIC COMPATIBILITY (EMC) —
Part 2: Environment —
Section 6: Assessment of the emission levels in the power supply of industrial plants as
regards low-frequency conducted disturbances
FOREWORD
1)
The IEC (International Electrotechnical Commission) is a world-wide organization for standardization
comprising all national electrotechnical committees (IEC National Committees). The object of the IEC is to
promote international cooperation on all questions concerning standardization in the electrical and
electronic fields. To this end and in addition to other activities, the IEC publishes International Standards.
Their preparation is entrusted to technical committees; any IEC National Committee interested in the
subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. The IEC collaborates
closely with the International Standardization Organization (ISO) in accordance with conditions
determined by agreement between the two organizations.
2) The formal decisions or agreements of the IEC on technical matters, prepared by technical committees on
which all the National Committees having a special interest therein are represented, express, as nearly as
possible, an international consensus of opinion on the subject dealt with.
3) They have the form of recommendations for international use published in the form of standards, technical
reports or guides and they are accepted by the National Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC
International Standards transparently to the maximum extent possible in their national and regional
standards. Any divergence between the IEC Standard and the corresponding national or regional
standard shall be clearly indicated in the latter.
The main task of IEC technical committees is to prepare International Standards. In exceptional
circumstances, a technical committee may propose the publication of a technical repo
rt of one of the
following types:
• type 1, when the required suppo rt
cannot be obtained for the publication of an International
Standard, despite repeated efforts;
• type 2, when the subject is still under technical development or where for any other reason there is
the future but not immediate possibility of an agreement on an International Standard;
• type 3, when a technical committee has collected data of a different kind from that which is
normally published as an International Standard, for example "state of the a
rt".
Technical reports of types 1 and 2 are subject to review within three years of publication to decide
whether they can be transformed into International Standards. Technical repo
rts of type 3 do not
necessarily have to be reviewed until the data they provide are considered to be no longer valid or
useful.
IEC 1000-2-6, which is a technical repo rt
of type 3, has been prepared by subcommittee 77A: Low
frequency phenomena, of IEC technical committee 77: Electromagnetic compatibility.
The text of this technical repo rt is based upon the following documents:
Committee draft Survey of comments
Report on voting
77A(Secretariat)94 77A(Secretariat)103 77N130
Full information on the voting for the approval of this pa rt can be found in the repo
rt on voting indicated
in the above table.
Annexes A, B, C, D and E are for information only.

---------------------- Page: 4 ----------------------

1000-2-6 © IEC:1995 - 7 -
INTRODUCTION
IEC 1000 is published in separate pa rt
s according to the following structure:
Part 1: General
General considerations (introduction, fundamental principles)
Definitions, terminology
Part 2: Environment
Description of the environment
Classification of the environment
Compatibility levels
Part 3: Limits
Emission limits
Immunity limits (in so far as they do not fall under responsibility of product committees)
Part 4: Testing and measurement techniques
Measurement techniques
Testing techniques
Part 5: Installation and mitigation guidelines
Installation guidelines
Mitigation methods and devices
Part 9: Miscellaneous
Each part is further subdivided into sections which are to be published either as International
Standards, or as Technical Repo rts.
These standards and repo rts will be published in chronological order and numbered accordingly.
This section is a technical repo rt .

---------------------- Page: 5 ----------------------

1000-2-6 © IEC:1995 -
9 -
ELECTROMAGNETIC COMPATIBILITY (EMC) —
Part 2: Environment —
Section 6: Assessment of the emission levels in the power supply of industrial plants as
regards low-frequency conducted disturbances
1 Scope
This technical report recommends the procedures to assess the disturbance levels produced by the
emission of the devices, equipment and systems installed in non-public networks in industrial
environment as far as the low-frequency conducted disturbances in the power supply are concerned;
on this basis, the relevant emission limits can be derived. It applies to low and medium voltage a.c.
non-public supply at 50/60 Hz. Networks for ships, aircraft, off-shore platforms, and railways are out of
the scope of this report.
This technical report deals with the low-frequency conducted disturbances emitted by equipment
connected to the power supply. The disturbances considered are:
• harmonics and interharmonics;
• unbalances;
• voltage changes;
• voltage dips.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute
provisions of this technical report. At the time of publication, the editions indicated were valid. All
normative documents are subject to revision, and parties to agreements based on this technical repo rt
are encouraged to investigate the possibility of applying the most recent editions of the normative
documents indicated below. Members of IEC and ISO maintain registers of currently valid International
Standards.
IEV 50 (161): 1990, International Electrotechnical Vocabulary (lEV) - Chapter 161: Electromagnetic
compatibility
IEC 146: Semiconductor convertors
IEC 1000-3-3: 1994, Electromagnetic compatibility (EMC) - Pa rt 3: Limits - Section 3: Limitation of
voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current 2 16 A
IEC 1000-3-5: 1994, Electromagnetic compatibility (EMC) - Pa rt 3: Limits - Section 5: Limitation of
voltage fluctuations and flicker in low-voltage power supply systems for equipment with rated current
greater than 16 A

---------------------- Page: 6 ----------------------

1000-2-6 © IEC:1995 - 11 -
3 General
To achieve electromagnetic compatibility, the total disturbance level at the different points of coupling
should be limited; this implies a control of the emission of the disturbing loads connected to the power
supply.
As far as the LV public networks are concerned, the control of the disturbance level is obtained by
means of a strict limitation of the emission of equipment absorbing up to 16 A to be installed in the
networks. These limitations are fixed on the basis of statistical consideration on:
• wide diffusion of the equipment in the network;
• type of utilization (simultaneity effect);
• characteristics of the network.
Any equipment absorbing up to 16 A can be connected, provided it satisfies the emission limits given
by the relevant standard.
This approach reflects the fact that in the public network, a strict co-ordination between different users
and utility is not possible.
As regards the industrial plants and non-public networks, the compliance of compatibility levels must
be achieved in different locations:
The total emission
A. At the Point of Common Coupling (PCC) to the public network.
of the plant into the public networks is subject to relevant limitation on the basis of the utility's
requirements, and on the network conditions of the power supply.
B. At the Internal Point(s) of Coupling (IPC). The total disturbance level as produced by
the emission of the inplant equipment and the disturbance level of the incoming supply is to be
limited to the selected compatibility levels at the concerned IPCs.
Compliance with the above stated requirements can be achieved by imposing limitations on the
emission of single pieces of equipment, taking into consideration the following:
the actual impedance of the network where the equipment is to be connected;
•
the mix of equipment actually present in the plant;
•
the actual utilization of the equipment in relation to the organization of the production process;
•
the possible control and mitigation of the disturbances obtained by provisions such as filtering or
•
compensating devices, distribution of the loads on different supplies, segregation of disturbing
loads.
This approach reflects the fact that in the industrial plant, the co-ordination of the disturbing loads, both
at the design and at the operation stage, is possible.
To achieve an overall economy, the following facts for the limitation of the emission of each piece of
equipment are impo rtant:
• the actual emission of a piece of equipment can be largely dependent on the characteristics of
the supply network;
• low power equipment, even if incompatible as far as the emission levels are concerned with the
standards of public network, can have globally a negligible impact in industrial plants in the
presence of heavily disturbing equipment;
the pattern of summation of the disturbance caused by various sources depends widely both on
•
the design of the equipment, and on the industrial process involved;
• the user can, to a certain extent, select the applicable electromagnetic compatibility levels at the
IPC. In fact, this choice is a trade-off between the costs to limit the level of the emission, and the
costs to reduce the level of the disturbance by mitigation, or to increase the immunity.

---------------------- Page: 7 ----------------------

1000-2-6 © IEC:1995 - 13-
4 Co-ordination of the emission limits with the compatibility levels
The allowable emission limit of an equipment can be stated through a three steps procedure:
a) Information between utility and user, and between user and manufacturer.
The utility is asked to provide the user with the minimum information following:
• the total emission limit applicable to the plant;
• the expected present and future disturbance level at the PCC, neglecting the disturbance
produced by the plant under consideration;
• the range of values of the source impedance at the point of coupling as necessary for the
disturbance evaluation; this range is related both to the network configuration and to the
frequency characteristics.
The user is asked to provide the utility with information regarding:
•
the characteristics of the equipment to be installed, and its mode of operation;
• the characteristics of power factor compensation devices;
• the characteristics of possible filters for harmonic current compensation.
The user is asked to provide the manufacturer with the minimum information following:
•
the plan of the installation, and the characteristics of the connected equipment;
• emission levels of the other equipment in the installation, and the disturbance conducted by
the supply network;
•
characteristics of the process.
The manufacturer is asked to provide the user the minimum information following:
• expected emission levels of the concerned equipment or system in the specified operating
conditions;
• the sensitivity of the emission levels to changes such as the supply impedance, the
operating voltage, and so on.
b) Selection of the proper summation rule to account for the presence in the plant of various
disturbance sources.
c) Evaluation of the expected total emission level of the plant at the PCC, and evaluation of the
expected total disturbance level at the IPCs.
If either the total emission of the installation, or the expected disturbance level, exceed the relevant
compatibility level, taking into account also the future network development, and the possible increase
of the number of the disturbance sources in the plant, the following provisions should be considered:
• modification to the network configuration;
• changing the characteristics of the disturbing equipment;
• applying filters or compensating devices;
• tolerating the resulting disturbance and increasing the immunity levels of the involved
equipment (this provision does not apply to PCC but to IPCs only).
The process is repeated until all the requirements are satisfied.

---------------------- Page: 8 ----------------------

1000-2-6 © IEC:1995 - 15 -
5 Definitions
All terms are according to IEV 161, to IEC 146 and to IEC 1000-3.
6 Survey of conducted emission of industrial equipment
Table 1 presents a survey on the sources of low-frequency conducted emission and their effects on
the mains.
Table 1 — Sources of low-frequency conducted disturbances
Produced
Classification Examples
disturbance
Saturable magnetic
devices, gas-discharge Harmonics
Non-linear lamps
Harmonics,
Arc furnace, a.c. arc
interharmonics,
characteristics welders
voltage changes,
unbalance
Harmonics, voltage
Switching-on
dips
transformers
Convertors,
Electronically switched a.c. controllers Harmonics,
load Multicycle control Interharmonics,
devices voltage changes,
unbalance
Switching-on Interharmonics,
Switched load capacitors, filters, and voltage dips
induction motors
7 Harmonics
7.1 Description of the disturbing phenomena and sources
The harmonic components in the line current are mainly generated in the ways described in the
following subclauses; additional load characteristics are presented in annex A.
7.1.1 Switching the line current with line frequency or its multiple by means of electronic switches
such as in semiconductor convertors
This function may be either controlled, as by thyristors, or uncontrolled as by diodes. The function in
most cases is obtained by switching a series connection of impedance and voltage sources
periodically either on and off, or from phase to phase. In principle, three characteristics for harmonic
generation in convertors may be found:
a) The load is periodically switched on and off , for example an a.c. controller switches its load on at
discrete phase angles, and switches off when the current drops to zero. Figure la shows the
schematic arrangement. Amplitude and phase angle of the harmonic current depends on the
angle at which the line voltage is connected to the load, the difference between line and load
voltage, and the resulting series connection of load and line impedance.

---------------------- Page: 9 ----------------------

1000-2-6 © IEC:1995 - 17-
Typical applications are:
• conductive heating, welding, melting;
high-voltage d.c. supply for electrostatic precipitators or transmitter valves;
•
• high-current d.c. supply for galvanizing or metal pickling;
• static VAR compensator;
• a.c. motor starter.
b) An impressed current is cyclically switched from phase to phase (high d.c. inductance).
Figure 1 b shows the schematic arrangement.
Typical devices in this category are:
• convertor feeding d.c. load (such as d.c. drive; d.c. supply for traction, for electro-chemical
and electro-thermal processes; d.c. excitation for machines or magnet coils; d.c. welding
convertor);
convertor with direct current link (such as a.c. drive with current source inverter (CSI) or sub-
•
synchronous convertor cascade; d.c. supply for medium-frequency convertor feeding metal
glowing or induction furnace);
• bi-directional convertor, cycloconvertor (such as a.c. drive, low frequency supply for
electrothermal melting and refining) as shown in figure A.7 of annex A.
c) A d.c. voltage is periodically switched on and off into the line via impedances. A convertor
connected to a three-phase line switches the d.c. side at discrete phase angles from phase to
phase with low d.c. inductance. Figure 1 b shows an equivalent circuit. The harmonic current
generation corresponds to that of the a.c. controller. Here the current drop to zero is either
initiated at the latest by closing the switch of the following phase, or occurs previously in cases of
low current or low d.c. inductance, because of current dropping voltage polarity.
Typical devices in this category are:
• convertor with direct voltage link (such as a.c. drive with voltage source inverter (VSI);
uninterruptable power supply (UPS); d.c. voltage supply for resonant convertor applied to
metal heating or soldering);
• self-commutated convertor (convertor type for drives and compensators that do not require
reactive power or compensation for it).
7.1.2
Non-linear impedances such as current dependant resistances
(see figure 1 c)
Typical devices in this category are:
• arc furnace (a.c. arc for melting and refining metal);
• a.c. welding machine (welding arc supplied via high-reactance transformer);
• fluorescent lamp, gas discharge lamp in mass applications for illumination.

---------------------- Page: 10 ----------------------

1000-2-6 © I EC:1995 - 19 -
7.1.3
Switching on saturable inductance (for example switching on induction motor or transformer)
The magnetic saturation may produce transient current components. Switching on a resonant circuit
with inductance and capacitance oscillating transiently to the mains (for example when switching on
filter or capacitor, a transient oscillations is produced between filter capacitance and inductances of
filter and line).
Figure 1c shows the equivalent circuit.
7.2 Typical emission data
A range of typical emission data is presented in annex A for the most common loads generating
harmonic line currents. They are given for guidance purpose only. Reliable data for the disturbance
evaluation should be obtained by the manufacturer on the basis of the actual design parameters, and
by his experience with similar equipment.
7.3 Influence of operating and installation conditions on emission
For the resulting emission of several loads (such as convertors), the amount and the phase angle of
the harmonic current is to be estimated. The connection of the convertors and transformers (if any), as
well as simultaneous and homogeneous load condition for the convertors, or their operation at
random, have to be taken into consideration; this problem is dealt with in 6.4.
The disturbance in the supply system may be defined by the presence of harmonic components in the
line voltage, resulting from voltage drops of the harmonic currents across the line impedance. This line
impedance is determined by the parallel and series connection of all impedances to the superimposed
high voltage grid, and to all loads, compensating and filter components, considering the values which
apply to the respective frequencies (see figure 2a). Therefore, possible resonances must be identified
and taken into consideration. Further information is given in annex B.
7.4 Summation of harmonics
When several devices producing harmonic currents are present in the same plant, the harmonic
currents in the lines, and the harmonic voltage at the point of concern (IPC or PCC) depends on the
superposition effect caused by the different amplitudes and phase angles of the currents emitted from
different sources.
An exact calculation of the resulting harmonic voltage (vectorial sum) is restricted to a few special
cases. Taking the algebraic sum of the contributions by each harmonic source may represent the worst
case, but this method often leads to unrealisticly high values, especially at high harmonic orders.
An approximate evaluation is sufficient in most of the cases. Several methods exist for the approximate
evaluation of the resulting harmonics; see [4],[5] and [6] in annex E for the relevant literature.
7.4.1 Harmonic voltage at the point of concern
PCC)
The harmonic voltage Uh of order h at the point of concern (IPC or results from the equation
(see figure 2b):
Uh =Uho+ (1)
where
Uho is the harmonic voltage of order h of the supply network not considering the effect of the
sources of concern (background disturbance);
Uhi is the harmonic voltage of order h produced by the injection of the source i.

---------------------- Page: 11 ----------------------

1000-2-6 © 21 -
IEC:1995 -
Assuming that all the transfer impedances between the point of connection of the disturbing sources
and the point of concern are equal for all the disturbing sources (see figure 2b); LLh results from:
Zh
Uh = Uho+ (2)
where
Z h is the equivalent harmonic impedance as seen from the point of concern.
7.4.2
Summation of harmonic voltages
7.4.2.1 Principles of the evaluation
The summation problem arises when studying the connection of a new industrial load producing
harmonics, because the emission levels which may be allowed are a consequence of the pattern, the
harmonics will add up to the ones generated by other existing and future loads. The lack of
information, and the inherent variability concerning all the individual loads which generate harmonics,
leads to the necessity of using a statistical approach for the evaluation of the resulting harmonic
vectors. In such an approach, each harmonic source is represented by a randomly time-varying vector.
Both magnitude and phase angle of these vectors are modelled by means of distribution laws.
In order to obtain a simple rule for practical applications, the diversity factor K is adopted:
_U l
_ I ^ hi
(3)
K E) U h^)
K is defined as the ratio between the vectorial sum (actual or expected) and the arithmetic sum of the
individual contribution of all harmonic sources. This contribution is caused by the emission relevant to
the design operational characteristic of the equipment concerned.
With the aid of the diversity factor K, the total disturbance U h can be evaluated as:
(4)
141 I ,410 I+ K E I i hi l
The value of the diversity factor is influenced, among others, by:
type of disturbing load, for example in the case of convertors
• controlled or uncontrolled convertor;
• inductive or capacitive smoothing;
• type of load (ohmic, inductive, motor);
• number of convertors operating simultaneously;
the kind of operation of the various disturbance sources (co-ordinate duty cycles, or
independently from each other);
variability of the load;
harmonic order under consideration.
7.4.2.2 Practical application of the evaluation
Two methods for evaluating the diversity factor K are proposed, depending on the knowledge of the
harmonic contribution of all devices in the industrial network, and the required accuracy of the resulting
harmonic voltage at the point of concern. In particular, method 1 refers to special groups of equipment,
while method 2 refers to overall statistical considerations.

---------------------- Page: 12 ----------------------

1000-2-6 © IEC:1995 - 23 -
Method 1
This method gives applicable diversity factors. It holds good for a first approximation, or for resulting
harmonic voltages at the point of concern, with a considerable safety margin in relation to the
compatibility level. It applies to low order harmonics h <_ 7.
The diversity factor K is obtained by the following:
K
E iI Uhi I
(5)
K =
I
may be applicable in one plant.
Several different Ki
Ki for individual loads and for different harmonic orders
Based on (13] of annex E, the diversity factors
are given in table 2.
K i for various values x and harmonic orders, x being the
Table 2 — Diversity factor
ratio between the load of the device being considered and the total disturbing load
of the plant
>15
5 7 11 13
h 3
0,3 0,2 0,2 0,1
x <0,05 0,6 0,5
0,4 0,4 0,3
x= 0,1 0,7 0,7 0,6
0,6 0,6 0,5
x= 0,2 0,9 0,8 0,7
1,0 1,0 1,0 1,0
x> 0,5 1,0 1,0
NOTE - If the multi-unit installation is made up of several uncontrolled rectifier convertors, Ki = 0,9.
Ki = 1,0.
In addition, if the uncontrolled rectifiers have the same load cycle,
The diversity factors in the table take into consideration the increasing variation of the phase angle A
towards higher harmonics (see figures relevant to method 2).
Method 2
This method is based on a statistical approach, considering that the compatibility level has to be met
with a probability of 95 % or better.
A certain knowledge concerning the variation of magnitude and phase angle of the individual harmonic
contributions is required:
S
^1
(p))
l h'
K .Uhi I (6)
where
i (p)) is the statistical sum vector having 95 % probability of not being exceeded.
S (Uh

---------------------- Page: 13 ----------------------

1000-2-6 © IEC:1995 - 25 -
Diversity factors K depending on the variation of magnitude and phase angle of the harmonic voltages
and the number of sources N are obtained following the approach [4] of annex E:
1/a
hi
K^IU hi l=b lU^ la) (7)
Typical relevant values for a and b are shown in the following table 3; they are applicable to values
having 95 % probability of not being exceeded:
Table 3 - Values a and b applicable to uniform statistical distribution of amplitudes
and phase angles. Maximum amplitudes are all equal.
Range of Range of
distribution of distribution of N = 2 N > 2
phase angle the amplitude
DU/
U b a b a
max
0 -1 1,0 2,0 1,0 2,0
0 - 360 0,5 -1 1,3 2,0 1,3 2,0
1 1,0 1,0 1,7 2,0
0-1 0,9 1,6 0,9 1,6
0-270 0,5- 1 1,0 1,4 1,0 1,4
1 1,0 1,0 1,3 1,4
0-1 0,8 1,3 0,8 1,3
0-180 0,5-1 0,9 1,2 0,9 1,2
1 1,0 1,0 1,2 1,2
0-1 0,9 1,2 0,9 1,2
0 - 90 0,5 - 1 0,9 1.1 0,9 1,1
1 1,0 1,0 1,0 1,0
NOTE - The equation given above can only be used when no harmonic source provides more than 50 % of
the algebraic sum of the harmonic voltage being considered. Otherwise refer to method 1.
Generally, the following applies:
• harmonic orders 3, 5 and 7 phase angle up to 90°
• harmonic orders 11 and 13 phase angle up to 270°
• harmonic orders above 13 phase angle up to 360°
For vectors with different maximum magnitudes, the factors can be used with sufficient accuracy. If the
result exceeds the arithmetic sum, then the arithmetic sum will be used instead. In special cases, when
the result may be lower than the greatest individual components, then the la tter applies.

---------------------- Page: 14 ----------------------

1000-2-6 © IEC:1995 - 27 -
If in an installation some convertors are connected via phase-shifting transformers (Y/D group), and
some others via non-phase-shifting transformers (Y/Y or D/D groups); the 5th and 7th harmonic
currents generated tend to cancel, provided that the convertors are operated in similar conditions.
8 Interharmonics
8.1 Sources of interharmonic currents and voltages
The large majority of the interharmonic voltages and currents on the power supply are generated by
static frequency convertors. Rotating machines without convertors may also generate interharmonic
voltages; but, in relation to convertor borne interharmonics, their magnitude is very small, and for to this
reason they are neglected here. Intended injection of interharmonic voltages into the mains, for
example for ripple control, is not discussed here, since the emission is known perfectly.
The mechanism of the generation of interharmonic frequencies is dependent on the type of the
convertor. Table 4 gives an overview of common applications of static freq
...
