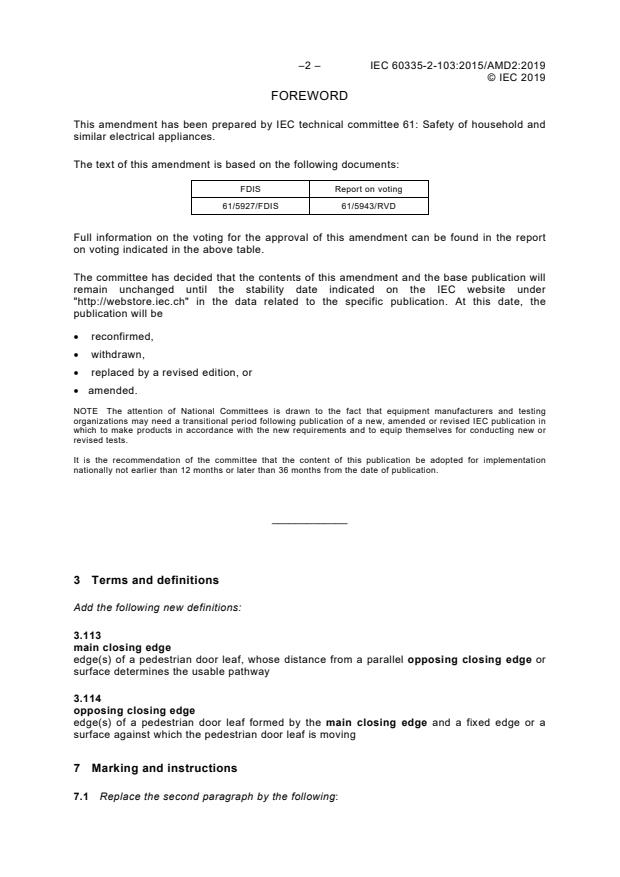

–2 – IEC 60335-2-103:2015/AMD2:2019
© IEC 2019
FOREWORD
This amendment has been prepared by IEC technical committee 61: Safety of household and
similar electrical appliances.
The text of this amendment is based on the following documents:
FDIS Report on voting
61/5927/FDIS 61/5943/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

_____________
3 Terms and definitions
Add the following new definitions:
3.113
main closing edge
edge(s) of a pedestrian door leaf, whose distance from a parallel opposing closing edge or
surface determines the usable pathway
3.114
opposing closing edge
edge(s) of a pedestrian door leaf formed by the main closing edge and a fixed edge or a
surface against which the pedestrian door leaf is moving
7 Marking and instructions
7.1 Replace the second paragraph by the following:

© IEC 2019
Drives supplied without a driven part shall be marked with the rated load, in newtons (N) or
in newton-metres (Nm).
Unless the drive is intended for continuous operation, drives supplied without a driven part
shall be marked with the rated operating time in minutes, or the number of cycles per hour,
or the rated number of operating cycles.
7.12 Replace the second paragraph by the following:
The instructions shall state the substance of the following:
– do not allow children to play with fixed controls. Keep remote controls away from children;
– activation of the manual release may cause uncontrolled movement of the driven part due
to mechanical failures or an out-of-balance condition; (if applicable);
– when operating a biased-off switch, make sure that other persons are kept away;
– when closing a window that has been opened by a smoke control system, make sure that
other persons are kept away;
– frequently examine the installation for imbalance where applicable and signs of wear or
damage to cables, springs and mounting. Do not use if repair or adjustment is necessary;
– disconnect the supply(s) when cleaning or other maintenance is being carried out.
The instructions shall include the following information:
– explanation of mode indicators;
– details on how to use any manual release, or reversible drive used as a manual release;
– details on how to re-adjust controls, (if applicable);
– where the operation of the drive is specified in cycles per hour, the rest period required
between cycles.
Add the following new subclause:
7.15 Addition:
The markings shall also be provided with the instructions. In addition, the marking relevant to
name, trademark or identification mark, of the manufacturer or responsible vendor and the
model or type reference can also be retrieved from a label, such as a matrix barcode, visible
on the appliance after installation.
11 Heating
11.7 Replace the text of the replacement by the following:
Drives for continuous operation are operated for consecutive cycles until steady conditions
are established.
Drives not for continuous operation are operated as follows:
– drives for gates for one household and horizontally moving garage doors for one
household are operated without rest periods for three cycles or the rated operating time
or the rated number of operating cycles, whichever is longer;
– drives for windows are operated without rest periods for the rated number of operating
cycles or the rated operating time in minutes;
– others drives are operated without rest periods for four minutes or the rated operating
time or the rated number of operating cycles but for not less than five cycles of
operation, whichever is longer.

–4 – IEC 60335-2-103:2015/AMD2:2019
© IEC 2019
– drives rated in cycles per hour are operated for 20 % more than the rated number of
cycles per hour and with the relevant rest period(s) declared by the manufacturer.
19 Abnormal operation
Add the following new subclause:
19.13 Addition:
If the drive can be operated when any of the fault conditions are simulated, the applicable
tests of BB.20.104, BB.20.107, CC.20.105, DD.20.104 and DD.20.107 are carried out, the
drive, however, being supplied at rated voltage.
Either the drive continues to fulfil the requirements, or, after a maximum of one cycle of
operation, it shall stop with the driven part in a safe position or the drive shall change to a
biased-off switch mode of operation.
25 Supply connection and external flexible cords
Add the following new subclauses:
25.8 Addition:
Supply cords of class III appliances need not comply with Table 11 if the temperature rises
of the cord insulation specified in Table 3 and Table 9 are not exceeded during the tests of
Clause 11 and Clause 19, respectively.
25.15 Addition:
For class III appliances and parts of class III construction that have a rated power input
higher than 15 W, the pull force is 30 N. The test is not carried out on class III appliances or
parts of a class III construction that have a rated power input less than or equal to
15 W.
Annex DD – Drives for horizontally and vertically moving doors and gates
DD.20.107.1.2 Replace the first paragraph by the following:
For vertically moving driven parts, an obstacle having dimensions of approximately 80 mm ×
300 mm and a height of 100 mm with 3 sides (one in each dimension) having a reflective
surface, obtained by use of mirrors, fine grained stainless steel or white-gloss paint, and the
other three sides being non reflective surfaces painted dull-black, is placed on the ground and
centrally along its 300 mm length at any place in the path of the leading edge across the
driven part opening.
Annex GG – Test method of entrapment protection system of drives for
revolving doors
GG.1 Replace “main closing edge” by “main closing edge”.
Replace “opposing closing edge” by “opposing closing edge” in two places.
GG.2 Replace “main closing edge” by “main closing edge”.

© IEC 2019
Replace “opposing closing edge” by “opposing closing edge”.
GG.4 Replace “main closing edge” by “main closing edge”.
Annex HH – Limitation of impact forces of pedestrian doors
Table HH.1 – Permissible dynamic forces
In the table cell headings, replace “Between closing edges and opposing closing edges in
a a
gaps of ” by “Between main closing edges and opposing closing edges in gaps of ”
In table footnote a, replace “opposing closing edge” by “opposing closing edge”.
In table footnote a, replace “main closing edge” by “main closing edge”.
Annex JJ – Low energy movement of pedestrian doors
JJ.1 Replace “main closing edge” by “main closing edge” in three places.

____________
–6 – IEC 60335-2-103:2015/AMD2:2019
© IEC 2019
AVANT-PROPOS
Le présent amendement a été établi par le comité d'études 61 de l’IEC: Sécurité des
appareils électrodomestiques et analogues.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
61/5927/FDIS 61/5943/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera
pas modifié avant la date de stabilité indiquée sur le site web de l'IEC sous
"http://webstore.iec.ch" dans les données relatives à la publication
...
