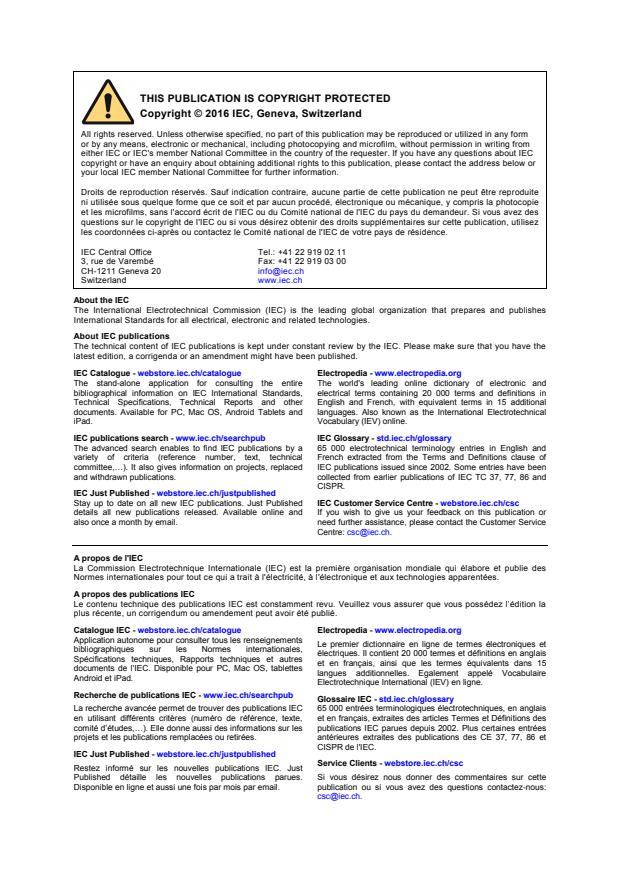

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61189-3-719 ®
Edition 1.0 2016-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Test methods for electrical materials, printed boards and other interconnection

structures and assemblies –
Part 3-719: Test methods for interconnection structures (printed boards) –

Monitoring of single plated-through hole (PTH) resistance change during

temperature cycling
Méthodes d'essai pour les matériaux électriques, les cartes imprimées et autres

structures d'interconnexion et ensembles –

Partie 3-719: Méthodes d'essai pour les structures d'interconnexion (cartes

imprimées) – Contrôles de la variation de résistance des trous métallisés

uniques (PTH) au cours des cycles de températures

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.180 ISBN 978-2-8322-3095-4

– 2 – IEC 61189-3-719:2016 © IEC 2016

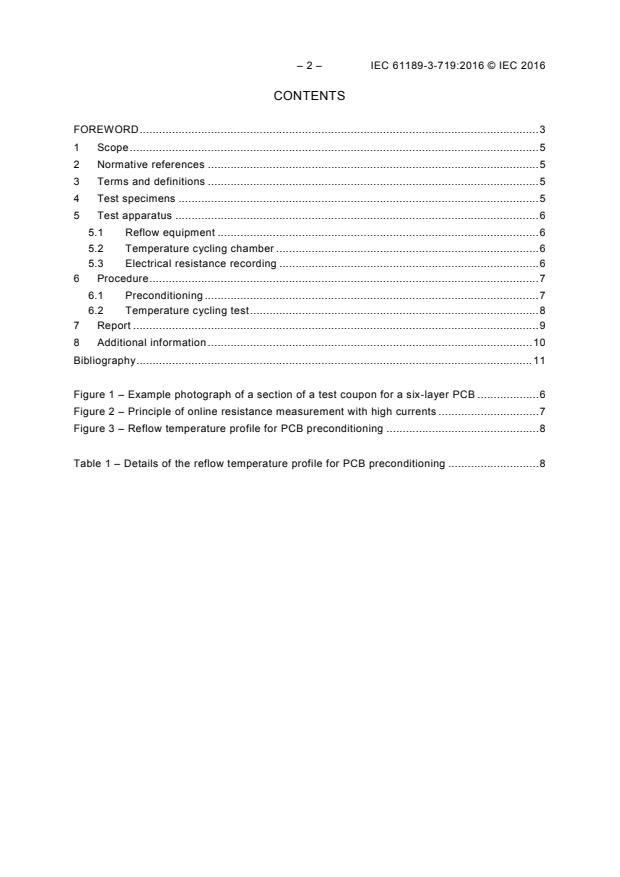

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test specimens . 5
5 Test apparatus . 6
5.1 Reflow equipment . 6
5.2 Temperature cycling chamber . 6
5.3 Electrical resistance recording . 6
6 Procedure . 7
6.1 Preconditioning . 7
6.2 Temperature cycling test . 8
7 Report . 9
8 Additional information . 10
Bibliography . 11

Figure 1 – Example photograph of a section of a test coupon for a six-layer PCB . 6
Figure 2 – Principle of online resistance measurement with high currents . 7
Figure 3 – Reflow temperature profile for PCB preconditioning . 8

Table 1 – Details of the reflow temperature profile for PCB preconditioning . 8

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TEST METHODS FOR ELECTRICAL MATERIALS, PRINTED BOARDS AND
OTHER INTERCONNECTION STRUCTURES AND ASSEMBLIES –

Part 3-719: Test methods for interconnection structures
(printed boards) – Monitoring of single plated-through hole (PTH)
resistance change during temperature cycling

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61189-3-719 has been prepared by IEC technical committee 91:
Electronics assembly technology.
The text of this standard is based on the following documents:
FDIS Report on voting
91/1303/FDIS 91/1327/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 61189-3-719:2016 © IEC 2016
A list of all parts in the IEC 61189 series, published under the general title Test methods for
electrical materials, printed boards and other interconnection structures and assemblies can
be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
TEST METHODS FOR ELECTRICAL MATERIALS, PRINTED BOARDS AND
OTHER INTERCONNECTION STRUCTURES AND ASSEMBLIES –

Part 3-719: Test methods for interconnection structures
(printed boards) – Monitoring of single plated-through hole (PTH)
resistance change during temperature cycling

1 Scope
This part of IEC 61189 specifies a test method to monitor the resistance of single plated-
through holes (PTHs) in printed circuit boards (PCBs) to determine the PTH durability under
thermo-mechanical stress induced by temperature cycling.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 60068-2-58:2015, Environmental testing – Part 2-58: Tests – Test Td: Test methods for
solderability, resistance to dissolution of metallization and to soldering heat of surface
mounting devices (SMD)
IEC 60194, Printed board design, manufacture and assembly – Terms and definitions
IPC-2221, Generic Standard on Printed Board Design
3 Terms and definitions
For the purposes of this document the terms and definitions given in IEC 60194 apply, unless
otherwise specified.
4 Test specimens
The test panels are coupons of N layer PCBs (see Figure 1 for an example of a section of a
test coupon for a six-layer PCB).
If not described in the relevant specification, one test coupon shall have:
th
• four single through-holes connecting from the first (top, outer) to the N (bottom, outer)
layer (via L1 – via LN) with the corresponding labelling;
• four single through-holes connecting from the second to the third layer (via L2 – via L3) or
the (N2) to the (N1) layers with the corresponding labelling;
• one reference conductive pattern on an outer layer to compensate for possible
temperature fluctuations over different temperature cycles and for resistance changes of
the conductors by ageing during the test. The length of the reference structure conductive
pattern is not relevant, but it is recommended to use a length similar to the length of the
conductive patterns connecting the vias to the connection points (see Figure 1) and to

– 6 – IEC 61189-3-719:2016 © IEC 2016
extend the reference structure conductive pattern over the test coupon to ensure that the
reference structure is representative for the given test coupon (see Figure 1 for an
example).
All structures shall feature connections to enable four wire resistance measurements. The
conductive patterns shall have a cross section that is at least two times larger than the cross
section in the PTHs to restrict self-heating.
Via 1 Via 2
Reference structure
Connection points
IEC
Key
From left to right: first via (via 1) is connecting from the top to the bottom layer (via L1 – via L6); the second via
(via 2) is connecting between inner layers (here: via L2 – via L3); middle: reference structure; right: connection
points for wires connecting the test coupon to the measurement equipment.
Figure 1 – Example photograph of a section of a test coupon for a six-layer PCB
5 Test apparatus
5.1 Reflow equipment
As long as the test conditions are fulfilled, any reflow equipment may be used. The following
two methods are preferred:
a) forced gas convection;
b) vapour phase.
NOTE 1 Forced gas convection is preferred, including infrared assistance.
NOTE 2 In case of vapour phase soldering, a specific vapour creating liquid is used for each test temperature.
5.2 Temperature cycling chamber
The test method uses two separate chambers or one chamber capable of cyclic temperature
changes according to IEC 60068-2-14, tests Na or Nb.
5.3 Electrical resistance recording
The schematic test setup is illustrated in Figure 2. It consists of a constant direct-current
source and a voltmeter. A switch can be used to subsequently measure the voltage drop at
different PTHs and reference conductive patterns with the same constant-current source and
voltmeter. Voltage measuring at constant current shall be performed after the panels have
reached the upper cycling temperature in a temperature cycle by means of four-wire
measuring and the resistance shall be calculated by dividing the measured voltage drop with
the known constant current.
The test current I to be used shall be calculated as follows: the cross-sectional area of
meas
the Cu of a PTH shall be determined. To this cross-sectional area the maximum current-
carrying capacity criteria for Cu conductive patterns on inner layers for the maximum
temperature increase around a conductor given in the detail specification shall be applied

according to IPC-2221 to determine the test current. As an alternative, the test current can be
given in the detail specification. An example of test conditions is given in Clause 8.
To avoid any resistance variations induced by different degrees of self-heating of the PTHs
due to variations of the duration of the test current pulse t , the current shall be applied
meas
long enough to establish thermal equilibrium or it should always be applied for the same
period of time with a precision better than 5 %. If not given in the relevant detail specification,
a test-current pulse duration of 1 s shall be applied.
NOTE Use of an application-relevant test current (as obtained by adopting the maximum current-carrying criterion
for the determination of the test current) at the upper temperature of the temperature cycle ensures that self-
heating of the PTH, contributing to thermal fatigue, is taken into account in the test.
According to a measurement system analysis, the setup shall have a measurement system
capability with a resolution of ±5 µΩ.
I , t
meas meas
Constant
Voltmeter Switch
current
source
IEC
Figure 2 – Principle of online resistance measurement with high currents
6 Procedure
6.1 Preconditioning
If not detailed within the relevant specification and if the PCBs are intended for use in lead-
free soldering, the PCBs shall be preconditioned by subjecting them to three reflow cycles
according to the profile shown in Figure 3 and detailed in Table 1 (the minimum upper limit is
specified in IEC 60068-2-58:2015, Table 7). Other preconditioning cases shall be given in the
relevant specification. The temperature shall be measured on the PCB surface. This
preconditioning is intended to represent the heat impact on a PCB during reflow and possibly
subsequent selective soldering processes.
R
Wz
– 8 – IEC 61189-3-719:2016 © IEC 2016
t
to peak
T – 5 K
T
p
p
T
L
T (max)
S
200 T
S
t
p
T (min)
S
t t
S (Preheat) L
0 50 100 150 200 250 300 350 400
Time (s)
IEC
Figure 3 – Reflow temperature profile for PCB preconditioning
Table 1 – Details of the reflow temperature profile for PCB preconditioning
Preheat
Ramp up rate 30 °C to 150 °C min. 3 K/s (average value over 10 s)
Soak temperature (min): T (min) 150 °C
S
Soak temperature: T 190°C
S
Soak temperature (max): T (max) 200 °C
S
Soak time (T to T (max)): t min. 110 s
S S S(Preheat)
Time between T (max) and T min. 85 s
S L
Peak
Ramp up rate from 200 °C to T
min. 3 K/s (average value over 10 s)
P
Liquidus temperature: T 217 °C
L
Time above liquidus temperature: t min. 90 s
L
Peak temperature: T ≥260 °C
P
Time within 5 °C of actual peak temperature: T – 5 K min. 40 s
P
Cooling
Ramp down rate from peak temperature min. –6 K/s
General
Time to peak: t min. 300 s
to peak
6.2 Temperature cycling test
The printed boards shall be arranged in the temperature cycling chamber parallel to the
airflow. The low temperature, T , and the high temperature, T , the duration of exposure t as
A B 1
well as the rate of temperature change (in case of test Nb) for the temperature cycling,
according to IEC 60068-2-14, tests Na or Nb, shall be given in the detail specification.
Temperature (°C)
The measurement of the PTH resistances shall not take place before the working volume of
the chamber and the entire PCB have reached the upper temperature in each individual
temperature cycle.
Temperature variations between different measurement cycles as well as resistance changes
of the conductors by ageing during the test shall be compensated by measuring of a copper
reference structure on the same printed board. The temperature compensation is based on
the following formulae:
Hot resistance change ∆R of PTH without compensation:
z
R − R
wz w0
(1)
R = ×100%
z
R
w0
Hot resistance change ∆R of reference structure:
REFz
R − R
REFz REF0
(2)
R = ×100%
REFz
R
REF0
Hot resistance change ∆R of PTH including temperature compensation:
COMPz
∆R = ∆R – ∆R (3)
COMPz z REFz
where
R is the hot resistance of PTH at cycle z in mΩ,
wz
R is the hot resistance of PTH at cycle 0. It is determined by the average value of the
w0
first three hot resistance values during the first three temperature cycles in mΩ,
R is the hot resistance of reference structure at cycle z in mΩ,
REFz
R is the hot resistance of reference structure at cycle 0. It is determined by the average
REF0
value of the first three hot resistance values during the first three temperature cycles
in mΩ.
If the compensated hot resistance change ∆R of a PTH exceeds a threshold value given
COMPz
in the detail specification (e.g. 5 %), the PTH has reached its end of life (EOL) due to thermo-
mechanical
...
