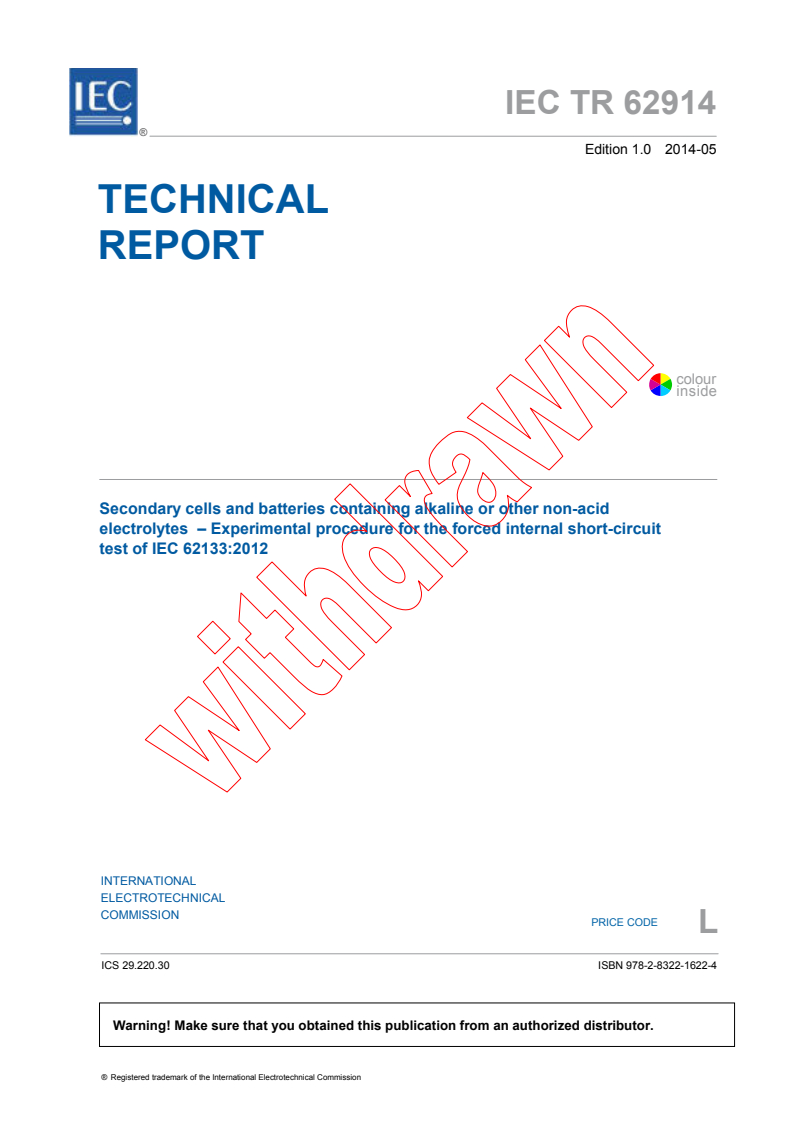

IEC TR 62914:2014

IEC TR 62914 ®
Edition 1.0 2014-05
TECHNICAL
REPORT
colour
inside
Secondary cells and batteries containing alkaline or other non-acid
electrolytes – Experimental procedure for the forced internal short-circuit
test of IEC 62133:2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00

CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC TR 62914 ®
Edition 1.0 2014-05
TECHNICAL
REPORT
colour
inside
Secondary cells and batteries containing alkaline or other non-acid

electrolytes – Experimental procedure for the forced internal short-circuit

test of IEC 62133:2012
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
L
ICS 29.220.30 ISBN 978-2-8322-1622-4

– 2 – IEC TR 62914:2014 © IEC 2014

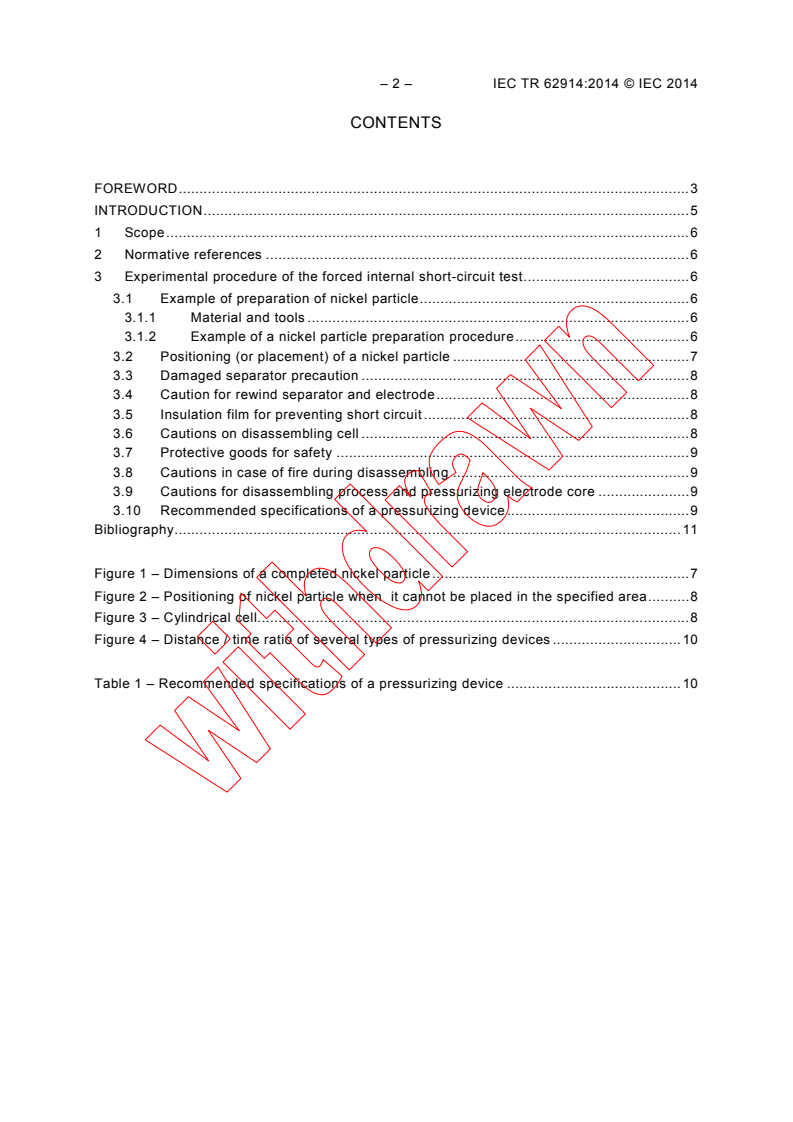

CONTENTS
FOREWORD . 3

INTRODUCTION . 5

1 Scope . 6

2 Normative references . 6

3 Experimental procedure of the forced internal short-circuit test . 6

3.1 Example of preparation of nickel particle . 6
3.1.1 Material and tools . 6
3.1.2 Example of a nickel particle preparation procedure . 6
3.2 Positioning (or placement) of a nickel particle . 7
3.3 Damaged separator precaution . 8
3.4 Caution for rewind separator and electrode . 8
3.5 Insulation film for preventing short circuit . 8
3.6 Cautions on disassembling cell . 8
3.7 Protective goods for safety . 9
3.8 Cautions in case of fire during disassembling . 9
3.9 Cautions for disassembling process and pressurizing electrode core . 9
3.10 Recommended specifications of a pressurizing device . 9
Bibliography . 11

Figure 1 – Dimensions of a completed nickel particle . 7
Figure 2 – Positioning of nickel particle when it cannot be placed in the specified area . 8
Figure 3 – Cylindrical cell. 8
Figure 4 – Distance / time ratio of several types of pressurizing devices . 10

Table 1 – Recommended specifications of a pressurizing device . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
SECONDARY CELLS AND BATTERIES CONTAINING ALKALINE

OR OTHER NON-ACID ELECTROLYTES – EXPERIMENTAL

PROCEDURE FOR THE FORCED INTERNAL

SHORT-CIRCUIT TEST OF IEC 62133:2012

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC/TR 62914, which is a technical report, has been prepared by subcommittee 21A:
Secondary cells and batteries containing alkaline or other non-acid electrolytes, of IEC
technical committee 21: Secondary cells and batteries.

– 4 – IEC TR 62914:2014 © IEC 2014

The text of this technical report is based on the following documents:

Enquiry draft Report on voting

21A/537/DTR 21A/549/RVC
Full information on the voting for the approval of this technical report can be found in the

report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
The second edition of IEC 62133 was published on December, 2012. This technical report

provides supplemental information to perform the forced internal short-circuit test of

IEC 62133:2012.
– 6 – IEC TR 62914:2014 © IEC 2014

SECONDARY CELLS AND BATTERIES CONTAINING ALKALINE

OR OTHER NON-ACID ELECTROLYTES – EXPERIMENTAL

PROCEDURE FOR THE FORCED INTERNAL

SHORT-CIRCUIT TEST OF IEC 62133:2012

1 Scope
This Technical Report identifies experimental procedures for the forced internal short-circuit
tests in terms of designation, dimensions, tests and requirements. It supplements 8.3.9 of
IEC 62133:2012.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62133:2012, Secondary cells and batteries containing alkaline or other non-acid
electrolytes – Safety requirements for portable sealed secondary cells, and for batteries made
from them, for use in portable applications
3 Experimental procedure of the forced internal short-circuit test
3.1 Example of preparation of nickel particle
3.1.1 Material and tools
The necessary material and tools required for this preparation are listed below.
a) a nickel piece: Prepare nickel plate (soft temper; ISO 6208, NW2200 (Ni 99.0) or
+0,05
NW2201 (Ni 99.0 -LC) 0,10 ± 0,01 mm thick made into a piece 0,20 mm wide and
−0,03
2,00 ± 0,30 mm long by slit processing or using a punching press;
b) a stereomicroscope;
c) a cutter knife;
d) glass slides (2 slides: 1 mm or thicker with square corners);
e) a graph paper (1 mm square);
f) a storage container for nickel particles.
3.1.2 Example of a nickel particle preparation procedure
The following steps are to be undertaken:
a) place graph paper on the stage of the stereomicroscope and focus the microscope on the
lines of the graph paper;
b) while looking through the microscope, place the nickel piece parallel to a line of the graph
paper. The nickel piece should be placed horizontally, with its 0,20 mm sides extending
downward perpendicularly from and its 2,0 mm sides running parallel to the line on the
graph paper;
c) place a glass slide vertically over the left half (1,0 mm) of the nickel piece. Use a line of
the graph paper as a guide to position the edge of the glass slide;

d) while holding the glass slide in place with your fingers, fold and raise the right half

(1,0 mm) of the nickel piece using a cutter;

e) place the other glass slide to the right of the nickel piece to sandwich the raised p
...
